Insat 3C/4CR & Edusat at 74.0°E

Insat 3C/4CR & Edusat at 74.0°E : Technical data

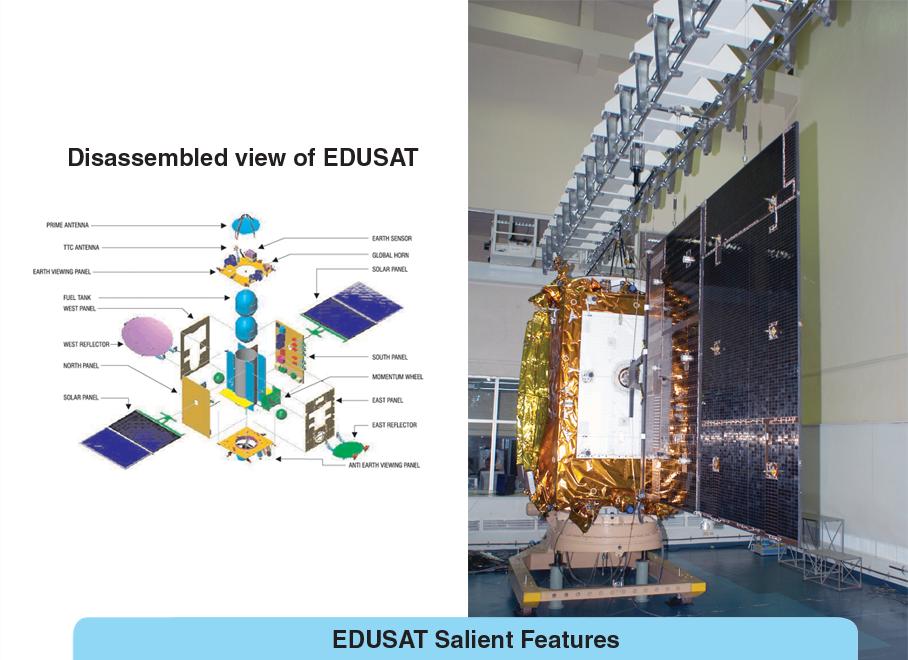

Edusat at 74.0E view of Edusat first picture

Edusat at 74.0°E - KU National & Regional beam coverage _ satellite data

Insat 4CR at 74.0°E - KU Indian beam coverage _ satellite data

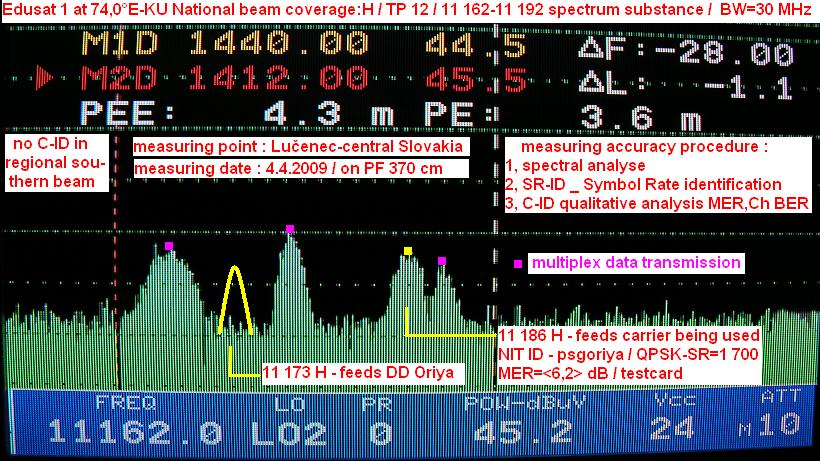

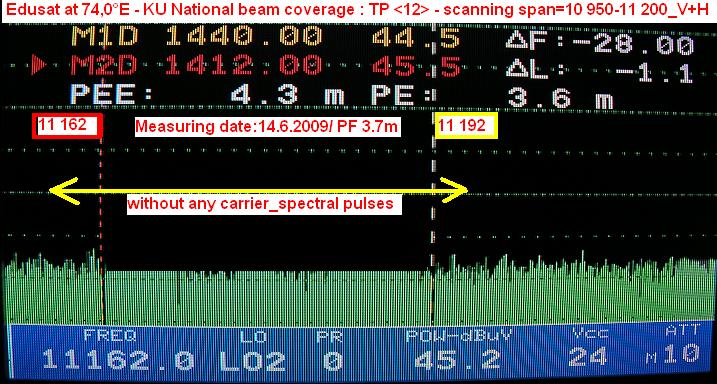

Edusat at 74.0°E - KU National beam coverage : spectral scanning of TP 12 _ H-pol.

                           Edusat at 74.0°E: TP 12 _ H.pol                                         Edusat at 74.0°E: TP 12 _ H.pol
                             date of scanning : 14.6.2009                                               date of scanning : 4.4.2009

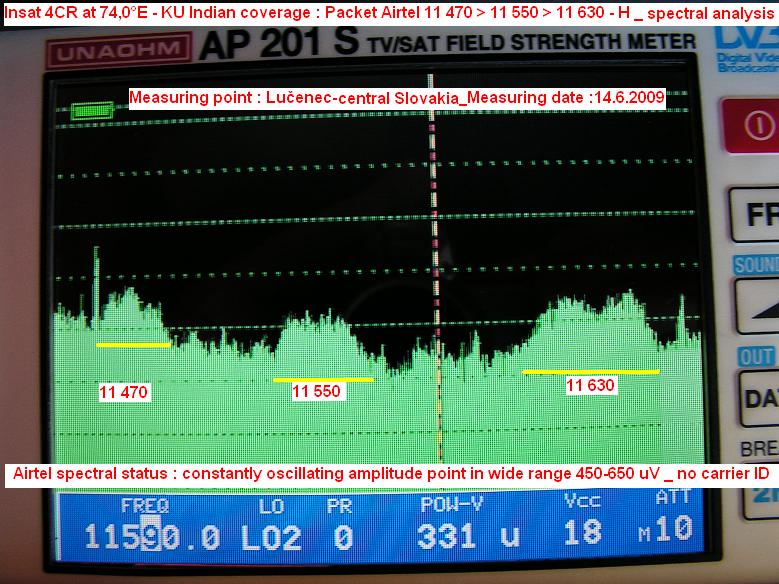

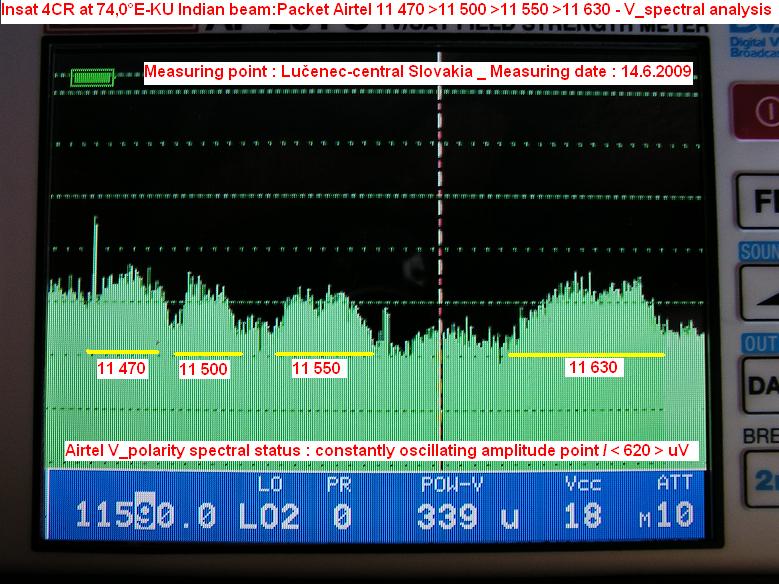

Insat 4CR at 74.0°E - KU Indian beam coverage : Packet Airtel India_spectral analyse

             Insat 4CR at 74.0°E : H-polarity                                          Insat 4CR at 74.0°E : V-polarity
   Packet Airtel : 11 470_11 550_11 630 MHz                    Packet Airtel : 11 470_11 500_11 550_11 630 MHz

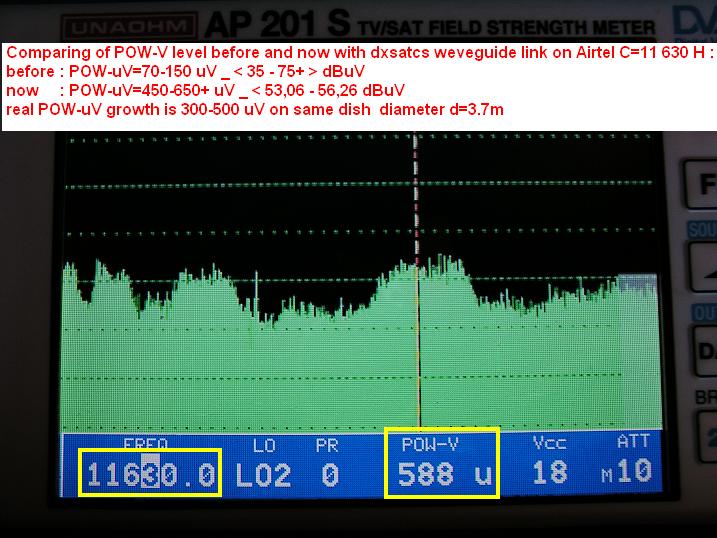

                                                Insat 4CR at 74.0°E : comparing of POV-uV level
                                        11 630 H Packet Airtel : quantification of POV-uV growth

Insat 3C/4CR & Edusat at 74.0°E : TV List

--Frequency--	-----Provider/Channel-----	---SR---	---FEC---	---Footprint---	---Antenna---	---DVB/Encryption---
11 155 -H- tp 12	no service	4 000	2/3	KU National Edusat	240+ cm	-
11 165 -H- tp 12	no service	4 000	2/3	KU National Edusat	240+ cm	-
11 173 -H- tp 12	no service	3 000	2/3	KU National Edusat	300+ cm	-
11 177 -H- tp 12	no service	1 250	2/3	KU National Edusat	240+ cm	-
11 181 -H- tp 12	no service	1 500	2/3	KU National Edusat	240+ cm	-
11 186 -H- tp 12	no service	1 700	2/3	KU National Edusat	300+ cm	-
11 188 -H- tp 12	no service	-	-	KU National Edusat	300+ cm	-
11 470 -H-	Airtel India	28 800	5/6	KU India Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 470 -V-	Airtel India	28 800	5/6	KU India Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 500 -V-	Airtel India	14 400	5/6	KU India Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 550 -V-	Airtel India	28 800	5/6	KU India Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 550 -H-	Airtel India	28 800	5/6	KU India Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 630 -H-	Airtel India	28 800	5/6	KU India Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 630 -V-	Airtel India	28 800	5/6	KU India Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard

Insat 3C/4CR & Edusat at 74.0°E : Percent quality /no C-ID/

Insat 3C/4CR & Edusat at 74.0°E : Video presentation

Insat 3C/4CR & Edusat at 74.0°E : update is from
