ChinaStar 1 at 87.5°E

ChinaStar 1 at 87.5°E : Technical data

Satellite : ChinaStar 1 - Orbit : 87.5°E - TP : 18 C/20 KU - Lifetime : 15 years

Update : ChinaStar 1 at 87.5°E - Global C footprint : spectral analysis & defining the status of income

      ChinaStar 1 at 87.5°E - Global C footprint : measurements at the center Lučenec_central Slovakia
                                      geographical location : Latitude: 48.33° _   Longitude: 19.72°
                                          measurement results are derived from the 3.7 m diameter antenna
                                                                    elevation angle : 3.1°

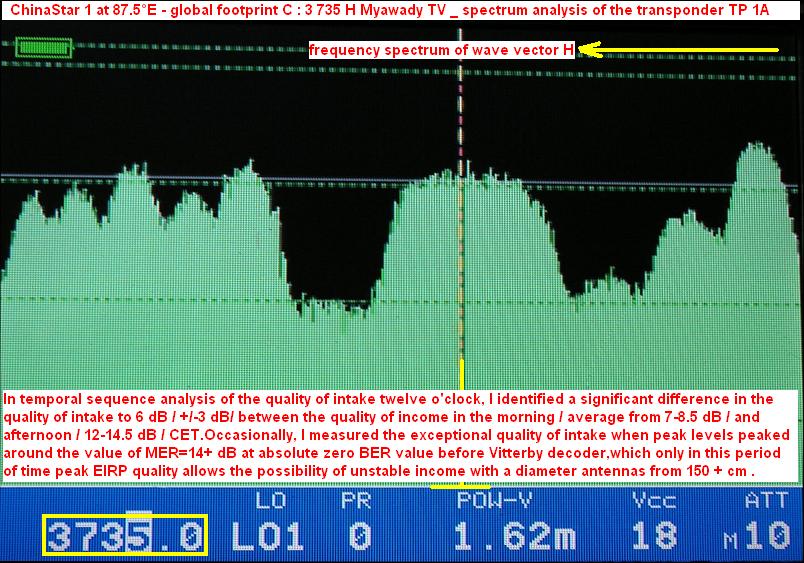

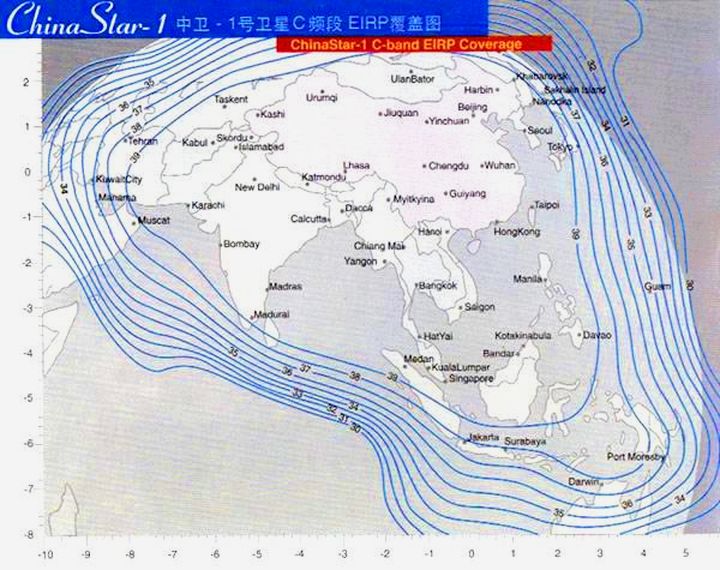

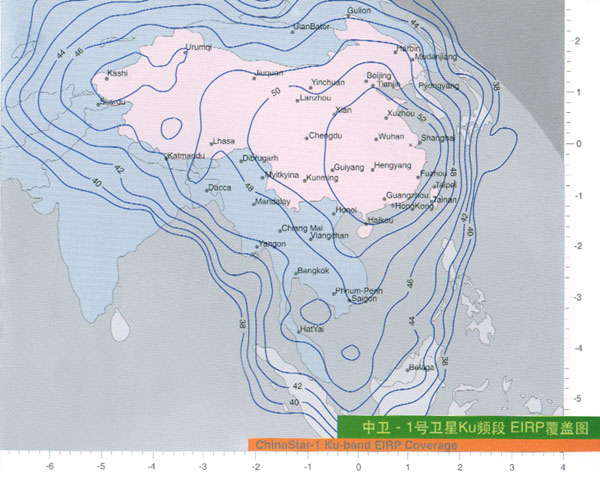

                                 ChinaStar 1 spectral analysis           ChinaStar 1 footprint
TP 1A / vector H : 3 735 Myawady TV Australia , Asia , part of Europe & Africa

                                                        - time of measurement : 14.2.2010 -
                                                                         - defining the status of income -

- In temporal sequence analysis of the quality of intake twelve o'clock, I identified a significant difference in the quality of
intake to 6 dB _+/-3 dB_ between the quality of income in the morning /average from 7-8.5 dB/ and afternoon /12-14.5 dB/ CET.
Occasionally, I measured the exceptional quality of intake when peak levels peaked around the value of MER=14+ dB at absolute
zero BER value before Viterbi decoder,which only in this period of time peak EIRP quality allows the possibility of unstable income
with a diameter antennas from 140 + cm .

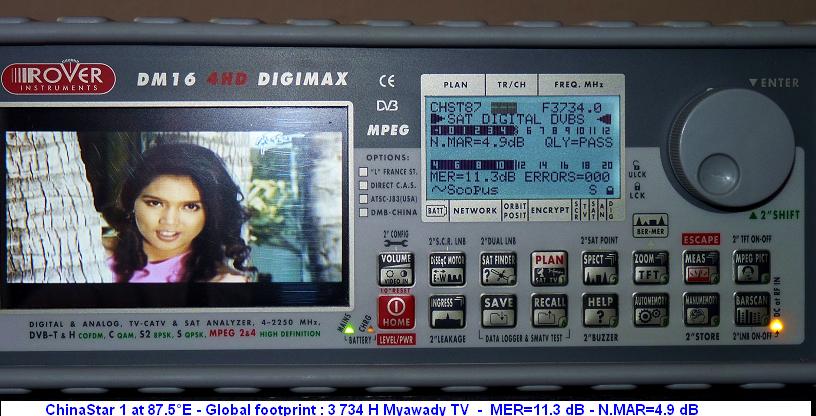

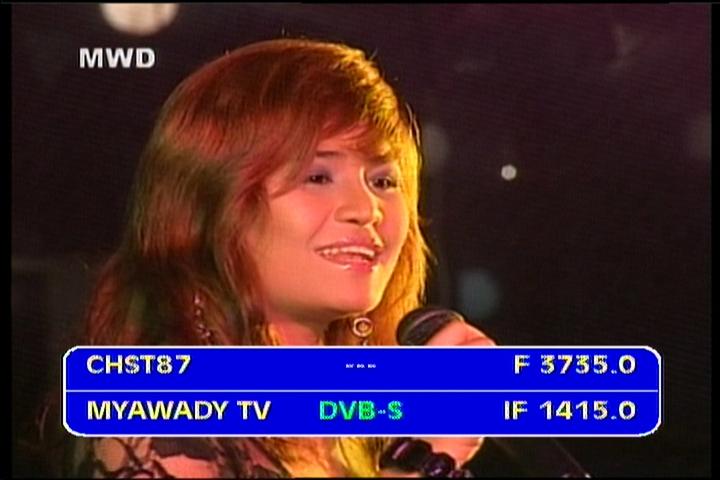

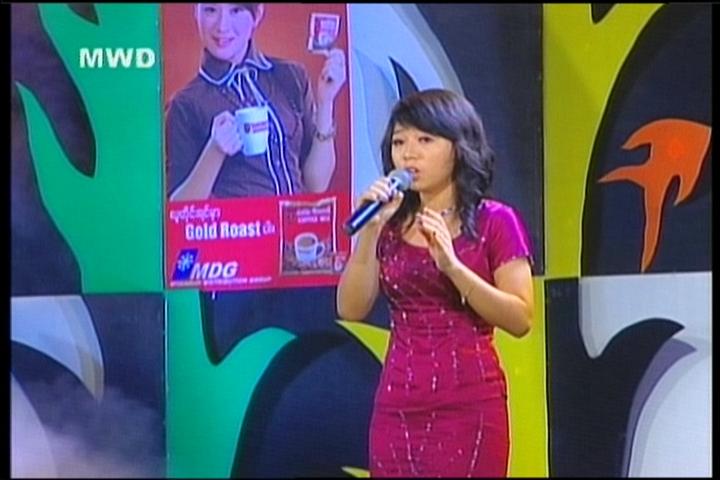

                                   ChinaStar 1 at 87.5°E - global footprint C : 3 735 H Myawady TV Myanmar
                       IF data                                        Q diagnostics                                              NIT table

ChinaStar 1 at 87.5°E - global footprint C : 4 169 V Unnamed MPEG-2 data
spectral analysis IF data Q data

ChinaStar 1 at 87.5°E : TV LIST

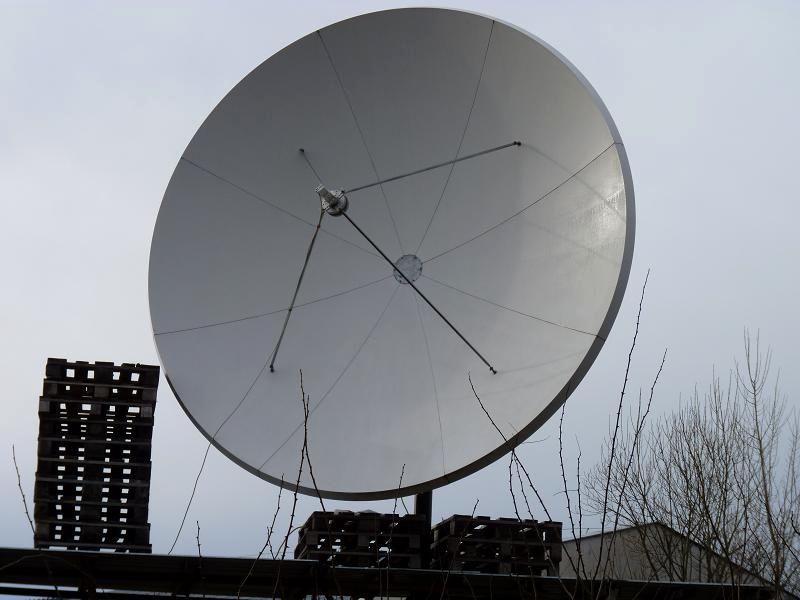

ChinaStar 1 at 87.5 e _ global footprint _PF Prodelin 3.7 m

----Frequency----	----------Provider/Channel----------	---SR---	---FEC---	----Footprint----	---Antenna---	---Video/Encryption---
3 735 -H- tp 1A	Myawady TV Myanmar	5 925	3/4	C SPOT	180-240+ cm	DVB FTA
4 169 -V- tp 9B	Unnamed Data	2 206	3/4	C SPOT	220-240+ cm	MPEG-2/data

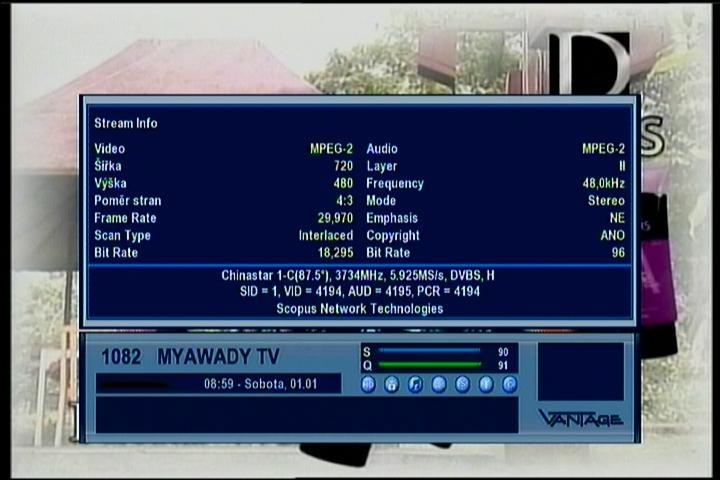

ChinaStar 1 at 87.5°E : relative Q

ChinaStar 1 at 87.5°E : Video presentations

   ChinaStar 1 Videos

ChinaStar 1 at 87.5°E : Update drawn up
