Intelsat 709 at 85,2°E : Technical data
Satellite : Intelsat 709 - Orbit : 85,2°E - TP : 14 KU/26 C - Lifetime : from 15.6.1996 - illimitable
UPDATE _ Intelsat 709 at 85,2°E - SPOT 2 Middle East : 11 593 H & 11 681 H SI Saudi Inteltec data provider

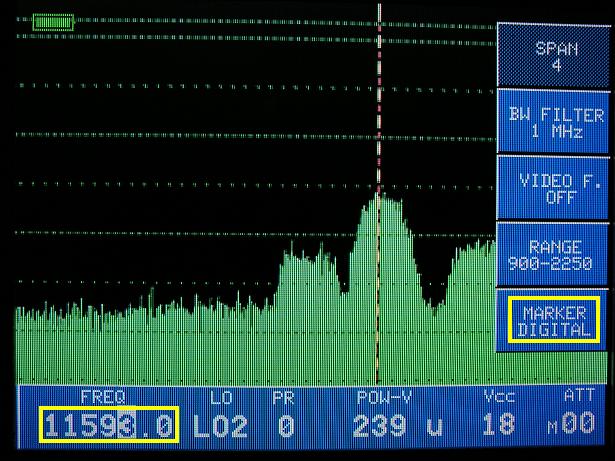

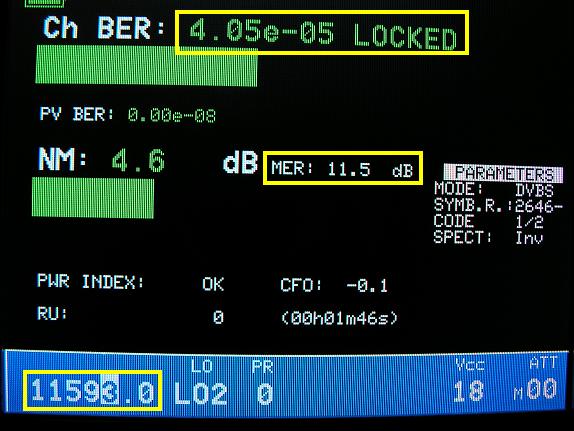

Intelsat 709 at 85,2°E - SPOT 2 Middle East : 11 593 H SI Saudi Inteltec data - MER=11,5 dB _ Ch BER=4.05e-05

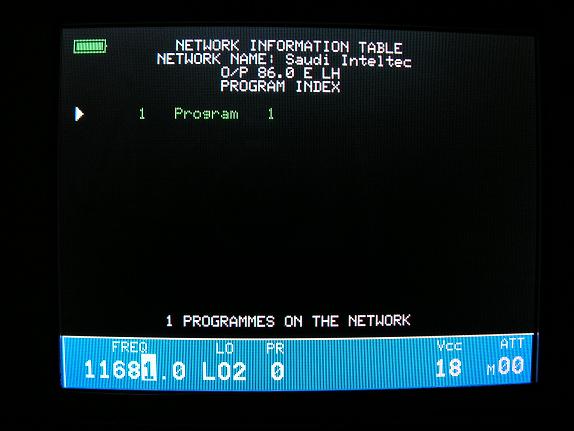

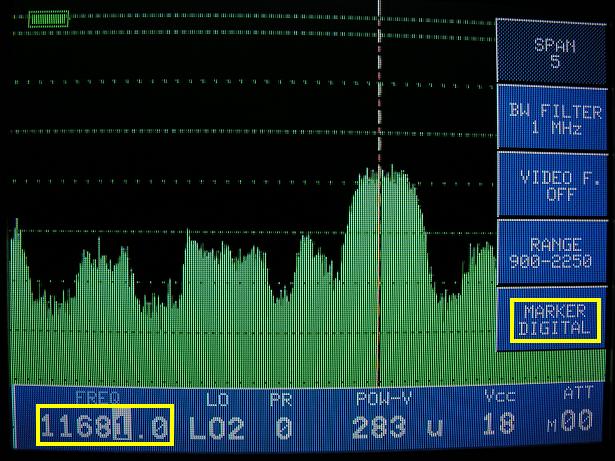

Intelsat 709 at 85,2°E - SPOT 2 Middle East : 11 681 H SI Saudi Inteltec data - MER=12,5 dB _ Ch BER=7.76e-06
Intelsat 709 at 85,2°E : TV LIST / PREHĽAD TV
-----Frequency-----
|
---------Provider/Channel---------
|
---SR--- | ---FEC--- | ------Beam------ | ---Antenna--- | ---DVB/Encryption--- |
|
11 100 -V- tp 72
|
feeds | 2 220 | 3/4 | S2 Middle East | 120+ cm | FTA |
|
11 593 -H-tp 69
|
SI-Saudi Inteltec | 2 646 | 1/2 | SPOT 2 Middle East | 100+ cm | data |
|
11 681 -H-tp 71
|
SI-Saudi Inteltec | 5 425 | 1/2 | SPOT 2 Middle East | 100+ cm | data |
Intelsat 709 at 85,2°E : locked carriers
Intelsat 709 at 85,2°E : Video presentation / only data service/
Download VIDEO :
Intelsat 709 at 85,2°E : Update from
CZECH & SLOVAK DX SATELLITE CLUB
SATELLITE ENGINEERING C & KU band
Roman Dávid - author http://dxsatcs.com/
town : Lučenec , Slovak Republic,East Europe
mail : roman.david@dxsatcs.com

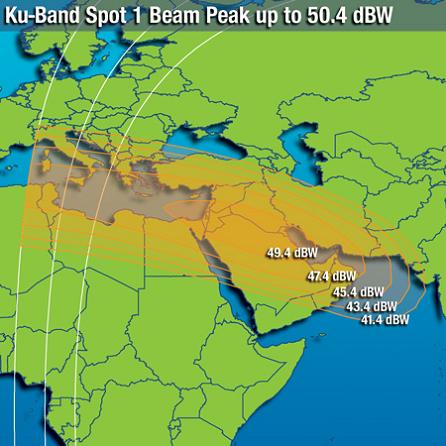

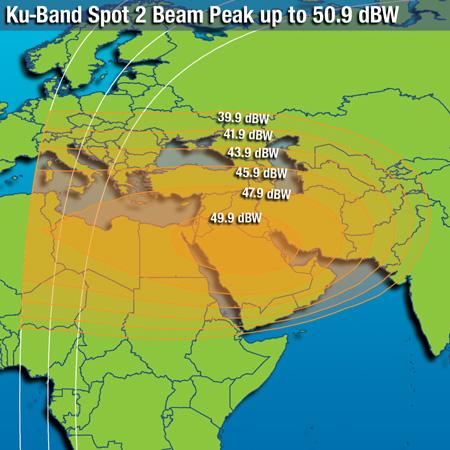

Intelsat 709 at 85,2°E footprint : SPOT 1/SPOT 2/SPOT 3
Intelsat 709 at 85,2°E : TV Snapshots /only data services
