Thaicom 2/5 at 78.5°E

Thaicom 2/5 at 78.5°E: Technical data

                                                                         click for higher quality

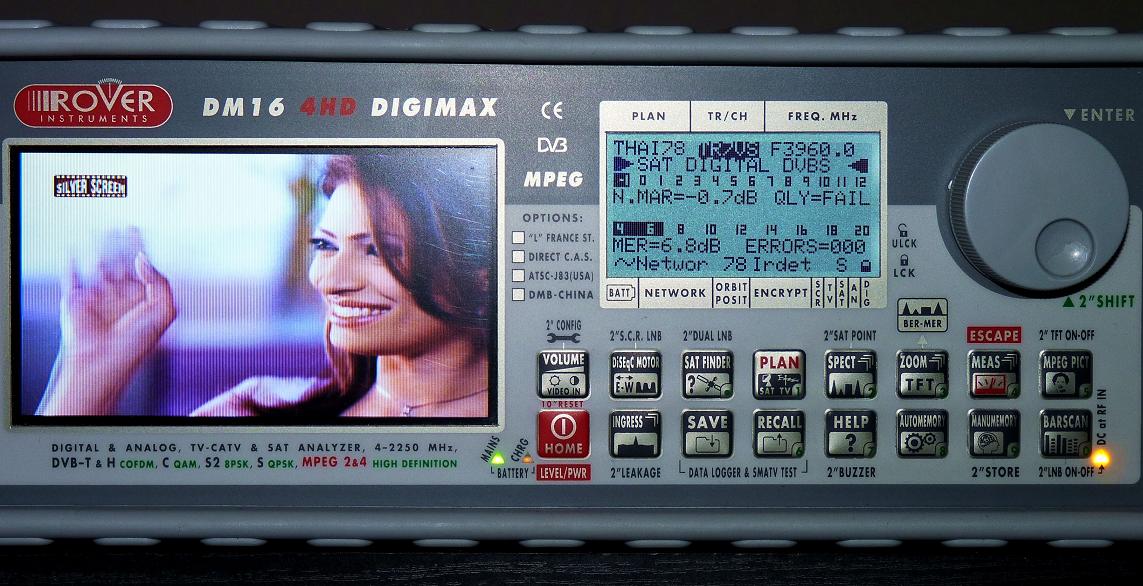

Thaicom 2-5 at 78.5 e _ V regional footprint_ snap 001
                        Satellite : Thaicom 5 - Orbit : 78.5°E - TP : 25 C/14 KU - Lifetime : from 27.5.2006 - 12 years

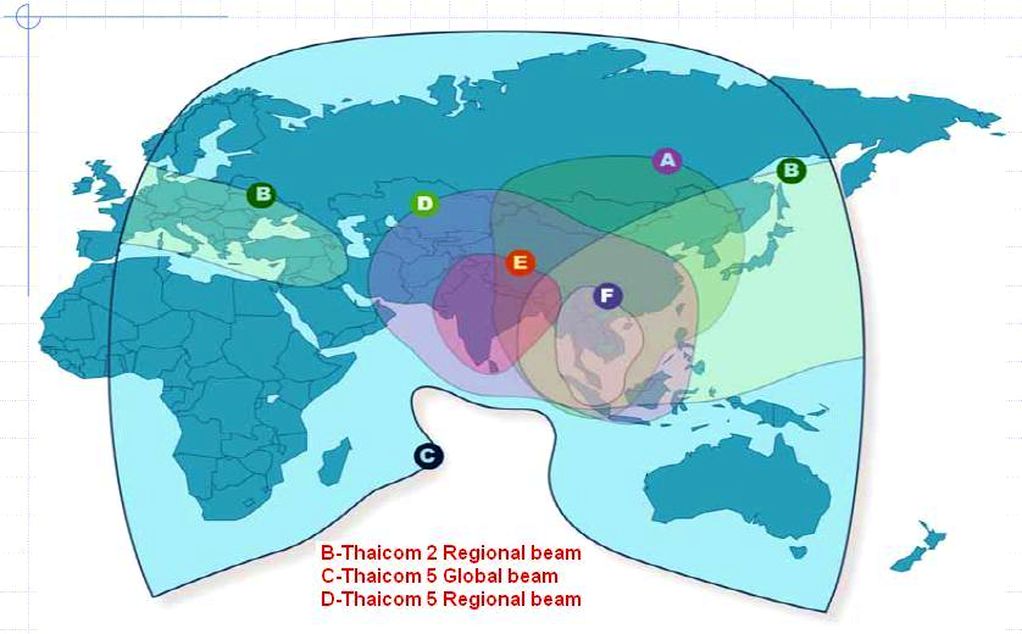

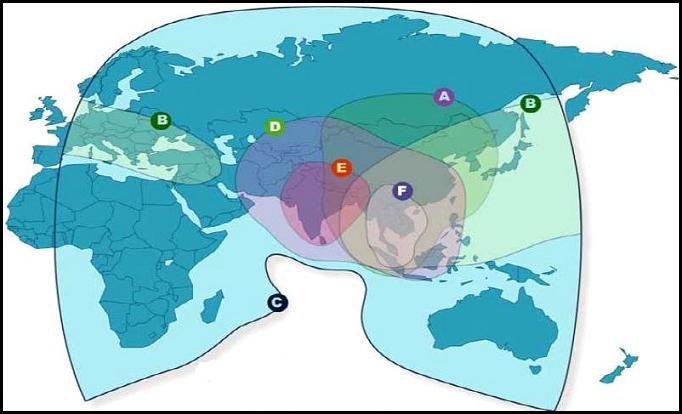

Thaicom 2/5 at 78.5°E-Regional V+H & Global footprint : analysis of the spectrum and measurement results


        Thaicom 2/5 at 78.5°E - Regional V+H & Global footprint : measurements results at intake Lučenec_central Slovakia
                                                 measurement results are derived from the 3.7 m diameter antenna
                                                    geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                                                                  elevation angle  : 11.5°


                Thaicom 5 : spectral analysis_asian coverage                  Thaicom 2/5 footprint
                    part of the -f- spectrum : TP 3+4+5 VE                 zone C: Th 5 global coverage
                               3 505 >>> 3 585 MHz                                 zone B: Th 2 European and Asian coverage
                     analyzed carriers : 3 545 & 3 585 V                     zone D: Th 5 Asian coverage

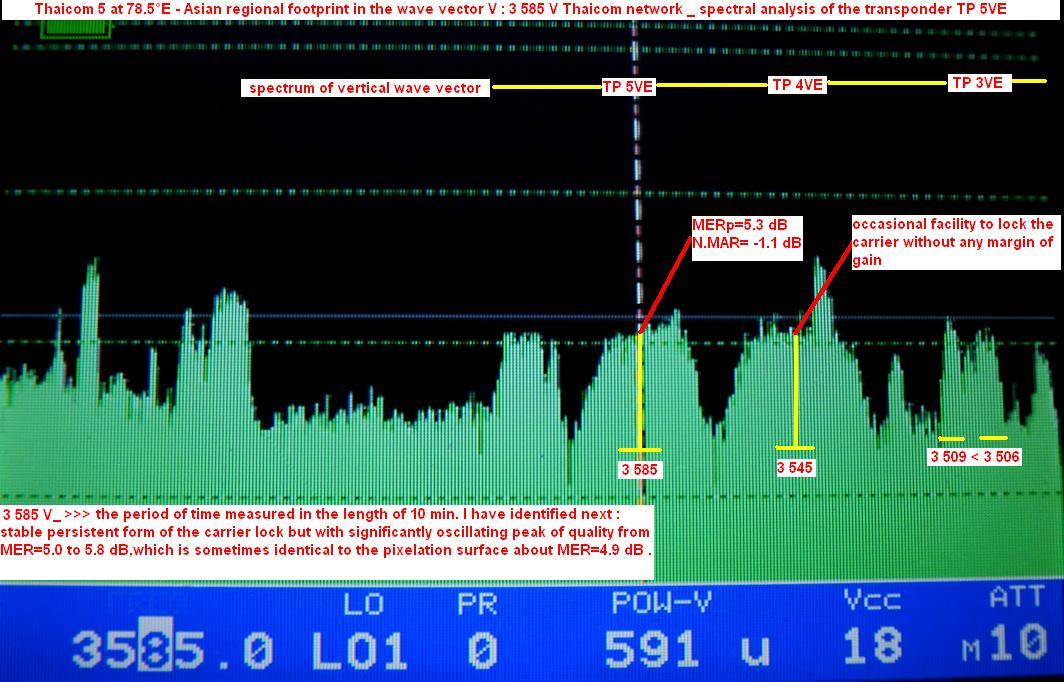

                  Thaicom 2-5 at 78.5 e _spectral analysis                    Thaicom 2-5 at 78.5 e _footprint
                                                           - time of measurement : 28.3.2010 -
                                                                - defining the status of income -

                          --- Thaicom 5 at 78.5°E_Th.5 V Central Asia footprint : 3 585 V Packet Thaicom ---
- the period of time measured in the length of 10 min. I have identified next : stable persistent form of the carrier lock
but with significantly oscillating peak of quality from MER=5.0 to 5.8 dB,which is sometimes identical to the pixelation
surface about MER=4.9 dB .


     ---  DIAGRAM D  >>> results of measurements of carrier transfer from the footprint of central and southern Asia ---

                                     Thaicom 2/5 at 78.5°E - regional footprint : 3 421 V Packet ETC India
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 421 V ETC netw._IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 421 V ETC netw._Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 421 V ETC netw._NIT data

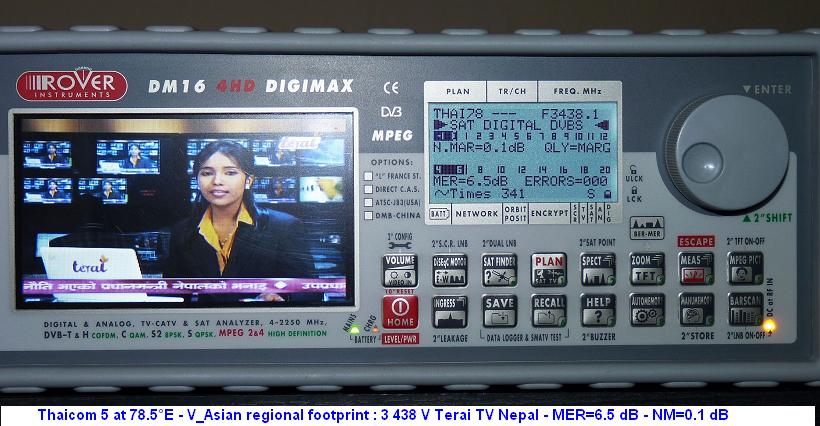

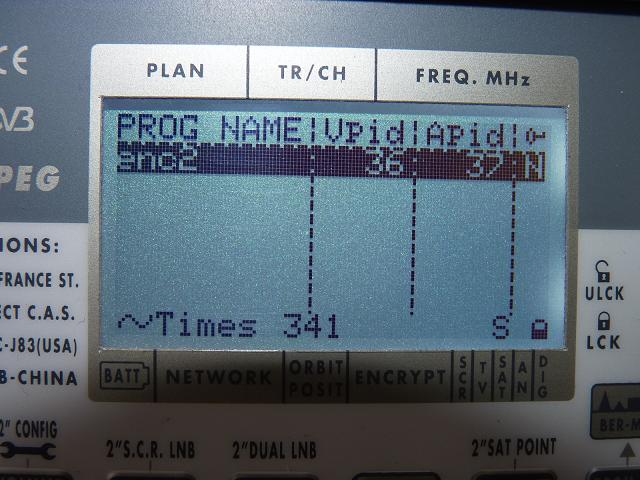

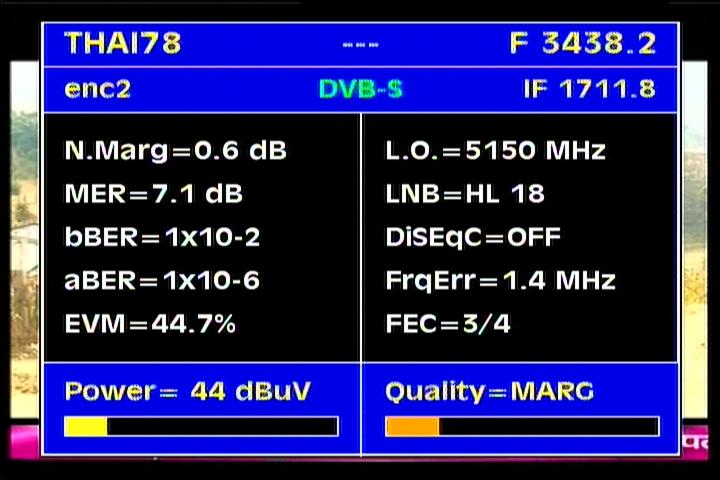

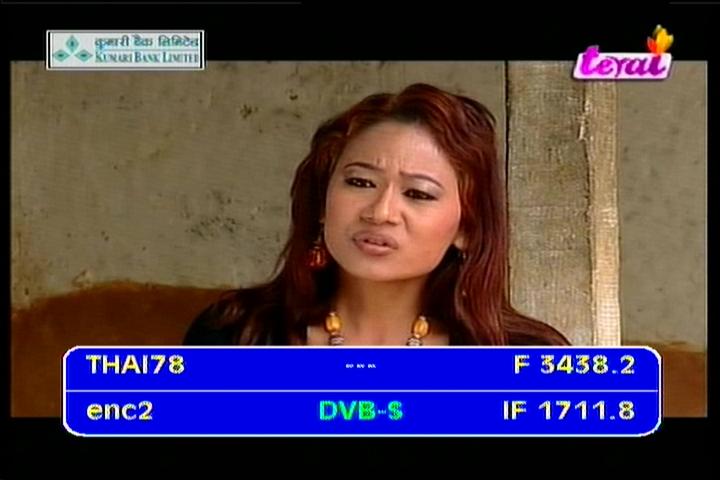

                                             Thaicom 2/5 at 78.5°E - regional footprint : 3 438 V Terai TV
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 438 V Terai _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 438 V Terai _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 438 V Terai _ NIT data

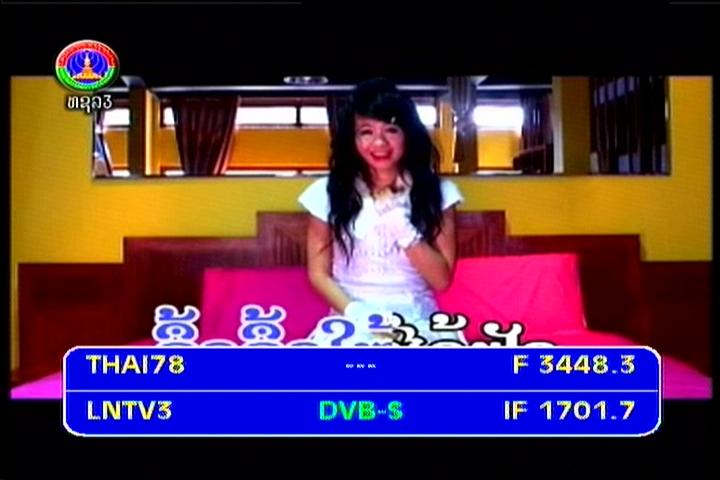

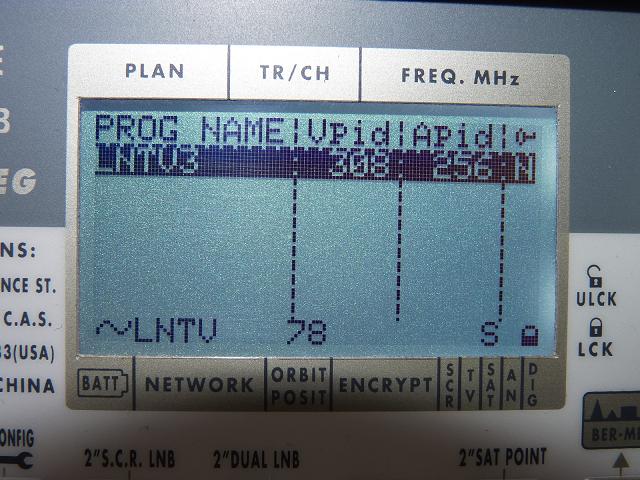

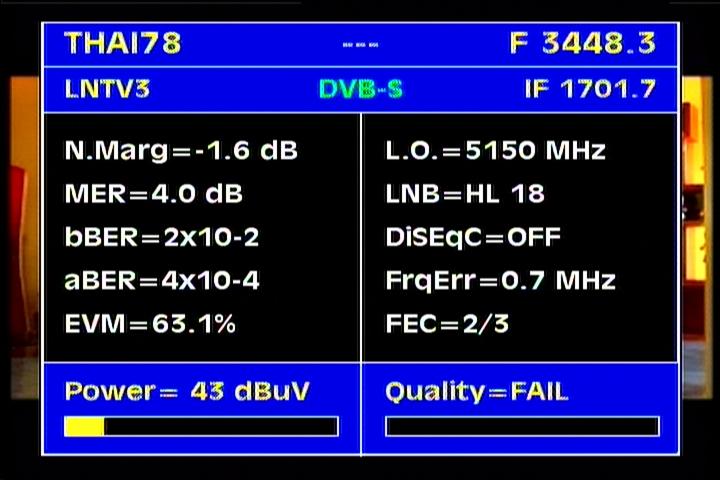

                                                 Thaicom 2/5 at 78.5°E - regional footprint : 3 448 V LNTV
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 448 V LNTV3 _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 448 V LNTV3 _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 448 V LNTV3 _ NIT data

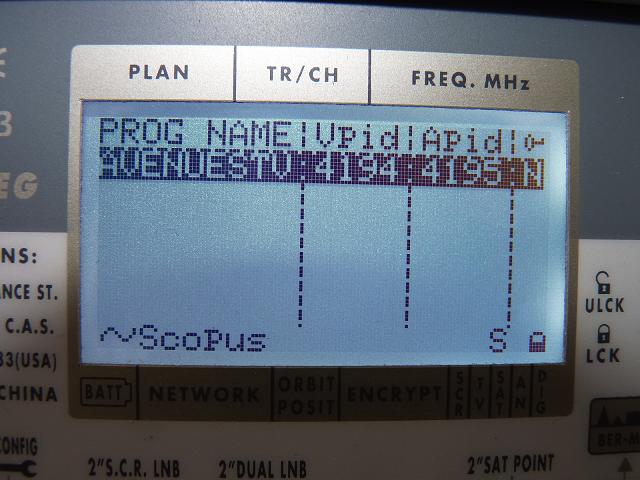

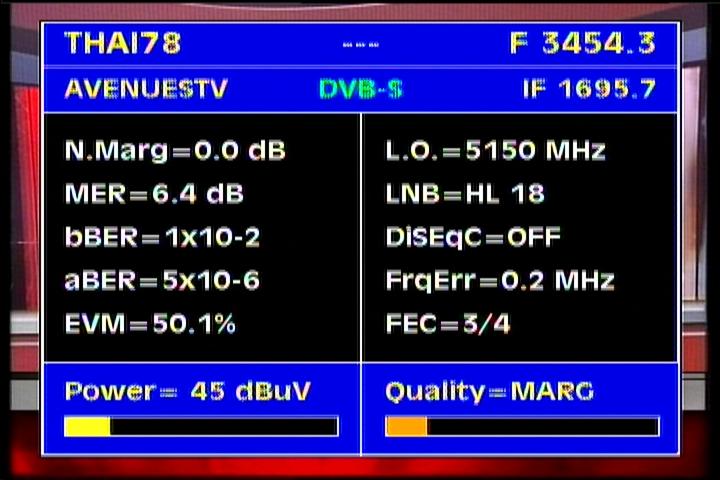

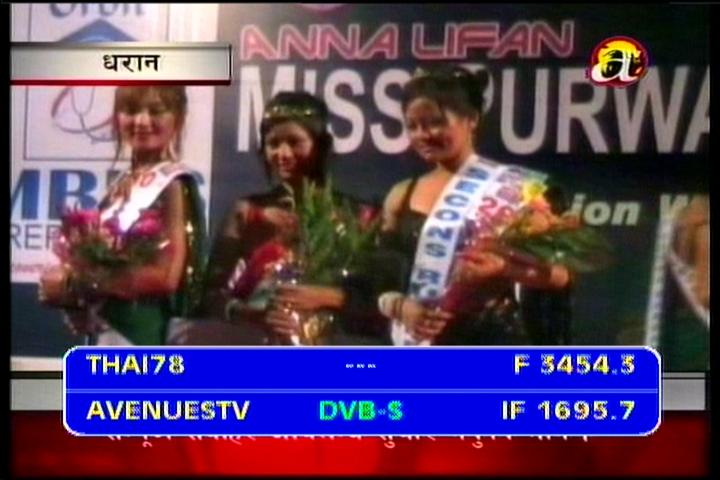

                                          Thaicom 2/5 at 78.5°E - regional footprint : 3 454 V Avenues TV
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 454 V Avenues TV _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 454 V Avenues TV _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 454 V Avenues TV _ NIT data

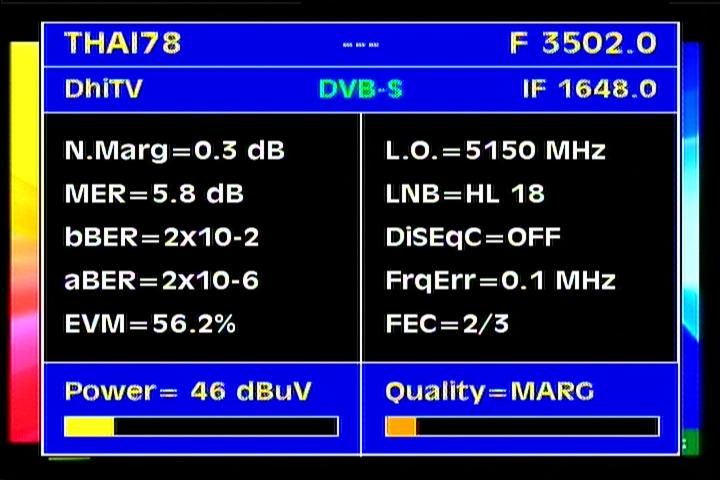

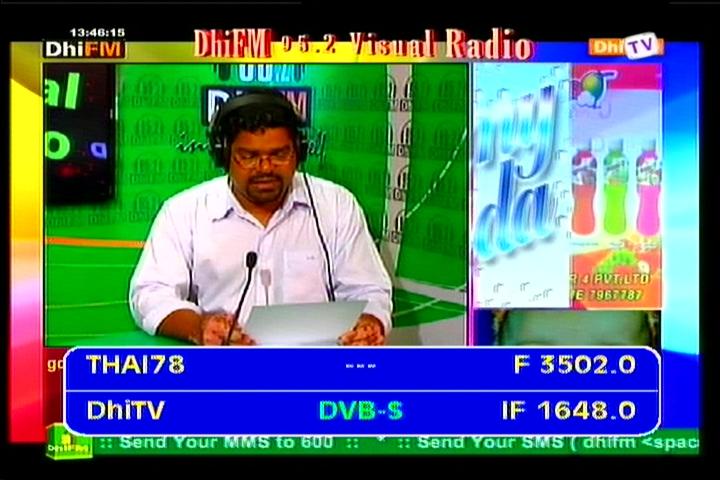

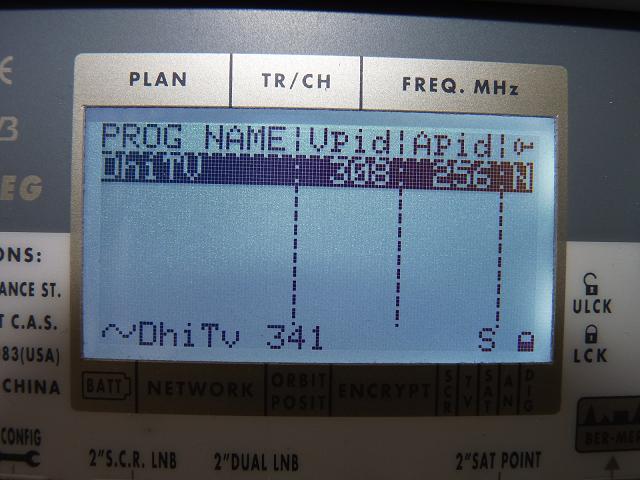

                                                Thaicom 2/5 at 78.5°E - regional footprint : 3 502 V Dhi TV
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 502 V DHI TV _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 502 V DHI TV _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 502 V DHI TV _ NIT data

                                        Thaicom 2/5 at 78.5°E - regional footprint : 3 506 V Doodee Channel
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 506 V Dodee Channel_IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 506 V Dodee Channel_Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 506 V Dodee Channel_NIT data

                                 Thaicom 2/5 at 78.5°E - regional footprint : 3 585 V Packet Thaicom network
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 585 V Packet Thaicom _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 585 V Packet Thaicom _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 585 V Packet Thaicom _ NIT data

                             Thaicom 2/5 at 78.5°E - regional footprint : 3 840 V Packet TATA Communications
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 840 V TATA netw _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 840 V TATA netw _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 840 V TATA netw _ NIT data

                                                Thaicom 2/5 at 78.5°E - regional footprint : 3 873 V FUN tv _ Lite
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 873 V FUN tv_IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 873 V FUN tv_Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 873 V FUN tv_NIT data

                                         Thaicom 2/5 at 78.5°E - regional footprint : 3 912 V Dara Channel
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 912 V Dara Channel_IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 912 V Dara Channel_Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 912 V Dara Channel_NIT data

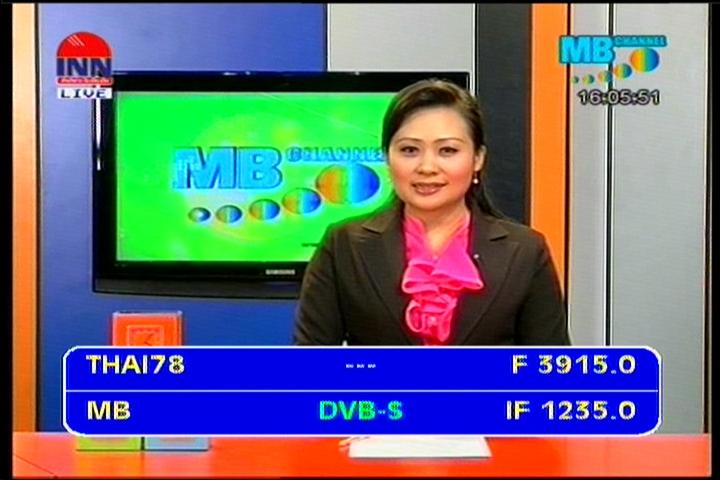

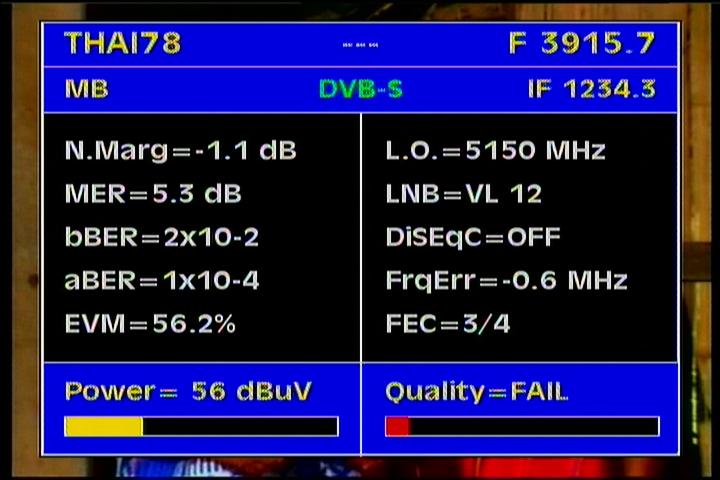

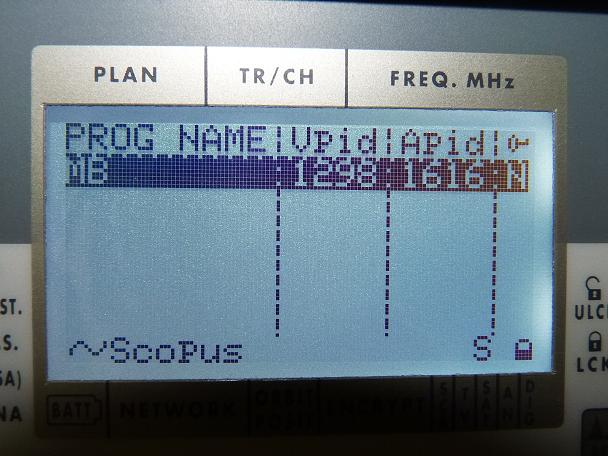

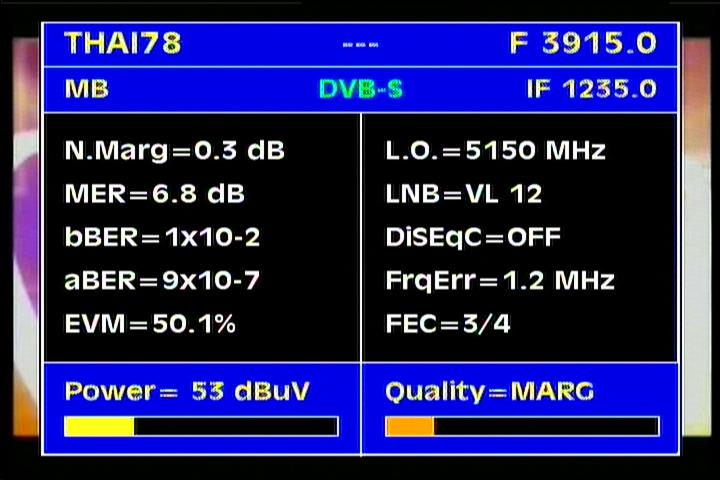

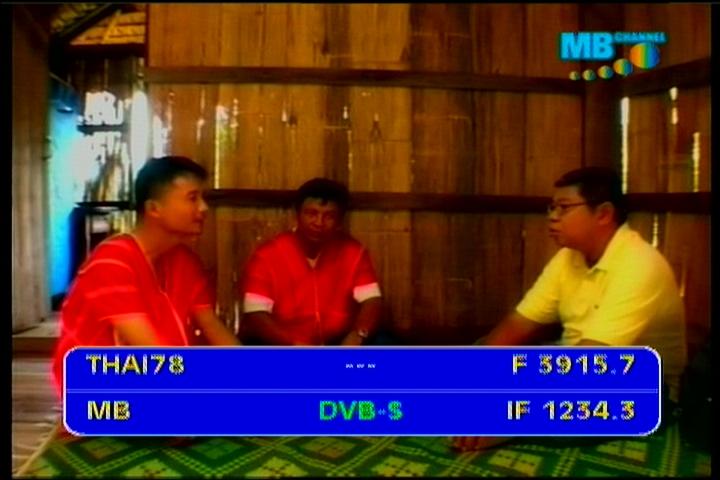

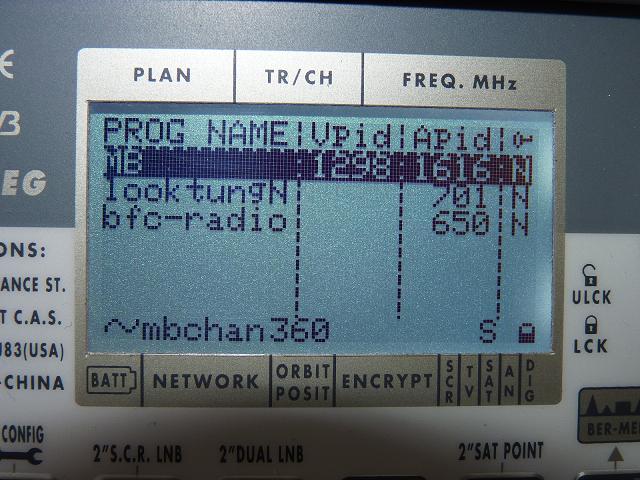

                                               Thaicom 2/5 at 78.5°E - regional footprint : 3 915 V MB TV
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 915 V MB Channel _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 915 V MB Channel _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 915 V MB Channel _ NIT data

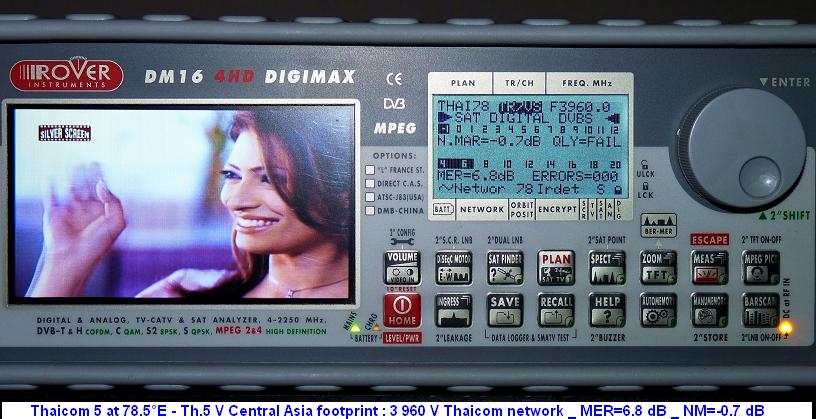

                                  Thaicom 2/5 at 78.5°E - regional footprint : 3 960 V Packet Shinsat Network
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 960 V Packet Thaicom _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 960 V Packet Thaicom _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 960 V Packet Thaicom _ NIT data

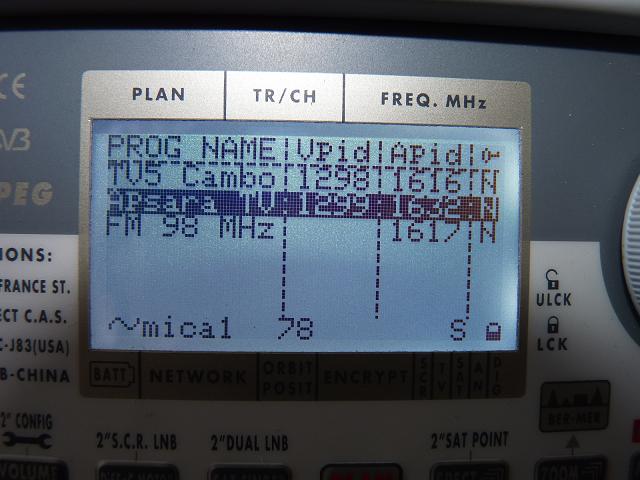

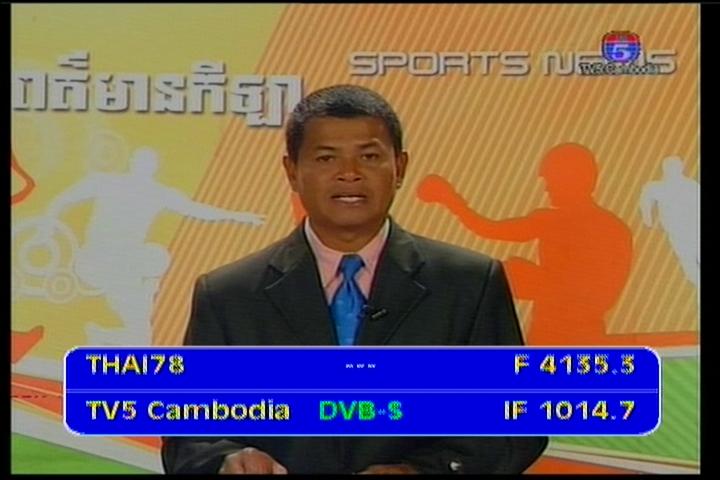

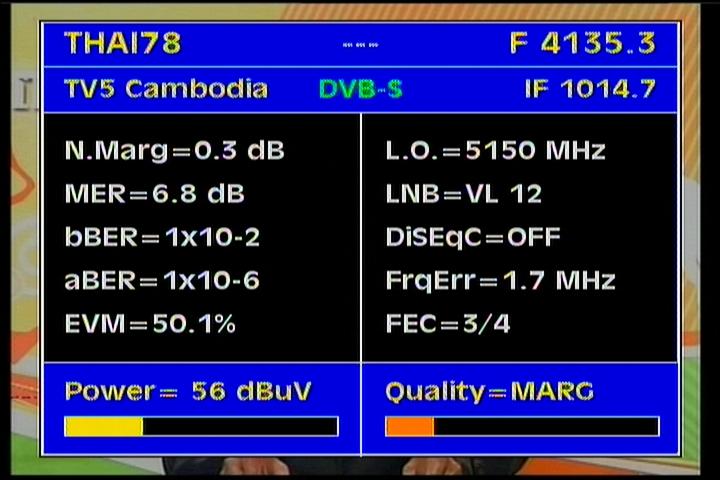

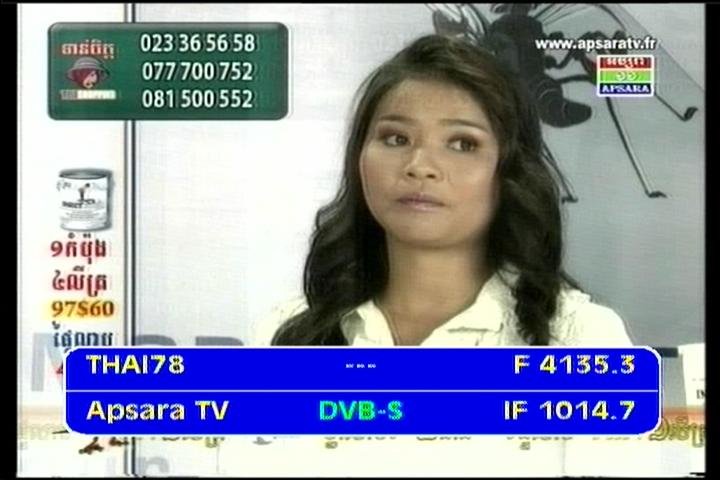

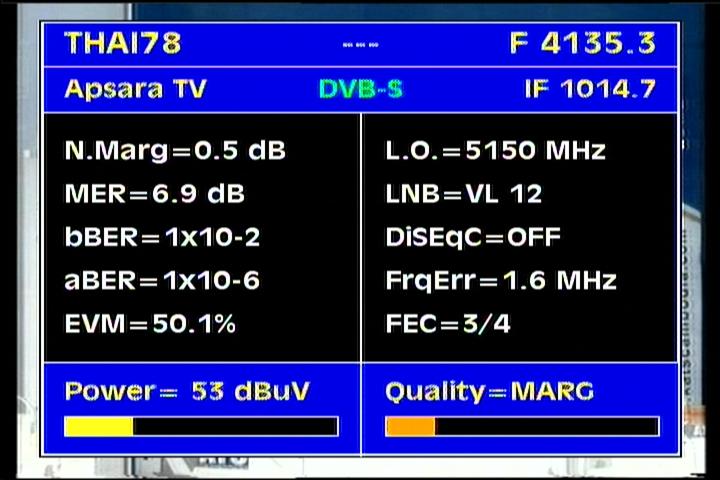

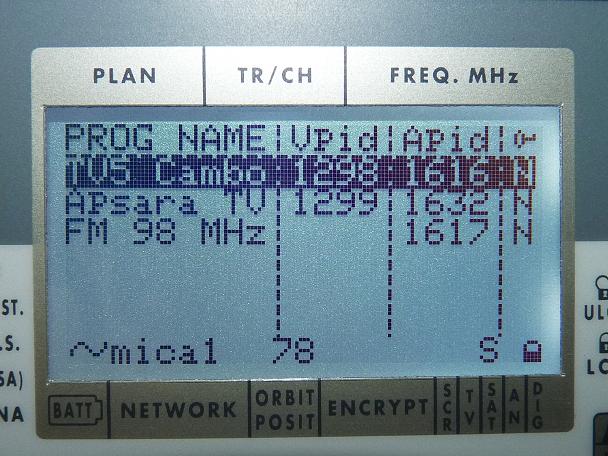

                                               Thaicom 2/5 at 78.5°E - regional footprint : 4 135 V mica 1
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 4 135 V Apsara TV _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 4 135 V Apsara TV _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 4 135 V Apsara TV _ NIT data

       --- DIAGRAM B  >>> results of measurements of carrier transfer from the footprint of Southeast Asia and Europe ---

                                    Thaicom 2/5 at 78.5°E - European/Asian footprint : 3 764 H BBTV CH7
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H european footprint_ 3 764 H BBTV Ch 7 _IF dataThaicom 2-5 at 78.5 e _ H european footprint_ 3 764 H BBTV Ch 7 _Q dataThaicom 2-5 at 78.5 e _ H european footprint_ 3 764 H BBTV Ch 7 _NIT data

                                  Thaicom 2/5 at 78.5°E - European/Asian footprint : 3 888 H Packet MCOT
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H european footprint_ 3 888 H Packet MCOT _IF dataThaicom 2-5 at 78.5 e _ H european footprint_ 3 888 H Packet MCOT _Q dataThaicom 2-5 at 78.5 e _ H european footprint_ 3 888 H Packet MCOT _NIT data

                                  Thaicom 2/5 at 78.5°E - European/Asian footprint : 3 905 H ATV CH-5
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H european footprint_ 3 905 H ATV Ch5 _IF dataThaicom 2-5 at 78.5 e _ H european footprint_ 3 905 H ATV Ch5 _Q dataThaicom 2-5 at 78.5 e _ H european footprint_ 3 905 H ATV Ch5 _NIT data

                                      Thaicom 2/5 at 78.5°E - European/Asian footprint : 3 967 H BEC CH3
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H european footprint_ 3 967 H BEC Ch 3 _IF dataThaicom 2-5 at 78.5 e _ H european footprint_ 3 967 H BEC Ch 3 _Q dataThaicom 2-5 at 78.5 e _ H european footprint_ 3 967 H BEC Ch 3 _NIT data

                          ---  DIAGRAM C  >>> results of measurements of carrier transfer from the Global footprint ---

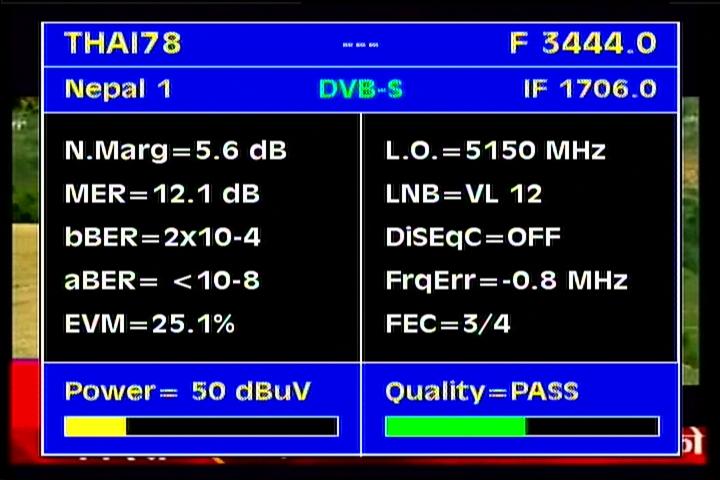

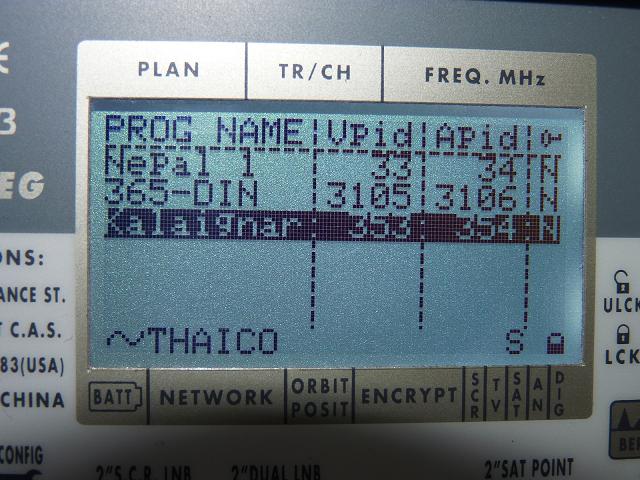

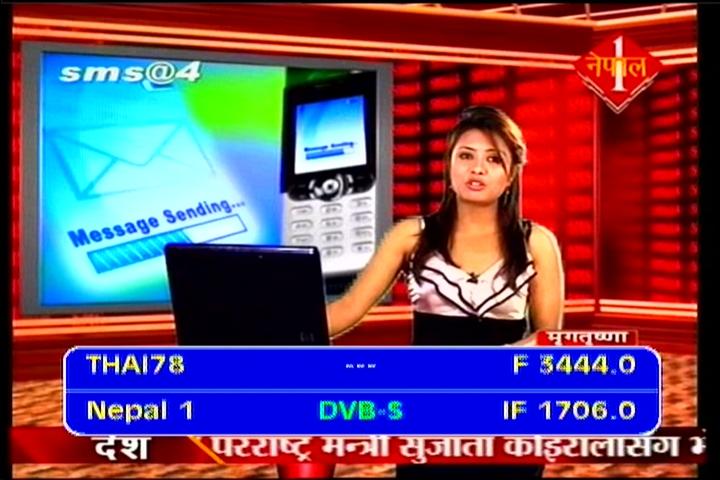

                                      Thaicom 2/5 at 78.5°E - Global footprint : 3 444 H Packet Thaicom
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H global footprint_ 3 444 H Packet Thaicom_IF dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 444 H Packet Thaicom_Q dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 444 H Packet Thaicom_NIT data

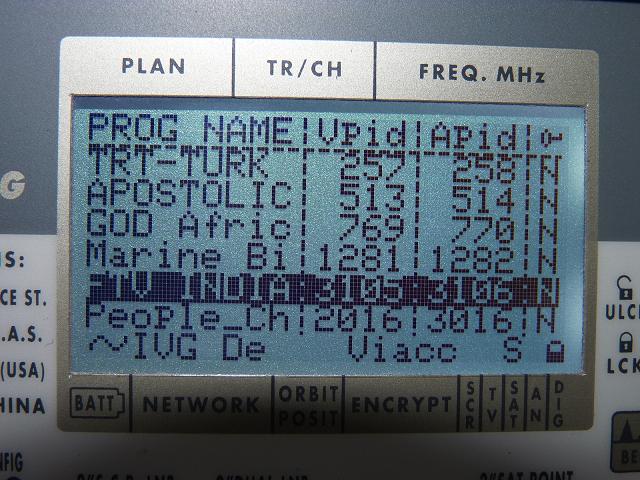

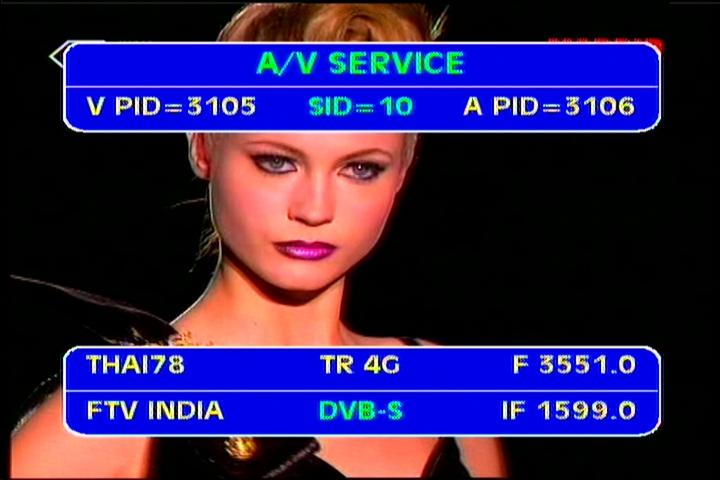

                                     Thaicom 2/5 at 78.5°E - Global footprint : 3 551 H Packet RRSat Global
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H global footprint_ 3 551 H Packet RRSat_IF dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 551 H Packet RRSat_Q dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 551 H Packet RRSat_NIT data

                                          Thaicom 2/5 at 78.5°E - Global footprint : 3 562 H VTV Maldives
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H global footprint_ 3 563 H VTV Maldives _IF dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 563 H VTV Maldives _Q dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 563 H VTV Maldives _NIT data

                                          Thaicom 2/5 at 78.5°E - Global footprint : 3 574 H Packet MRTV
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H global footprint_ 3 574 H MRTV netw._IF dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 574 H MRTV netw._Q dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 574 H MRTV netw._NIT data

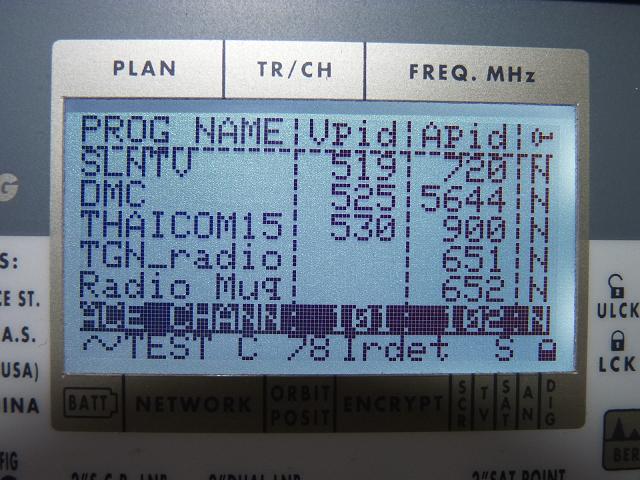

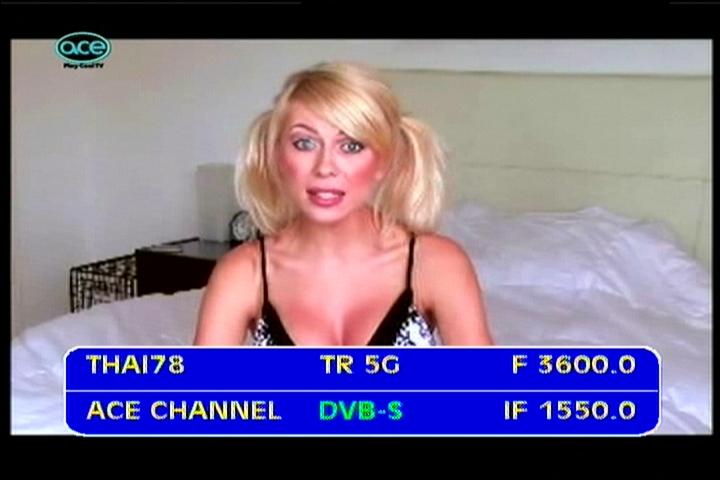

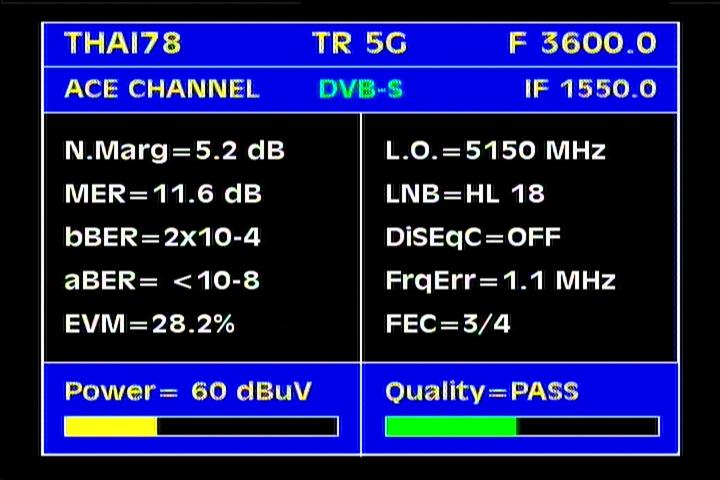

                                       Thaicom 2/5 at 78.5°E - Global footprint : 3 600 H Packet Thaicom
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H global footprint_ 3 600 H Packet Thaicom_IF dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 600 H Packet Thaicom_Q dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 600 H Packet Thaicom_NIT data

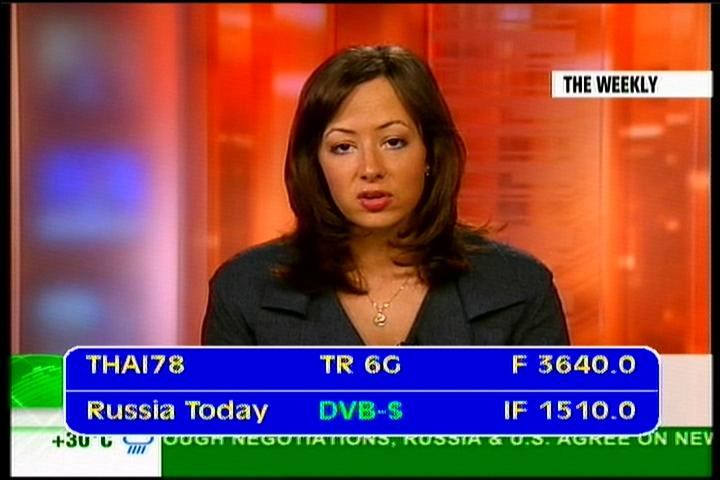

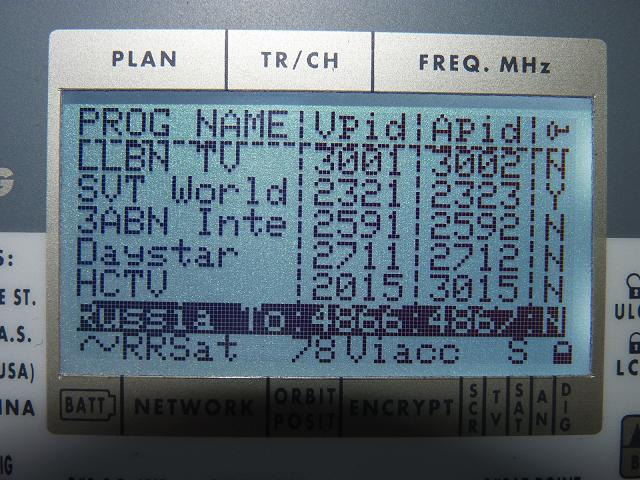

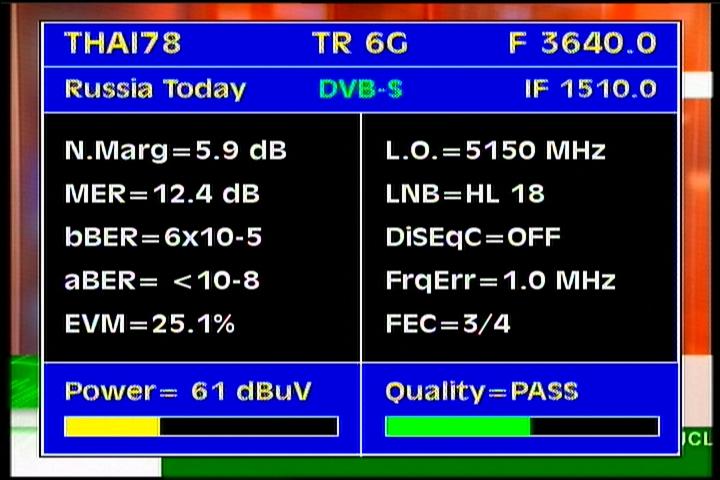

                                 Thaicom 2/5 at 78.5°E - Global footprint : 3 640 H Packet RRSat Global
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H global footprint_ 3 640 H Packet RRSat_IF dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 640 H Packet RRSat_Q dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 640 H Packet RRSat_NIT data


Thaicom 2/5 at 78.5°E : TV List

Thaicom 2-5 at 78.5 e _ regional global footprint_PF Prodelin 3.7 m


---Frequency---


--------Provider/Channel--------

---SR--- --FEC-- -----Footprint-----  --Antenna-- Video/Encryption

3 422 -V- tp 1VE

 ETC India 6 667 3/4 Th.5 V Central Asia 300-600+ cm DVB
  ETC / SCOPUS-NET-TECO   watch video         FTA
  ETC Punjabi / SCOPUS  watch video         FTA
3 431 -H- tp 1G left - - - - -

3 433 -V- tp 1VE

 Nepal TV 6 667 3/4 Th.5 V Central Asia 340-600+ cm DVB
  Nepal Television         FTA
  Nepal Television         FTA

3 438 -V- tp 1VE

 Terai TV watch video   watch video
 		 3 333 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 444 -H-tp 1G

Thaicom network

 5 185 3/4 Th.5 H Global 220-250+ cm DVB
  Nepal 1         FTA
  365 Din TV         FTA
  Kalaignar TV         FTA

3 448 -V- tp 2VE

 LNTV    watch video 2 917 2/3 Th.5 V Central Asia 300-600+ cm DVB FTA

3 451 -H- tp 1G

 EMP Europe Media Port
 		 7 188 2/3 Th.5 H Global 220-250+ cm DVB
  Manmin TV         FTA
  Hadi TV         FTA

3 451 -V- tp 2VE

RU TV 2

 1 085 3/4 Th.5 V Central Asia 300-600+ cm DVB

3 454 -V- tp 2VE

 Avenues TV     watch video 3 333 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 457 -V- tp 2VE

 ONE Channel Asia 2 222 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 459 -V- tp 2VE



RU TV 1

 1 085 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 462 -V- tp 2VE

Panyapiwat

 2 857 3/4 Th.5 V Central Asia 300-600+ cm DVB
  Panyapiwat 1         Biss
  Panyapiwat 2         Biss

3 489 -V- tp 3VE

 Sagarmatha TV 3 333 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 502 -V- tp 3VE

 Dhi tv    watch video 4 444 2/3 Th.5 V Central Asia 340-600+ cm DVB FTA

3 504 -H- tp 3G

 KCTV-Korean Central TV 3 367 2/3 Th.5 H Global 220-250+ cm DVB FTA

3 506 -V- tp 3VE

 Doodee Channel     watch video 1 852 3/4 Th.5 V Central Asia 360-600+ cm DVB FTA

3 509 -V- tp 3VE

ICT Network

 3 333 3/4 Th.5 V Central Asia 360-600+ cm DVB FTA

3 522 -V- tp 3VE

 Lao Star Channel 2 917 3/4 Th.5 V Central Asia 360-600+ cm DVB FTA

3 545 -V- tp 4VE

 Thaicom 30 000 5/6 Th.5 V Central Asia 360-600+ cm DVB
  TV Pool channel         FTA
  SBB TV         FTA
  Media Channel         Irdeto 2
  Muslim tv Thailand         FTA
  Mongkol Channel         FTA
  Chinese/Bangkok Channel         FTA
  Supercheng tv         FTA
  Neo TV         FTA
  thaicom test card         FTA
  thaicom test card         FTA
  Voice TV         FTA
  Bang TV         FTA
  Green+         FTA
  ACTS Channel         FTA
  Fan TV / Thai Variety Ch.         FTA
  In tv         FTA
  Jawelry TV         FTA
  Saha Channel         FTA

3 551 -H- tp 4GL

 RRSat Global Network 13 333 3/4 Th.5 H Global 220-250+ cm DVB
  TRT Turk         FTA
  Apostolic Oneness         FTA
  GOD Africa         FTA
  Marine Biz TV         FTA
  FTV India    watch video         FTA
  People Channels         FTA

3 562 -H- tp 4G

 Island Broadcasting 4 444 1/2 Th.5 H Global 220-250+ cm DVB
  VTV Maldives         FTA

3 574 -H- tp 4G

 MRTV Myanmar 7 492 2/3 Th.5 H Global 220-250+ cm DVB
  MRTV         FTA
  MRTV 3         FTA
  IP DATA 1         data
  IP DATA 2         data

3 585 -V- tp 5VE

 Thaicom 26 667 3/4 Th.5 V Central Asia 340-600+ cm DVB
  MV_Major         FTA
  MV_News         FTA
  MV_HIT STATION         FTA
  MV_H Plus Channel         FTA
  MV_MV5      watch video         FTA
  MV_Star         FTA
  ETC PUNJABI         FTA
  ETC    watch video         FTA
  BTV         FTA
  TTN         Irdeto
  P5 TV         FTA
  AI-Net Channel         FTA
  MV_MIX         FTA
  MV_MyTV         FTA
  MV_Variety         FTA
  Dara Channel         FTA

3 600 -H- tp 5G

 Thaicom 26 667 3/4 Th.5 H Global 220-250+ cm DVB
  TV 5 Global         FTA
  ACE Channel         FTA
  PEAK Channel         FTA
  VTV 4         FTA
  SLN TV         FTA
  AFC / Asian Food Channel         Irdeto 2
  1 Variety         FTA
  Miracle         FTA
  Pop Channel         FTA
  Thai Chai Yo         FTA
  Earth         FTA
  Football Plus         FTA
  Click Asia         FTA
  2 Tango         FTA
  DMC         FTA

3 617 -V- tp 6VE

 MRTV Myanmar 12 500 3/4 Th.5 V Central Asia 360-600+ cm DVB
  MRTV         Conax
  MRTV         FTA
  MRTV 3         FTA
  MRTV 4         FTA
  5 Cartoon         Conax
  5 Movies         Conax
  5 Series         Conax
  5 Series 2         Conax
  Multi Max         Conax
  ESPN Asia         Conax
  Star Sports Asia         Conax

3 640 -H- tp 6G

 RRSat Global Network 28 066 3/4 Th.5 H Global 220-250+ cm DVB
  BVN TV         FTA
  KurdSat         FTA
  LLBN TV         FTA
  SVT World         Viaccess 2.6
  3ABN International         FTA
  Daystar TV         FTA
  HCTV Horn Cable TV         FTA
  Russia Today         FTA
  TCT World         FTA
  Universal TV         FTA

3 665 -H- tp 7G

 TVK Cambodia 3 704 3/4 Th.5 H Global 250+ cm DVB

3 711 -V- tp 1VS

 STV Network 13 333 3/4 Th.5 V Central Asia 340-600+ cm DVB
  STV Haryana News  watch video         FTA
  Punjab Today         FTA
  Punjab Today         FTA

3 730 -V- tp 1VS

 left



3 765 -H- tp 2H

 BBTV Channel 7 Thailand   watch video 5 900 3/4 Th.2 H Regional 220+ cm DVB

3 797 -H- tp 3H

 Radio Thailand network 2 592 3/4 Th.2 H Regional 220+ cm DVB

3 803 -H- tp 3H

 SBT TV / Luangtabua 1 445 7/8 Th.2 H Regional 220+ cm DVB

3 815 -V- tp 3VS

 left


3 840 -V- tp 4VS

 TATA Communications
 26 667 3/4 Th.5 V Central Asia 340-600+ cm DVB
  Nepal 1         FTA
  Sadhana         FTA
  TV99    watch video         FTA
  365-DIN         FTA
  Sanskar TV         FTA
  Care World         FTA
  Kalaignar Asia         MPEG-4/FTA

3 870 -H- tp 4H

 feeds ModerNine Yav ... 2 962 3/4 Th.2 H Regional 220-360+ cm FTA/Biss/4:2:2

3 873 -V- tp 5VS

 FUN TV Pakistan / Lite    watch video 2 895 3/4 Th.5 V Central Asia 340-600+ cm DVB

3 877 -H- tp 4H

 feeds ModerNine Yav ... 3 333 3/4 Th.2 H Regional 220-360+ cm FTA/Biss/4:2:2

3 888 -H- tp 5H

 MCOT Modernine TV Thailand 15 625 3/4 Th.2 H Regional 220-270+ cm DVB
  Modernine TV         FTA
  Asean TV         FTA
  MCOT FULL HD 1920x1088  watch video         MPEG-4/HD/FTA

3 905 -H- tp 5H

 ATV CH-5 Thailand     watch video 6 250 3/4 Th.2 H Regional 220+ cm DVB

3 908 -V- tp 6VS

CAT Telecom promo

 2 295 3/4 Th.5 V Central Asia 340-600+ cm DVB FTA

3 912 -V- tp 6VS

 Dara to Non
 		 1 852 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA


3 915 -V- tp 6VS

 MB Channel
 		 2 222 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 920 -V- tp 6VS

 Panyapiwat
 		 2 857 3/4 Th.5 V Central Asia 300-600+ cm DVB
  Panyapiwat 1         Biss
  Panyapiwat 2         Biss

3 921 -H- tp 6H

 feeds 4 MHz , PAL , 2Au
 		 3 734 3/4 Th.2 H Regional 220+ cm feeds

3 946 -H- tp 6H

 feeds Sea Games CAT 9
 		 4 262 3/4 Th.2 H Regional 220+ cm feeds

3 960 -V- tp 7VS

 Shinsat Network 30 000 5/6 Th.5 V Central Asia 340-600+ cm DVB
  Joo Music Ch.         FTA
  Oho Channel         FTA
  APNA Channel         FTA
  Filmazia         FTA
  Good news         FTA
  Jan Sandesh         FTA
  You Channel         FTA
  Sabaidee   watch video         FTA
  Silver Screen         FTA
  Starlite TV         FTA
  Nation Channel         FTA
  FilmWorld    watch video         FTA
  INTV/TV D         FTA
  thaicom test card         FTA
  thaicom 1 test card         FTA


3 967 -H- tp 7H

 BEC CH3 Thailand 4 551 3/4 Th.2 H Regional 220+ cm DVB

3 991 -V- tp 8VS

 left

4 003 -H- tp 8H

 RU-TV 1 1 085 3/4 Th.2 H Regional 220-270+ cm DVB

4 005 -V- tp 8VS

 left

4 015 -H- tp 8H

 unnamed network 2 305 7/8 Th.2 H Regional 220-300+ cm DVB
  Ten TV 1         FTA
  I-Channel    watch video         FTA

4 021 -H- tp 8H

 RU-TV2 1 085 3/4 Th.2 H Regional 220-250+ cm Conax

4 106 -H- tp 10H

 NBT TV Thailand 4 688 3/4 Th.2 H Regional 220-270+ cm DVB

4 108 -V- tp 11VS

 ATN Bangla 6 664 2/3 Th.5 V Central Asia 340-600+ cm DVB


4 115 -H- tp 11H

  feeds NBT Chiangmai  2 530  3/4  Th.2 H Regional  220+ cm  FTA


4 118 -H- tp 11H

  feeds NBT Ubon Service  2 530  3/4  Th.2 H Regional  220+ cm  FTA

4 122 -H- tp 11H

 feeds NBT CH11 2 530 3/4 Th.2 H Regional 220+ cm FTA

4 125 -H- tp 11H

feeds NBT  Kanchanabur

 2 530 3/4 Th.2 H Regional 220+ cm FTA

4 129 -H- tp 11H

 feeds NBT Chantaburi 2 530 3/4 Th.2 H Regional 220+ cm FTA

4 132 -H- tp 11H

 feeds NBT KHONKAEN ... 2 530 3/4 Th.2 H Regional 220+ cm FTA


4 135 -H- tp 11H

  feeds NBT Surattahani  2 530  3/4  Th.2 H Regional  220+ cm  FTA

4 135 -V- tp 11VS

 Cambodian mux 4 444 3/4 Th.5 V Central Asia 340-600+ cm DVB
  TV 5 Cambodia         FTA
  Apsara TV         FTA

4 145 -H- tp 12H

 Thai PBS 4 815 3/4 Th.2 H Regional 220-270+ cm DVB FTA

4 153 -V- tp 12VS

 PSI Channel 2 222 3/4 Th.5 V Central Asia 300+ cm DVB FTA

4 157 -V- tp 12VS

 CAT Telecom
 		 1 852 3/4 Th.5 V Central Asia 300+ cm DVB
  Super Cheng    watch video         FTA

4 160 -V- tp 12VS

 CAT Telecom
 		 2 000 3/4 Th.5 V Central Asia 300+ cm DVB
  Kasikorn TV /10-18/         Conax

4 170 -V- tp 12VS

 left


Thaicom 2/5 at 78.5°E : relative quality of the transfer of Asian diagram / wave vector V


relative q 001relative q 002relative q 003



Thaicom 2/5 at 78.5°E: Video presentations


   Go  to Video Section:
button


Thaicom 2/5 at 78.5°E : Update drawn up

                                           dxsatcs
                                                   CZECH & SLOVAK DX SATELLITE CLUB
                                                       international professional portal
                                                       Roman Dávid - author & founder
                                                       mail : roman.david@dxsatcs.com

Thaicom 2/5 at 78.5°E footprint : Global + Regional V+H

                                     Thaicom 2-5 at 78.5 e _footprint


Thaicom 2/5 at 78.5°E: snapshots


ETC 01FTV India 10ACE Channel 000
Apsara TV 08Live tv 11P5 TV 05
