Arabsat 2B at 30.5°E

Arabsat 2B at 30.5°E : Technical data

   Arabsat 2B at 30.5 e _ KU footprint _first snapshot  0001

                    satellite : Arabsat 2B - Orbit : 30.5°E - TP : 22 C/12 KU - lifetime : from 13.11.2006 - 16 years

Update : Arabsat 2B at 30.5°E - 2B KU footprint : footprint & spectral diagnostics of TP 5

.

                   Arabsat 2B at 30.5°E - KU footprint : measurement point Lučenec _central Slovakia

                                  Arabsat 2B : footprint                                Arabsat 2B : spectral diagnostics
                Middle East , North Africa , Southern Europe             TP 5_H-pol. : 12 588-12 621 MHz
                   Arabsat 2B at 30.5 e _ KU footprint map              Arabsat 2B at 30.5 e _ KU footprint _ TP 5 spectral analysis

.

                              Arabsat 2B at 30.5°E - KU footprint : 12 563 V Blue Nile Channel_Service Name
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 563 V Blu Nile Channel _ VA pidsArabsat 2B at 30.5 e _ KU footprint _12 563 V Blu Nile Channel _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 563 V Blu Nile Channel _ NIT data

                                             Arabsat 2B at 30.5°E - KU footprint : 12 588 H PSC _ PBC
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 588 H PBC Channel _ VA pidsArabsat 2B at 30.5 e _ KU footprint _12 588 H PBC Channel _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 588 H PBC Channel _ NIT data

                             Arabsat 2B at 30.5°E - KU footprint : 12 593 H  feed CNC Cairo News Company
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 593 H feed CNC _ VA pidsArabsat 2B at 30.5 e _ KU footprint _12 593 H feed CNC _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 593 H feed CNC _ NIT data

                                        Arabsat 2B at 30.5°E - KU footprint : 12 608 V feed IMN Media Iraq
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 608 V feed IMN Iraq _ VA pidsArabsat 2B at 30.5 e _ KU footprint _12 608 V feed IMN Iraq _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 608 V feed IMN Iraq _ NIT data

                                          Arabsat 2B at 30.5°E - KU footprint : 12 611 V  ERI TV Channel  2
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 611 V ERI TV 2 _ VA pidsArabsat 2B at 30.5 e _ KU footprint _12 611 V ERI TV 2 _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 611 V ERI TV 2 _ NIT data

                                     Arabsat 2B at 30.5°E - KU footprint : 12 612 H  Arabsat Promo Channel
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 612 H Arabsat Promo _ IF dataArabsat 2B at 30.5 e _ KU footprint _12 612 H Arabsat Promo _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 612 H Arabsat Promo _ NIT data

                                              Arabsat 2B at 30.5°E - KU footprint : 12 628 V Press TV Iran
                          IF data                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 628 V Press TV _ IF dataArabsat 2B at 30.5 e _ KU footprint _12 628 V Press TV _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 628 V Press TV _ NIT data

                                              Arabsat 2B at 30.5°E - KU footprint : 12 635 V  Syria TV 2
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 635 V Syria 2 _ VA pidsArabsat 2B at 30.5 e _ KU footprint _12 635 V Syria 2 _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 635 V Syria 2 _ NIT data

                                                 Arabsat 2B at 30.5°E - KU footprint : 12 662 H  Syria Drama
                  spectral analysis                                              Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 662 H Syria Drama _ IF dataArabsat 2B at 30.5 e _ KU footprint _12 662 H Syria Drama _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 635 V Syria 2 _ NIT data

                                               Arabsat 2B at 30.5°E - KU footprint : 12 709 V  ERI TV 1
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 705 V ERI TV _ VA pidsArabsat 2B at 30.5 e _ KU footprint _12 709 V feed Samacom Dubai _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 705 V ERI TV _ NIT data

                                       Arabsat 2B at 30.5°E - KU footprint : 12 709 V  feed Samacom Dubai
                         VA pids                                                      Q data                                                   NIT data
Arabsat 2B at 30.5 e _ KU footprint _12 709 V feed Samacom Dubai _ VA pidsArabsat 2B at 30.5 e _ KU footprint _12 709 V feed Samacom Dubai _ Q dataArabsat 2B at 30.5 e _ KU footprint _12 709 V feed Samacom Dubai _ NIT data

Arabsat 2B at 30.5°E : TV List

    Arabsat 2B at 30.5 e _ KU footprint _PF Prodelin 3.7 m


-Frequency-


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---DVB/Encryption---

12 519 -H- tp 1

Enc 1-1 / Sudan TV 3 000 3/4 2B KU 200-400+ cm DVB FTA

12 563 -V- tp 4

Service Name _ Blue Nile Channel

4 444 2/3 2B KU 200-400+ cm DVB FTA

12 589 -H- tp 5

PBC / PSC   watch video 3 000 3/4 2B KU 200-400+ cm DVB FTA

12 593 -H- tp 5

feeds CNC Cairo News Company  watch video 2 200 3/4 2B KU 200-400+ cm FTA

12 595 -V- tp 4

feeds RRSat DSNG Israel watch video  watch video 2 893 3/4 2B KU 200-400+ cm FTA

12 602 -V- tp 4

IMN / Al Iraqiya TV    watch video

2 500 3/4 2B KU 200-400+ cm DVB FTA

12 608 -V- tp 6

feeds IMN Media Iraq    watch video

2 000 3/4 2B KU 200-400 cm FTA

12 611 -V- tp 6

ERI TV Channel 2 2 590 3/4 2B KU 200-400+ cm DVB FTA

12 612 -H- tp 5

Arabsat promo channel   watch video

2 300 3/4 2B KU 200-400+ cm DVB FTA

12 618 -H- tp 5

Kuwait 1

3 300 3/4 2B KU 200-400+ cm DVB FTA

12 621 -H- tp 5

Kuwait 2

3 300 3/4 2B KU 200-400+ cm DVBFTA

12 628 -V- tp 6

Press TV   watch video 3 000 3/4 2B KU 200-400+ cm DVB FTA

12 635 -V- tp 6

Syrian 2   watch video 2 960 3/4 2B KU 200-400+ cm DVB FTA

12 659 -H- tp 7

Syria Drama 2 960 3/4 2B KU 200-400+ cm DVB FTA

12 687 -V- tp 10

JSC Damaskus   watch video

2 893 3/4 2B KU 200-400+ cm DVB FTA

12 705 -V- tp 10

ERI-TV   watch video 3 000 3/4 2B KU 200-400+ cm DVB FTA

12 709 -V- tp 10

feeds Samacom Dubai 2 990/3000 3/4 2B KU 200-400+ cm FTA

12 721 -H- tp 11

feeds JED8 TV_2 / 4:2:2 4 800 3/4 2B KU 200-400+ cm FTA

12 722 -V- tp 10

feeds Ashorooq DSNG 3 000 3/4 2B KU 200-400+ cm FTA

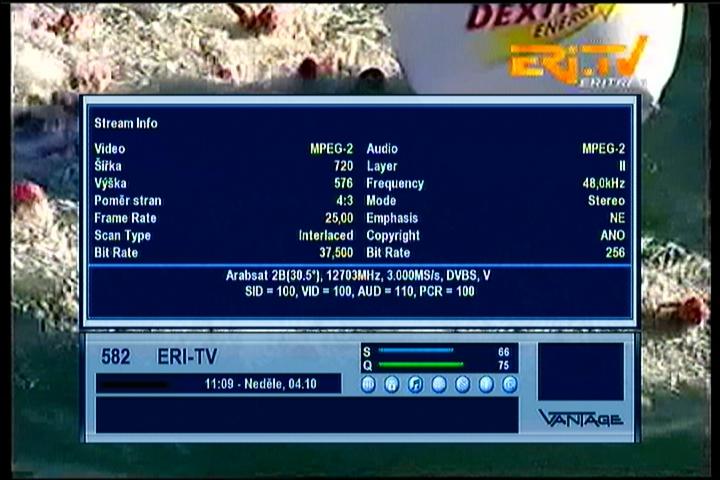

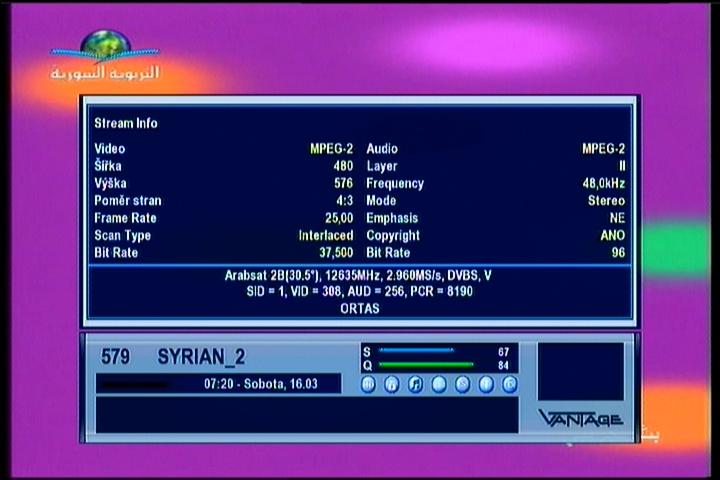

Arabsat 2B at 30.5°E : percent Q & stream data

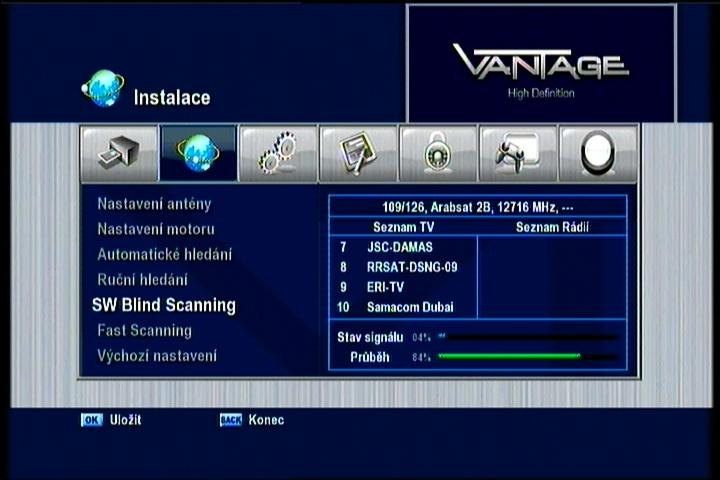

scanning table  01Percent Q  02Percent Q  03
                                 Percent Q  05Percent Q  06

Arabsat 2B at 30.5°E : Video presentations

  Go to Video Section:                       Go to video section :
button                watch videos

Arabsat 2B at 30.5°E : update is from


                    dxsatcs logo

                          CZECH & SLOVAK DX SATELLITE CLUB
                          SATELLITE ENGINEERING C & KU band
                          Roman Dávid - author
http://dxsatcs.com/
                          town : Lučenec , Slovak Republic,East Europe
                          mail :
roman.david@dxsatcs.com

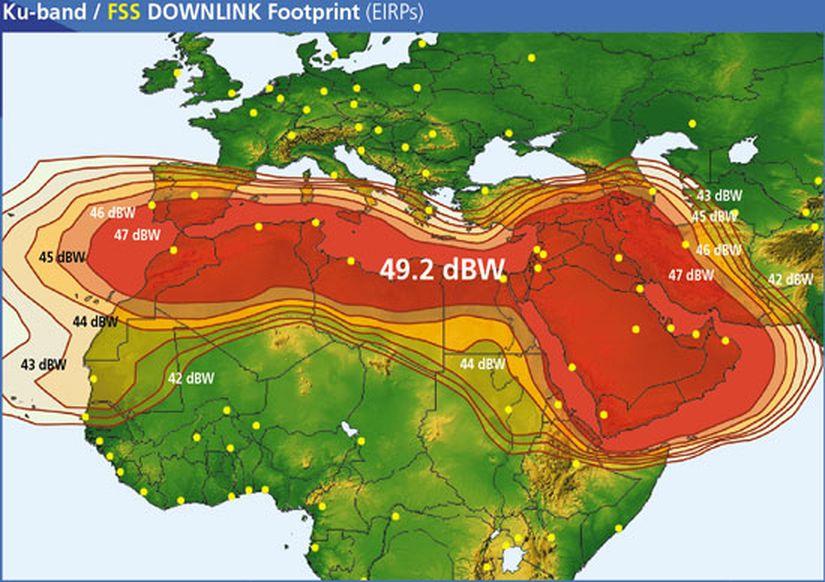

Arabsat 2B at 30.5°E footprint _ KU band downlink coverage

            Arabsat 2B footprint_KU                                Arabsat 2B footprint_KU
Arabsat 2B at 30.5 e _ KU footprint map    Arabsat 2B at 30.5 e _ KU footprint map 02


Arabsat 2B at 30.5°E : TV Snapshot

Press TV  01Arabsat promo  02Arabsat promo  03
Arabsat promo  07ERI tv 05RRSat feed 06
