Eutelsat W3A at 7.0°E

Eutelsat W3A at 7.0°E : Technical data

Eutelsat W3A at 7.0 e _ footprint Europe B _ first snap 001

                       satellite : Eutelsat W3A - orbit : 7.0°E - TP : 2 KA/38 KU - Lifetime : from 15.3.2004 - 15 years



Update - Eutelsat W3A at 7.0°E - European B footprint :spectrum analysis and measurement results

             Eutelsat W3A at 7.0°E - Europe B footprint : measurements at the center Lučenec/central Slovakia
                                         geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                     measurement results are derived from the 3.7 m diameter antenna
                                                                          Elevation angle : 33.0°

                                 Eutelsat W3A spectral analysis           Eutelsat W3A footprint_Europe B
                             11 452 V/TP C12 : packet DigiTurk       Europe , Middle East , North Africa

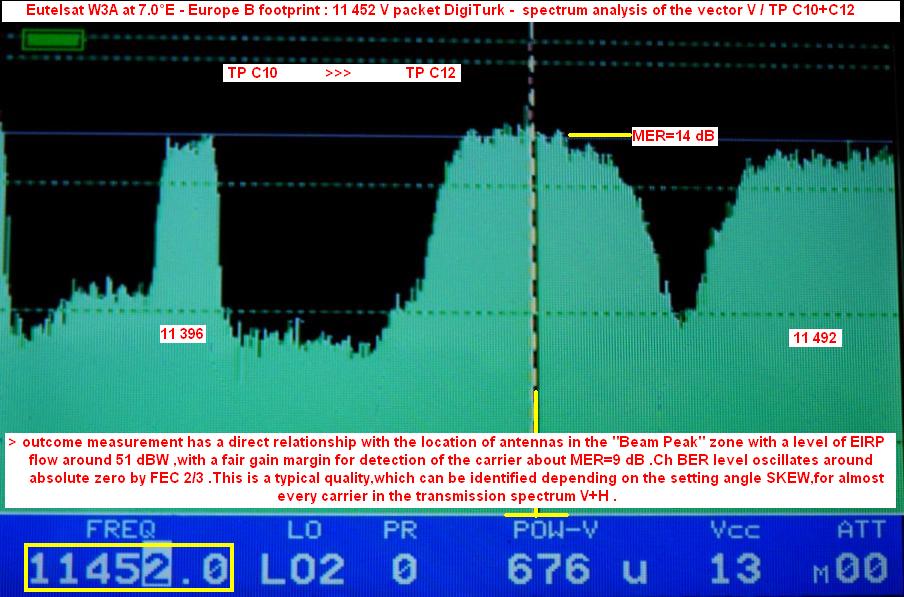

                          Eutelsat W3A at 7.0 e _ europe b footprint _ spectral analysisEutelsat W3A at 7.0 e _ footprint Europe B
                                                               - time of measurement : 6.2.2010 -
                                                                 - defining the status of income -

                                                                     - 11 452 V : packet DigiTurk -
- outcome measurement has a direct relationship with the location of antennas in the "Beam Peak" zone with a level of
EIRP flow around 51 dBW ,with a fair gain margin for detection of the carrier about MER=9 dB .Ch BER level oscillates
around absolute zero by FEC 2/3 .This is a typical quality,which can be identified depending on the setting angle SKEW,
for almost every carrier in the transmission spectrum V+H .

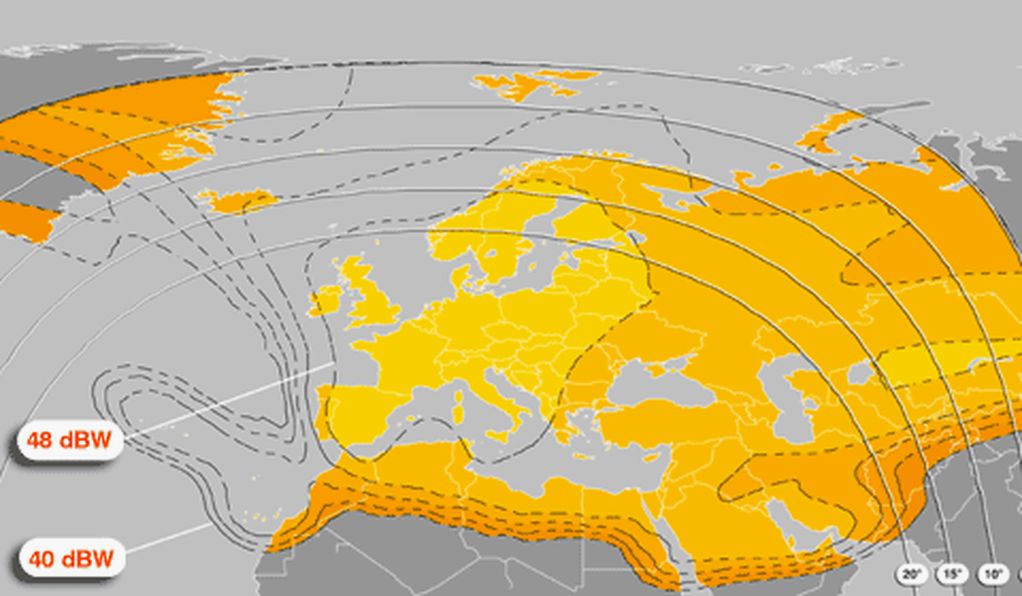

                         Eutelsat W3A at 7.0°E - Europe A+B footprint : results of measurements of quality of income

                                   Eutelsat W3A at 7.0°E - Europe A footprint : 11 127 V TVP Service provider
                         IF data                                                      Q data                                                      NIT data
Eutelsat W3A at 7.0 e _ footprint Europe A_11 127 V TVP Polonia_IF dataEutelsat W3A at 7.0 e _ footprint Europe A_11 127 V TVP Polonia_Q dataEutelsat W3A at 7.0 e _ footprint Europe A_11 127 V TVP Polonia_NIT data

                                       Eutelsat W3A at 7.0°E - Europe A footprint : 11 345 H Packet Eutelsat
                         IF data                                                      Q data                                                      NIT data
Eutelsat W3A at 7.0 e _ footprint Europe A_11 345 H packet Eutelsat_IF dataEutelsat W3A at 7.0 e _ footprint Europe A_11 345 H packet Eutelsat_Q dataEutelsat W3A at 7.0 e _ footprint Europe A_11 345 H packet Eutelsat_NIT data

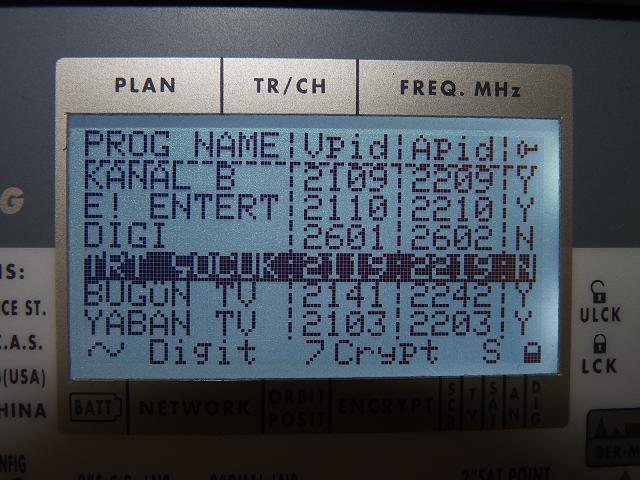

                                       Eutelsat W3A at 7.0°E - Europe B footprint : 11 452 V packet Digiturk
                         IF data                                                      Q data                                                      NIT data
Eutelsat W3A at 7.0 e _ footprint Europe B_11 452 V packet DigiTurk _IF dataEutelsat W3A at 7.0 e _ footprint Europe B_11 452 V packet DigiTurk _Q dataEutelsat W3A at 7.0 e _ footprint Europe B_11 452 V packet DigiTurk _NIT data

                                  Eutelsat W3A at 7.0°E - Europe B footprint : 11 492 V packet Digiturk
                         IF data                                                      Q data                                                      NIT data
Eutelsat W3A at 7.0 e _ footprint Europe B_11 492 V packet DigiTurk _IF dataEutelsat W3A at 7.0 e _ footprint Europe B_11 492 V packet DigiTurk _Q dataEutelsat W3A at 7.0 e _ footprint Europe B_11 492 V packet DigiTurk _NIT data

                                     Eutelsat W3A at 7.0°E - Europe B footprint : 11 534 V packet Digiturk
                         IF data                                                      Q data                                                      NIT data
Eutelsat W3A at 7.0 e _ footprint Europe B_11 534 V packet DigiTurk _IF dataEutelsat W3A at 7.0 e _ footprint Europe B_11 534 V packet DigiTurk _Q dataEutelsat W3A at 7.0 e _ footprint Europe B_11 534 V packet DigiTurk _NIT data

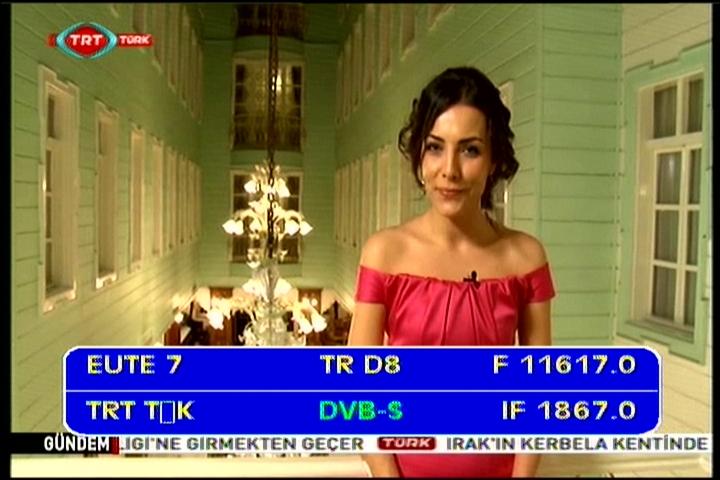

                                Eutelsat W3A at 7.0°E - Europe B footprint : 11 617 V packet Digiturk
                         IF data                                                      Q data                                                      NIT data
Eutelsat W3A at 7.0 e _ footprint Europe B_11 617 V packet DigiTurk _IF dataEutelsat W3A at 7.0 e _ footprint Europe B_11 617 V packet DigiTurk _Q dataEutelsat W3A at 7.0 e _ footprint Europe B_11 617 V packet DigiTurk _NIT data

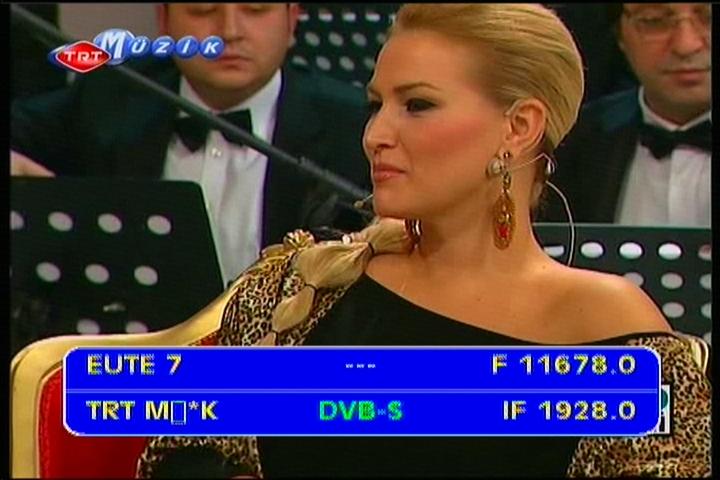

                                      Eutelsat W3A at 7.0°E - Europe B footprint : 11 678 H packet Digiturk
                         IF data                                                      Q data                                                      NIT data
Eutelsat W3A at 7.0 e _ footprint Europe B_11 678 H packet DigiTurk _IF dataEutelsat W3A at 7.0 e _ footprint Europe B_11 678 H packet DigiTurk _Q dataEutelsat W3A at 7.0 e _ footprint Europe B_11 678 H packet DigiTurk _NIT data

Eutelsat W3A at 7.0°E : TV List

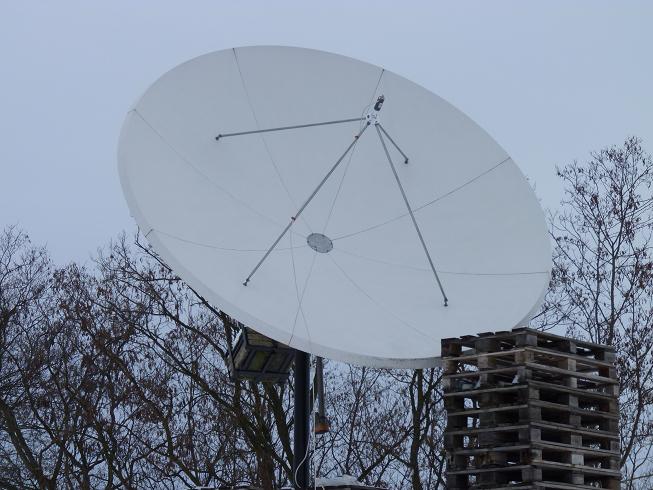

      Eutelsat W3A at 7.0 e _ PF Prodelin 3.7 m



---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---DVB/Encryption---

10 721 -H-tp A1

IVG Default

 22 000 1/2 EUROPE B 80-140+ cm DVB
  BBC Persian promo         FTA
  Simay-Azadi Iran         FTA
  VoA TV  Persian         FTA
  Pars TV         FTA

10 886 -V-tp A10

DigiTurk

 30 000 5/6 EUROPE B 80-140+ cm DVB-S2/8PSK
  Lig TV HD         MPEG-4/HD/Ird2/Crw
  DiziMax HD         MPEG-4/HD/Ird2/Crw
  MM MAX HD         MPEG-4/HD/Ird2
  Eurosport HD         MPEG-4/HD/Ird2/Crw
  SportMax HD         MPEG-4/HD/Ird2/Crw

10 928 -H-tp A11

DigiTurk

 30 000 3/4 EUROPE B 80-140+ cm DVB
  Rai Uno     watch video         FTA
  1 Kanal Europa         FTA
  Wedding TV Polska         FTA
   National Geographic HD         MPEG-4/HD/Ird2/Crw
  test 400         Cryptoworks/Irdeto2

10 928 -V-tp A12

OpenSky

 27 500 3/4 EUROPE B 80-140+ cm DVB
  Eurosport 2 Bundesliga         Viaccess 3.0+4.0

10 959 -H-

DVB-S2 feeds rus 010  watch video

 4 937 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

10 960 -V-

 feeds SKSTV... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

10 964 -H-

 feeds Flavia 4-A... 13 333 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

10 969 -V-

 feeds GBBBC... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

10 977 -V-

 feeds ATM-4... 4 434 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

10 982 -H-

 feeds E115 INDOOR C... 13 333 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

10 983 -V-

 feeds ATM-5... 4 434 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

10 989 -V-

 feeds MAIN E-120... 4 434 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

10 996 -V-

 feeds HD Encoder 1 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 001 -V-

 feeds SATNEWSTV 03... 13 333 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 005 -V-

 feeds Fly4 Gaza ... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 014 -V-

 feeds CHEVC2... 6 666 3/4 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 023 -V-

 feeds ANI-BT TEST 23... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 044 -V-

 feeds FRGC1... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 053 -H-

 feeds CHEVC1... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 062 -H-

 feeds Paris-Nice/F52/... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 071 -H-

 feeds GCR/F52... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 078 -H-

feeds Path 1 Kyiv UKR-018

 4 434 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 080 -V-

 feeds ITINFI CH7... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 089 -V-

 feeds ITINFI CH5... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 102 -V-

 feeds NLTECH... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 107 -H-

 feeds 2-SAT HOL89... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 125 -V-

 feeds TVP POL 10... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 127 -H-

 feeds TELESPAZIO ... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 129 -V-

 feeds TVP POL 10 ... 2 678 7/8 EUROPE A 80-140+ cm FTA/Biss/4:2:2/RAS

11 134 -V-

 feeds TVP K-12... 5 700 3/4 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 136 -V-

 feeds TVP POL-55... 2 678/6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 143 -H-

 feeds ITA-82 TELESPAZIO ... 3 333 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 143 -V-

 feeds TVP POL 30... 5 700 3/4 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 145 -H-

 feeds RAI ITA 76B... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 147 -V-

 feeds POL-49 Katowice ... 2 678 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 152 -V-

 feeds TVP POL 28... 5 700 3/4 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 179 -H-

 feeds GCI E243/1... 3 333 3/4 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 183 -H-

 feeds ITA 379B... 3 333 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 187 -H-

 feeds RAI ITA 96B ... 3 333 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 190 -H-

 feeds RAI ITA 78B... 6 666 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 192 -H-

 feeds RAI ITA 88A... 3 333 7/8 EUROPE A 80-220+ cm FTA/Biss/4:2:2/RAS

11 127 -V-tp B6

TVP Service provider

 6 666 3/4 EUROPE A 80-140+ cm DVB
  TVP Polonia         FTA
  feeds TVP/INT 6 for DSNG/test card         FTA/Biss/4:2:2

11 136 -V-tp B6

feeds POL-051

 6 666 7/8 EUROPE A 80-140+ cm FTA/Biss/4:2:2/RAS

11 284 -V-tp C4

 GlobeCast 27 500 3/4 EUROPE A 80-140+ cm DVB
  test card GlobeCast         testcard / feeds
  Eurosport         Viaccess 2.5/3.0/4.0
  Eurosport 2         Viaccess 2.5/3.0/4.0/Mdg 2
  Eurosport News         Viaccess 2.5/3.0/4.0
  M6 Suisse         FTA

11 323 -V-tp C6

 BFBS network 27 500 2/3 EUROPE A 80-140+ cm DVB
  BFBS 1         Cryptoworks
  BFBS 2         Cryptoworks
  BFBS Kids         Cryptoworks
  BFBS 4         Cryptoworks
  Sky Sports 1         Cryptoworks
  Sky Sports 2         Cryptoworks
  Q Music         Cryptoworks
  Sky News UK         Cryptoworks
  BFBS Interval         Cryptoworks
  BFBS test         Cryptoworks

11 345 -H-tp C7

 Eutelsat 27 500 2/3 EUROPE A 80-140+ cm DVB
  ESP2 German         Viaccess 2.5/3.0/4.0
  2STV         Viaccess 2.6
  ESP2 FAPL Clean         Viaccess 3.0
  Africable         FTA
  ORTM         FTA
  RTS 1         FTA
  TPA Internacional         FTA

11 396 -V-tp C10

DVB-S2 EBU feeds

 9 874 3/4 EUROPE A 80-140+ cm DVB-S2/feeds
  VC_ONC_RMX         DVB-S2/scrabled feeds
  VC_BNT_Serv2         DVB-S2/scrabled feeds

11 410 -V-tp C10

DVB-S2 EBU feeds

 9 874 3/4 EUROPE A 80-140+ cm DVB-S2/scrabled feeds

11 452 -V-tp C12

 DigiTurk 25 066 2/3 EUROPE B 80-140+ cm DVB
  KANAL B         Cryptoworks/Irdeto2
  SES TV         Cryptoworks/Irdeto2
  E! ENTERTAINMENT         Cryptoworks/Irdeto2
  HALK TV         Cryptoworks/Irdeto2
  Salonda de Var         Cryptoworks/Irdeto2
  Channel 1 Russia         Cryptoworks/Irdeto2
  Bugun TV         Cryptoworks/Irdeto2
  Yaban TV         Cryptoworks/Irdeto 2
  DigiTurk info canal         FTA
  TRT Cocuk_TRT 4         FTA

11 471 -H-tp D1

 DigiTurk 30 000 3/4 EUROPE B 80-140+ cm DVB
  FOX Life Turkey         Cryptoworks/Irdeto2
  24         Cryptoworks/Irdeto2
  NTV SPORT         Cryptoworks/Irdeto2
  TVNET         Cryptoworks/Irdeto2
  e2         Cryptoworks/Irdeto2
  MTV Turkie         Cryptoworks/Irdeto2
  MEZZO         Cryptoworks/Irdeto2
  BBC Entertainment         Cryptoworks/Irdeto2
  Extreme Sports         Cryptoworks/Irdeto2
  Eurosport 2         Cryptoworks/Irdeto2
  EuroNews         Cryptoworks/Irdeto2
  Fashion TV         Cryptoworks/Irdeto2

11 492 -V-tp D2

 DigiTurk 30 000 3/4 EUROPE B 80-140+ cm DVB
  TURKMAX         Cryptoworks/Irdeto2
  DIZIMAX         Cryptoworks/Irdeto2
  LIG TV         Cryptoworks/Irdeto2
  TRT 6         FTA
  TRT1         FTA
  TRT2         FTA
  SAMANYOLU TV         Cryptoworks/Irdeto2
  GS TV         Cryptoworks/Irdeto 2
  ZONE REALITY         Cryptoworks/Irdeto2
  MEMLEKETIM TV         Cryptoworks/Irdeto2
  SHOW PLUS         Cryptoworks/Irdeto2
  WEDDING TV         Cryptoworks/Irdeto2
  test         Cryptoworks
  test         Cryptoworks

11 513 -H-tp D3

 DigiTurk 27 500 3/4 EUROPE B 80-140+ cm DVB
  IZ         Cryptoworks/Irdeto2
  BABY TV         Cryptoworks/Irdeto2
  BABYFIRST TV         Cryptoworks/Irdeto2
  TV 5 MONDE         Cryptoworks/Irdeto2
  FLASH TV         Cryptoworks/Irdeto2
  CRIME & INVESTIGATION / Bio UK         Cryptoworks/Irdeto2
  POWERTURK TV         Cryptoworks/Irdeto2
  S HABER         Cryptoworks/Irdeto2
  YUMURCAK TV         Cryptoworks/Irdeto2

11 534 -V-tp D4

 DigiTurk 30 000 3/4 EUROPE B 80-140+ cm DVB
  NTV         Cryptoworks/Irdeto2
  KANALTURK         Cryptoworks/Irdeto2
  TRT Gap    watch video         FTA
  CNBC-e         Cryptoworks/Irdeto2
  CNN Turk         Cryptoworks/Irdeto2
  BBC WORLD         Cryptoworks/Irdeto2
  Cartoon Network         Cryptoworks/Irdeto2
  MOVIEMAX         Cryptoworks/Irdeto2
  TV8         Cryptoworks/Irdeto2
  BLOOMBERG TV Europe         Cryptoworks/Irdeto2
  KRAL TV         Cryptoworks/Irdeto2
  Kanal 778         Cryptoworks/Irdeto2
  6 News         Cryptoworks/Irdeto2

11 553 -H-tp D5

 DigiTurk 27 500 3/4 EUROPE B 80-140+ cm  DVB
  Akilli TV         Cryptoworks/Irdeto2
  Kanal A         Cryptoworks/Irdeto2
  FX Turkiye         Cryptoworks/Irdeto2
  CEM TV         Cryptoworks/Irdeto2
  Cine 5 TV         Cryptoworks/Irdeto2
  SAUDI 1 TV         Cryptoworks/Irdeto2
  TNT Turkie         Cryptoworks/Irdeto2
  TRT Belgasel          FTA

11 575 -V-tp D6

 DigiTurk 30 000 3/4 EUROPE B 80-140+ cm DVB
  SHOW TV         Cryptoworks/Irdeto2
  KANAL D         Cryptoworks/Irdeto2
  Salon 1         Cryptoworks/Irdeto2
  Salon 2         Cryptoworks/Irdeto2
  SHOWMAX         Cryptoworks/Irdeto2
  Disney XD Middle East         Cryptoworks/Irdeto2
  JETIX PLAY         Cryptoworks/Irdeto2
  VIP TV         Cryptoworks/Irdeto2
  NBA tv         Cryptoworks/Irdeto2
  Blue Hustler TV /22-04/         Cryptoworks/Irdeto2

11 596 -H-tp D7

 DigiTurk 30 000 3/4 EUROPE B 80-140+ cm  DVB
  CNN Int.         Cryptoworks/Irdeto2
  RAI 1         Cryptoworks/Irdeto2
  HABERTURK         Cryptoworks/Irdeto2
  TJK TV         FTA
  GOLDMAX 2         Cryptoworks/Irdeto2
  LIG TV Ticari         Cryptoworks/Irdeto2
  FB TV         Cryptoworks/Irdeto2
  SPORTMAX         Cryptoworks/Irdeto2
  MYMAX         Cryptoworks/Irdeto2
  TGRT HABER         Cryptoworks/Irdeto2
  FOX SPORTS         Cryptoworks/Irdeto2
  AL JAZEERA Eng.         Cryptoworks/Irdeto2
  test 455         Cryptoworks/Irdeto2

11 617 -V-tp D8

 DigiTurk 30 000 3/4 EUROPE B 80-140+ cm  DVB
  STAR TV          Cryptoworks/Irdeto2
  HOME TV         Cryptoworks/Irdeto2
  TRT Turk    watch video         FTA
  MCM TOP         Cryptoworks/Irdeto2
  VH1         Cryptoworks/Irdeto2
  National Geographic         Cryptoworks/Irdeto2
  National Geo. Wild         Cryptoworks/Irdeto2
  Nickelodeon TV         Cryptoworks/Irdeto2
  Mehtap TV         FTA
  The History Ch.         Cryptoworks/Irdeto2
  BTV 2         Cryptoworks/Irdeto2
  Aquavision         FTA

11 637 -H-tp D9

 DigiTurk 30 000 3/4 EUROPE B 80-140+ cm DVB
  TRT Avaz         FTA
  ACTIONMAX         Cryptoworks/Irdeto2
  GOLDMAX         Cryptoworks/Irdeto2
  MGM MOVIES         Cryptoworks/Irdeto2
  AVRASYA TV         Cryptoworks/Irdeto2
  PRO 7 Schweiz         Cryptoworks/Irdeto2
  INTIMACY XXX/23-05/         Cryptoworks/Irdeto2
  JOJO         Cryptoworks/Irdeto2
  KANAL 1         Cryptoworks/Irdeto2
  Jolly Tatil TV         Cryptoworks/Irdeto2
  Yacht & Sailing         Cryptoworks/Irdeto2

11 678 -H-tp D11

 DigiTurk 30 000 3/4 EUROPE B 80-140+ cm  DVB
  MOVIEMAX 2         Cryptoworks/Irdeto2
  COMEDYMAX         Cryptoworks/Irdeto2
  SALON 3         Cryptoworks/Irdeto2
  ATV Turkey         Cryptoworks/Irdeto2
  FOX Turkey         Cryptoworks/Irdeto2
  ULKE TV         Cryptoworks/Irdeto2
  TRT Muzik         FTA
  SKY TURK         FTA
  KANAL 7         Cryptoworks/Irdeto2
  Disney Channel         Cryptoworks/Irdeto2
  EUROSPORT         Cryptoworks/Irdeto2
  DREAM TV         Cryptoworks/Irdeto2

Eutelsat W3A at 7.0°E : relative quality

relative Q 01relative Q 02relative Q 03

Eutelsat W3A at 7.0°E : Video presentation

       go to video section :


Eutelsat W3A at 7.0°E footprint : Europe A+B+C

           eutelsat W3A footprint                            eutelsat W3A footprint                           eutelsat W3A footprint
Eutelsat W3A at 7.0 e _ footprint Europe AEutelsat W3A at 7.0 e _ footprint Europe BEutelsat W3A at 7.0 e _ footprint Europe C

Eutelsat W3A at 7.0°E : Snapshots

 TVP Polonia 01TRT 2 02TRT 2 03
TRT Turk 04Rai 1 05Aquavision 06
