Measat 3/3a at 91.5°E

Measat 3 at 91.5°E : Technical data

                                 Measat 3 at 91.5°E-global footprint :3 920 V Fashion One_FULL HD+3D
Measat 3 at 91.5 E _ global footprint in the C band-F1-n

                    Measat 3 - Position : 91.5°E - TP : 24 C/24 KU - Lifetime : from 11.12.2006 - 15 years
.

Measat 3 at 91.5°E - global footprint : spectrum analysis & footprint & reception quality

.
           Measat 3 at 91.5°E - global footprint : measurements at the center Lučenec_central Slovakia
                                     geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                  measurement results are derived from the 3.7 m diameter antenna
                                                           date of measurement : 16-17.10.2010
                                                                       elevation angle : only 3.1°

          Measat 3 global footprint                      Measat 3 : installed system                  Measat 3 : research point

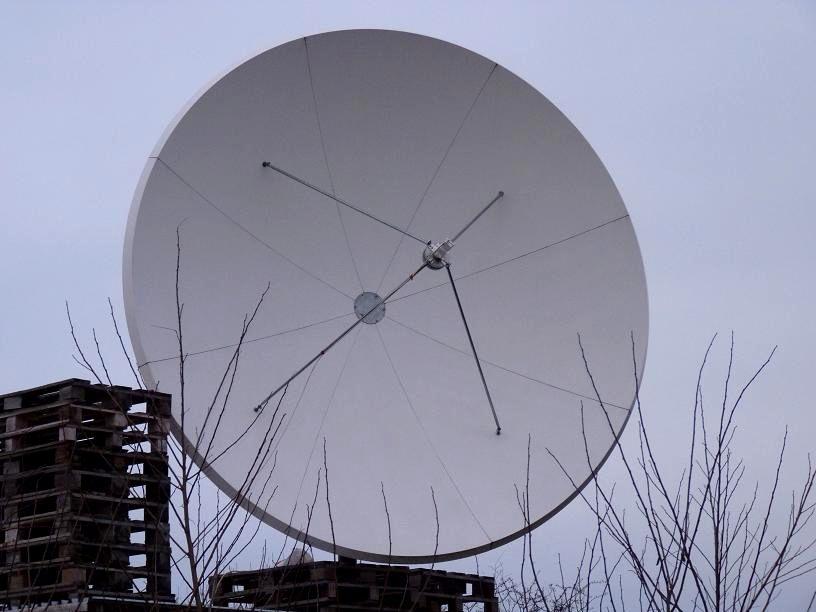

                    coverage area                         Prodelin 3.7 m,LNB Norsat 8215           town Lučenec / Slovak republic
   Asia,M.East,Africa,Europe,Australia
                                                                                    48.33° _ 19.72°
Measat 3 at 91.5 E-global footprintMeasat 3 at 91.5 E-global footprint-PF Prodelin 3.7 mMeasat 3 at 91.5 E-global footprint-measurement point

                          --- Measat 3 at 91.5° - global footprint : terms of reception & spectral analysis ---

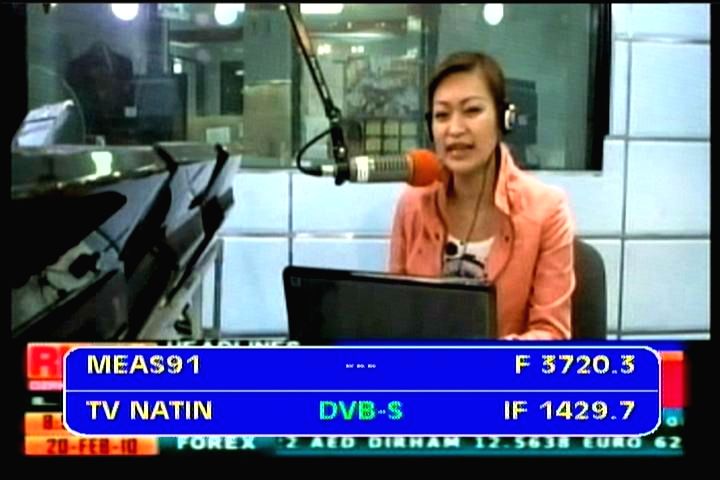

                                                                              a, 3 721 V _ TV Natin

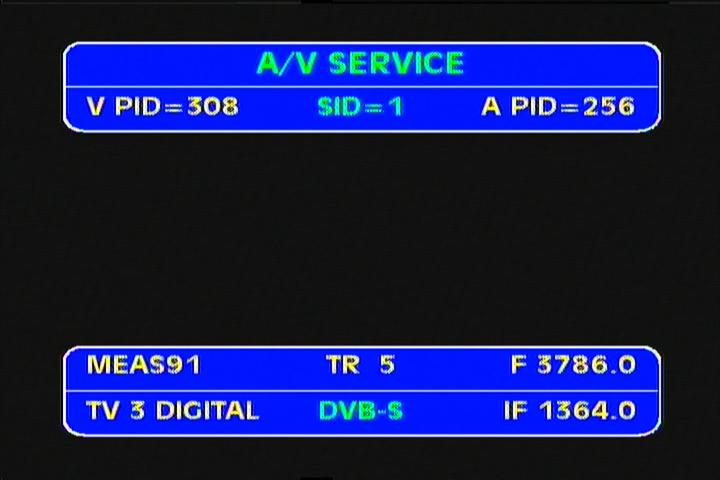

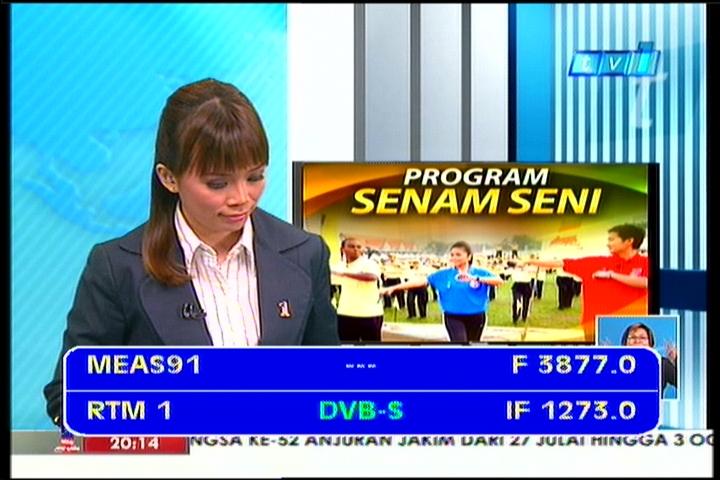

                         b, 3 786 V _ feeds , 3 800 V _ Packet Measat , 3 814 V _ DVB-S2 Packet Sky International

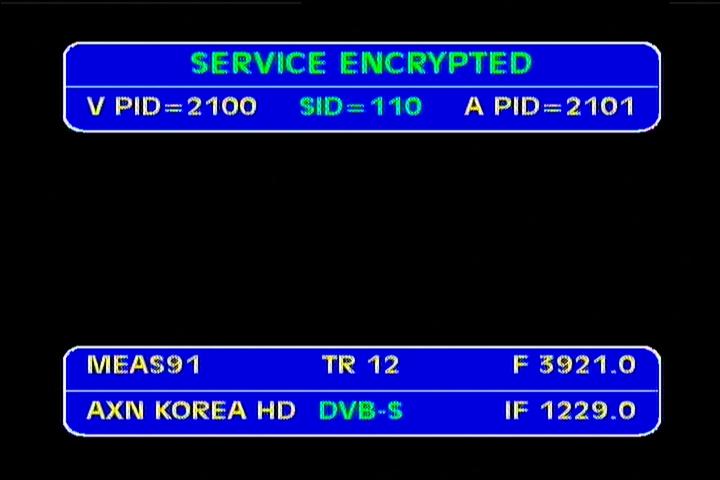

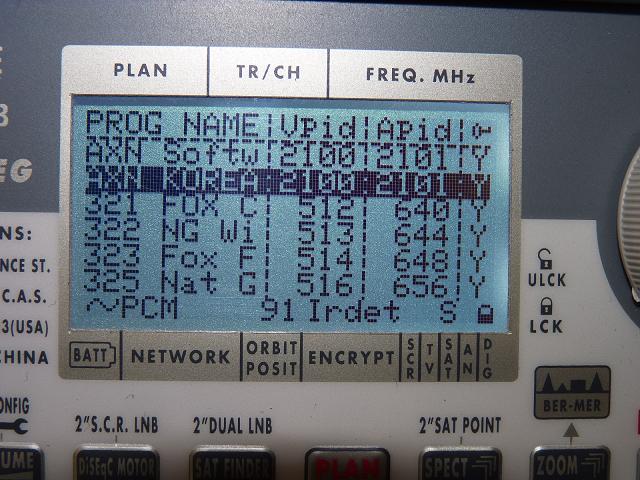

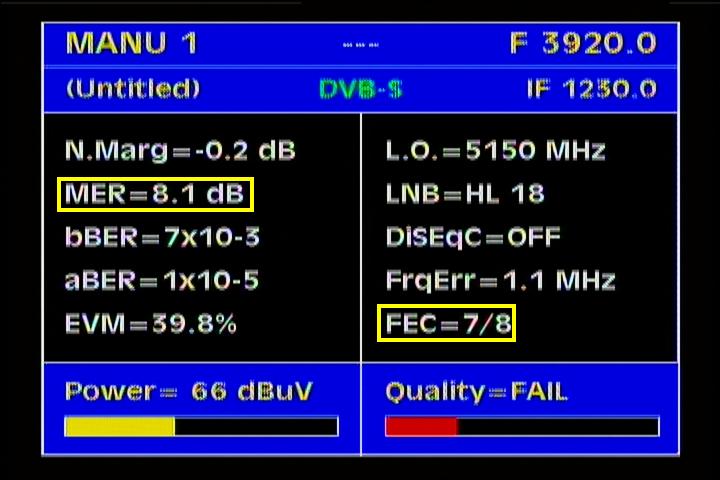

                                                               c, 3 920 V _ packet GlobeCast Hong Kong

        a, Measat 3 spectral analysis                b, Measat 3 spectral analysis                  c, Measat 3 spectral analysis

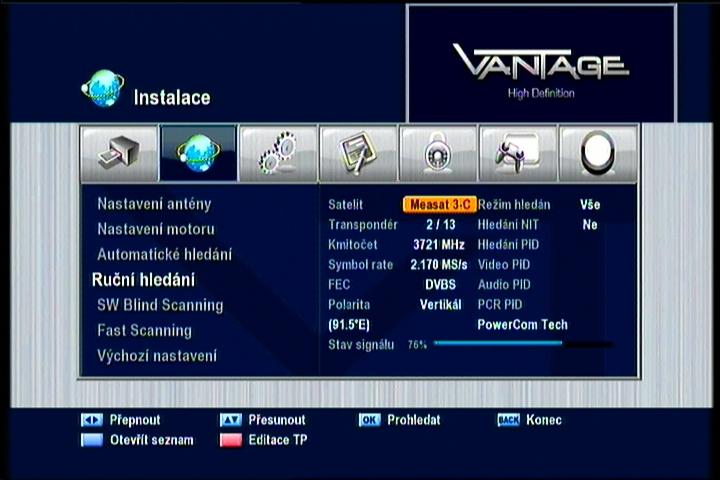

     TP 1C _ 3 721 V DZRH-Natin TV                 TP 5C _ 3 786 > 3 814 V              TP 11 C_3 920 V : packet GlobeCast
Measat 3 at 91.5 e_global footprint_ 3721 V DZRH Natin TV_spectral analysisMeasat 3 at 91.5 E-global footprint-TP 5C spectral analysisMeasat 3 at 91.5 E _ global footprint in the C band-spectral anaylsis-w
                                                                  - time of measurement : 16.10.2010 -
                                                                     - defining the status of reception -

                                                                - identification problem on 17.10.2010 -

I have done a detailed analysis of the entire HF string, which revealed a permanent source of interference in next sequence:
secondary radiant > primary radiant > LNB > coax cable > analyzer.For obvious reasons I will not be mentioned in detail the
source of interference but was associated with the noise temperature of the secondary radiant at elevation angle of only 3°.
The result of negating the source of interference was the status : occasional lock carrier is changed to stable lock,modest gain
growth in amplitude of 0.5 dB is increased by 0.6-0.8 dB / MER.If I would not reveal the source of interference, it would not
be recorded even a 5 sec video sequence because the carrier lock was unstable without any gain margin (FEC=7/8) !

 ! The following analysis of the quality status are no longer valid, because each carrier has come a significant
                                                                                   increase in quality
!

                                                                          -  3 721 V : DZRH - Natin TV  -
nr.1 : from a theoretical point of view based on the analysis of quality I can define the following : threshold detection level
with a minimum gain margin of around 0.5 dB with a constantly oscillating amplitude of quality in a narrow range from 4.4 to
4.8 dB , which means unstable reception limit of stability without constantly present margin.
 - surely from a practical point of view at the time of measurement and aggregation of data measured in the field of thirty
minutes, I can define the following: in addition to permanent instability with pixelation short falls,I also identified the sections
lasting several minutes when the level of gain margins no longer oscillate and remained on the surface quality of MER=5 dB.

                                                                             - 3 786 & 3 800 V : TP 5C -

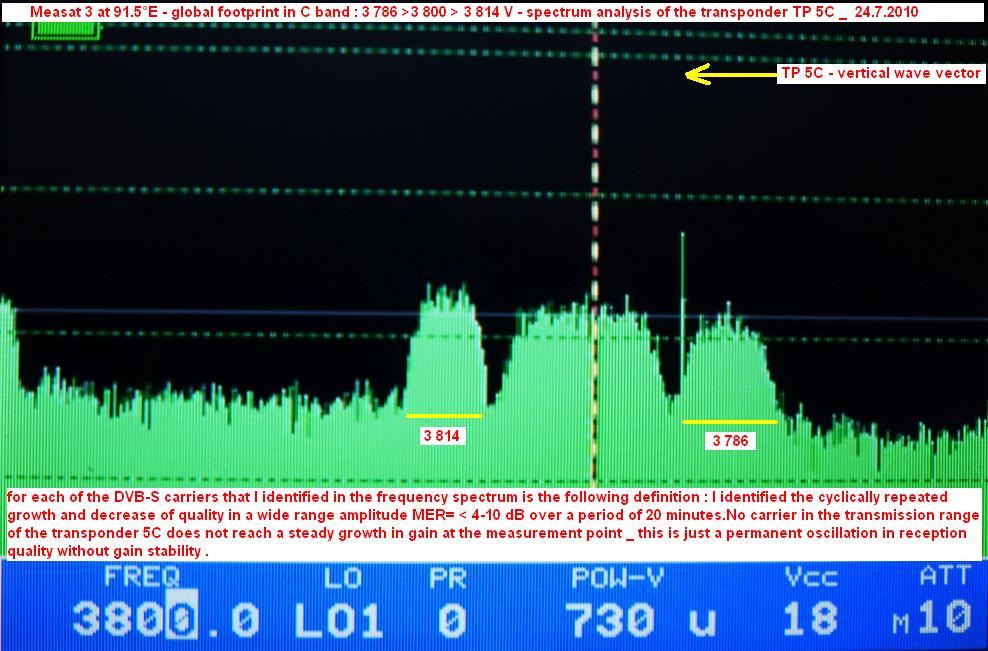

nr.2 : for each of the DVB-S carriers that I identified in the frequency spectrum is the following definition : I identified the
cyclically repeated growth and decrease of quality in a wide range amplitude MER= < 4-10 dB over a period of 20 minutes.
No carrier in the transmission range of the transponder 5C does not reach a steady growth in gain at the measurement point
_ this is just a permanent oscillation in reception quality without gain stability .

                                                            - 3 814 V : DVB-S2/8PSK/MPEG-4 Sky Racing promo -

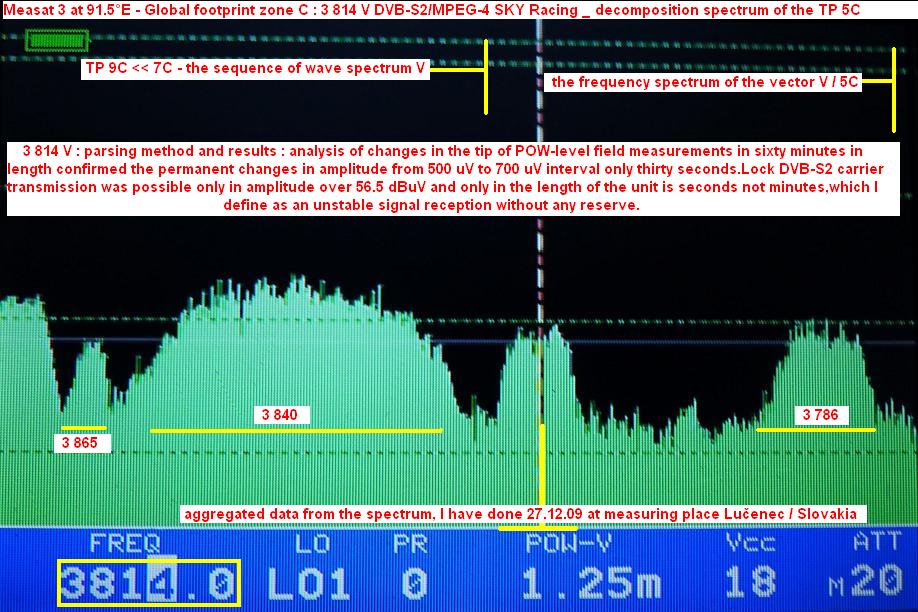

nr.3 :  Analysis of changes in the peak of POW-level field measurements in sixty minutes in length confirmed the permanent
changes in amplitude from 500 uV to 700 uV interval only thirty seconds.Lock DVB-S2 carrier transmission was possible only
in amplitude over 56.5 dBuV and only in the length of the unit is seconds not minutes,which is defined as an unstable signal
reception without any reserve.

- Analýza zmien špičky POW-V hladiny v úseku meraní a zberu dát v dĺžke šestdesiatich minút potvrdila permanentné zmeny
amplitúdy od 500 uV do 700 uV v intervale len tridsiatich sekúnd.Uzamknutie DVB-S2 nosnej prenosu bolo možné až pri
amplitúde viac ako 56.5 dBuV a aj to len v dĺžke jednotky sekúnd nie minút , čo definujem ako nestabilný príjem bez
akejkoľvek signálnej rezervy.V skratke zhrnutý stav >>> príležitostné uzamknutia DVB-S2 nosnej prenosu bez akéhokoľvek
ziskového rastu.

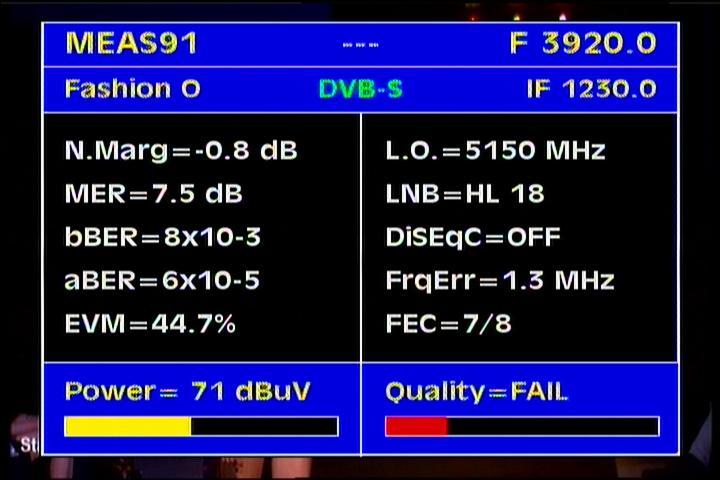

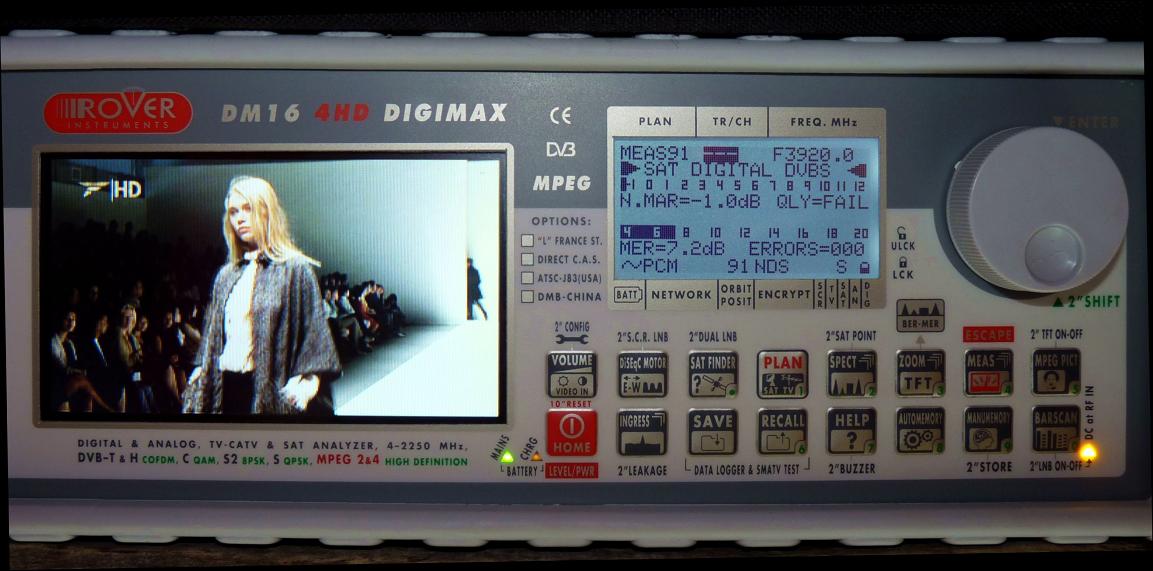

                               - 3 920 V : DVB-S/MPEG-4/HD/3D Fashion one USA in the packet GlobeCast Hong Kong -

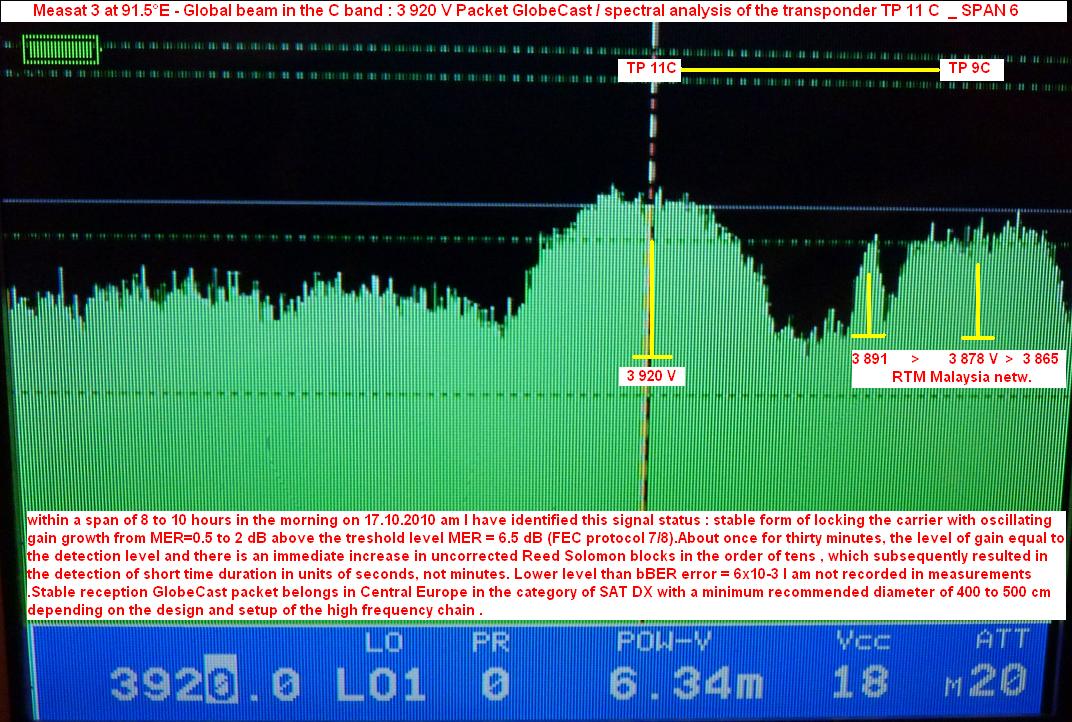

within a span of 8 to 10 hours in the morning on 17.10.2010 am I have identified this signal status : stable form of locking
the carrier with oscillating gain growth from MER=0.5 to 2 dB above the treshold level MER = 6.5 dB (FEC Protocol 7/8).
About once for thirty minutes, the level of gain equal to the detection level and there is an immediate increase in
uncorrected Reed Solomon blocks in the order of tens , which subsequently resulted in the detection of short time duration
in units of seconds, not minutes. Lower level than bBER error = 6x10-3 I am not recorded in measurements.Stable reception
GlobeCast packet belongs in Central Europe in the category of SAT DX with a minimum recommended diameter of
370 to 500 cm depending on the design and setup of the high frequency chain .
.
                                     Measat 3 at 91.5°E - global footprint  : quality analysis of reception

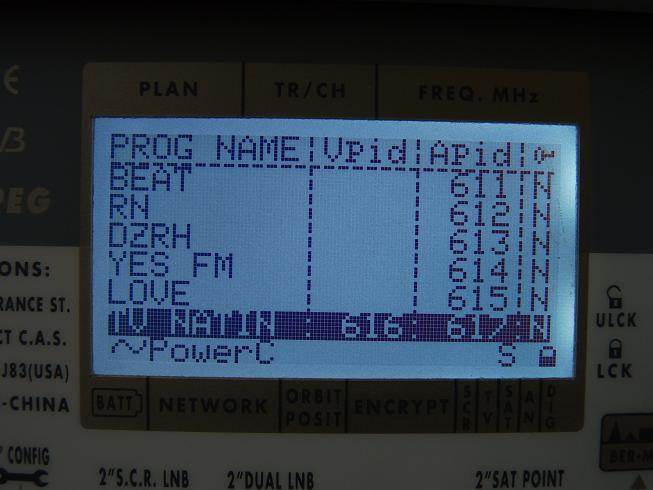

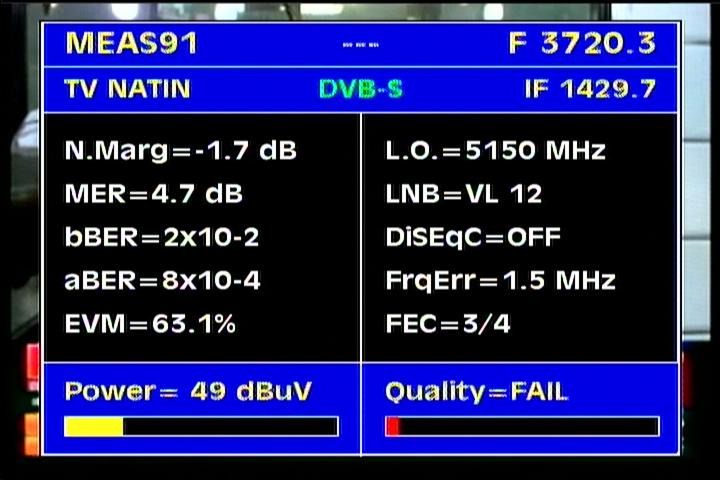

                                       Measat 3 at 91.5° - global footprint : 3 721 V Natin TV Philippines
                         IF data                                                     Q data                                                NIT data

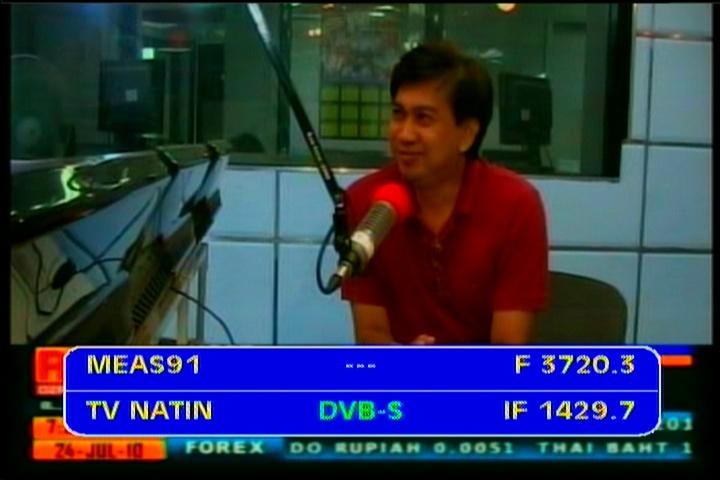

Measat 3 at 91.5 E-global footprint-3 720 V Natin TV-IF dataMeasat 3 at 91.5 E-global footprint-3 720 V Natin TV-Q dataMeasat 3 at 91.5 E-global footprint-3 720 V Natin TV-NIT data

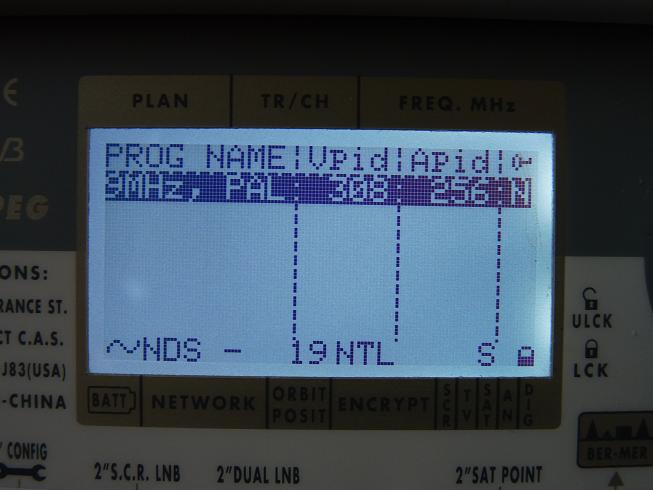

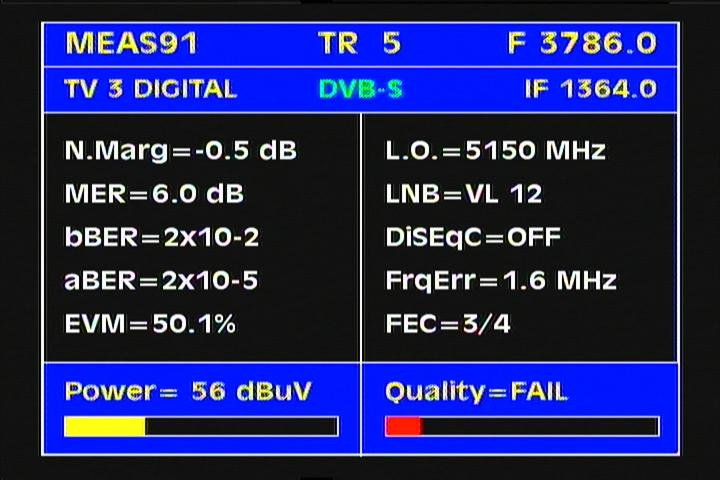

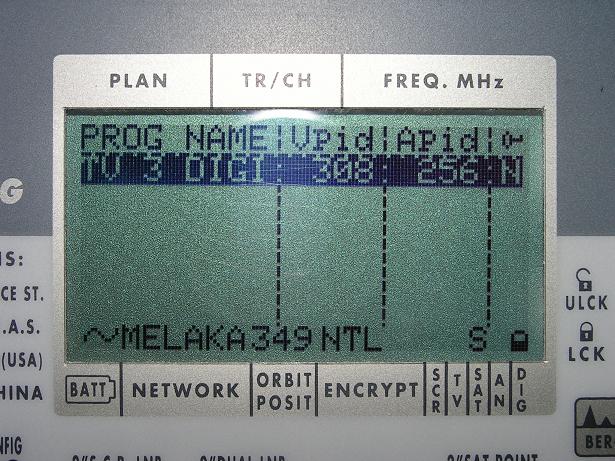

                                           Measat 3 at 91.5° - Global footprint : 3 786 V feed 9 MHz PAL
                         V/A pids                                                     Q data                                                NIT data
Measat 3 at 91.5 E-global footprint-3 786 V feed 9 MHz PAL-IF dataMeasat 3 at 91.5 E-global footprint-3 786 V feed 9 MHz PAL-Q dataMeasat 3 at 91.5 E-global footprint-3 786 V feed 9 MHz PAL-NIT data

                                           Measat 3 at 91.5° - Global footprint : 3 800 V Packet Measat

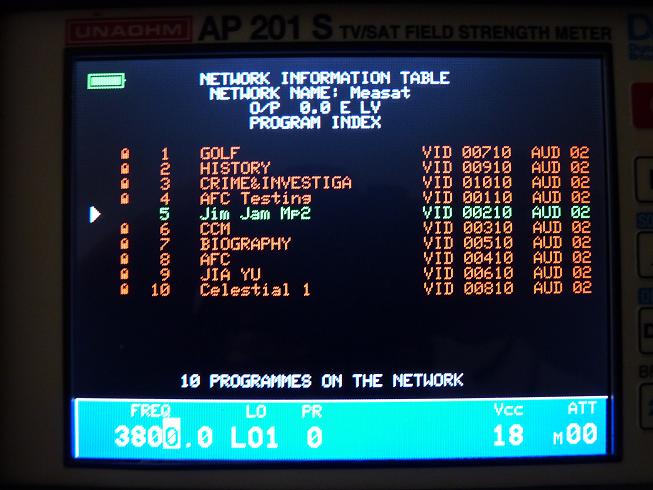

                         V/A pids                                                     Q data                                                NIT data

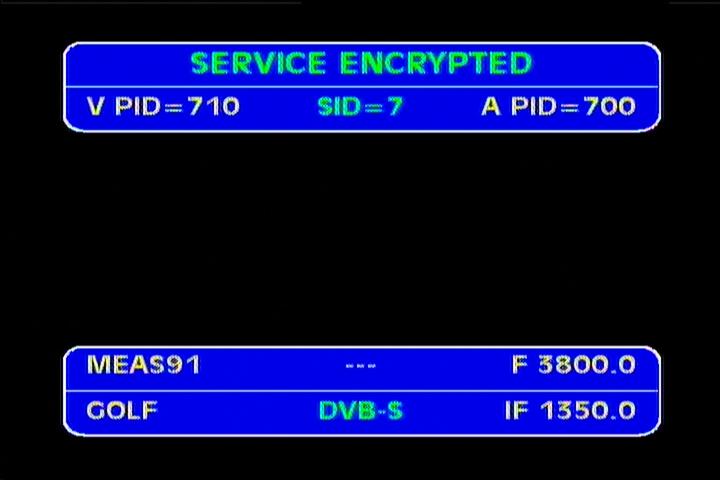

Measat 3 at 91.5 E-global footprint-3 800 V Packet Measat-IF dataMeasat 3 at 91.5 E-global footprint-3 800 V Packet Measat-Q dataMeasat 3 at 91.5 E-global footprint-3 800 V Packet Measat-NIT data

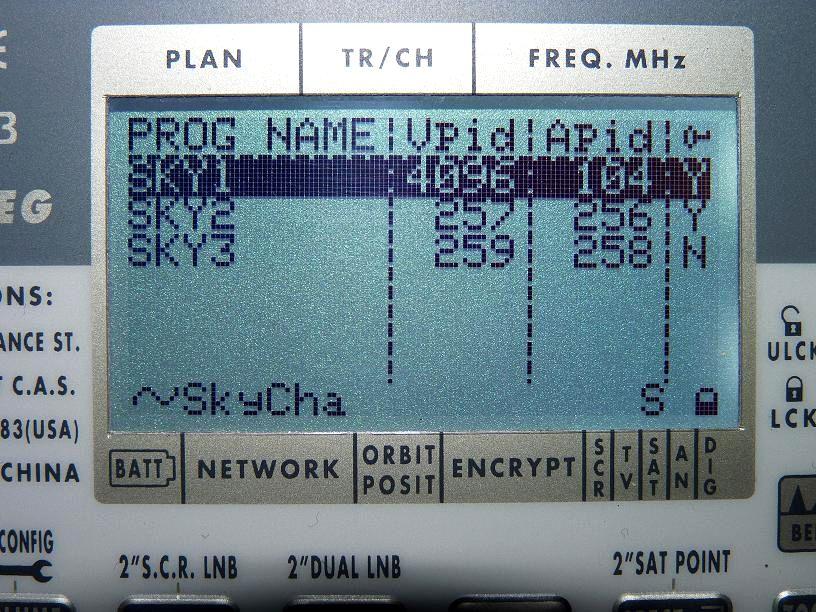

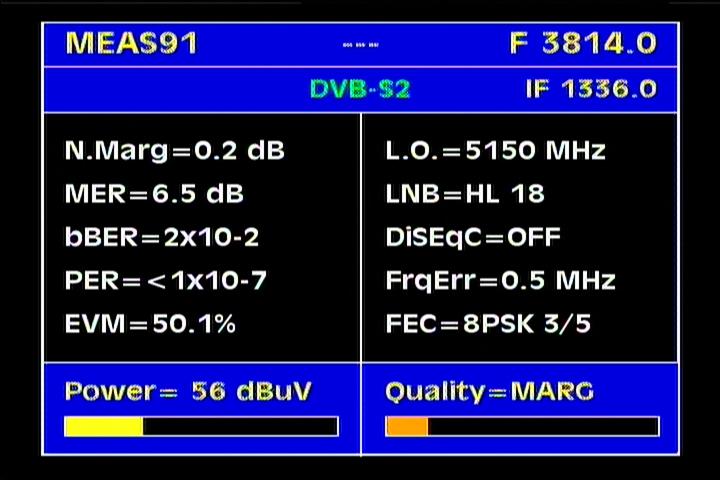

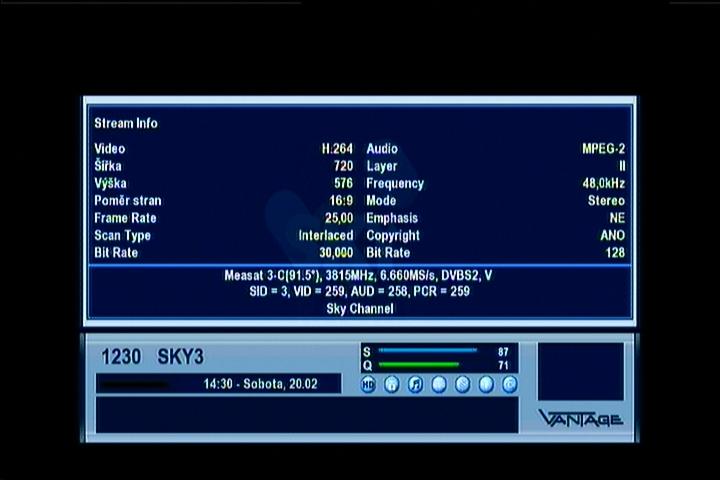

                                          Measat 3 at 91.5° - Global footprint : 3 814 V SKY Racing Australia
                         snap                                                         Q data                                                  NIT data
Measat 3 at 91.5 e_global footprint_3 814 V DVB S2 8PSK MPEG 4 Sky Racing _snapshotMeasat 3 at 91.5 e_global footprint_3 814 V DVB S2 8PSK MPEG 4 Sky Racing _Q dataMeasat 3 at 91.5 e_global footprint_3 814 V DVB S2 8PSK MPEG 4 Sky Racing _NIT data 02

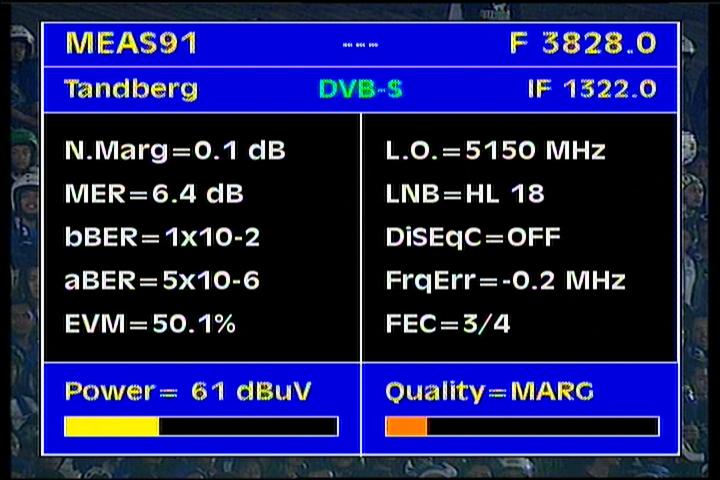

                                            Measat 3 at 91.5° - Global footprint : 3 828 V feeds Tandberg
                         V/A pids                                                     Q data                                                NIT data

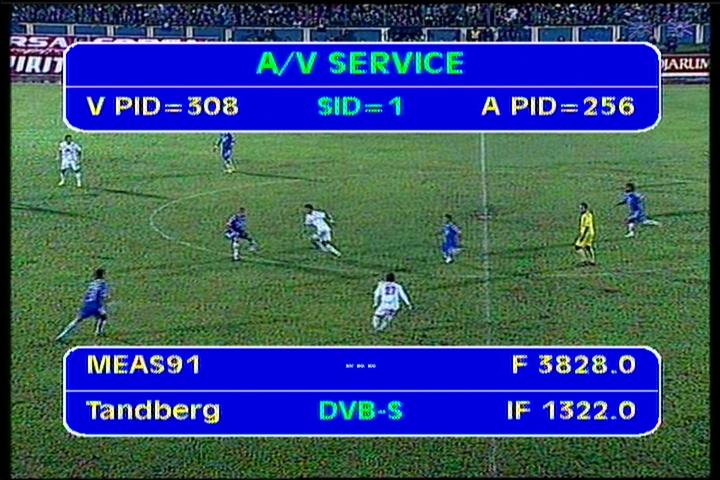

Measat 3 at 91.5 E _ global footprint in the C band-3 828 V feed Tandberg service-if dataMeasat 3 at 91.5 E _ global footprint in the C band-3 828 V feed Tandberg service-Q dataMeasat 3 at 91.5 E _ global footprint in the C band-3 828 V feed Tandberg service-NIT data

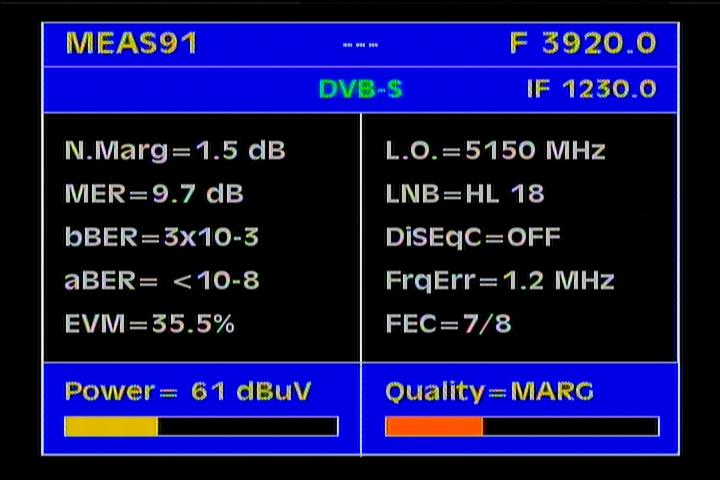

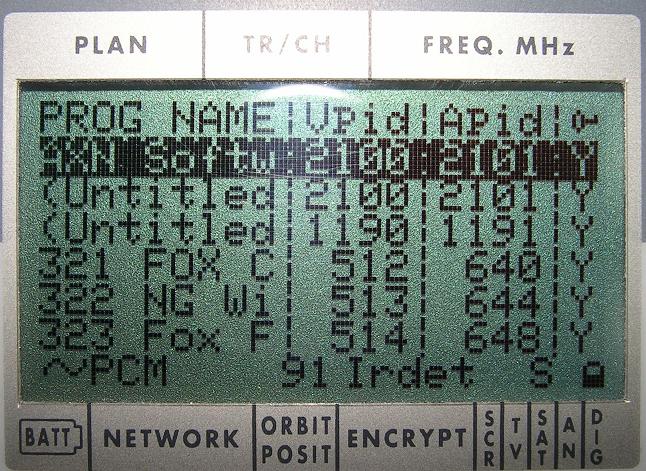

                      Measat 3 at 91.5° - Global footprint : 3 921 V Pacific Century Matrix-GlobeCast Hong Kong
                         V/A pids                                                   Q data                                                    NIT data

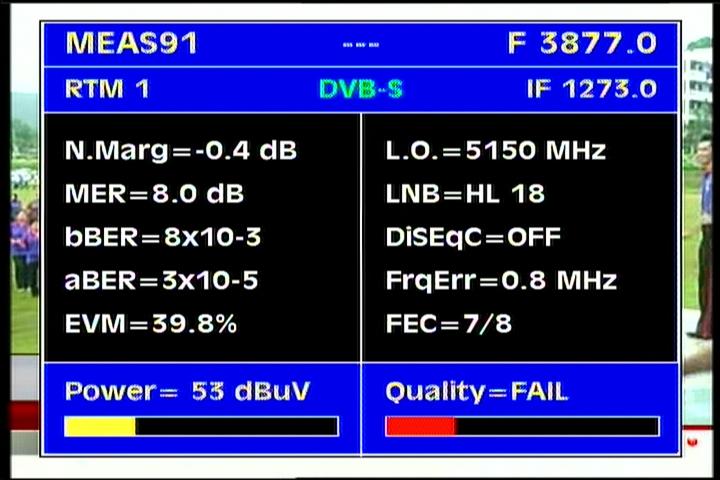

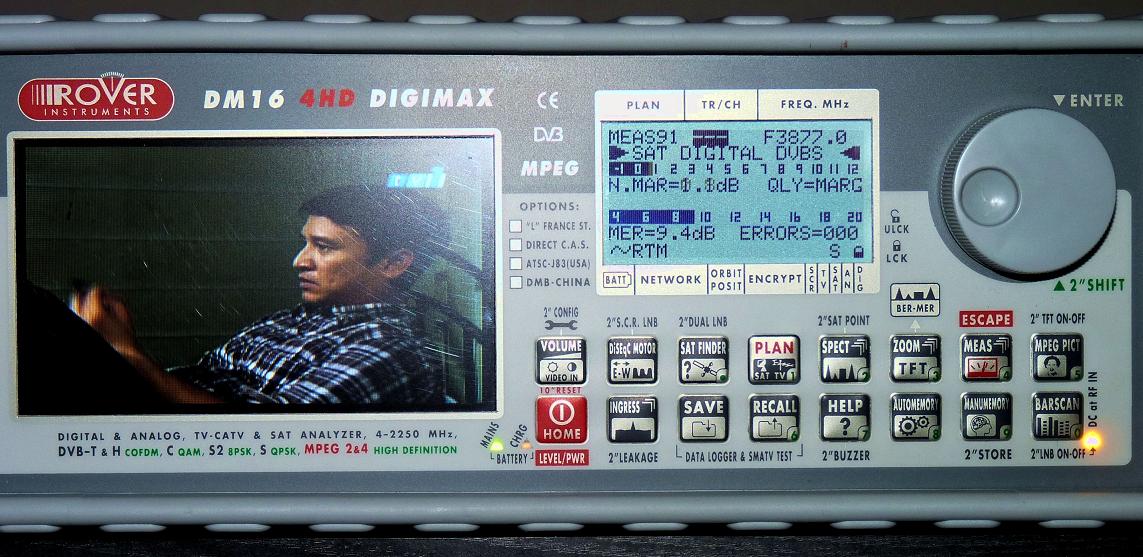

Measat 3 at 91.5 E _ global footprint in the C band-3 920 V GlobeCast packet-if dataMeasat 3 at 91.5 E _ global footprint in the C band-q anaylsis 2a-nMeasat 3 at 91.5 E _ global footprint in the C band-q anaylsis 3a-n
.

Measat 3 at 91.5°E : TV List

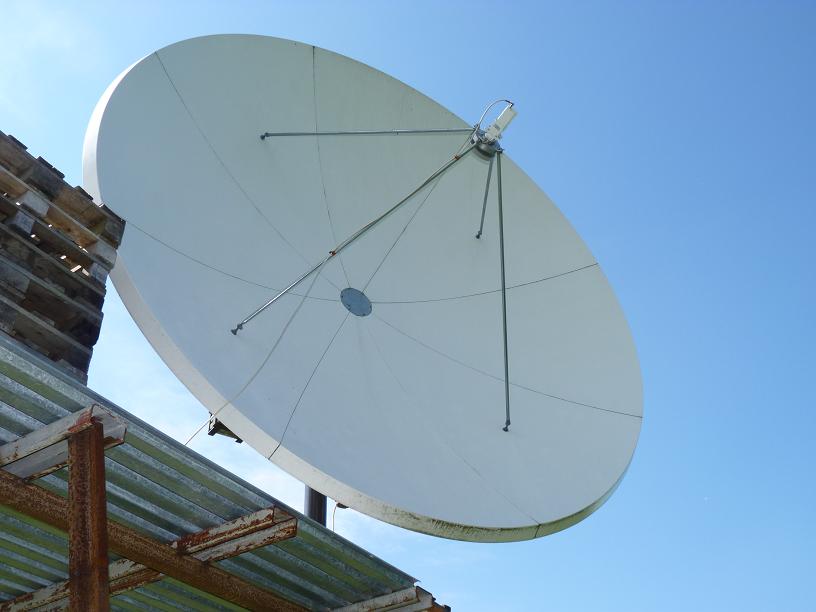

Measat 3 at 91.5 E-global footprint-PF Prodelin 3.7 m 02


-Frequency-


          ------Provider/Channel------

---SR--- ---FEC--- ---footprint--- ---Antenna--- ---Video/Encryption---

3 481 -H-tp 4EC

left


3 721 -V-tp 1C

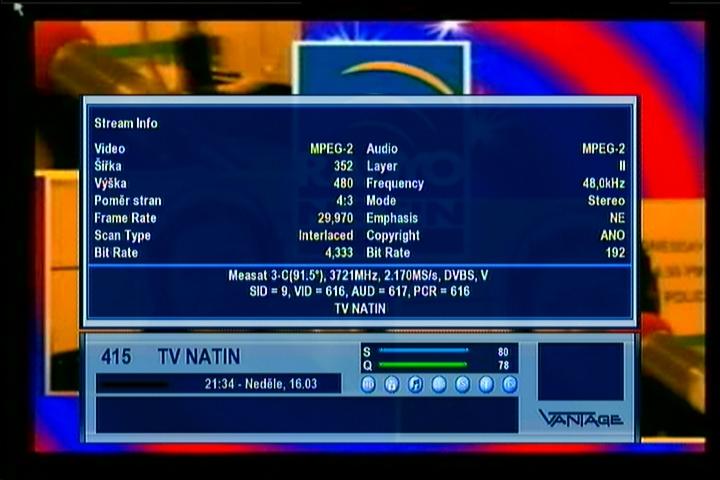

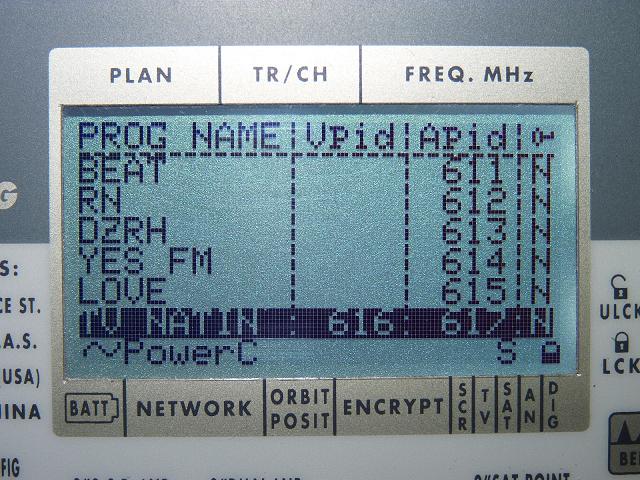

Natin TV Philippines  watch video 2 170 3/4 Global C 340-600+ cm DVB-S
  Kids FM         FTA/radio stream
  Hot FM         FTA/radio stream
  Beat         Viaccess 2.5
  RN         FTA/radio stream
  DZRH         Viaccess 2.5
  YES FM         Viaccess 2.5
  Love         Viaccess 2.5

3 745 -V-tp 3C

Racing International

5 064 3/4 Global C 370-600+ cm DVB-S
  Racing International         Videoguard
  feeds

3 751 -V-tp 3C

Nat Geo Music

2 326 7/8 Global C 370-600+ cm DVB-S/Irdeto

3 786 -V-tp 5C

feeds 9 MHz PAL 7 030 3/4 Global C 340-600+ cm DVB-S/Biss

3 800 -V-tp 5C

Measat 13 330 3/4 Global C 340-500+ cm DVB-S
  GOLF Asia         PowerVu
  HISTORY Channel Asia         PowerVu
  CRIME & INVESTIGATION Asia         PowerVu
  Asian Food Channel / AFC testing         PowerVu
  Jim Jam Asia/Jim Jam mp-2watch video         no service
  CCM         PowerVu
  BIOGRAPHY Asia         PowerVu
  Asian Food Channel / AFC         PowerVu
  Jia YU         PowerVu

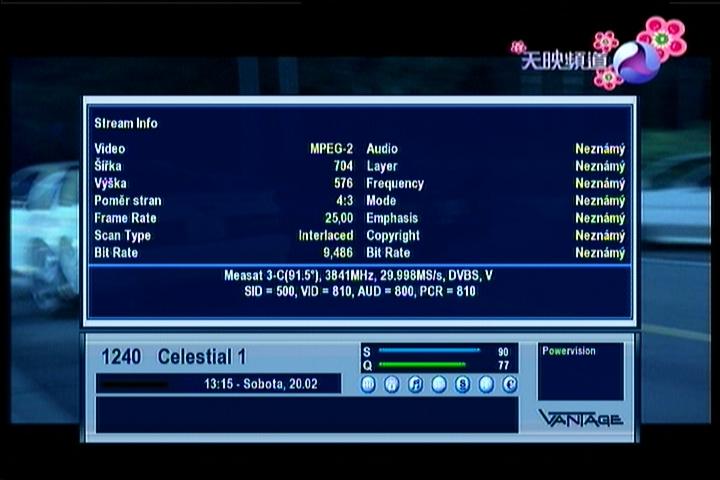

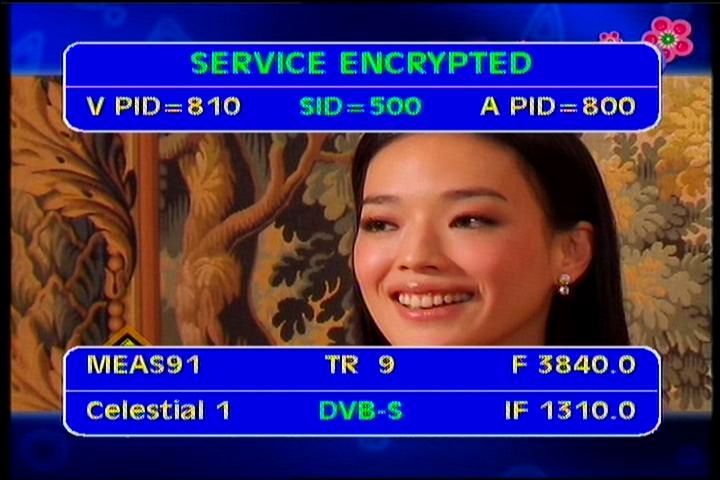

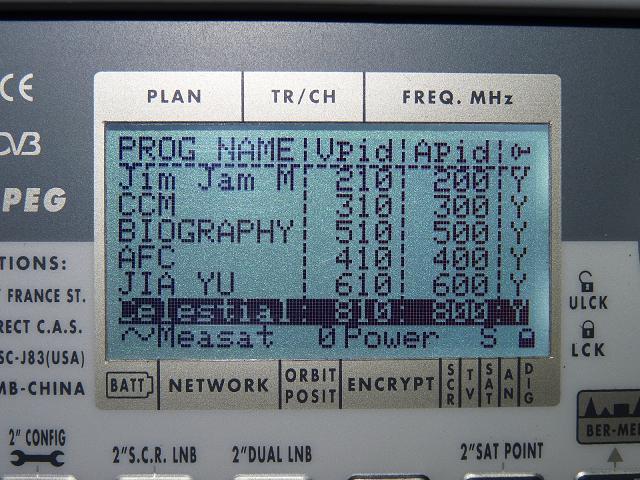

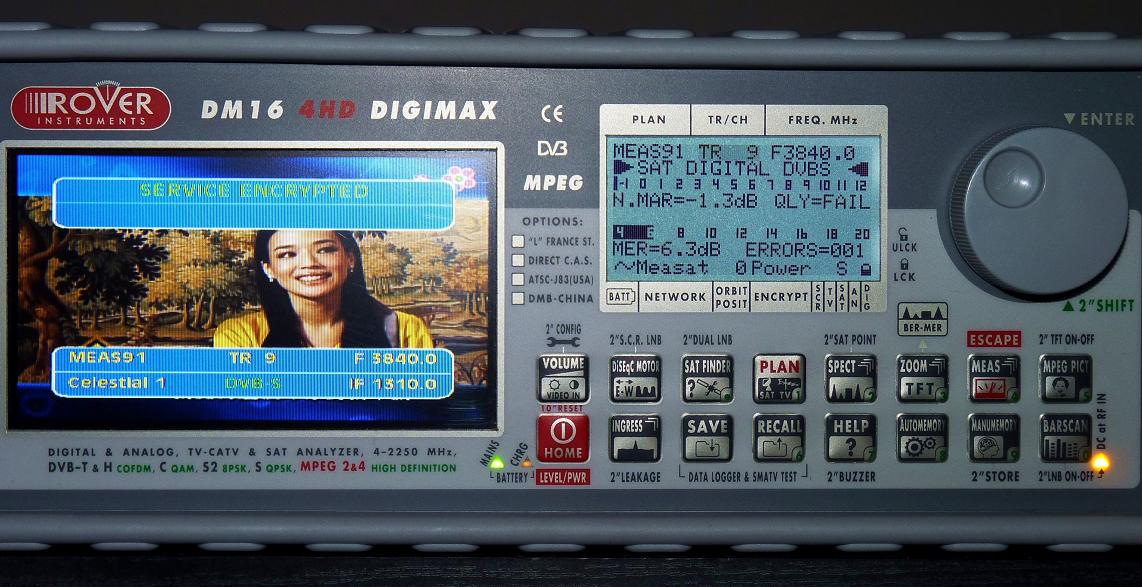

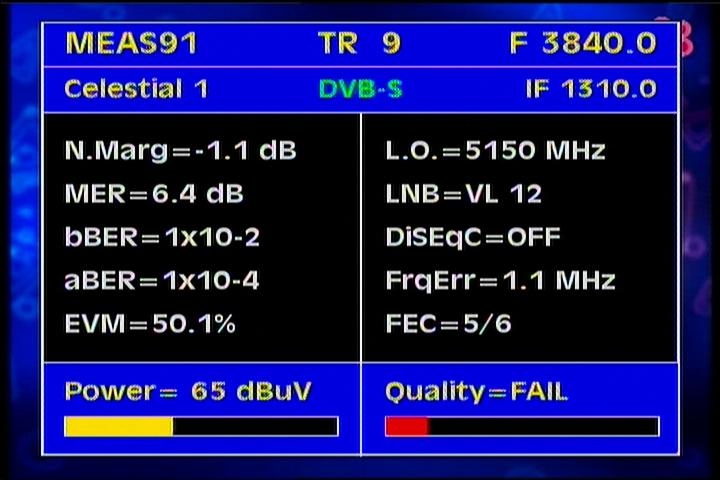

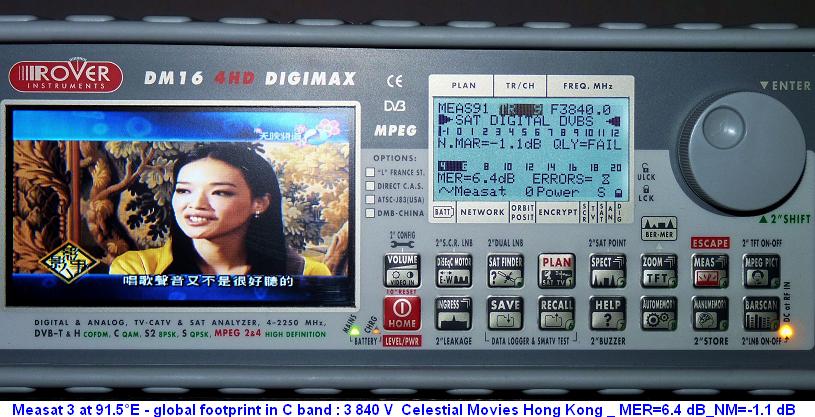

  Celestial 1 Movies

3 814 -V-tp 5C

SKY Channel 269 6 666 3/5 Global C 360-500+ cm DVB-S2/8PSK
  SKY 1         MPEG-2/Irdeto 2
  SKY 2         MPEG-4/Irdeto 2
  SKY 3 promo channel         MPEG-4/FTA

3 828-V- tp 7C

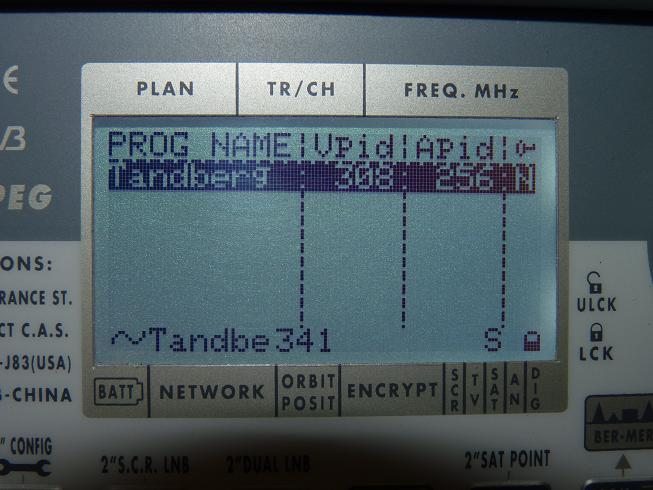

feeds Tandberg

6 000 3/4 Global C 340-500+ cm DVB-S/FTA

3 866 -V-tp 9C

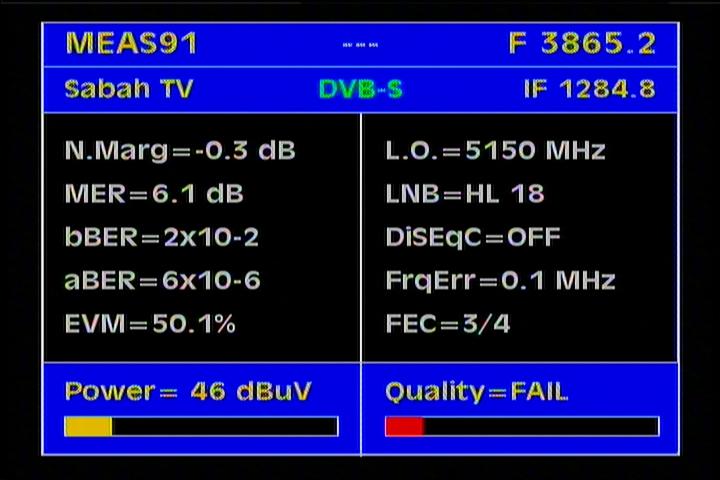

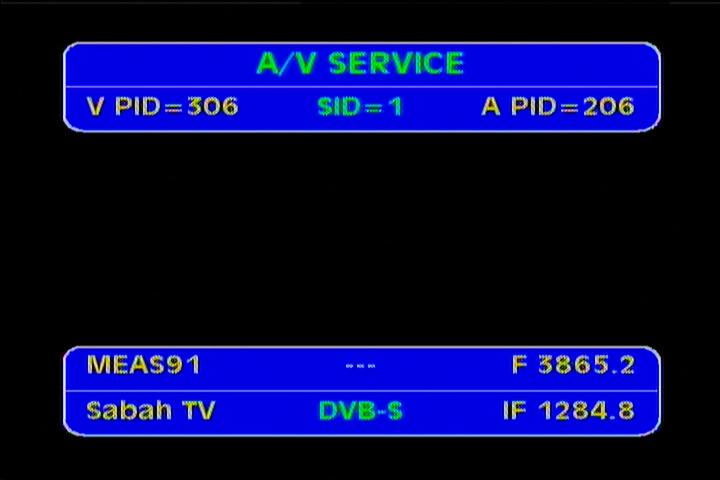

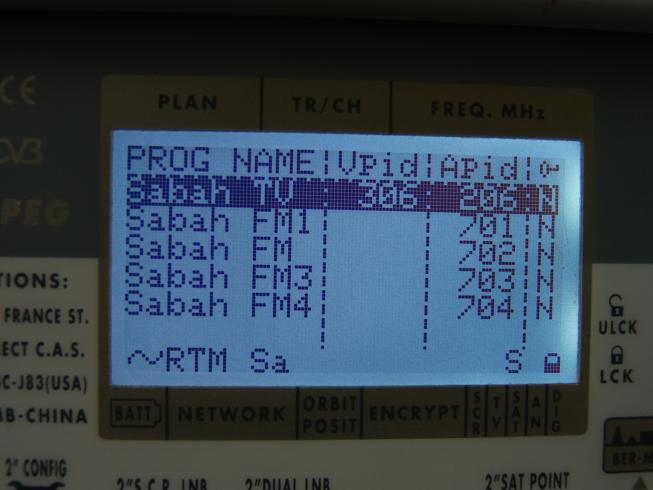

RTM Sabah  _ without lock

2 917 2/3 Global C 400-500+ cm DVB-S2/8PSK/MPEG-4

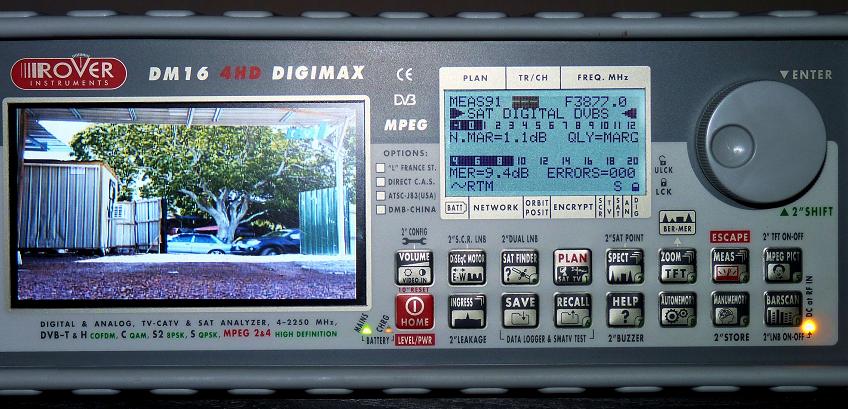

3 876 -V-tp 9C

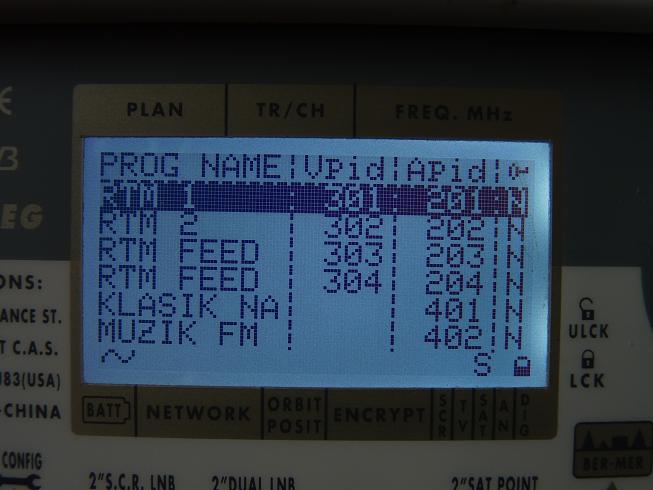

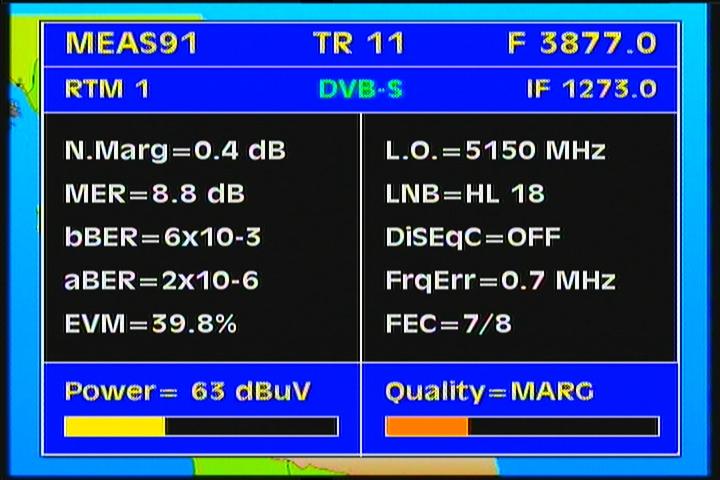

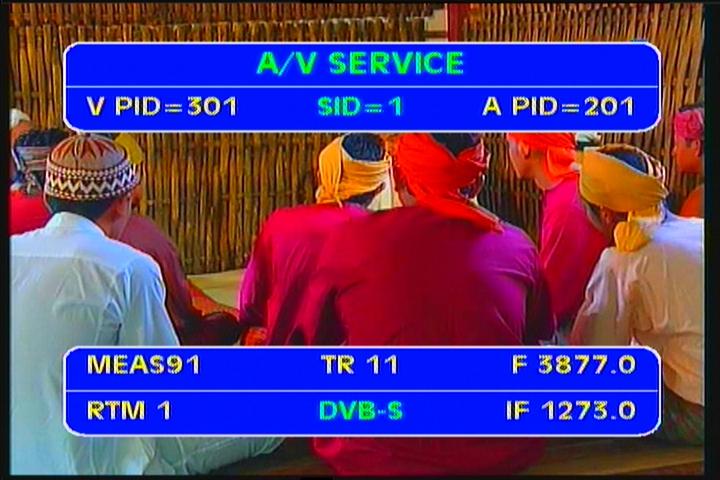

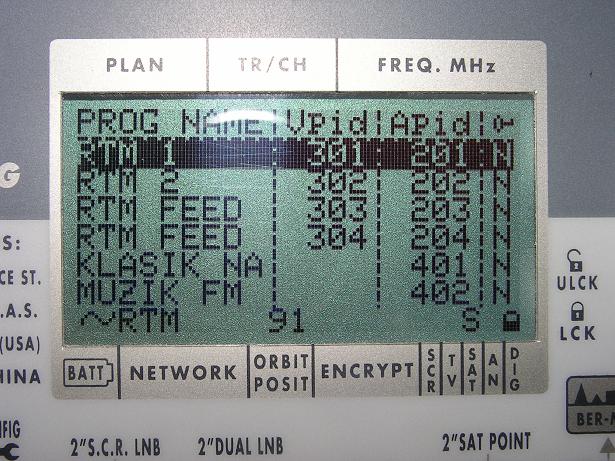

Packet RTM Malaysia 18 385 2/3 Global C 400-500+ cm DVB-S2/8PSK/MPEG-4

3 892 -V-tp 9C

RTM Sarawak_ without lock

2 917 2/3 Global C 400-500+ cm DVB-S2/8PSK/MPEG-4

3 920 -V-tp 11C

GlobeCast Hong Kong 28 000 7/8 Global C 300-500+ cm DVB-S
  Fashion one FULL HD+3D         MPEG-4/FTA/HD/3D
  321 Fox Crime Asia         Irdeto/Videoguard
  322 Nat Geo Wild Asia         Irdeto/Videoguard
  323 FOX FX Asia         Irdeto/Videoguard
  324 National Geographic Philippines          Irdeto/Videoguard

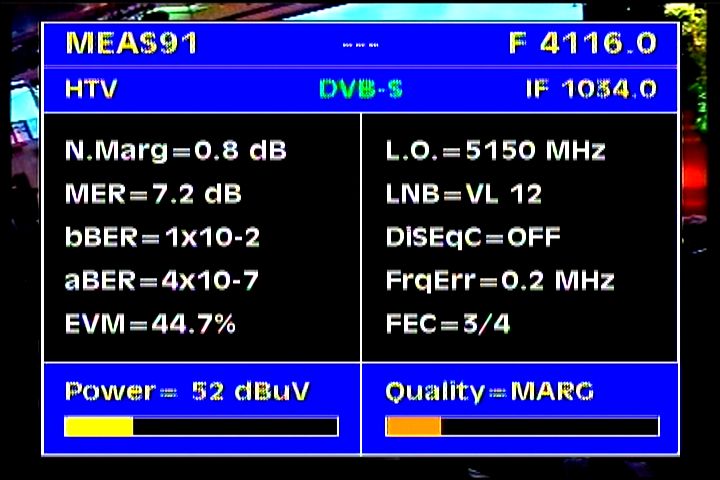

4 116 -V-tp 21C

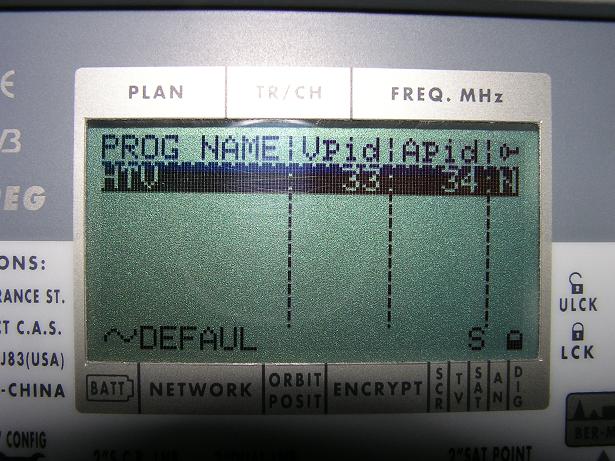

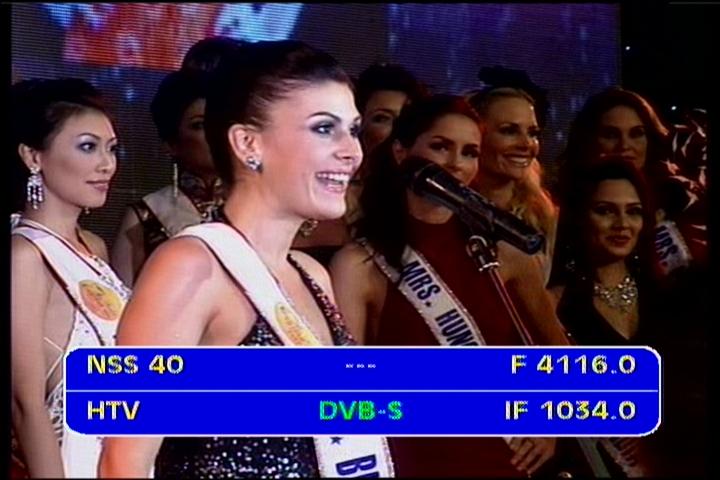

feed HTV Vietnam  watch video      watch video

3 200 3/4 Global C 240-400+ cm DVB FTA

4 120 -V-tp 21C

              without carrier lock         ....

4 137 -V-tp 21C

feeds AMNS SNG Ascent Media ... 3 255 3/4 Global C 340-500+ cm DVB Biss

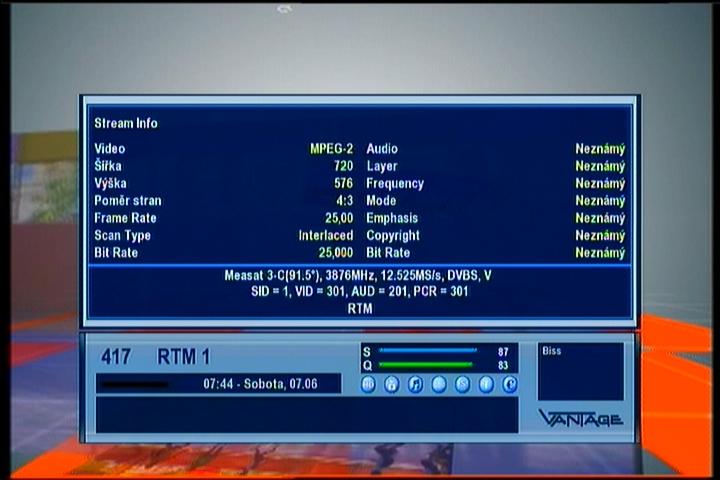

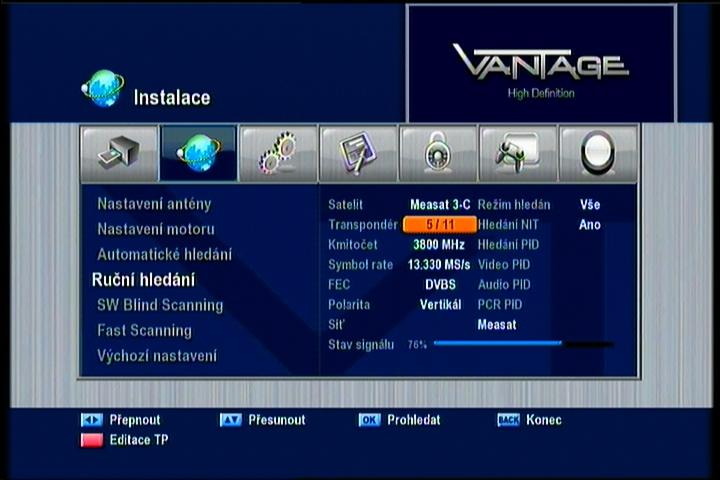

Measat 3 at 91.5°E : relative q

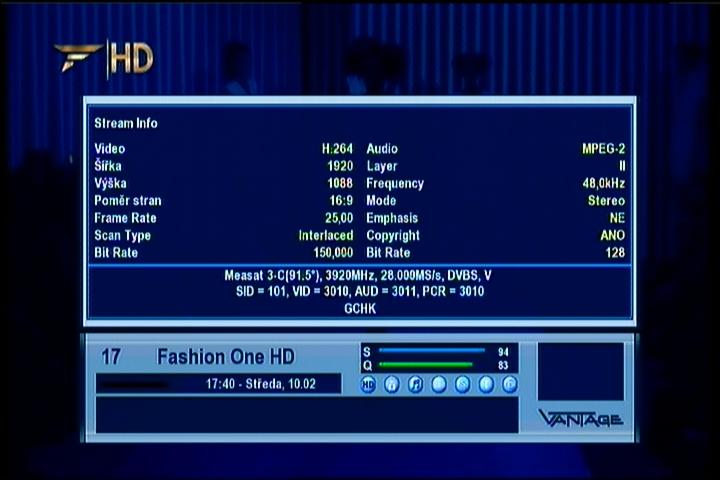

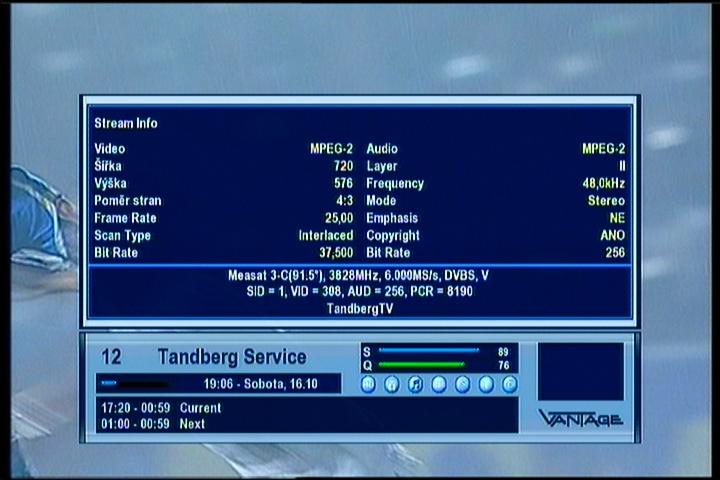

relative q Natin tv 01relative q 02 02relative q 03 03
.
