Paksat 1 at 38.0°E

Paksat 1 at 38.0°E : Technical data

                                 Paksat 1 at 38.0°E-C1 footprint : 3 730 V Mehran tv Pakistan-quality peak MERp=8.2 dB

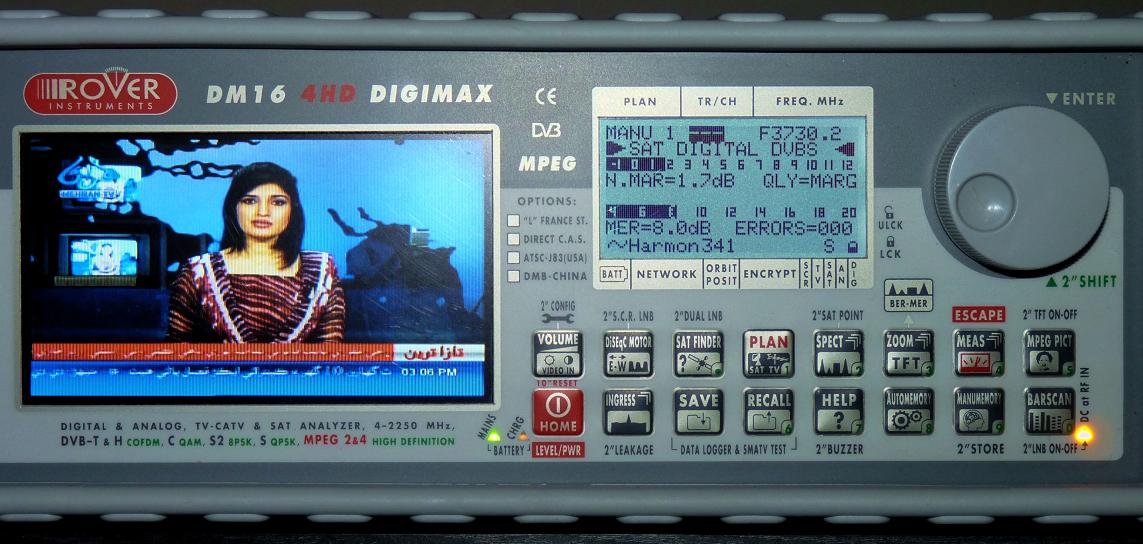

Paksat 1 at 38.0e-c1 footprint-3 730 V Mehran tv-first
                                                                        Paksat 1 at 38.0°E Payload datails :
TP: 24 in standart C band _ 6 in extended C band _TP bandwidth : 36 MHz_Uplink frequency band : 5 925 - 6 665 MHz

Beams : Southern & Northern region_Polarization : Linear V+H crosspol_EIRP at beam peak : 38 dBW

.


Paksat 1 at 38.0°E - C1 footprint : spectrum analysis & measurement results

.

                     Paksat 1 at 38.0°E - C1 footprint : measurements at the center Lučenec_central Slovakia
                                               geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                          measurement results are derived from the 3.7 m diameter antenna
                                                                  date of measurement : 16.10.2010
                                                                              elevation angle  : 32°

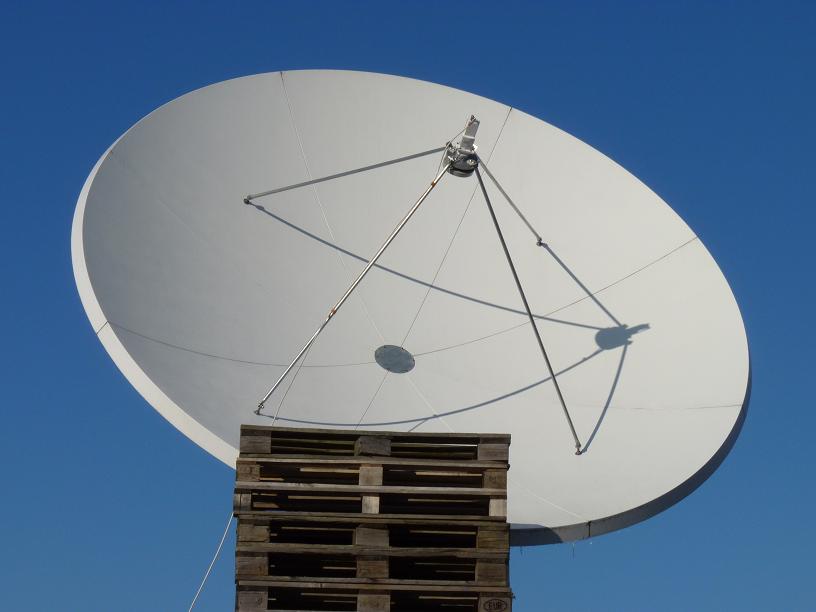

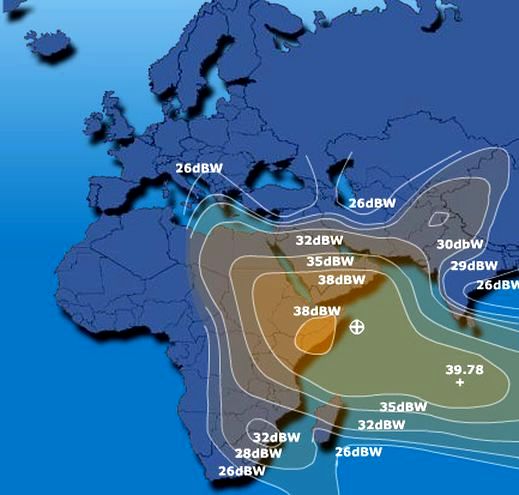

   Paksat 1:C1 West-vertical footprint          Paksat 1 : installed system                     Paksat 1 : research point
                    coverage area                         Prodelin 3.7 m,LNB Norsat 8215           town Lučenec / Slovak republic
  M.East,Africa,part of s. Asia+Europe
                                                                                    48.33° _ 19.72°
Paksat 1 at 38.0e-C1-West-Vertical beamPaksat 1 at 38.0e_c1 footprint_PF Prodelin 3.7 mPaksat 1 at 38.0e-C1-West-Vertical beam-measurement point
                  click for enlarge                                           click for enlarge                                        click for enlarge
.
                    --- Paksat 1 at 38.0°e-C1 west-vertical beam : spectral analysis of the transponders TP 1V + 3V ---

                                 click for enlarge                                                                           click for enlarge
Paksat 1 at 38.0 e-C1 footprint-TP 1V spectral analysis-nPaksat 1 at 38.0 e-C1 footprint-TP 3V spectral analysis-n
.

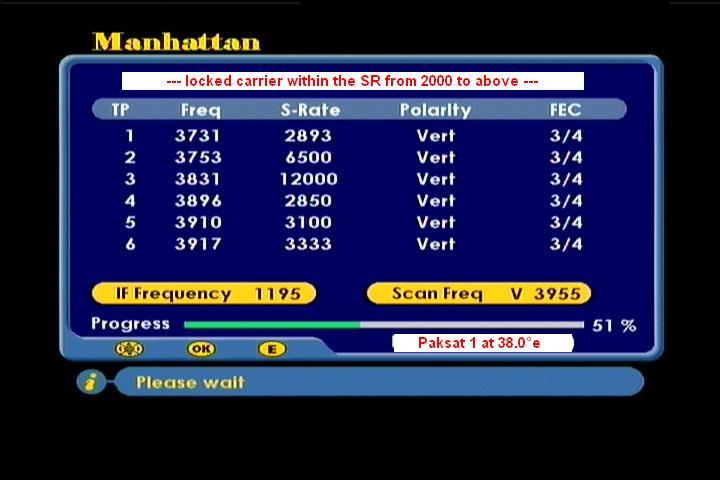

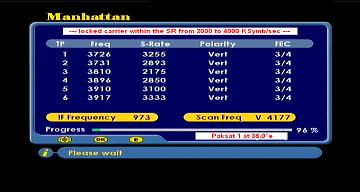

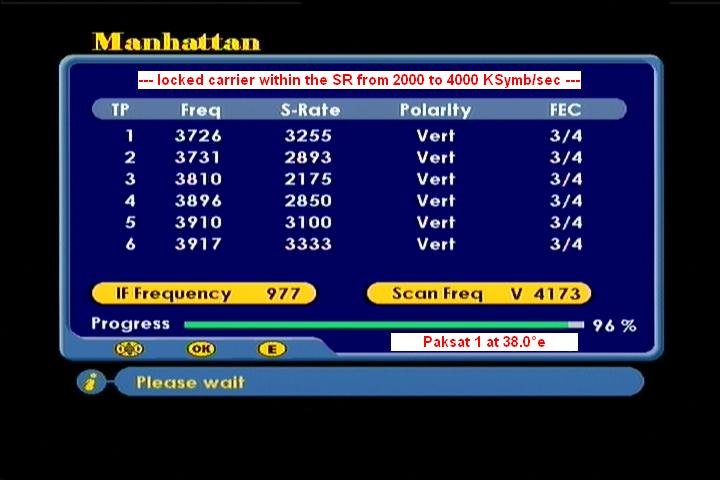

    --- Paksat 1 at 38.0°e-C1 west-vertical beam : locked carrier within the SR from 2000 to 4000 KSymb/sec and above ---

                   ---SR from 2000 to 4000 KSymb/sec---                                    ---SR from 2000 and above KSymb/sec---
    locked carrier within the SR from 2000 to 4000 KSymb sec-nlocked carrier within the SR from 2000 and above KSymb sec-n
                                                                   - time of measurement : 16.10.2010 -
                                                                         - defining the status of reception -

                                                   -  Paksat 1 at 38.0°E - C1 footprint : 3 724 > 3 752 MHz -

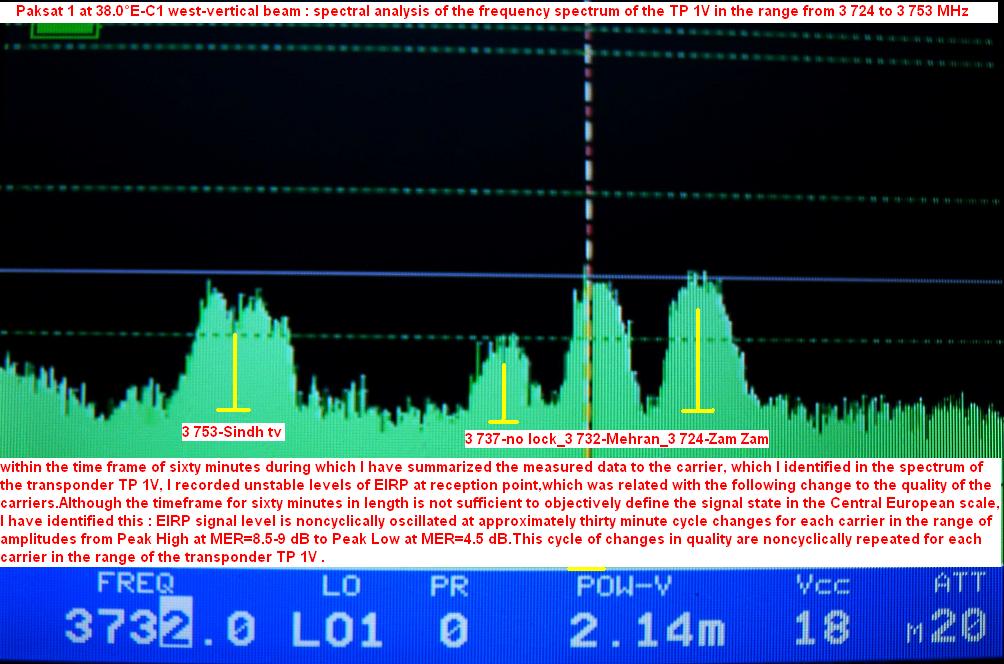

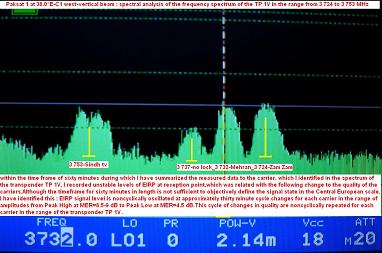

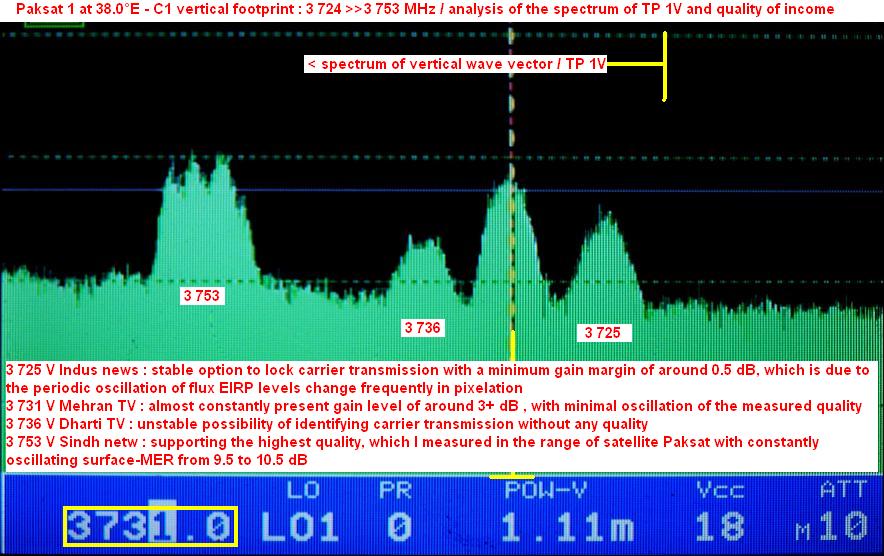

TP 1V : within the time frame of sixty minutes during which I have summarized the measured data to the carrier, which I
identified in the spectrum of the transponder TP 1V, I recorded unstable levels of EIRP at reception point,which was related
with the following change to the quality of the carriers.Although the timeframe for sixty minutes in length is not sufficient to
objectively define the signal state in the Central European scale, I have identified this : EIRP signal level is noncyclically
oscillated at approximately thirty minute cycle changes for each carrier in the range of amplitudes from Peak High at
MER=8.5-9 dB to Peak Low at MER=4.5 dB.This cycle of changes in quality are noncyclically repeated for each carrier in the
range of the transponder TP 1V .

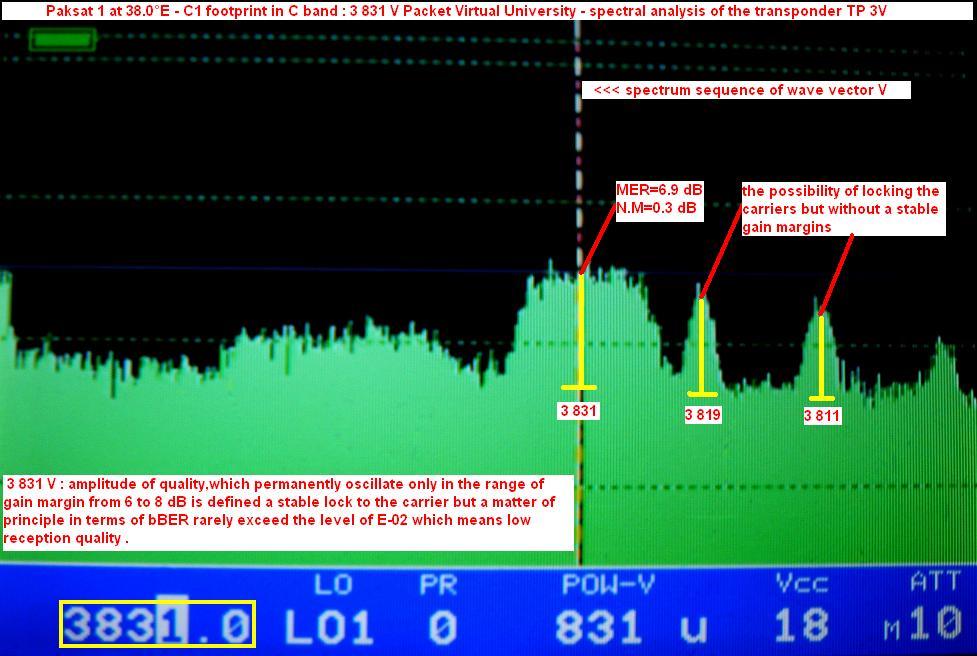

                                           -  Paksat 1 at 38.0°E - C1 footprint : 3 831 V Packet Virtual University -

3 831 V : amplitude of quality,which permanently oscillate only in the range of gain margin from 6 to 8 dB is defined a stable
lock to the carrier but a matter of principle in terms of bBER rarely exceed the level of E-02 which means low reception quality .
.

                                         Paksat 1 at 38.0°E - C1 footprint  : quality analysis of reception

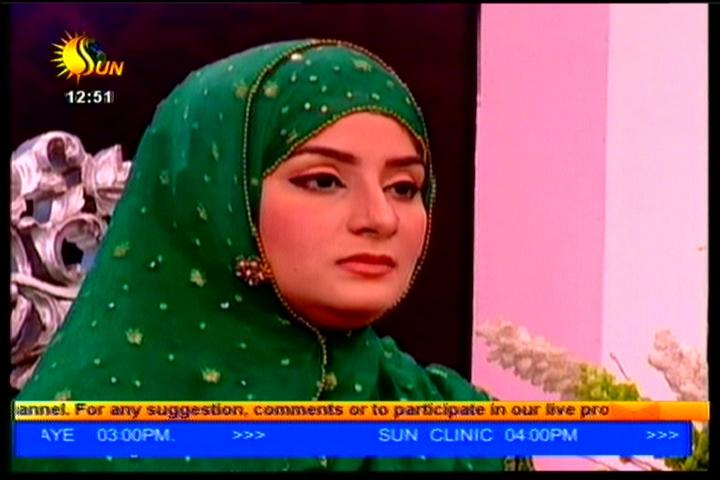

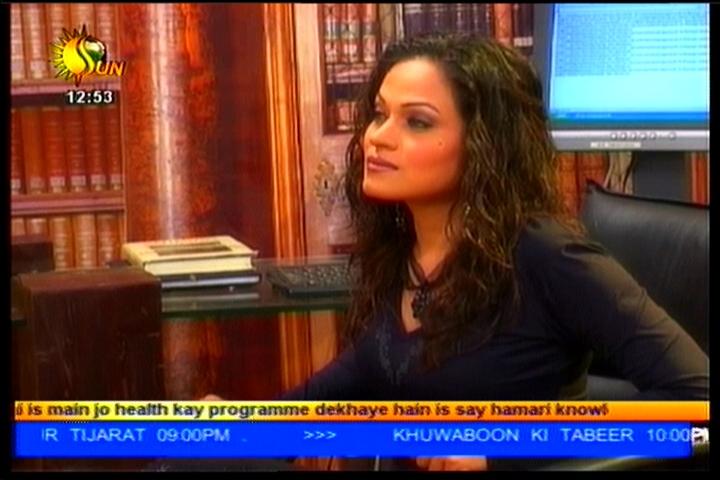

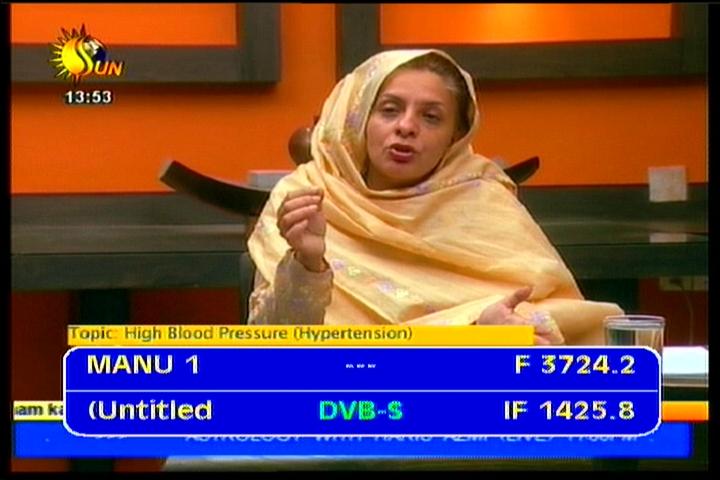

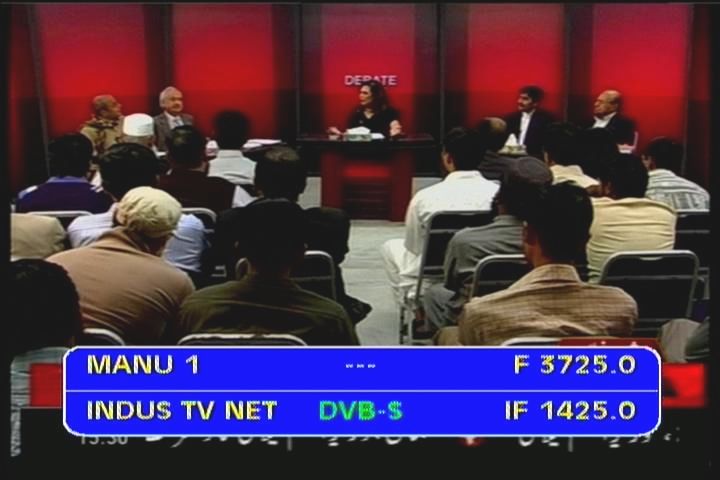

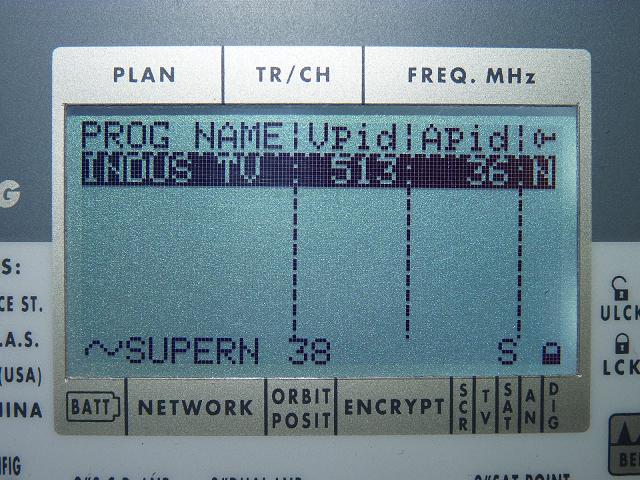

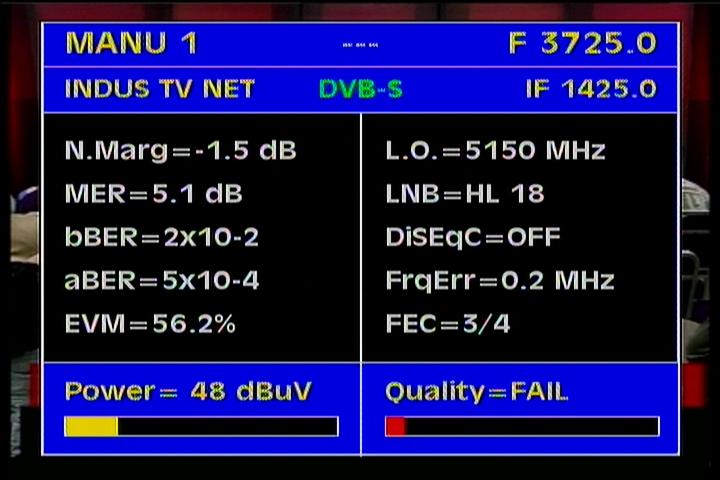

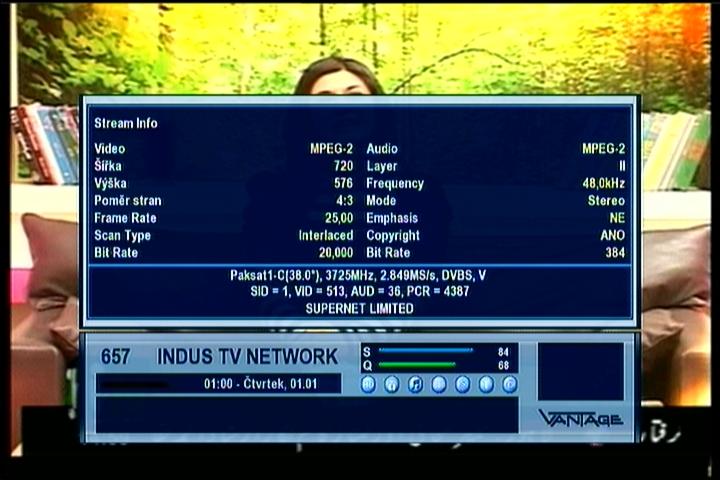

                                           Paksat 1 at 38.0°E - C1 footprint : 3 725 V Zam Zam tv

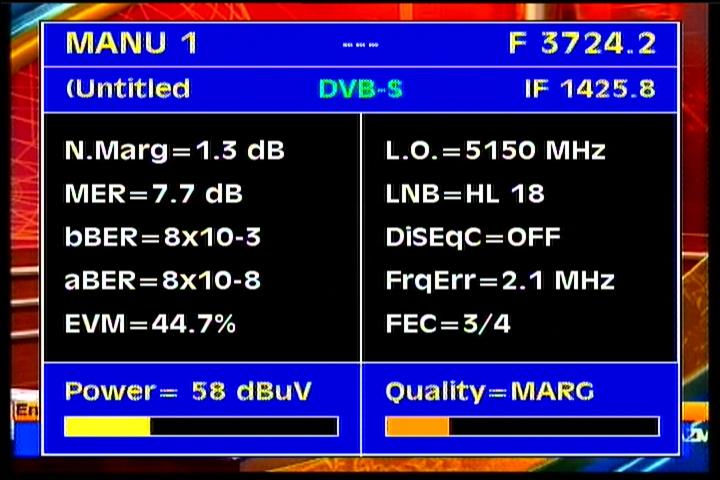

                           IF data                                                    Q data                                                 NIT data
Paksat 1 at 38.0 e-C1 footprint-3 724 V Zam Zam tv-IF dataPaksat 1 at 38.0 e-C1 footprint-3 724 V Zam Zam tv-Q dataPaksat 1 at 38.0 e-C1 footprint-3 724 V Zam Zam tv-NIT data

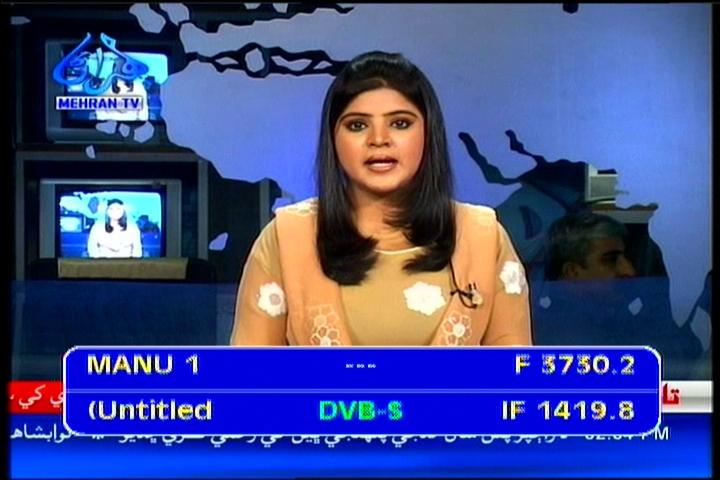

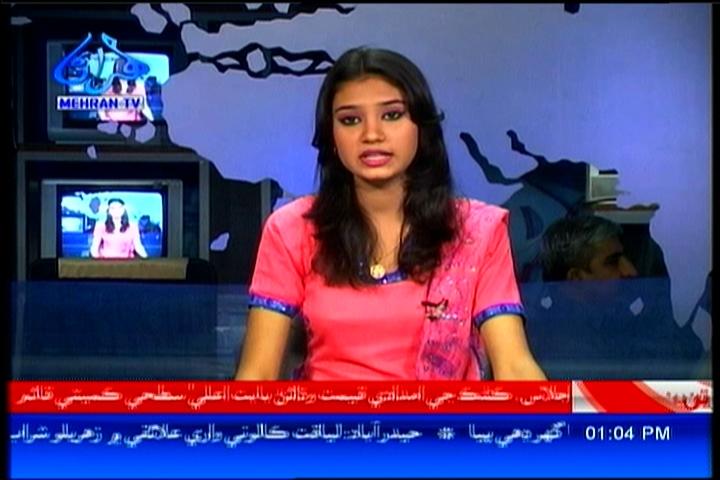

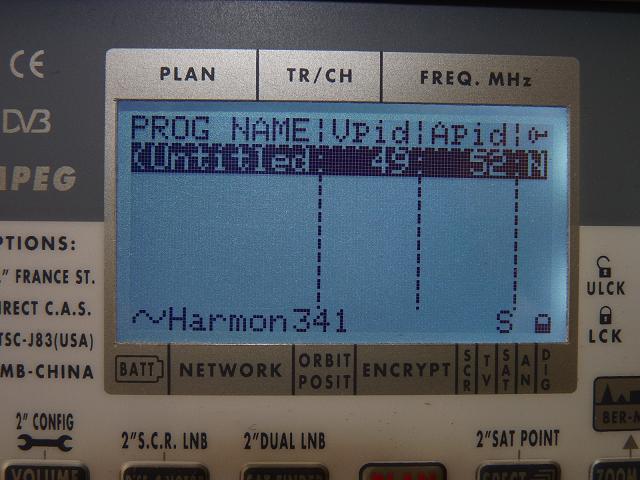

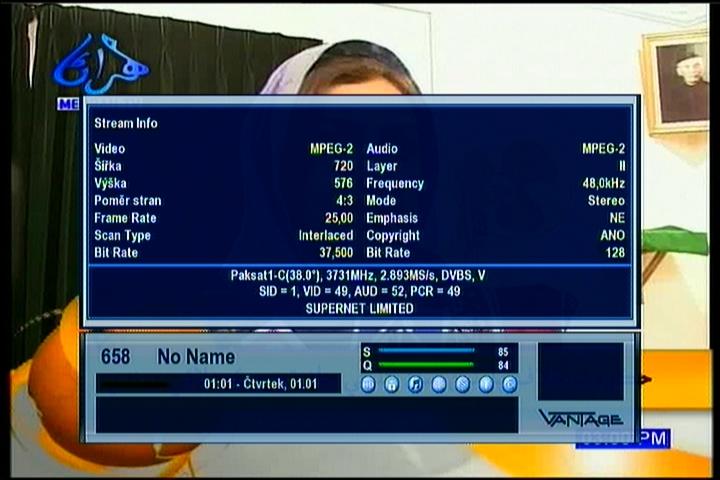

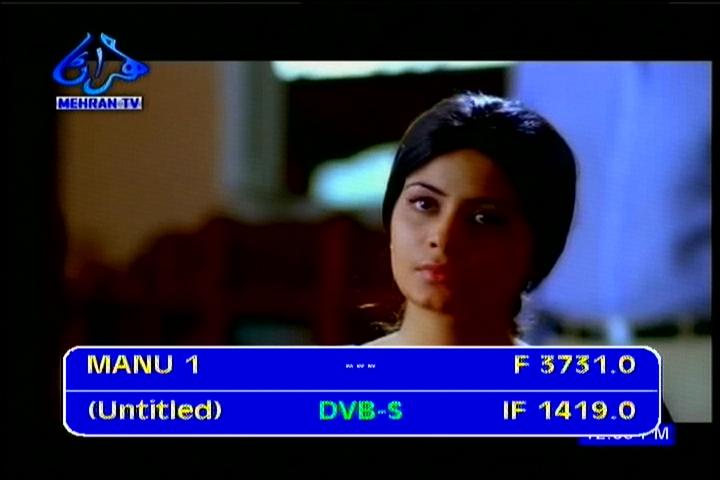

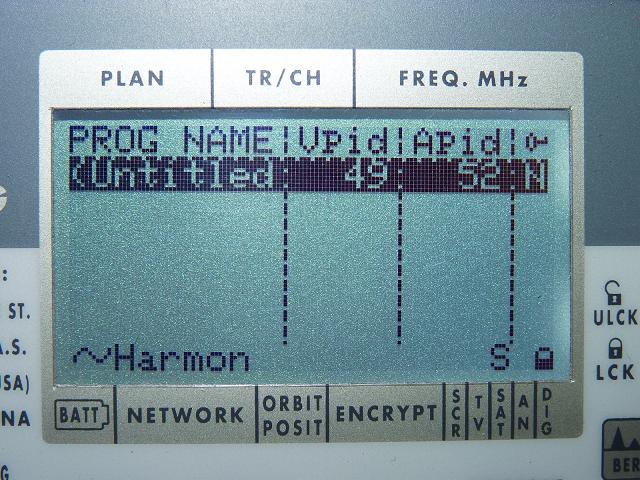

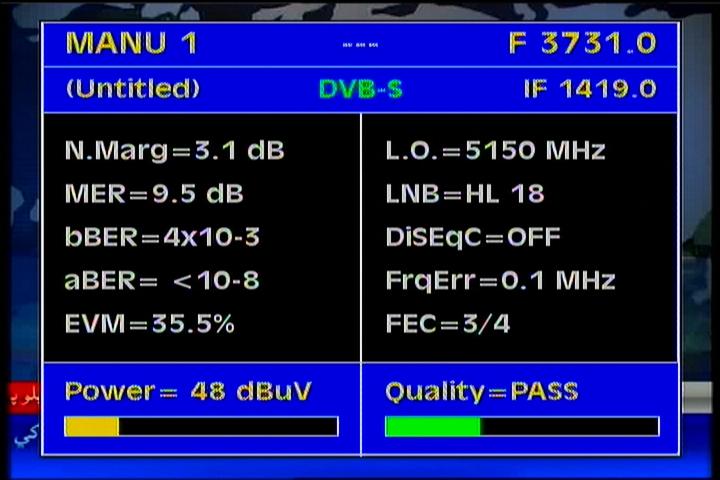

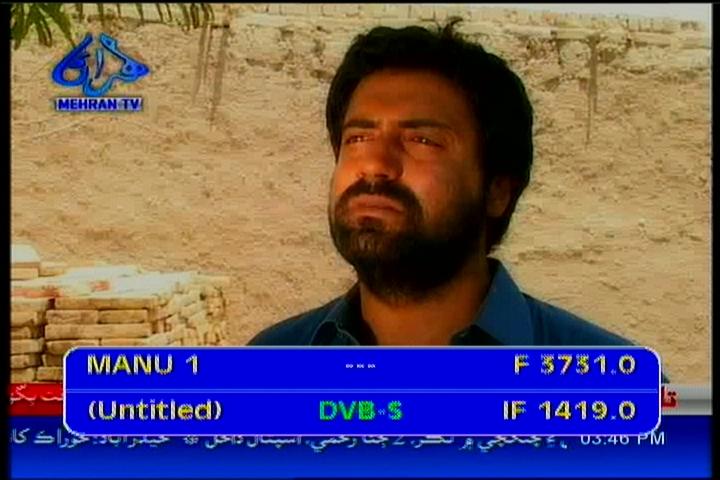

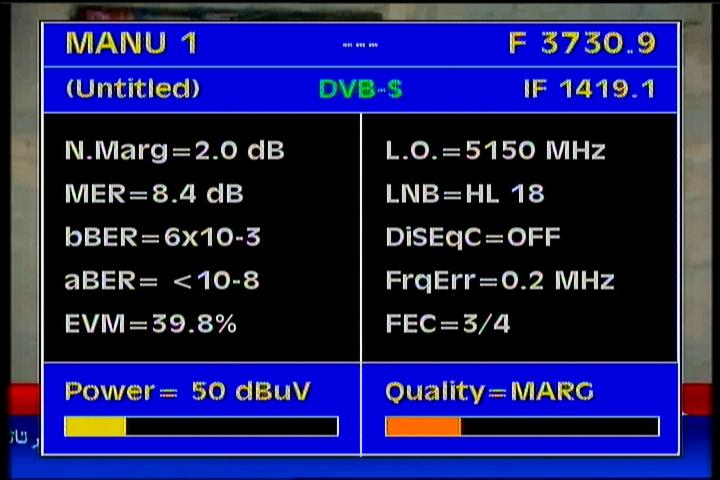

                                            Paksat 1 at 38.0°E - C1 footprint : 3 731 V Mehran TV Pakistan

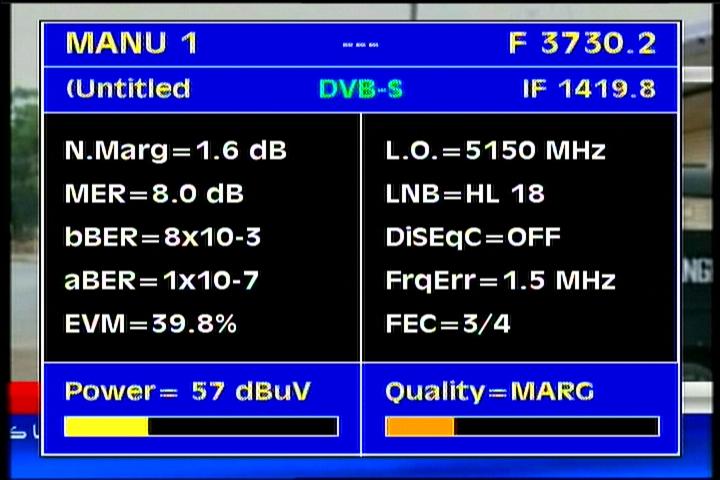

                            IF data                                               Q data                                                 NIT data

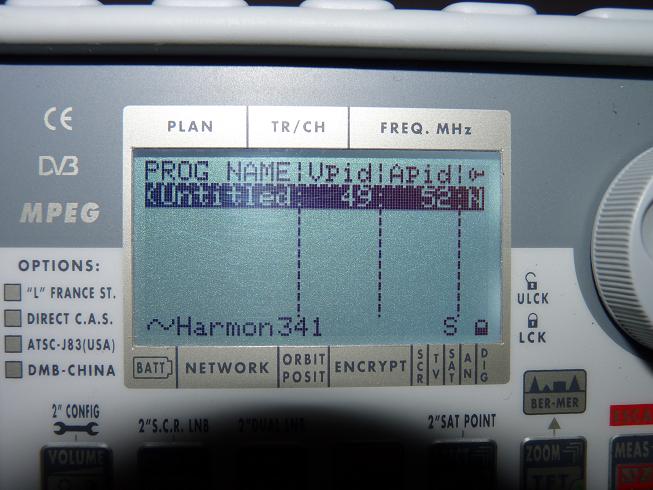

Paksat 1 at 38.0 e-C1 footprint-3 730 V Mehran tv-IF dataPaksat 1 at 38.0 e-C1 footprint-3 730 V Mehran tv-Q dataPaksat 1 at 38.0 e-C1 footprint-3 730 V Mehran tv-NIT data

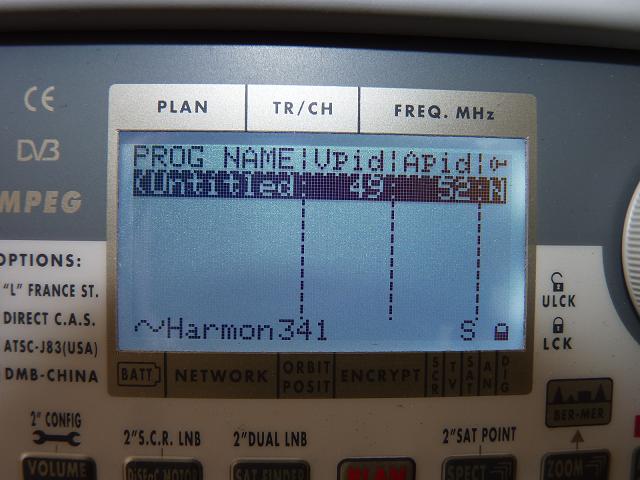

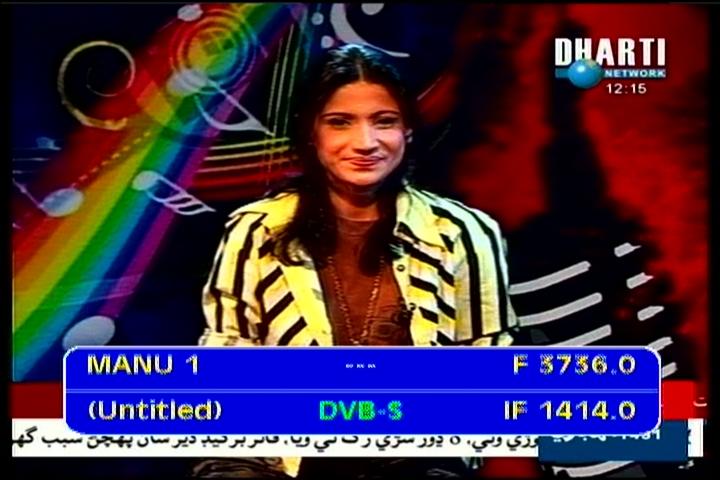

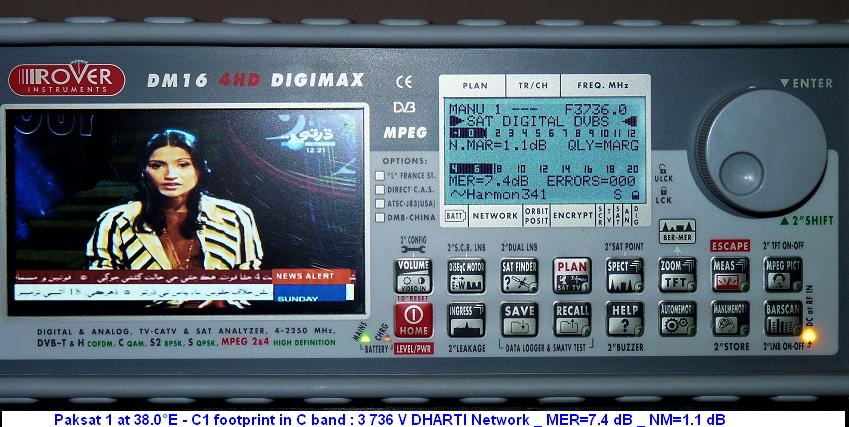

                                   Paksat 1 at 38.0°E - C1 footprint : 3 736 V Dharti network Pakistan
                         IF data                                                    Q data                                                 NIT data

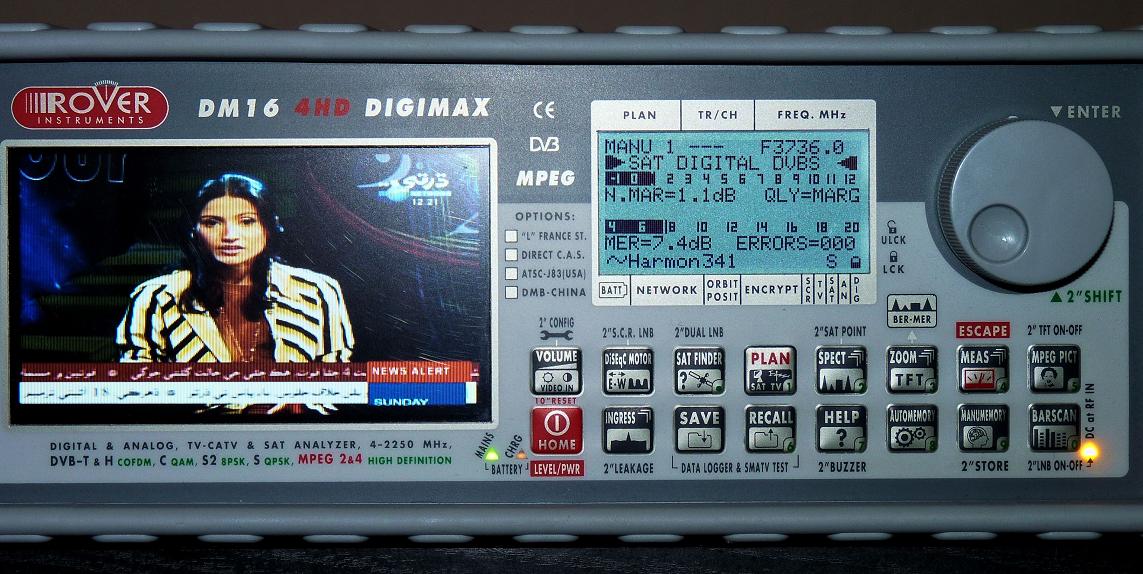

Paksat 1 at 38.0 e_C1 footprint in C band_3 736 V Dharti network_IF dataPaksat 1 at 38.0 e_C1 footprint in C band_3 736 V Dharti network_Q dataPaksat 1 at 38.0 e_C1 footprint in C band_3 736 V Dharti network_NIT data

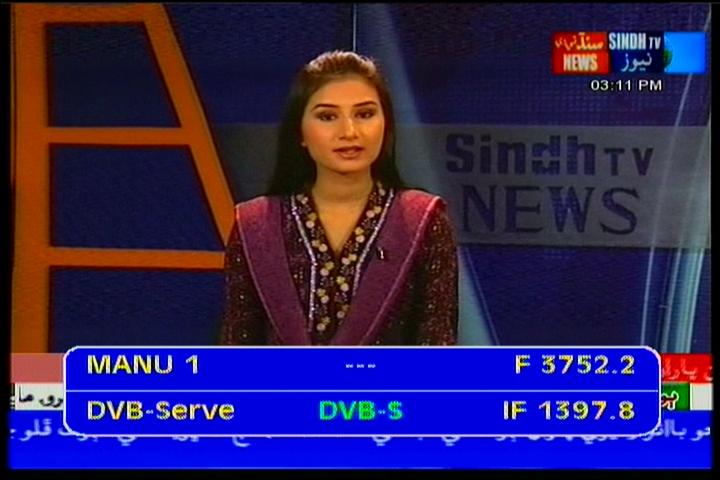

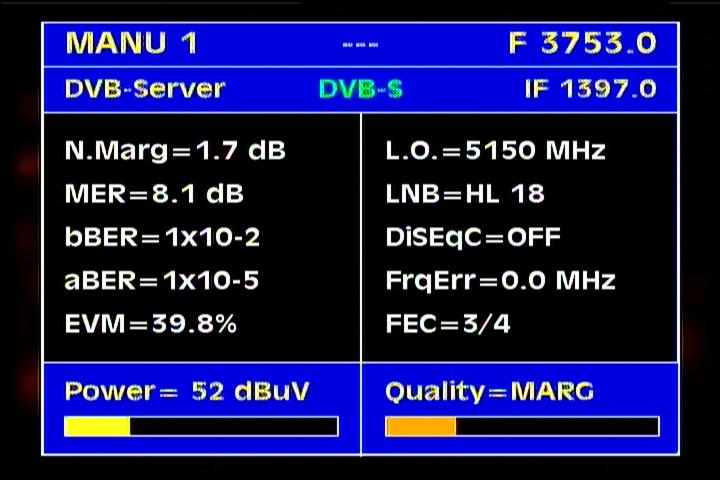

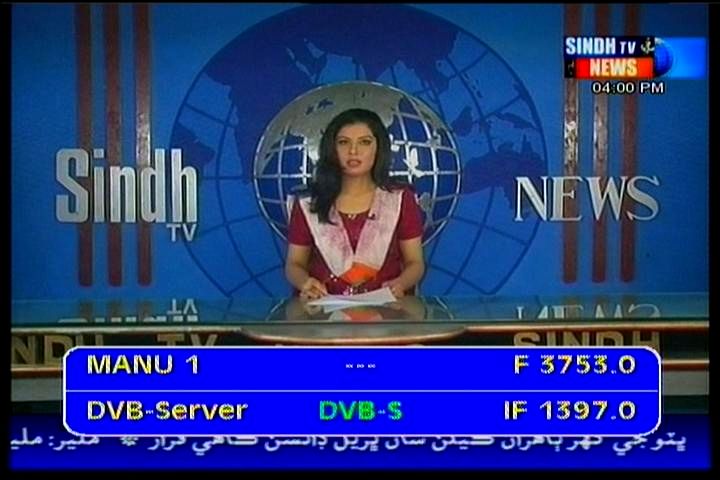

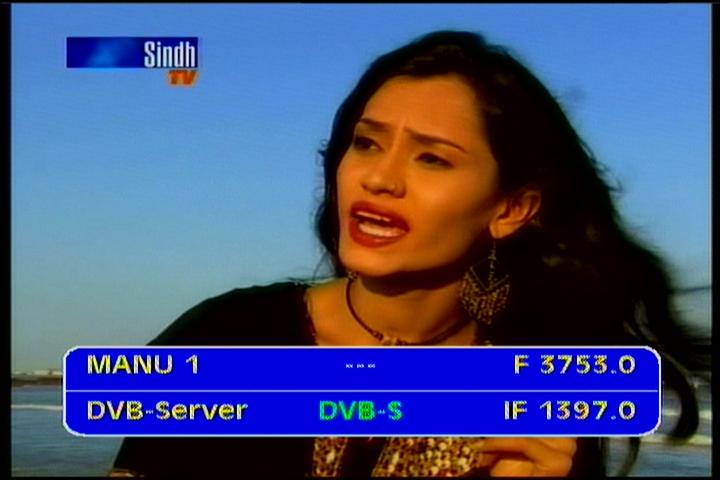

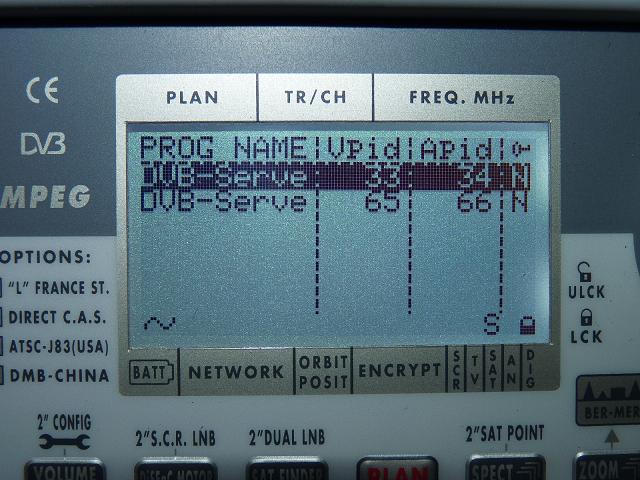

                                   Paksat 1 at 38.0°E - C1 footprint : 3 753 V Sindh TV network Pakistan

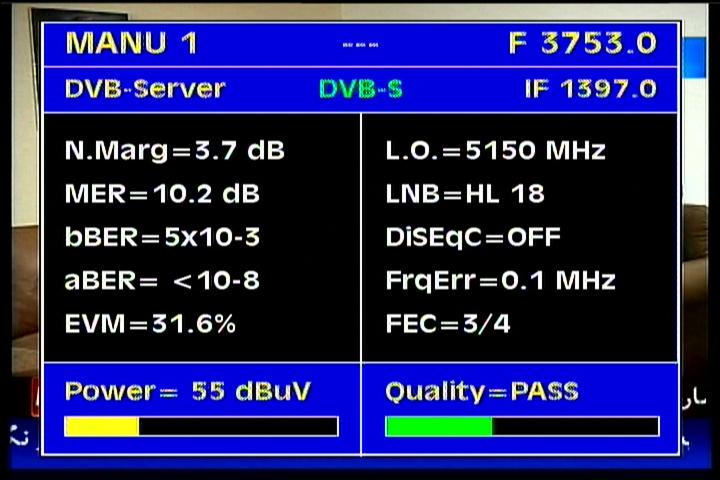

                         IF data                                                    Q data                                                 NIT data
Paksat 1 at 38.0 e-C1 footprint-3 752 V Sindh tv-IF dataPaksat 1 at 38.0 e_C1 footprint in C band_3 753 V Sindh TV_Q dataPaksat 1 at 38.0 e_C1 footprint in C band_3 753 V Sindh TV_NIT data

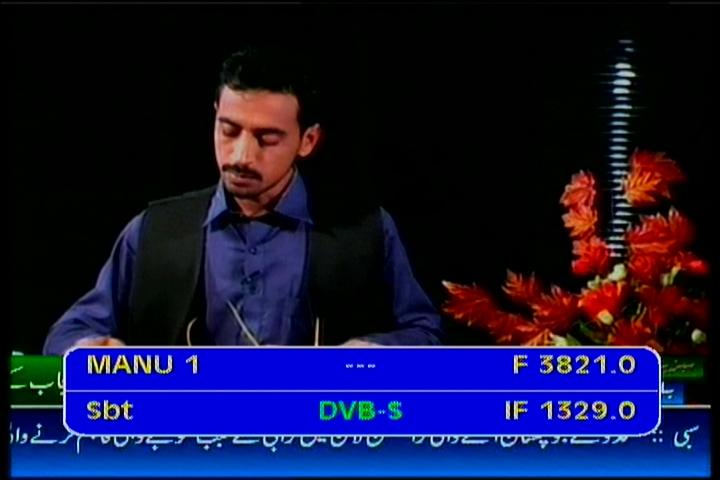

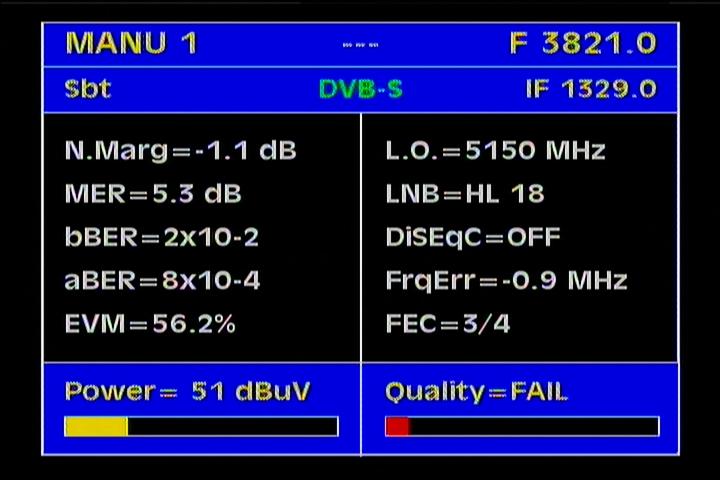

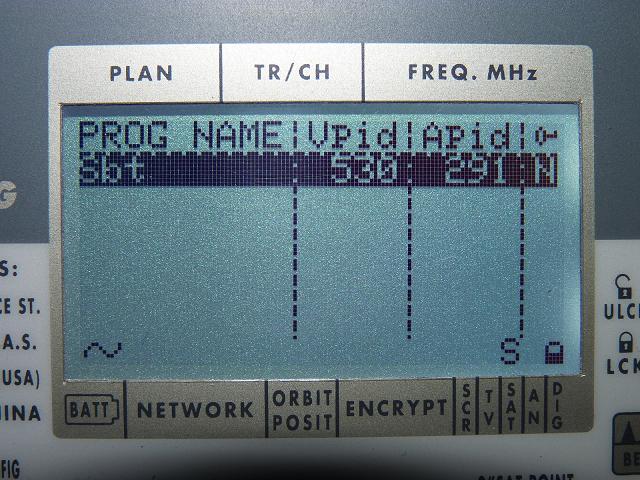

                          Paksat 1 at 38.0°E - C1 footprint : 3 820 V Sabzbaat Balochistan TV_Sbt Pakistan
                               IF data                                              Q data                                                 NIT data
Paksat 1 at 38.0e_c1 footprint_3 821 V Sbt TV_IF dataPaksat 1 at 38.0e_c1 footprint_3 821 V Sbt TV_Q dataPaksat 1 at 38.0e_c1 footprint_3 821 V Sbt TV_NIT data

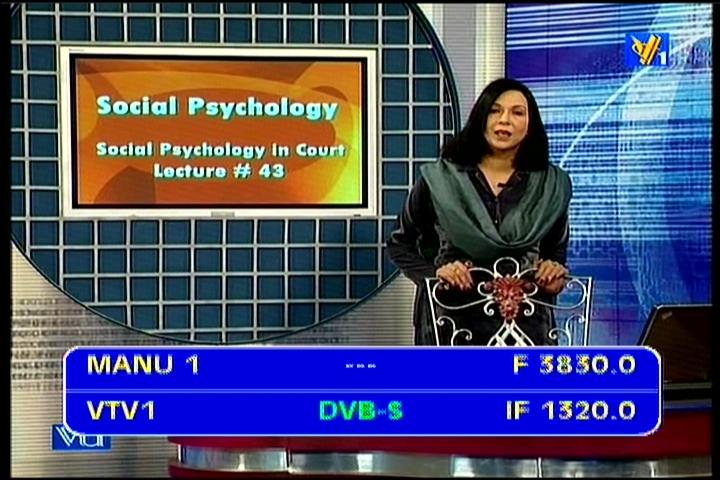

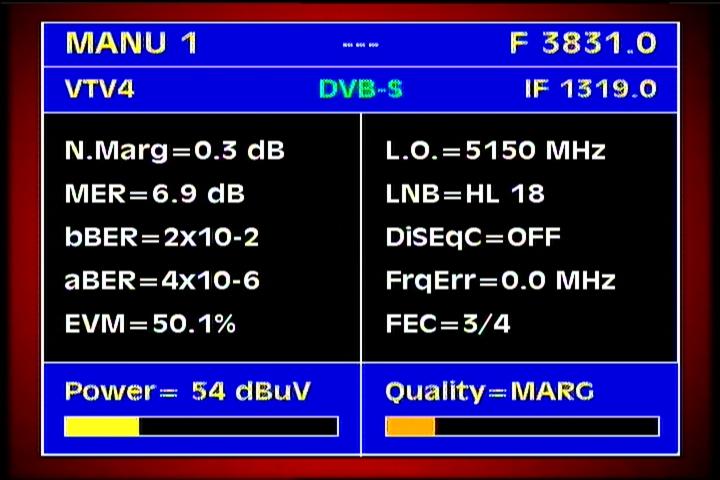

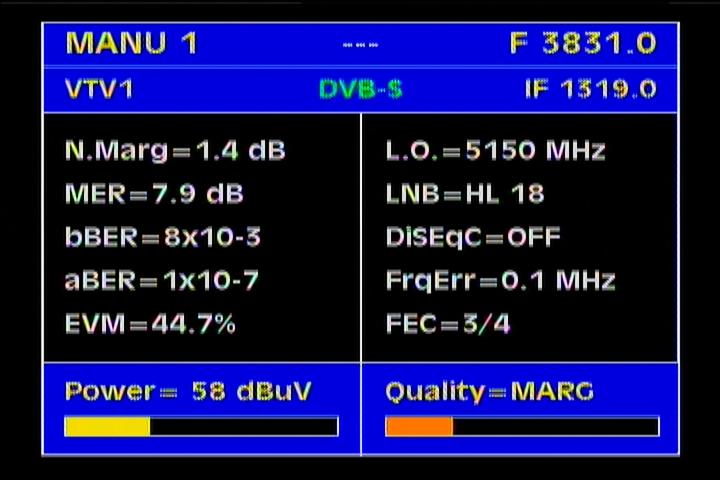

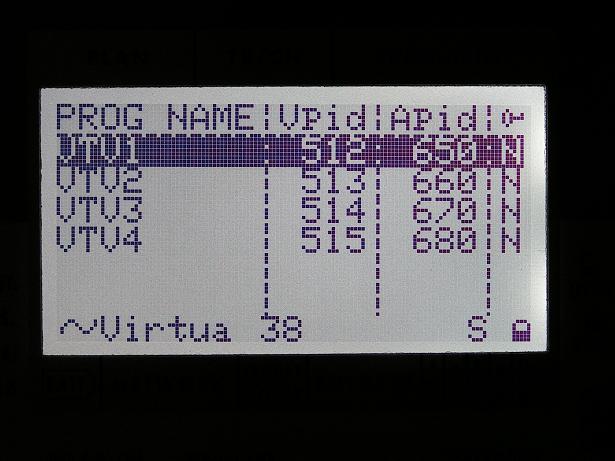

                            Paksat 1 at 38.0°E - C1 footprint : 3 831 V Virtual University network Pakistan

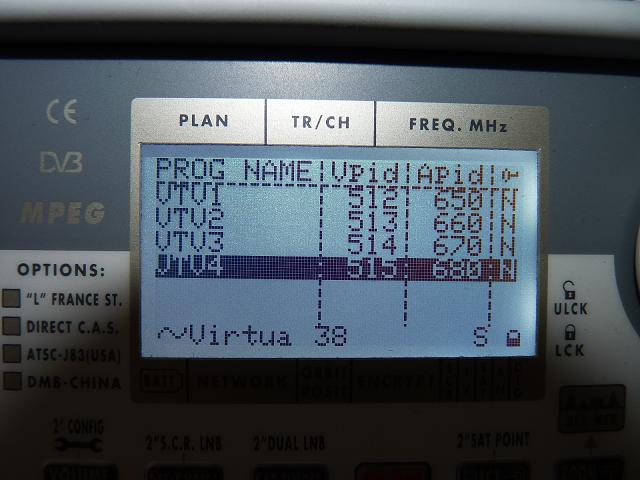

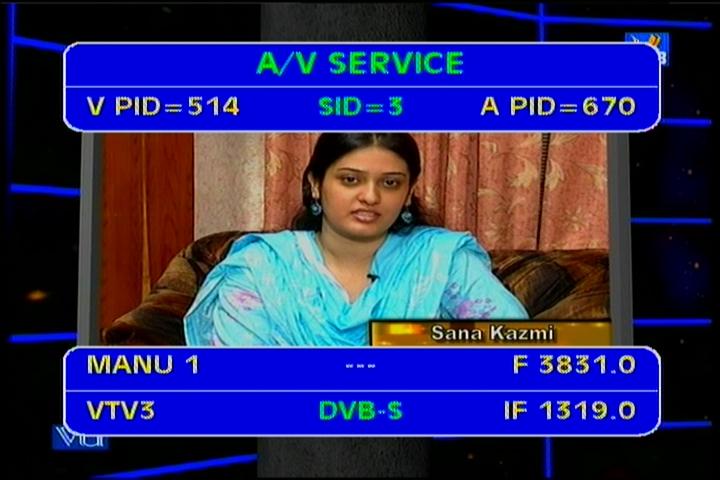

                     V/A pids data                                              Q data                                                 NIT data
Paksat 1 at 38.0 e_C1 footprint in C band_3 831 V Packet Virtual University_IF dataPaksat 1 at 38.0 e_C1 footprint in C band_3 831 V Packet Virtual University_Q dataPaksat 1 at 38.0 e_C1 footprint in C band_3 831 V Packet Virtual University_NIT data

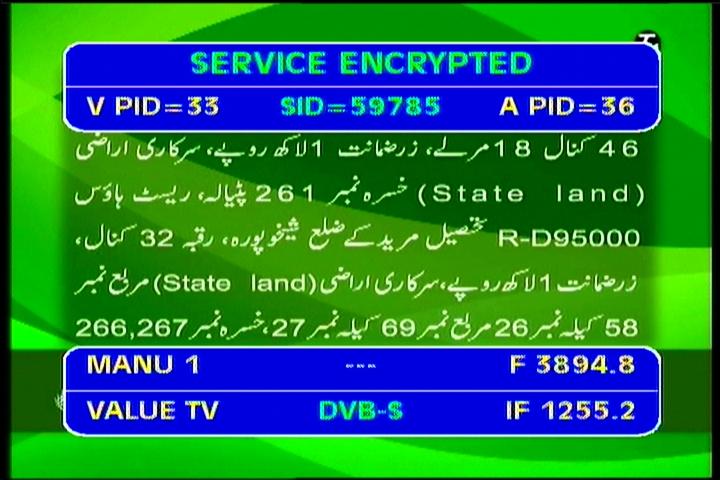

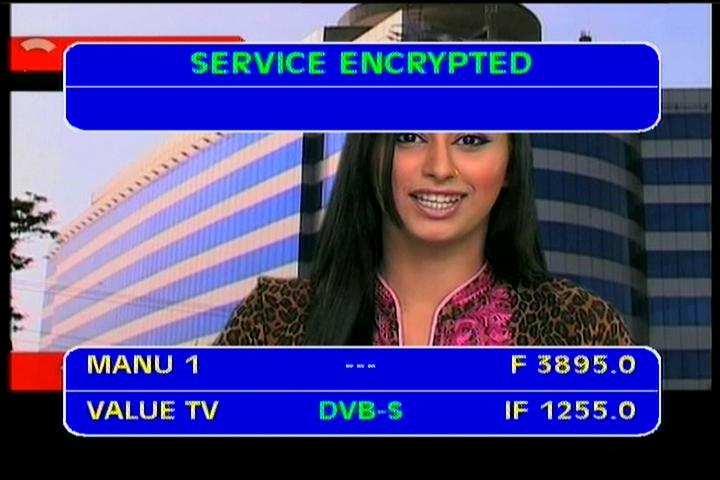

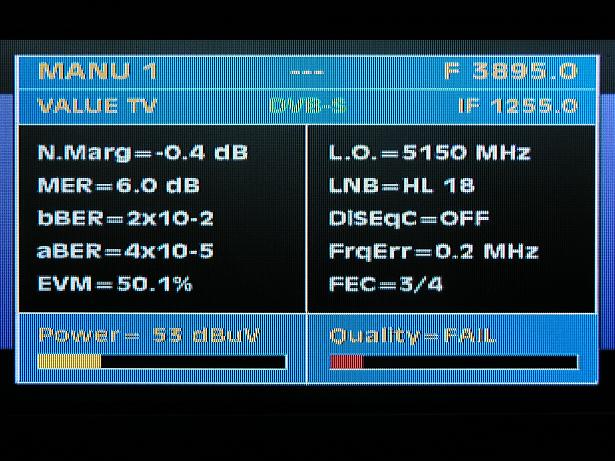

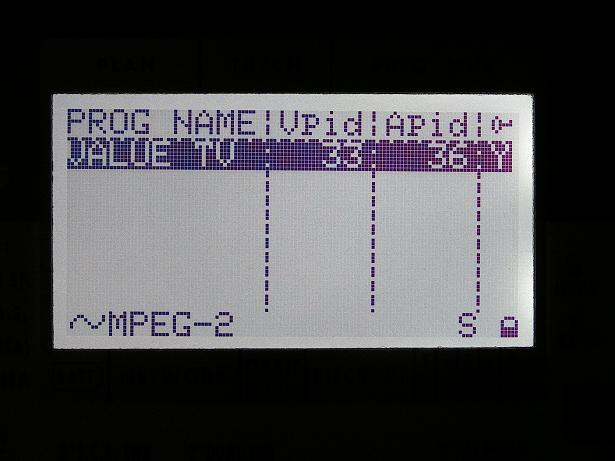

                                         Paksat 1 at 38.0°E - C1 footprint : 3 895 V Value TV Pakistan
                     F / IF data                                                    Q data                                                 NIT data
Paksat 1 at 38.0 e-C1 footprint-3 895 V Value Tv-IF dataPaksat 1 at 38.0 e-C1 footprint-3 895 V Value Tv-Q dataPaksat 1 at 38.0 e-C1 footprint-3 895 V Value Tv-NIT data

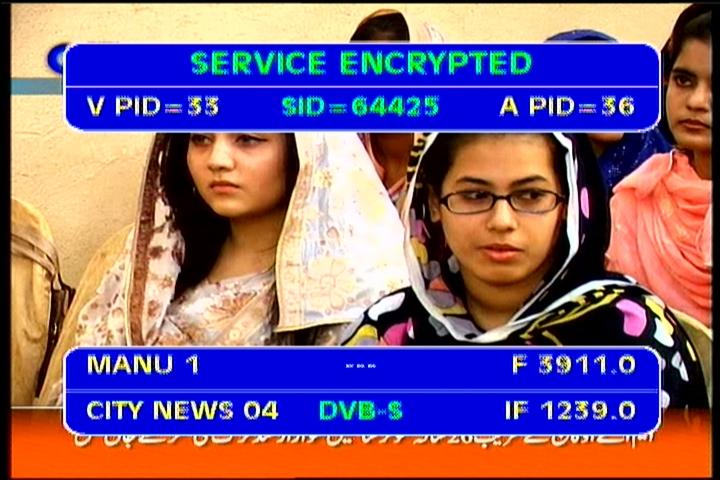

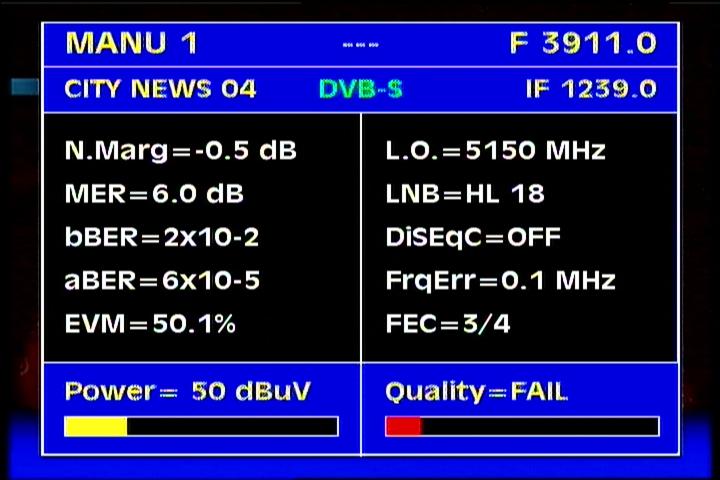

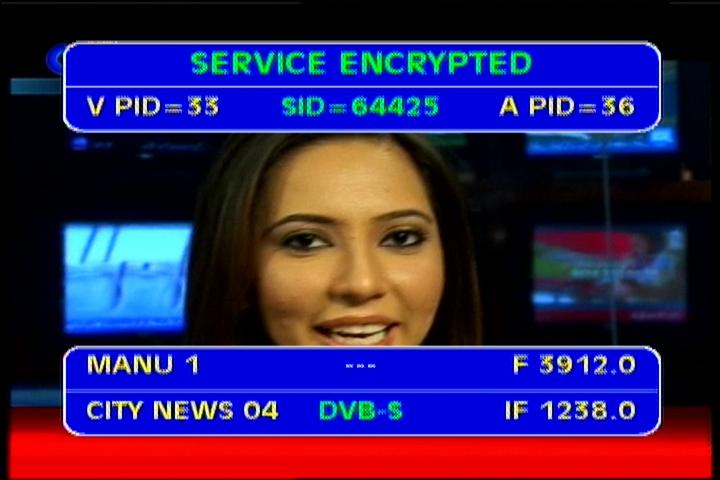

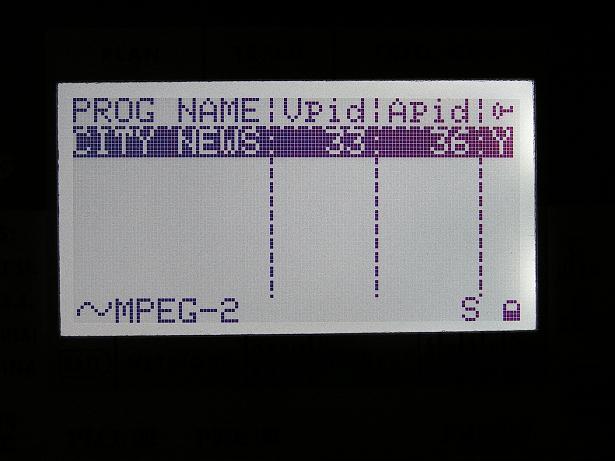

                                      Paksat 1 at 38.0°E - C1 footprint : 3 912 V City News TV Pakistan
                     F / IF data                                                    Q data                                                 NIT data

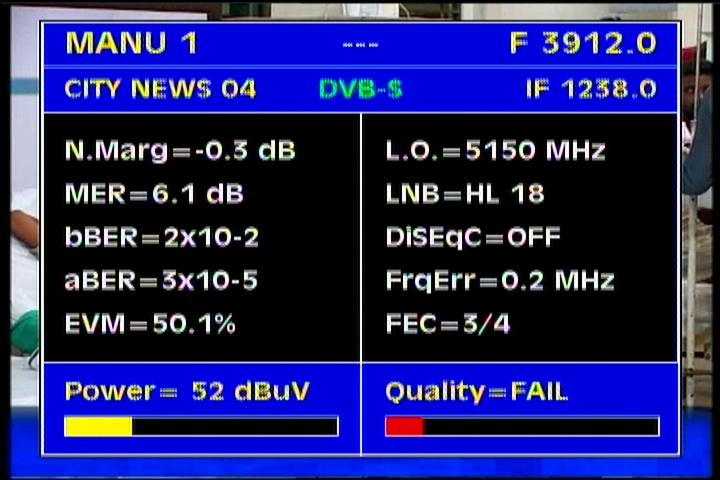

Paksat 1 at 38.0 e_C1 footprint in C band_3 911 V City News_IF dataPaksat 1 at 38.0 e_C1 footprint in C band_3 911 V City News_Q dataPaksat 1 at 38.0 e_C1 footprint in C band_3 911 V City News_NIT data

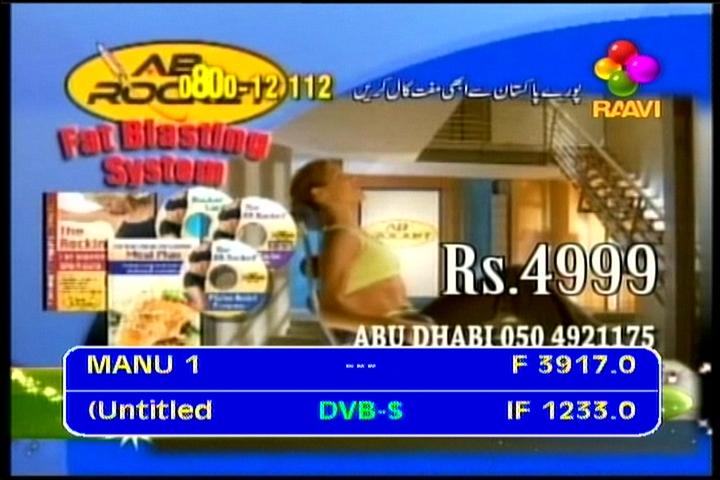

                                       Paksat 1 at 38.0°E - C1 footprint : 3 917 V Raavi TV Pakistan

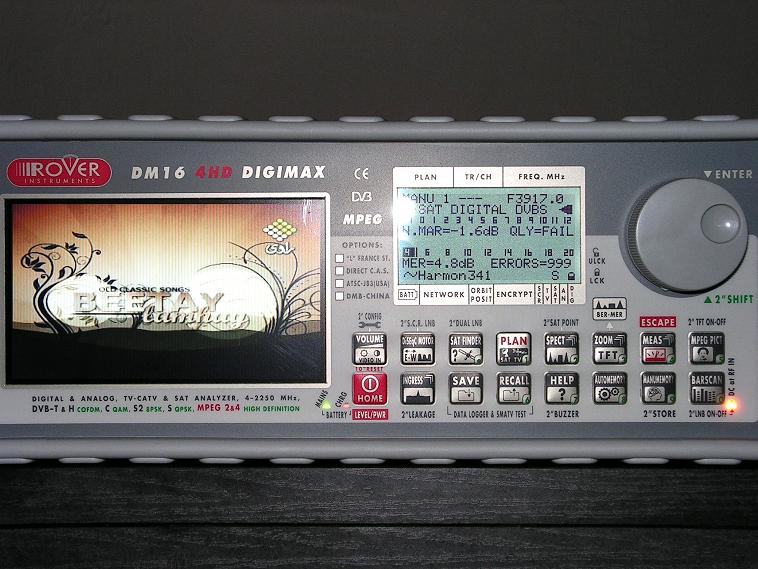

                           IF data                                                   Q data                                                 NIT data

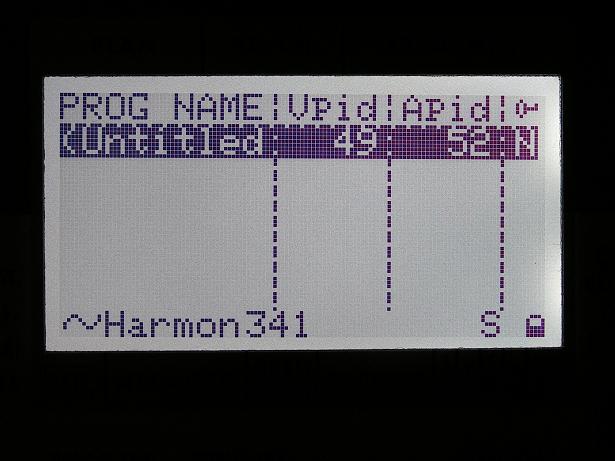

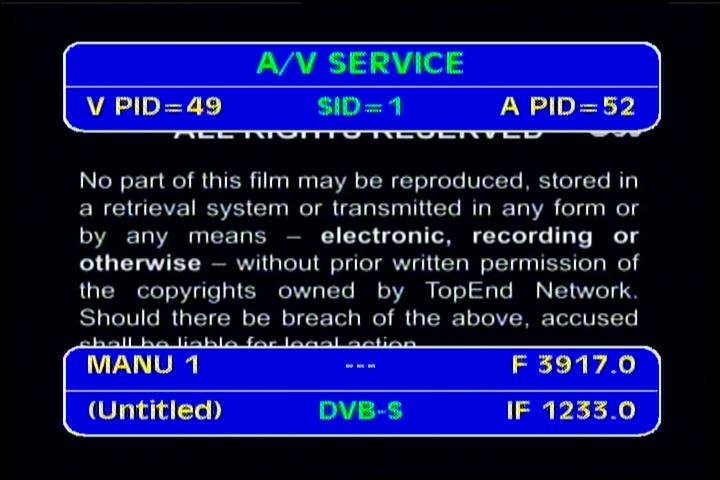

Paksat 1 at 38.0 e-C1 footprint-3 917 V Raavi tv-IF dataPaksat 1 at 38.0 e-C1 footprint-3 917 V Raavi tv-Q dataPaksat 1 at 38.0 e-C1 footprint-3 917 V Raavi tv-NIT data
.

Paksat 1 at 38,0°E : TV List

Paksat 1 at 38.0e_c1 footprint_PF Prodelin 3.7 m


---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---footprint--- ---Antenna--- ---Video/Encryption---

3 725 -V- tp 1V

Zam Zam tv 3 255 3/4 C1 350+ cm DVB FTA

3 731 -V- tp 1V

Mehran TV_unnamed service watch video 2 894 3/4 C1 240+ cm DVB FTA

3 736 -V- tp 1V

Dharti TV_unnamed service  watch video 3 333 3/4 C1 300+ cm DVB FTA

3 753 -V- tp 1V

Sindh TV Network 6 500 3/4 C1 240+ cm DVB
  Sindh TV News_DVB Server 1  watch video         FTA
  Sindh TV_DVB Server 2         FTA

3 785 -H- tp 3H

unnamed network 5 700 3/4 C2 400-600+ cm DVB
  Apna News         FTA
  Kook TV         FTA

3 796 -H- tp 3H

Oxygene Channel 3 255 3/4 C2 400+ cm DVB FTA

3 811 -V- tp 3V

VSH News

2 175 3/4 C1 370+ cm DVB FTA

3 814 -H- tp 3H

Unn. network 4 666 3/4 C2 400-600+ cm DVB
  MTV Pakistan         FTA
  Indus Vision         FTA

3 819 -V- tp 3V

Sabzbaat Balochistan TV_Sbt TV 2 222 3/4 C1 360+ cm DVB FTA

3 830 -V- tp 3V

Virtual University Network Pakistan 12 000 3/4 C1 300+ cm DVB FTA
  VTV 1   watch video         FTA
  VTV 2         FTA
  VTV 3         FTA
  VTV 4         FTA

3 864 -H- tp 5H

Oye TV 3 800 3/4 C2 400-600+ cm DVB FTA

3 881 -H- tp 5H

Zaiga TV

3 000 3/4 C2 400-600+ cm DVB FTA

3 886 -H- tp 5H

Unn. Network 6 200 3/4 C2 400-600+ cm DVB FTA
  Star Asia         FTA
  Punjab TV         FTA

3 893 -H- tp 5H

Hadi TV Pakistan

1 770 3/4 C2 400-600+ cm DVB FTA

3 895 -V- tp 5V

Value TV 2 850 3/4 C1 240+ cm DVB FTA

3 897 -H-tp 5H

Royal News

2 500 3/4 C2 400-600+ cm

3 907 -V- tp 5V

N-Vibe TV 3 255 3/4 C1 300+ cm DVB FTA

3 911 -V- tp 5V

City 42 News TV Pakistan

3 255 3/4 C1 240+ cm DVB FTA

3 916 -V- tp 5V

Ravi TV_ Unnamed TV 3 333 3/4 C1 300+ cm DVB FTA

3 945 -H- tp 7H

Play TV 4 700 3/4 C2 400-600+ cm DVB FTA

3 951 -H- tp 7H

Haq TV 3 240 3/4 C2 400-600+ cm DVB FTA

3 956 -H- tp 7H

N-Vibe tv

3 255 3/4 C2 400-600+ cm DVB FTA

3 968 -H- tp 7H

unn.service 11 480 3/4 C2 400-600+ cm DVB
  ARY Zauq         FTA
  Nickelodeon Pakistan         FTA
  feeds         FTA
  feeds         FTA

4 025 -H- tp 9H

Channel 5

3 255  3/4 C2 400-600+ cm DVB FTA

4 031 -H- tp 9H

G Kaboom 3 248 3/4 C2 400-600+ cm DVB FTA

4 036 -H- tp 9H

PTV Bolan

2 894 3/4 C2 400-600+ cm DVB FTA

4 104 -H- tp 11H

Din News TV

3 000 3/4 C2 400-600+ cm  DVB FTA

4 110 -H- tp 11H

Business Plus Pakistan 3 255 3/4 C2 400-600+ cm DVB FTA

4 115 -H- tp 11H

Metro 1 3 333 3/4 C2 400-600+ cm DVB FTA

4 120 -H- tp 11H

Indus News

2 850  3/4 C2 400-600+ cm DVB FTA

4 134 -H- tp 11H

Kohenoor TV

3 333 3/4 C2  400-600+ cm DVB FTA

4 148 -H- tp 11H

Sohni Dharti

2 800  3/4 C2   400-600+ cm  DVB FTA

4 156 -V- tp 11V

Dhoom TV 2 850 3/4 C1 400-600+ cm DVB FTA

 dxsatcs explanatory

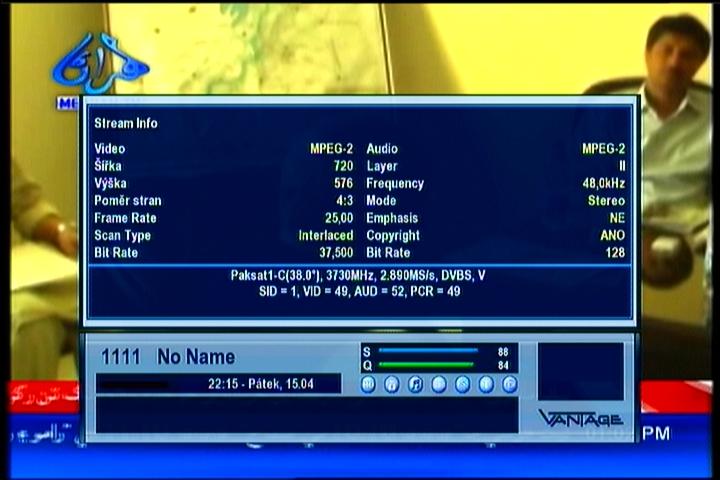

Paksat 1 at 38.0°E : relative q

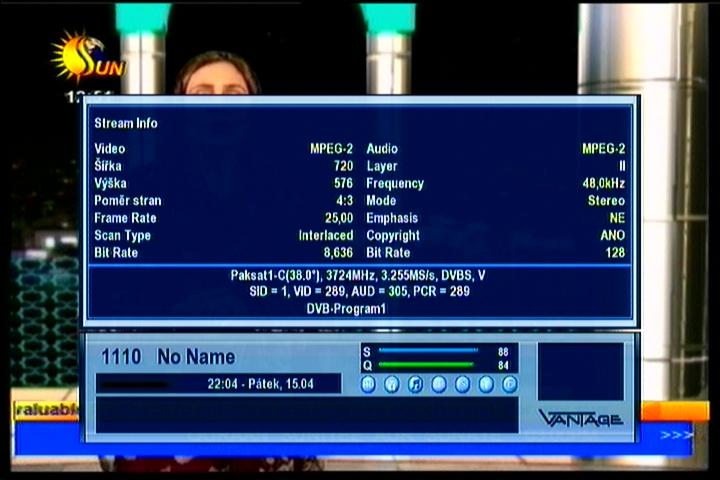

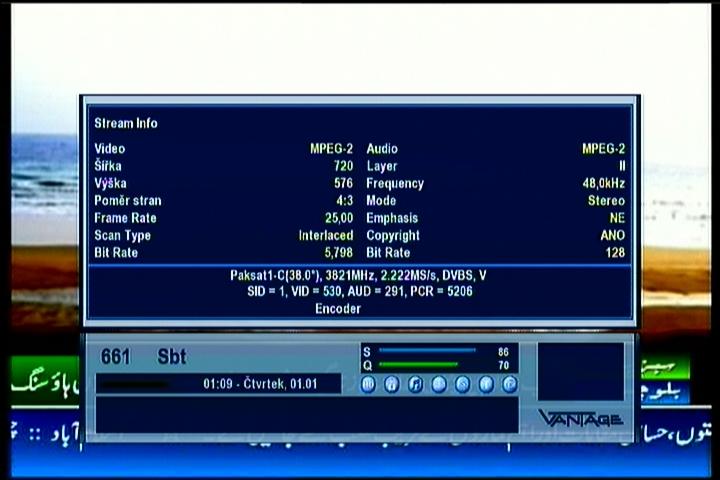

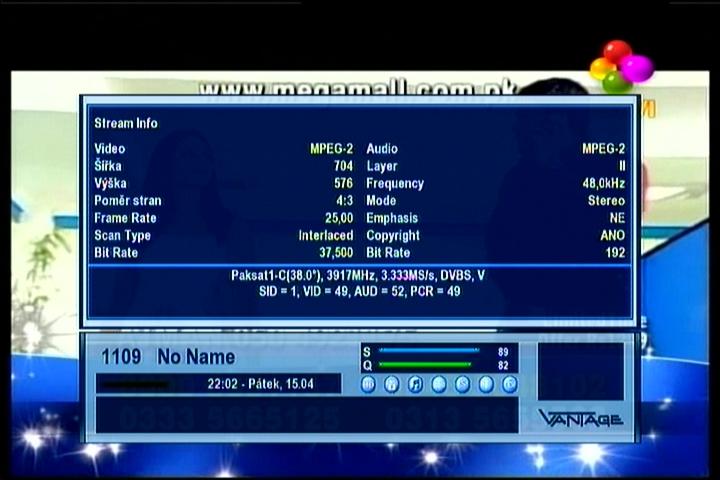

relative q 001relative q 002relative q 003

Paksat 1 at 38.0°E : Video presentations

  Go to Video Section:
button

Paksat 1 at 38.0°E : Update drawn up


                           dxsatcs logo
                         CZECH & SLOVAK DX SATELLITE CLUB

international professional portal
                                                 think-tank
                              Roman Dávid - author & founder
                              mail :
roman.david@dxsatcs.com

Paksat 1 at 38.0°E footprint : C1 / C2

                paksat 1 footprint                                       paksat 1 footprint
                            C 1                                                              C2
C1-West-VerticalC2-Horizontal

Paksat 1 at 38.0°E : snapshots

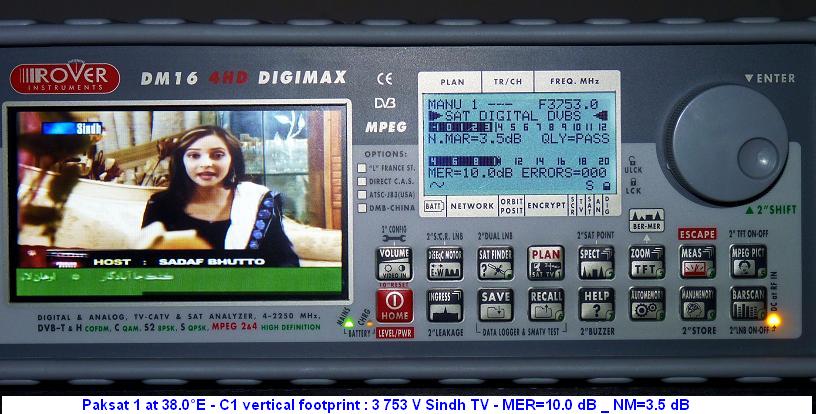

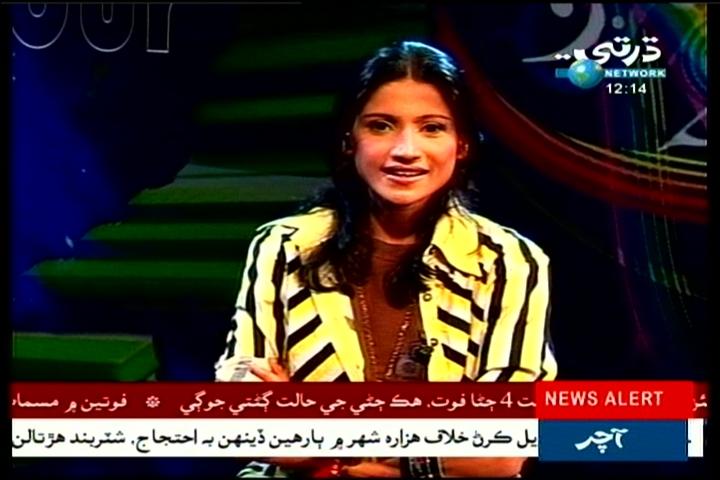

Zam Zam tv 01Zam Zam tv 02Zam Zam tv 06
