ASTRA 2D at 28.2°E - UK SPOT BEAM

            Archived measurement results from the period from 2006 to 2012

                                                                                             by Roman Dávid_founder of Think-Tank




►Astra 2D at 28.2°E : Technical data



Astra 2D at 28.2 e _ 2d footprint _ 10 714 H first snapshot 001

             satellite : Astra 2D - orbit : 28.2°E - TP : 16 KU - lifetime : from 20.12.2000 - 12 years

Astra 2D at 28.2°E - H+V North footprint : Radiating diagram & spectrum analysis & quality analysis of reception


  It is not possible to compile an objective map of footprint  for H and V polarization plane in the zone of reception "out of footprint" due to
                                       the substantial local differences in the level of EIRP flow for plane H and V !
     Astra 2D at 28.2 e _ north footprint _ ses astra _ 01

                               Astra 2D at 28.2°E - North footprint at a geographical point : town Lučenec / central Slovakia

spectrum analysis of the H wave vector       <<            Astra 2D footprint           >>   spectrum analysis of the V wave vector
   part of the spectrum :10 714 - 10 921                           North  beam                       part of the spectrum :10 729 - 10 936
  Astra 2D at 28.2 e _ footprint _ H spectrum analysis Astra 2D at 28.2 e _ footprint beam _ qualitative status     Astra 2D at 28.2 e _ footprint _ V spectrum analysis

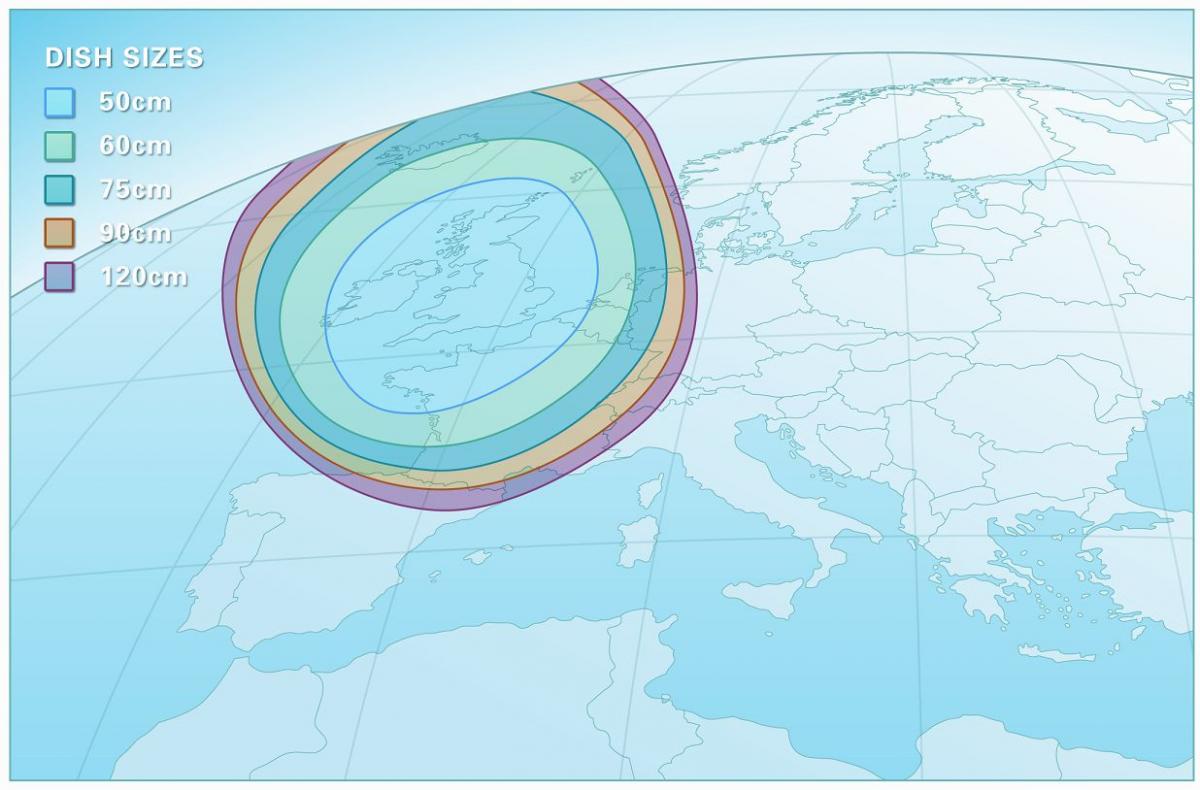

                              HQ-emitting diagrams for satellites : Astra 2D & Astra 2A & Astra 2B  at 28.2 °E
      North footprint for Astra 2A+2B              North footprint for Astra 2D                South footprint for Astra 2A+2B
Astra 2A 2B at 28.2 e _ north footprint _ ses astraAstra 2D at 28.2 e _ north footprint Astra 2A 2B at 28.2 e _ south footprint _ ses astra

  Astra 2D at 28.2°E - H+V_North footprint : qualitative analysis of the reception the BBC television network, ITV, SKY

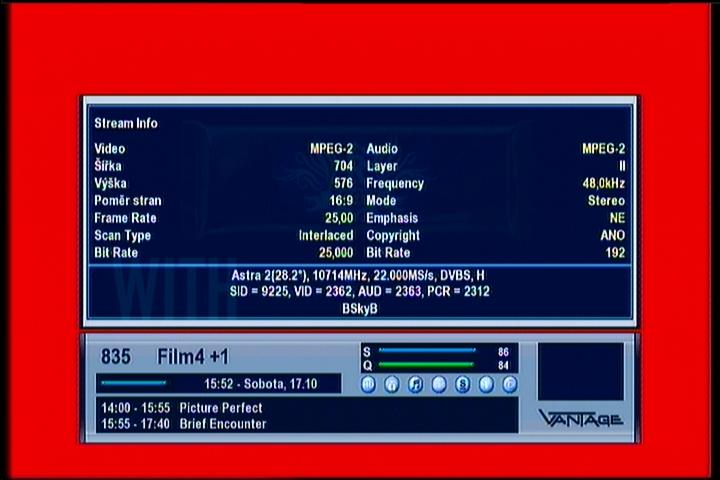

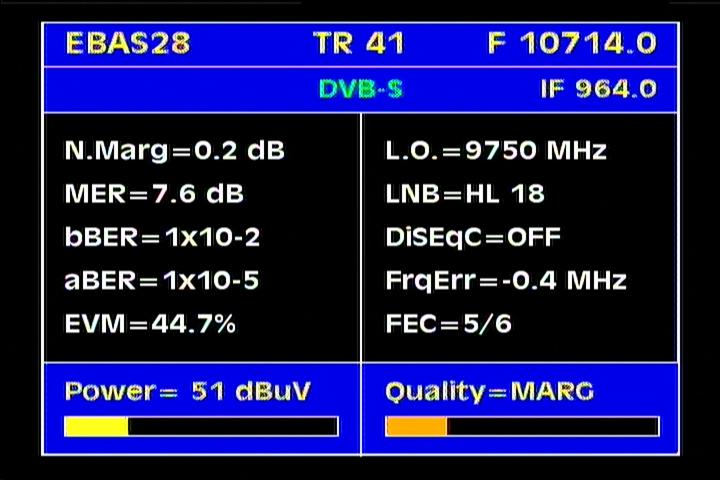

                                    Astra 2D at 28.2°E - North footprint : 10 714 H Freesat Network UK
                          IF data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 714 H Packet Freesat UK _ IF dataAstra 2D at 28.2 e _ 2d footprint _ 10 714 H Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 714 H Packet Freesat UK _ NIT data

                                      Astra 2D at 28.2°E - North footprint : 10 729 V Freesat Network UK
                          IF data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 729 V Packet Freesat UK _ IF dataAstra 2D at 28.2 e _ 2d footprint _ 10 729 V Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 729 V Packet Freesat UK _ NIT data

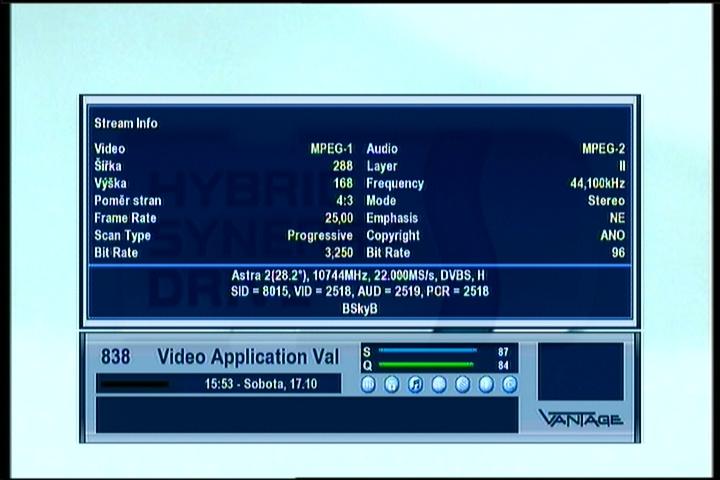

                                              Astra 2D at 28.2°E - North footprint : 10 744 H Sky UK
                          VA data                                                   Q data                                                   NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 744 H Packet SKY UK _ VA pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 744 H Packet SKY UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 744 H Packet SKY UK _ NIT data

                                      Astra 2D at 28.2°E - North footprint : 10 758 V Freesat Network UK
                          IF data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 758 V Packet Freesat UK _ IF dataAstra 2D at 28.2 e _ 2d footprint _ 10 758 V Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 758 V Packet Freesat UK _ NIT data

                                     Astra 2D at 28.2°E - North footprint : 10 773 H Freesat Network UK
                          VA data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 773 H Packet Freesat UK _ VA pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 773 H Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 773 H Packet Freesat UK _ NIT data

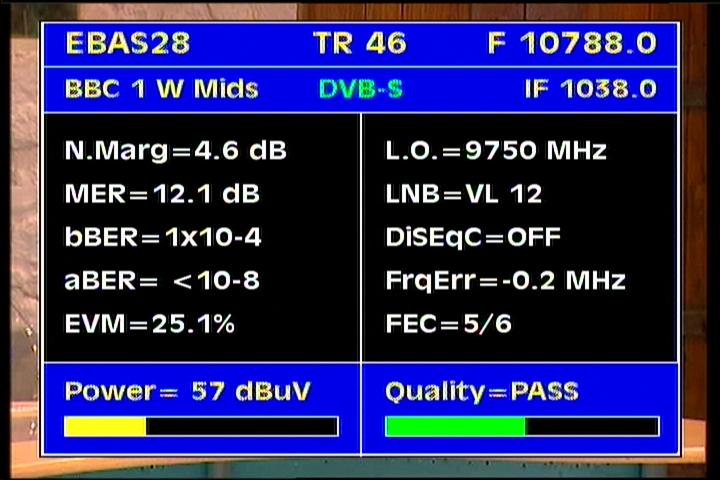

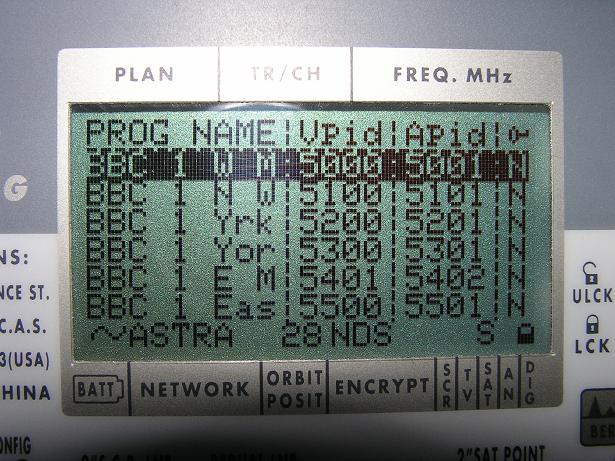

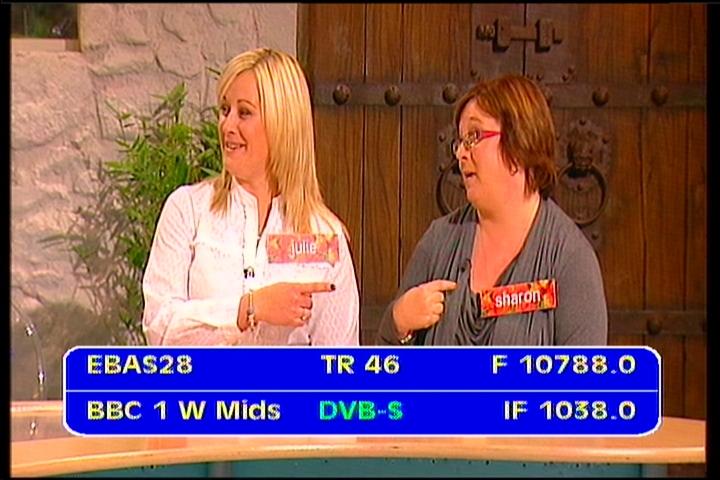

                                     Astra 2D at 28.2°E - North footprint : 10 788 V Freesat Network UK
                          IF data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 788 V Packet Freesat UK _ IF dataAstra 2D at 28.2 e _ 2d footprint _ 10 788 V Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 788 V Packet Freesat UK _ NIT data

                                      Astra 2D at 28.2°E - North footprint : 10 803 H Freesat Network UK
                          VA data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 803 H Packet Freesat UK _ VA pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 803 H Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 803 H Packet Freesat UK _ NIT data

                                     Astra 2D at 28.2°E - North footprint : 10 818 V Freesat Network UK
                          IF data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 818 V Packet Freesat UK _ IF dataAstra 2D at 28.2 e _ 2d footprint _ 10 818 V Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 818 V Packet Freesat UK _ NIT data

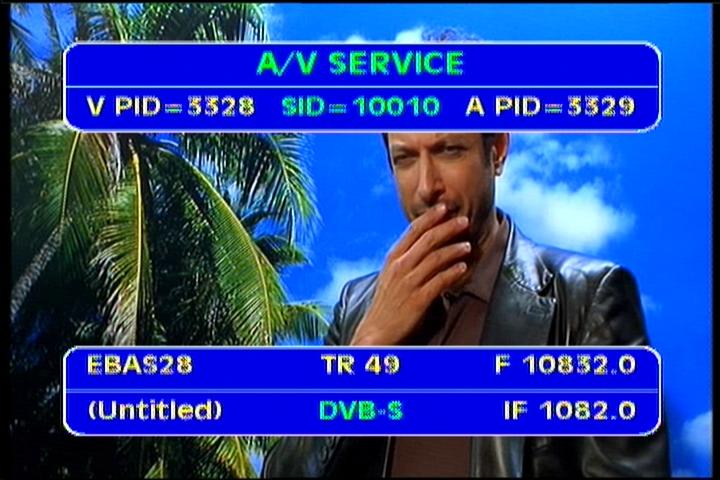

                                     Astra 2D at 28.2°E - North footprint : 10 832 H Freesat Network UK
                          VA data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 832 H Packet Freesat UK _ VA pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 832 H Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 832 H Packet Freesat UK _ NIT data

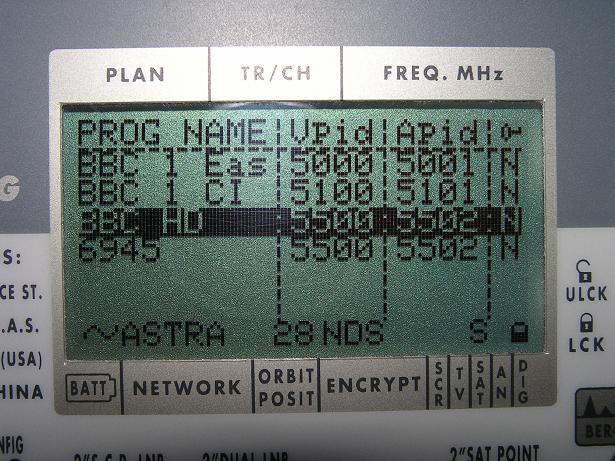

                                      Astra 2D at 28.2°E - North footprint : 10 847 V Freesat Network UK
                          VA data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 848 V Packet Freesat UK _ VA pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 848 V Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 848 V Packet Freesat UK _ NIT data

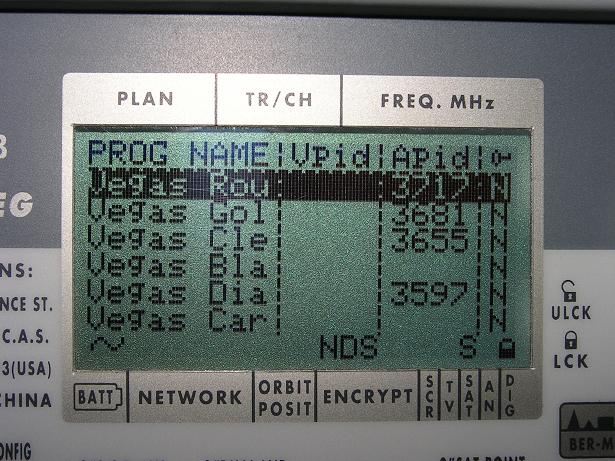

                                              Astra 2D at 28.2°E - North footprint : 10 862 H Sky UK
                          IF data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 862 H Packet SKY UK _ A pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 862 H Packet SKY UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 862 H Packet SKY UK _ NIT data

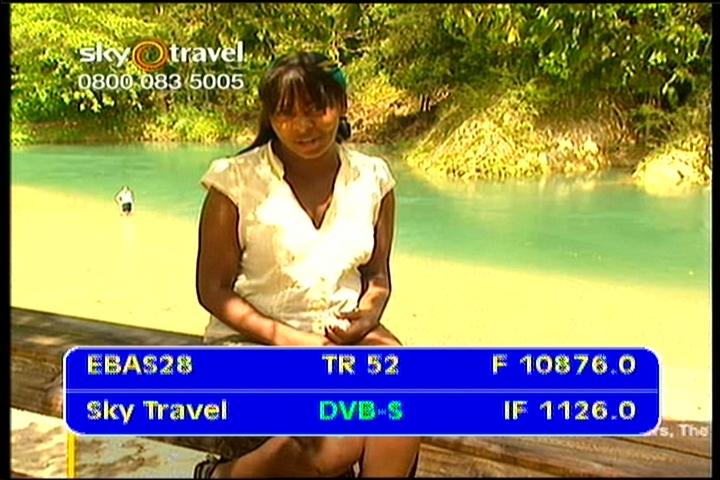

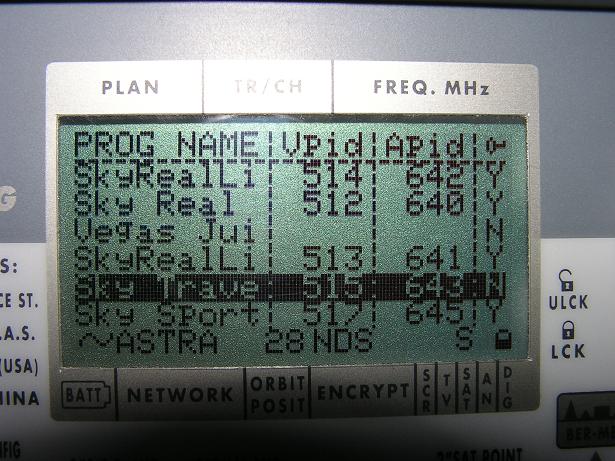

                                               Astra 2D at 28.2°E - North footprint : 10 876 V Sky UK
                          IF data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 876 V Packet SKY UK _ IF dataAstra 2D at 28.2 e _ 2d footprint _ 10 876 V Packet SKY UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 876 V Packet SKY UK _ NIT data

                                        Astra 2D at 28.2°E - North footprint : 10 891 H Freesat Network UK
                          VA data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 891 H Packet Freesat UK _ VA pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 891 H Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 891 H Packet Freesat UK _ NIT data

                                      Astra 2D at 28.2°E - North footprint : 10 906 V Freesat Network UK
                          IF data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 906 V Packet Freesat UK _ IF dataAstra 2D at 28.2 e _ 2d footprint _ 10 906 V Packet Freesat UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 906 V Packet Freesat UK _ NIT data

                                                   Astra 2D at 28.2°E - North footprint : 10 921 H Sky UK
                          VA data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 921 H Packet SKY UK _ VA pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 921 H Packet SKY UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 921 H Packet SKY UK _ NIT data

                                              Astra 2D at 28.2°E - North footprint : 10 936 V Sky UK
                          VA data                                                     Q data                                                 NIT data
Astra 2D at 28.2 e _ 2d footprint _ 10 936 V Packet SKY UK _ VA pids dataAstra 2D at 28.2 e _ 2d footprint _ 10 936 V Packet SKY UK _ Q dataAstra 2D at 28.2 e _ 2d footprint _ 10 936 V Packet SKY UK _ NIT data

Astra 2D & Astra 2A/2B at 28.2°E _ Eurobird 1 at 28.5°E: TV list

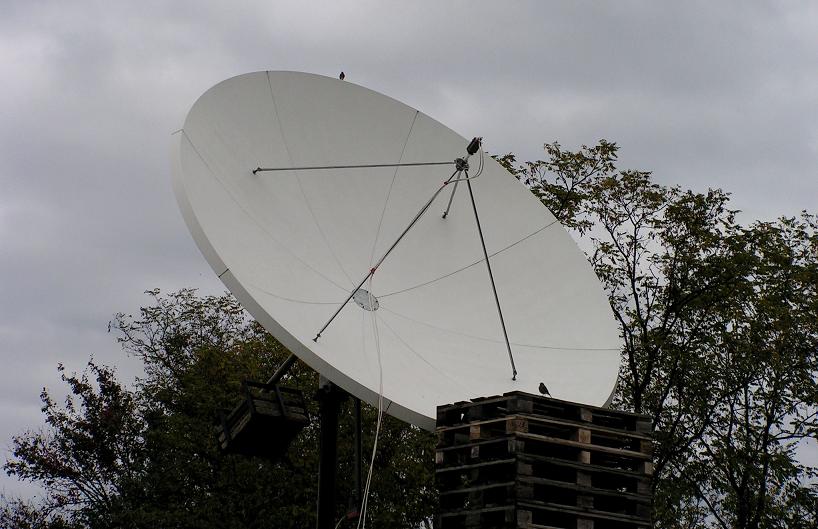

Astra 2D at 28.2 e _ 2d footprint _ PF Prodelin 3.6 m


---Frequency---


------Provider/Channel------

---SR--- -FEC- -Footprint- ---Antenna--- -----Video/Encryption-----

10 714 -H- tp 41

 Freesat 22 000 5/6 2D 180-600+ cm DVB
  Channel 4 London    watch video         FTA
  Channel 4 S&E         FTA
  Channel 4 Midlands         FTA
  Channel 4 North         FTA
  Channel 4 Northern Ireland         FTA
  Channel 4 Scotland    watch video         FTA
  Film 4     watch video         FTA
  Film 4+1         FTA
  More 4+1         FTA

10 729 -V- tp 42

 Freesat 22 000 5/6 2D 180-400+ cm DVB
  E4 UK+1     watch video         FTA
  E4 UK         FTA
  Channel 4 London+1   watch video         FTA
  Channel 4 S & E         FTA
  Channel 4 Midlands +1         FTA
  Channel 4 North +1         FTA
  Channel 4 Northern Ireland +1         FTA
  Channel 4 Scotland +1         FTA
  More 4 UK    watch video         FTA

10 744 -H- tp 43

 Sky UK 22 000 5/6 2D 180-600 cm DVB
  RTE One         Videoguard
  RTE Two         Videoguard
  Tg 4         Videoguard
  TV 3         Videoguard
  Video Application    watch video         FTA
  Portal Video 1         FTA
  Portal Video 5    watch video         FTA
  Portal Video         FTA
  Portal Video 2         FTA

10 758 -V- tp 44

 Freesat 22 000 5/6 2D 180-400+ cm DVB
  ITV 1 London         FTA
  ITV 2     watch video         FTA
  CITV /07-19/         FTA
  ITV 4     watch video         FTA
  ITV 1 Granada         FTA
  ITV 1 Anglia N         FTA
  ITV 1 Central West         FTA

10 773 -H- tp 45

 Freesat 22 000 5/6 2D 180-600+ cm DVB
  BBC 1 London    watch video         FTA
  BBC 2 England         FTA
  ETV         FTA
  BBC Test 3         FTA
  CBBC Channel /08-20/         FTA
  CBeebies UK /07-20/         FTA
  BBC 3 /20-05/         FTA
  BBC 1 Northern Ireland         FTA
  Five     watch video         FTA

10 788 -V- tp 46

 Freesat 22 000 5/6 2D 180-400+ cm DVB
  BBC 1 West Midlands    watch video         FTA
  BBC 1 North West         FTA
  BBC 1 East Yorkshire & Lincolnshire         FTA
  BBC 1 Yorkshire & North Midlands         FTA
  BBC 1 East Midlands         FTA
  BBC 1 East         FTA

10 803 -H- tp 47

 Freesat 22 000 5/6 2D 180-600+ cm DVB
  BBC 1 Wales         FTA
  BBC 2 Wales         FTA
  BBC 1 Scotland         FTA
  BBC 2 Scotland    watch video         FTA
  BBC 2 Northern Ireland         FTA

10 818 -V- tp 48

 Freesat 22 000 5/6 2D 180-400+ cm DVB
  BBC 1 West         FTA
  BBC 1 South East         FTA
  BBC 1 South         FTA
  BBC 1 South West         FTA
  BBC 1 North East Cumbria         FTA
  BBC 1 Oxford     watch video         FTA

10 832 -H- tp 49

 Freesat 22 000 5/6 2D 180-600+ cm DVB
  ITV 1 Central South         FTA
  ITV 1 Central East         FTA
  ITV 4+1     watch video         FTA
  ITV 1 Wales   watch video         FTA
  ITV 1 West    watch video         FTA
  ITV 1 Westcountry South         FTA
  ITV 1 Border England         FTA

10 847 -V- tp 50

 Freesat 22 000 5/6 2D 180-400+ cm DVB
  BBC 1 Cambridge         FTA
  BBC 1 Channel Islands         FTA
  BBC HD UK Preview    watch video         MPEG-4/HD/FTA

10 862 -H- tp 51

 Sky UK 22 000 5/6 2D 180-600 cm DVB
  Disney Channel UK         Videoguard
  Disney Cinemagic UK         Videoguard
  Disney Cinemagic UK +1         Videoguard
  Playhouse Disney UK         Videoguard
  Disney Channel UK +1         Videoguard
  Playhouse Disney UK+         Videoguard

10 876 -V- tp 52

 Sky UK 22 000 5/6 2D 180-400+ cm DVB
  Sky Real Lives +1         Videoguard
  Sky Real Lives         Videoguard
  Sky Real Lives 2         Videoguard
  Sky Travel     watch video         FTA
  Sky Sports 2         Videoguard
  FX UK+1         Videoguard
  At The Races         Videoguard

10 891 -H- tp 53

 Freesat 22 000 5/6 2D 180-600+ cm DVB
  ITV 1 Border Scotland         FTA
  ITV 1 Tyne Tees North         FTA
  Men & Motors     watch video         FTA
  ITV 1 Meridian South         FTA
  ITV 1 Meridian East         FTA
  ITV 1 Anglia South         FTA
  ITV 1 Yorkshire West         FTA
  ITV 2+1         FTA

10 906 -V- tp 54

 Freesat 22 000 5/6 2D 180-400+ cm DVB
  Channel TV   watch video         FTA
  STV 1 North         FTA
  STV West         FTA
  STV East         FTA
  Ulster TV         FTA
  ITV 3     watch video         FTA
  ITV 3+1 / 18-07/         FTA

10 921 -H- tp 55

 Sky UK 22 000 5/6 2D 180-600 cm DVB
  NDTV 24/7         Videoguard
  Current TV UK         Videoguard
  Sky Box Office 36         Videoguard
  Sky Box Office 44         Videoguard
  Sky Box Office 37         Videoguard
  Sky Box Office 38         Videoguard
  Sky Box Office 39         Videoguard
  Sky Box Office 40         Videoguard
  Sky Box Office 41         Videoguard
  Sky Box Office 46         Videoguard
  Sky Box Office 48         Videoguard
  Sky Box Office 18+1         Videoguard
  Sky Box Office 18+2         Videoguard
  Sky Box Office 18+7         Videoguard

10 936 -V- tp 56

 Sky UK 22 000 5/6 2D 180-400+ cm DVB
  Sky Sports Active 10         Videoguard
  Sky Sports Active 11         Videoguard
  Sky Sports Active 12         Videoguard
  Sky Sports Active 13         Videoguard
  Sky Sports Active 14         Videoguard
  Sky Sports Active 15         Videoguard
  Sky Sports Active 16         Videoguard
  Sky Sports Active 17         Videoguard
  Sky Sports Active 18         Videoguard

11 222 -H- tp C1L

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  UCB TV         FTA
  Zone Horror +1         FTA
  Ummah Channel         FTA
  Clubland         FTA
  Gems TV         FTA
  Fashion TV         FTA
  Babestation 2/Party People/Get Lucky         FTA
  Rockworld TV         FTA
  Chat Box         FTA
  Celebrity Shop/Babe World Live         FTA
  Sport XXX Babes/ The Boudoir         FTA
  Edge/EMTV         FTA
  BET UK +1         FTA
  Press TV         FTA
  Sport XXX Wives         Videoguard
  Sport XXX Girls         Videoguard

11 224 -V- tp C2L

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  Movies 4 Men         FTA
  Movies 4 Men 2         FTA
  SAB tv         Videoguard
  Sahara 1         Videoguard
  PTV Global         FTA
  MSK/MSK extra         FTA
  Al Jazeera Children         FTA
  Omusic TV         FTA
  Nollywood Movies         Videoguard

11 260 -V- tp C2U

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  Open access 3         FTA
  Smart Live Casino         FTA
  Movies 4 Man 2+1         FTA
  Rural TV         FTA
  Revelation TV         FTA
  Genesis TV         FTA
  Shopping TV promo         FTA
  Gospel Channel         FTA
  Aaj Tak Int         Videoguard
  Open Access         FTA
  Open Access 2         FTA
  NTV Bangla         FTA

11 261 -H- tp C1U

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  Travel Channel
  Zone Reality +1         FTA
  3e         Videoguard
  Max TV         FTA
  Zone Horror         FTA
  Gay Network         FTA
  DOM TV/Wonderful         FTA
  Star +         Videoguard
  Thane Direct         FTA
  DM Digital         FTA
  CNBC UK         Videoguard
  Africa Channel         Videoguard
  Star Gold         Videoguard
  Crime & Investigation         Videoguard

11 307 -H- tp C3L

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  NTA Int.         FTA
  Living 2+1         Videoguard
  Virgin +1         Videoguard
  Challenge +1         Videoguard
  Bravo 2         Videoguard
  Living Ireland         Videoguard
  Virgin 1+1         Videoguard
  Propeller /22-03/         FTA
  JML         FTA

11 307 -V- tp C4L

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  Aastha International         FTA
  Nigeria Movies         Videoguard
  High Street TV         FTA
  Yesterday +1         Videoguard
  Club Paradiso         FTA
  Motors TV         Videoguard
  MUTV         Videoguard
  Ideal World 3         FTA
  BET UK         FTA

11 343 -V- tp C4U

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  Zone Romantica         FTA
  XXXtra Babeworld TV /23-06/         FTA
  Channel Starz         FTA
  SEX Station /22-06/         FTA
  AT Global         FTA
  Babestation         FTA
  NDTV Imagine         FTA
  Central Comedy Europe 2+/Toonsters         Videoguard
  The Chat Lounge         FTA
  Babeworld /23-05/         FTA
  My Channel UK         FTA
  Watch Me TV /07-00/         FTA
  Psychic & Soul TV         FTA
  Psychic TV         FTA
  Ahlulbayt tv         FTA

11 345 -H- tp C3U

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  ESPN Classic         Videoguard
  Blue Kiss/Sumo TV /23-05/         FTA
  Bangla TV         FTA
  La Babes         FTA
  test card         FTA
  test card         FTA
  Ahlebait TV         FTA
  Wedding TV         FTA
  Hidayat TV         FTA
  Nick Jr/MTV 1         Videoguard
  Live XXXBabes/Basement TV         FTA
  40+ Readers Wives /23-06/         FTA

11 389 -H- tp C5L

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  Investigation Discovery         Videoguard
  Animal Planet Europe +1         Videoguard
  Discovery Science UK +1         Videoguard
  DMAX UK         Videoguard
  DMAX UK +1         Videoguard
  DMAX UK +2         Videoguard
  DMAX UK +1.5         Videoguard
  Discovery Knowledge +1         Videoguard
  Discovery Shed         Videoguard
  Discovery Real Time UK +1         Videoguard

11 390 -V- tp C6L

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  Movies 24 UK         Videoguard
  Movies 24 UK         Videoguard
  Ary 1 World         FTA
  The Dating Channel         FTA
  Elite TV         FTA
  Spice Extreme /00-06/         Videoguard
  Climax 3-1 /22-6.30/         Videoguard
  Climax 3-2 /22-6.30/         Videoguard
  Climax 3-3 /22-6.30/         Videoguard
  Adult Channel /22-7.30/         Videoguard
  Playboy TV UK /22-7.30/         Videoguard
  Top Shelf TV /00-7.30/         Videoguard

11 426 -V- tp C6U

 SKY UK 27 500 2/3 EB 1 Fixed 60-80+ cm DVB
  Geo UK         Videoguard
  Aag TV         Videoguard
  Challenge Jackpot         FTA
  9XM         FTA
  OBE TV         FTA
  Diva TV         Videoguard
  QTV         Videoguard
  Venus TV         FTA
  Bid TV/Screenshop         FTA
  Bloomberg TV         FTA
  Glory TV         FTA
  KICC TV         FTA

11 428 -H-tp C5U

 Shorts TV France 27 500 2/3 EB 1 Fixed 60-80+ cm DVB

11 469 -H- tp D1S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Sky Box Office 18+5         Videoguard
  Sky Box Office 4         Videoguard
  Sky Box Office 35         Videoguard
  The History Channel UK         Videoguard
  Sky Box Office 42         Videoguard
  Sky Box Office 45         Videoguard
  Sky Box Office 18+6         Videoguard
  Sky Box Office 54         Videoguard
  Sky Box Office 55         Videoguard
  Sky Box Office 58         Videoguard
  Sky Box Office 59         Videoguard
  Sky Box Office 61         Videoguard

11 488 -V- tp D2S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Quest TV         Videoguard
  ATN Bangla         FTA
  Iqra         FTA
  Channel S Uk         FTA
  Peace TV UK         FTA
  Peace TV Urdu         FTA
  Setanta Sports 1 Ireland         Videoguard

11 508 -H- tp D3S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Adult Channel /00-7.30/         Videoguard
  Prowwler TV /00-7.30/         Videoguard
  Playboy TV UK /22-7.30/         Videoguard
  100% Babes /22.30-7.30/         Videoguard
  The Pub Channel/Sky Venue         Videoguard
  Xtreme Babes /00-7.30/         Videoguard
  Amateur Babes /00-7.30/         Videoguard

11 528 -V- tp D4S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Thomas Cook         DVB FTA
  Comedy Central Ireland         Videoguard
  Gay date         DVB FTA
  Channel M         DVB FTA
  Bang Babes 1         DVB FTA
  Bang Babes 2         DVB FTA
  Bang Babes 3         DVB FTA
  Eden +1         Videoguard
  Extreme Sports Channel UK         Videoguard

11 546 -H- tp D5S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Shop on         FTA
  Geo News USA         Videoguard
  ARY Digital         Videoguard
  Comedy Central UK+1         Videoguard
  Cine Moi /15-23/         Videoguard
  Life TV / Hotel Voyeur         FTA
  Beverly Hills         FTA
  V Channel         FTA
  Monte Carlo roulette         FTA
  Faith TV         FTA
  Punjabi TV         FTA

11 565 -V- tp D6S

SKY UK

27 500  2/3 EB 1 S1  60-80+ cm  DVB
  Sky Box Office 1         Videoguard
  Sky Box Office 3         Videoguard
  Sky promo         FTA
  Sky Movies mosaic         FTA
  Sky Box Office preview         Videoguard
  Sky Box Office 56         Videoguard
  Sky Box Office 57         Videoguard
  Sky Box Office 60         Videoguard
  Sky Box Office 18+4         Videoguard
  Sky Box Office 49         Videoguard

11 585 -H- tp D7S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Racing UK         Videoguard
  Setanta Sports Ireland         Videoguard
  ESPN America         Videoguard
  FC Liverpool         Videoguard
  Film 24         FTA
  Channel AKA         FTA
  Supreme Master         FTA
  The Enterpreneur Channel         FTA

11 604 -V- tp D8S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Sky Anytime A         Videoguard
  Sky Anytime B         Videoguard
  Sky Movies Modern Greats         Videoguard
  Sky Movies Screen 2         Videoguard
  Sky Movies Premiere +1         Videoguard
  The History Channel UK         Videoguard
  Bio UK         Videoguard
  Sky Movies Premiere         Videoguard

11 623 -H- tp D9S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Russia Today         FTA
  Prime TV UK         FTA
  Abu Dhabi Oula         FTA
  Phoenix CNE         FTA
  Baby TV         Videoguard
  Babecast/Tron Direct         FTA
  Diva TV         Videoguard
  Sci Fi UK         Videoguard

11 642 -V- tp D10S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Flava         FTA
  Bliss         FTA
  Scuzz         FTA
  Flaunt         FTA
  True Movies         FTA
  True Movies 2         FTA
  Tiny Pop         FTA
  NME TV         FTA
  Pop!         FTA
  Tiny Pop         FTA
  Kix         FTA
  The Vault         FTA
  Pop Girl         FTA
  Chart Show         FTA
  Pop Girl +1         FTA
  True Entertainment         FTA

11 662 -H- tp D11S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  MTA Int         FTA
  World Netrwork         FTA
  Super Casino         FTA
  CCTV 9         FTA
  Inspiration Network         FTA
  France 24 English         FTA
  Cee TV         Videoguard

11 681 -V- tp D12S

 SKY UK 27 500 2/3 EB 1 S1 60-80+ cm DVB
  Islam Channel         FTA
  God TV Europe         FTA
  Peace TV         FTA
  Al Jazeera English         FTA
  NHK World         FTA
  TBN Europe         FTA
  Hallmark UK +1         Videoguard
  God TV         FTA
  Sci Fi UK         Videoguard

11 720 -H- tp 1

 SKY UK HD 29 500 3/4 2A South 60-120+ cm DVB-S2/MPEG-4
  MTVN HD         MPEG-4/Videoguard
  Sky Movies Screeen 1 /14-01/         MPEG-4/Videoguard
  Sky Sports HD 2         MPEG-4/Videoguard

11 739 -V- tp 2

 SKY UK 27 500 2/3 2A South 60-120+ cm DVB
  Living UK         Videoguard
  Challenge TV         Videoguard
  Bravo UK         Videoguard
  Living UK +1         Videoguard
  Bravo UK +1         Videoguard
  Living 2         Videoguard

11 758 -H- tp 3

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  Sky Sports Active 1         Videoguard
  Sky Sports Active 2         Videoguard
  Sky Sports Active 3         Videoguard
  Sky Sports Active 4         Videoguard
  Sky Sports Active 5         Videoguard
  Sky Sports Active 6         Videoguard
  Sky Sports Active 7         Videoguard
  Sky Sports Active 8         Videoguard
  Sky Sports Active 9         Videoguard

11 778 -V- tp 4

 SKY radio chart
 		 27 500 2/3 2A North 60-120 cm Videoguard

11 798 -H- tp 5

 SKY UK HD 29 500 3/4 2A South 60-120+ cm DVB-S2/MPEG-4
  Sky Sports HD 1         MPEG-4/Videoguard
  Sky Real Lives HD         MPEG-4/Videoguard
  Channel 4 HD         MPEG-4/Videoguard

11 817 -V- tp 6

 SKY UK 27 500 2/3 2A South 60-120+ cm DVB
  Home TV         Videoguard
  Gold         Videoguard
  Eden         Videoguard
  Dave         Videoguard
  UKTV Food         Videoguard
  Watch         Videoguard
  Alibi         Videoguard

11 837 -H- tp 7

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  Sky Movies Action&Thriller         Videoguard
  Sky Movies Comedy         Videoguard
  Sky Movies Sci Fi & Horror         Videoguard
  Sky Movies Classic         Videoguard
  Sky Movies Indie         Videoguard
  Sky Movies Family         Videoguard
  Sky Movies Drama         Videoguard

11 856 -V- tp 8

 SKY UK HD 29 500 3/4 2A North 60-120+ cm DVB-S2/MPEG-4
  Eurosport         MPEG-4/Videoguard
  FX UK         MPEG-4/Videoguard
  Sky Arts 2         MPEG-4/Videoguard

11 876 -H- tp 9

 SKY UK 27 500 2/3 2A South 60-120+ cm DVB
  Discovery Ch.         Videoguard
  Animal Planet         Videoguard
  Discovery Real Time         Videoguard
  Discovery Ch. +1         Videoguard
  Discovery T&L         Videoguard
  Discovery Science         Videoguard
  Discovery Knowledge         Videoguard
  Discovery Home&Health         Videoguard
  Discovery Turbo         Videoguard
  Discovery Home&Health +1         Videoguard
  Quest         FTA

11 895 -V- tp 10

 SKY UK 27 500 2/3 2A South 60-120+ cm DVB
  MTV One UK         Videoguard
  VH 1 UK         Videoguard
  MTV Two         Videoguard
  MTV One UK +1         Videoguard
  MTV Hits UK         Videoguard
  MTV Base UK         Videoguard
  VH1 Classic UK         Videoguard
  TMF UK         Videoguard
  MTV One Ireland         Videoguard
  MTV R         Videoguard
  MTV Dance         Videoguard
  MTV Trax         Videoguard

11 914 -H- tp 11

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  Sky Box Office 5         Videoguard
  TV 5 Monde Europe         Videoguard
  Sky Box Office 6         Videoguard
  Sky Box Office 7         Videoguard
  Sky Box Office 8         Videoguard
  Sky Box Office 9         Videoguard
  Sky Box Office 10         Videoguard
  Sky Box Office 11         Videoguard
  Sky Box Office 12         Videoguard
  Sky Box Office 13         Videoguard
  Sky Box Office 14         Videoguard
  Sky Box Office 15         Videoguard

11 934 -V- tp 12

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  Sky Box Office 16         Videoguard
  Sky Box Office 17         Videoguard
  Sky Box Office 18         Videoguard
  Sky Box Office 19         Videoguard
  Sky Box Office 20         Videoguard
  Sky Box Office 21         Videoguard
  Sky Box Office 22         Videoguard
  Sky Box Office 23         Videoguard
  Sky Box Office 24         Videoguard
  Sky Box Office 25         Videoguard
  Sky promo         FTA
  Sky Perks promo         FTA

11 954 -H-tp 13

 BBC UK 27 500 2/3 2A South 60-120+ cm DVB
  BBC News         FTA
  BBC Parliament         FTA
  BBC Alba         FTA
  BBC Stream 4.0         FTA
  BBC Stream 4.1         FTA

11 973 -V- tp 14

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  SET Europe         Videoguard
  Max UK         Videoguard
  Bang Babes         FTA

11 992 -H- tp 15

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  Home +1         Videoguard
  GOLD +1         Videoguard
  Blighty         Videoguard
  Watch +1         Videoguard
  Really         Videoguard
  Dave +1         Videoguard
  UKTV Food +1         Videoguard
  Alibi +1         Videoguard

12 012 -V- tp 16

 SKY UK 29 500 3/4 2B North 60-120+ cm DVB-S2/QPSK
  Sky Mvies Family         MPEG-4/HD/Videoguard
  Sky Movies Premiere         MPEG-4/HD/Videoguard
  Sky Movies Screen 2         MPEG-4/HD/Videoguard
  Sky Anytime HD1         MPEG-4/HD/Videoguard

12 032 -H- tp 17

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  Ideal World         FTA
  QVC UK         FTA
  Bid TV         FTA

12 051 -V- tp 18

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  Cartoon Network         Videoguard
  Boomerang +1         Videoguard
  Boomerang         Videoguard
  Cartoon Network         Videoguard
  CNN Int Europe         FTA

12 070 -H- tp 19

 SKY UK 27 500 2/3 2B North 60-120+ cm DVB
  Sky Sports Xtra in Pubs         Videoguard
  Sky Sports 1 in Pubs         Videoguard
  Sky Sports 3 in Pubs         Videoguard
  Sky Sports News in Pubs         Videoguard
  Kerrang         Videoguard
  Magic         Videoguard
  Sky Arts 2         Videoguard
  4 Music         Videoguard
  Smash Hits         Videoguard
  Fox News Channel         Videoguard

12 090 -V- tp 20

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  Sky Box Office 2         Videoguard
  Sky Box Office 26         Videoguard
  Sky Box Office 27         Videoguard
  Sky Box Office 28         Videoguard
  Sky Box Office 29         Videoguard
  Sky Box Office 30         Videoguard
  Star Plus UK         Videoguard
  Star News UK         Videoguard
  Sky Box Office 31         Videoguard
  Sky Box Office 32         Videoguard
  Sky Box Office 33         Videoguard
  Sky Box Office 34         Videoguard

12 110 -H- tp 21

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  Sky Sports 2         Videoguard
  Sky Sports 1         Videoguard
  Sky Sports 3         Videoguard
  Sky Bet         Videoguard
  FX UK         Videoguard
  TCM2/Cortoonito         Videoguard

12 129 -V- tp 22

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  S4C Digidol         FTA
  S4C Dau Two         FTA
  Teletext Holidays         FTA
  B4U Movies         Videoguard
  B4U Music UK         FTA
  Ideal World 2         FTA
  Create and Craft         FTA

12 148 -H- tp 23

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  Sky sports News UK         Videoguard
  Sky Sports News Ireland         Videoguard
  Sky Sports 1 Ireland +1         Videoguard
  Eurosport 2 UK         Videoguard
  Hallmark UK         Videoguard
  Sky Sports X-tra         Videoguard
  Central Comedy 2         Videoguard

12 168 -V- tp 24

 SKY UK HD 29 500 3/4 2A North 60-120+ cm DVB-S2/MPEG-4
  Sky Movies Modern Greats         MPEG-4/Videoguard
  Sky Movies Drama         MPEG-4/Videoguard
  Sky Movies Sci Fi & Horror         MPEG-4/Videoguard
  Sky Movies Comedy         MPEG-4/Videoguard

12 188 -H- tp 25

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  Shorts TV         Videoguard
  Nat Geo Wild         Videoguard
  Eurosport UK         Videoguard
  TCM UK         Videoguard
  E!UK         Videoguard
  Central Comedy 1         Videoguard
  Chelsea TV / 18-01/         Videoguard

12 207 -V- tp 26

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  Sky News UK         DVB FTA
  Sky News Ireland         DVB FTA

12 226 -H- tp 27

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  Sky 1 Ireland         Videoguard
  Sky 3         Videoguard
  Sky 2         Videoguard
  The BOX UK         Videoguard
  Kiss         Videoguard
  Q         Videoguard
  Community Channel         DVB FTA

12 246 -V- tp 28

 SKY UK HD 29 500 3/4 2A North 60-120+ cm DVB-S2/MPEG-4
  Sky Movies Action & Thriller         MPEG-4/Videoguard
  Nat Geo Wild HD         MPEG-4/Videoguard
  The History Channel HD         MPEG-4/Videoguard
  Bio HD / Crime & Investigation         MPEG-4/Videoguard

12 266 -H- tp 29

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  Sky Sports 2         Videoguard
  Disney XD UK         Videoguard
  Nickelodeon UK         Videoguard
  Nickelodeon UK+1         Videoguard
  Nick toons TV         Videoguard
  Nick JR UK         Videoguard

12 285 -V- tp 30

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  Real Madrid TV         Videoguard
  Sky Movies Screen 1         Videoguard
  NG UK promo         FTA
  Sky Arts 1         Videoguard
  NG Channel UK         Videoguard
  NG Channel UK +1         Videoguard
  Sky 1 UK         Videoguard

12 304 -H- tp 31

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  ESPN UK
  XXX Mums / Sky Info Channel
  +Sky promo         Videoguard
  info card         FTA
  Hustler TV UK /21.30-06.30/         Videoguard
  Sky Poker         Videoguard
  Sky Vegas         Videoguard
  Crime & Investigation netw. UK         Videoguard
  Disney XD UK         Videoguard

12 324 -V- tp 32

 SKY UK HD 29 500 3/4 2B North 60-120+ cm DVB-S2/MPEG-4
  Discovery HD         MPEG-4/Videoguard
  Sky Arts HD         MPEG-4/Videoguard
  Disney Cinemagic UK         MPEG-4/Videoguard
  Sci Fi UK         MPEG-4/Videoguard

12 344 -H- tp 33

 SKY UK HD 29 500 3/4 2B South 60-120+ cm DVB-S2/MPEG-4
  Eurosport HD         MPEG-4/Videoguard
  National Geographic HD         MPEG-4/Videoguard
  Sky 1 UK         MPEG-4/Videoguard

12 363 -V- tp 34

 SKY UK HD 29 500 3/4 2B South 60-120+ cm DVB-S2/MPEG-4
  Sky HD Retail info         MPEG-4/Videoguard
  Sky Box Office HD 2         MPEG-4/Videoguard
  Sky Sports HD 3         MPEG-4/Videoguard
  Sky Box Office HD 1         MPEG-4/Videoguard

12 382 -H- tp 35

 SKY UK 27 500 2/3 2B North 60-120+ cm DVB-S2/MPEG-4
  Sky Anitime HD 2         MPEG-4/Videoguard

12 402 -V- tp 36

 SKY UK 27 500 2/3 2B North 60-120+ cm DVB
  ITV 1 Meridian         Videoguard
  ITV 1 Thames         Videoguard
  ITV 1 Anglia         Videoguard
  ITV 1 Yorkshire         Videoguard
  ITV 1 Tyne         Videoguard
  ITV 1 Central         Videoguard

12 422 -H- tp 37

SKY UK

 27 500 2/3 2A South 60-120+ cm DVB
  Five 1         Videoguard
  Five 3         Videoguard
  Five 4         Videoguard
  Five USA         Videoguard
  Five USA+1         Videoguard
  Fiver         Videoguard
  Fiver +1         Videoguard

12 441 -V- tp 38

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  BBC Stream 3         FTA
  BBC Stream 3         FTA
  BBC Stream 3         FTA
  BBC Stream 3         FTA
  BBC Stream 3         FTA
  BBC Stream 3         FTA
  BBC Stream 3         FTA
  BBC Stream 3         FTA

12 460 -H- tp 39

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  picks promo         FTA

12 480 -V- tp 40

 SKY UK 27 500 2/3 2A North 60-120+ cm DVB
  Queen promo
  More 4         Videoguard
  Channel 4         Videoguard
  Channel 4 +1         Videoguard
  E4 Ireland +1         Videoguard
  E4 Ireland         Videoguard
  Channel 4 London/TT on 4         FTA
  Sikh Channel         FTA
  Brit Asia TV         FTA

12 523 -H- tp F1L

 SKY UK 27 500 2/3 2B South 60-120+ cm DVB
  test         FTA
  Live 960         FTA
  Daystar TV         FTA
  BEN         FTA
  Information TV         FTA
  EWTN UK         FTA
  Movies 4 Man +1         FTA
  AIT UK         FTA
  Open Heavens TV         FTA

12 523 -V- tp F2L

 SKY UK 27 500 2/3 EB 1 Fixed 60-120+ cm DVB
  Shop TV UK         FTA
  Zone Reality UK         FTA
  JML Beauty         FTA
  Record Int.         FTA
  Shop TV         FTA
  JML Home         FTA
  JML Choice         FTA
  Gems TV 2         FTA
  Gems TV 1         FTA
  Deya Broadcasting Netw.         FTA
  Thane Shop         FTA

12 560 -V- tp F2U

 SKY UK 27 500 2/3 EB 1 Fixed 60-120+ cm DVB
  Wedding TV +1         FTA
  Travel Channel         FTA
  Thomson TV         FTA
  EuroNews         FTA
  Rocks & Co         FTA
  Zone Thriller         FTA
  Best Direct         FTA
  Best Direct+         FTA
  JML         FTA
  Fitness TV         FTA

12 607 -H- tp F3L

 SKY UK 27 500 2/3 EB 1 Fixed 60-120+ cm DVB
  Viewers Wives /22-7.30/         Videoguard
  TV X /23-07/         Videoguard
  TV X Amateur /23-07/         Videoguard
  TV X Fast Forward /23-07/         Videoguard
  TV X Brits /23-07/         Videoguard
  Red Hot Amateur /21-6.30/         Videoguard
  Red Hot 40+ /21-6.30/         Videoguard
  Red Hot Fetish /21-6.30/         Videoguard
  Red Hot Girl /21-6.30/         Videoguard
  Red Hot Double D /21-6.30/         Videoguard
  Red Hot Just 18 /21-6.30/         Videoguard
  Gay TV /21-6.30/         Videoguard
  XPLICIT XXX /23-05/         Videoguard

12 607 -V- tp F4L

 SKY UK 27 500 2/3 EB 1 Fixed 60-120+ cm DVB
  Zee TV Uk         Videoguard
  Zee Cinema         Videoguard
  Zing UK         FTA
  Alpha Punjabi         Videoguard
  Live XXX /23-7.30/         FTA
  Rush HD Europe         MPEG-4/Videoguard

12 643 -H- tp F3U

 SKY UK 27 500 2/3 EB 1 Fixed 60-120+ cm DVB
  Fantasy Tv /22-7.30/         Videoguard
  Grind TV         Videoguard
  Noor TV         FTA
  Live Bingo         FTA
  Luxe Tv UK         TA
  LUXE TV HD UK         MPEG-4/HD/FTA
  Music India         FTA
  HiTV India         FTA
  Loveworld         FTA
  Body In Balance UK /08-22/         FTA

12 643 -V- tp F4U

 SKY UK 27 500 2/3 EB 1 Fixed 60-120+ cm DVB
  Military History UK         Videoguard
  Nickelodeon Ireland         Videoguard
  DMAX UK +2         Videoguard
  MA TV National         FTA
  Teachers TV         FTA


Elite TV

         FTA
  Style Network Emea         Videoguard
  Comedy Central +1         Videoguard
  Ocean TV         FTA
  Ocean mosaic         FTA
  JML Cook Shop         FTA
  JML Active         FTA
  Nick Jr Ireland         Videoguard

Astra 2D at 28.2°E : H+V - percent quality & stream infos

                       10 714 H                                                 10 744 H                                                   10 773 H
10 714 H percent Q10 744 H percent Q10 773 H percent Q

                     10 803 H                                                   10 832 H                                                    10 891 H
10 803 H percent Q10 832 H percent Q10 891 H percent Q

Astra 2D at 28.2°E : H+V -  Video presentations

  Go to Video Section:                    Go to Video Section:
button           watch videos

Eurobird 1 at 28.5°E : footprint

Eurobird 1 at 28.5 e _ Fixed footprint _Eurobird 1 at 28.5 e _ Steerable footprint _

Astra 2D at 28.2°E : H+V  TV Snapshots

Channel 4 01SKY Travel 03BBC HD 06
Channel 4 london 05BBC News 08E4 09

All rights reserved © 2025 DXsatcs.com
|
Developed by BRAINSUM
