Intelsat 12 at 45.0°E : Technical data

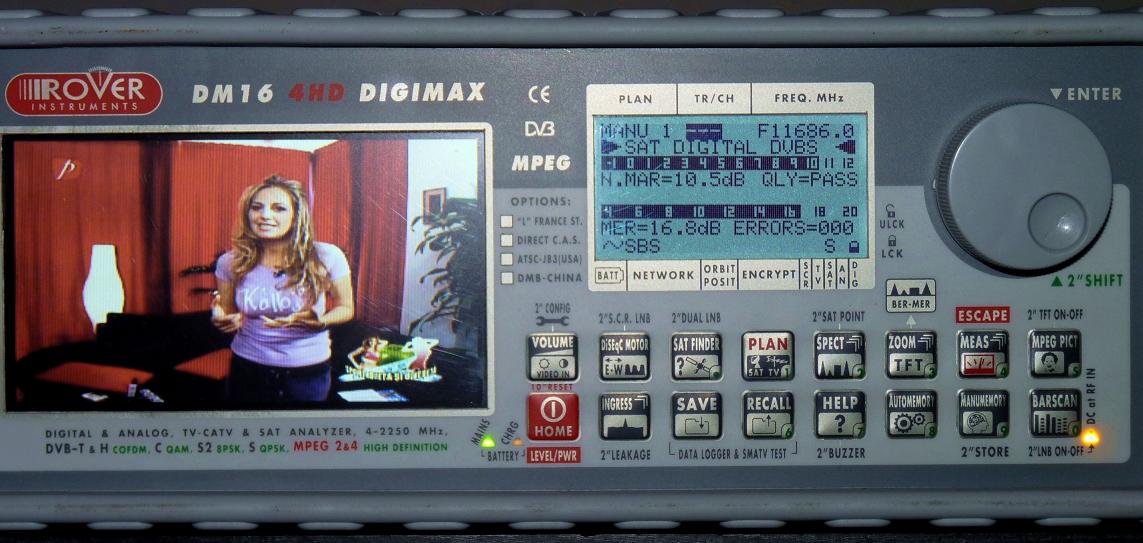

Intelsat 12 at 45.0°E : 11 686 V Prima TV Romania _ Q-peak/bBER=<10-6
click for enlarge

satellite : Intelsat 12 - orbit : 45.0°E - TP : KU 30x36 MHz

Intelsat 12 at 45.0°E - European beam : spectral analysis & measuring the quality

Intelsat 12 at 45.0°E - european footprint : measurements at the center Lučenec/central Slovakia
                                        geographical location : Latitude: 48.33° _   Longitude: 19.72°
                                            measurement results are derived from the 3.7 m diameter antenna
                                                                    date of measurement : 20.11 2010
                                                   Elevation angle : 30.0°

        Intelsat 12 : installed system               Intelsat 12 : European beam                  Intelsat 12 : research point
            dxsatcs waveguide line                coverage area                           town Lučenec / Slovak republic
                  Prodelin 3.7 m                           Europe , Middle East , N.Africa ...                       48.33° _ 19.72°

                  click for enlarge                                     click for enlarge                                          click for enlarge

--- Intelsat 12 at 45.0°E : spectral analysis of the transponder TP5 / SPAN 6 ---

                                                      --- 11 632 V DVB-S2/8PSK Packet Vivacom ---
                                                                                   click for enlarge

                                                                   - time of measurement : 20.11.2010 -
                                                      - defining the status of reception -

11 632 V_Packet Vivacom : DVB-S2 measurement_I have identified virtually ideal quality status derived from the
following measurement results in the carrier in the format DVB-S2 : stable zero level error packets PER=1x10-7 ,
slightly oscillating level of gain in the range from 14 to 15 dB , EVM - Error vector magnitude is stably equivalent to
10 % ...

--- Intelsat 12 : measurement results ---

Intelsat 12 at 45.0°E-European beam : 11 550 V Packet Vivacom
IF data Q data NIT data

Intelsat 12 at 45.0°E-European beam : 11 632 V Packet Vivacom
IF data Q data NIT data

Intelsat 12 at 45.0°E-European beam : 11 674 V Packet IVG_Unn.
IF data Q data NIT data

Intelsat 12 at 45.0°E-European beam : 11 680 V feeds Publika TV
IF data Q data NIT data

Intelsat 12 at 45.0°E-European beam : 11 686 V ESS network
IF data Q data NIT data

Intelsat 12 at 45.0°E : TV List

Intelsat 12 at 45.0e-PF Prodelin 3.7 m 02

-Frequency-	----------Provider/Channel----------	---SR---	---FEC---	---Beam---	---Antenna---	---DVB/Encryption---
11 468 -V- tp 1	Dialog TV Sri Lanka	27 689	5/6	India	?	Irdeto 2
11 468 -V- tp 1	Vivacom Bulgaria	30 000	3/4	Europe	80+ cm	DVB-S2/8PSK Videoguard
	BTV					MPEG-4/Videoguard
	Nova TV					MPEG-4/Videoguard
	BNT 1					MPEG-4/Videoguard
	Comedy BTV					MPEG-4/Videoguard
	Diema					MPEG-4/Videoguard
	Pro.bg					MPEG-4/Videoguard
	Diema F					MPEG-4/Videoguard
	Diema 2					MPEG-4/Videoguard
	Planeta tv					MPEG-4/Videoguard
	TV7					MPEG-4/Videoguard
	Fox Life					MPEG-4/Videoguard
	National Geographic					MPEG-4/Videoguard
	Fox Crime					MPEG-4/Videoguard
	BNT Sat					MPEG-4/Videoguard
	Europa tv					MPEG-4/Videoguard
	BTV Cinema					MPEG-4/Videoguard
	Discovery Chanel					MPEG-4/Videoguard
	Diva Uni					MPEG-4/Videoguard
	Mad tv					MPEG-4/Videoguard
	Explorer / X-Dream tv (23/05)					MPEG-4/Videoguard
	Viasat History					MPEG-4/Videoguard
	Nat Geo Wild					MPEG-4/Videoguard
	TLC					MPEG-4/Videoguard
	CNN Int					MPEG-4/Videoguard
	Discovery Science					MPEG-4/Videoguard
	TV 1000					MPEG-4/Videoguard
	Hustler TV					MPEG-4/Videoguard
	VH1 Europe					MPEG-4/Videoguard
	MTV Europe					MPEG-4/Videoguard
	Disney ch.					MPEG-4/Videoguard
	Premium					MPEG-4/Videoguard
	Euronews					MPEG-4/Videoguard
11 500 -V- tp 2	Tellytrack	4 340	7/8	Europe	60+ cm	DVB
	Racing International					Videoguard
	SA CLEAN feed					Videoguard
11 550 -V- tp 3	Vivacom Bulgaria	30 000	3/4	Europe	80+ cm	DVB-S2/8PSK Videoguard
	Cartoon / TCM					MPEG-4/Videoguard
	Folklor TV					MPEG-4/Videoguard
	Fan TV					MPEG-4/Videoguard
	Ring.bg					MPEG-4/Videoguard
	Super 7					MPEG-4/Videoguard
	BBT					MPEG-4/Videoguard
	M Sat					MPEG-4/Videoguard
	Nova Sport					MPEG-4/Videoguard
	Planeta Folk					MPEG-4/Videoguard
	Fiesta Tv					MPEG-4/Videoguard
	ESPN					MPEG-4/Videoguard
	Extreme / French Lover (23-04)					MPEG-4/Videoguard
	Fashion TV					MPEG-4/Videoguard
	E-Kids					MPEG-4/Videoguard
	Free-X-TV					MPEG-4/Videoguard
	Kanal 3					MPEG-4/Videoguard
	TV5 Monde					MPEG-4/Videoguard
	NKTV Evrokom					MPEG-4/Videoguard
	AXN Bulgaria					MPEG-4/Videoguard
	1Kanal Russia					MPEG-4/Videoguard
	Balkanika Music					MPEG-4/Videoguard
	Animal Planet					MPEG-4/Videoguard
	AXN Crime					MPEG-4/Videoguard
	AXN Sci-Fi					MPEG-4/Videoguard
	Cinemax					MPEG-4/Videoguard
	OR					MPEG-4/Videoguard
	Boomerang					MPEG-4/Videoguard
	HBO Bulgaria					MPEG-4/Videoguard
	HBO Comedy					MPEG-4/Videoguard
	DW TV Europe					MPEG-4/Videoguard
	Bebe TV					MPEG-4/Videoguard
11 591 -V- tp 4	Dialog TV Sri Lanka	27 689	5/6	India	? cm	Irdeto 2
11 632 -V- tp 5	Vivacom Bulgaria	20 000	3/4	Europe	80+ cm	DVB-S2/8PSK MPEG-2
	BTV					Irdeto 2
	VTK					FTA
	BTV Comedy					Irdeto 2
	BTV Cinema					Irdeto 2
	Latina F					FTA
	BG TV					FTA
	TV1 Channel					FTA
	City TV					FTA
	Tiankov TV					FTA
	VTV Bulgaria					FTA
	Rodina					FTA
	EBF					FTA
11 632 -V- tp 5	Dialog TV Sri Lanka	27 689	5/6	India	?	Irdeto 2
11 673 -V- tp 6	Dialog TV Sri Lanka	27 689	5/6	India	?	Irdeto 2
11 674 -V- tp 6	Unn network	6 666	3/4	Europe	80+ cm	DVB
	vesti pri volghe					Biss
	NNTV plus RIC					FTA
11 686 -V-tp 6	ESS	5 787	3/4	Europe	80+ cm	DVB
	Prima TV					FTA
	Kiss TV					FTA
12 528 -H-tp 7	data Al Harbi Telecom	29 766	7/8	Middle East	220-270+ cm	data
12 675 -V-tp 11	feeds Service 1 ...	3 296	7/8	Europe	80+ cm	FTA/Biss/4:2:2

Intelsat 12 at 45.0°E : relative quality

Intelsat 12 at 45.0°E : Video presentation

Intelsat 12 at 45.0°E : Update prepare
