Intelsat 903 at 34.5°W

Intelsat 903 at 34.5°W : Technical data

                                                                           click on image for high quality
Intelsat 903 at 34.5 w_first snap 001

                satellite : Intelsat 903 - orbit : 34.5°W - TP : 72 C/22 KU - Lifetime : from 30.3.2002 - 13 years

Intelsat 903 at 34.5°W - NE zone+Global footprint : spectral analysis & measurement results

             Intelsat 903 at 34.5°W - Global footprint : measurements at the center Lučenec/central Slovakia

geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                            measurement results are derived from the 3.7 m diameter antenna
                                                                          elevation angle  : 14.1°

                                  Intelsat 903 spectral analysis                     Intelsat 903 footprint_global
                                  4 141 R : Packet MTN SAT TV                 Europe , Africa , ME , S&N America ...
                             Intelsat 903 at 34.5 w_global footprint_spectral analysis   Intelsat 903 at 34.5 w footprint
                                                            - time of measurement : 13.3.2010 -
                                                                 - defining the status of income -

                                  Intelsat 903 at 34.5°W - global footprint : 4 140 R Packet MTN SAT TV

measurement of DVB-S2 carrier : consistently high quality of reception derived from the bark of gain growth measured
nearly 9 dB at gross level MER=11.5 dB,value of packet error rate PER is almost close to zero

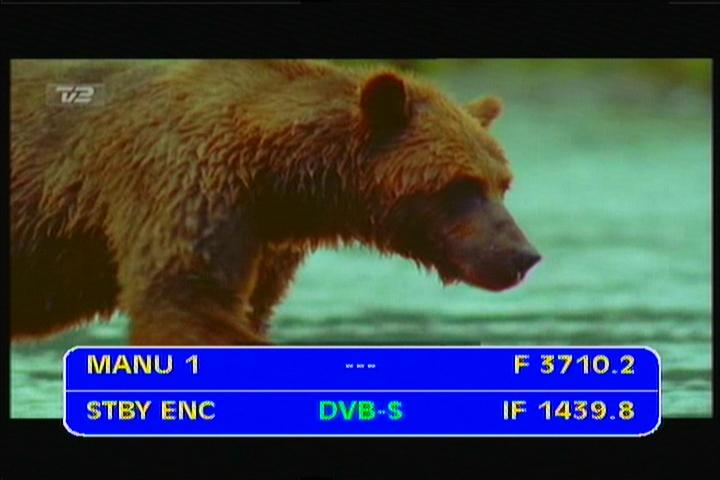

                          Intelsat 903 at 34.5°W - NE zone footprint : 3 710 L TV2 Denmark / STBY Encoder
                         IF data                                                       Q data                                                NIT data
Intelsat 903 at 34.5 w_NE Zone footprint_3 710 L TV 2 Denmark_IF dataIntelsat 903 at 34.5 w_NE Zone footprint_3 710 L TV 2 Denmark_Q dataIntelsat 903 at 34.5 w_NE Zone footprint_3 710 L TV 2 Denmark_NIT data

                                   Intelsat 903 at 34.5°W - NE zone footprint : 3 715 L KNR TV Greenland
                         IF data                                                       Q data                                                NIT data
Intelsat 903 at 34.5 w_NE Zone footprint_3 715 L KNR TV_IF dataIntelsat 903 at 34.5 w_NE Zone footprint_3 715 L KNR TV_Q dataIntelsat 903 at 34.5 w_NE Zone footprint_3 715 L KNR TV_NIT data

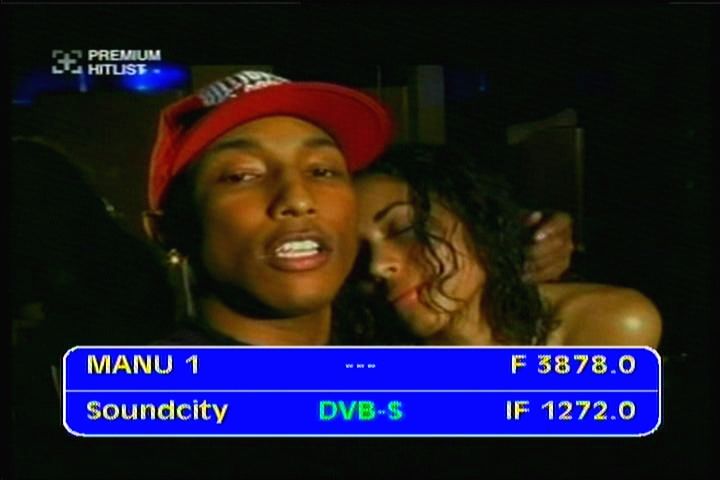

                                 Intelsat 903 at 34.5°W - NE zone footprint : 3 878 L Packet MCA Nigeria
                         IF data                                                       Q data                                                NIT data
Intelsat 903 at 34.5 w_NE Zone footprint_3 878 L Packet MCA Nigeria_IF dataIntelsat 903 at 34.5 w_NE Zone footprint_3 878 L Packet MCA Nigeria_Q dataIntelsat 903 at 34.5 w_NE Zone footprint_3 878 L Packet MCA Nigeria_NIT data

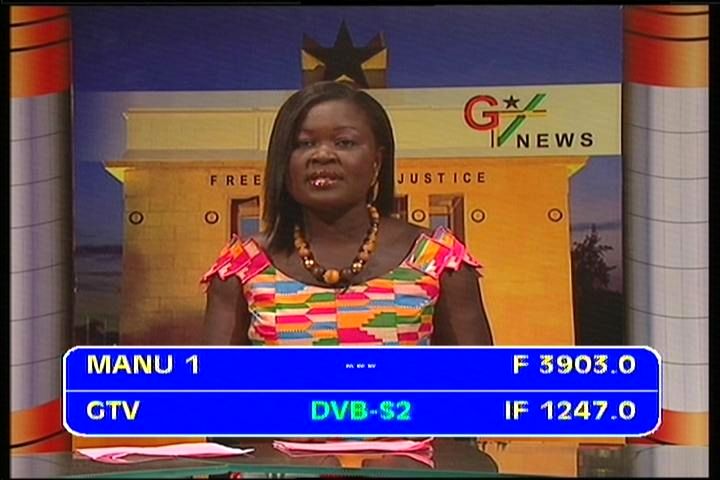

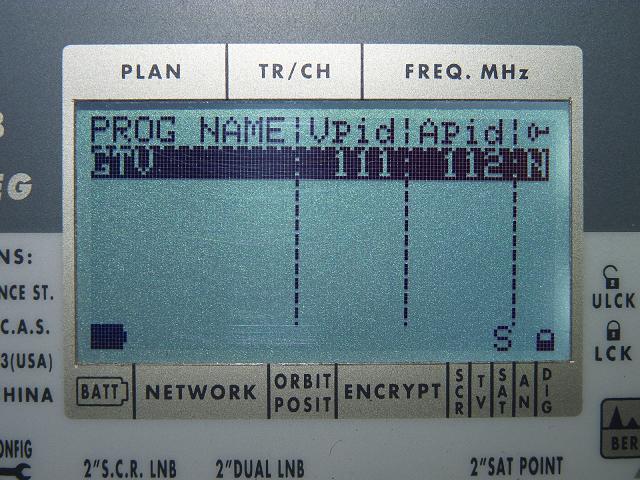

                                Intelsat 903 at 34.5°W - NE zone footprint : 3 903 L DVB-S2 GTV Ghana
                         IF data                                                       Q data                                                NIT data
Intelsat 903 at 34.5 w_NE Zone footprint_3 903 L dvb s2 GTV Ghana_IF dataIntelsat 903 at 34.5 w_NE Zone footprint_3 903 L dvb s2 GTV Ghana_Q dataIntelsat 903 at 34.5 w_NE Zone footprint_3 903 L dvb s2 GTV Ghana_NIT data

                                   Intelsat 903 at 34.5°W - NE zone footprint : 3 907 L RTI International
                         IF data                                                       Q data                                                NIT data
Intelsat 903 at 34.5 w_NE Zone footprint_3 907 L RTI Int_IF dataIntelsat 903 at 34.5 w_NE Zone footprint_3 907 L RTI Int_Q dataIntelsat 903 at 34.5 w_NE Zone footprint_3 907 L RTI Int_NIT data

                                    Intelsat 903 at 34.5°W - Global footprint : 4 141 R Packet MTN SAT TV
                         IF data                                                       Q data                                                NIT data
Intelsat 903 at 34.5 w_global footprint_4 140 R Packet MTN SAT TV_IF dataIntelsat 903 at 34.5 w_global footprint_4 140 R Packet MTN SAT TV_Q dataIntelsat 903 at 34.5 w_global footprint_4 140 R Packet MTN SAT TV_NIT data

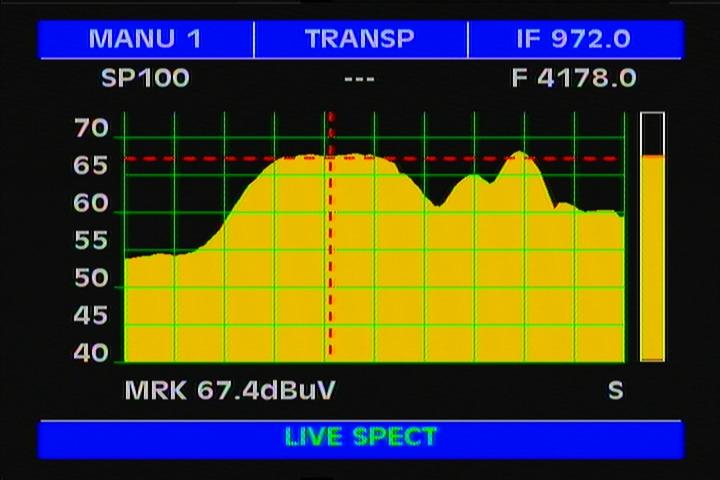

                                             Intelsat 903 at 34.5°W - Global footprint : 4 178 R  DVB-S Data
                                                spectral analysis                                             Q data
                              Intelsat 903 at 34.5 w_global footprint_4 178 R DVB S Data_spectral analysisIntelsat 903 at 34.5 w_global footprint_4 178 R DVB S Data_Q data

Intelsat 903 at 34.5°W : TV List


  Intelsat 903 at 34.5 w _ NE zone footprint _ PF Prodelin 3.7 m


---Frequency---


----------Provider/Channel------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 710 -L- tp 51

TV2 Denmark / STBY Encoder  watch video 2 914 7/8 NE zone 240+ cm DVB FTA

3 715 -L- tp 51

KNR TV Greenland 2 914 7/8 NE zone 200+ cm DVB FTA

3 878 -L- tp 53

MCA Nigeria 16 300 3/4 NE zone 320-350+ cm DVB
  NTA +         FTA
  Channels         FTA
  LTV       watch video         FTA
  Soundcity Music Channel    watch video         FTA
  MiTV         FTA
  Silverbird TV     watch video         FTA

3 895 -L- tp 53

without identification of the carrier
                       transfer
8 594 5/6 NE zone ? cm DVB
  KTN         FTA
  NTV         FTA
  KBC 1         FTA

3 904 -L- tp 53

GTV Ghana      watch video

2 487 3/4 NE zone 240+ cm DVB-S2/FTA

3 908 -L- tp 53

RTI International     watch video 3 041 3/4 NE zone 200+ cm DVB FTA

4 141 -R- tp 37

MTN Atlantic Network

6 050 2/3 Global 140-180+ cm DVB-S2/QPSK
  MTN Info          MPEG-4/FTA
  MTN Special Event_not broadcast         ---
  MTN Future Program_not broadcast         ---
  MSNBC         MPEG-4/PowerVu
  FOX News         MPEG-4/PowerVu
  CNBC         MPEG-4/PowerVu
  Sky News         MPEG-4/PowerVu
  BBC News         MPEG-4/PowerVu
  Sky Sports         MPEG-4/PowerVu

4 178 -R-

Data

32 552 1/2 Global 140-180+ cm DVB-S Data

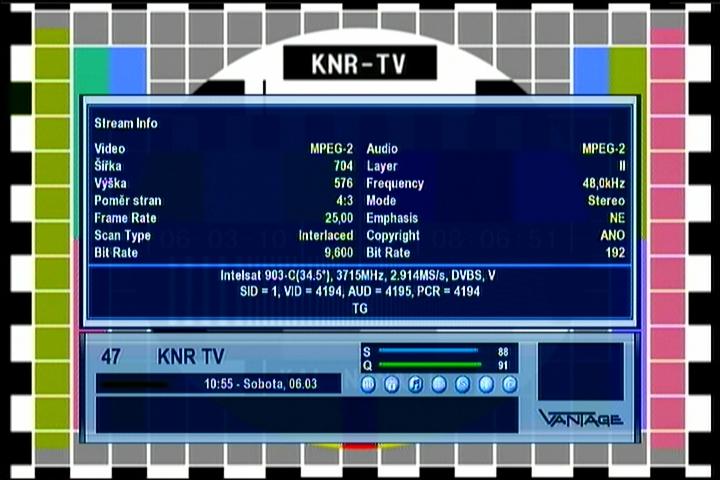

Intelsat 903 at 34.5°W : percent Q & stream data

                         3 715 L                                                  3 878 L                                                    4 140 R
relative q  02relative q  01relative q  03

Intelsat 903 at 34.5°W : Video presentations


 Go to Video Section:

Video Button

Intelsat 903 at 34.5°W footprint : North East Zone & Global



                        Intelsat 903 at 34.5 w footprint

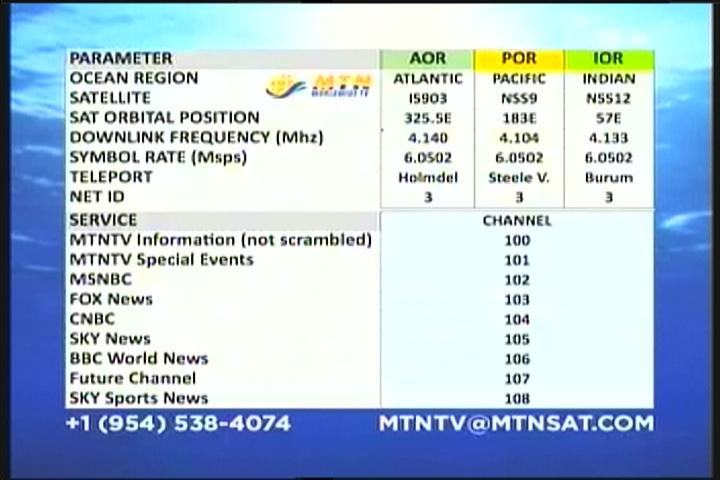

Intelsat 903 at 34.5°E : snapshots

RTI INt  01GTV 02GTV 03
MTN InfoCard  04Silverbird tv  05LTV  06
