Mr. Alberto Simao - Macau S.A.R_Chinasat 9 at 92.2°E in KU band + offset 120 cm : results of measurements on the carrier CFC Xinhua TV + spectral analysis of Chinese packets in a standard ABS-S/QPSK_L & ABS-S/8PSK_R + TOP MOUNTING VIDEO LHCP-RHCP

By Roman Dávid. ,
DX Forum


chinasat 9 at 92.2 e


Chinasat 9 at 92.2°E - Asian footprint : measurements at the center Macau-60 km west of Hong Kong
                           geographical location : Latitude: 22.1987°   _   Longitude: 113.5439°
                            measurement results are derived from the 120 cm diameter antenna
                                                     date of measurement : 3.5.2010
                                                              elevation angle  : 54.5°

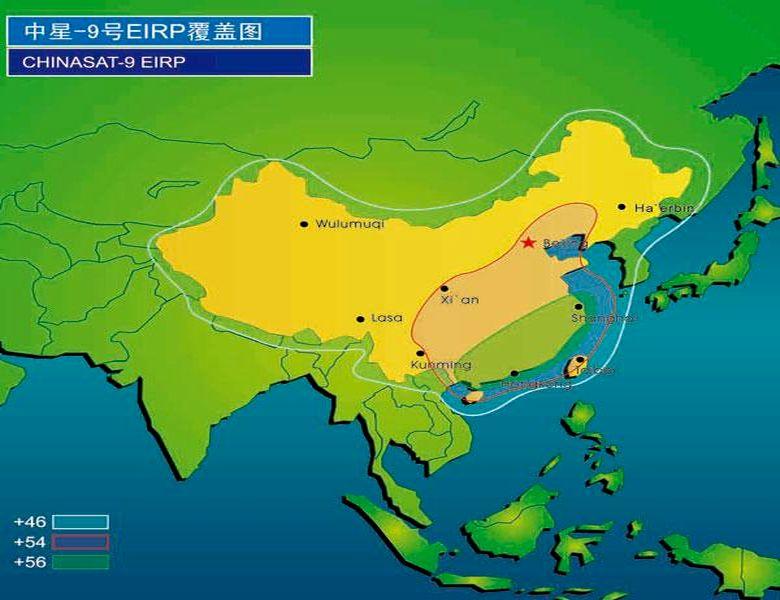

Chinasat 9 at 92.2 e _ footprint in KU band _offset 120 cmChinasat 9 at 92.2 e_KU footprintChinasat 9 at 92.2 e _ footprint in KU band _measurement point_map

Chinasat 9 at 92.2°E - Asian footporint in KU band : 12 092 L Xinhua_set to receive the circular wave vectors L+R

                                                                     click for higher quality

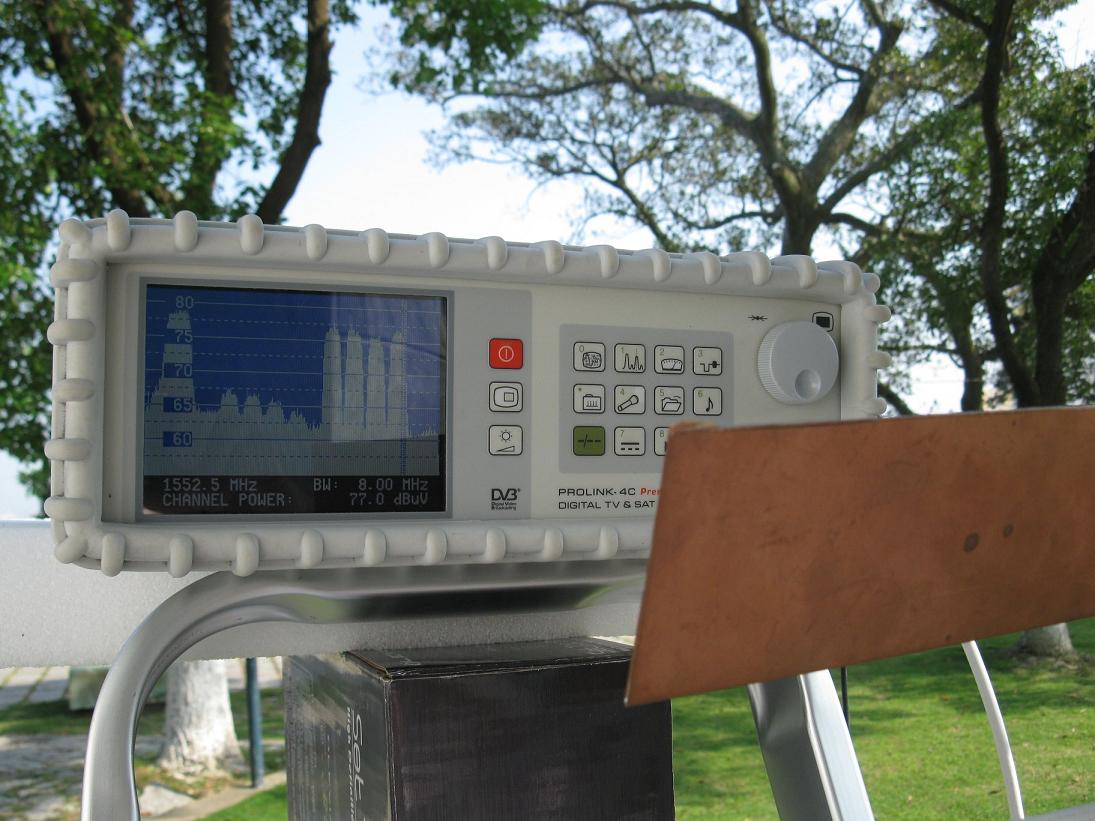

Chinasat 9 at 92.2 e _ footprint in KU band _ RX system 00 n

Chinasat 9 at 92.2 e _ footprint in KU band _ RX system 01Chinasat 9 at 92.2 e _ footprint in KU band _ RX system 02Chinasat 9 at 92.2 e _ footprint in KU band _ RX system 03

                                                                    mounting video : LHCR+RHCP



Chinasat 9 at 92.2°E - Asian footporint : 12 092 Xinhua_spectral analysis with Rohde & Schwarz ETL

                                                                  click for higher quality
Chinasat 9 at 92.2 e _ footprint in KU band _ spectral analysis_first n
         spectrum L : ABS-S / QPSK                                spectrum R                                 spectrum R : ABS-S / 8PSK
Chinasat 9 at 92.2 e _ footprint in KU band _ spectral analysis_01 abs-s qpskChinasat 9 at 92.2 e _ footprint in KU band _ spectral analysis of vector R_03Chinasat 9 at 92.2 e _ footprint in KU band _ spectral analysis_02 abs-s 8psk

Chinasat 9 at 92.2°E - Asian footporint in KU band : 12 092 L Xinhua_measurement results of quality

                                                             ---  click for higher quality ---
Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_CN margin first n

                                                                   --- Tandberg TT 1260 ---

                               IF                                                         SR                                                      BIT RATE
Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_f data 01Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_SR symbol rate 02Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_BIT rate 03

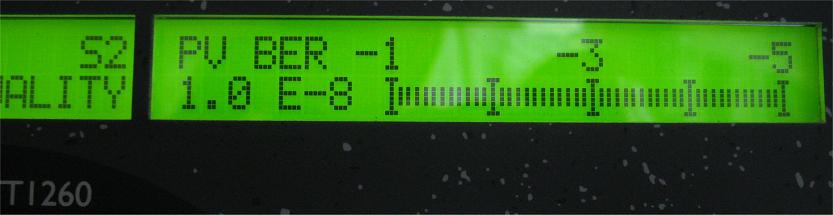

                         PV BER                                                  C/N Margin                                           NIT data
Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_PV BER 04Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_CN margin 05Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_NIT 06

                                                                  --- Promax Prolink 4C Premium ---

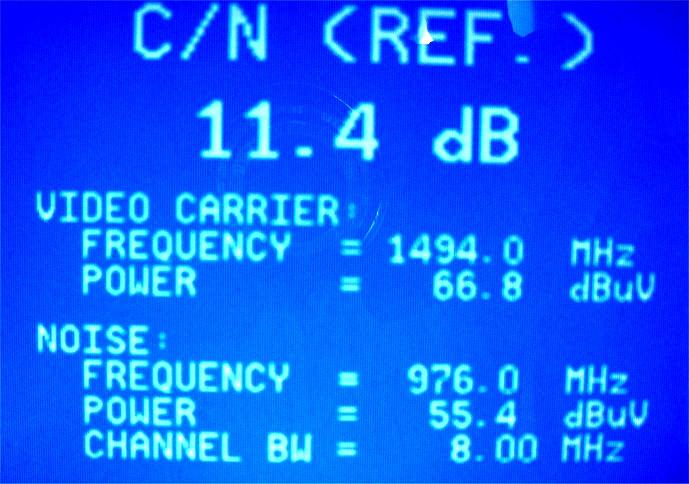

Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_Q analysis 01Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_Q analysis 02Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_Q analysis 03

Chinasat 9 at 92.2°E - Asian footporint in KU band : 12 092 L Xinhua_snapshots

Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_snapshot 01Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_snapshot 02Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_snapshot 03
Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_snapshot 04Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_snapshot 05Chinasat 9 at 92.2 e _ footprint in KU band _12 092 L CFC Xinhua China_snapshot 06

                                                                             --- Xinhua China ---





Chinasat 9 at 92.2°E - Asian footporint in KU band : 12 092 L Xinhua_ Slovakia >>> Macau


Chinasat 9 at 92.2°E - Asian footprint : measurements taken in the town of Lučenec / central Slovakia
                                               geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                          measurement results are derived from the 3.7 m diameter antenna
                                                                             elevation angle  : 2.8°

        12 092 L : spectral analysis                 12 092 L : PF Prodelin 3.7 m                   12 092 L : quality analysis
Chinasat 9 at 92.2 e_KU footprint_12 093L spectral analysisChinasat 9 at 92.2 e_KU footprint_PF Prodelin 3.7 mChinasat 9 at 92.2 e_KU footprint_12 092 L CFC Xinhua China_Q data


Chinasat 9 at 92.2°E - Asian footprint : measurements at the center Macau-60 km west of Hong Kong
                           geographical location : Latitude: 22.1987°   _   Longitude: 113.5439°
                            measurement results are derived from the 120 cm diameter antenna
                                                     date of measurement : 3.5.2010
                                                              elevation angle  : 54.5°

         12 092 L : spectral analysis                 12 092 L : offset 120 cm                        12 092 L : quality analysis
Chinasat 9 at 92.2 e _ footprint in KU band _ spectral analysis_first wChinasat 9 at 92.2 e _ footprint in KU band _ offset 120 cmChinasat 9 at 92.2 e _ footprint in KU band _ quality analysis

author : Mr. Alberto Simao / Macau S.A.R.
