NSS 6 at 95.0°E : Technical data
.
--- NSS 6 at 95.0°E-middle east beam : 11 132 V Alau TV / MERp=13.6 dB ---
click for enlarge
satellite : NSS 6 - Orbital position : 95.0°E - TP : 50 KU/12 KA - Lifetime : from 17.12.2002 - 12 years
.
NSS 6 at 95.0°E - Middle East footprint : spectral analysis & measurement results
.
NSS 6 at 95.0°E - Middle East footprint : measurements taken in the town of Lučenec / central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
ground without obstacles in the horizon length to 1000 m
date of measurement : 20.11.2010
elevation angle : 1.0°
.
NSS 6 : installed system NSS 6 : reception limit in terms NSS 6 : research point
Prodelin 3.7 m of elevation angle in Central Europe town Lučenec / Slovak republic
dxsatcs waveguide line+Norsat 4206 CF 48.33° _ 19.72°
--- NSS 6 at 95.0°E : Middle East beam in KU band ---
possibility of reception is guaranteed in these areas : Middle East , Asia , Eastern and part of central Europe ...
click for enlarge click for enlarge

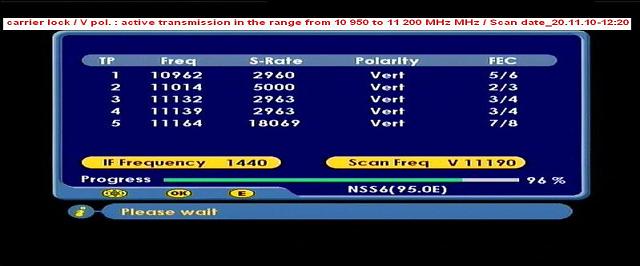

--- NSS 6 at 95.0°E : summary from the locked carrier in the frequency range of 10 950 to 11 200 MHz_V pol. ---
scan date : 20.11.2010 _ 12:20 pm
click for enlarge
--- NSS 6 at 95.0°E : spectral analysis of transponders TP MEVA 1 , MEVA4 , MEVB2-3-4 ---
NSS 6 : spectral analysis No.1 NSS 6 : spectral analysis No.2 NSS 6 : spectral analysis No.3
10 962 V : Asyl Arna 11 131+11 140:Alau TV,Kazakstan tv 11 450 - 11 700 MHz_V
- time of measurement : 20.11.2010 -
- defining the status of reception -
10 962 V Asyl Arna : non-cyclical and constantly changing amplitude of the quality of a wide range of peaks from the
treshold level at MER=5 dB to a peak at MER=18+ dB within a period of only 180 sec .
11 131 V Alau TV : within the time frame of thirty minutes I identified non-cyclical changes in quality, but only to the extent
of the gain margin from MER=10.5 to 14 dB_Ch BER=6x10-6 without any instability in the carrier lock.Approximately once per
time slot sixties minutes the quality reaches the peak level of zero instantaneous BER for channel_bBER=<1x10-6 .
11 140 V Kazakstan TV : permanent and non-cyclical oscillation of quality in a wide range:MER= +/- 4 dB_ from < 5 dB to
13 dB_within a period of 180 sec
.
NSS 6 at 95.0°E - Middle East footprint : quality analysis of reception

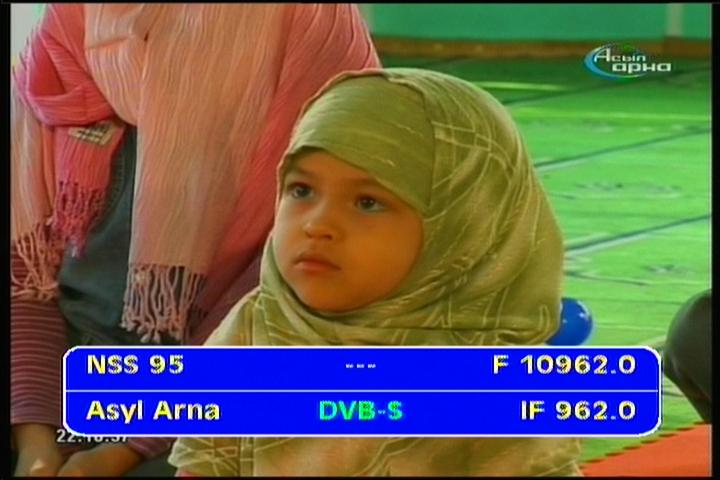

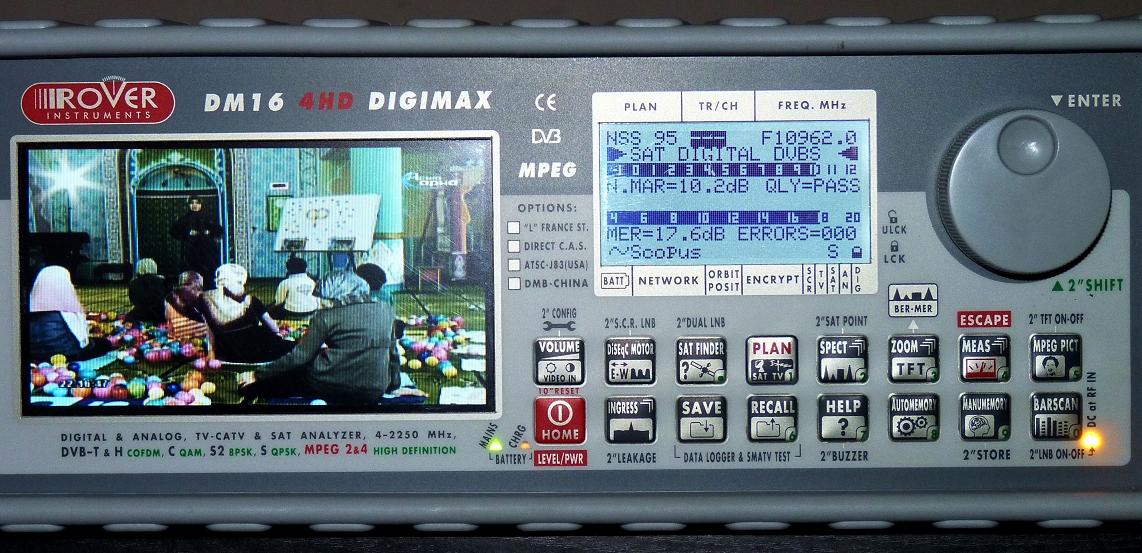

NSS 6 at 95.0° - Middle East footprint : 10 962 V Asyl Arna
IF data Q data NIT data
NSS 6 at 95.0° - Middle East footprint : 11 017 V DVB-S Data
IF data spectral analysis NIT data
NSS 6 at 95.0° - Middle East footprint : 11 131 V Alau TV
IF data Q data NIT data

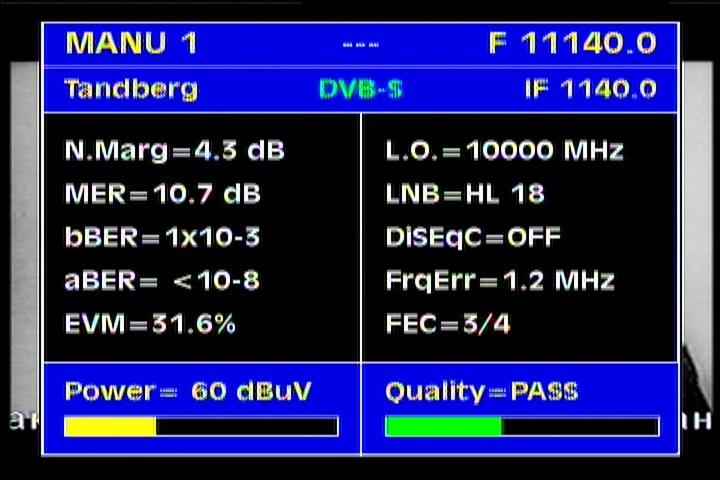

NSS 6 at 95.0° - Middle East footprint : 11 140 V Kazakstan TV Kokshetau
IF data Q data NIT data
NSS 6 at 95.0° - Middle East footprint : 11 165 V DVB-S Data
spectral analysis Q data NIT data

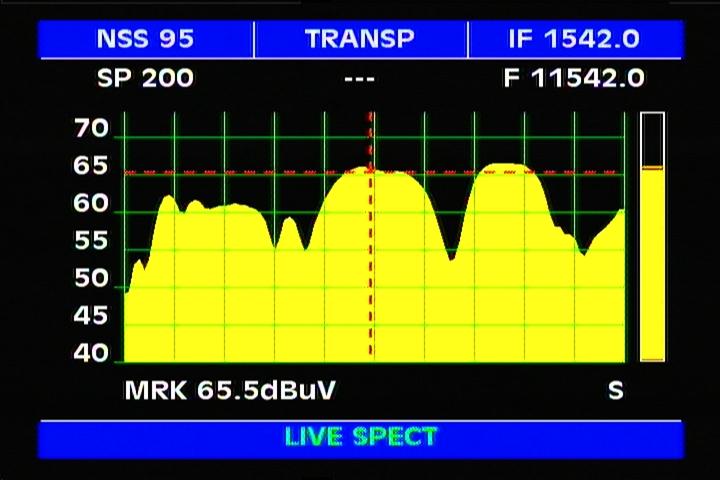

NSS 6 at 95.0° - Middle East footprint : 11 542 V DVB-S Data
spectral analysis Q data NIT data
NSS 6 at 95.0° - Middle East footprint : 11 594 V DVB-S2 Data
spectral analysis Q data NIT data
NSS 6 at 95.0°E : TV List
|
-----Frequency-----
|
---------Provider/Channel---------
|
---SR--- | ---FEC--- | ------Footprint------ | ---Antenna--- | ---DVB/Encryption--- |
|
10 962 -V- tp MEVA1 |
Asyl Arna  |
2 960 | 5/6 |
120-240+ cm |
DVB-S / FTA | |
|
11 014 -V-tp MEVA1 |
Data |
5 000 | 2/3 | Middle East/Europe | 120-240+ cm | DVB-S / data |
|
11 037 -H-tp INHA2 |
40 700 | 2/3 | India | 240-400+ cm | DVB/MPEG-2 | |
|
|
TV 5 Monde Asia | SECA | ||||
| ETV Telegu | Conax | |||||
| CNBC Awaaz | Conax | |||||
| ETV Bangla | Conax | |||||
| ETV Kannada | Conax | |||||
| ETV Urdu | Conax | |||||
| ETV Gujarati | Conax | |||||
| ETV Oriya | Conax | |||||
| ETV 2 | SECA | |||||
| ETV Uttar Pradash | SECA | |||||
| NE TV | Conax | |||||
| CNN IBN | Conax | |||||
| NG India | Conax | |||||
| FOX History | Conax | |||||
| Hungama TV | Conax | |||||
| Disney Ch. India | Conax | |||||
| Toon Disney India | Conax | |||||
| Channel V India | Conax | |||||
| UTV Movies | SECA | |||||
| Bindass Movies | SECA | |||||
| Kasturi TV | Cona | |||||
|
11 090 -H- tp INHA3 |
29 500 | 7/8 | India | 400-600+ cm | DVB-S / MPEG-2 | |
|
11 113 -V- tp MEVA3 |
Data |
1 627 | 3/4 | Middle East/Europe | 120-240+ cm | DVB-S / data |
|
11 131 -V- tp MEVA4 |
2 963 | 3/4 | Middle East/Europe | 120-180+ cm | DVB-S / FTA | |
|
11 140 -V- tp MEVA4 |
2 963 | 3/4 | Middle East/Europe | 140-240+ cm | DVB-S / FTA | |
|
11 165 -V- tp MEVA4 |
Data |
18 069 | 7/8 | 120-240+ cm |
DVB-S / data |
|
|
11 172 -H-tp INHA5 |
Dish TV India | 27 500 | 3/4 | India | 240-400+ cm | DVB/MPEG-2 |
| ETC Punjabi | Conax | |||||
| Star Sports | Conax | |||||
| Zee Action | Conax | |||||
| Zee Classic | Conax | |||||
| Zee Premier | Conax | |||||
| Pogo | Conax | |||||
| VH 1 India | Conax | |||||
| Star World | SECA | |||||
| Star Gold | SECA | |||||
| Star Movies | SECA | |||||
| Star News | Conax | |||||
| Times Now | Conax | |||||
| Dish TV Interactive promo | FTA | |||||
|
11 542 -V-tp MEVB2 |
Data Falcon Stream | 40 000 | 7/8 | Middle East/Europe | 120-240+ cm | DVB-S / data |
|
11 594 -V-tp MEVB3 |
Data | 27 000 | 9/10 | Middle East/Europe | 240+ cm | DVB-S2/8PSK data |
|
11 634 -H-tp MEHB4 |
Data PCR_PMT | 13 331 | 7/8 | Middle East/Europe | 120-240+ cm | DVB-S / data |
|
11 651 -V- tp MEVB4 |
feeds SatLink / no service | 3 333 | 3/4 | Middle East/Europe | 120-240+ cm | FTA |
|
11 661 -H- tp MEHB5 |
feeds GlobeCast / no service | 5 632 | 3/4 | Middle East/Europe | 120-240+ cm | FTA |
|
11 670 -V- tp MEVB5 |
Data NSS 6 1,2 | 5 000 | 3/4 | Middle East/Europe | 120-240+ cm | DVB-S / data |
|
11 680 -V- tp MEVB5 |
Data |
2 000 | 3/4 | Middle East/Europe | 120-240+ cm | DVB-S / data |
|
12 535 -V-tp INVC1 |
Dish TV India | 40 700 | 3/4 | India | 240-400+ cm | DVB |
| ZEE JAGRAN | FTA | |||||
| MAA TV | SECA | |||||
| ESPN India | SECA | |||||
| MGM Asia | Conax | |||||
| ZEE TELEGU | Conax | |||||
| SAMAY TV | SECA | |||||
| SAHARA ONE | Conax | |||||
| FILMY | Conax | |||||
| STAR PLUS | Conax | |||||
| STARE ONE | Conax | |||||
| ZOOM TV | SECA | |||||
| BBC WORLD | SECA | |||||
| RAJ DIGITAL | Conax | |||||
| RAJ TV | Conax | |||||
| GEMINI NEWS | SECA | |||||
| ISAI ARUVI | SECA | |||||
| NDTV IMAGINE | SECA | |||||
| NDTV Good Times | SECA | |||||
| ETV Rajasthan | Conax | |||||
| Shalom TV | SECA | |||||
| Focus TV | SECA | |||||
| Star Pravah | Conax | |||||
|
12 595 -H-tp INHC2 |
Dish TV India | 40 700 | 3/4 | India | 240-400+ cm | DVB |
| Bhakti Mosaic | FTA | |||||
| DISH News Activ | active services | |||||
| ZEE News | Conax | |||||
| Asianet News | SECA | |||||
| Asianet plus | SECA | |||||
| ETV Marathi | SECA | |||||
| GAMES ACTIVE | active services | |||||
| Star Vijay | SECA | |||||
| NDTV Profit | SECA | |||||
| TV 5 Monde Asia | SECA | |||||
| Mahua TV | SECA | |||||
| Hamar TV | SECA | |||||
| WB Movies India | SECA | |||||
| Zee News UP | SECA | |||||
| MOVIE ON DEMAND 1 | SECA | |||||
| MOVIE ON DEMAND 2 | SECA | |||||
| MOVIE ON DEMAND 3 | SECA | |||||
| MOVIE ON DEMAND 4 | SECA | |||||
| MOVIE ON DEMAND 5 | SECA | |||||
| MOVIE ON DEMAND 6 | SECA | |||||
|
12 595 -V-tp INVC2 |
Dish TV India | 40 700 | 3/4 | India | 240-400+ cm | DVB |
| SS MUSIC | SECA | |||||
| 24 GHANTA | SECA | |||||
| FASHION TV India | SECA | |||||
| INDIA TV | SECA | |||||
| ASIANET | SECA | |||||
| PLAY TV India | SECA | |||||
| ZEE 24 TAAS | Conax | |||||
| LIVE INDIA | SECA | |||||
| MI MARATHI | SECA | |||||
| NEPAL 1 | SECA | |||||
| ZEE TALKIES | Conax | |||||
| AAKAASH BANGLA | SECA | |||||
| JAYA TV | SECA | |||||
| TV 9 KANNADA | SECA | |||||
| TV 9 TELEGU | SECA | |||||
| TBN | SECA | |||||
| VOICE OF INDIA | SECA | |||||
| CNEB | SECA | |||||
| ZEE Tamil | FTA | |||||
| REAL | Conax | |||||
| Star Ananda | Conax | |||||
| Suvarna | Conax | |||||
|
12 638 -V-tp INVC3 |
Dish TV India | 13 300 | 2/3 | India | 240-400+ cm | DVB |
| ICICI data | active services | |||||
| AAJ TAK | SECA | |||||
| OTV | SECA | |||||
| PTC Punjabi | SECA | |||||
| COLORS | SECA | |||||
| ICICI ACTIVE infocard | FTA | |||||
| ZEE 24G CHHATTI | SECA | |||||
| Star Majha | SECA | |||||
|
12 647 -H-tp INHC3 |
Dish TV India | 27 500 | 3/4 | India | 240-400+ cm | DVB |
| Dish 999 Active promo | FTA | |||||
| NDTV India | Conax | |||||
| SONY | SECA | |||||
| Discovery | Conax | |||||
| Discovery Travel & Living | SECA | |||||
| Animal Planet | SECA | |||||
| SAB TV | SECA | |||||
| AXN India | SECA | |||||
| Nickelodeon India | SECA | |||||
| Animax India | SECA | |||||
| MTV India | SECA | |||||
| Ten Sports India | SECA | |||||
| PIX | SECA | |||||
| Naxatra News | Conax | |||||
| UTVi | Conax | |||||
|
12 688 -H-tp INHC4 |
Dish TV India | 27 500 | 3/4 | India | 240-400+ cm | DVB |
| SUN TV | SECA | |||||
| KTV | Conax | |||||
| SUN MUSIC | SECA | |||||
| SUN NEWS | SECA | |||||
| CHUTTI TV | SECA | |||||
| UDAYA TV | SECA | |||||
| UDAYA MOVIES | SECA | |||||
| UDAYA VARTRHEGAL | SECA | |||||
| U2/UDAYA 2 | SECA | |||||
| KIRAN TV | SECA | |||||
| SURYA TV | SECA | |||||
| GEMINI TV | SECA | |||||
| TEJA TV | SECA | |||||
| GEMINI MUSIC | SECA | |||||
| Kids Active | active services | |||||
|
12 688 -V-tp INVC4 |
Dish TV India | 27 500 | 3/4 | India | 240-400+ cm | DVB |
| ZEE TV India | Conax | |||||
| Zing | Conax | |||||
| ZEE MARATHI | SECA | |||||
| ZEE PUNJABI | SECA | |||||
| ZEE BANGLA | SECA | |||||
| ZEE STUDIO | Conax | |||||
| ZEE CAFE | Conax | |||||
| ZEE KANNADA | Conax | |||||
|
12 729 -V-tp INVC5 |
Dish TV India | 27 500 | 2/3 | India | 240-400+ cm | DVB |
| HBO Asia | Conax | |||||
| MAX India | Conax | |||||
| ZEE BUSINESS | Conax | |||||
| ZEE CINEMA | Conax | |||||
| ZEE SPORTS | Conax | |||||
| CARTOON NETWORK | Conax | |||||
| CNBC TV 18 | Conax | |||||
| STAR CRICKET | Conax | |||||
| ZEE TRENDZ | Conax | |||||
| NDTV 24/7 | Conax | |||||
| CNN South Asia | Conax | |||||
| ZEE 24 GHANTALU | Conax |
.

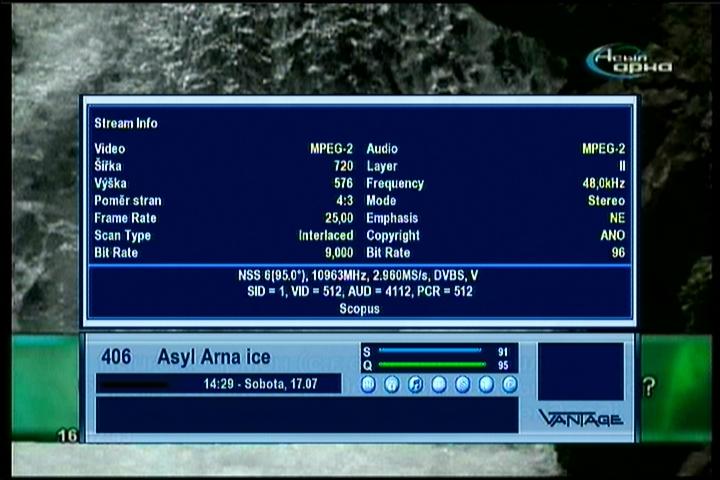

NSS 6 at 95.0°E : relative quality & EPG info & stream infos
