NSS 6 at 95.0°E-Indian footprint : Dish TV DTH & technical parameters of satellite
NSS 6 at 95.0°E-Indian subcontinent beam : technical parameters of satellite
.

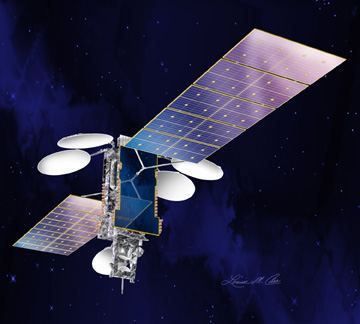

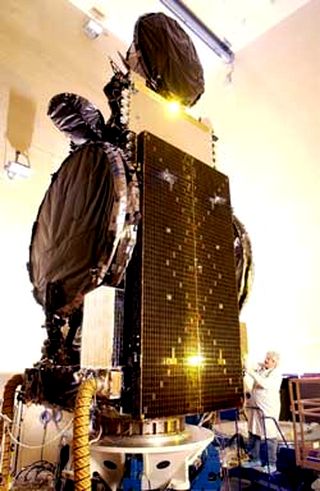

NSS 6 : before launch Ariane 44L : 17.12.2002 NSS 6 : visualization of satellite
source : Lockheed Martin Commercial Space Systems
- Name : NSS 6
- Orbital position : 95.0°E
- Launched : 17.12.2002_23:01 UT / Centre Spatial Guayanais
- Launch vehicle : Ariane 44L
- Manufacturer/Provider : Lockheed Martin Commercial Space Systems / New Skies-SES Global-World Skies
- Transponders in KU band : 50xKU (13.76-14.48/10.95-12.75 GHz,BW=60×36 MHz) EIRP=47-51 dBW
- Transponders in C band : 12xKa (27.5-30 GHz)
.

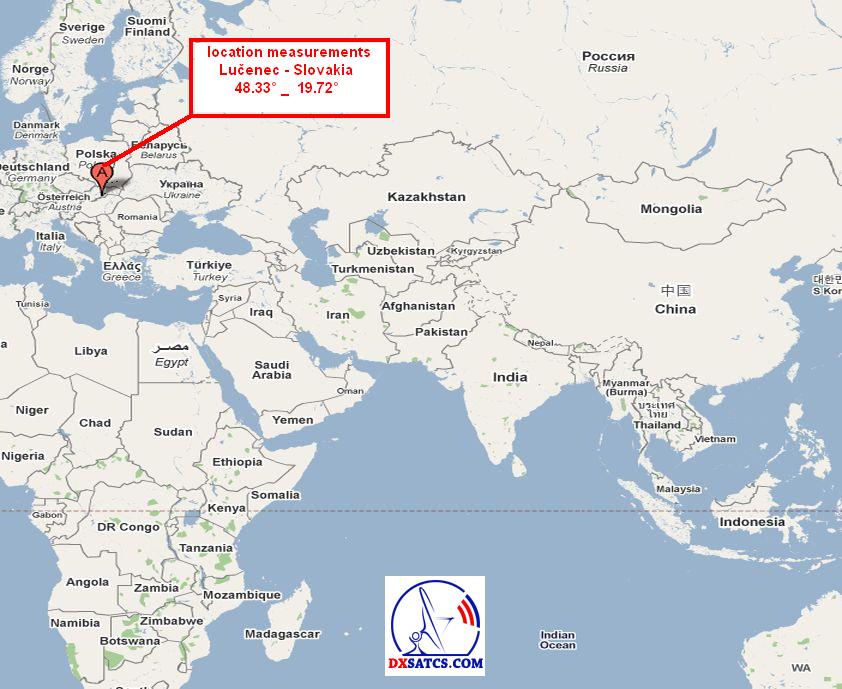

NSS 6 at 95.0°E-Indian footprint : Dish TV DTH & point measurements and research

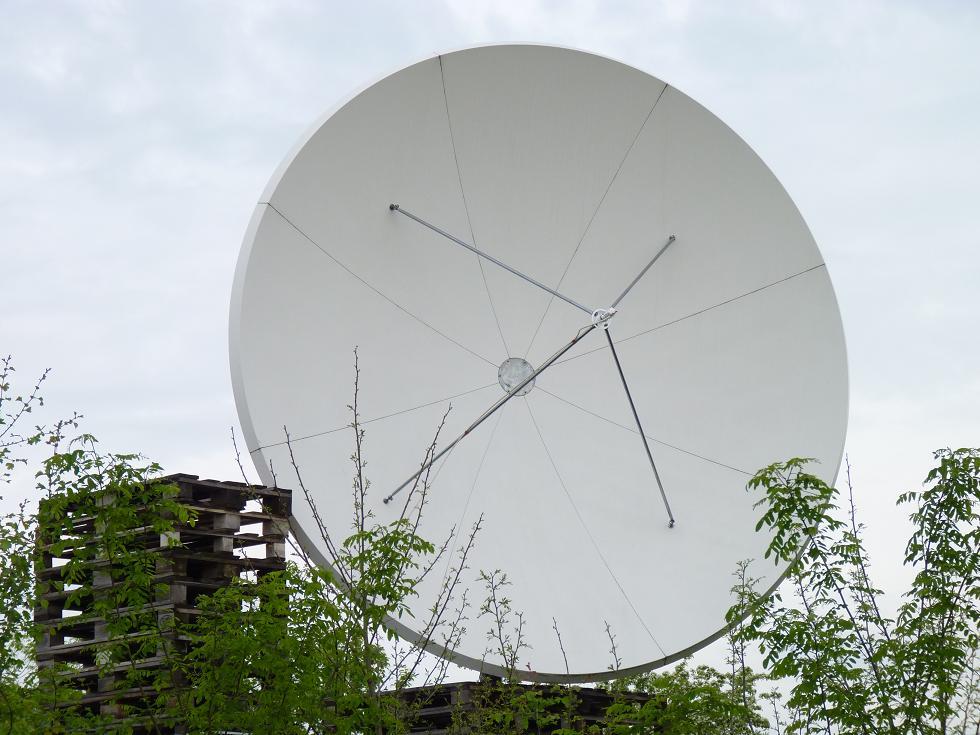

NSS 6 at 95.0°E-Indian footprint : Dish TV DTH & installed HF system
.
PF Prodelin 3.7 m+UNI LNB/NF=0.4-0.6 dB+dxsatcs waveguide line
.
NSS 6 at 95.0°E-Indian footprint : Dish TV DTH & value of the elevation angle
.
- green_EL>=0°,red_EL<0°- theoretical possibility of receiving satellite in terms of elevation angle -
click for enlarge
.
NSS 6 at 95.0°E : Dish TV DTH & indian beam
.
