NSS 806 at 40.5°W

By Roman Dávid. ,

NSS 806 at 40.5°W : Technical data

                                                                    click on image for high quality

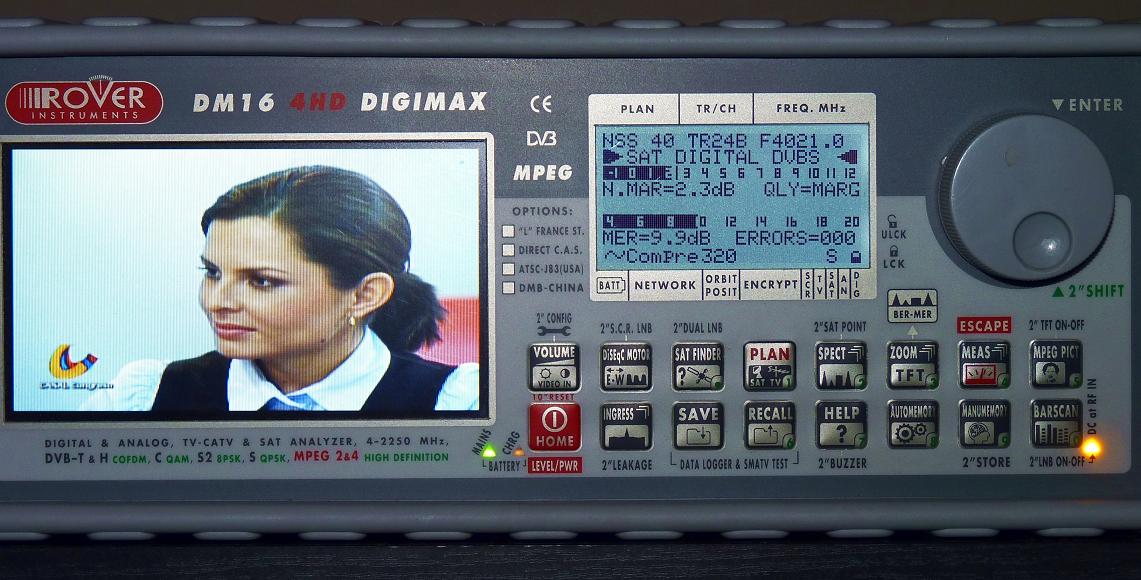

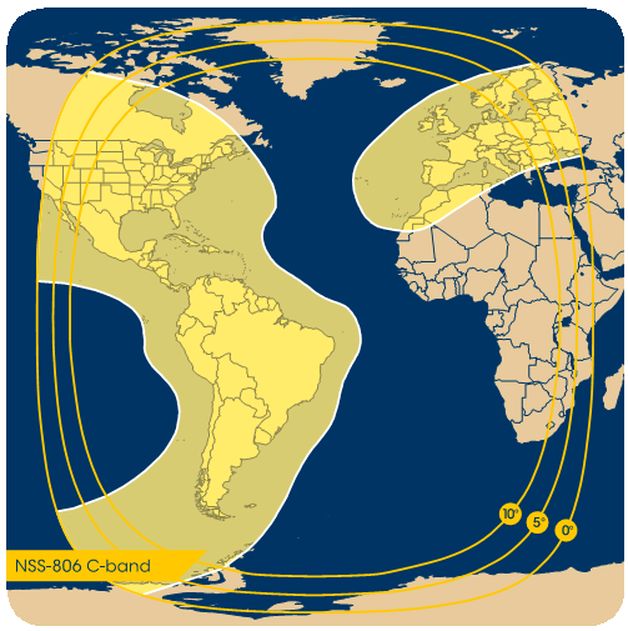

 NSS 806 at 40.5°W_hemi footprint in C band_first snap 001                                                         satellite : NSS 806 - orbit : 40.5°W - TP : 28 C/3 KU - lifetime : from 28.2.1998 -15 years



 Update - NSS 806 at 40.5°W - Hemi footprint : spectral analysis & results of measurement

               NSS 806 at 40.5°W - Hemi footprint : measurements at the center Lučenec_central Slovakia
                                           geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                     measurement results are derived from the 3.7 m diameter antenna
                                                                       elevation angle  : 10.5°

                                     NSS 806 spectral analysis                           NSS 806 footprint
                                               wave vector L                             combined hemispheric diagram
                                  3 803 L : Packet GlobeCast                North and South America and Europe
                          NSS 806 at 40.5°W_hemi footprint in C band_3 803 L Packet GlobeCast_spectral analysis  NSS 806 at 40.5 w _ Hemi footprint
                                                            - time of measurement : 13.3.2010 -
                                                                 - defining the status of income -

                                       ---  NSS 806 at 40.5°W - Hemi footprint : 3 803 L Packet GlobeCast  ---

 - 3 803 L_MER=9.1 dB_ChBER=6x10-3 : stably locked carrier transmission with continuously oscillating peak-MER from
8.5 dB to 9.5 dB,but since the value of the ChBER remains on the surface of E-03 , I can say that the reception is low
quality even if the gain margin will never drop below the MER=3 dB .

                                       NSS 806 at 40.5°W - Hemi footprint : quality analysis of income
.

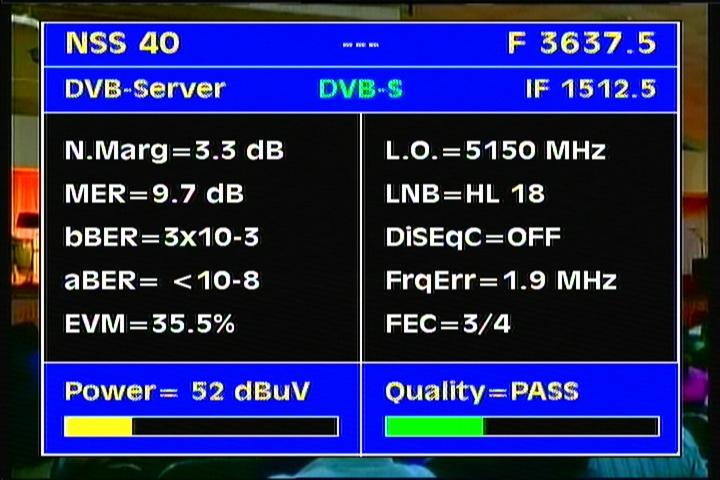

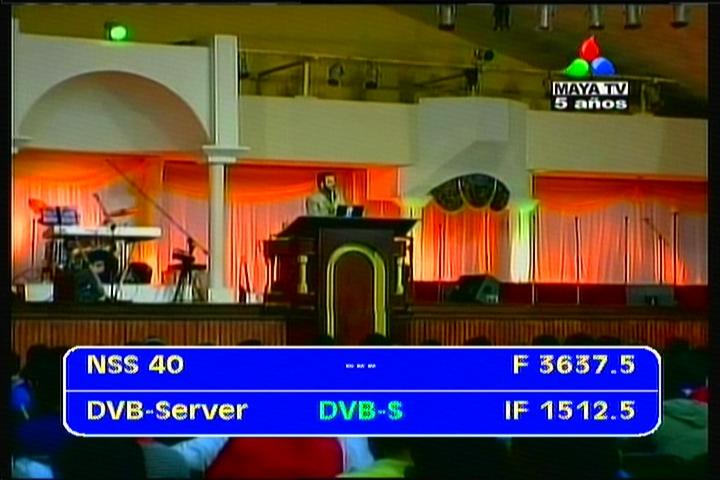

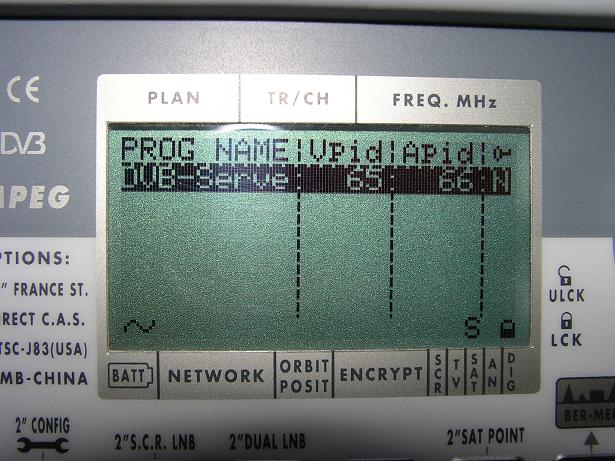

                                       NSS 806 at 40.5°W - Hemi footprint : 3 637 L Maya TV Honduras
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 3 637 L Maya TV _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 3 637 L Maya TV _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 3 637 L Maya TV _ NIT data

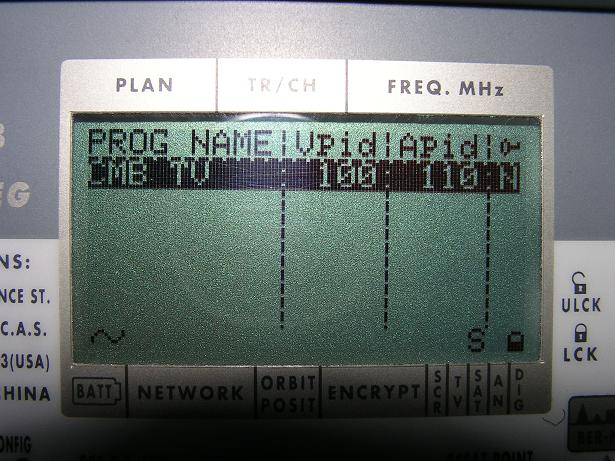

                                         NSS 806 at 40.5°W - Hemi footprint : 3 641 R CMB TV Colombia
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 3 641 R CMB tv _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 3 641 R CMB tv _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 3 641 R CMB tv _ NIT data

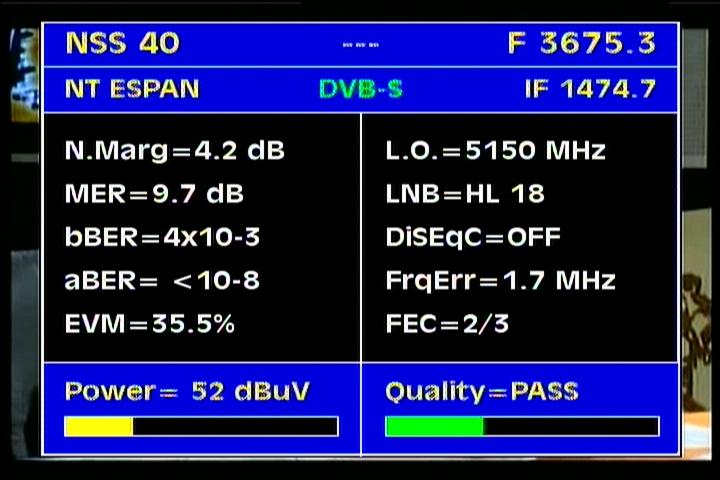

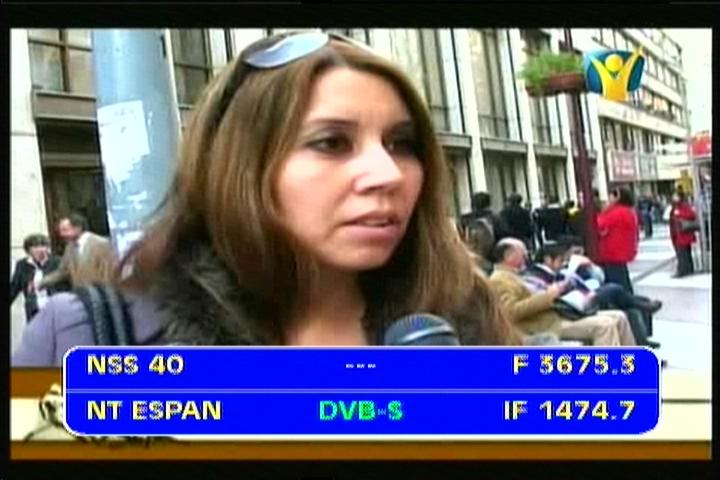

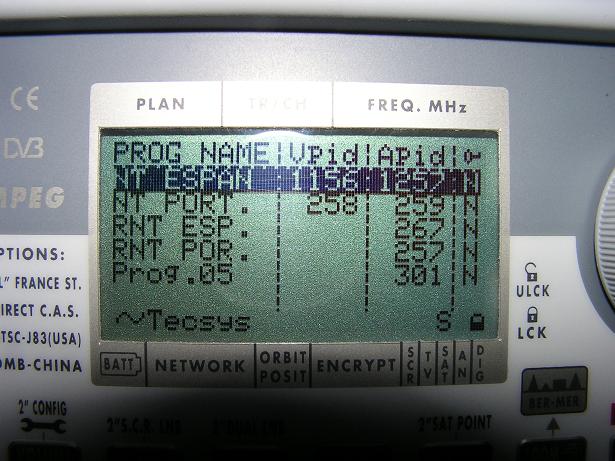

                                NSS 806 at 40.5°W - Hemi footprint : 3 675 L Novo Tempo network Brazil
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 3 675 L NT _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 3 675 L NT _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 3 675 L NT _ NIT data

                                         NSS 806 at 40.5°W - Hemi footprint : 3 681 L Radiola TV Colombia
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 3 681 R Radiola TV _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 3 681 R Radiola TV _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 3 681 R Radiola TV _ NIT data

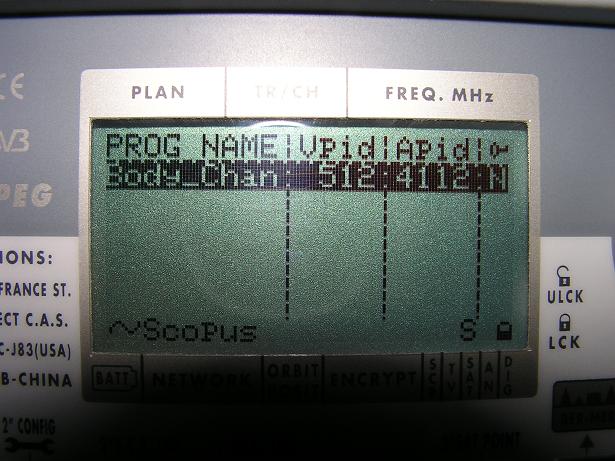

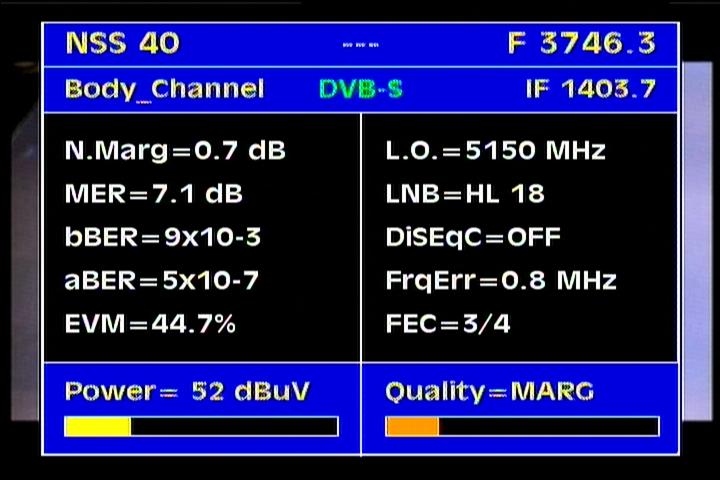

                                    NSS 806 at 40.5°W - Hemi footprint : 3 746 L Body Channel Colombia
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 3 746 L Body Channel _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 3 746 L Body Channel _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 3 746 L Body Channel _ NIT data

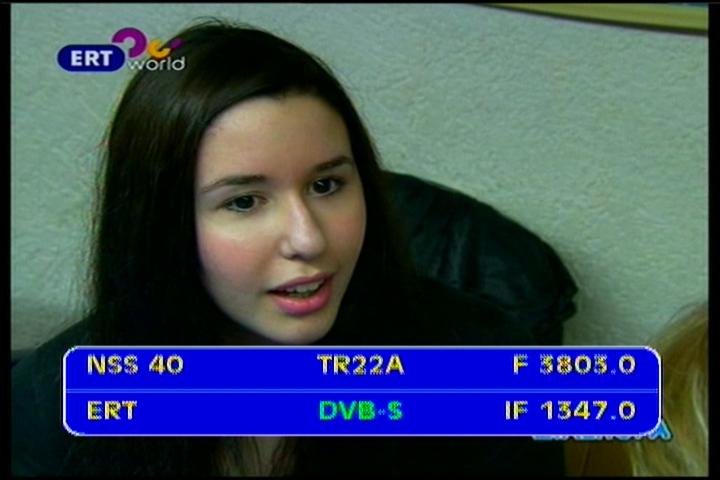

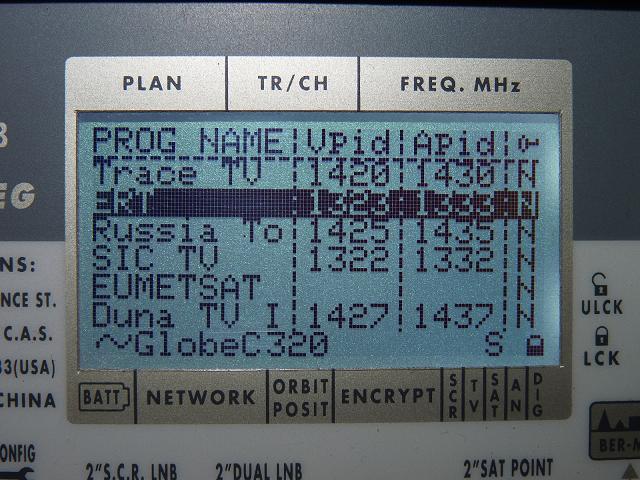

                                            NSS 806 at 40.5°W - Hemi footprint : 3 803 L Packet GlobeCast
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5°W_hemi footprint in C band_3 803 L Packet GlobeCast_IF dataNSS 806 at 40.5°W_hemi footprint in C band_3 803 L Packet GlobeCast_Q dataNSS 806 at 40.5°W_hemi footprint in C band_3 803 L Packet GlobeCast_NIT data

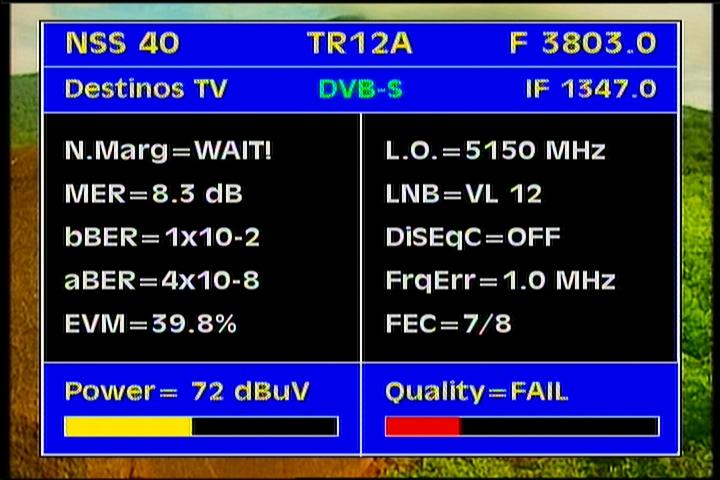

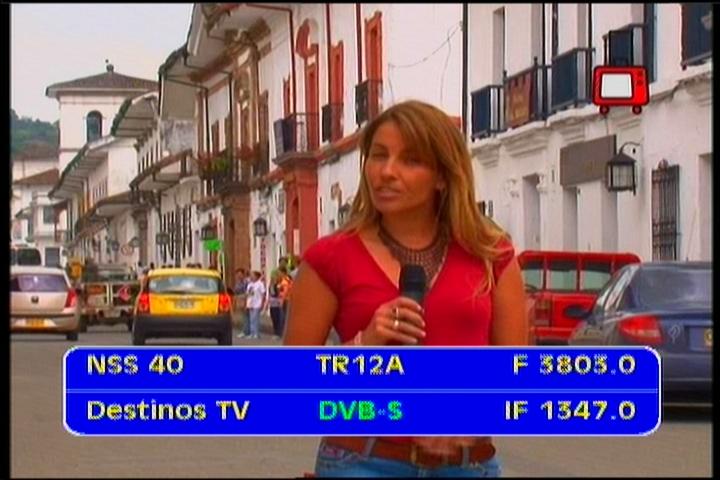

                                     NSS 806 at 40.5°W - Hemi footprint : 3 803 R Packet GlobeCast
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5°W_hemi footprint in C band_3 803 R Packet GlobeCast_IF dataNSS 806 at 40.5°W_hemi footprint in C band_3 803 R Packet GlobeCast_Q dataNSS 806 at 40.5°W_hemi footprint in C band_3 803 R Packet GlobeCast_NIT data

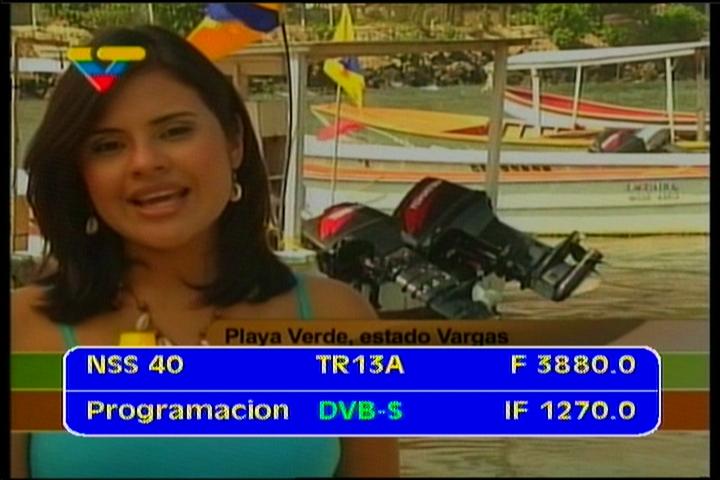

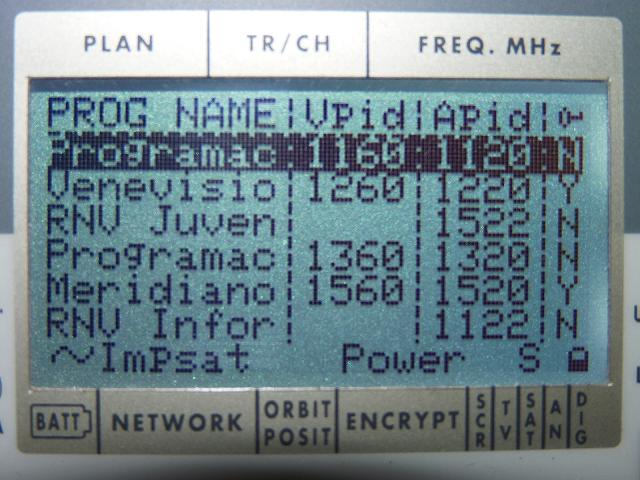

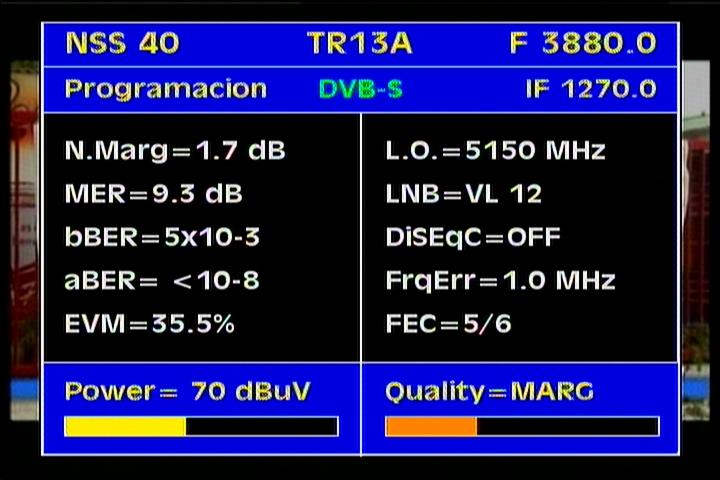

                                        NSS 806 at 40.5°W - Hemi footprint : 3 880 R Canal l Venezuela
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5°W_hemi footprint in C band_3 880 R Packet Global Crossing_IF dataNSS 806 at 40.5°W_hemi footprint in C band_3 880 R Packet Global Crossing_Q dataNSS 806 at 40.5°W_hemi footprint in C band_3 880 R Packet Global Crossing_NIT data

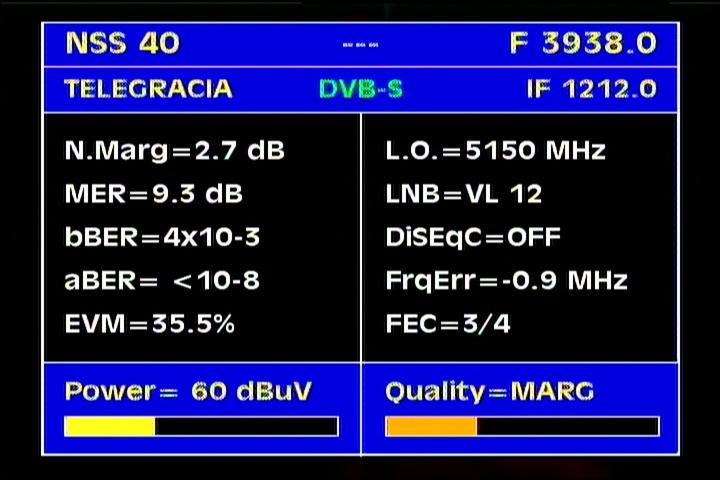

                                        NSS 806 at 40.5°W - Hemi footprint : 3 938 R TeleGracia USA
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 3 938 R Telegracia _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 3 938 R Telegracia _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 3 938 R Telegracia _ NIT data

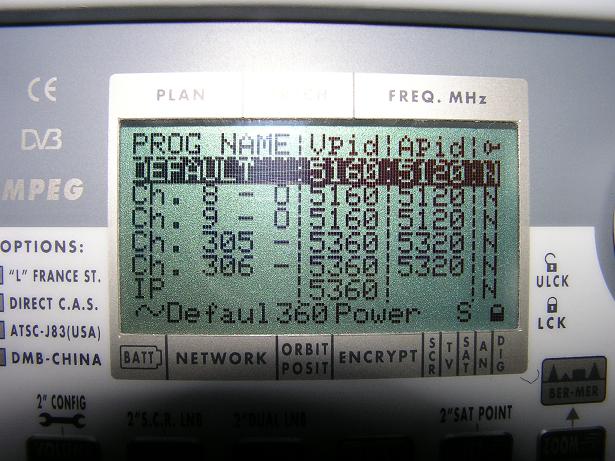

                                         NSS 806 at 40.5°W - Hemi footprint : 3 980 R Radiola VoA USA
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 3 980 R VoA _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 3 980 R VoA _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 3 980 R VoA _ NIT data

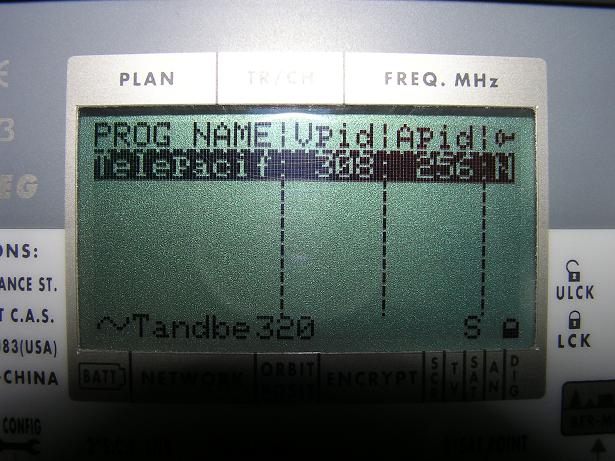

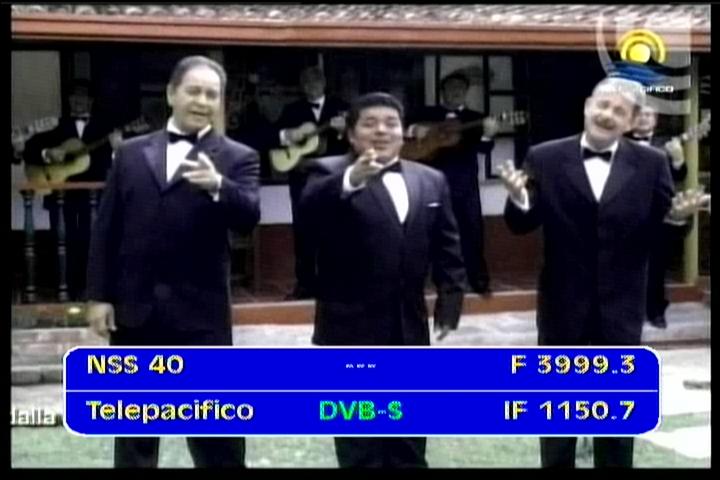

                                      NSS 806 at 40.5°W - Hemi footprint : 3 999 L Telepacifico Colombia
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 3 999 L Telepacifico _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 3 999 L Telepacifico _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 3 999 L Telepacifico _ NIT data

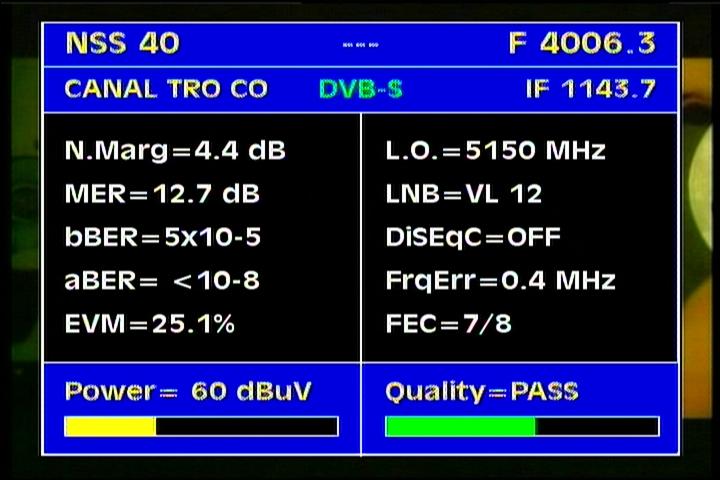

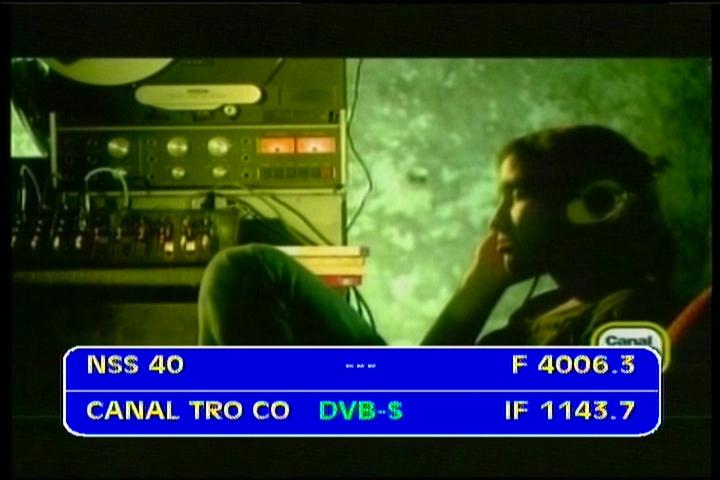

                                       NSS 806 at 40.5°W - Hemi footprint : 4 006 L Canal TRO Colombia
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 4 006 L Canal TRO _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 4 006 L Canal TRO _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 4 006 L Canal TRO _ NIT data

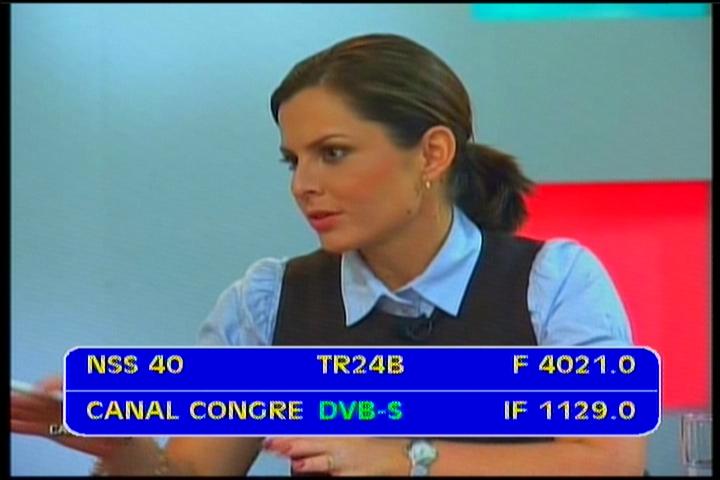

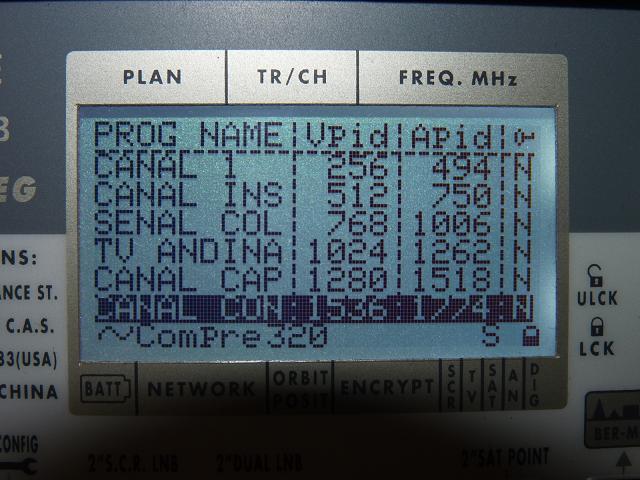

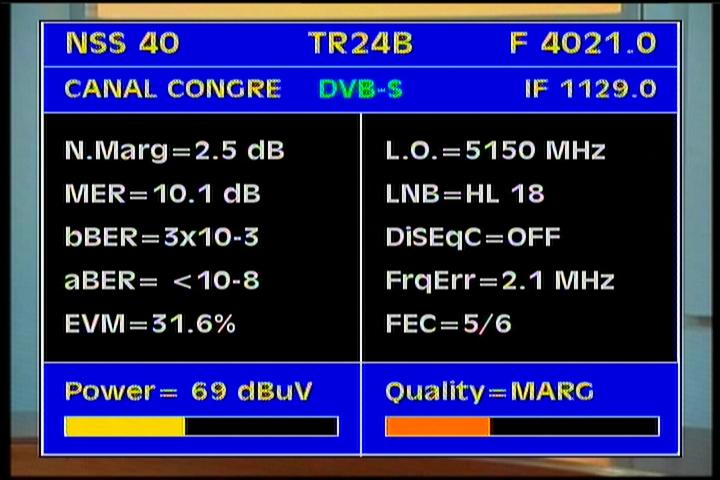

                                            NSS 806 at 40.5°W - Hemi footprint : 4 021 L Packet RTVC
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5°W_hemi footprint in C band_4 021 L Packet RTVC_IF dataNSS 806 at 40.5°W_hemi footprint in C band_4 021 L Packet RTVC_Q dataNSS 806 at 40.5°W_hemi footprint in C band_4 021 L Packet RTVC_NIT data

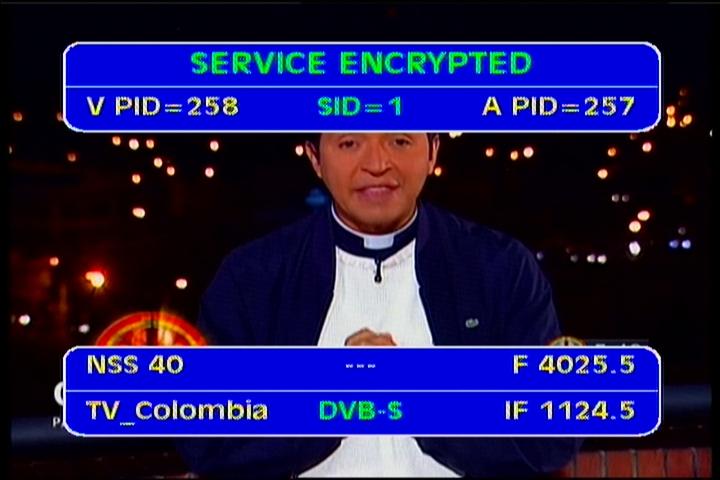

                                          NSS 806 at 40.5°W - Hemi footprint : 4 025 R 24 TVColombia
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5°W_hemi footprint in C band_4 025 R TV Colombia_IF dataNSS 806 at 40.5°W_hemi footprint in C band_4 025 R TV Colombia_Q dataNSS 806 at 40.5°W_hemi footprint in C band_4 025 R TV Colombia_NIT data

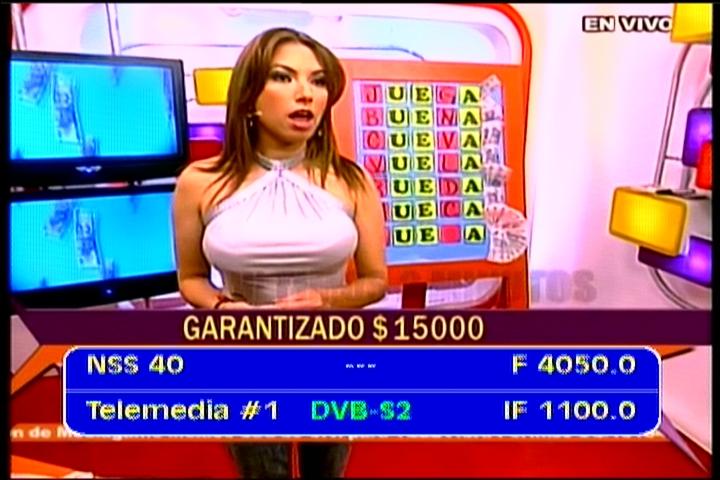

                                           NSS 806 at 40.5°W - Hemi footprint : 4 050 R packet TIBA
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 4 050 R Telemedia feed _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 4 050 R Telemedia feed _ Q dataNSS 806 at 40.5°W_hemi footprint in C band_4 050 R Packet TIBA_NIT data

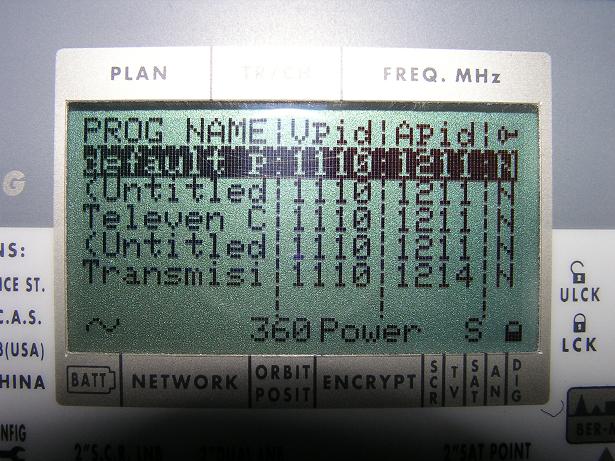

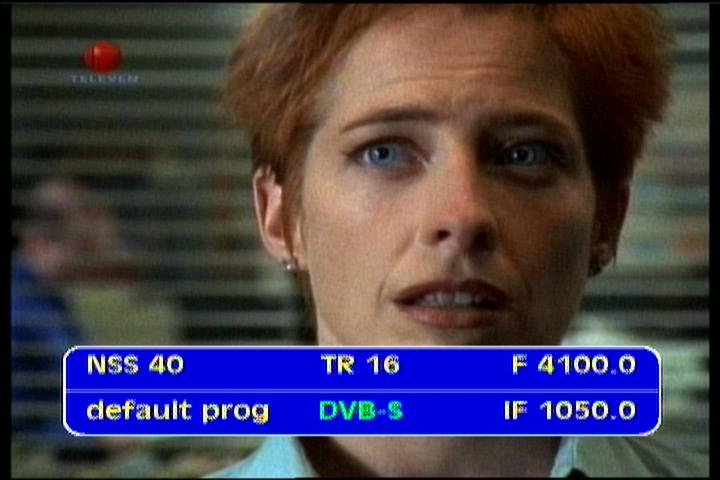

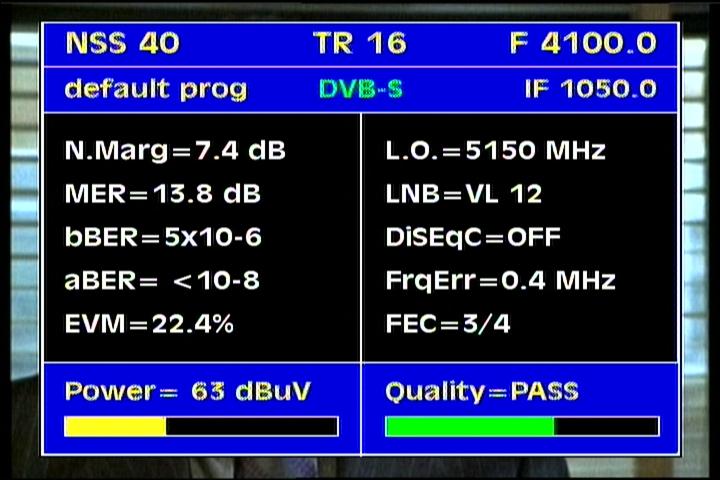

                                         NSS 806 at 40.5°W - Hemi footprint : 4 100 R Televen Venezuela
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 4 100 R Televen _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 4 100 R Televen _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 4 100 R Televen _ NIT data

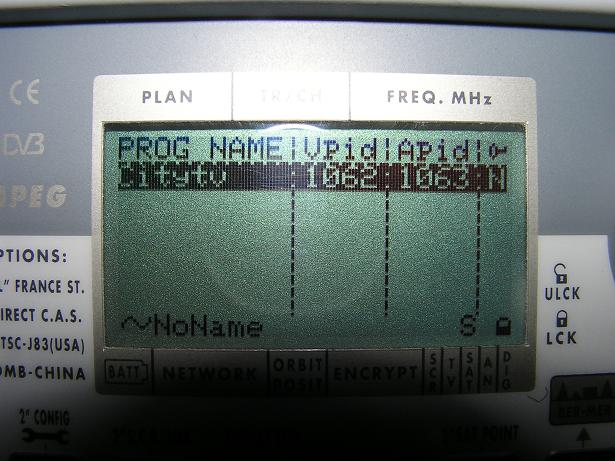

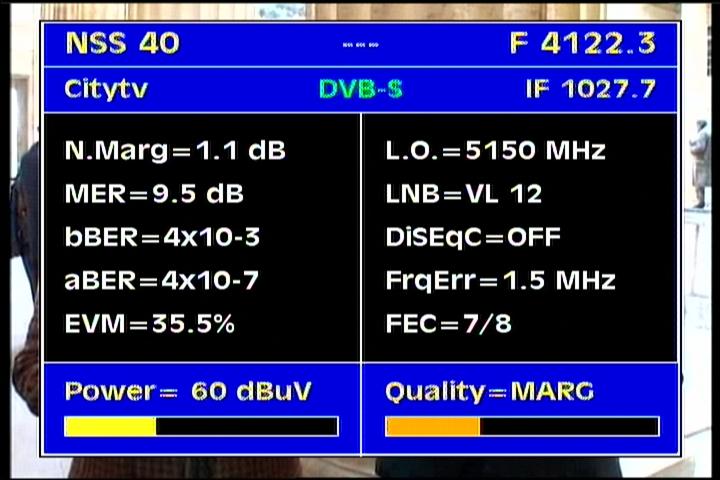

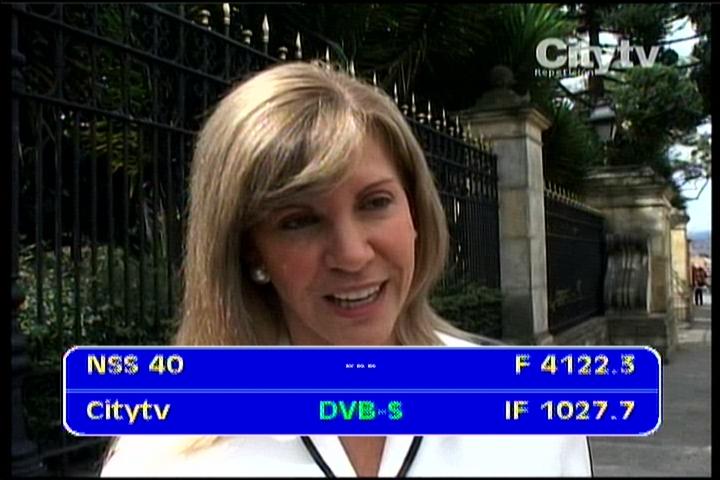

                                         NSS 806 at 40.5°W - Hemi footprint : 4 122 R City TV Colombia
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 4 122 R City tv _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 4 122 R City tv _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 4 122 R City tv _ NIT data

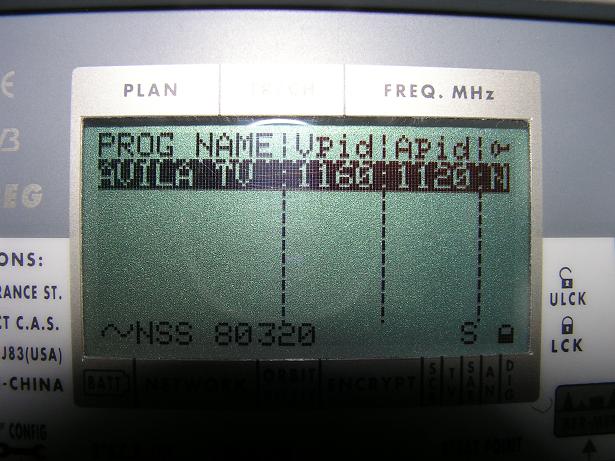

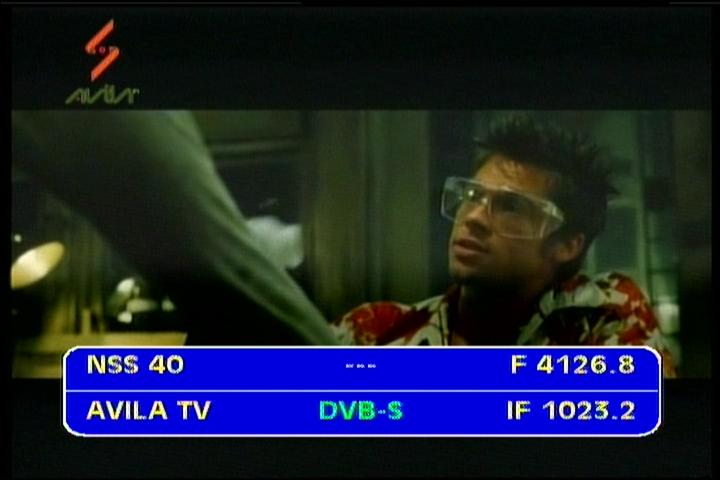

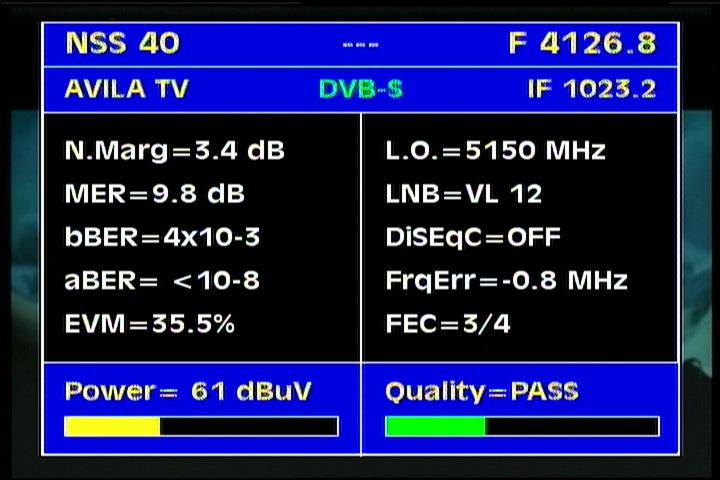

                                       NSS 806 at 40.5°W - Hemi footprint : 4 126 R Avila TV Venezuela
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 4 126 R Avila TV _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 4 126 R Avila TV _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 4 126 R Avila TV _ NIT data

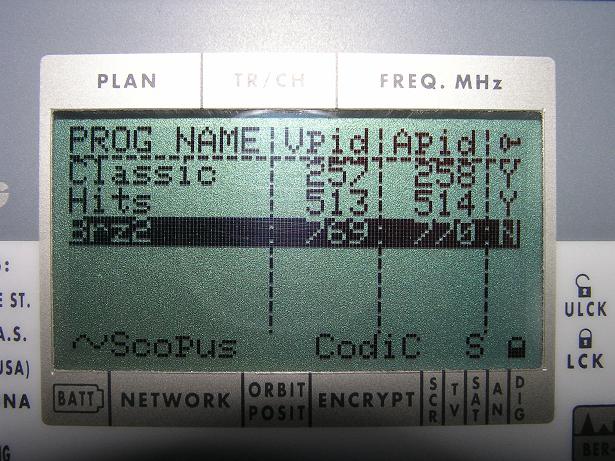

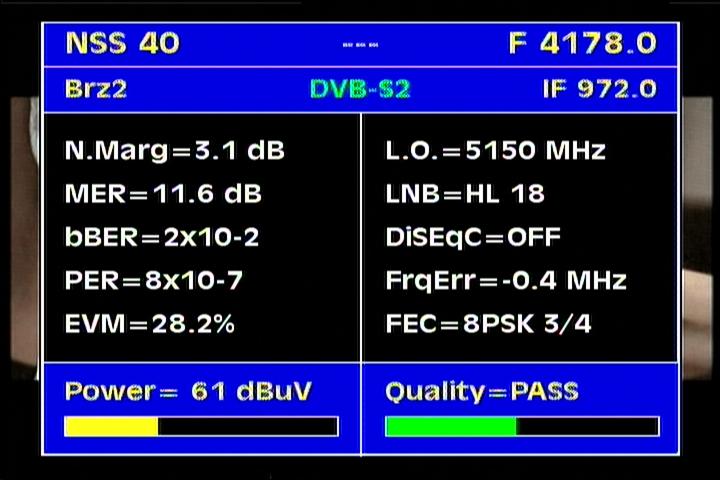

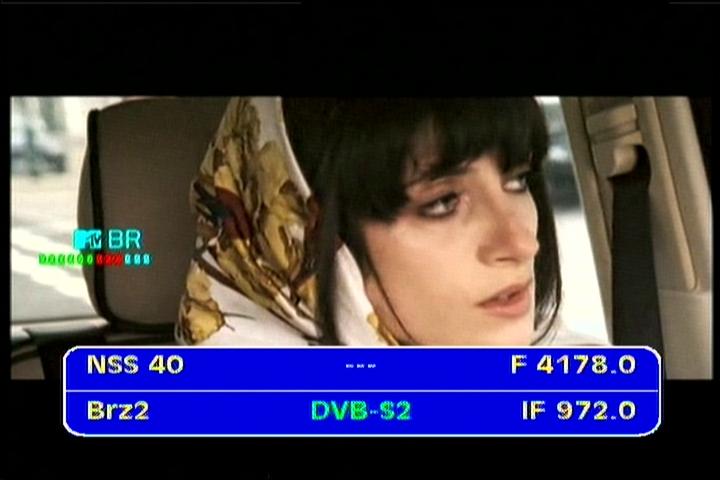

                                    NSS 806 at 40.5°W - Hemi footprint : 4 178 L DVB-S2/8psk MTV Brazil
                        IF data                                                       Q data                                                   NIT data
NSS 806 at 40.5 w _ Hemi footprint _ 4 178 L MTV Brasil _ IF dataNSS 806 at 40.5 w _ Hemi footprint _ 4 178 L MTV Brasil _ Q dataNSS 806 at 40.5 w _ Hemi footprint _ 4 178 L MTV Brasil _ NIT data

 NSS 806 at 40.5°W : TV List


NSS 806 at 40.5 w _ Hemi footprint _ PF Prodelin 3.7 m


---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 632 -R- tp 10

 Colombeia 2 712 3/4 Hemi 180+ cm DVB FTA

3 634 -L- tp 20

 Campus TV 2 740 3/4 Hemi 180+ cm DVB FTA

3 637 -L- tp 20

 Maya TV 2 963 3/4 Hemi 180+ cm DVB FTA

3 642 -R- tp 10

 CMB TV Internacional 2 666 3/4 Hemi 180+ cm DVB FTA

3 644 -L- tp 20

 Rede Nazaré 2 532 3/4 Hemi 180+ cm DVB FTA

3 646 -R- tp 10

 TV Genesis Executi 3 979 3/4 Hemi 180+ cm DVB FTA

3 652 -L- tp 20

 Grande Rio 4 000 5/6 Hemi 180+ cm Irdeto

3 654 -R- tp 10

 unn.service 5 925 3/4 Hemi 180+ cm DVB
  TV Asa Branca         T-Crypt

3 660 -R- tp 10

 O Caminho Antigo / TV Verdade O 2 916 7/8 Hemi 180+ cm DVB-S2/MPEG-4/FTA

3 661 -L- tp 20

 América TV 4 350 3/4 Hemi 180+ cm PowerVu

3 664 -R- tp 10

 Rede Uniao TV 2 170 3/4 Hemi 180+ cm DVB FTA

3 668 -R- tp 10

 Planet Sex _ not broadcast 3 340 5/6 Hemi 180+ cm T-Crypt

3 671 -L- tp 20

 Canal Executivo 2 960 3/4 Hemi 180+ cm DVB FTA

3 675 -L- tp 20

 Novo Tempo Brazil 5 900 2/3 Hemi 180+ cm DVB
  Nuevo Tiempo         FTA
  Novo Tempo         FTA

3 676 -L-tp 20

 feeds Executivo ... 2 960 3/4 Hemi 180+ cm FTA/Biss...

3 681 -R- tp 10

 unn.service 6 666 3/4 Hemi 180+ cm DVB
  K Music         FTA
  Radiola TV         FTA
  TV Centro     watch video         FTA

3 685 -L- tp 20

 ESPN Brasil 6 500 2/3 Hemi 180+ cm PowerVu

3 690 -R- tp 10

 Multi Program 5 180 3/4 Hemi 180+ cm DVB
  Mi Gente TV         FTA
  Cinema + Colombia         Irdeto

3 691 -L- tp 20

 LBV test card 2 400 3/4 Hemi 180+ cm DVB FTA

3 695 -R- tp 10

 Cristovision 2 220 3/4 Hemi 180+ cm DVB FTA

3 695 -L- tp 20

 Canal 6 Int. 2 963 3/4 Hemi 180+ cm DVB FTA

3 698 -R- tp 10

 feeds Tandberg Service ... 2 220 7/8 Hemi 180+ cm DVB 4:2:2...

3 717 -R- tp 11

unnamed network

 13 234   Hemi 180+ cm DVB
  Casa Club TV         PowerVu
  MGM Latin America         PowerVu
  MGM Portugal         PowerVu
  MGM Brazil         PowerVu

3 725 -L- tp 21

 Fox Latin America 28 198 3/4 Hemi 180+ cm DVB
  Fox Life Latin America         PowerVu
  Fox Latin         PowerVu
  Utilisima Satel         PowerVu
  National Geographic L. America         PowerVu
  Nat Geo Music         PowerVu
  Universal Channel         PowerVu
  Fox Pal         PowerVu
  Fox Central         PowerVu
  Utilisima International         PowerVu
  Nat Geo East         PowerVu

3 734 -R- tp 11L

 Pramer Cable Visión
 		 13 333 3/4 Hemi 180+ cm DVB
  Canal         Codicrypt
  Sports América         Codicrypt
  Garage TV         Codicrypt
  Europa Europa         Codicrypt

3 746 -L- tp 21

 Body Channel     watch video     watch video
 		 2 220 3/4 Hemi 180+ cm DVB FTA

3 749 -L- tp 21

 Canal Antiestrés / HC
 		 2 200 3/4 Hemi 180+ cm DVB FTA

3 760 -R- tp 11U

 Pramer Cable Visión 26 667 3/4 Hemi 180+ cm DVB
  Cosmo Pal         Videoguard
  Film & Arts Spa         Videoguard
  test card Evento         FTA
  Canal a         Videoguard
  El Gourmet NTCS         Videoguard
  Europa-Europa         Videoguard
  A.Sport         Videoguard
  Zone Reality TV         Videoguard
  El Gourmet PAL         Videoguard
  El Garage TV         Videoguard
  Cosmo NTSC         Videoguard
  Film & Arts Por         Videoguard

3 760 -L- tp 21

 ESPN 14 799 3/4 Hemi 180+ cm DVB
  ESPN+ PAL         PowerVu
  ESPN+ NTSC         PowerVu
  ESPN Latin PAL         PowerVu
  ESPN Latin NTSC         PowerVu
  ESPN feeds

3 775 -L- tp 21

 GI-MCS 6 670 3/4 Hemi 180+ cm DVB
  Argentinisima         FTA
  Sist.Nac.Medi         FTA

3 803 -R- tp 12A

 GlobeCast 26 858 7/8 Hemi 180+ cm DVB
  Globecast Test         PowerVu
  Daystar TV         FTA
  Cubavision International         FTA
  Hello TV         FTA
  Destinos TV    watch video         FTA
  Rede Gospel         FTA
  Gol TV         PowerVu
  feeds AdHoc 01         FTA/Biss/4:2:2
  feeds AdHoc 02         FTA/Biss/4:2:2
  feeds _ test card GlobeCast         FTA/Biss/4:2:2

3 803 -L- tp 22A

 GlobeCast 27 500 3/4 Hemi 180+ cm DVB
  SIC TV         Biss
  Trace TV         FTA
  ERT World         FTA
  Russia Today         FTA
  Duna TV II         FTA

3 830 -R- tp 12B

 Global Media Teleco 6 142 7/8 Hemi 180+ cm DVB
  TV Agro         MPEG-4/Irdeto
  Musik Channel         MPEG-4/Irdeto
  Rumba TV         MPEG-4/Irdeto
  Tele Nostalgia         MPEG-4/Irdeto

3 836 -R- tp 12B

 TeleGracia 2 170 3/4 Hemi 180+ cm DVB FTA

3 848 -R- tp 12B

 IWL
 		 1 430 5/6 Hemi 180+ cm DVB
  IWL Canal 1         MPEG-4 / FTA
  IWL Canal 2         MPEG-4 / FTA

3 853 -L- tp 12B

unn. network

 5 900 7/8 Hemi 180+ cm DVB
  Speed Channel         PowerVu
  Fox News Channel         PowerVu

3 857 -R- tp 12B

unn. service

 7 440 7/8 Hemi 180+ cm DVB
  SUN Channel         Betacrypt
  SPORT +         Betacrypt

3 860 -L- tp 22B

 Televida Int./Scopus Net-Tech 2 600 3/4 Hemi 180+ cm DVB FTA

3 881 -R- tp 13A

 Global Crossing 22 117 5/6 Hemi 180+ cm DVB
  Vision Venezuel TV         FTA
  Venevision Venezuela         PowerVu
  Meridiano TV         PowerVu
  Play out         Power Vu
  INH la Riconadad         PowerVu
  Programacion VT GI         FTA
  La Tele      watch video         FTA
  Canal 1         FTA
  feeds          --

3 920 -R- tp 13B

 BFBS 20 000 3/5 Hemi 180+ cm DVB-S2/MPEG-4
  BFBS 1         Cryptoworks
  BFBS 2         Cryptoworks
  BFBS 4         Cryptoworks
  BFBS 5         Cryptoworks
  BFBS 6         Cryptoworks
  BFBS 7         Cryptoworks
  BFBS 8         Cryptoworks
  BFBS 11         Cryptoworks
  BFBS 12         Cryptoworks

3 924 -L- tp 23B

 Globosat 27 500 5/6 Hemi 180+ cm DVB
  Premiere 6         PowerVu
  PFC 7         PowerVu
  PFC 8         PowerVu
  Vago         PowerVu
  PFCI         PowerVu
  TVGI Europa         PowerVu
  Premiere HD         MPEG-4/HD/PowerVu
  GloboSat HD         MPEG-4/HD/PowerVu

3 938 -R- tp 13B

 TeleGracia 2 170 3/4 Hemi 180+ cm DVB FTA

3 960 -R- tp 14A

Contac TV Cristiano

 2 030 7/8 Hemi 180+ cm DVB FTA

3 964 -H- tp 14A

 Cosmovision     watch video    watch video
 		 1 845 3/4 Hemi 140-240+ cm MPEG-4/FTA

3 966 -H- tp 14A

 Tele Medelin     watch video
 		 1 845 3/4 Hemi 140-240+ cm MPEG-4/FTA

3 967 -L- tp 24A

Golf Channel

 4 074 ? Hemi 180+ cm PowerVu

3 972 -L- tp 24A

 Boas Novas TV 3 330 7/8 Hemi 180+ cm DVB FTA
  Boas Novas TV Local          FTA
  Boas Novas TV Satellite          FTA

3 977 -L- tp 24A

 TV Brasil canal 3 977 3/4 Hemi 180+ cm DVB FTA

3 980 -R- tp 14A

 VoA 17 800 3/4 Hemi 180+ cm DVB
  Voa TV Latin America         FTA
  VoA TV         FTA
  VoA TV Persian         FTA
  VoA TV         FTA

3 982 -L- tp 24A

 Canal 26
 		 2 222 7/8 Hemi 180+ cm DVB FTA

3 987 -L- tp 24A

 Cancao Nova / International 3 179 3/4 Hemi 180+ cm DVB FTA

3 991 -L- tp 24A

 San Isidro 3 580 5/6 Hemi 180+ cm DVB
  San Isidro 1         Codicrypt
  San Isidro 2         Codicrypt

3 998 -L- tp 24B

 Telepacifico 2 450 3/4 Hemi 180+ cm DVB FTA

4 002 -L- tp 24B

 Telecafe      watch video 2 450 5/6 Hemi 180+ cm DVB FTA

4 006 -L- tp 24B

 Canal TRO 2 450 7/8 Hemi 180+ cm DVB FTA

4 010 -L- tp 24B

 Teleantioquia 2 450 3/4 Hemi 180+ cm DVB

4 016 -R- tp 14B

 RCN TV 5 712 3/4 Hemi 180+ cm Videoguard

4 021 -L- tp 24B

 RTVC 16 030 5/6 Hemi 180+ cm DVB
  Canal 1      watch video         FTA
  Canal Institucional         FTA
  Canal Senal Colombia         FTA
  TV Andina     watch video         FTA
  Canal Capital         FTA
  Canal Congreso         FTA
  Canal 1         MPEG-4/FTA
  Canal Senal Colombia         MPEG-4/FTA
  Canal Institucional         MPEG-4/FTA
  feeds CANAL Ocasional         -

4 027 -R- tp 14B

 TV Colombia
 		 9 642 3/4 Hemi 180+ cm DVB
  TV Colombia     watch video         FTA
  24 Horas         FTA
  test card         FTA

4 044 -L- tp 25

 EbS 8 681 3/4 Hemi 180+ cm DVB
  EbS Europe by Satellite         FTA
  EbS+         FTA

4 044 -R- tp 15

 unn. network 5 200 3/4 Hemi 180+ cm DVB
  Management TV         FTA
  Playhouse Disney Brasil         PowerVu

4 050 -R- tp 15

 TIBA
 		 4200 5/6 Hemi 180+ cm DVB-S2/8PSK/MPEG-4
  feeds Telemicro turnaround         MPEG-4/FTA
  feeds Telemedia 1     watch video         MPEG-4/FTA
  feeds Telemedia 2         MPEG-4/FTA
  Disney XD Pacific         MPEG-4/?

4 053 -L- tp 25

 unn.network 7 234 3/4 Hemi 180+ cm DVB
  Casa Club TV         PowerVu
  The MGM Latin America         PowerVu

4 060 -R- tp 15

Hipodromo Maronas / TVT Maronas

 2 000 3/4 Hemi 180+ cm DVB-S2/8PSK/MPEG-4

4 065 -L- tp 25

 unn.service 10 650 7/8 Hemi 180+ cm DVB
  Universal Chile         PowerVu
  SciFi Latin         PowerVu
  Fox Life Brazil         PowerVu
  FX Brazil         PowerVu

4 070 -R- tp 15

 VTV Uruguay 3 700 3/4 Hemi 180+ cm PowerVu

4 081 -R- tp 16

 Bloomberg TV 6 511 5/6 Hemi 180+ cm DVB
  Bloomberg TV Brasil         FTA
  Bloomberg TV Latin America         FTA

4 093 -R- tp 16

 Atel TV      watch video    2 888 3/4 Hemi 180+ cm DVB FTA

4 100 -R- tp 16

 Televen         watch video
 		 6 111 3/4 Hemi 180+ cm PowerVu

4 120 -R- tp 17

 Telesur TV     watch video 2 960 3/4 Hemi 180+ cm DVB FTA

4 122 -R- tp 17

 City TV     watch video 1 860 7/8 Hemi 180+ cm DVB FTA

4 125 -L- tp 27

 Net TV 3 000 5/6 Hemi 180+ cm DVB FTA

4 127 -R- tp 17

 Avila TV    watch video 2 531 3/4 Hemi 180+ cm DVB FTA

4 129 -R- tp 17

 Zuvision TV 2 000 5/6 Hemi 180+ cm DVB FTA

4 132 -R- tp 17

 Xpande TV 2 357 7/8 Hemi 180+ cm DVB FTA

4 132 -L- tp 27

 ABN Colombia 2 480 7/8 Hemi 180+ cm DVB FTA

4 136 -R- tp 17

 TVR/Promar TV 3 333 3/4 Hemi 180+ cm DVB FTA

4 137 -L- tp 27

 Record Int. 4 400 3/4 Hemi 180+ cm DVB FTA

4 140 -R- tp 17

Cable Noticias

 2 220 7/8 Hemi 180+ cm Irdeto

4 142 -L- tp 27

 JBN TV 2 222 7/8 Hemi 180+ cm DVB FTA

4 145 -R- tp 17

 TV Marti 4 800 3/4 Hemi 180+ cm DVB FTA

4 146 -L- tp 27

 TV Amiga 2 571 7/8 Hemi 180+ cm DVB FTA

4 151 -R- tp 17

 Rede Gospel 3 280 5/6 Hemi 180+ cm DVB FTA

4 161 -L- tp 28

 feeds FI08 GNVA
 		 6 666 7/8 Hemi 180+ cm Biss

4 169 -L- tp 28

 TV Class
 		 2 400 3/4 Hemi 180+ cm DVB-S2/MPEG-4/Irdeto

4 171 -L- tp 28

 Canal Adulto 2 222 3/4 Hemi 180+ cm Irdeto

4 190 -L- tp 28

 Abril 13 021 3/4 Hemi 180+ cm DVB
  ESPN Brasil         Codicrypt
  MTV Brasil         Codicrypt
  ESPN ALT         Codicrypt
  MTV ALT         Codicrypt

NSS 806 at 40.5°W : relative Q

relative q 001relative q 002relative q 003

NSS 806 at 40.5°W : Video presentations

   Go to Video Section:
video button

NSS 806 at 40.5°W footprint : combined European American / Hemi

                                       NSS 806 footprint

                         NSS 806 at 40.5 w _ Hemi footprint


NSS 806 at 40.5°W : snapshots

ViVo 05ViVo 06ERT World 01
Canal Congreso 02Bloomberg tv 07Maya TV 08

All rights reserved © 2025 DXsatcs.com
|
Developed by BRAINSUM
