A. Simao-Macau-Insat 4A-83°E-C band-PF Vertex 9.0m-PLL LNB Norsat 3220: author quantifies the whole spectrum of horizontal vector (25+ carrier) in terms of quality with the latest device Promax TV Explorer HD in a geographical area of South China ....

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-full h-first

Insat 4A at 83.0°E - 4A wide footprint : measurements location Macau - 60 km west from Hong Kong
                            geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                                        antenna tracking : AZ=236,076° and EL=46,299°
                           measurement results are derived from the 900 cm diameter antenna
                                                  date of measurement : 10.7.2013
                                                        elevation angle  : 46.299°

       Insat 4A : PF Vertex RSI 9.0 m                            Insat 4A footprint                   Insat 4A : measurement location
Insat 4A at 83.0 E _ wide footprint_PF Vertex RSi 9.0 m at 83.0eInsat 4A at 83.0 E _ footprintInsat 4A at 83.0 E _ wide footprint_PF Vertex RSi 9.0 m at 83.0e_ measuring poin

Insat 4A at 83.0°E-4B wide footprint -C- : -H- downlink range_installed high frequency chain

               Vertex RSI 9.0 m                                   PLL LNB Norsat 3220                     Promax TV Explorer HD DTMB
 A Simao-Macau-SAR-Vertex-RSI-900-Insat 4A-83-east-01A Simao-Macau-SAR-c-band-PLL-LNB-Norsat3220-Insat 4A-83-east-02A Simao-Macau-SAR-tv explorer hd DTMB-Insat 4A-83-east-00



Insat 4A at 83.0°E-4B wide footprint -C- : -H- downlink range_analysis of the spectrum,quality,stream

                                        3 756 H @ 1 393.92 MHz @ SPAN 100 MHz : 83°E Indiasign

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3756-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3756-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3756-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3756-mhz-h-stream-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3756-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3756-mhz-h-stream-analysis-06

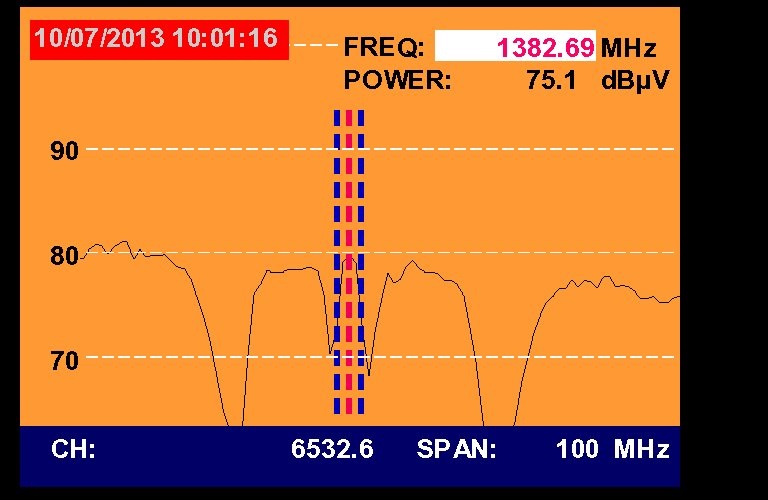

                                              3 767 H @ 1 382.69 MHz @ SPAN 100 MHz : 83°E SVBC

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3767-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3767-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3767-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3767-mhz-h-stream-analysis-01

                                            3 776 H @ 1 373.67 MHz @ SPAN 100 MHz : 83°E Star TV

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3776-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3776-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3776-mhz-h-qpsk-constellation-analysis-03
   A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3776-mhz-h-stream-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3776-mhz-h-stream-analysis-05

                                         3 805 H @ 1 344.93 MHz @ SPAN 100 MHz : 83°E Essel Shyam

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-quality-spectrum-nit-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-quality-spectrum-nit-analysis-05

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-quality-stream-analysis-07A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-quality-stream-analysis-08A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3805-mhz-h-quality-stream-analysis-09

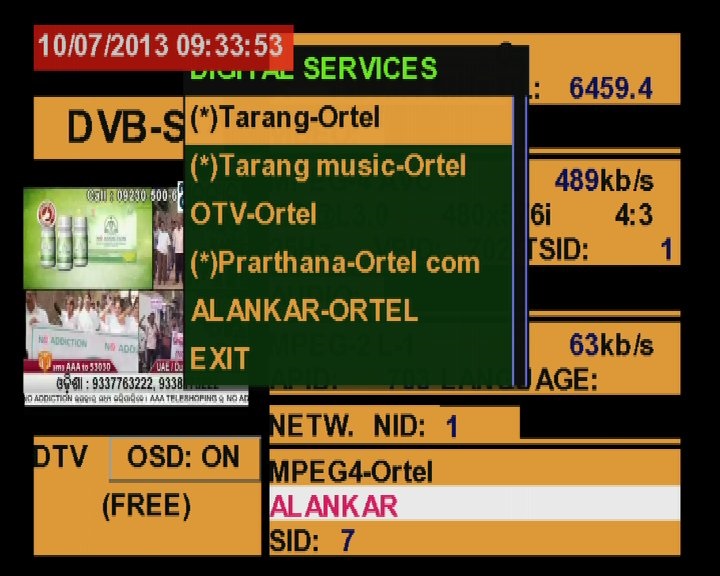

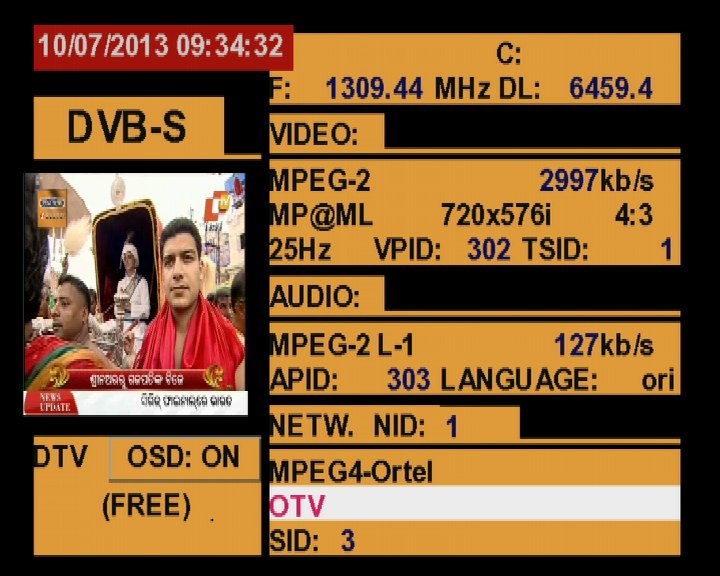

                                               3 841 H @ 1 309.44 MHz @ SPAN 100 MHz : 83°E Ortel netw.

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3840-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3840-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3840-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3840-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3840-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3840-mhz-h-stream-analysis-06

                                                   3 847 H @ 1 302.69 MHz @ SPAN 50 MHz : 83°E Samaya TV

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3847-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3847-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3847-mhz-h-qpsk-constellation-analysis-03

  A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3847-mhz-h-nit-stream-analysis-04

                                               3 858 H @ 1 291.43 MHz @ SPAN 50 MHz : 83°E Kasthury TV

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3858-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3858-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3858-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3858-mhz-h-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3858-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3858-mhz-h-stream-analysis-06

                                                    3 873 H @ 1 276.19 MHz @ SPAN 50 MHz : 83°E Indiasign

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3873-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3873-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3873-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3873-mhz-h-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3873-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3873-mhz-h-stream-analysis-06

                                                3 885 H @ 1 264.93 MHz @ SPAN 50 MHz : 83°E Sakshi TV

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3885-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3885-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3885-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3885-mhz-h-quality-spectrum-nit-analysis-04

                                         3 888 H @ 1 264.93 MHz @ SPAN 50 MHz : 83°E feed
A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3888-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3888-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3888-mhz-h-quality-spectrum-nit-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3888-mhz-h-quality-spectrum-nit-analysis-04

                                                3 920 H @ 1 229.95 MHz @ SPAN 50 MHz : 83°E Essel Shyam
A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3920-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3920-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3920-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3920-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3920-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3920-mhz-h-stream-analysis-06

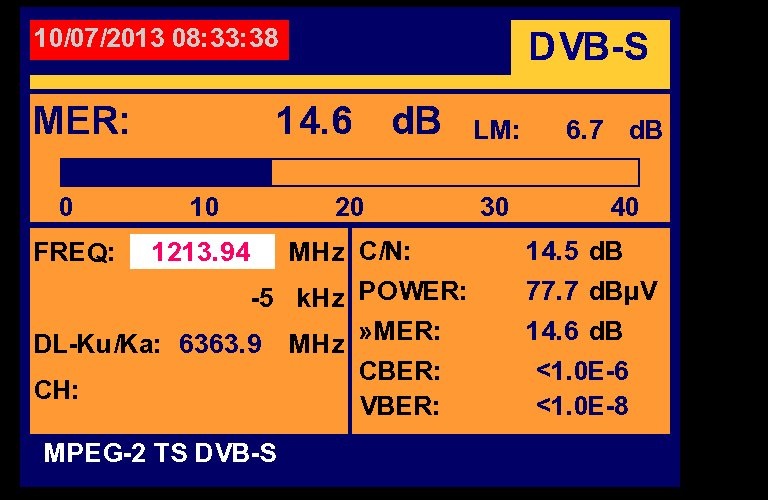

                                                  3 936 H @ 1 213.94 MHz @ SPAN 50 MHz : 83°E INX netw.
A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3936-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3936-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3936-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3936-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3936-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3936-mhz-h-stream-analysis-06

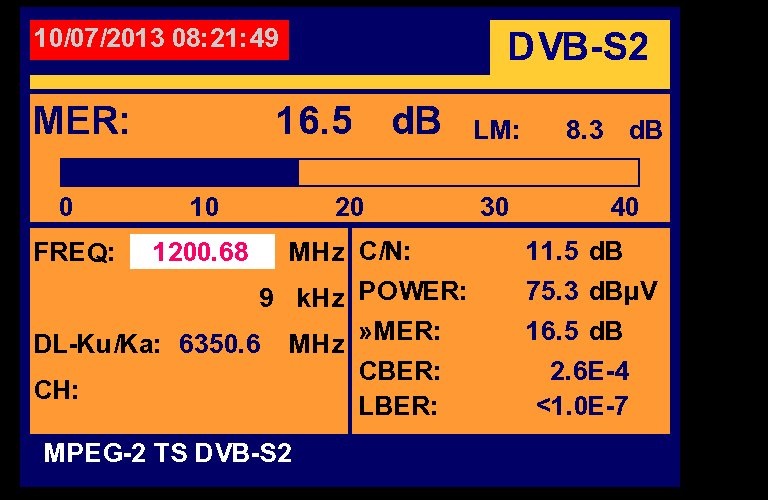

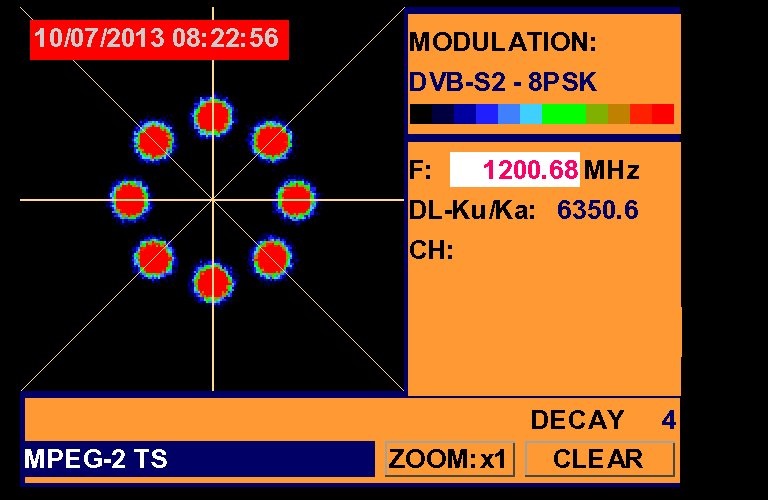

                                                      3 949 H @ 1 200.68 MHz @ SPAN 50 MHz : 83°E unn.netw

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3949-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3949-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3949-mhz-h-qpsk-constellation-analysis-03
A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3949-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3949-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3949-mhz-h-stream-analysis-06

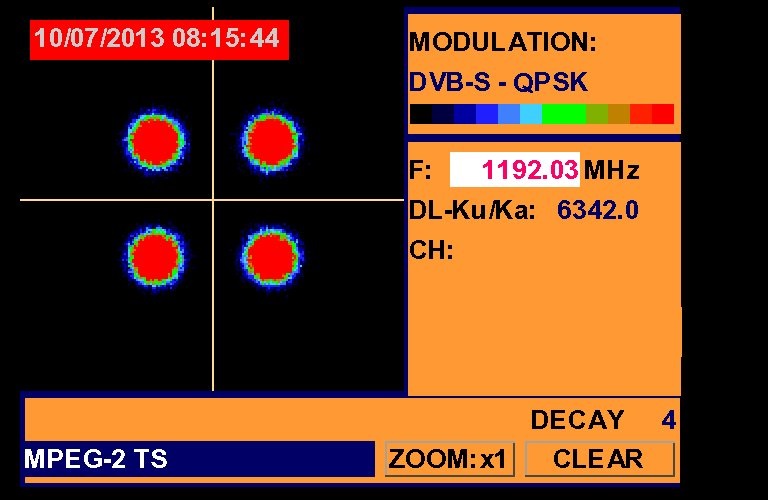

                                                          3 957 H @ 1 192.03 MHz @ SPAN 50 MHz : 83°E unn.netw

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3957-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3957-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3957-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3957-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3957-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-3957-mhz-h-stream-analysis-06

                                               4 005 H @ 1 144.73 MHz @ SPAN 50 MHz : 83°E Eenadu netw.

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4005-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4005-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4005-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4005-mhz-h-nit-analysis-04

                                                4 030 H @ 1 119.94 MHz @ SPAN 50 MHz : 83°E unn.netw

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4030-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4030-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4030-mhz-h-quality-spectrum-nit-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4030-mhz-h-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4030-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4030-mhz-h-stream-analysis-06

                                              4 040 H @ 1 109.95 MHz @ SPAN 50 MHz : 83°E Essel Shyam

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4040-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4040-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4040-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4040-mhz-h-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4040-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4040-mhz-h-stream-analysis-06

                                                   4 054 H @ 1 095.95 MHz @ SPAN 50 MHz : 83°E Site-1

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4054-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4054-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4054-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4054-mhz-h-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4054-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4054-mhz-h-stream-analysis-06

                                                    4 071 H @ 1 078.44 MHz @ SPAN 50 MHz : 83°E Sun 18 netw.

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4071-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4071-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4071-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4071-mhz-h-quality-spectrum-nit-analysis-04

                                                         4 087 H @ 1 062.70 MHz @ SPAN 50 MHz : 83°E Live India

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4087-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4087-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4087-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4087-mhz-h-quality-spectrum-nit-analysis-04

                                            4 091 H @ 1 058.19 MHz @ SPAN 50 MHz : 83°E Mi Marathi

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4091-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4091-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4091-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4091-mhz-h-nit-analysis-04

                                                     4 096 H @ 1 054.45 MHz @ SPAN 50 MHz : 83°E CTVN AKD + ...

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4096-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4096-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4096-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4096-mhz-h-nit-analysis-04

                                            4 100 H @ 1 049.94 MHz @ SPAN 50 MHz : 83°E BBS

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4100-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4100-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4100-mhz-h-qpsk constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4100-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4100-mhz-h-stream-analysis-05

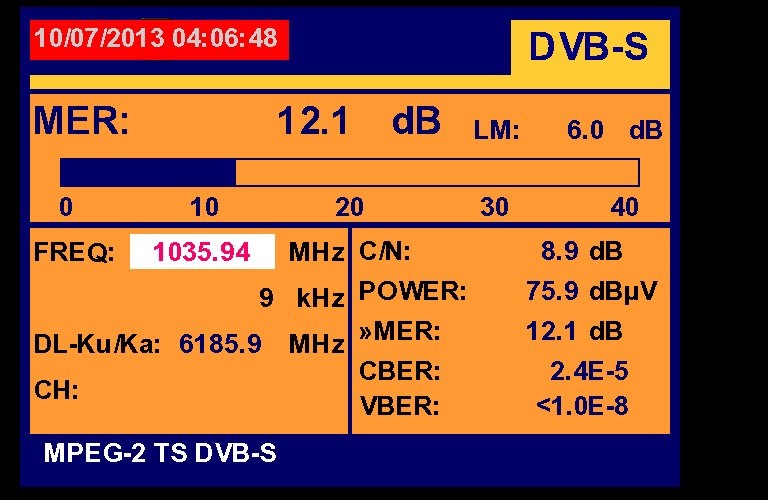

                                         4 115 H @ 1 035.94 MHz @ SPAN 50 MHz : 83°E Manorama news

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4115-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4115-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4115-mhz-h-qpsk constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4115-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4115-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4115-mhz-h-stream-analysis-06

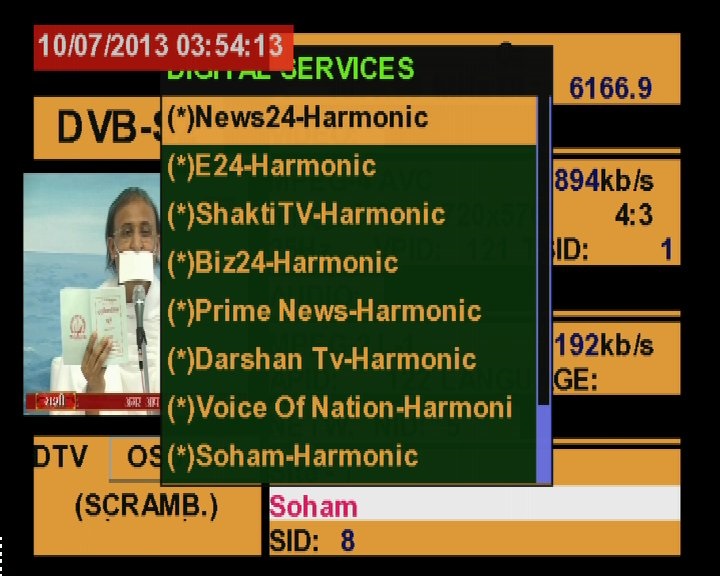

                                                     4 133 H @ 1 016.95 MHz @ SPAN 50 MHz : 83°E Site-1

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4133-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4133-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4133-mhz-h-qpsk constellation-analysis-3

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4133-mhz-h-qpsk constellation-analysis-3A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4133-mhz-h-stream-analysis-05A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4133-mhz-h-stream-analysis-06

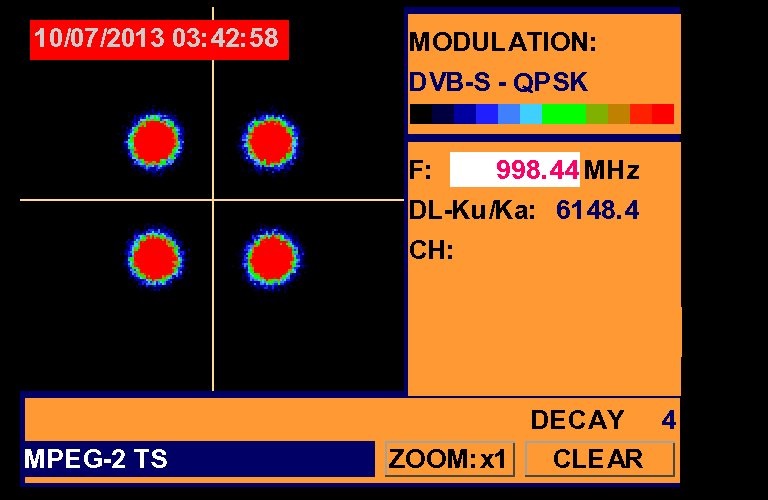

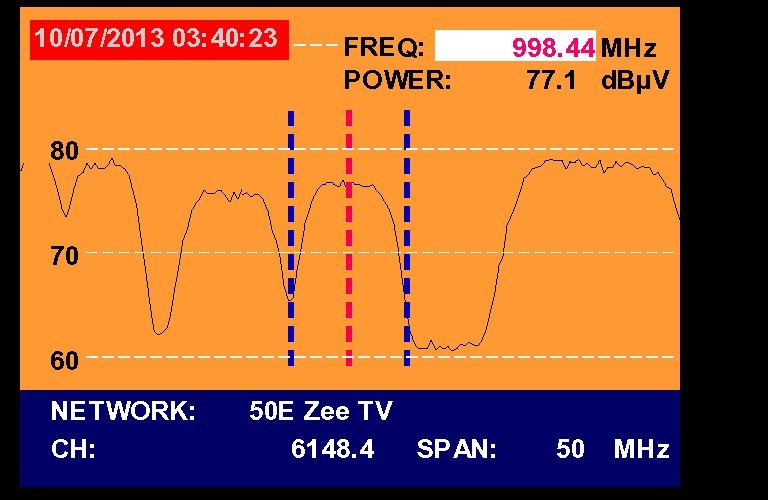

                                                     4 150 H @ 998.44 MHz @ SPAN 50 MHz : 83°E Zee TV

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4150-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4150-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4150-mhz-h-qpsk constellation-analysis-3

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4150-mhz-h-quality-spectrum-nit-analysis-04A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4150-mhz-h-stream-analysis-06

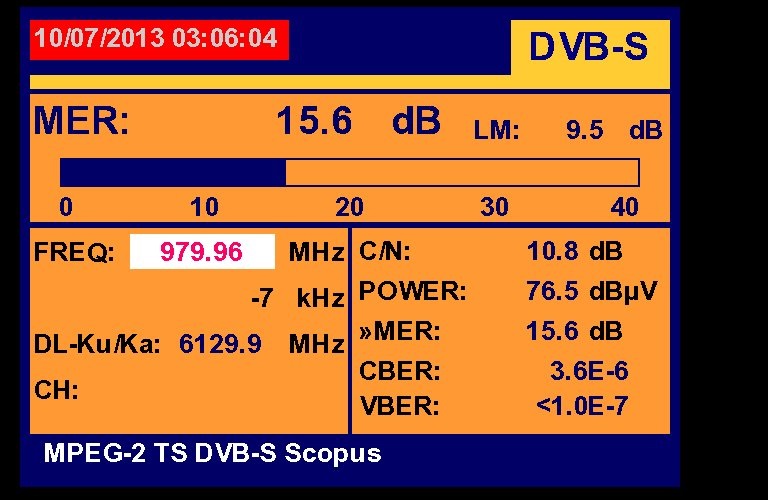

                                               4 170 H @ 979.96 MHz @ SPAN 50 MHz : 83°E Lok Sabha TV

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4170-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4170-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4170-mhz-h-stream-analysis-03

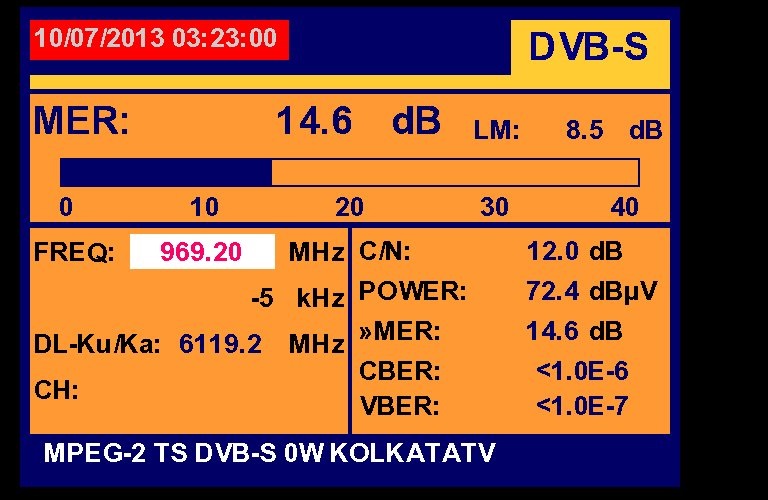

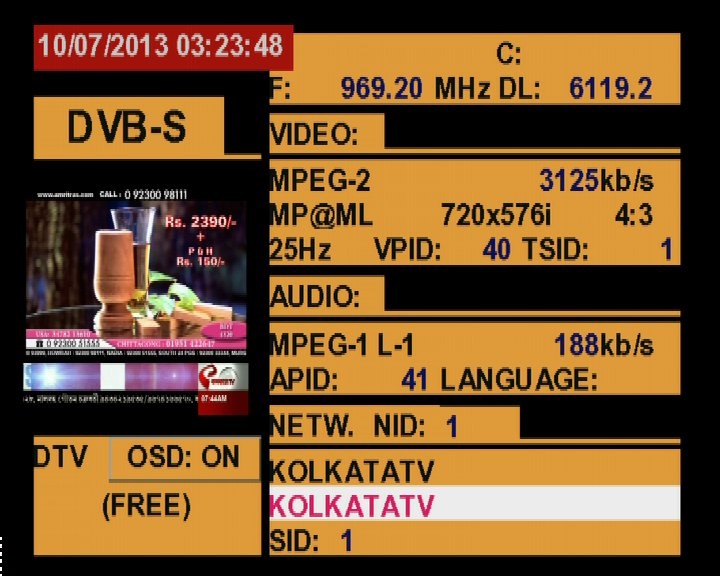

                                                     4 180 H @ 969.20 MHz @ SPAN 50 MHz : 83°E Kolkata TV

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4180-mhz-h-quality-spectrum-nit-analysis-01A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4180-mhz-h-quality-spectrum-nit-analysis-02A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4180-mhz-h-qpsk-constellation-analysis-03

A Simao-Macau-SAR-V-Insat 4A-83-e-Promax-tv-explorer-hd-dtmb-4180-mhz-h-stream-analysis-04
