Telstar 12 at 15,0°W : Technické parametre

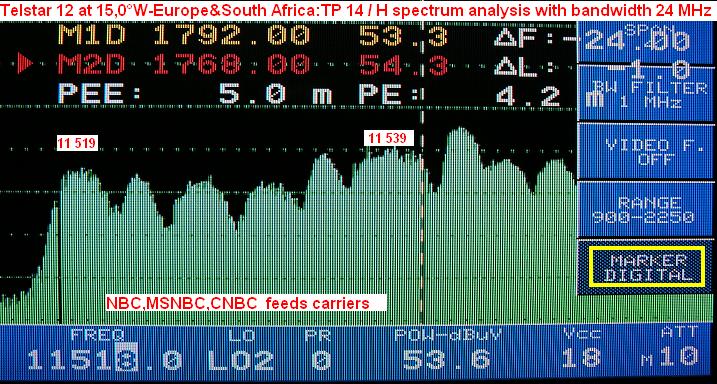

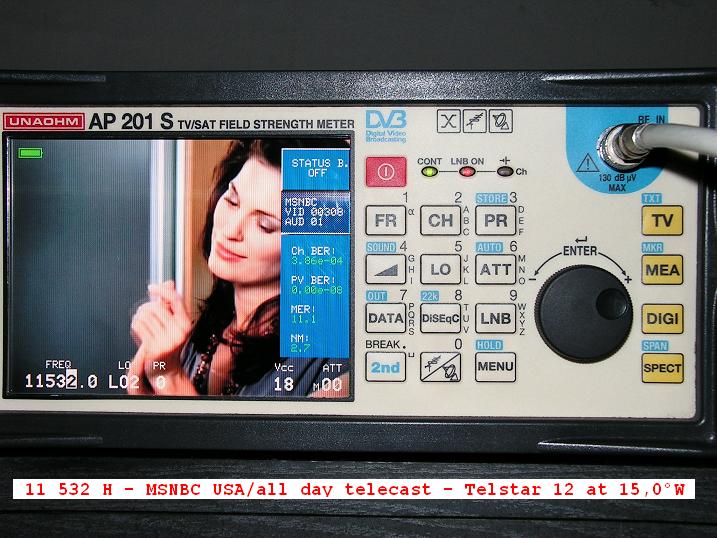

V kmitočtovom spektre TP 14 H satelitu Telstar 12 z orbitálnej pozície 15,0°W som identifikoval na f=11 532 MHz originálne americké vysielanie MSNBC TV,pri ktorom okamžitá akosť vyjadrená v MER=11,1 dB a Ch BER 3.86-04 vyjadruje plnú stabilitu príjmu s PF 365 cm .
Názov : Telstar 12 - Pozícia : 15,0°W - TP : 48 KU - Životnosť : od 19.10.1999 - 15 rokov

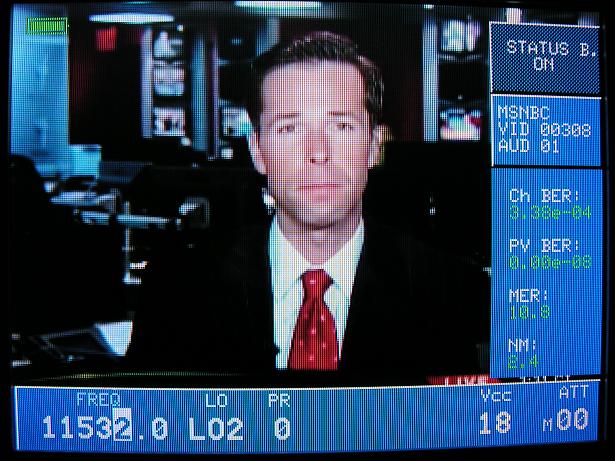

Update nr.1 : Telstar 12 at 15,0°W - European & South African beam : 11 532 H MSNBC
-ak hladinu uzamknutia QPSK nosnej okolo MER=7 dB pomenujem detekčný medzistav bez reálne prítomnej ziskovej hladiny resp. zálohy , potom okamžitý akostný stav v Q/MPEG-2 analýze vyjadruje reálny ziskový rast resp. zálohu pred rozpadom obrazu okolo 4 dB , čo v praxi znamená pri miernej oscilácii Q/MER amplitúdy v pásme rozkmitu +/- 0,2 dB stabilný stav príjmu aj pri mierne zhoršených poveternostných podmienkach .
Update nr.2 : Telstar 12 at 15,0°W - European & South African beam : 11 609 H Packet Globecomm
Telstar 12 at 15,0°W :TV LIST /PREHĽAD TV
-Frequency-
|
----------Provider/Channel----------
|
------SR------ | -FEC- | -------Beam------- | ---Antenna--- | ---DVB/Encryption--- |
|
10 988 -H-tp 17 |
PBL Service 1B/ESPN Classic | 2 893 | 3/4 | Europe/South Africa | 80-140+ cm | Biss |
|
10 992 -H-tp 17 |
PBL Service 2B/ESPN America | 2 893 | 3/4 | Europe/South Africa | 80-140+ cm | Biss |
|
11 060 -H-tp 18 |
DMC | 19 279 | 3/4 | Europe/South Africa | 80-140+ cm | DVB |
| The Style Network | Cryptoworks | |||||
| E! EME | Cryptoworks | |||||
| CNBC | Cryptoworks | |||||
| E! EMEA | Cryptoworks | |||||
|
11 124 -H-tp 19L |
DMC | 18 386 | 3/4 | Europe/South Africa | 80-140+ cm | DVB |
| Nat Geo Poland | Cryptoworks | |||||
| Reality TV | Cryptoworks | |||||
| Extreme Sports | Cryptoworks | |||||
| Club Europe | Cryptoworks | |||||
| JimJam Middle East | Cryptoworks | |||||
|
11 150 -H-tp 19U |
DMC | 18 389 | 3/4 | Europe/South Africa | 80-140+ cm | DVB |
| Extreme Sports France | Cryptoworks | |||||
| Zone Reality TV EMEA | Cryptoworks | |||||
| Nat Geo Romania | Cryptoworks | |||||
| Zone Club CE | Cryptoworks | |||||
| Playboy TV NL X | Cryptoworks | |||||
| Zone Club / Irisz Hungary | Cryptoworks | |||||
|
11 150 -V-tp 22U |
DMC | 19 275 | 3/4 | Europe/South Africa | 80-140+ cm | DVB |
| History Channel | Cryptoworks | |||||
| Nat Geo Wild | Cryptoworks | |||||
| Zone Reality Poland | Cryptoworks | |||||
| Jim Jam EMEA | Cryptoworks | |||||
|
11 518 -H-tp 14 |
feeds NBC USA / DAD-4 FIBER TX ... | 3 744 | 7/8 | Europe/South Africa | 100-240+ cm | FTA |
|
11 523 -H-tp 14 |
feeds CNBC / DAD-2 Fiber TX ... | 1 500 | 7/8 | Europe/South Africa | 100-240+ cm | FTA |
|
11 528 -H-tp 14 |
feeds NBC USA / DAD-5 FT-55 ... | 3 198/1 500 | 7/8 | Europe/South Africa | 100-240+ cm | FTA |
|
11 531 -H-tp 14 |
MSNBC | 3 198 | 7/8 | Europe/South Africa | 60-140+ cm | FTA |
|
11 539 -H-tp 14 |
feeds BTV-4 Globecast ... | 4 284 | 3/4 | Europe/South Africa | 100-240+ cm | FTA |
|
11 567 -H-tp 14 |
byu tv USA / EuropeSoAfrica | 5 625 | 1/2 | Europe/South Africa | 60-140+ cm | FTA |
|
11 677 -V-tp 8 |
PTV / Reform TV | 2 200 | 1/2 | Europe/South Africa | 60-140+ cm | FTA |
|
11 691 -V-tp 8 |
EMEK TO RR test | 2 200 | 3/4 | Europe/South Africa | 80-140+ cm | FTA |
|
11 692 -H-tp 16 |
test card MMV-WIEN / Mass Response | 3 255 | 3/4 | Europe/South Africa | 80-140+ cm | FTA |
|
12 524 -V-tp 1 |
ESPN | 26 470 | 3/4 | Europe | 80-140+ cm | |
| ESPN2 | PowerVu | |||||
| ESPN | PowerVu | |||||
| ESPN Atlantic | PowerVu | |||||
| ESPN Pac Rim | PowerVu | |||||
| ESPN Middle East | PowerVu | |||||
| ESPN Latin Caribbean | PowerVu | |||||
| ESPN2 Caribbea | PowerVu | |||||
| VC/ Occassional feeds | ||||||
|
12 547 -H-tp 9 |
EUCOM | 11 900 | 2/3 | Europe/South Africa | 80-140+ cm | |
| CNN HDLN | unknown CA | |||||
| ATN 1 | unknown CA | |||||
| QUAD ISR | unknown CA | |||||
| KFOR AIR SCAN | unknown CA | |||||
| ATN 2 | unknown CA | |||||
| FOX News | unknown CA | |||||
| Pentagon Channel | unknown CA | |||||
| CNN LIVE | unknown CA | |||||
|
12 572 -V-tp 2 |
feeds CBN USA / POWER VU ... | 4 285 | 3/4 | Europe/South Africa | 100-240+ cm | FTA |
|
12 589 -V-tp 2 |
Simaye-Azadi | 4 503 | 1/2 | Europe | 60-140+ cm | FTA |
|
12 608 -H-tp 10 |
Globecomm | 19 280 | 2/3 | Europe/South Africa | 80-140+ cm | |
| ETV | Irdeto 2 | |||||
| TZUCHI | FTA | |||||
| MAC TV | FTA | |||||
| VOA Persian | FTA | |||||
| BBC Persian | FTA | |||||
| Hwazan | FTA | |||||
| Phoenix InfoNews | Irdeto 2 | |||||
| AGHAPY TV | FTA | |||||
|
12 614 -H-tp 2 |
Globecomm | 11 939 | 2/3 | Europe | 80-140+ cm | DVB |
| Zanoubia TV | FTA | |||||
| test card | FTA | |||||
| GunAZ TV | FTA | |||||
| test card | FTA | |||||
| test card | FTA | |||||
|
12 645 -H-tp 11 |
EARTH TV | 3 255 | 3/4 | Europe/South Africa | 80-140+ cm | Biss |
|
12 659 -H-tp 11 |
feeds TELEMEDIA UK 2 ... | 3 255 | 7/8 | Europe/South Africa | 100-240+ cm | Biss |
|
12 663 -H-tp 11 |
feeds Auto 6 Mbit/s ... | 2 893 | 3/4 | Europe/South Africa | 100-240+ cm | FTA/Biss/4:2:2 |

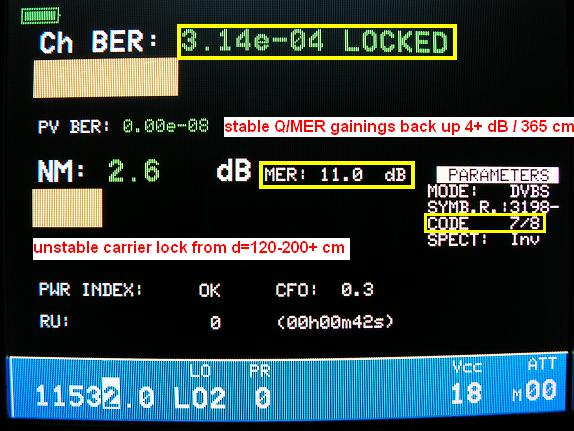

Telstar 12 at 15,0°W : Signal quality
Telstar 12 at 15,0°W : Video presentation
-

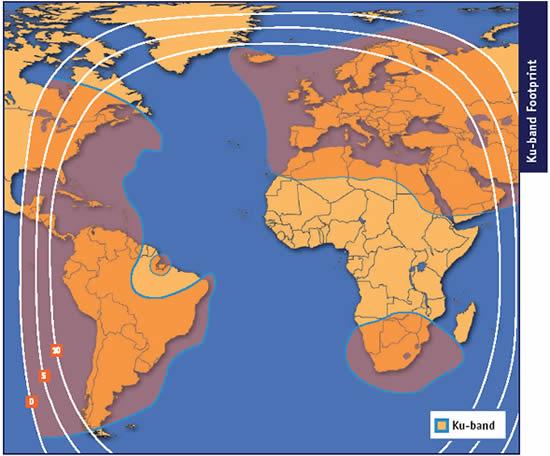

Telstar 12 at 15,0°W footprint : Europe/Sout Africa
Telstar 12 at 15,0°W :TV Snapshots
Telstar 12 at 15,0°W : next
