ABS 1 at 75.0°E

ABS 1 at 75.0°E : Technical data

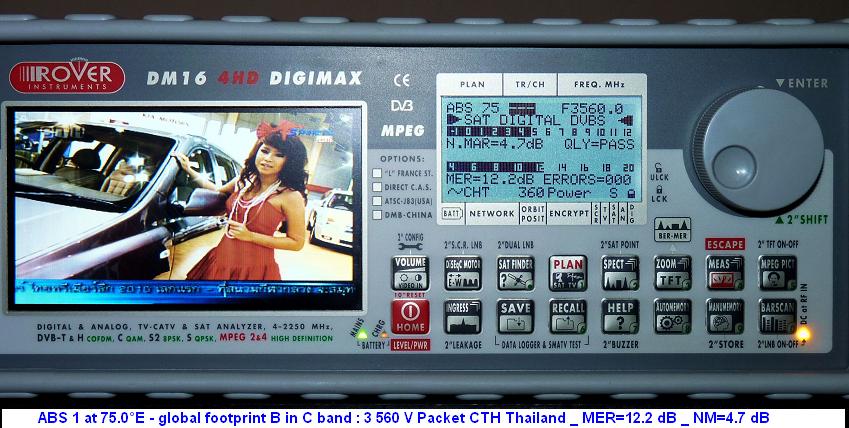

                    ABS 1 at 75.0°E-B footprint : 3 560 V packet CTH Cable Thai Holding-qualitative peak MER=12.2 dB
ABS 1 at 75.0 e-B footprint-3 560 V 001 n
                          Satellite : ABS 1 - Orbit : 75.0°E - TP : 32 C/16 KU - Lifetime : from 26.9.1999 - 12 years



ABS 1 at 75.0°E - A+B footprint : analysis of the spectrum and quality of the reception



           ABS 1 at 75.0°E - A+B footprint : ABS 1 satellite measurements at the center Lučenec_central Slovakia
                                                 geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                            measurement results are derived from the 3.7 m diameter antenna
                                                                      date of measurement : 8.8 2010
                                                                                 elevation angle  : 14°

                               ABS 1 footprint A & coverage area                 ABS 1 footprint B & coverage area
                          Australia,Africa,part of Asia and Europe                 Asia,part of Africa and Europe
                           ABS 1 at 75.0 e _ C band footprint A          ABS 1 at 75.0 e _ C band footprint B
                                                       +                                                                          +

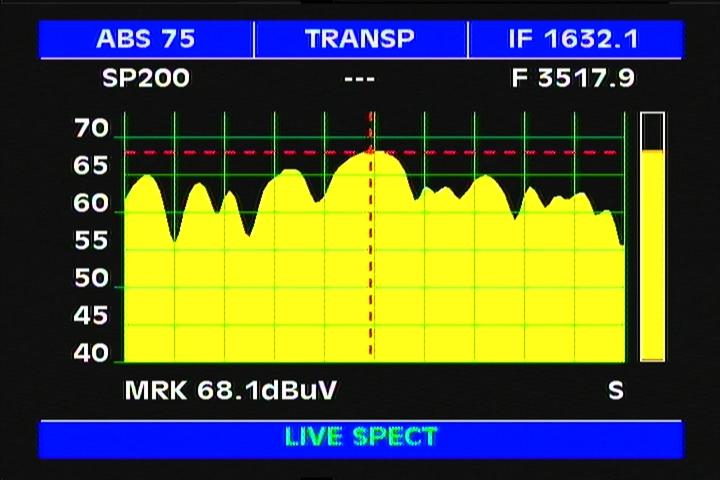

                                       ABS 1 spectral analysis                                    ABS 1 spectral analysis

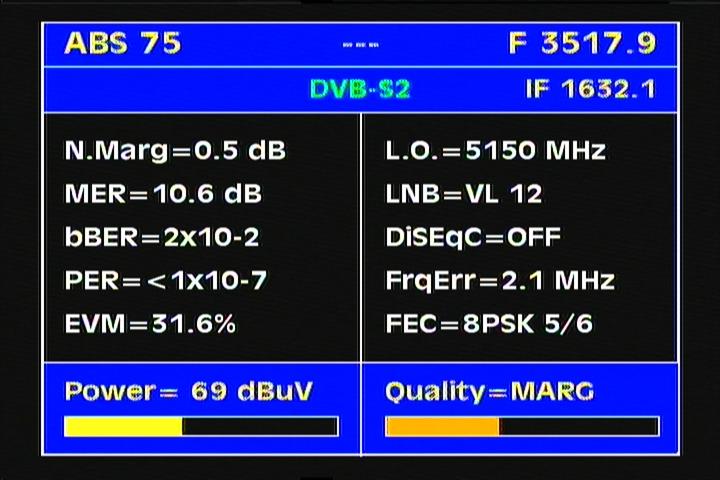

                                3 782 V > DVB-S2/8PSK Data                           3 560 V / TP 8B : Packet CTH
                           ABS 1 at 75.0 e _ A footprint _ spectral analysis           ABS 1 at 75.0 e _ B footprint _ spectral analysis
                                                                  - time of measurement : 8.8. 2010 -
                                                                     - defining the status of reception -

3 782 V : DVB-S2/8PSK Data - DVB-S2 PER / Packet Error Rate/ value for each data carrier was less than 1x10-7 which means
the stable locking with a gain growth of 3-4 dB .

3 560 V : Packet  CTH - stable gain margin in the range from 5.5 to 6.0 dB with a slightly oscillating peak-MER >>> Carrier
detection of categories QEF

                                                       ABS 1 at 75.0°E _ footprint B : 3 456 V  Granada TV
                     A/V pids data                                       spectral analysis                                            NIT data
ABS 1 at 75.0 e _ B footprint _ 3 456 V Granada 1_IF dataABS 1 at 75.0 e _ B footprint _ 3 456 V Granada 1_spectral analysisABS 1 at 75.0 e _ B footprint _ 3 456 V Granada 1_Q data

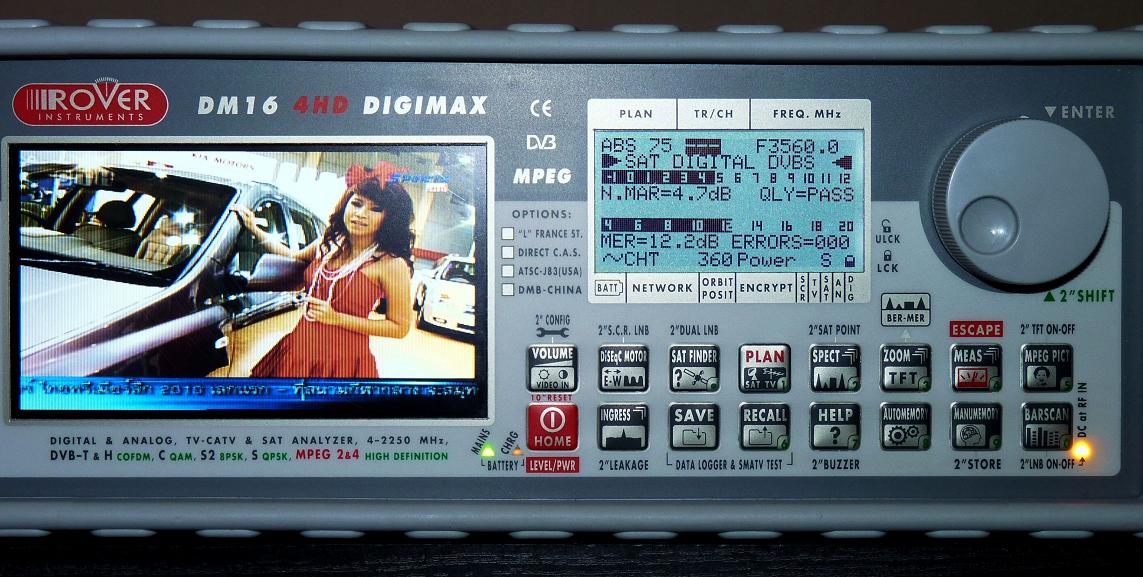

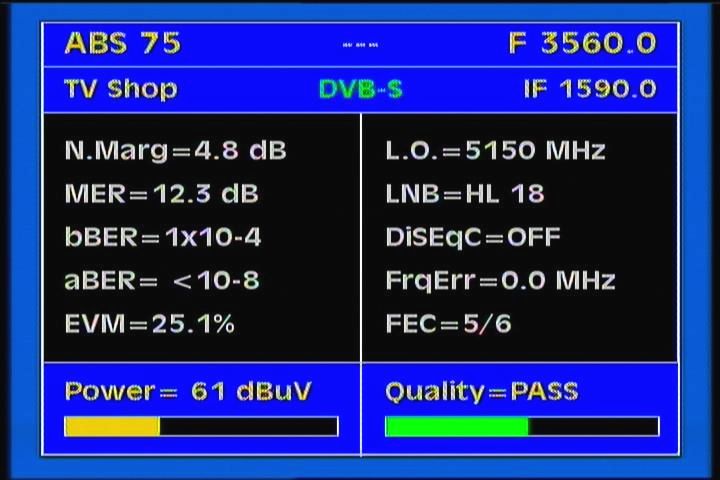

                                   ABS 1 at 75.0°E _ footprint B : 3 560 V Packet Cable Thai Holding Plc
                          IF data                                                     Q data                                                   NIT data

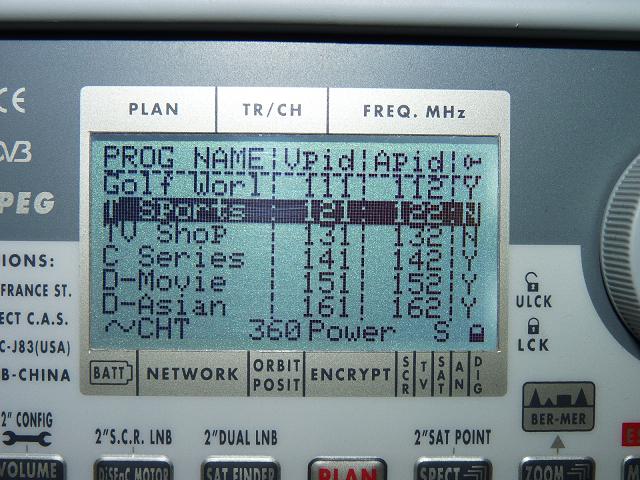

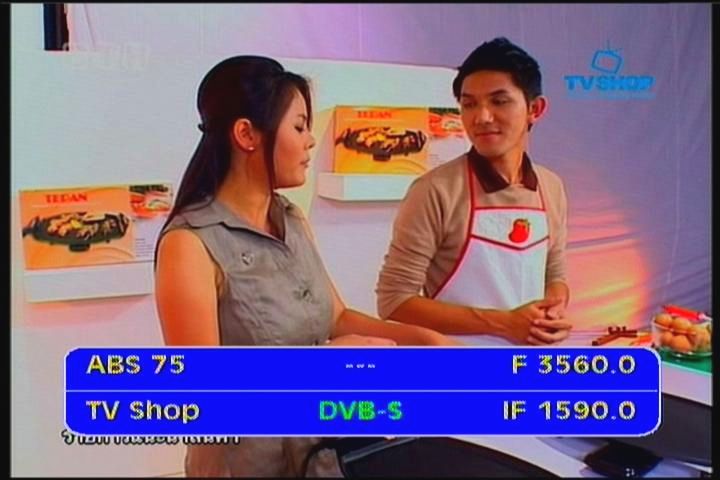

ABS 1 at 75.0 e-B footprint-3 560 V Packet CTH-IF dataABS 1 at 75.0 e-B footprint-3 560 V Packet CTH-Q dataABS 1 at 75.0 e-B footprint-3 560 V Packet CTH-NIT data

                                      ABS 1 at 75.0°E _ footprint A : 3 638 V DVB-S2/8PSK Data network
            MER/NM diagnostics                             8PSK constellation diagram                          spectral analysis
ABS 1 at 75.0 e-A footprint-3 638 V DVB-S2 Data-quality analysisABS 1 at 75.0 e-A footprint-3 638 V DVB-S2 Data-8PSK constellation diagramABS 1 at 75.0 e-A footprint-3 638 V DVB-S2 Data-spectral analysis

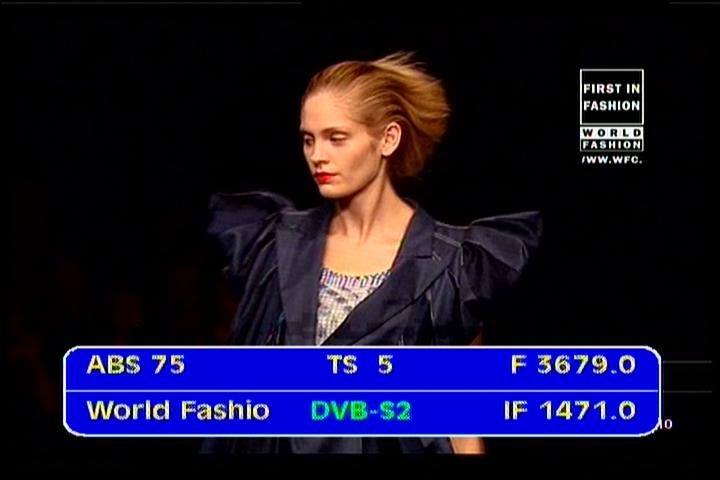

                                                    ABS 1 at 75.0°E _ footprint B : 3 660 H ABS network
                          IF data                                                     Q data                                                   NIT data
ABS 1 at 75.0 e _ B footprint _ 3 659 H ABS netw._IF dataABS 1 at 75.0 e _ B footprint _ 3 659 H ABS netw._Q dataABS 1 at 75.0 e _ B footprint _ 3 659 H ABS netw._NIT data

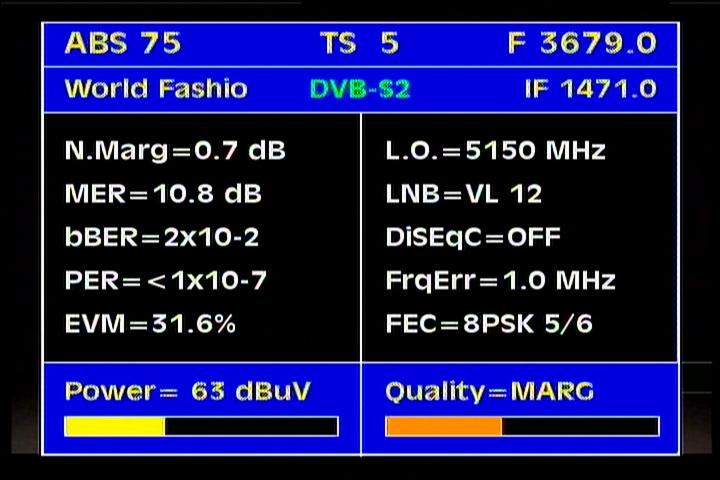

                                      ABS 1 at 75.0°E _ footprint B : 3 679 V DVB-S2/8PSK ABS network

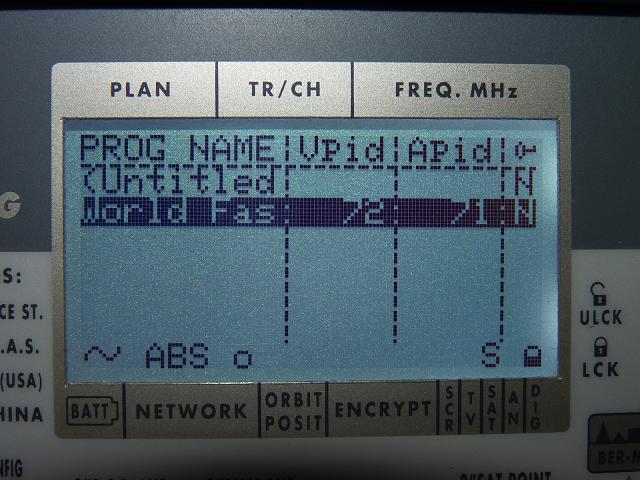

                   A/V pids data                                               Q data                                                  NIT data
ABS 1 at 75.0 e-B footprint-3 679 V ABS netw.-IF dataABS 1 at 75.0 e-B footprint-3 679 V ABS netw.-Q dataABS 1 at 75.0 e-B footprint-3 679 V ABS netw.-NIT data

                                        ABS 1 at 75.0°E _ footprint A : 3 742 V DVB-S2/8PSK Data network
             MER/NM diagnostics                             8PSK constellation diagram                          data of reception
ABS 1 at 75.0 E _ 3 742 V DVB-S2 8PSK data network_Q1 dataABS 1 at 75.0 E _ 3 742 V DVB-S2 8PSK data network_8PSK constellation diagram and PER analysisABS 1 at 75.0 E _ 3 742 V DVB-S2 8PSK data network_data of reception

                                 ABS 1 at 75.0°E _ footprint A : 3 783 V DVB-S2/8PSK Data network
            MER/NM diagnostics                             8PSK constellation diagram                          data of reception
ABS 1 at 75.0 E _ 3 783 V DVB-S2 8PSK data network_Q1 dataABS 1 at 75.0 E _ 3 783 V DVB-S2 8PSK data network_8PSK constellation diagram and PER analysisABS 1 at 75.0 E _ 3 783 V DVB-S2 8PSK data network_data of reception

                                ABS 1 at 75.0°E _ footprint A : 3 823 V DVB-S2/8PSK Data network
            MER/NM diagnostics                      PER_Packet Error Rate diagnostics                         data of reception
ABS 1 at 75.0 E _ 3 823 V DVB-S2 8PSK data network_Q1 data
ABS 1 at 75.0 E _ 3 823 V DVB-S2 8PSK data network_PER analysisABS 1 at 75.0 E _ 3 823 V DVB-S2 8PSK data network_data of reception

                                ABS 1 at 75.0°E _ footprint A : 3 862 V DVB-S2/8PSK Data network
            MER/NM diagnostics                      PER_Packet Error Rate diagnostics                         data of reception
ABS 1 at 75.0 E _ 3 862 V DVB-S2 8PSK data network_Q1 dataABS 1 at 75.0 E _ 3 862 V DVB-S2 8PSK data network_FEC EVM dataABS 1 at 75.0 E _ 3 862 V DVB-S2 8PSK data network_data of reception

ABS 1 at 75.0°E : TV List

 ABS 1 at 75.0 e _ A B footprint _ PF Prodelin 3.7 m


---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 449 -V-tp 2B

Test 1

2 960 3/4 B Global 180+ cm DVB-S/Biss

3 451 -V-tp 2B

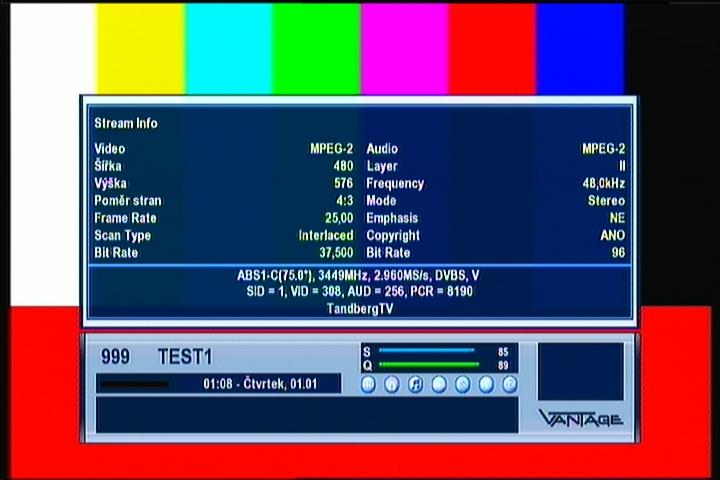

Al Hayat / without lock 8.8.10

1 001 3/4 B Global 180-220+ cm DVB-S2/8PSK/MPEG-2

3 456 -V-tp 2B

ART 3 100 7/8 B Global 180-220+ cm DVB-S
  Granada tv         Irdeto,Viacces 2.5

3 517 -V-

left




3 560 -V-tp 8B

Cable Thai Holding network

28 798 5/6 B Global 180-220+ cm DVB-S
  Golf World         PowerVu
  T Sports    watch video         FTA
  TV-Shop         FTA
  C Series         PowerVu
  D Movie         PowerVu
  D Asian         PowerVu
  Movie Hit             PowerVu
  M Channel           PowerVu
  Spring News         FTA
  You 2 Play            PowerVu
  Jim Jam         PowerVu
  Outdoor Channel              PowerVu
  My Sci         PowerVu
  Real Metro         PowerVu
  Granada TV         PowerVu
  Busaba Cafe         PowerVu

3 595 -H- tp 11B

PHT Dubai Video Return_Alhurra Iraq

1 470 3/4 B Global 180-240+ cm DVB-S2/8PSK/MPEG-4

3 638 -V- tp 4A

 DATA Service 30 000  5/6 A Global  220+ cm DVB-S2/8PSK/data

3 660 -H- tp 13B

ABS DTH Platform_O/P 75.0 E 27 500 7/8 B Global 220+ cm DVB
  ITV+         Irdeto
  WFC World Fashion Channel C         Irdeto
  Data 1         data
  Data 3         data
  GCN TV / Manmin         FTA

3 680 -V- tp 14B

ABS 30 000 5/6 B Global 180-220+ cm DVB-S2/8PSK/FTA
  MTVN HD         MPEG-4/HD/Irdeto 2
  VH1 Classic         MPEG-2/Irdeto 2
  WFC World Fashion Channel   watch video         FTA
3 742 -V- tp 2A

DATA Service

 30 000  3/5  A Global  180+ cm  DVB-S2/8PSK/data
3 783 -V- tp 4A

DATA Service

 30 000  5/6  A Global  220+ cm  DVB-S2/8PSK/data
3 823 -V- tp 6A

DATA Service

 30 000  3/5  A Global  180+ cm  DVB-S2/8PSK/data
3 861 -V- tp 8A

DATA Service

 30 000  3/5  A Global  180+ cm  DVB-S2/8PSK/data

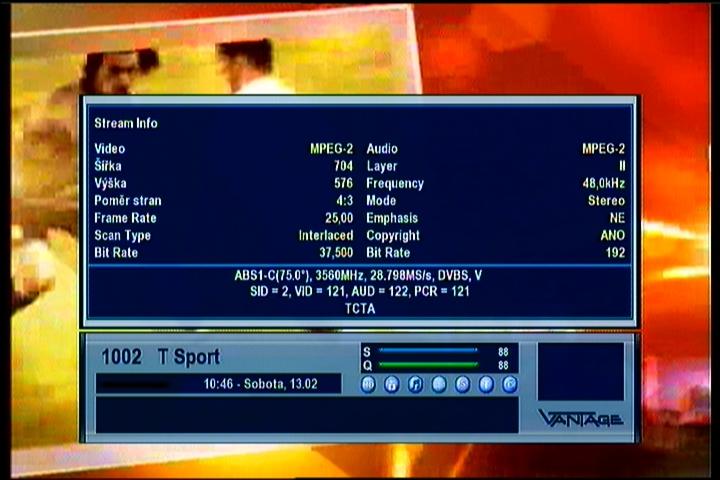

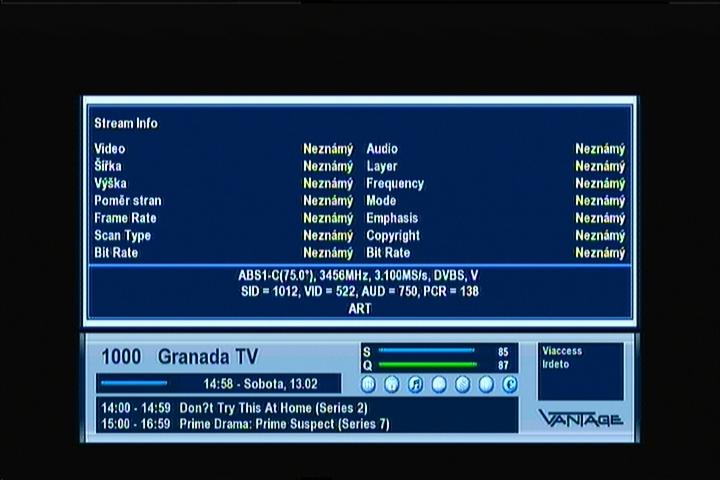

ABS 1 at 75.0°E : relative quality / stream info


relative q 01relative q 02relative q 03


ABS 1 at 75.0°E : video presentation


            ABS 1 videos
watch videos
