Insat 3C at 74,0°E

Insat 3C at 74,0°E : Technical data

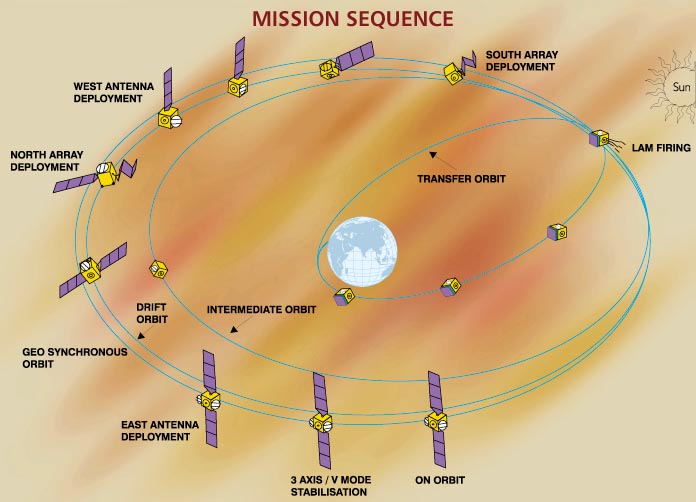

Insat 3C at 74.0E C band salient featuresInsat 3C at 74.0E C band payload systemsInsat 3C at 74.0E C band mission sequence

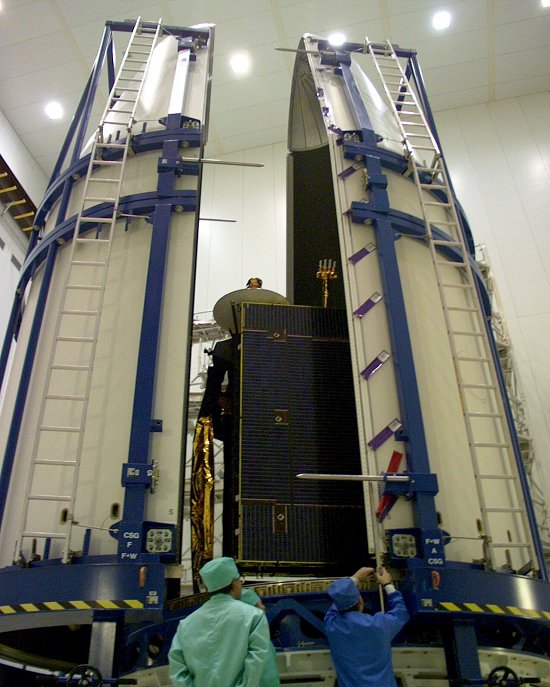

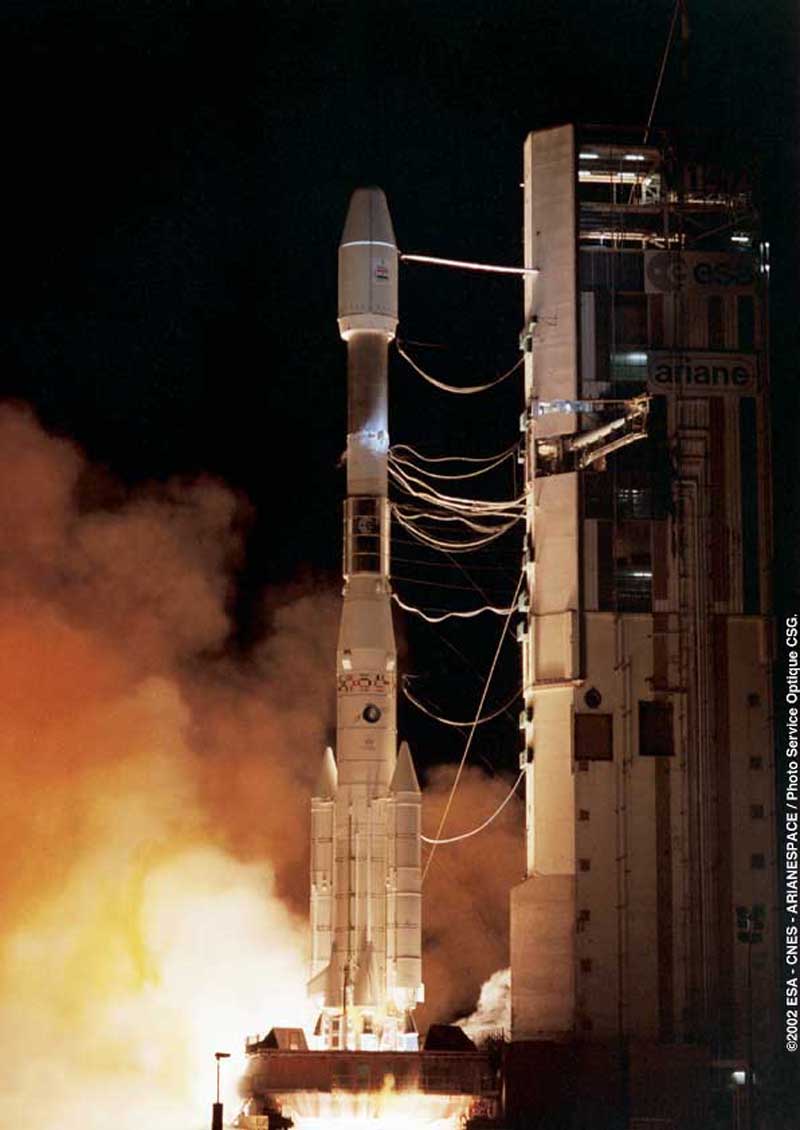

Insat 3C at 74.0E launchInsat 3C at 74.0E detailInsat 3C at 74.0E before launch

Update - Insat 3C at 74,0°E - India coverage : 4 165 H DD Gyandarshan network _ TP 12 spectral status


                                   Insat 3C at 74,0°E_India coverage      Insat 3C at 74,0°E_India coverage
                                          4 165 H : DD Gyandarshan                  4 165 H : DD Gyandarshan

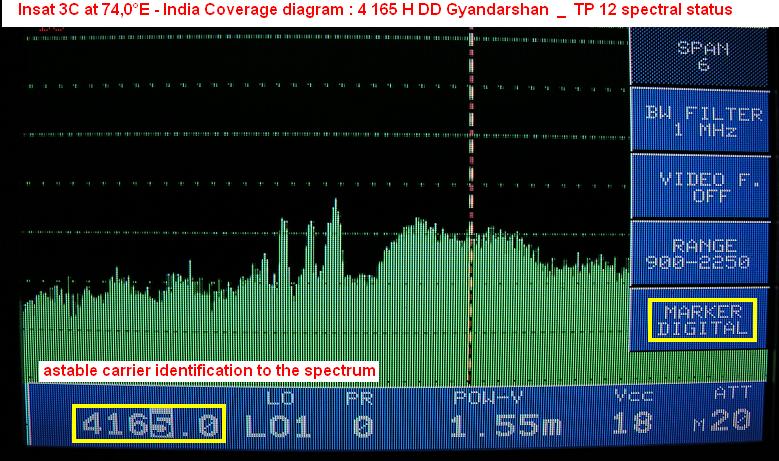

                               4 165 H DD Gyandarshan network spectral status nr14 165 H DD Gyandarshan network spectral status nr2

Insat 3C at 74,0°E: TV List

     PF Prodelin 3.7m at Insat 3C at 74.0E C band



-Frequency-


----------Provider/Channel----------

---SR--- ---FEC--- ---Beam--- ---Antenna--- ---DVB/Encryption---
4 165 -H-tp 12

DD Gyandarshan

 26 000 1/2 India 370-600+ cm DVB
  Gyandarshan 1         FTA
  Gyandarshan 2         FTA
  Technology         FTA
  Edu         FTA
  Gyandarshan 5         FTA

Insat 3C at 74,0°E : Percent quality_astable C-ID locking

-
-

Insat 3C at 74,0°E: Video presentation_no video

-
-

Insat 3C/4CR at 74,0°E: Update is from


                    dxsatcs logo

     CZECH & SLOVAK SATELLITE DX CLUB / http://dxsatcs.com/
     SATELLITE ENGINEERING C & KU band
     Roman Dávid - author http://dxsatcs.com/
     town : Lučenec , Slovak Republic,East Europe
     mail : roman.david@dxsatcs.com

Insat 3C at 74,0°E footprint : India coverage diagram for C band

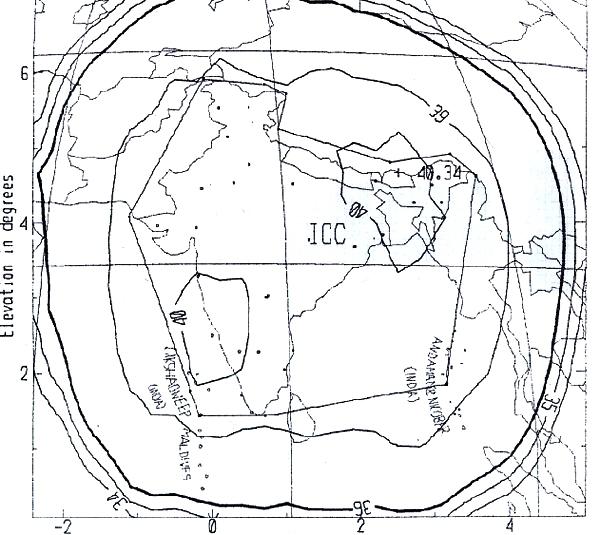

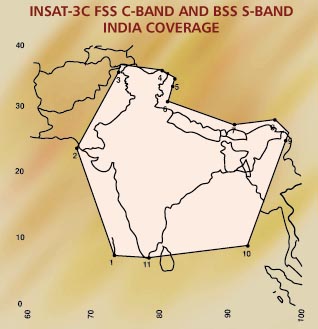

Insat 3C at 74.0E ISRO coverage mapInsat 3C at 74.0E FSS C band coverage map

Insat 3C at 74,0°E : TV Snapshots
