Intelsat 702 at 66.0°E

Intelsat 702 at 66.0°E : Technical data

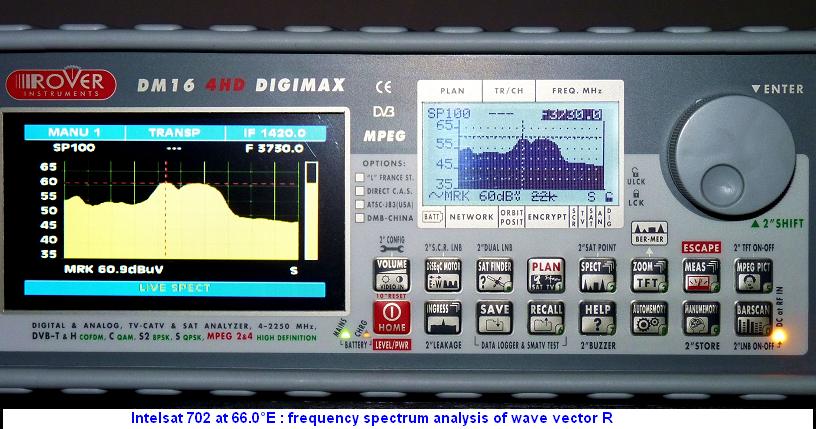

Intelsat 702 at 66.0 e _ C footprint _ spectral analysis

     satellite : Intelsat 702 - Orbit : 66.0°E - TP : 26 C/10 KU - Lifetime: from 17.6.1994 to _ no limit


Update - Intelsat 702 at 66.0°E - unknown diagram in C band : spectral analysis and measuring quality

                   Intelsat 702 at 66.0°E - global footprint : measurements at the center Lučenec_central Slovakia
                                                  geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                              measurement results are derived from the 3.7 m diameter antenna
                                                                                  elevation angle  : 19.0°

                                      Intelsat 702 spectral analysis                             Intelsat 702 footprint
                                4 135 L : DVB-S2/8PSK Data stream        zone diagram : global,West+East hemi

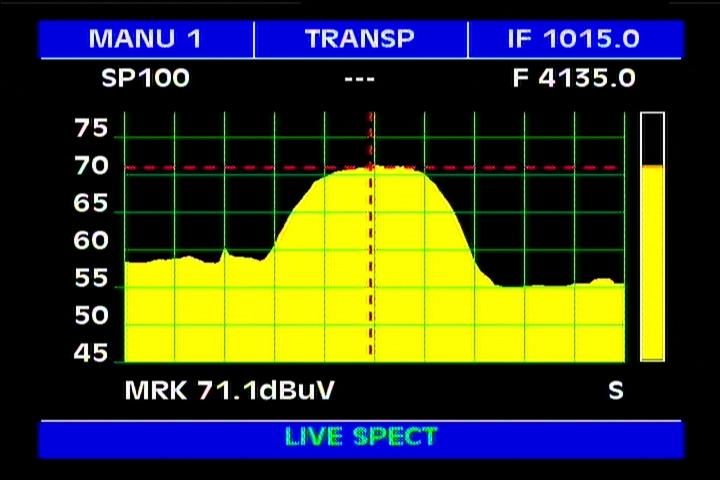

                               Intelsat 702 at 66.0 e _ C footprint _ 4 135 L dvb s2 8psk data_spectral analysis       IS 702 at 66.0 e footprint

                                                                        - time of measurement : 11.4.2010 -
                                                                              - defining the status of income -

                                                             Intelsat 702 at 66.0°E - unknown footprint diagram :
                           4 135 L DVB-S2/8PSK Data _
unstable gain growth of around 0.5 dB above treshold level

                                   Intelsat 702 at 66.0° E - unknown footprint : 4 055 L DVB-S2/8PSK Data
                   spectral analysis                                            IF data                                                   Q data

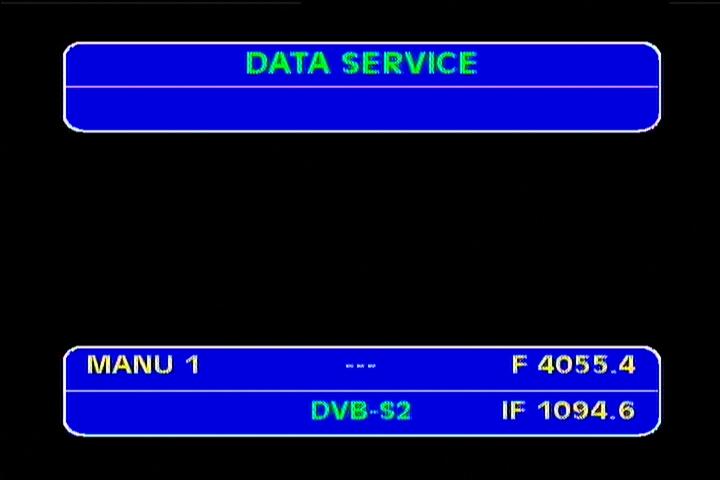

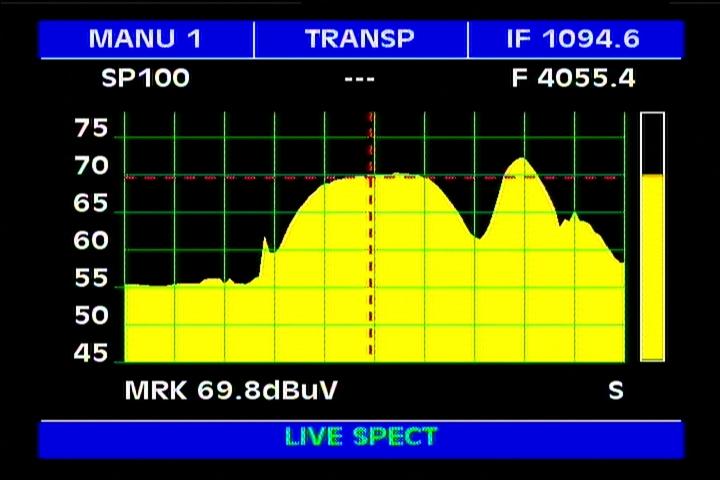

Intelsat 702 at 66.0 e _ C footprint _ 4 055 L dvb s2 8psk data_spectral analysis 01Intelsat 702 at 66.0 e _ C footprint _ 4 055 L dvb s2 8psk data_IF dataIntelsat 702 at 66.0 e _ C footprint _ 4 055 L dvb s2 8psk data_Q data

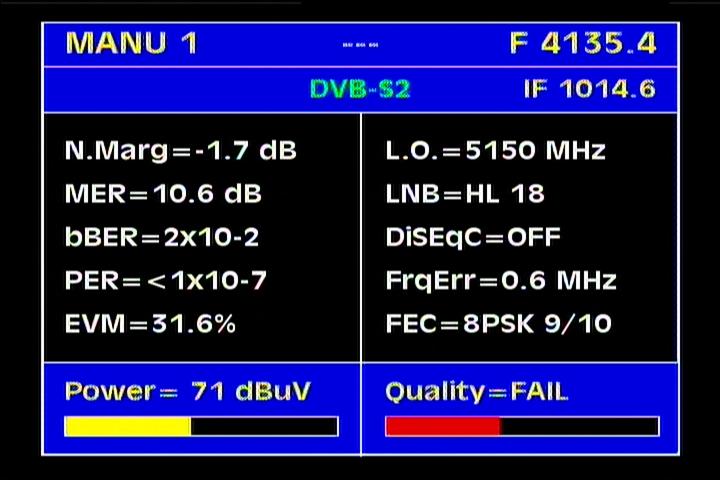

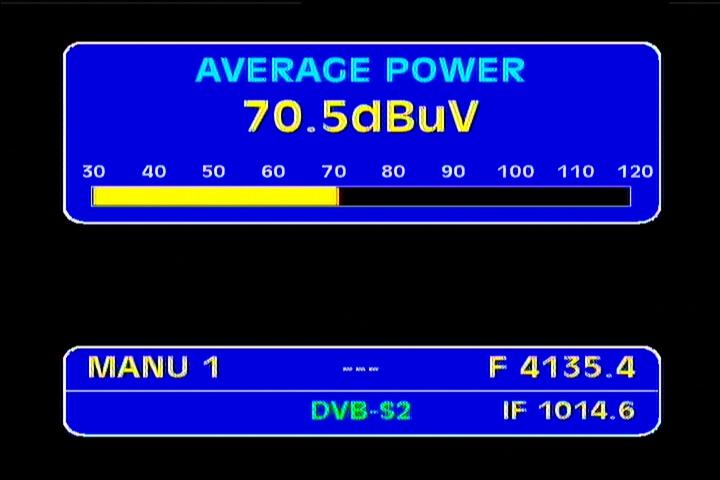

                                 Intelsat 702 at 66.0° E - unknown footprint : 4 135 L DVB-S2/8PSK Data
                   spectral analysis                                            IF data                                                   Q data
Intelsat 702 at 66.0 e _ C footprint _ 4 135 L dvb s2 8psk data_spectral analysis 01Intelsat 702 at 66.0 e _ C footprint _ 4 135 L dvb s2 8psk data_pow v levelIntelsat 702 at 66.0 e _ C footprint _ 4 135 L dvb s2 8psk data_Q data

Intelsat 702 at 66.0°E : TV List / now only data

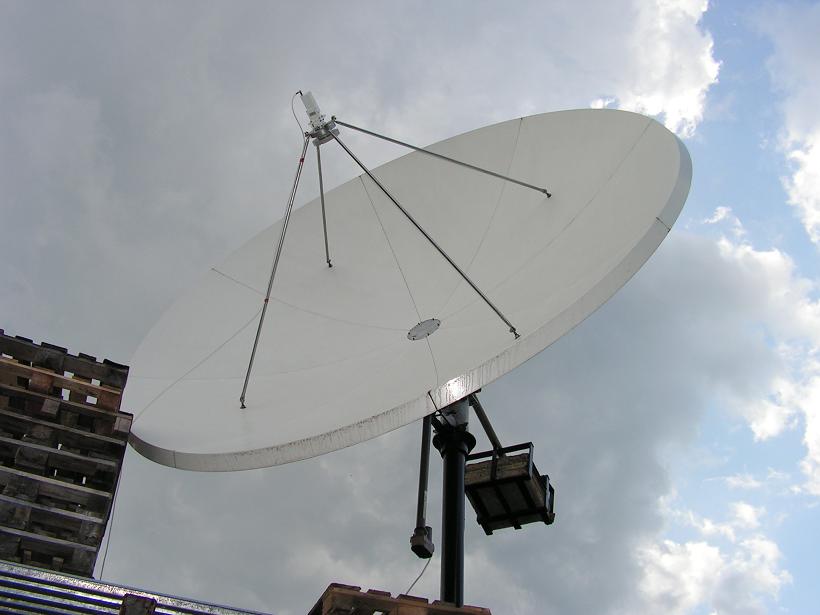

    PF Prodelin 3.7m at Intelsat 702 at  66.0E C band


-Frequency-


----------Provider/Channel----------

---SR--- ---FEC--- ---Beam--- ---Antenna--- ---DVB/Encryption---

4 055 -L- tp ?

Data

29  790 9/10 ? ? cm DVB-S2/8PSK / Data

4 135 -L - tp ?

Data

29 790 9/10 ? ? cm DVB-S2/8PSK / Data

Intelsat 702 at 66,0°E : Percent quality

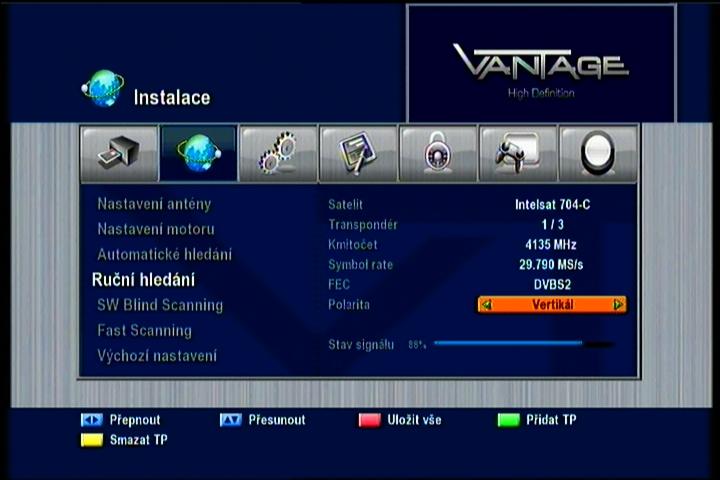

                                    Percent quality of 4 135 L DVB-S2  Data from Intelsat 702 at 66.0E

Intelsat 702 at 66.0°E : no video presentation / only data

-
-

Intelsat 702 at 66.0°E : Update is from

                                dxsatcs logo
                          CZECH & SLOVAK DX SATELLITE CLUB
                             international professional portal

                             Roman Dávid - author & founder
                             mail :
roman.david@dxsatcs.com

Intelsat 702 at 66.0°E footprint : global C

             Intelsat 702 footprint                           Intelsat 702 footprint

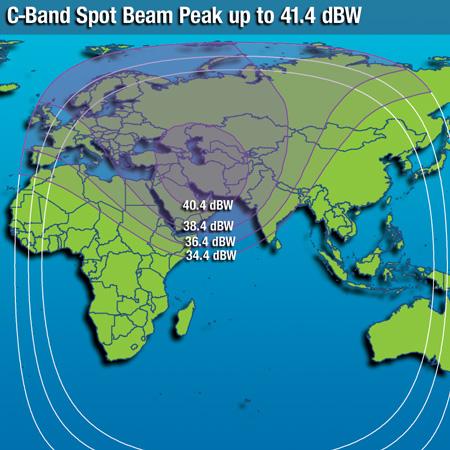

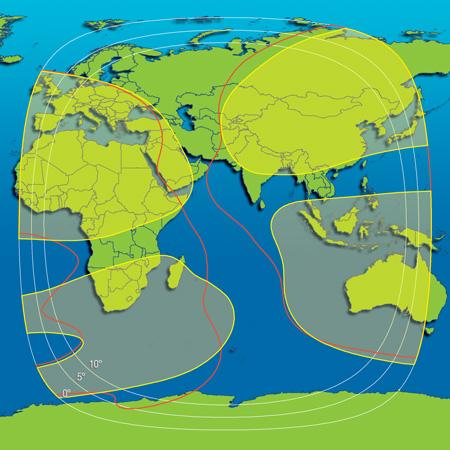

Intelsat 702 at 66.0E all C band beamsIntelsat 702 at 66.0E all C band SPOT beam

Intelsat 702 at 66.0°E : snapshots / only data
