Mr. Alberto Simao - Macau S.A.R_Vertex RSI 9.0m Cassegrain antenna & quality measurement on the Sakshi TV in MPEG-4 compression from Insat 4B satellite at 93.5°E in C Band with spectrum analyzer Rohde & Schwarz ETL & Tandberg Receiver TT 1260

Posted April 17th, 2010 by Roman Dávid.

Insat 4B at 93.5 e _ C band footprint _uvod

    Insat 4B at 93.5°E - 4B footprint : measurements at the center Macau-60 km west of Hong Kong
                            geographical location : Latitude: 22.1987°   _   Longitude: 113.5439°
       measurement results are derived from the 900 cm diameter cassegrain antenna Vertex RSI
                                                              elevation angle  : 55.5°

       RX system : Vertex RSI 900 cm                Insat 4B footprint for C band        measurement point : Macau S.A.R China
Insat 4B at 93.5 e _ C band footprint _ Vertex 900 cm _ 3 950 H MPEG 4 Sakshi TVInsat 4B at 93.5 e _ 4B footprint from antrix corporation India _ C bandInsat 4B at 93.5 e _ C band footprint_Macau SAR _map

                                                                  Vertex RSI 9.0m Cassegrain antenna pdf
                                                                             download pdf

Insat 4B at 93.5°E - 3 950 H MPEG-4 Sakshi TV : Vertex RSI 9.0m Cassegrain antenna & high frequency unit

                                                                            click for higher quality
                                                   Insat 4B at 93.5 e _ C band footprint _ PF Vertex 900 cm _first

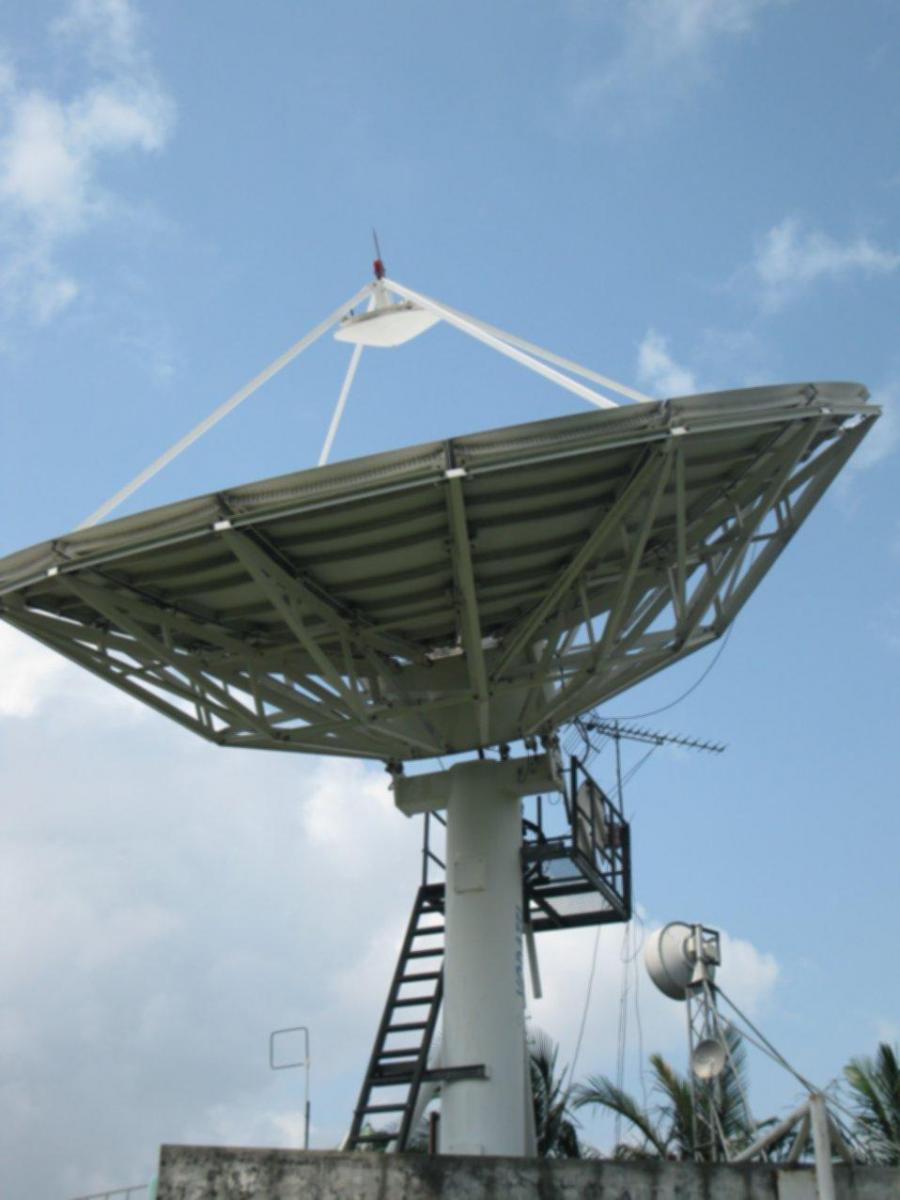

                                      Vertex RSI 9.0m Cassegrain antenna pointed to Insat 4B satellite at 93.5°E
Insat 4B at 93.5 e _ C band footprint _ PF Vertex 900 cm _ 01Insat 4B at 93.5 e _ C band footprint _ PF Vertex 900 cm _ 02Insat 4B at 93.5 e _ C band footprint _ Q analysis _antenna tracking_09

                    C band polarotor Chaparral with servo controlled & feedhorn & flange Norsat LNB PLL +/- 10 kHz
Insat 4B at 93.5 e _ C band footprint _ PF Vertex 900 cm _ HF system_01Insat 4B at 93.5 e _ C band footprint _ PF Vertex 900 cm _ HF system_02Insat 4B at 93.5 e _ C band footprint _ PF Vertex 900 cm _ HF system_03

Insat 4B at 93.5°E - 3 950 H MPEG-4 Sakshi TV :spectral analysis with Rohde & Schwarz ETL 500 kHz-3 GHz

                                                                           click for higher quality
                       Insat 4B at 93.5 e _ C band footprint _ H pol analysis _first n
           Insat 4B : FULL H spectrum                 Insat 4B : part of H spectrum 01              Insat 4B : part of H spectrum 02
Insat 4B at 93.5 e _ C band footprint _ H pol analysis _Full H   Insat 4B at 93.5 e _ C band footprint _ H pol analysis _part of H spectrumInsat 4B at 93.5 e _ C band footprint _ H pol analysis _part of H spectrum 02

Insat 4B at 93.5°E - 3 950 H MPEG-4 Sakshi TV : quality analysis with Tandberg receiver TT 1260 & Prolink 4C Premium

                                                                     click for higher quality
                       Insat 4B at 93.5 e _ C band footprint _ Q analysis _first n

        carrier frequency f=3 950 MHz                 measurement PV BER                                        data
Insat 4B at 93.5 e _ C band footprint _ Q analysis _Tandberg TT 1260_01Insat 4B at 93.5 e _ C band footprint _ Q analysis _Tandberg TT 1260_02Insat 4B at 93.5 e _ C band footprint _ Q analysis _Tandberg TT 1260_03

               measurement C/N                               measurement C/N margin                     measurement SIG LVL
Insat 4B at 93.5 e _ C band footprint _ Q analysis _Tandberg TT 1260_04Insat 4B at 93.5 e _ C band footprint _ Q analysis _Tandberg TT 1260_05Insat 4B at 93.5 e _ C band footprint _ Q analysis _Tandberg TT 1260_06

             SR=4.440 MSymb/sec                          measurement TS TID                               quality measurement
Insat 4B at 93.5 e _ C band footprint _ Q analysis _Tandberg TT 1260_07Insat 4B at 93.5 e _ C band footprint _ Q analysis _Tandberg TT 1260_08Insat 4B at 93.5 e _ C band footprint _ Vertex 900 cm _ 3 950 H MPEG 4 Sakshi TV_quality analysis 01

Insat 4B at 93.5°E - 3 950 H MPEG-4 Sakshi TV : Rohde Schwarz TS PSI summary

                                                                              click for higher quality
                         Insat 4B at 93.5 e _ C band footprint _ Rohde Schwarz TS PSI summary _first n

Insat 4B at 93.5 e _ C band footprint _ Rohde Schwarz TS PSI summary _01Insat 4B at 93.5 e _ C band footprint _ Rohde Schwarz TS PSI summary _02Insat 4B at 93.5 e _ C band footprint _ Rohde Schwarz TS PSI summary _03

Insat 4B at 93.5°E - 3 950 H MPEG-4 Sakshi TV : Rohde & Schwarz video presentation

Insat 4B at 93.5°E - 3 950 H MPEG-4 Sakshi TV :measurement results_Macau S.A.R / Lučenec Slovakia

                                                                    measurement at the center Macao

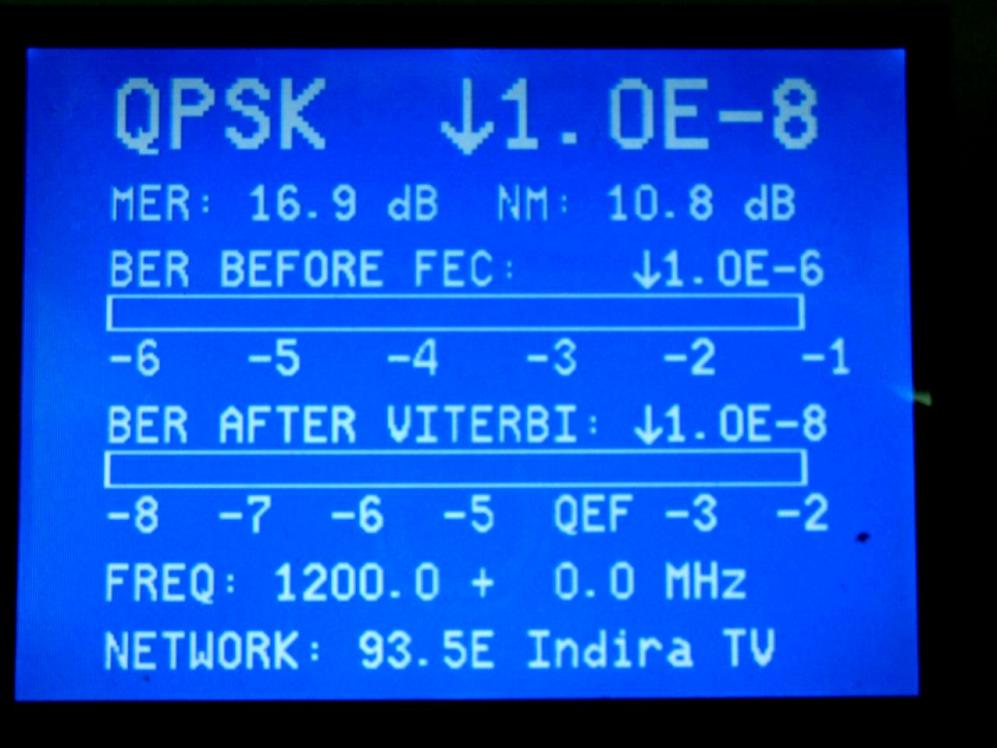

                                              PF Vertex RSI 900 cm                                  quality analysis
                              Insat 4B at 93.5 e _ C band footprint _ PF Vertex 900 cm _ 001     Insat 4B at 93.5 e _ C band footprint _ Vertex 900 cm _ 3 950 H MPEG 4 Sakshi TV_quality analysis 01

                                                           measurement at the center Lučenec / Slovakia
                PF Prodelin 370 cm                                    quality analysis                          QPSK constellation diagram
Insat 4B at 93.5 e _ C band footprint _ PF Prodelin 3.7 m at Lucenec SlovakiaInsat 4B at 93.5 e _ C band footprint _ PF Prodelin 3.7 m at Lucenec Slovakia_Q dataInsat 3A 4B at 93.5 e _ 4B footprint _ 3 951 H MPEG-4 Sakshi TV _ QPSK Constellation diagram

author : Mr. Alberto Simao _ Macau S.A.R.

I have done the following Setup: Insat4B at Frequency of 3 950 with 900 cm Vertex antenna.


The output of Norsat LNB was divided by 4 and i have applied one Out to R&S another to Tandberg TT1260 and another
to Promax. The Tandberg ASI-1 Output I have connected to R&S External ASI Input for measuring and view the video signal
from Sakshi TV.This Tandberg Receiver have a Low Sy facility,so i use the ASI output for monitoring in the R&S.
Is including a small video clip for reference taking by camera from R&S screen.
