Yamal 201 at 90.0°E

Yamal 201 at 90.0°E : Technical data

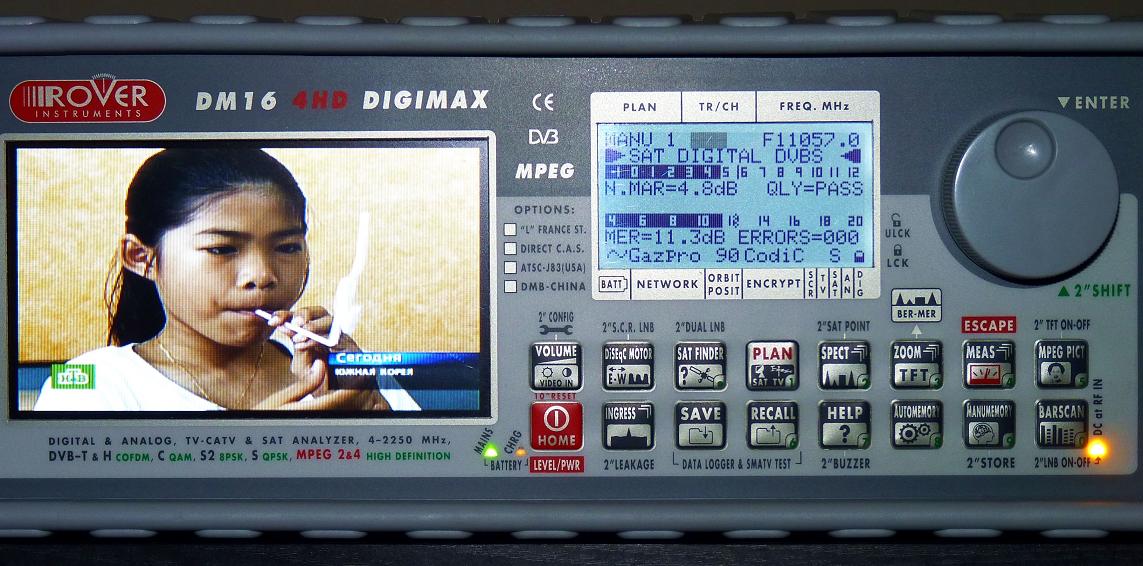

Yamal 201 at 90.0°E : 11 057 V Gazprom network _ MER=11.3 dB _ NM=4.8 dB

Satellite : Yamal 201 - Orbit : 90.0°E - TP : 9 C/6 KU - Lifetime : from 24.11.2003 - 12 years

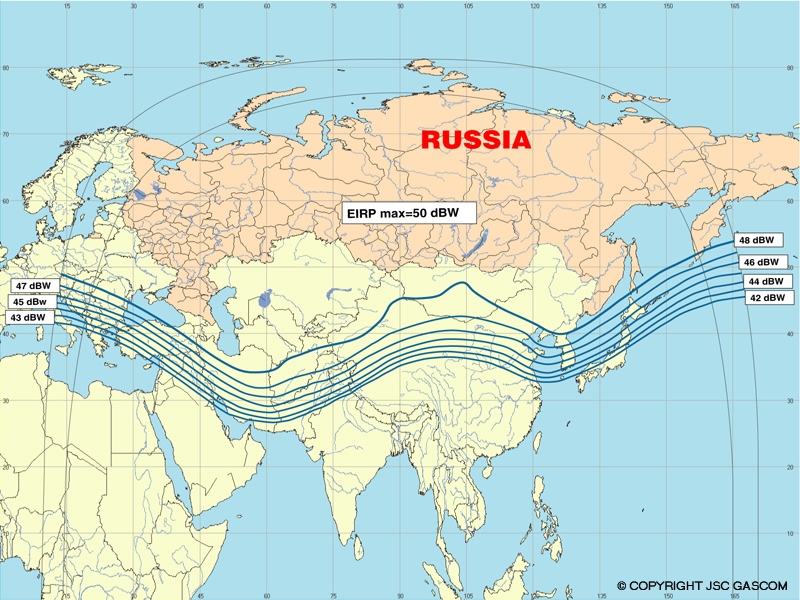

Yamal 201 at 90.0°E - KU 201 footprint : spectral analysis & measurement results

   Yamal 201 at 90.0°E - KU footprint : measurements taken in the town of Lučenec / Slovakia
                            geographical location : Latitude: 48.33° _   Longitude: 19.72°
                        measurement results are derived from the 3.7 m diameter antenna
                                               date of measurement : 31.7 2010
                                                       elevation angle : 4.3°

                     High frequency unit                                      measurement point

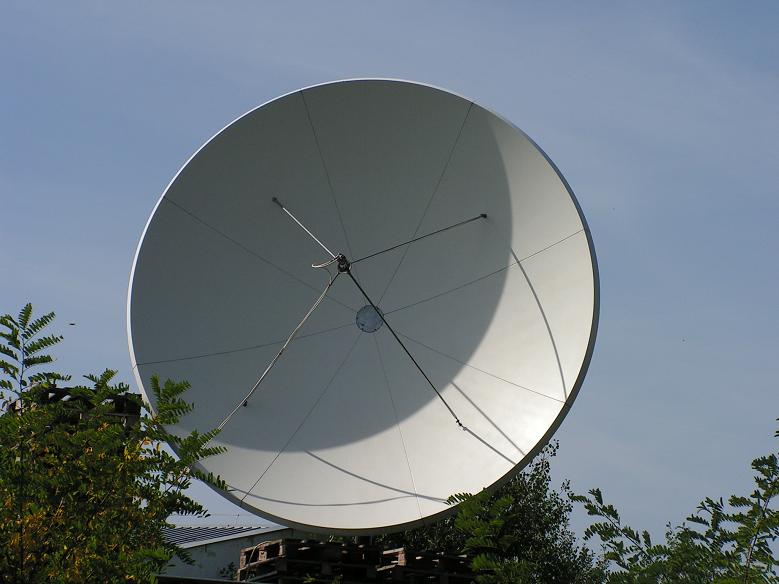

                               PF Prodelin 3.7 m                               all research and measurements
               dxsatcs waveguide line+Norsat 4206 CF                I carried out at this point

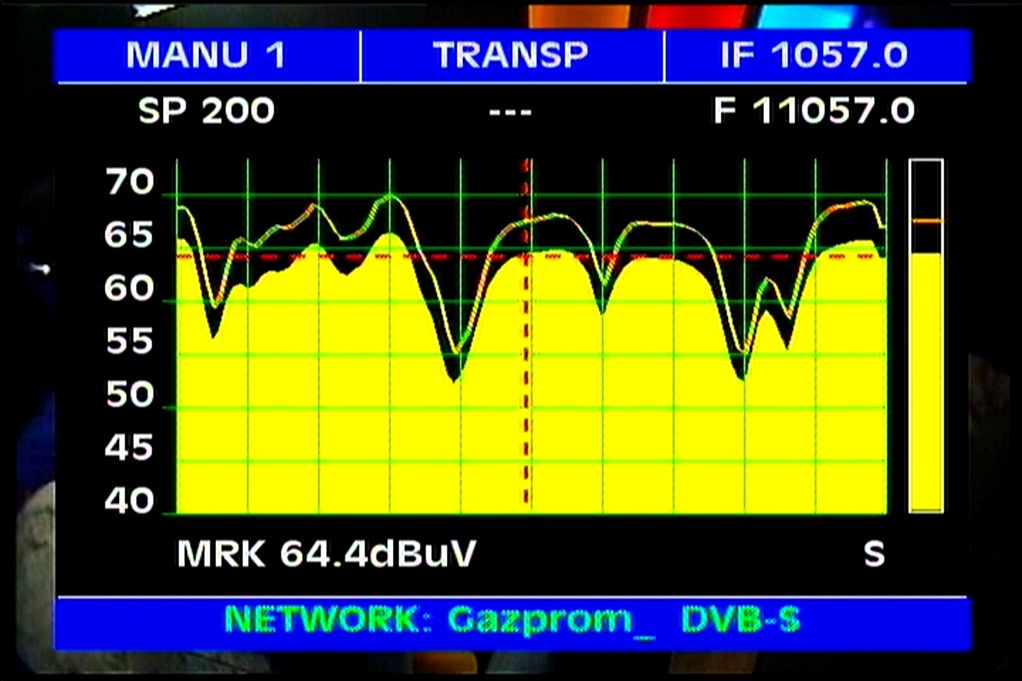

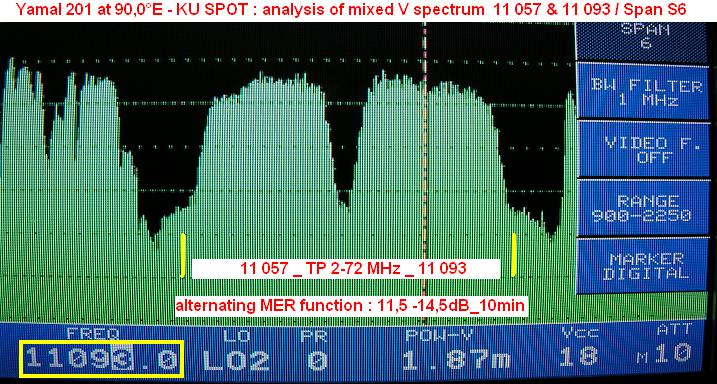

    Yamal 201:TP1 spectral analysis                Yamal 201 footprint KU           Yamal 201:TP2 spectral analysis
               10 950 > 10 995 V                           coverage area : Asia,ME,Europe              PEAK MEMORY : 64.4>67+ dBuV
          10 995 V : Yamal Region                                                                                 oscillation signal levels / period 60 sec

                                                                - time of measurement : 31.7 2010 -
                                                      - defining the status of reception -

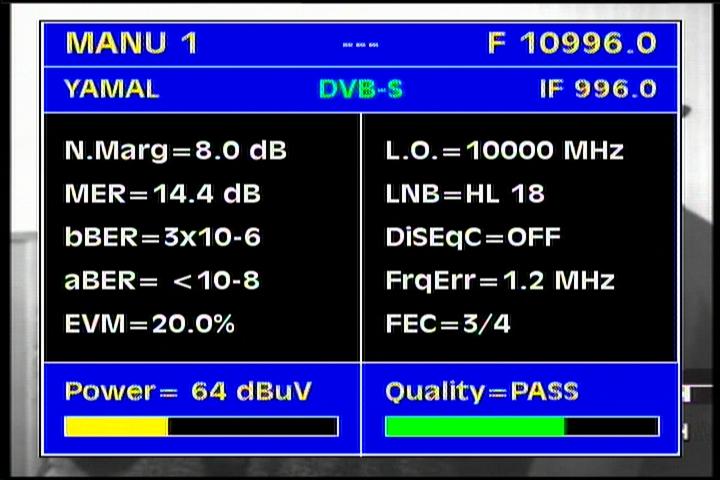

10 995 V_MERp=14.4 dB _ bBER=3x10-6 : although the peak amplitude of the quality of cyclically oscillates in the range
of MER=+/- 1 dB_60 sec , real margin of gain levels as high as 10 dB _ stable form of detection with high gain growth

--- Yamal 201 : measurement results ---

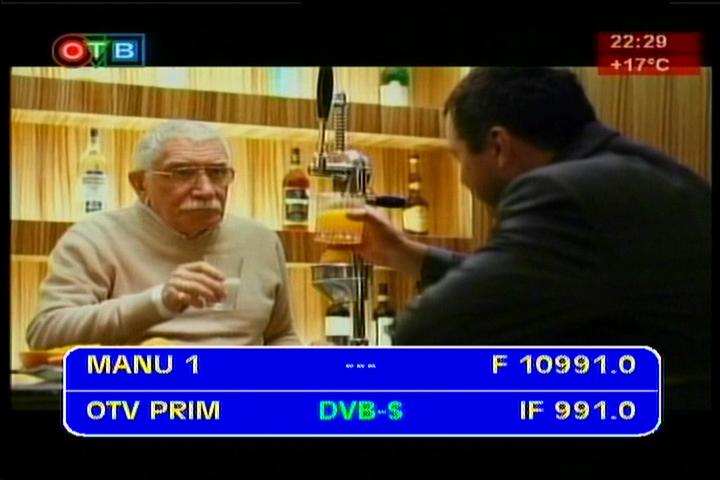

Yamal 201 at 90.0°E - KU 201 footprint : 10 990 V OTV Primorie
VA pids Q data NIT data

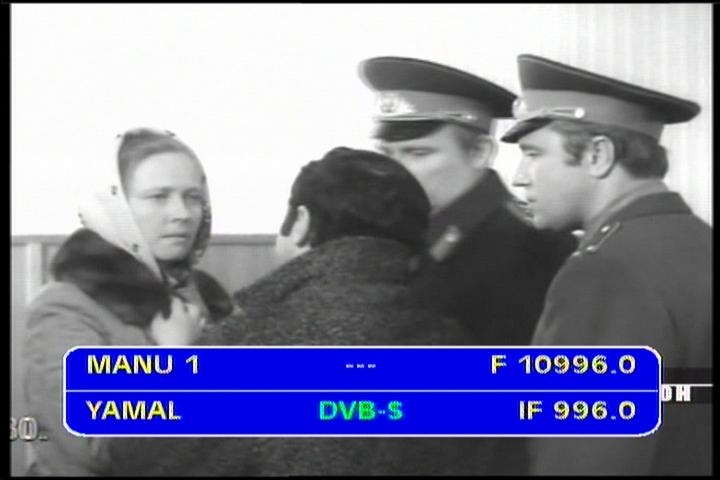

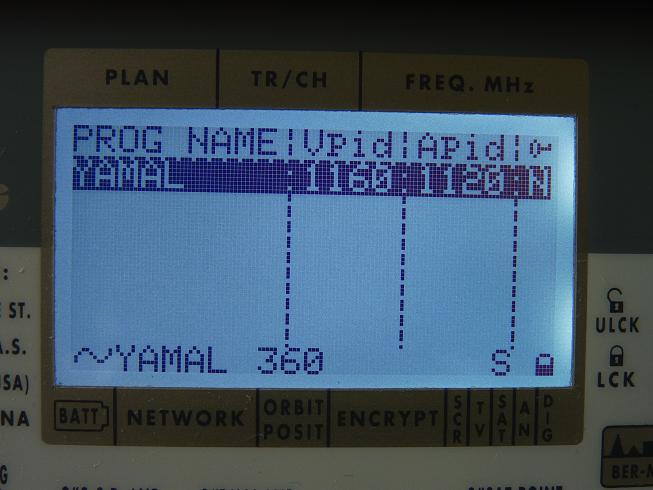

Yamal 201 at 90.0°E - KU 201 footprint : 10 995 V Yamal Region
VA pids Q data NIT data

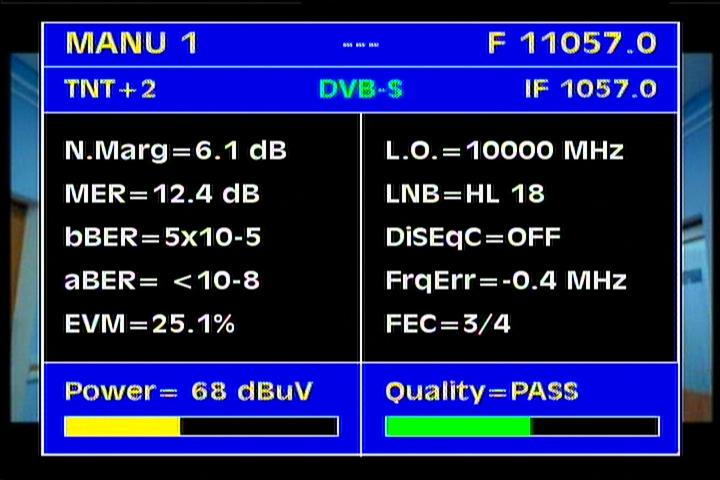

Yamal 201 at 90.0°E - KU 201 footprint : 11 057 V Packet GazProm
VA pids Q data NIT data

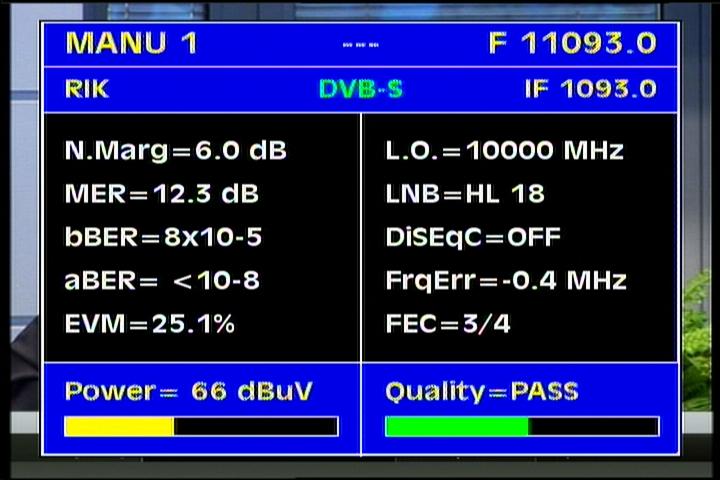

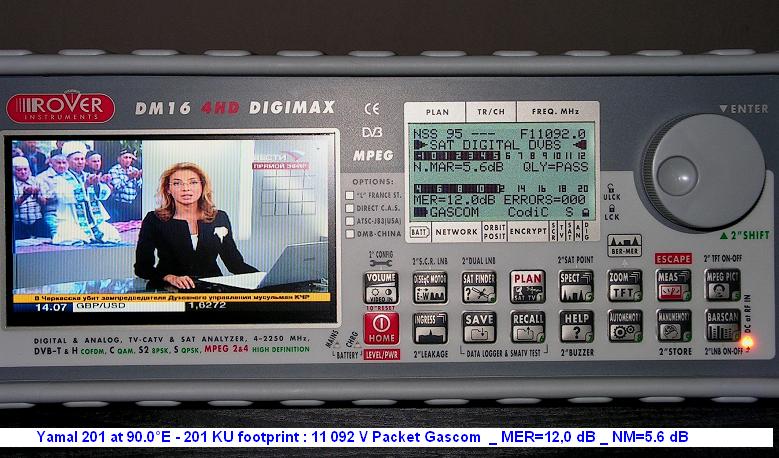

Yamal 201 at 90.0°E - KU 201 footprint : 11 093 V Packet Gascom
VA pids Q data NIT data

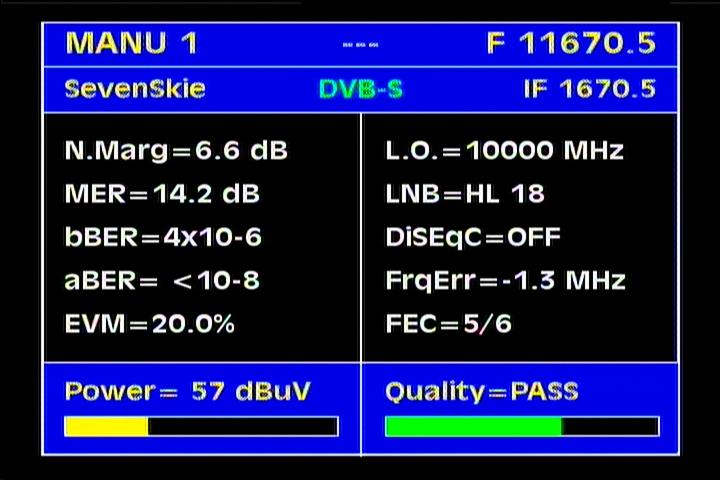

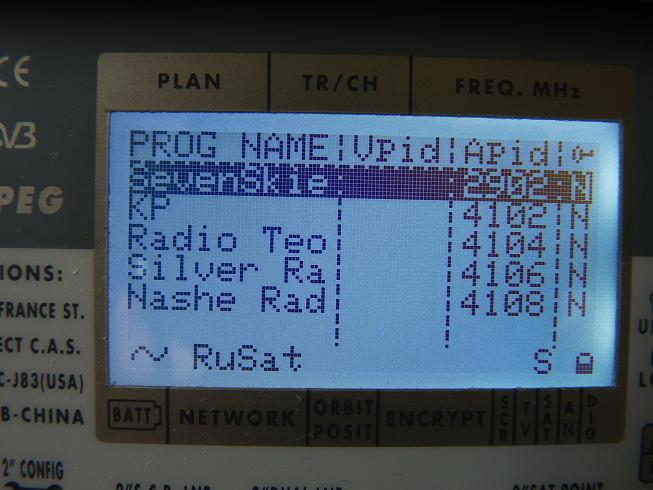

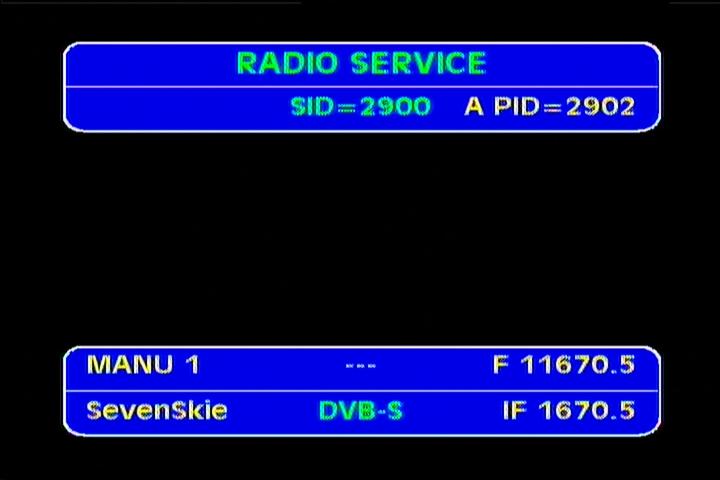

Yamal 201 at 90.0°E - KU 201 footprint : 11 670 V RuSat radio network
A pid Q data NIT data

Yamal 201 at 90.0°E : TV List

Yamal 201 at 90.0 e-KU footprint-PF Prodelin 3.7 m 02

-Frequency-	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---DVB/Encryption---
10 965 -V- tp 1	feeds Telekanal Sport _ EN 8040	1 024	3/4	201 KU	120-140+ cm	MPEG-4/FTA
10 990 -V- tp 1	OTV Primorie	2 170	3/4	201 KU	80-140+ cm	DVB FTA
10 995 -V- tp 1	Yamal Region	4 285	3/4	201 KU	80-140+ cm	DVB FTA
11 057 -V- tp 2	Gazprom Network	26 470	3/4	201 KU	140-180+ cm	DVB
	STS +7					Biss
	TNT +4					FTA
	TNT +2					FTA
	Znanie					FTA
	NTV +4					FTA
	NTV +2					FTA
	HOME +7					Biss
11 093 -V- tp 2	Gascom Network	26 470	3/4	201 KU	140-180+ cm	DVB
	Home +4					Biss
	CTC +4					Biss
	Football					Viaccess 2.6
	Sovsekretno					Viaccess 2.6
	Park Razvl					Viaccess 2.6
	REN TV +4					FTA
	REN TV +7					FTA
	Chanson					Viaccess 2.6
	RIK / Rossiya 24					FTA
	Bibigon					FTA
11 671 -V- tp 6	RuSat radio network	18 200	5/6	201 KU	120-140+ cm	DVB
	Seven Skies					FTA
	KP					FTA
	Teos					FTA
	Silver Rain					FTA
	Nashe Radio					FTA

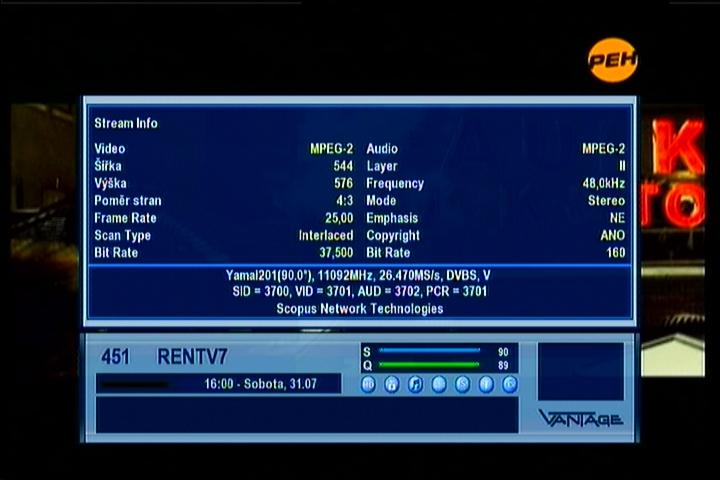

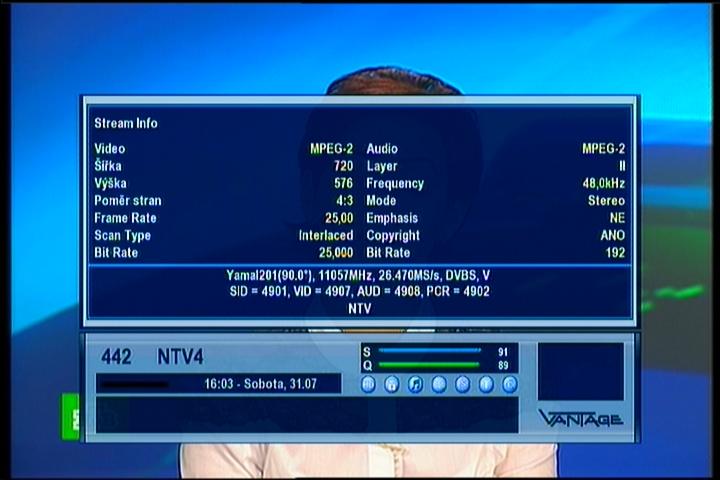

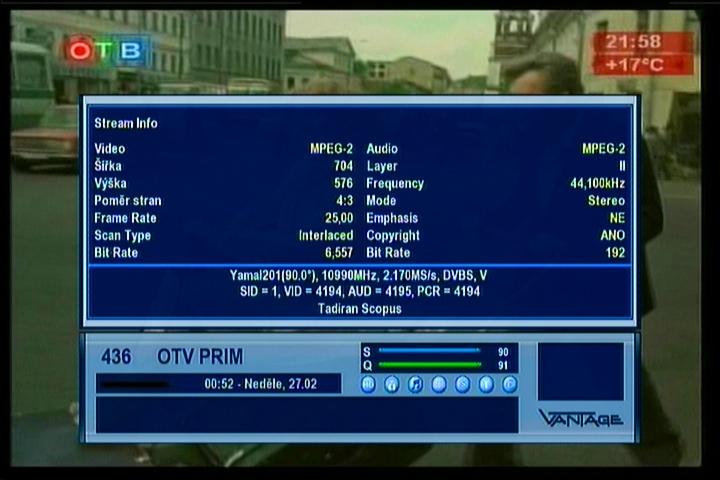

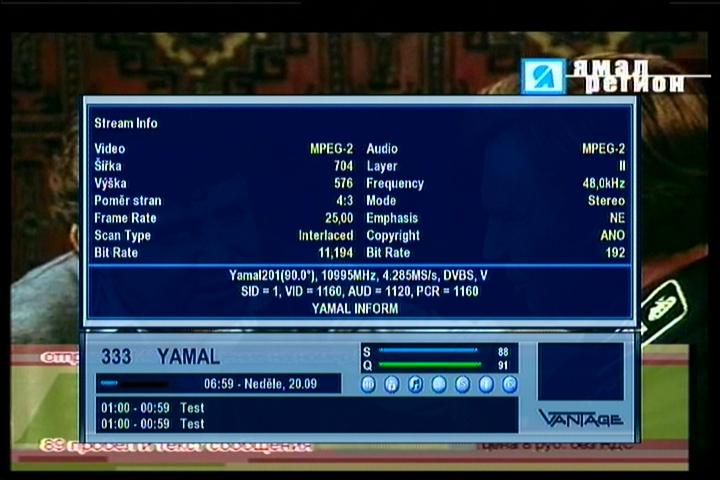

Yamal 201 at 90.0°E : relative Q & stream data

Yamal 201 at 90.0°E : Video presentations

Go to Video Section:           Go to Video Section :              Go to Video Section :

Yamal 201 at 90.0°E : Update prepared
