   Question from : Eugene

    Locality : Saint Petersburg Russia , Petrohrad - okolo 650 km severozápadne od Moskvy

     TEXT OTÁZKY :

    Hi !

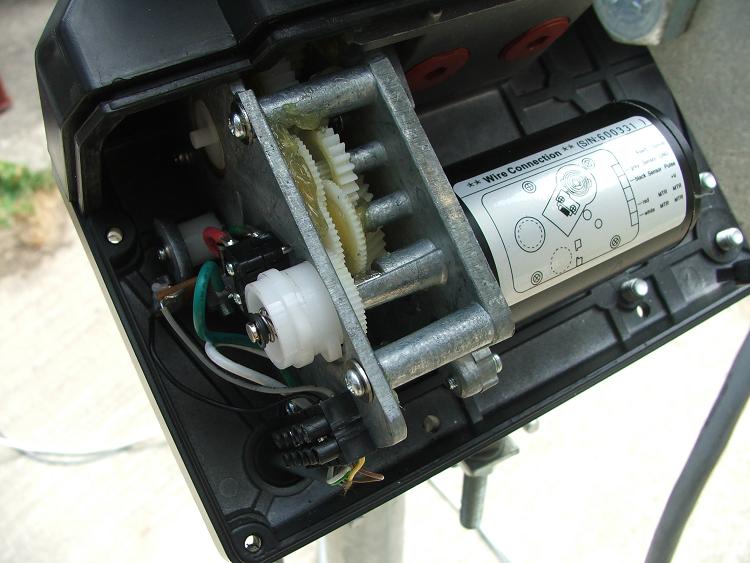

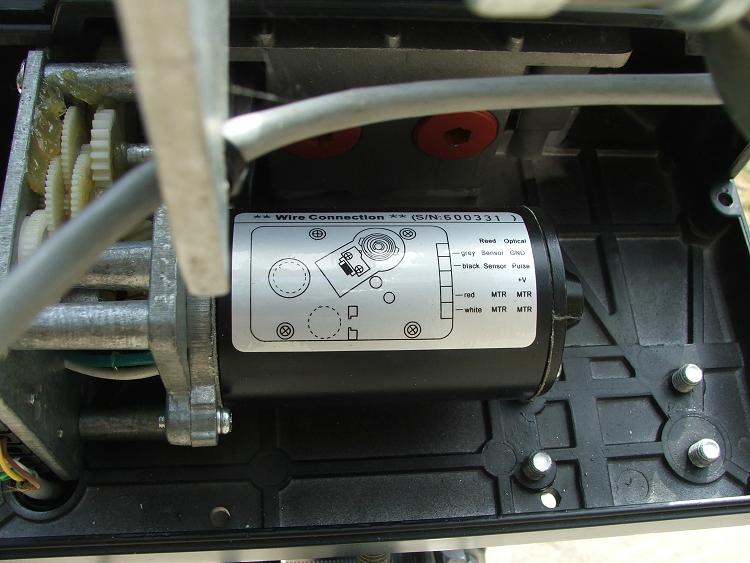

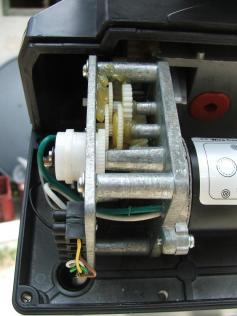

    Can i find photo(inside) or pdf with jaeger 1224 motor.I mean the inside photo with big gear and motor:)

    Thankee !

    Eugene St-Petersburg

Answer from dxsatcs.com :

    Hi Eugene ,

    This is elementary fact about HH MOTOR name JAEGER 1224 :

    The SMR-1224 horizon to horizon motor is suitable for dish sizes from 1.2m to 2.4m - maybe HIGHER depend on weight !!! . The pole (order separately) can be as small as 2" diameter for small dishes, and up to 3.5" diameter for large dishes. A threaded rod provides elevation adjustment. Weight: 15.5kg

    Same model with EL adjustment-JAEGER 1224 EL :

    The SMR-1224EL horizon to horizon motor incorporates a linear actuator (jack) for remote elevation adjustment. (If you have to ask what this is for, you don't need it!) Weight: 12.3kg
