Insat 3A/4B at 93.5°E-Asia-Europe wide beam : DD Doordarshan & spectrum analysis

Insat 4B at 93.5°E-Doordarshan India : footprint , measurement point , HF system ...

.
     Insat 4B at 93.5°E - wide SPOT : measurements taken in the town of Lučenec / central Slovakia
                                   a, geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                   b, measurement results are derived from the 3.7 m diameter antenna
                                   c, ground without obstacles in the horizon length to 1000 m
                                   d, date of measurement : 5.2.2011
                                   e, elevation angle : 2.0°
                                   d, weather conditions : clear skies with light winds
                                   e, air temperature : from 0  to  10 °C at 13.00 p.m.
                                   f, altitude : 185 m /asl
                                  g, installation period and aggregation measured data : from 7.00 to 13.00 p.m.

.
-practice verified signal coverage before and after the failure of the satellite during the summer of last year 2010 -

Except for one transponder ( packet SUN Network at f = 3885 H - curent quality > MER=16-19 dB ! )  technical anomaly
affecting all other transponders broadcaster Doordarshan, and till now that problem was not corrected as I will describe the
specific example.

Asia , Middle East , East & Central & parts of Southern Europe : before D=140-240+ cm and now D=180-300+ cm

Central Africa :  stable reception for the two Doordarshan packets at f=3 725 + 3 925 H is not possible with a diameter
antennas from 800 to 1000 cm .

.

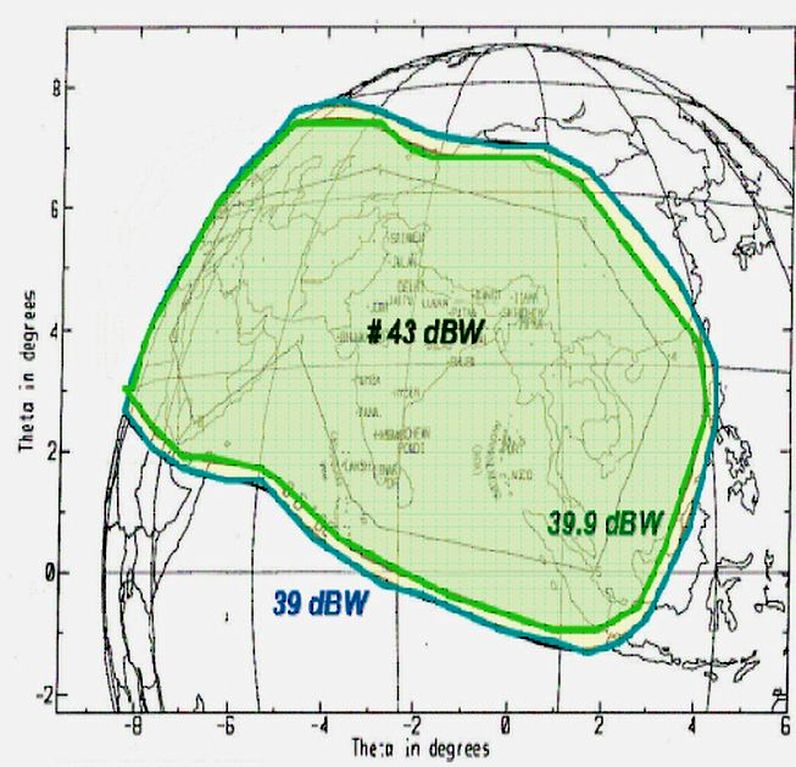

                 --- Insat 4B at 93.5°E-footprint : power levels are valid only until the beginning of a satellite failure ---
                                                            / Antrix corporation limited India /
     Insat 4B at 93.5 e-wide beam in C band-n
                                                                          click for enlarge

                                   --- Insat 4B at 93.5°E : HF system , geographical location of measurement ---
.
                  installed HF system                             theoretical footprint                               research point

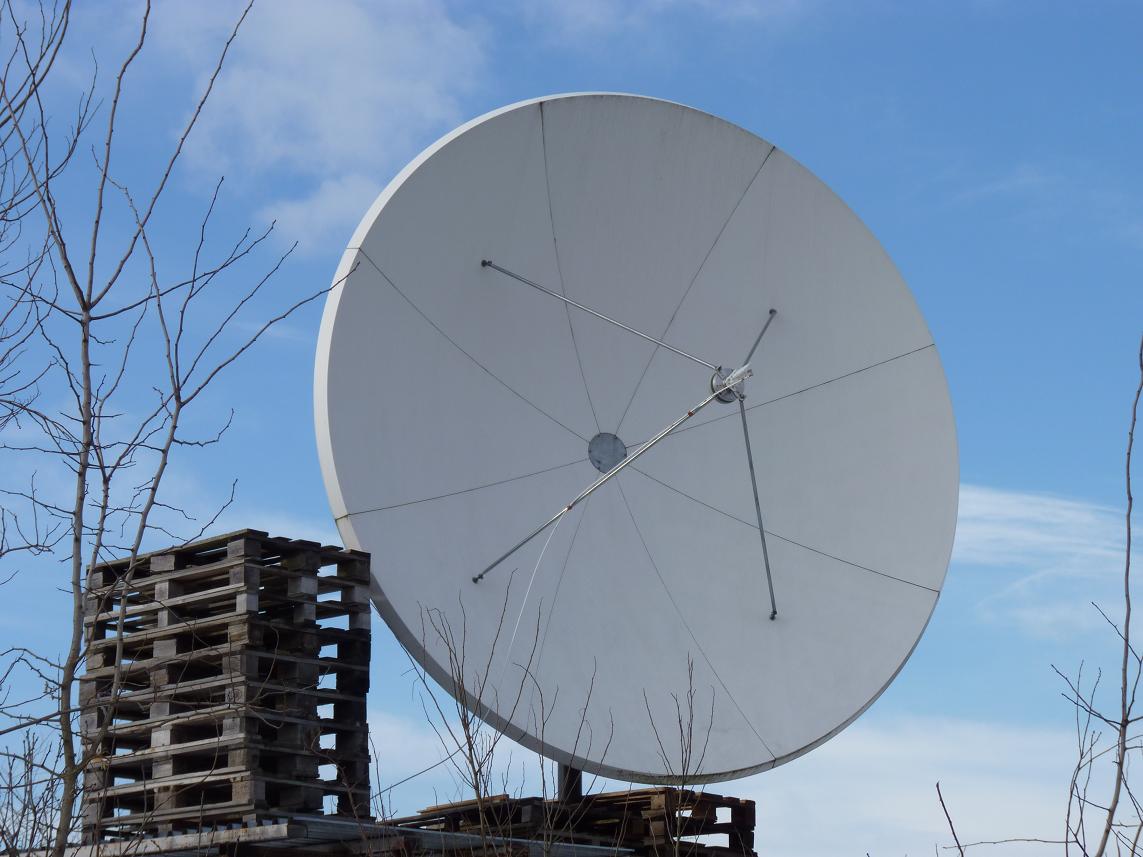

    a, PF Prodelin 3.7 m                                                                                                 a, state : Slovak republic / Europe
    b, LNB Norsat 8215                                                                                                  b, town : Lučenec
    d, cable lenght : 40 m                                                                                              c, geo. location : 48.33°_19.72°
Insat 4B at 93.5 e-wide beam-Doordarsham India-PF Prodelin 3.7mInsat 4B at 93.5 e-wide beam in C band-wInsat 3A-4B at 93.5 e-wide beam-DD Doordarshan India-reception point at lucenec slovakia
.

Insat 4B at 93.5°E-Doordarshan India : 3 725 H Packet Doordarshan & analysis of the spectrum

.

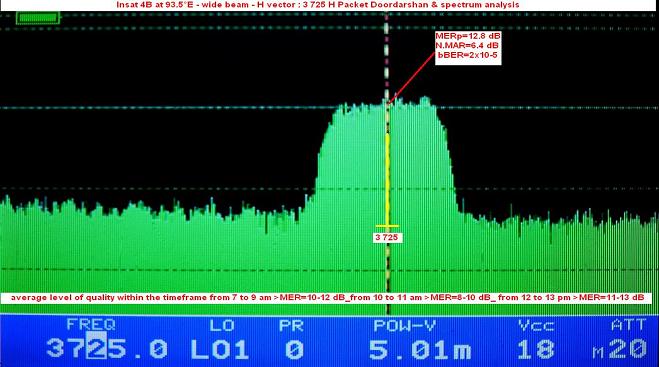

                           --- Insat 4B at 93.5°E : 3 725 H Doordarshan & spectrum analysis No.1 ---
                                                                     click for enlarge
   Insat 4B at 93.5 e-wide beam-Doordarshan India-spectral analysis 01-n
                                --- Doordarshan network & quality status of reception : 4.2.2011 ---

- during the six hour interval measurements I identified the three qualitative phase, associated with the persistent
failure of the satellite.Average level of quality within the timeframe from 7 to 9 am >MER=10-12 dB_from 10 to 11 am
>MER=8-10 dB_ from 12 to 13 pm >MER=11-13 dB .

                               --- Doordarshan network & quality status of reception : 2.10.2010 ---

3 725 H : Cyclically changing amplitude of quality ranging from 10.5 to 12.5 dB with a three-hour peak in quality to
the level of MER=14 dB,with full detection stability.Twenty-minute time frame defined cyclically recurring changes from
peak-high/MER=12.5 dB to peak-low/MER=10.5 dB.After the inclusion of HD transmission of the packet I have not
identified even once the ideal status of quality at bBER<10-6 and level of quality measurements in place fell on average
by 2 dB.In the last analysis that I have performed on 24.7.2010,the time frame of twenty minutes, often occurring
situation that lasted several minutes during which the error rate bBER did not fall below the bBER = <10-6.
In contrast with the second packet from the network DD Doordarshan at f=3 925 H I also currently identified
several ideal status of quality in bBER = <10-6 _ MERp=16.5 dB .

                               --- Doordarshan network & quality status of reception : 27.7.2010 ---

3 725 H : constantly alternating gain margin in a wide range of amplitudes from 5 dB_MER=10 dB
to 13 dB_MER=18+ dB.In the field of measurement and analysis of the quality is regularly repeated qualitative state
of absolute zero error rate BER before Viterbi decoder  >>> MER=15 + dB direct link to bBER=0 .

.

3 925 H Packet Doordarshan & interruptions in transponder operation in live video preview

.
 --- Insat 4B at 93.5°E : 3 925 H Doordarshan India & failure in TP operation in LIVE video preview ---

               ---  3 925 H Doordarshan India & 3 885 H SUN Network Chennai India ---


.

Insat 4B at 93.5°E-Doordarshan India : 3 763 > 3 842 MHz & analysis of the spectrum

.

-- Insat 4B at 93.5°E : 3 763 > 3 842 H local transmissions from diffrent regions of India & spectrum analysis No.2 ---

   3 763 H-DD Raipur-central India , 3 768 H-DD Ranchi-east India , 3 797 H-DD Manipur-East India ,
   3 815 H-DDK Nagpur-central India , 3 833 H-DD Bihar-ne India , 3 842 H-DD Guwahati-East India


                                                                          click for enlarge
  Insat 4B at 93.5 e-wide beam-Doordarshan India-spectral analysis 02-n

 --- 3 763 > 3 842 H local transmissions from diffrent regions of India & quality status of reception : 4.2.2011 ---

every day, within a time span of 10:00 to 12:00 am, I identified in the spectrum from 3 763 to 3842 MHz local transmission
of many different Indian regions with highly variable quality of reception in the range from MER=8 to MER=14 dB .
.

Insat 4B at 93.5°E-Doordarshan India : live recordings from the analysis and the carrier lock

.
      --- Insat 4B at 93.5°E : 3 725 H Doordarshan India & spectrum analysis and carrier lock ---

.

     --- Insat 4B at 93.5°E : 3 842 H DD North East India & spectrum analysis and carrier lock ---

3 763 H-DD Raipur-central India , 3 768 H-DD Ranchi-east India , 3 797 H-DD Manipur-East India ,
3 815 H-DDK Nagpur-central India , 3 833 H-DD Bihar-ne India , 3 842 H-DD Guwahati-East India


                                                    CZECH & SLOVAK DX SATELLITE CLUB

international professional portal
                                                                           Think-Tank
                                                          Roman Dávid - author & founder
                                                          mail :
roman.david@dxsatcs.com

.

Insat 3A at 93.5°E-DD Doordarshan India : footprint , measurement point , HF system ...

.
     Insat 3A at 93.5°E - wide SPOT : measurements taken in the town of Lučenec / central Slovakia
                                   a, geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                   b, measurement results are derived from the 3.7 m diameter antenna
                                   c, ground without obstacles in the horizon length to 1000 m
                                   d, date of measurement : 4.2.2011
                                   e, elevation angle : 2.0°
                                   d, weather conditions : clear skies with light winds
                                   e, air temperature : from +8  to  0 °C at 20.00 in the evening
                                   f, altitude : 185 m /asl
                                  g, installation period and aggregation measured data : from 15.00 to 20.00 p.m.

.
                                                                 practice verified signal coverage :

Asia , Middle East , East & Central & parts of Southern Europe >>> D=180-300+ cm

North and Central Africa : 600-1000+ cm

North and Central Africa : Results of measurements of my colleagues in Central Africa have confirmed
that beyond a defined territory (territory defined by yellow) signal quality decreases very quickly with distance already
tens of kilometers, which is not a common phenomenon in reception in C band.And particularly in the area of equatorial
Africa is the antenna diameter from 800 to 1000 cm practically possible only unstable reception of some Indian packets
that are transmitted through the transponder TP 2+3 with low and oscilllating gain levels.

.

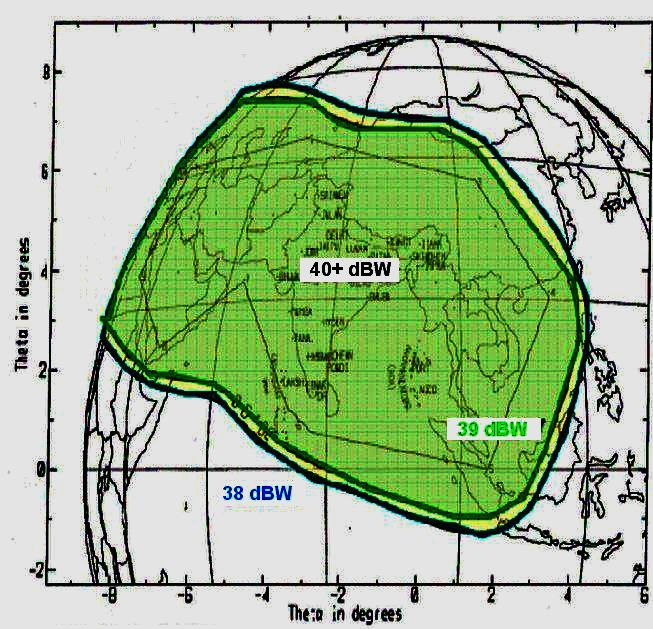

     --- Insat 3A at 93.5°E-footprint : This diagram defines exactly practical signal coverage in the Asia-European scale ---
                                                            / Antrix corporation limited India /
  Insat 3A at 93.5 e-wide beam in C band-n
                                                                              click for enlarge

                                   --- Insat 3A at 93.5°E : HF system , geographical location of measurement ---
.
                  installed HF system                             theoretical footprint                               research point

    a, PF Prodelin 3.7 m                                                                                                 a, state : Slovak republic / Europe
    b, LNB Norsat 8215                                                                                                  b, town : Lučenec
    d, cable lenght : 40 m                                                                                              c, geo. location : 48.33°_19.72°
Insat 3A-4B at 93.5 e-wide beam-DD Doordarsham India-PF Prodelin 3.7mInsat 3A at 93.5 e-wide beam in C bandInsat 3A-4B at 93.5 e-wide beam-DD Doordarshan India-reception point at lucenec slovakia
.

Insat 3A at 93.5°E-DD Doordarshan India : analysis of the spectrum from 3 732 to 3 831 MHz_V

.

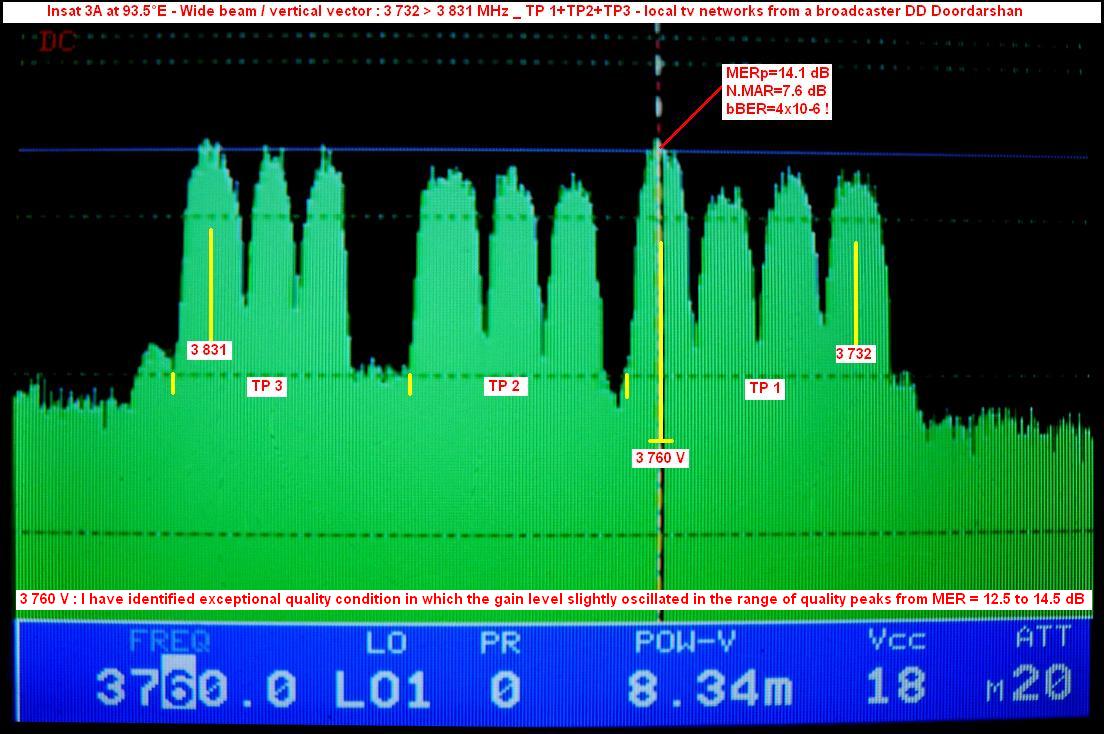

                         --- Insat 3A at 93.5°E - DD Doordarshan : 3 732 > 3 831 V - spectrum analysis No.1 ---
                                                                                  click for enlarge
          Insat 3A at 93.5 e-wide beam-DD Doordarshan India-spectral analysis 01-n

                                      --- DD Doordarshan network & quality status of reception : 4.2.2011 ---

I have identified exceptional quality condition in which the gain level slightly oscillated in the range of quality peaks
from MER = 12.5 to 14.5 dB /in time span of 20 minutes/ which is the net gain margin of almost 10 dB at almost zero Ch BER !
Compared with recent measurements that I made in July 2010, I identified an average of about MER=2 dB higher gain level
for each carrier in the range of TP 1+2+3 .

                                    --- DD Doordarshan network & quality status of reception : 24.7.2010 ---

- average quality level for each carrier is non-cyclically varied in the range from 10.5 dB to 12+ dB,which belongs to
the category of quasi error-free detections with a fair gain margin from 6 to 7 dB _ bBER=<10-3 - typically from
2 to 8x10-4 /valid for the period of 20 minutes /
.

Insat 3A at 93.5°E-DD Doordarshan India : analysis of the spectrum from 3 890 to 4 150 MHz_V

.

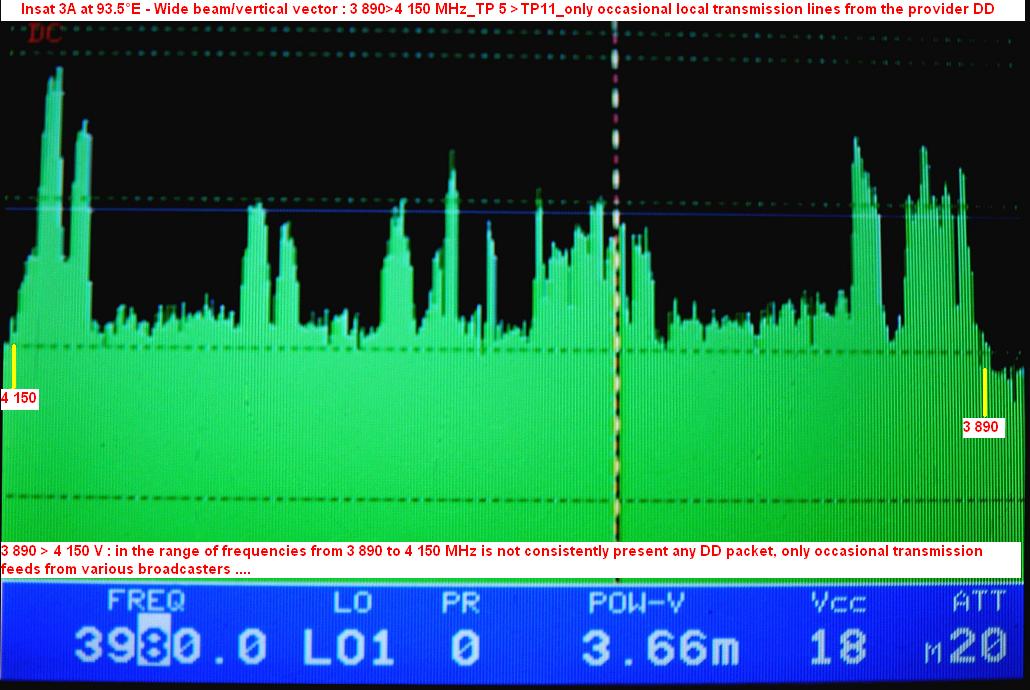

                    --- Insat 3A at 93.5°E - DD Doordarshan : 3 890 > 4 150 V - spectrum analysis No.2 ---
                                                                             click for enlarge
   Insat 3A at 93.5 e-wide beam-DD Doordarshan India-spectral analysis 02-n

                                          --- DD Doordarshan network & spectrum status : 4.2.2011 ---

- in the range of frequencies from 3 890 to 4 150 MHz-V is not consistently present any DD packet, only occasional
transmission feeds from various broadcasters ....
.

Insat 3A at 93.5°E-DD Doordarshan India : live recordings from the analysis and the carrier lock

.
  --- Insat 3A at 93.5°E - DD Doordarshan : Live recordings from the analysis and the carrier lock ---

          3 733 V - DD Bangla + Kolkata feed  >>> 3 760 V DD Chandana + DD Belore News
  3 782 V - DD Kashir Srin + DD News feed >>>  3 821 V DDK Hyderabad News feed + DD Saptagiri

.
 --- Insat 3A at 93.5°E - DD Doordarshan : Live recordings from the analysis and the carrier lock ---

         3 733 V - DD Bangla + Kolkata feed  >>> 3 760 V DD Chandana + DD Belore News
3 782 V - DD Kashir Srin + DD News feed >>>  3 821 V DDK Hyderabad News feed + DD Saptagiri
