NSS 6 at 95.0°E-Indian subcontinent SPOT : Dish TV DTH & spectrum analysis

NSS 6 at 95.0°E-Dish TV DTH : footprint , measurement point , HF system ...

.
     NSS 6 at 95.0°E - Indian subcontinent SPOT : measurements taken in the town of Lučenec / central Slovakia
                                   a, geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                   b, measurement results are derived from the 3.7 m diameter antenna
                                   c, ground without obstacles in the horizon length to 1000 m
                                   d, date of measurement : 11.12.2010
                                   e, elevation angle : 1.0°
                                   d, weather conditions : clear skies with light winds
                                   e, air temperature : from - 2  to  -5 °C at midnight
                                   f, altitude : 185 m /asl
                                  g, installation period and aggregation measured data : from 16.00 to 24.00

.
                                                     --- NSS 6 at 95.0°E-footprint : Indian subcontinent ---

                                                              practice verified signal coverage :

Middle East , East Europe , Central Europe , South Europe >>> D=180-500+ cm

Some areas in North and Central Africa : min. 450-700+ cm >  possible spectral identification carriers at the bottom
and the top of the KU band but only with the unstable level of gain margin in the range of MER=1 to 2 dB in parts of
the spectrum from 10 950 to 11 200 MHz in the horizontal polarization,mainly in the evening.

Signal status in European and African areas : prevailing local reception disparity in quality in terms of choice of the TP

                  NSS 6 at 95.0 e_Indian subcontinent SPOT-ku band
                                                                           click for enlarge

                                  --- NSS 6 at 95.0°E : HF system , geographical location of measurement ---
.

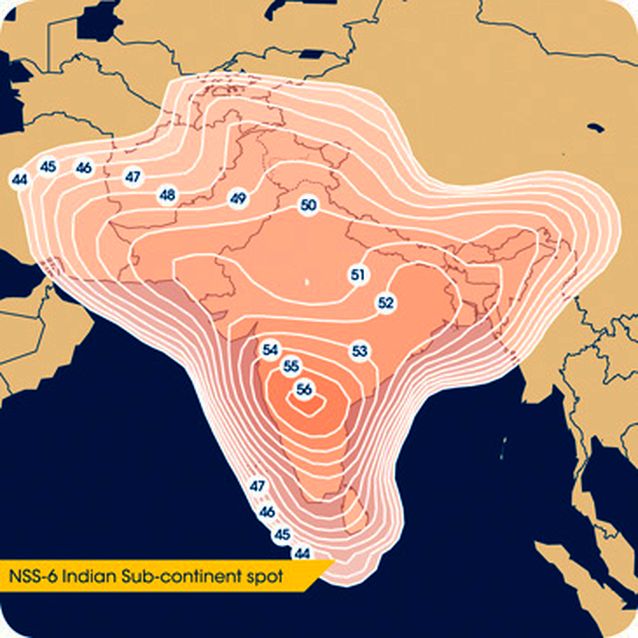

                  installed HF system                             theoretical footprint                               research point

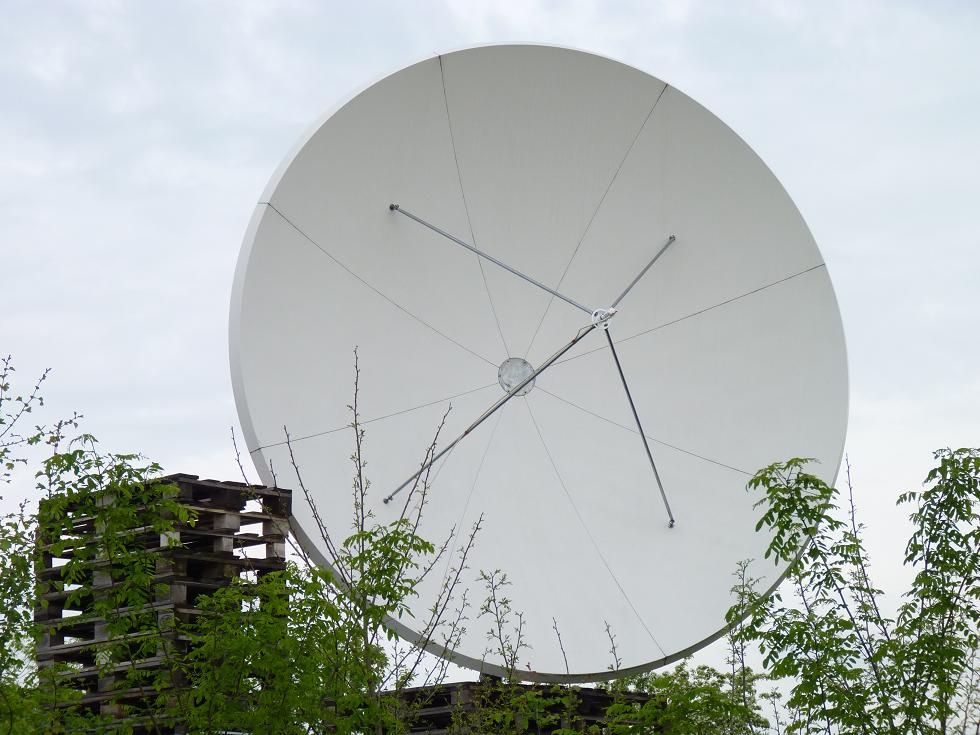

    a, PF Prodelin 3.7 m                                                                                                 a, state : Slovak republic / Europe
    b, dxsatcs waveguide line                                                                                        b, town : Lučenec
    c, UNI LNB : NF=0.4-0.6 dB                                                                                       c, altitude : 185 m / asl
    d, cable lenght : 40 m                                                                                              d, geo. location : 48.33°_19.72°
NSS 6 at 95.0 e_Indian subcontinent SPOT-ku band_packet Dish TV_PF Prodelin 3.7 mNSS 6 at 95.0 e_Indian subcontinent SPOT-ku bandNSS 6 at 95.0 e_Indian subcontinent SPOT-ku band_packet Dish TV_reception point at lucenec slovakia
.

NSS 6 at 95.0°E-Dish TV DTH : analysis of the spectrum from 12 500 to 12 750 MHz_V

.

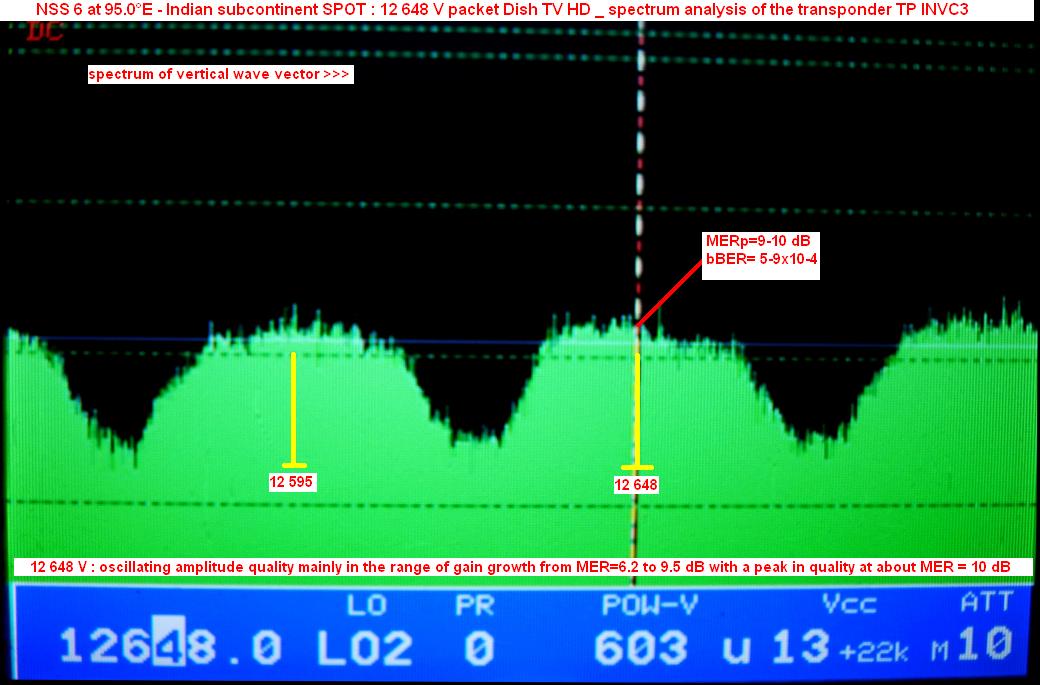

                                                  --- 12 648 V Packet Dish TV India : spectral analysis ---
                                                                               click for enlarge
NSS 6 at 95.0 e_Indian subcontinent SPOT-ku band-packet Dish TV-spectral analysis V-n

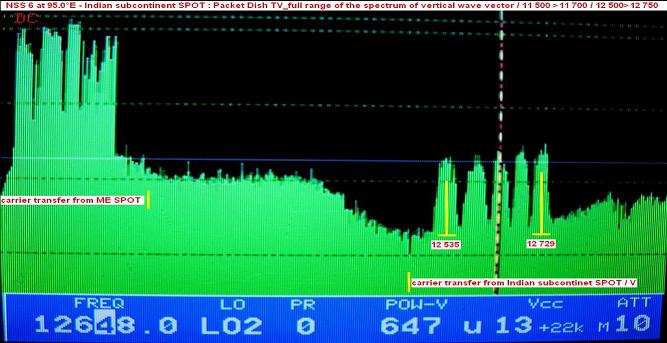

                     --- full range of the spectrum of vertical wave vector / 10 950>11 700 / 12 500>12 750 ---
                                                                           click for enlarge
      NSS 6 at 95.0 e_Indian subcontinent SPOT-ku band-packet Dish TV-spectral analysis V full-n
signal status : oscillating amplitude quality mainly in the range of gain growth from MER=6.2 to 9.5 dB with a peak in
quality at about MER = 10 dB


NSS 6 at 95.0°E-Dish TV DTH : analysis of the spectrum from 12 500 to 12 750 MHz_H


                                                  --- 12 596 H Packet Dish TV India : spectral analysis ---
                                                                             click for enlarge
      NSS 6 at 95.0 e_Indian subcontinent SPOT-ku band-packet Dish TV-spectral analysis H-n

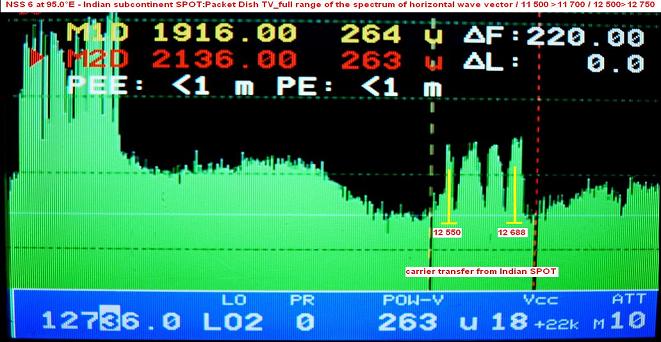

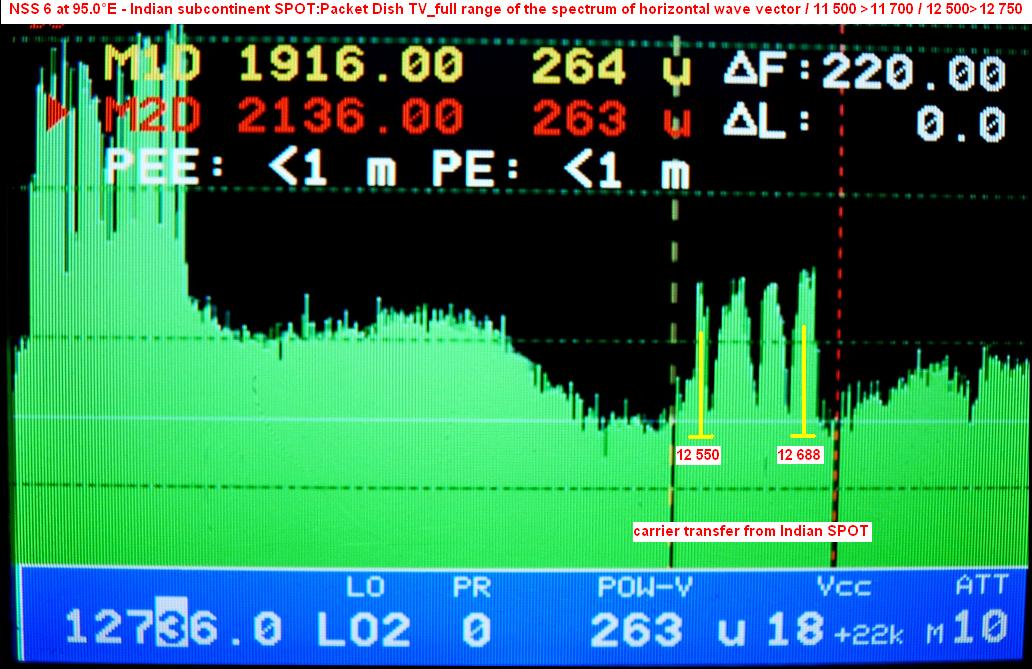

                  --- full range of the spectrum of horizontal wave vector / 11 500 >11 700 / 12 500>12 750  ---
                                                                           click for enlarge
   NSS 6 at 95.0 e_Indian subcontinent SPOT-ku band-packet Dish TV-spectral analysis H full-n
signal status : oscillating amplitude quality mainly in the range of gain growth from MER=6.2 to 9.5 dB with a peak in
quality at about MER = 10 dB

NSS 6 at 95.0°E-Dish TV DTH : analysis of the spectrum from 10 950 to 11 200 MHz_H

                         --- 11 037 H + 11 172 H : Packet Dish TV ___  11 090 H : CGN TV South Korea  ---
                                                                   click for enlarge
      NSS 6 at 95.0 e_Indian subcontinent SPOT-ku band-packet Dish TV-spectral analysis H low-n
11 037 H + 11 172 H : occasional and non-cyclical recurring carrier lock without constantly present gain levels
I identified only once over a period of 30 minutes
.

NSS 6 at 95.0°E-packet Dish TV DTH : author's research activities in the field of wave physics

.
After more than five years of research work in the reception wave of NSS 6 with the elevation angle of only one degree
above zero, which falls into the category of wave physics, I come to a result which completely deny my initial conclusions
on the direct relationship between the size of the elevation angle and the presence of continuously oscillating signal
levels in a wide amplitude range, which I was associated with the reflector antenna noise temperature and noise
temperature of the earth etc. My calculations would confirm the high quality factor antenna, which I derived from the
ratio of G / T, that is based on a theoretical perspective should be final quality of earnings during an elevation angle
of only one degree less significantly degraded as I identified in measurements in recent years research activities.

So I am not able to put into action a high quality factor antenna derived from the ratio of G / T, which is in this type
of antenna with nearly ideal ratio f / D (0.37 vs 0.4) significantly less degraded antenna noise temperature factor.
A turning point in my research activities took place six months ago when I understood the direct relationship between
the position sensors waves in waveguides and permanent oscillation, which significantly degraded the quality of
reception from the orbital position 95° E.

Then I understood and applied this change in the waveguide,permanent oscillation of all transponders in India and
the Middle East footprint reduced by 75%, as evidenced by the quality of video records of reception for different
transponders from India footprint.Periods with stable detection of the carrier in the Indian spot was significantly
prolonged and specifically in the HD transponder at f = 12 647 V I have identified a stretch of 45 minutes without
pixelation and downtime .
.

NSS 6 at 95.0°E-packet Dish TV DTH : live recordings from the analysis and the carrier lock

.
                                 --- Dish TV : live recordings from the analysis and the carrier lock ---

                      --- 1, spectrum of horizontal wave vector in the range of 12 500 to 12 750 MHz ---

                           --- 2, spectrum of vertical wave vector in the range of 12 500 to 12 750 MHz ---
