Insat 4B at 93.5°E packet SUN Direct DTH analysis

Packet SUN Direct DTH service India : packet is broadcast on two satellites

.
              BROADCAST HD / MPEG-4                                       BROADCAST SD / MPEG-4
            satellite : Measat 3 at 91.5°E                                    satellite : Insat 4B at 93.5°E
         theoretical footprint : South Asia                            theoretical footprint : Indian subcont.

.

Measat 3 at 91.5°-South Asian beam-SUN Direct HD: high f. unit,footprint,measuring point

.

Measat 3 at 91.5°E - South Asian footprint : measurements taken in the town of Lučenec / central Slovakia
                                     geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                                          date of measurement : 8.5.2010
                                                                     elevation angle : 3.3°

.

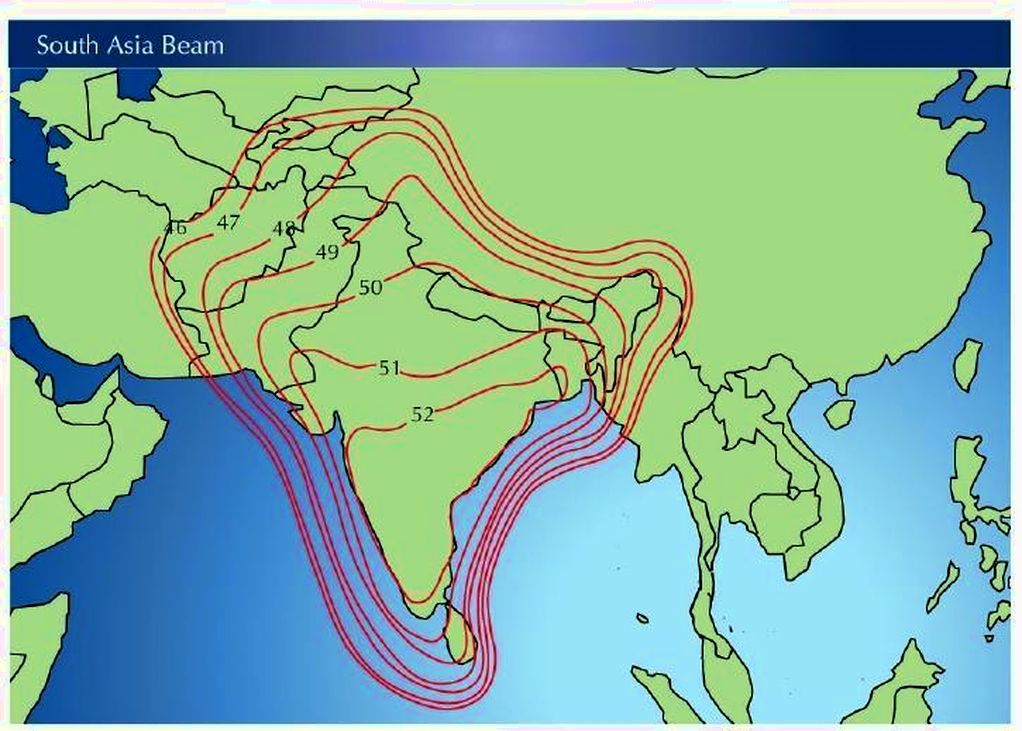

                                                      Measat 3 at 91.5° : theoretically defined footprint
    Measat 3 at 91.5 e_south asian footprint in ku band_n
.
             High Frequency Unit                                 theoretical footprint                               point measurements

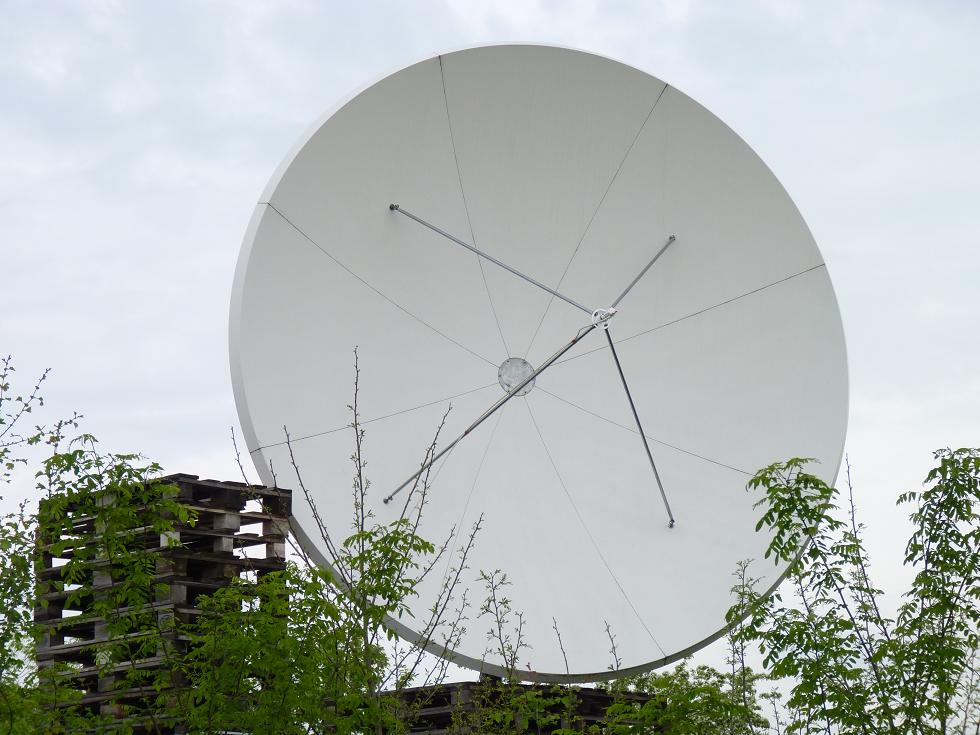

              PF Prodelin 3.7 m                                      coverage area                           all research and measurements
dxsatcs waveguide line+Norsat 4206 CF_Asia , Middle East , Africa , Europe               I carried out at this point
Measat 3 at 91.5 e_south asian footprint in ku band_sun direct_PF Prodelin 3.7 mMeasat 3 at 91.5 e_south asian footprint in ku bandMeasat 3 at 91.5 e_south asian footprint in ku band_sun direct_reception point at lucenec slovakia

.

Measat 3 at 91.5° - South Asian footprint - SUN Direct HD : LIVE spectral analysis

.
                        analysis of the horizontal wave vector in the range of frequencies : 12 603 >  12 723 MHz
                             identified carrier in the H spectrum nr.1 : 12 603 MHz MPEG-4 SUN Direct HD India
                             identified carrier in the H spectrum nr.2 : 12 683 MHz MPEG-4 Big TV India
                             identified carrier in the H spectrum nr.3 : 12 723 MHz MPEG-4 Big TV India

.
                                      SPAN 6                                                                            SPAN 7

.
                                                         - relative quality of the reception point -
.

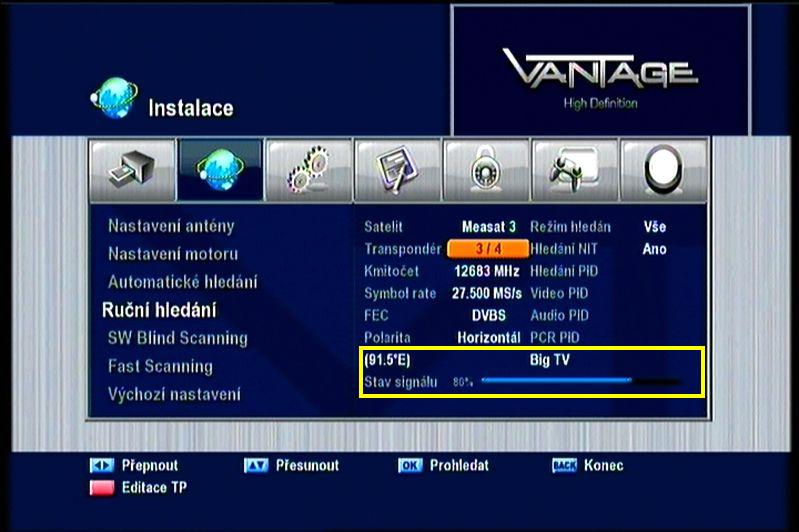

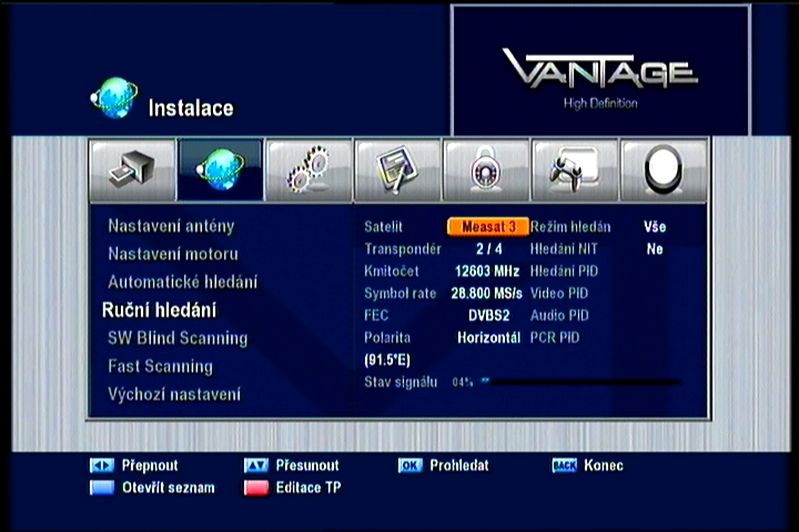

         12 603 H : SUN Direct HD                            12 683 H : Big TV                                   12 723 H : Big TV
Measat 3 at 91.5 e_south asian footprint in ku band_12 603 H SUN Direct HD_signal statusMeasat 3 at 91.5 e_south asian footprint in ku band_12 683 H Packet Big TV_signal statusMeasat 3 at 91.5 e_south asian footprint in ku band_12 723 H Packet Big TV_signal status

.

Measat 3 at 91.5° - South Asian footprint - SUN Direct HD : defining the status of reception

.

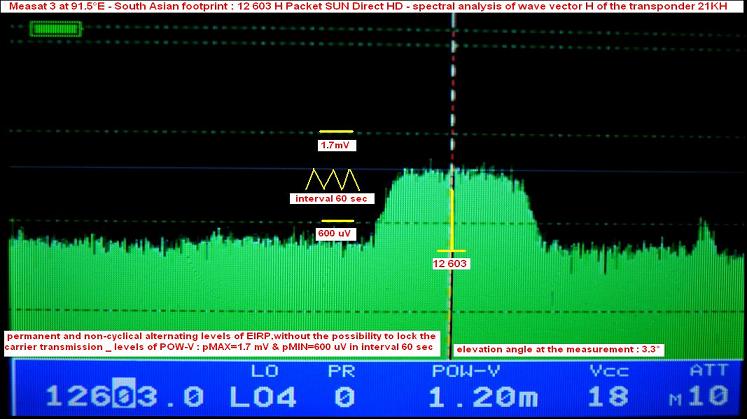

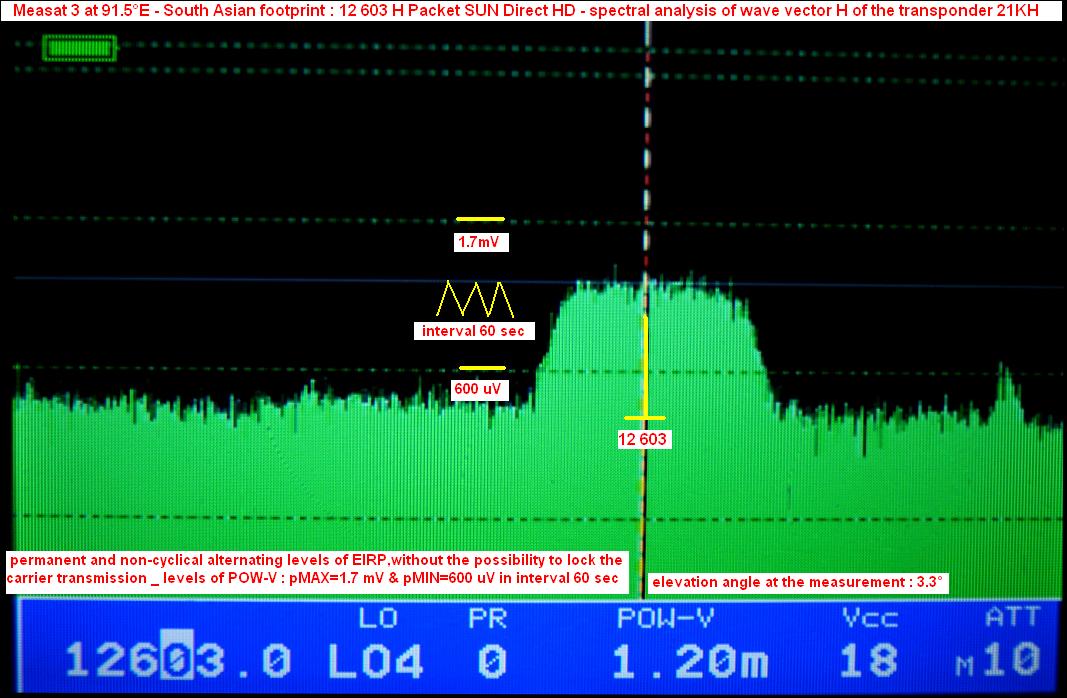

                                            12 603 H : Packet SUN Direct HD / spectral analysis
Measat 3 at 91.5 e_south asian footprint in ku band_12 603 H SUN Direct HD_spectral analysis n

.
.
                                                                           BROADCAST SD / MPEG-4

satellite : Insat 4B at 93.5°E

.

Insat 4B at 93.5° E-Indian footprint-SUN Direct SD: high f. unit,footprint,measuring point

.
  Insat 4B at 93.5°E - Indian footprint : measurements taken in the town of Lučenec / central Slovakia
                                     geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                                          date of measurement : 22.5.2010
                                                                     elevation angle : 2.0°

.
                                             Insat 4B at 93.5°E : theoretically defined footprint
    Insat 4B at 93.5 E_indian footprint_source antrix india_n
.
               High Frequency Unit                                 theoretical footprint                               point measurements

                 PF Prodelin 3.7 m                                      coverage area                           all research and measurements
 dxsatcs waveguide line+Norsat 4206 CF_Asia , Middle East , Africa , Europe             I carried out at this point
Insat 4B at 93.5 e_Indian footprint_sun direct_PF Prodelin 3.7 mInsat 4B at 93.5 E_indian footprint_source antrix indiaInsat 4B at 93.5 e_indian footprint_sun direct_reception point at lucenec slovakia

.

Insat 4B at 93.5° E-Indian footprint-SUN Direct SD: LIVE spectral analysis

.
                   analysis of the vertical wave vector in the range of frequencies : 10 950 > 11 200 MHz
                             identified carrier in the V spectrum nr.1 : 10 990 V DD Direct + India
                             identified carrier in the V spectrum nr.2 : 11 030 V SUN Direct DTH Service India
                             identified carrier in the V spectrum nr.3 : 11 070 V DD Direct+ India
                             identified carrier in the V spectrum nr.4 : 11 110 V SUN Direct DTH Service India
                             identified carrier in the V spectrum nr.5 : 11 150 V DD Direct + India
                             identified carrier in the V spectrum nr.6 : 11 185 V SUN Direct DTH Service India

.
        range of frequencies : 10 950 - 11 200                      range of frequencies : 11 450 - 11 700

.
                    analysis of the vertical wave vector in the range of frequencies :11 450 - 11 700 MHz
                          identified carrier in the V spectrum nr.1 : 11 490 V DD Direct + India
                          identified carrier in the V spectrum nr.2 : 11 530 V SUN Direct DTH Service India
                          identified carrier in the V spectrum nr.3 : 11 570 V DD Direct+ India
                          identified carrier in the V spectrum nr.4 : 11 610 V SUN Direct DTH Service India
                          identified carrier in the V spectrum nr.5 : 11 645 V SUN Direct DTH Service India
                          identified carrier in the V spectrum nr.6 : 11 675 V SUN Direct DTH Service India

.

Insat 4B at 93.5° E - Indian footprint - SUN Direct SD : spectral analysis / part 1

.
                            SUN Direct SD - first part of the spectrum :  11 030 > 11 110 > 11 185 MHz
Insat 4B at 93.5 E_indian footprint_Packet SUN Direct_spectral analysis_first part n

.

Insat 4B at 93.5° E - Indian footprint - SUN Direct SD : spectral analysis / part 2

.
                    SUN Direct SD - second part of the spectrum : 11 530 > 11 610 > 11 645 > 11 675
Insat 4B at 93.5 E_indian footprint_Packet SUN Direct_spectral analysis_second part n

.

Insat 4B at 93.5° E - Indian footprint - SUN Direct SD : spectral analysis / full range

.
                                       SUN Direct SD - full scale range : part 1 + part 2
Insat 4B at 93.5 E_indian footprint_Packet SUN Direct_spectral analysis_full range n
.
.

Insat 4B at 93.5° E - Indian footprint - SUN Direct SD : defining the status of reception

.
results of measurements for cloud free weather :11 030/11 110/11 185 V - permanent oscillation (<Ch BER+MER>)
as the elemental factor that was present in the analysis of the quality of reception at elevation angle of only 2°,defining
the broad range of gain margins from the 2 dB > MER=6 dB + Ch BER=8x10-3 to the  10+ dB > MER-15.1 dB + Ch BER= 0.
If the weather conditions remain unchanged, locking each carrier was stable with an average level of gain margins of
4 to 8 dB,with hourly peaks of quality from MER=14 to 15+ dB, depending on the choice of carrier in the frequency range.

11 530/11 610/11 645/11 675 V - analysis of quality in second part of the spectrum confirmed that the level of gain margins
was about 2 dB lower than in the first part of the spectrum .

exceptional qualitative status - on the frequency f = 11 030 MHz, I measured the exceptional qualitative status in central
european scale with a level of ZERO for bBER=<10-6 - lasted about twenty seconds !
