Insat 3A/4B at 93.5°E
Insat 3A/4B at 93.5°E : Technical data
.

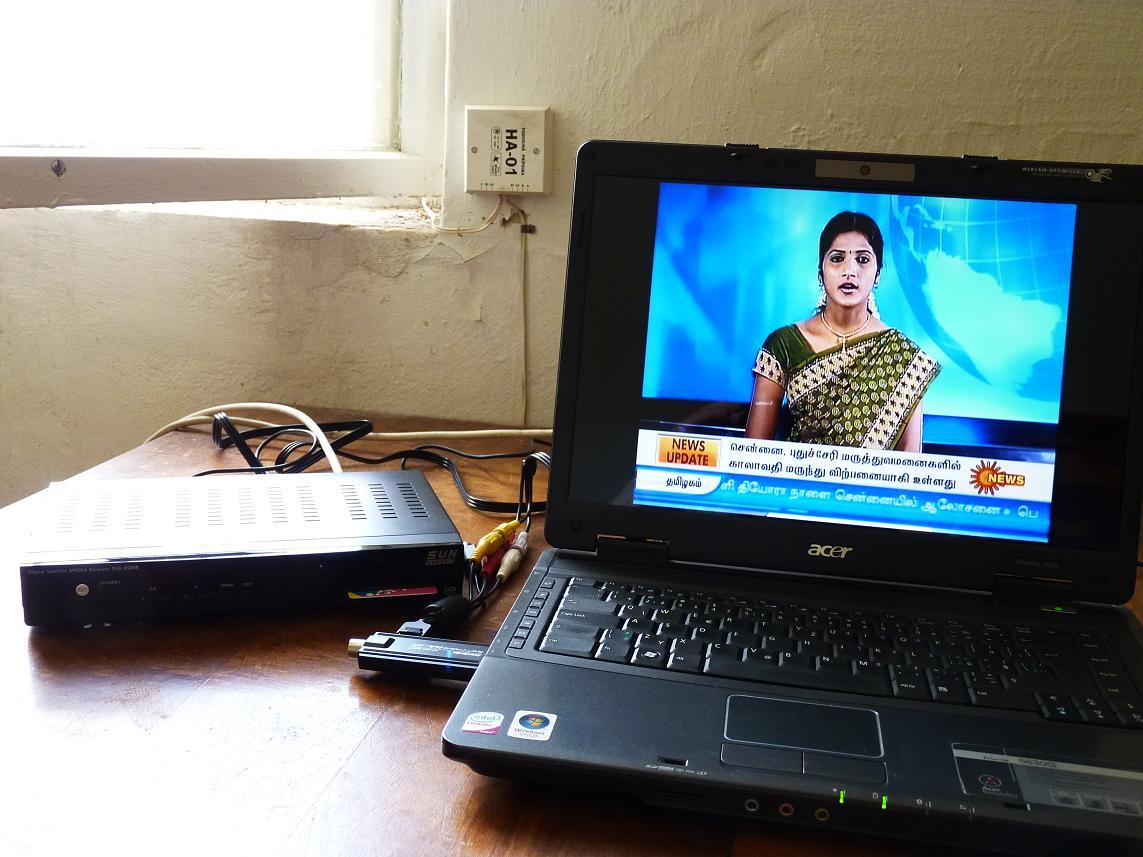

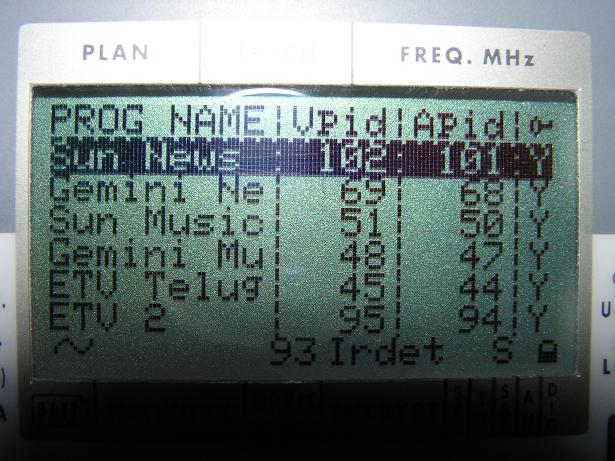

Packet SUN Direct DTH India : decoding set
Insat 4B - Position : 93.5°E - TP : 12 C/12 KU - Lifetime : from 11.3.2007 - 12 years
Insat 3A/4B at 93.5°E - KU Asia footprint : spectrum analysis & footprint & quality of reception
.

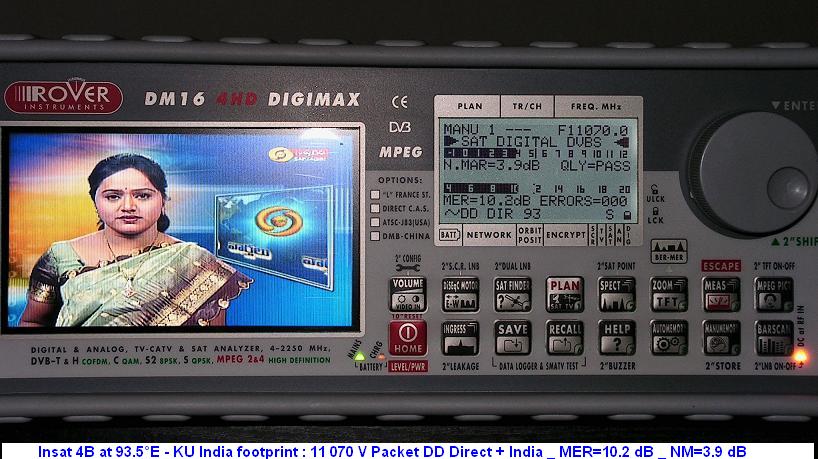

Insat 4B at 93.5°E - Indian footprint : measurements taken in the town of Lučenec / central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
date of measurement : 22.5.2010
elevation angle : 2.0°
.

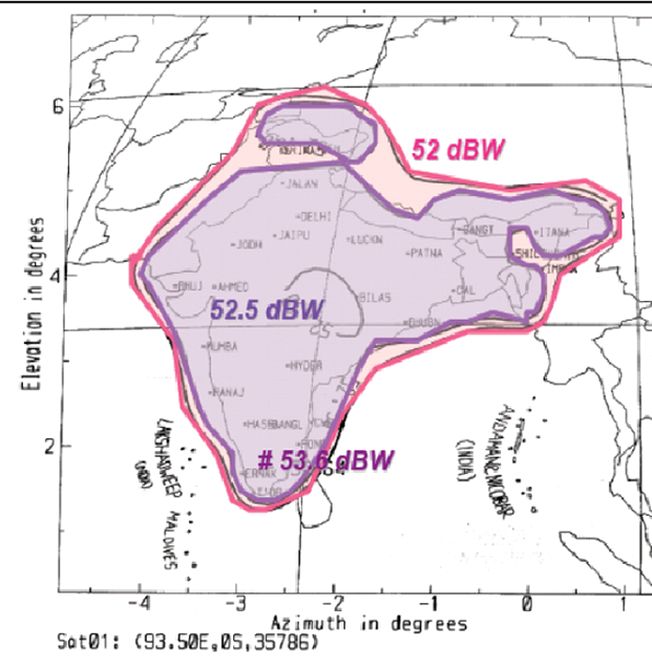

Insat 4B at 93.5°E : theoretically defined footprint
.
High Frequency Unit theoretical footprint point measurements

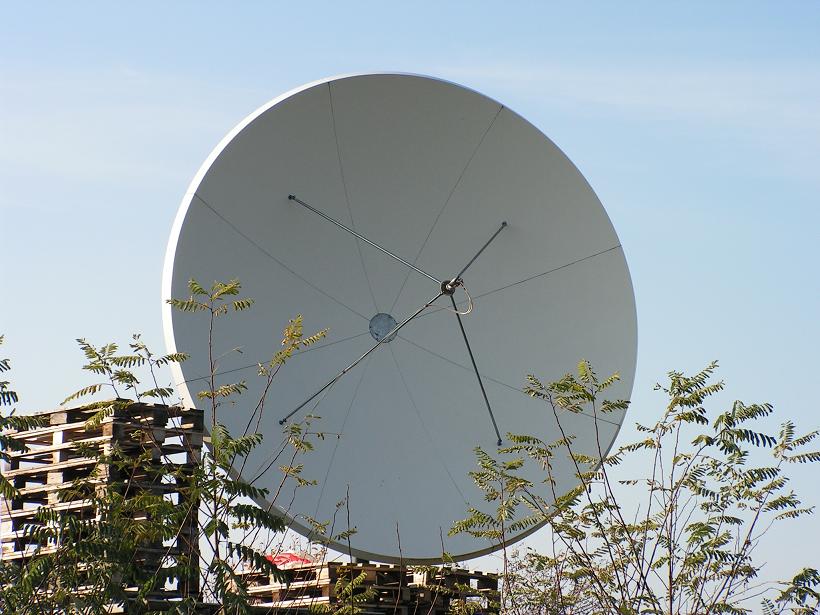

PF Prodelin 3.7 m coverage area all research and measurements
dxsatcs waveguide line+Norsat 4206 CF_Asia , Middle East , Africa , Europe I carried out at this point
.

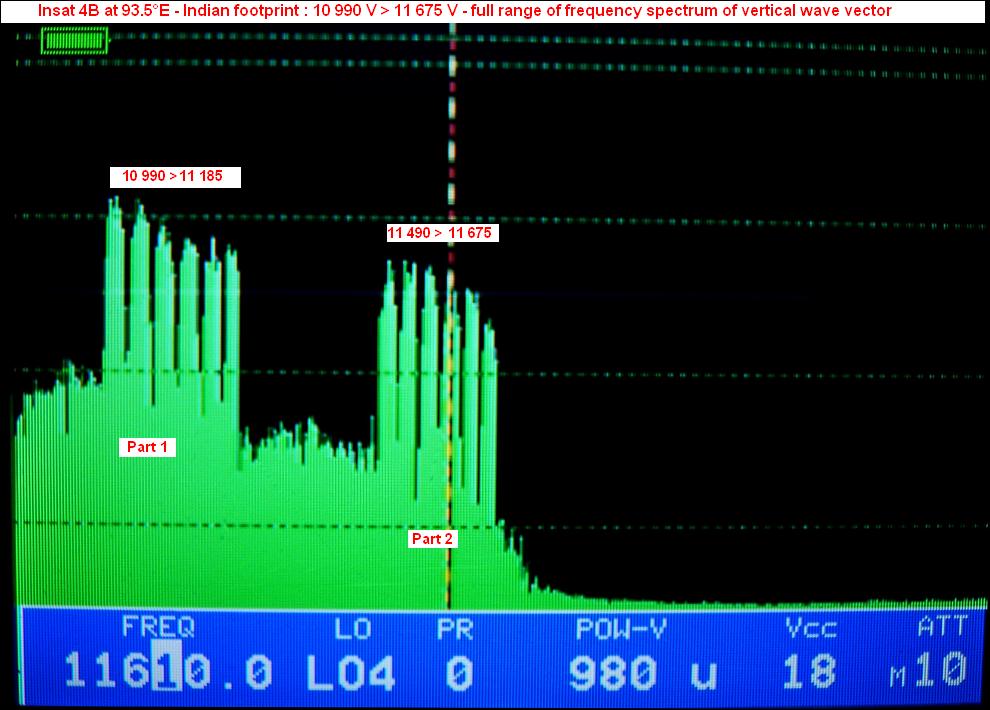

Insat 4B : spectral analysis Insat 4B : spectral analysis Insat 4B : spectral analysis
10 950 > 11 200 MHz 11 450 > 11 700 MHz 10 950 > 11 700 MHz
.
results of measurements for cloud free weather :11 030/11 110/11 185 V - permanent oscillation (<Ch BER+MER>)
as the elemental factor that was present in the analysis of the quality of reception at elevation angle of only 2°,defining
the broad range of gain margins from the 2 dB > MER=6 dB + Ch BER=8x10-3 to the 10+ dB > MER-15.1 dB + Ch BER= 0.
If the weather conditions remain unchanged, locking each carrier was stable with an average level of gain margins of
4 to 8 dB,with hourly peaks of quality from MER=14 to 15+ dB, depending on the choice of carrier in the frequency range.

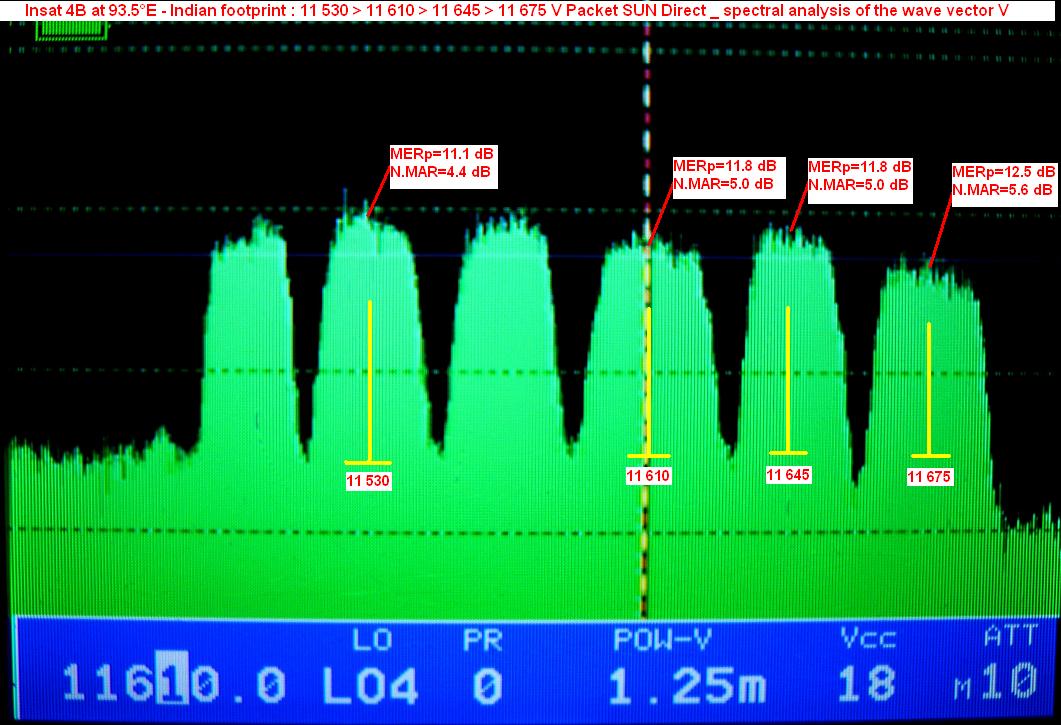

11 530/11 610/11 645/11 675 V - analysis of quality in second part of the spectrum confirmed that the level of gain margins
was about 2 dB lower than in the first part of the spectrum .
exceptional qualitative status - on the frequency f = 11 030 MHz, I measured the exceptional qualitative status in central
european scale with a level of ZERO for bBER=<10-6 - lasted about twenty seconds !
.
Insat 3A spectral analysis Insat 3A footprint Insat 3A locked data carrier
active range : 11 450 - 11 700 MHz Asia,Middle East,Europe,Africa all locked data streams are constantly
present in the spectrum
highly unstable level of EIRP emitted at intake satellite Insat 3A at each frequency spectrum present in the data carrier
transfer in practice reflected the radical changes of the gross signal level of the noise levels to peak at about 600 µV at
f=11 590 MHz over a period of only 5 minutes !
.

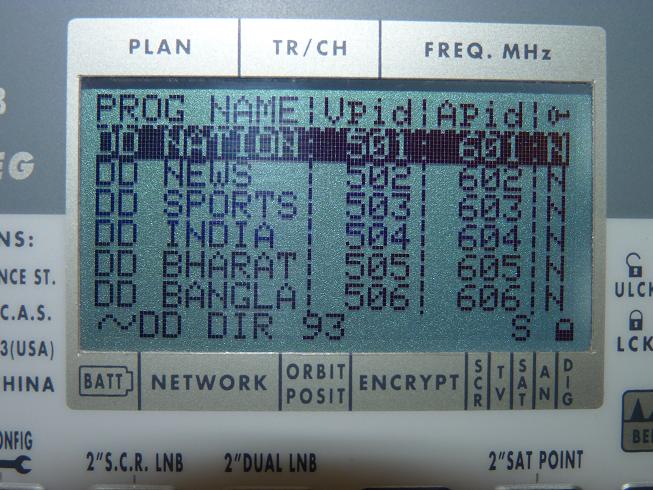

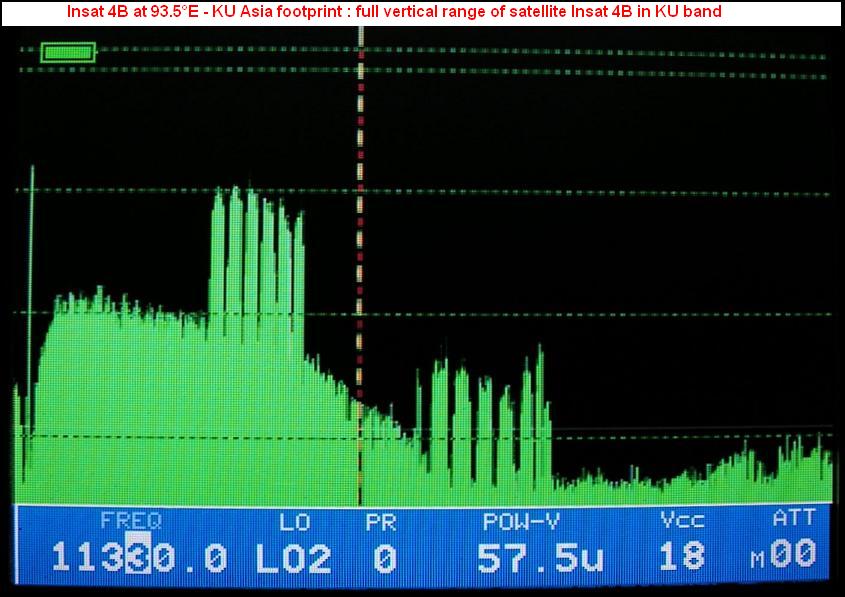

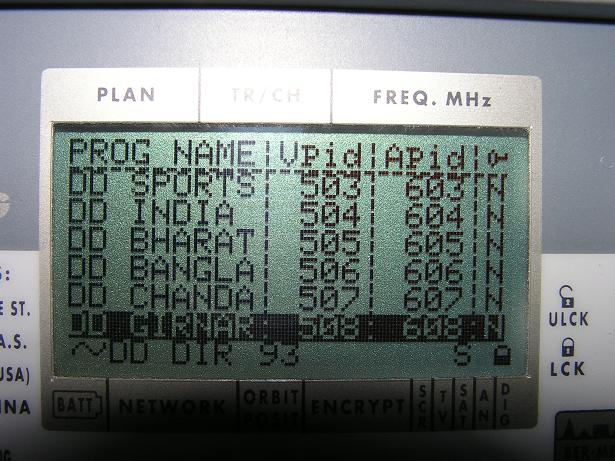

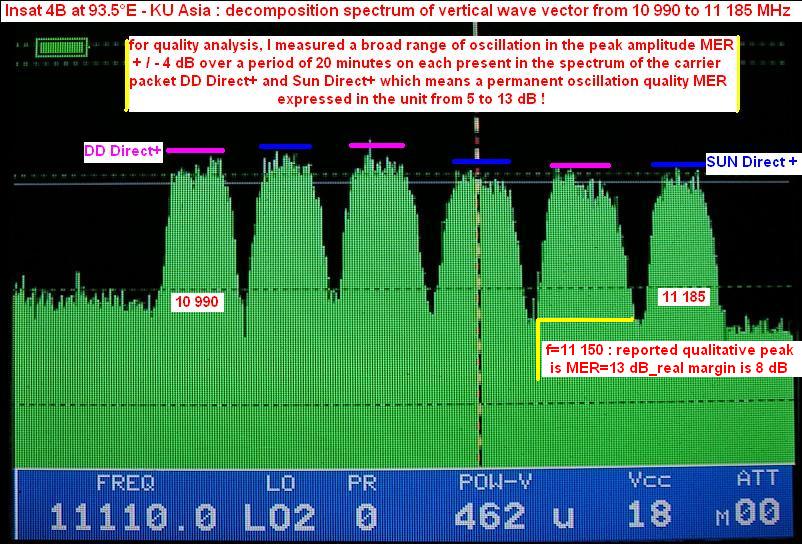

Insat 4B at 93.5°E - KU Asia footprint : 10 990 V DD Direct + India

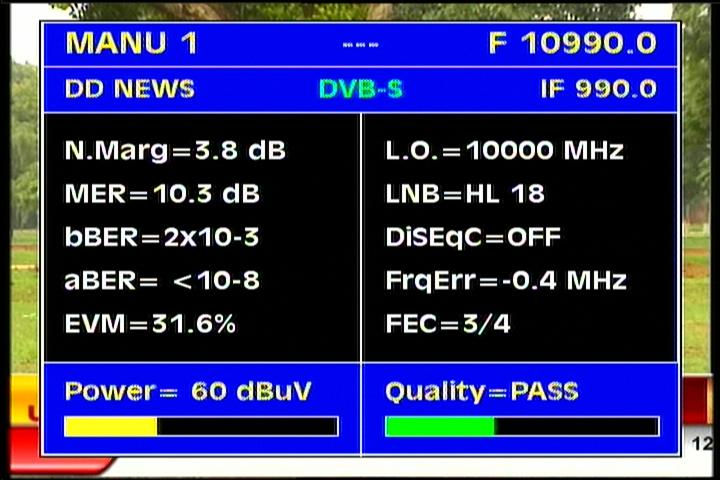

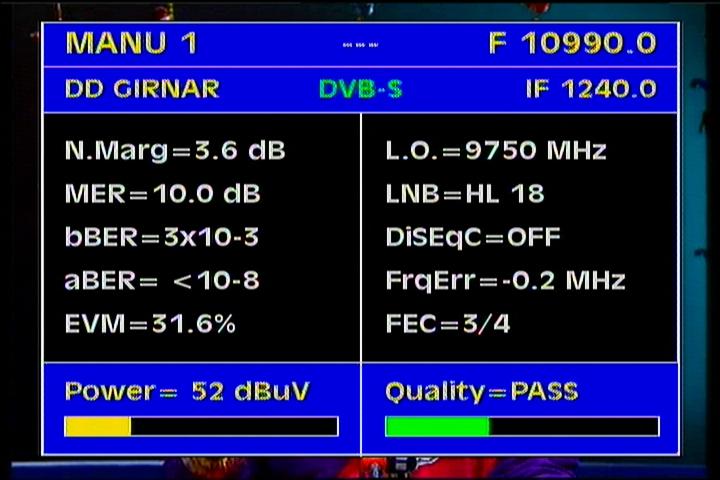

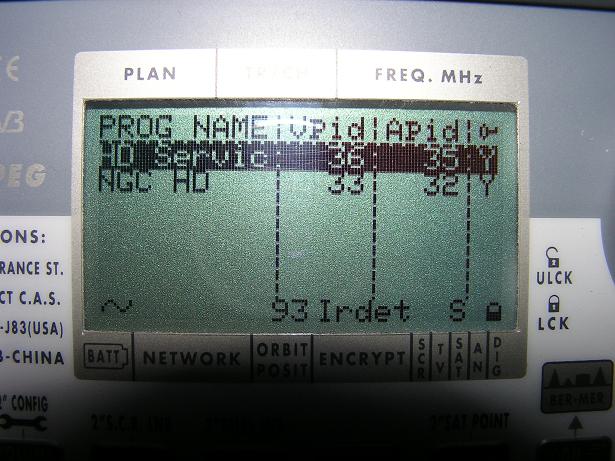

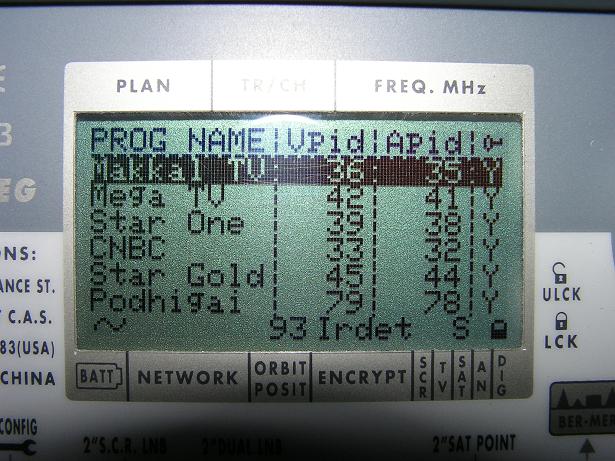

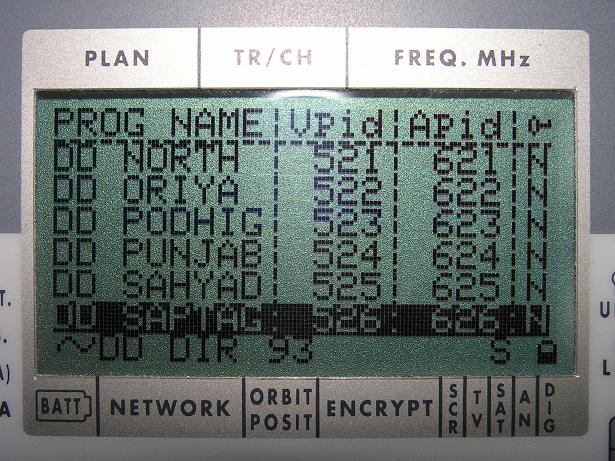

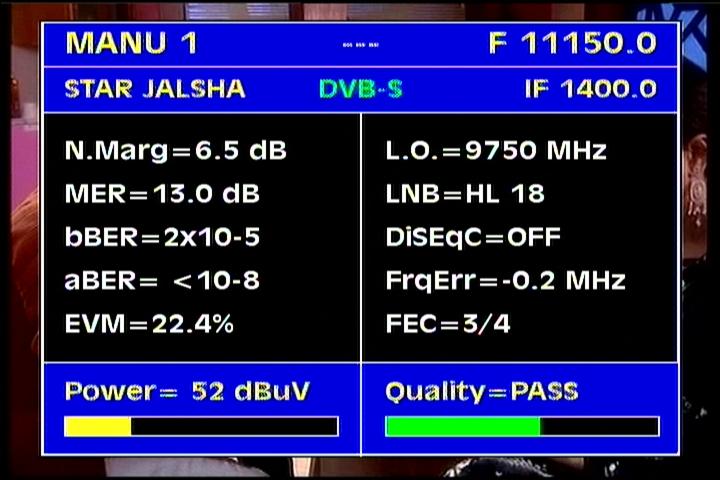

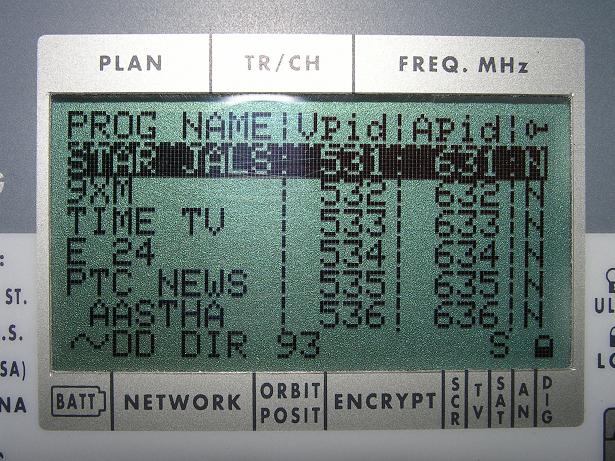

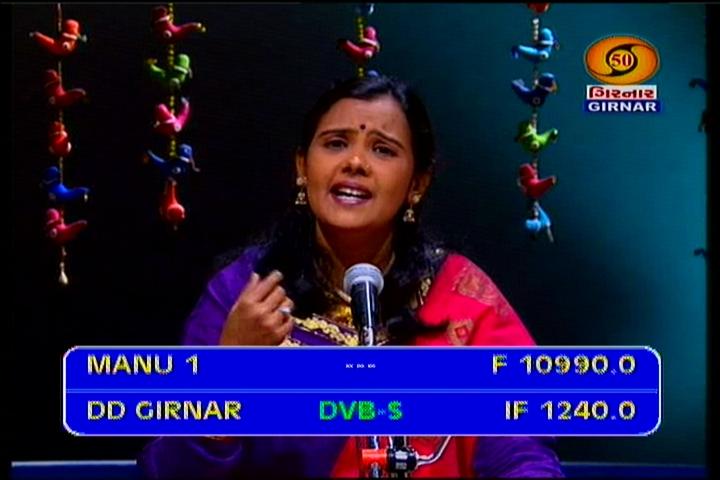

IF data Q data NIT data

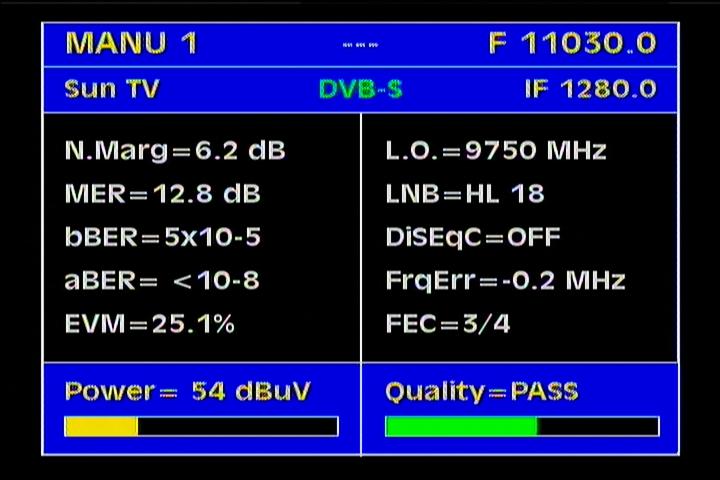

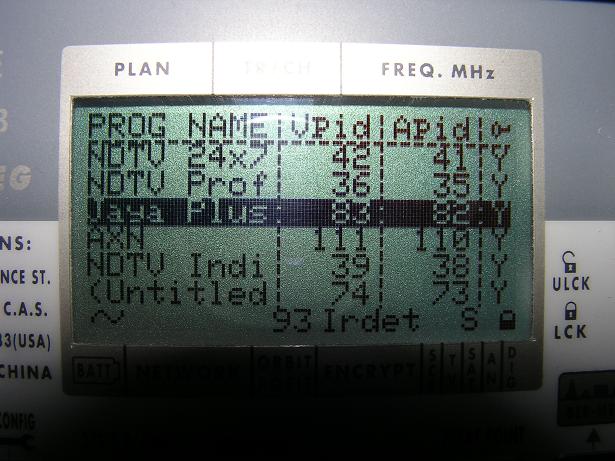

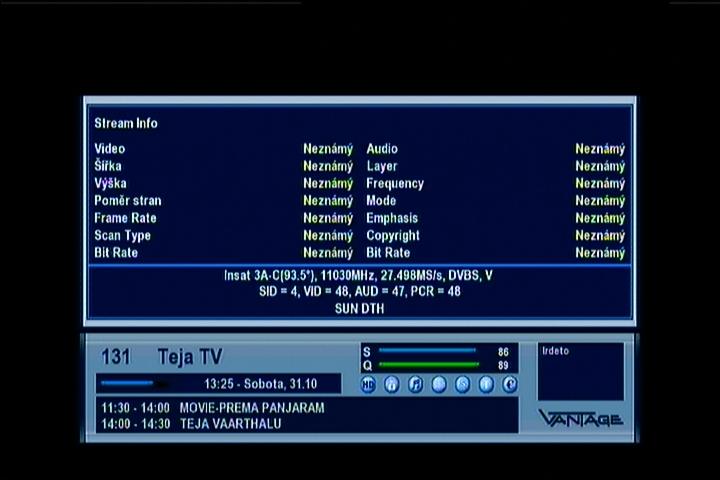

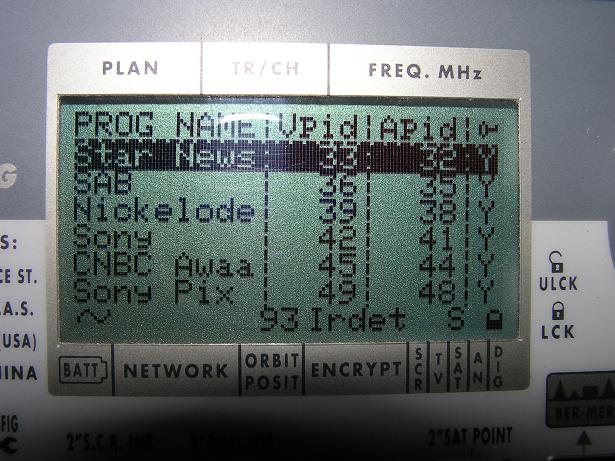

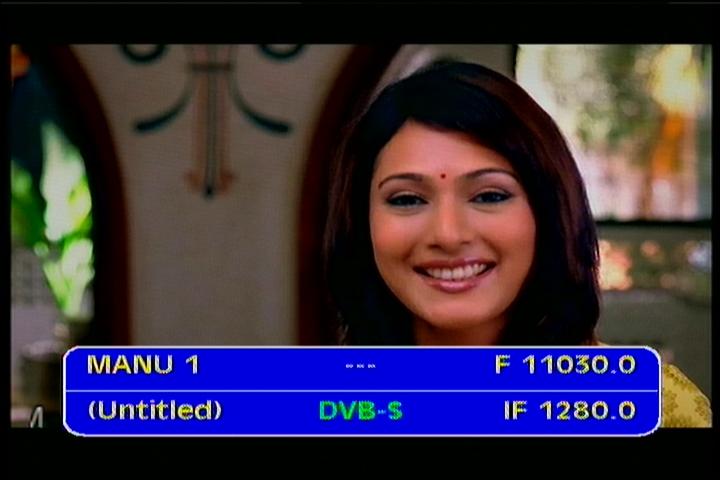

Insat 4B at 93.5°E - Indian footprint in KU band : 11 030 V SUN Direct DTH India

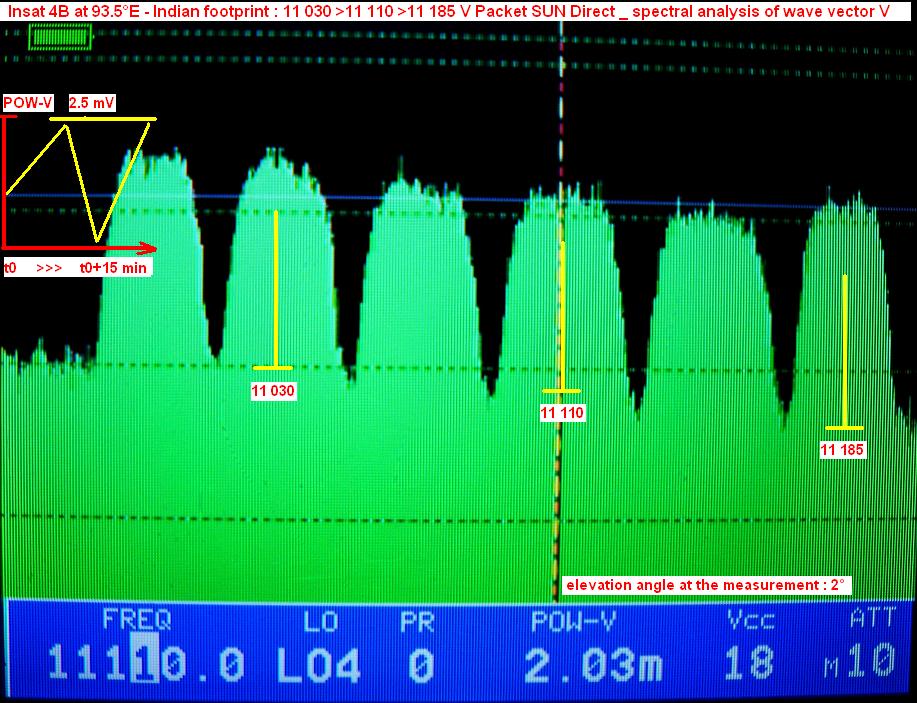

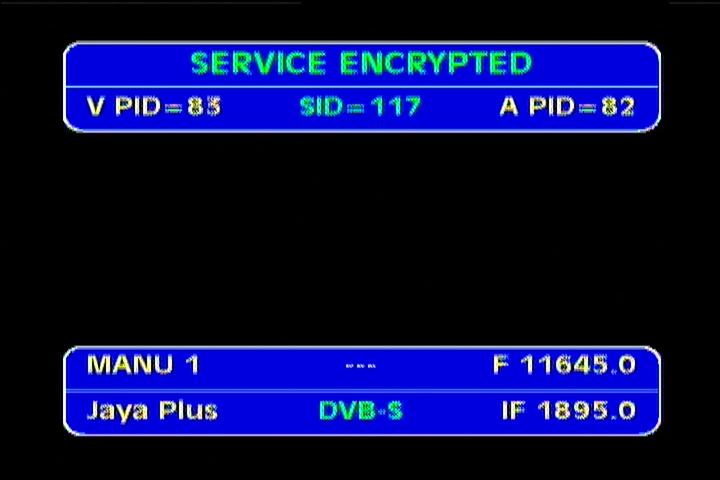

SUN Direct : spectral analysis SUN Direct : quality analysis SUN Direct : relative quality

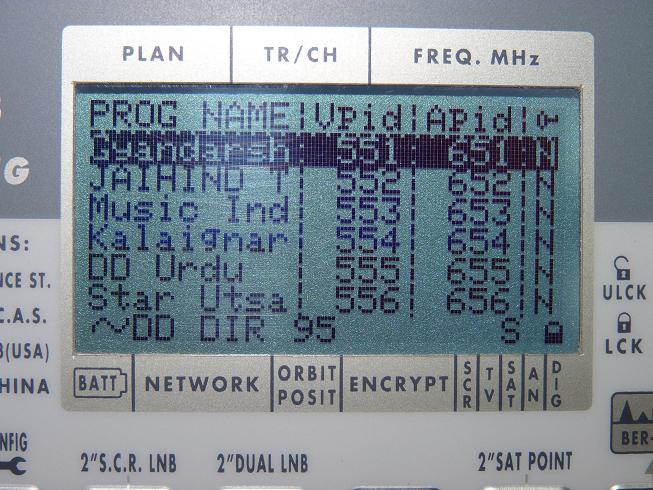

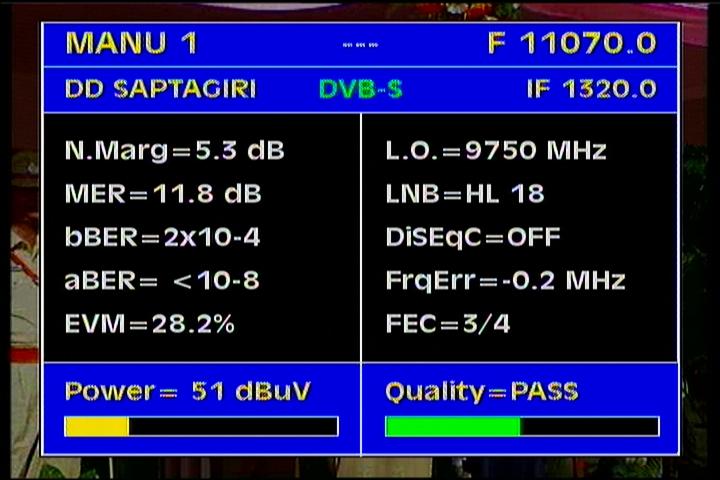

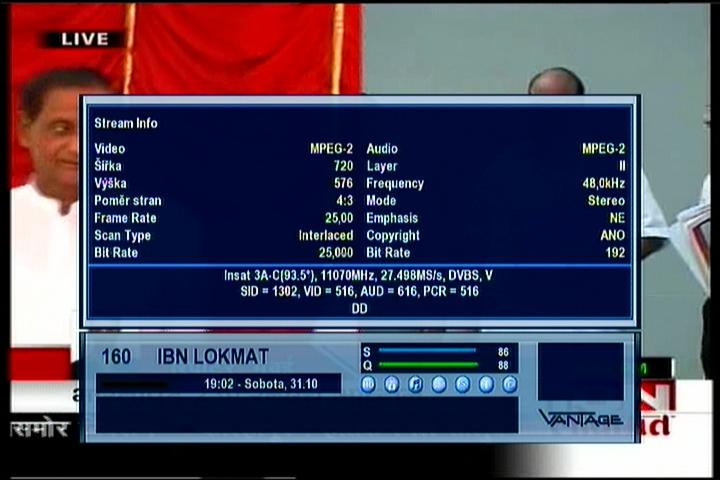

Insat 4B at 93.5°E - KU Asia footprint : 11 070 V DD Direct + India

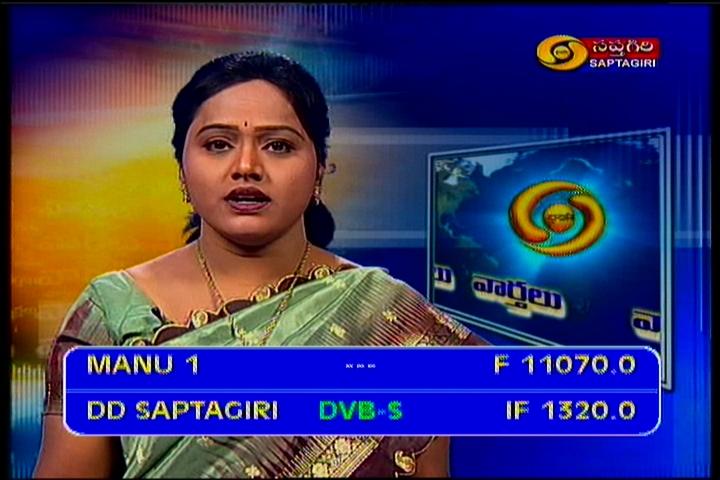

IF data Q data NIT data

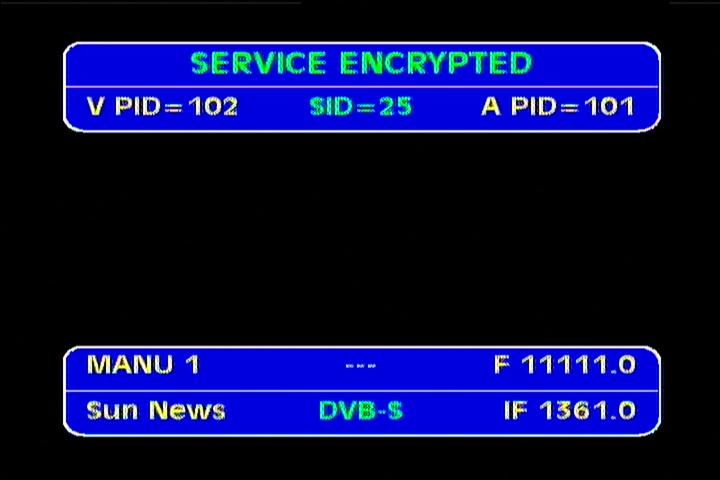

Insat 4B at 93.5°E - Indian footprint in KU band : 11 110 V SUN Direct DTH India
SUN Direct : spectral analysis SUN Direct : quality analysis SUN Direct : relative quality

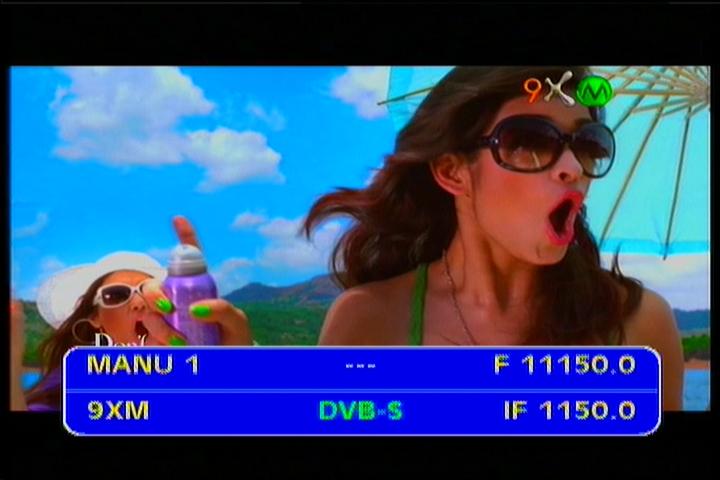

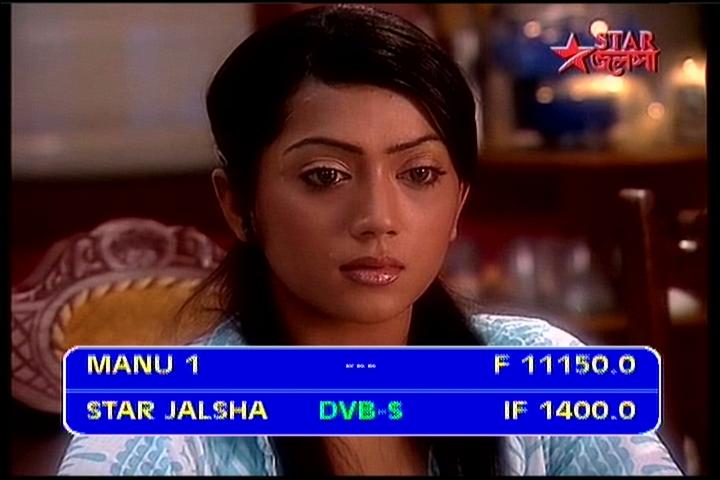

Insat 4B at 93.5°E - KU Asia footprint : 11 150 V DD Direct + India

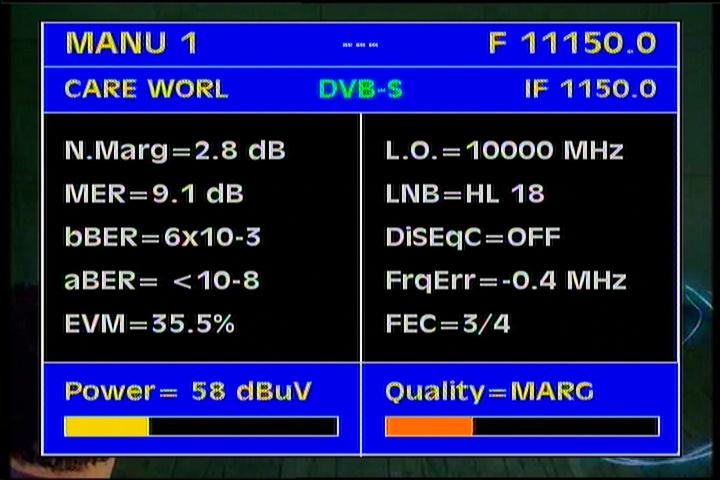

IF data Q data NIT data

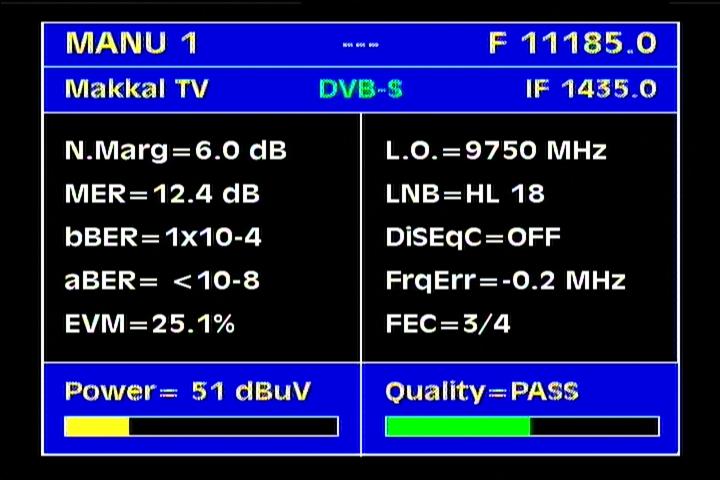

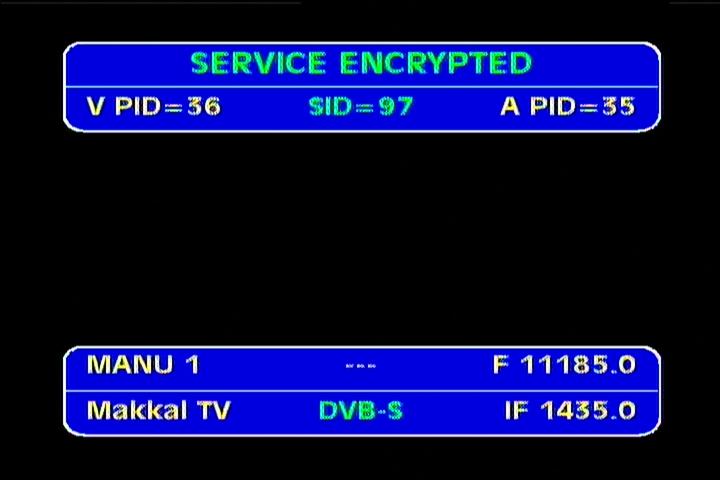

Insat 4B at 93.5°E - Indian footprint in KU band : 11 185 V SUN Direct DTH India
SUN Direct : spectral analysis SUN Direct : quality analysis SUN Direct : relative quality

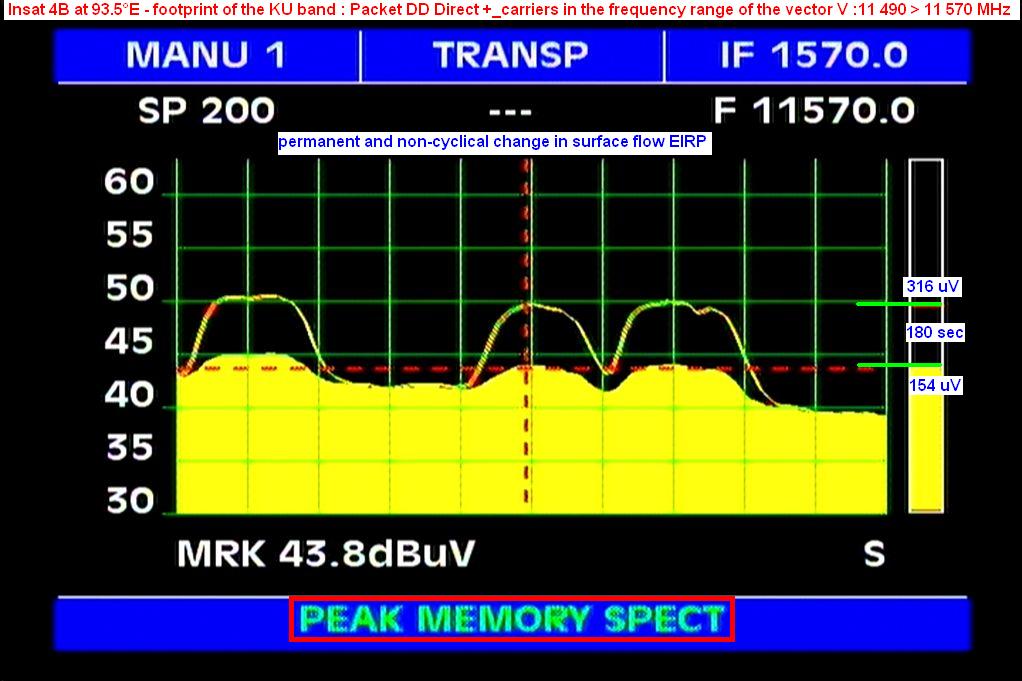

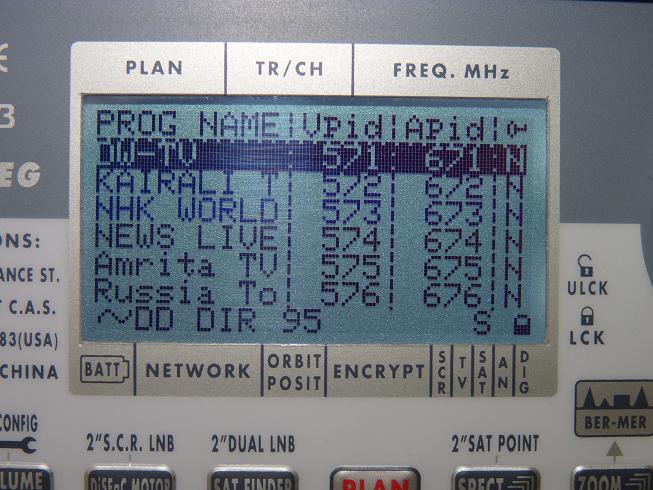

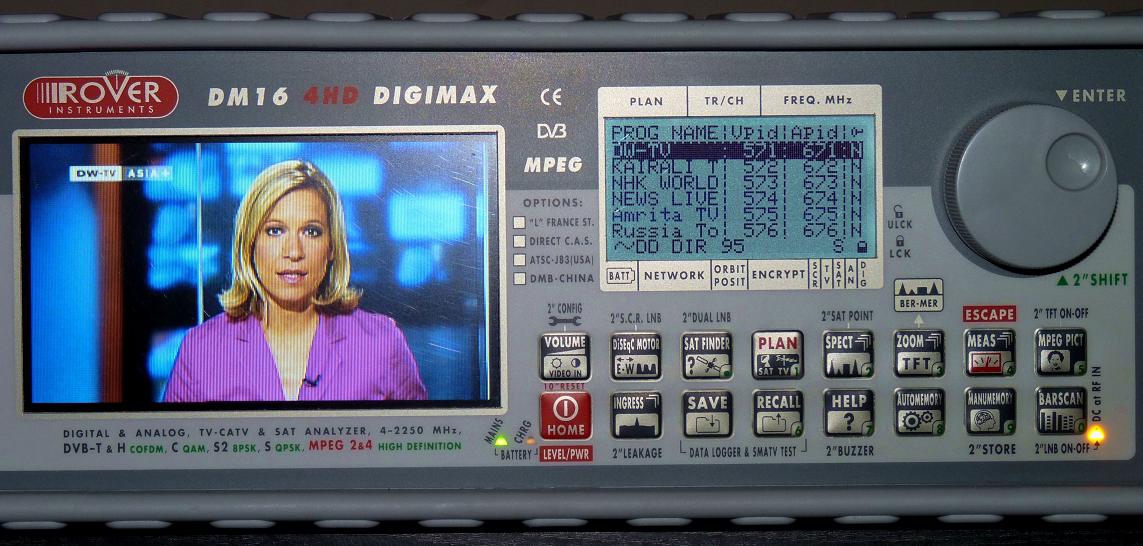

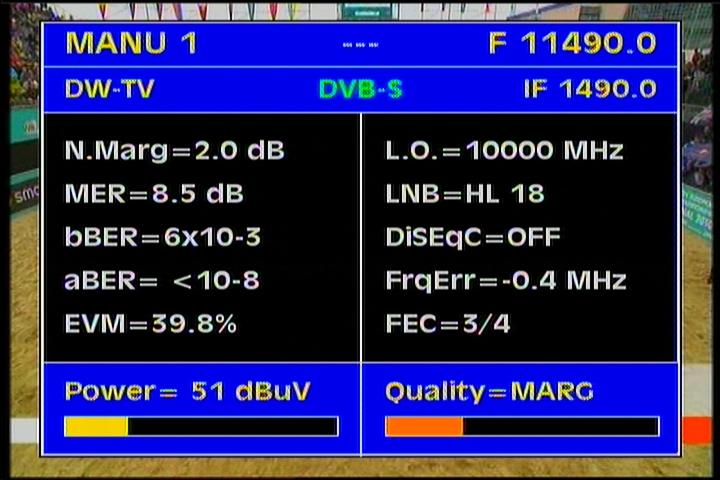

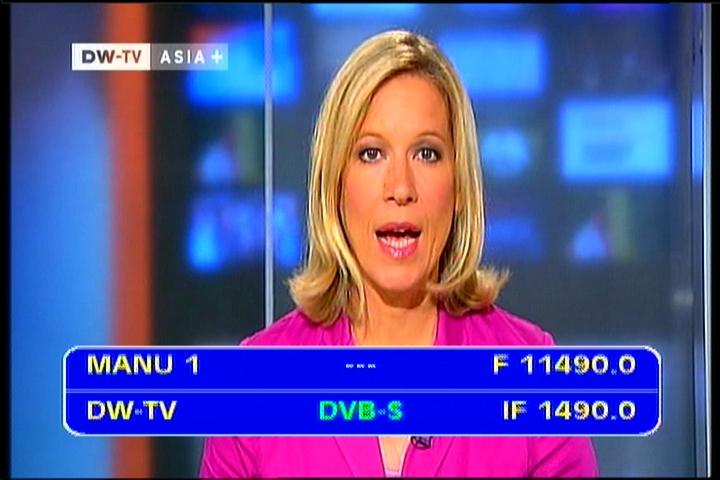

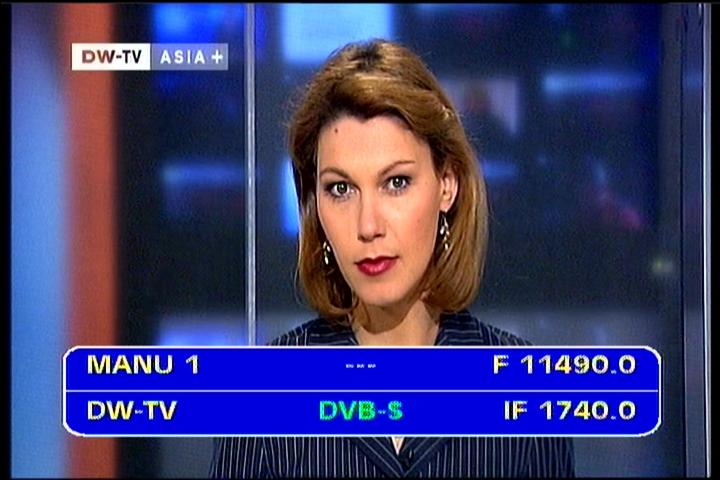

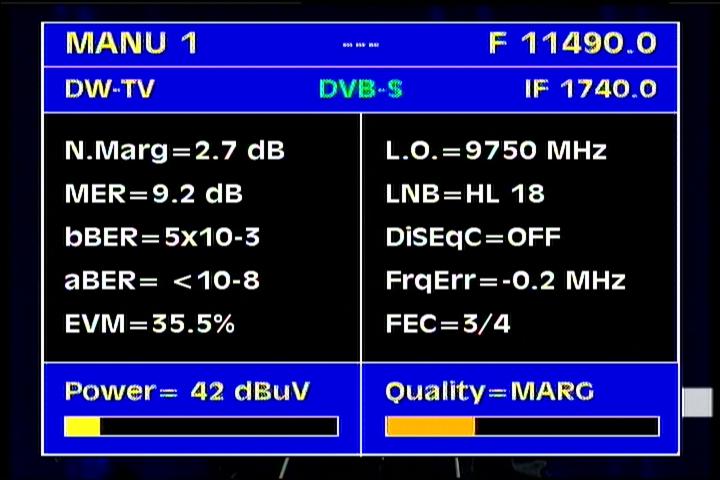

Insat 4B at 93.5°E - KU Asia footprint : 11 490 V DD Direct + India

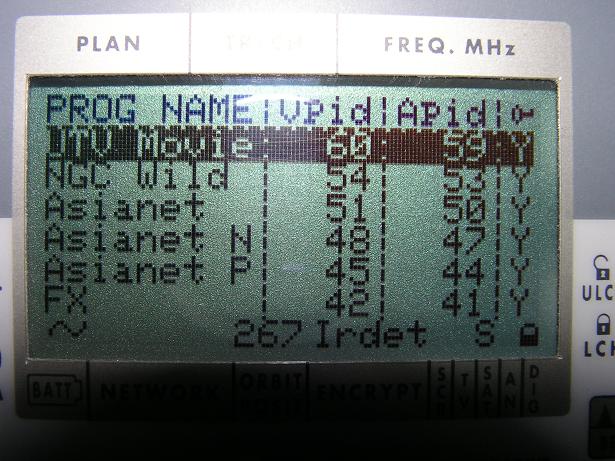

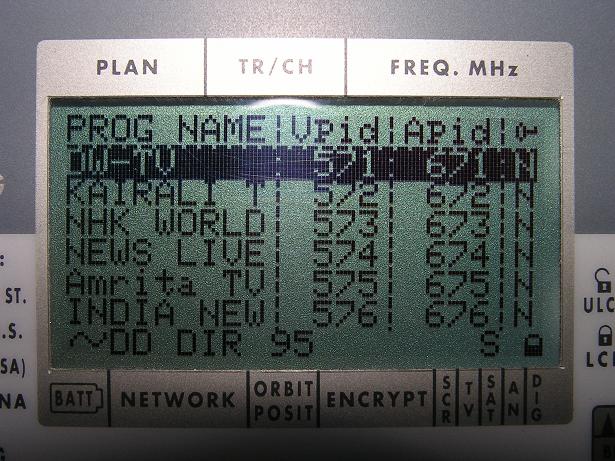

IF data Q data NIT data

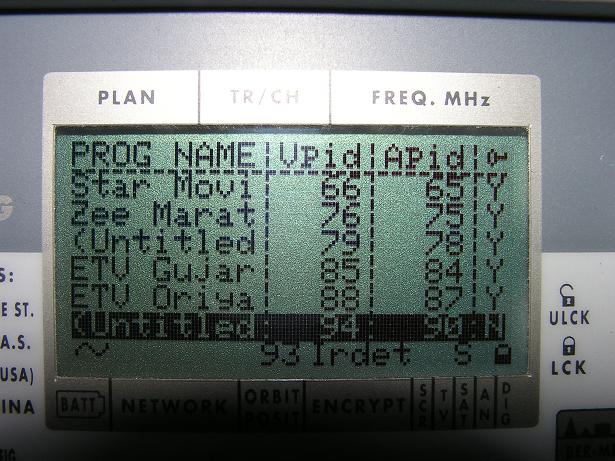

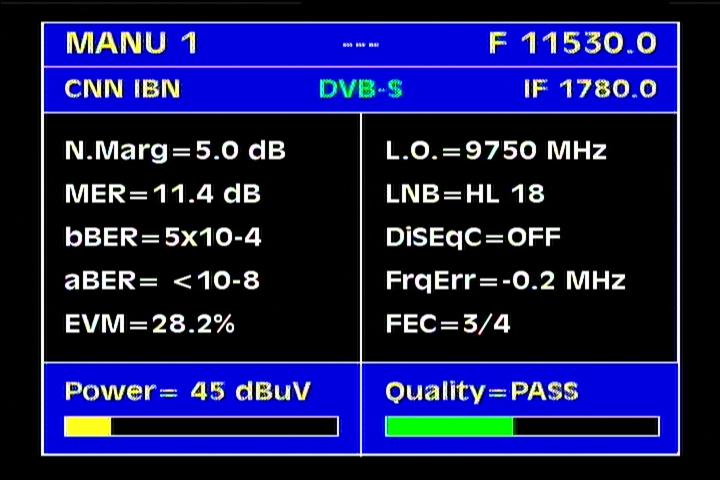

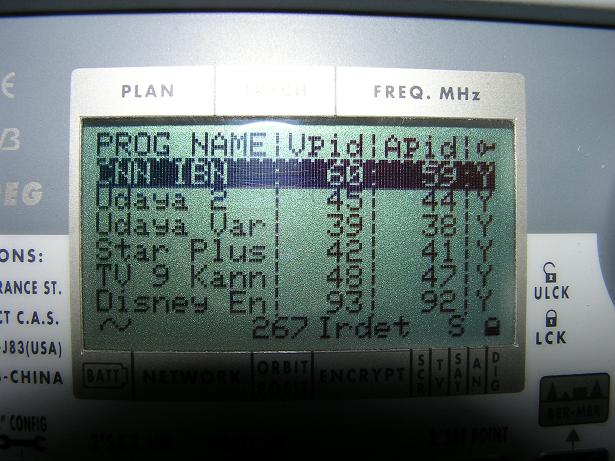

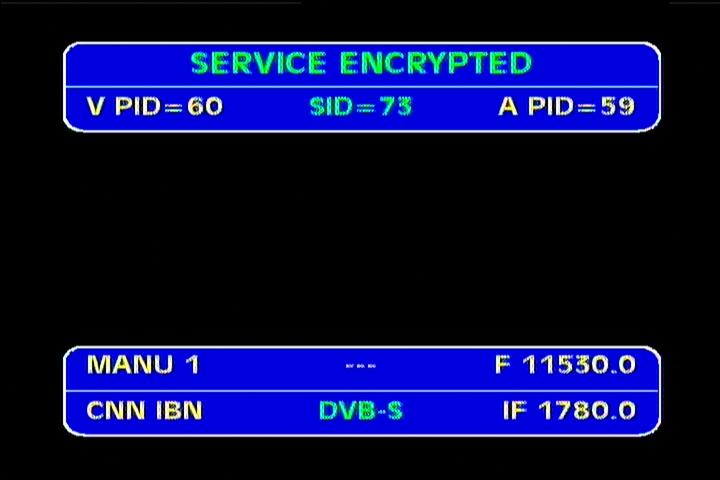

Insat 4B at 93.5°E - Indian footprint in KU band : 11 530 V SUN Direct DTH India
SUN Direct : spectral analysis SUN Direct : quality analysis SUN Direct : relative quality

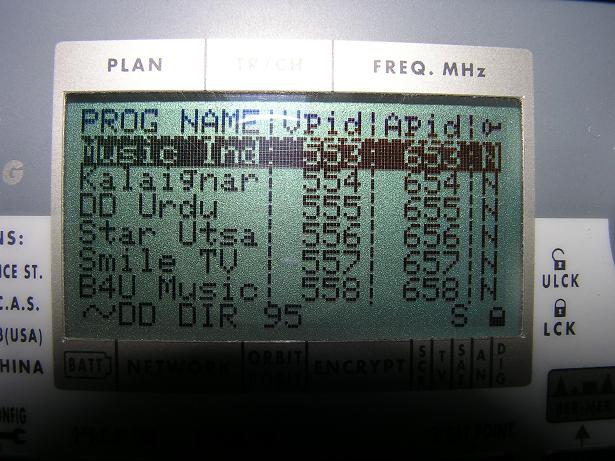

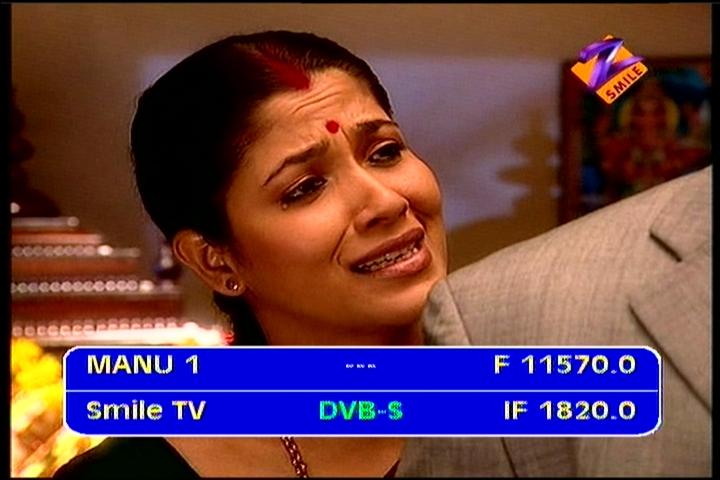

Insat 4B at 93.5°E - KU Asia footprint : 11 570 V DD Direct + India

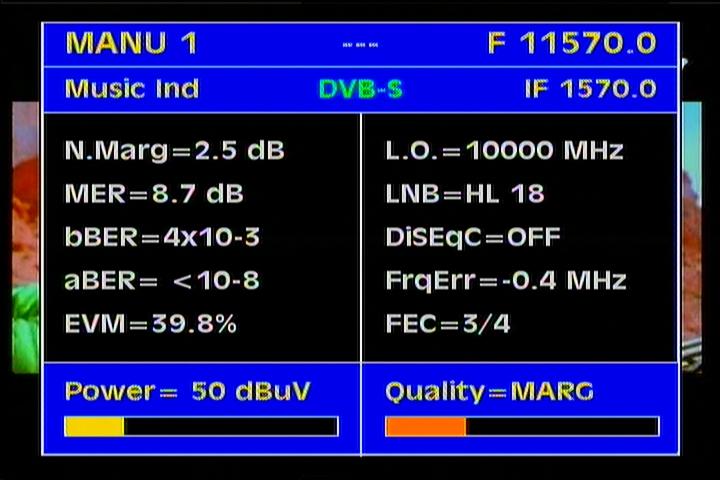

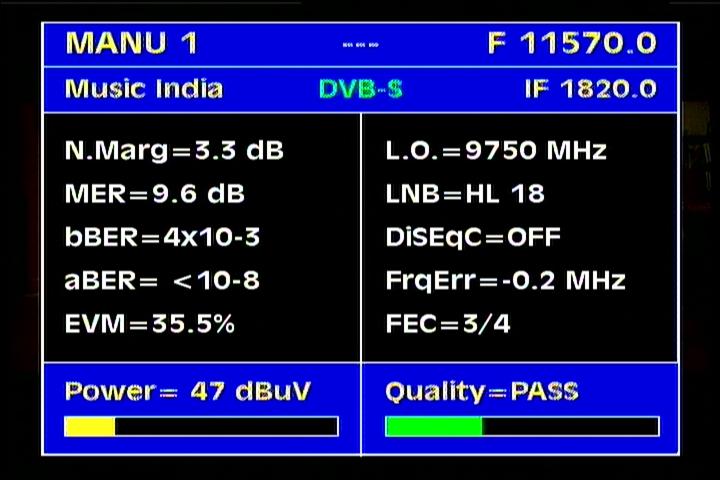

IF data Q data NIT data

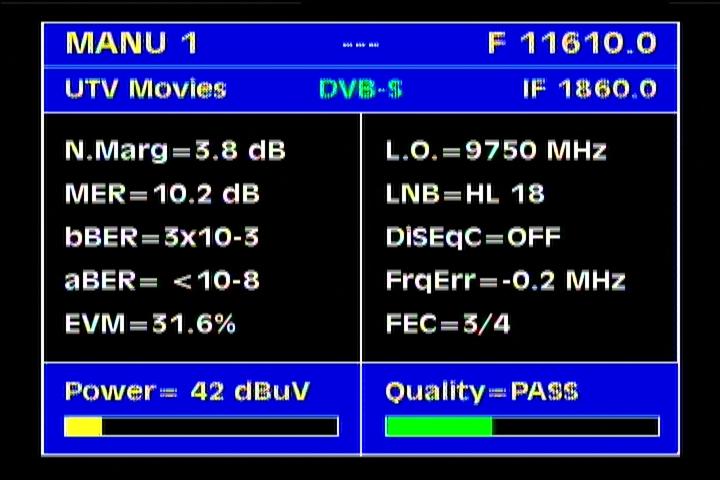

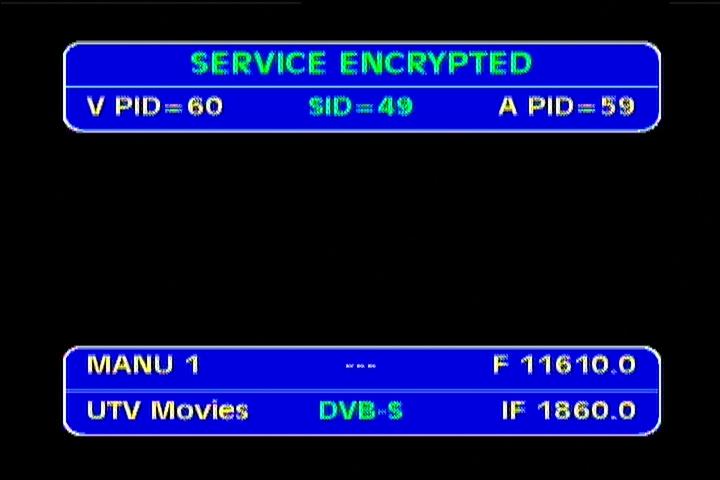

Insat 4B at 93.5°E - Indian footprint in KU band : 11 610 V SUN Direct DTH India
SUN Direct : spectral analysis SUN Direct : quality analysis SUN Direct : relative quality
Insat 4B at 93.5°E - Indian footprint in KU band : 11 645 V SUN Direct DTH India

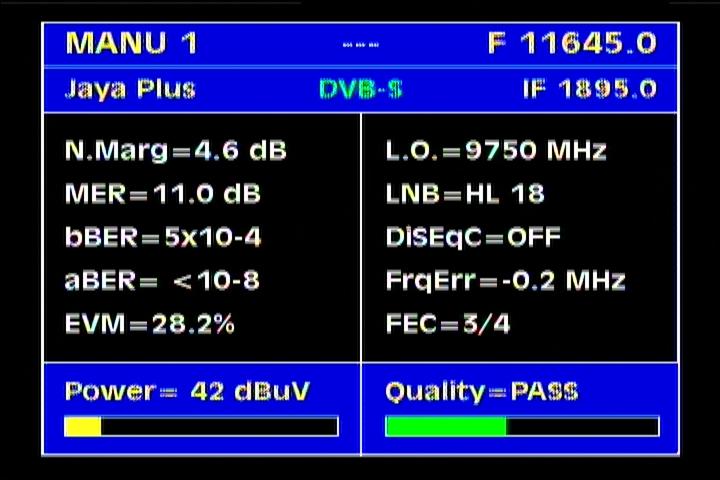

SUN Direct : spectral analysis SUN Direct : quality analysis SUN Direct : relative quality

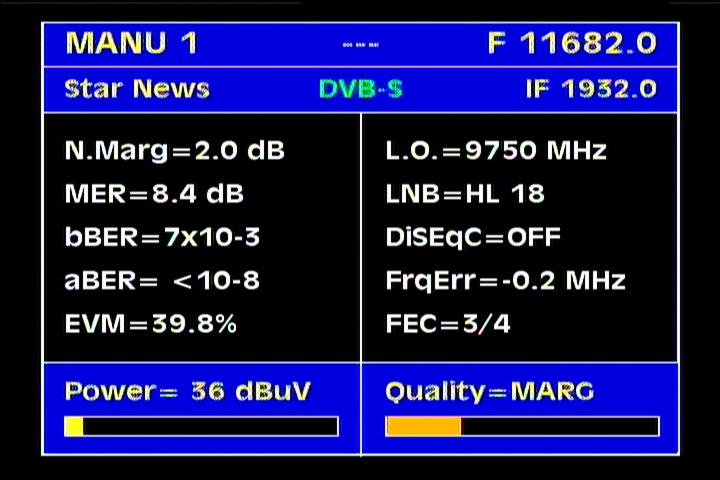

Insat 4B at 93.5°E - Indian footprint in KU band : 11 675 V SUN Direct DTH India
SUN Direct : spectral analysis SUN Direct : quality analysis SUN Direct : relative quality
--- diagnostic quality of income data transmissions in DVB-S from satellite Insat 3A ---

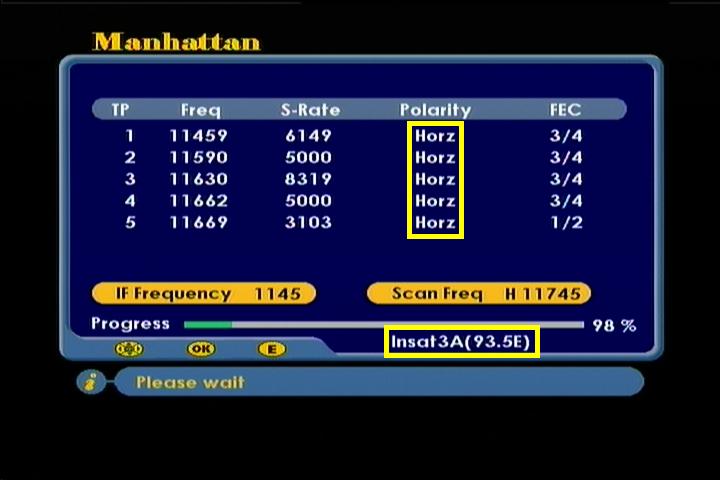

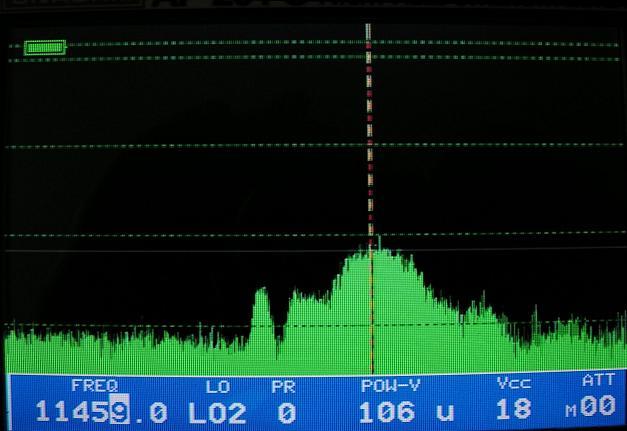

Insat 3A at 93.5°E - KU India footprint : 11 459 V DVB-S Data stream

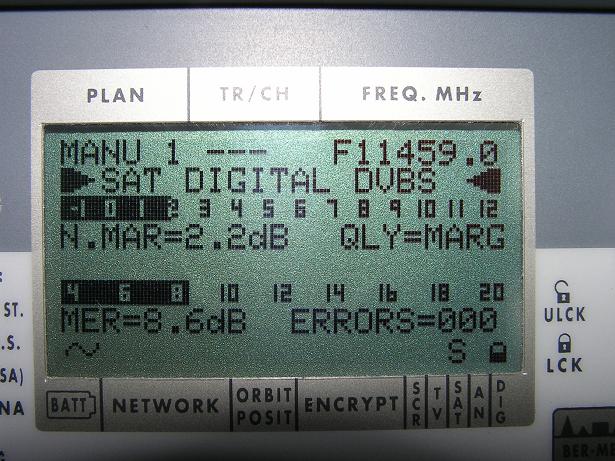

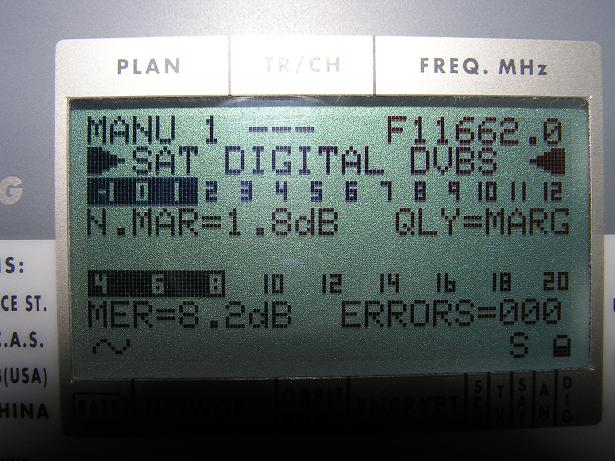

spectral analysis IF data Q data

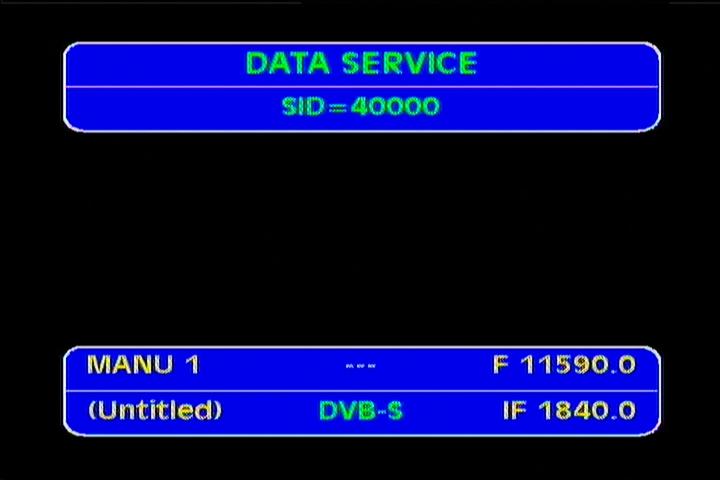

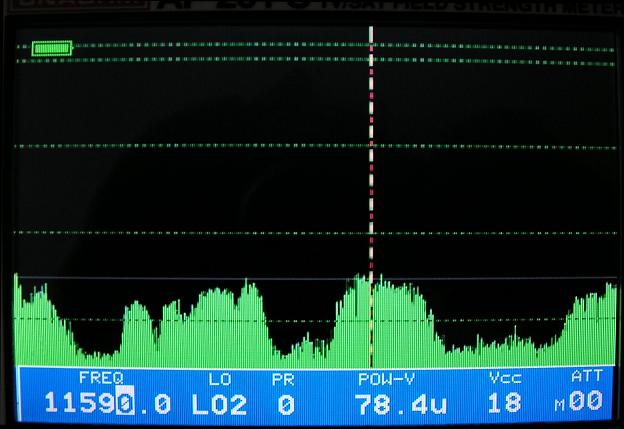

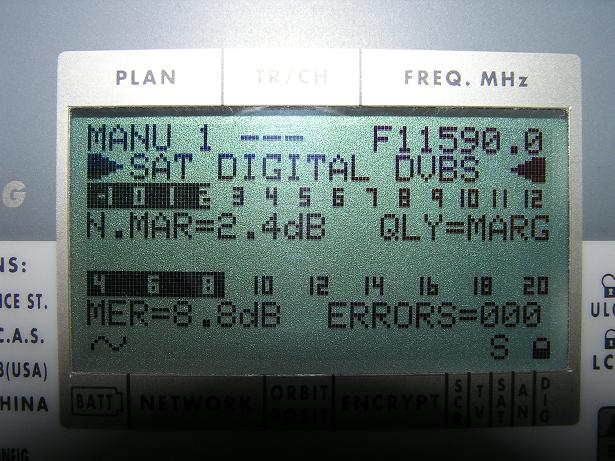

Insat 3A at 93.5°E - KU India footprint : 11 590 V DVB-S Data stream
spectral analysis IF data Q data

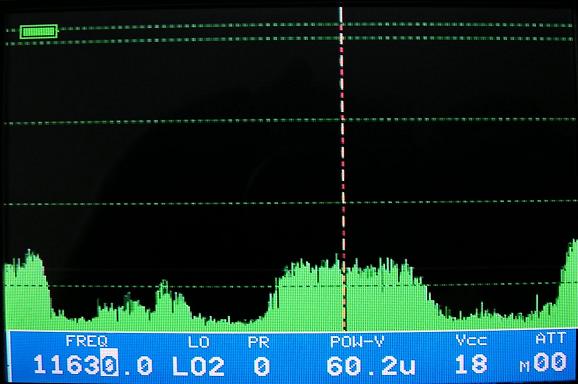

Insat 3A at 93.5°E - KU India footprint : 11 630 V DVB-S Data stream
spectral analysis IF data Q data

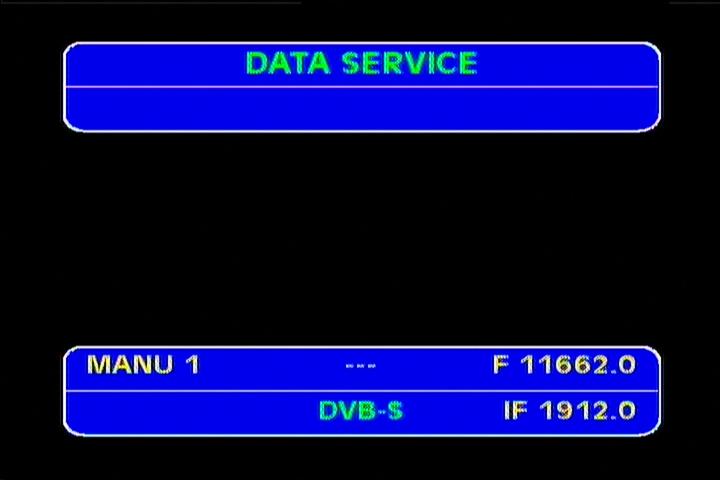

Insat 3A at 93.5°E - KU India footprint : 11 662 V DVB-S Data stream

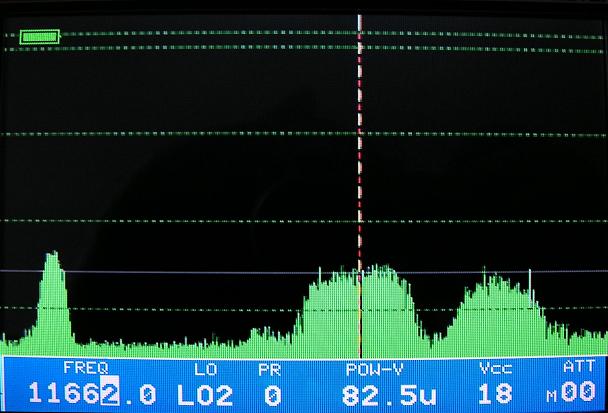

spectral analysis IF data Q data

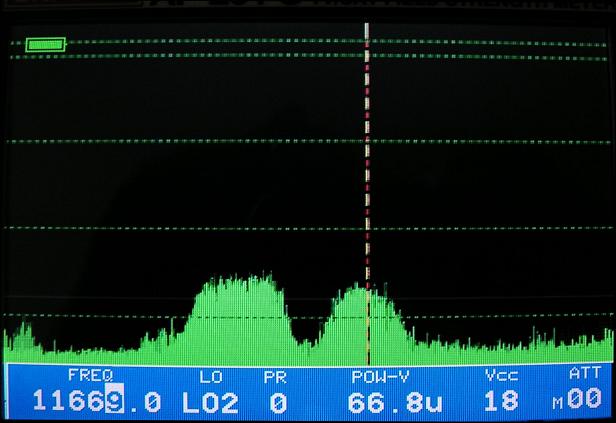

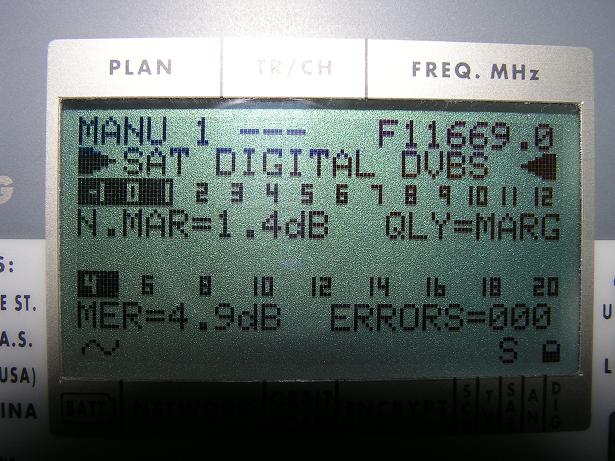

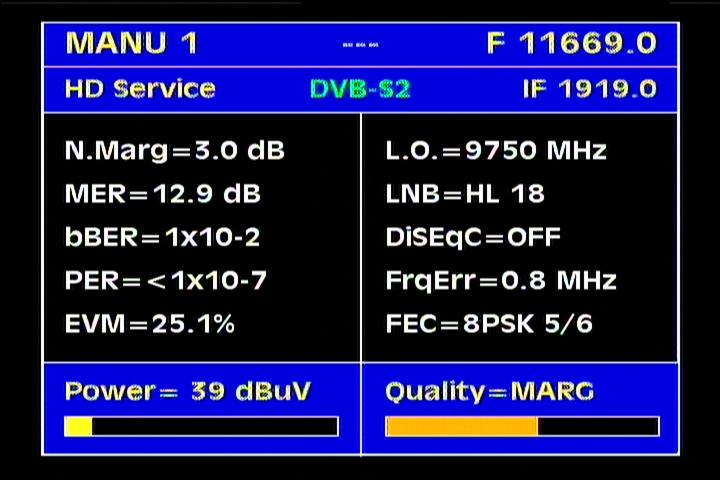

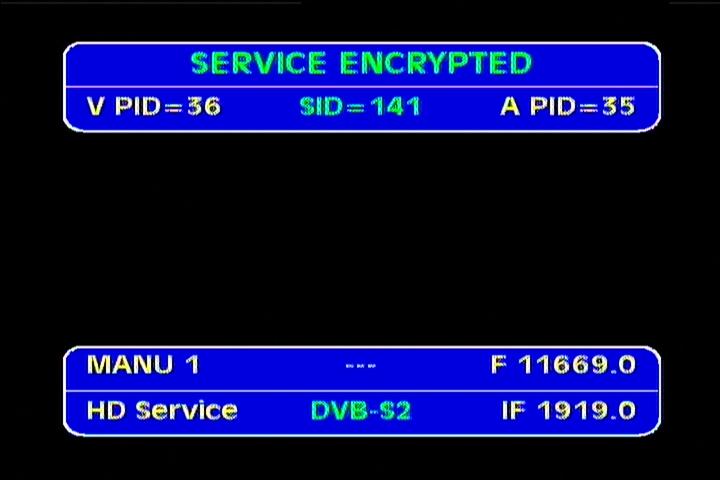

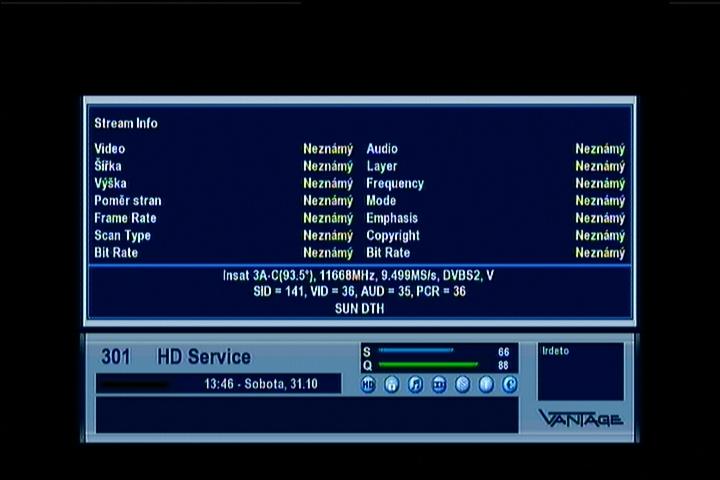

Insat 3A at 93.5°E - KU India footprint : 11 669 V DVB-S Data stream
spectral analysis IF data Q data
