►►Astra 1H at 19.4°E-KA band reception : orbital location , coverage , polarisation , transponders ...

                                     Satellite reception in KA band : 18 762 MHz_H.pol_DVB-S-QPSK feed Teleippica

  Astra 1H : orbital location , coverage , polarisation , transponders /  source : SES Astra - SES proprietary and confidential


►►Astra 1H at 19.4°E-KA band reception : the HF string , footprint , geographical location ...

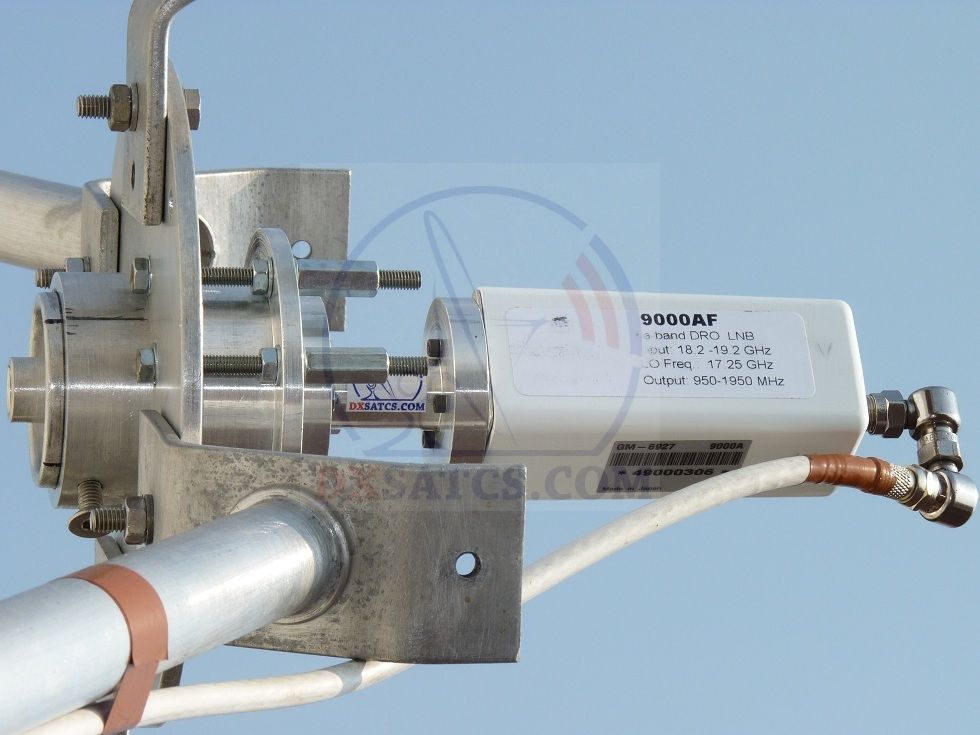

                                  secondary radiant                      HF system:original proposal for the linear vectors

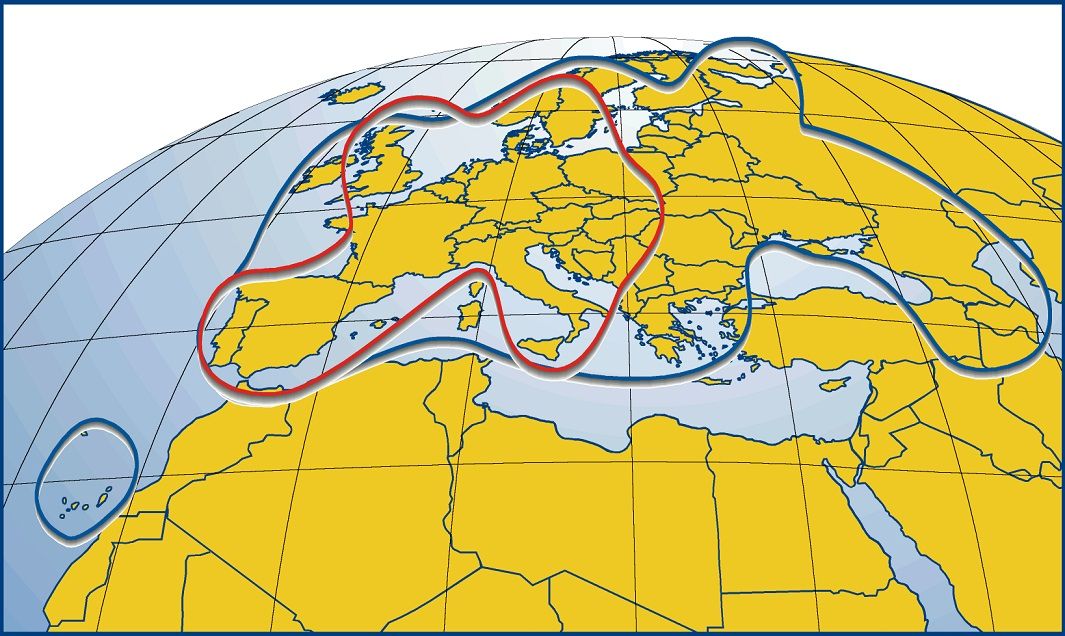

                   A1H-KA band downlink coverage in red      geographical location of the measurement


►►Astra 1H at 19.4°E-reception and measurement in the KA band: analysis of the spectrum and the quality

►The complete range of the -H- vector in the KA band from 18 200 to 18 900 MHz : DVB-S2 is not the only format used

                                             18 359 → 18 410 → 18 460 → 18 510 MHz → 18 762 MHz
                                ( occupancy in the -H- frequency spectrum is changing almost every day )

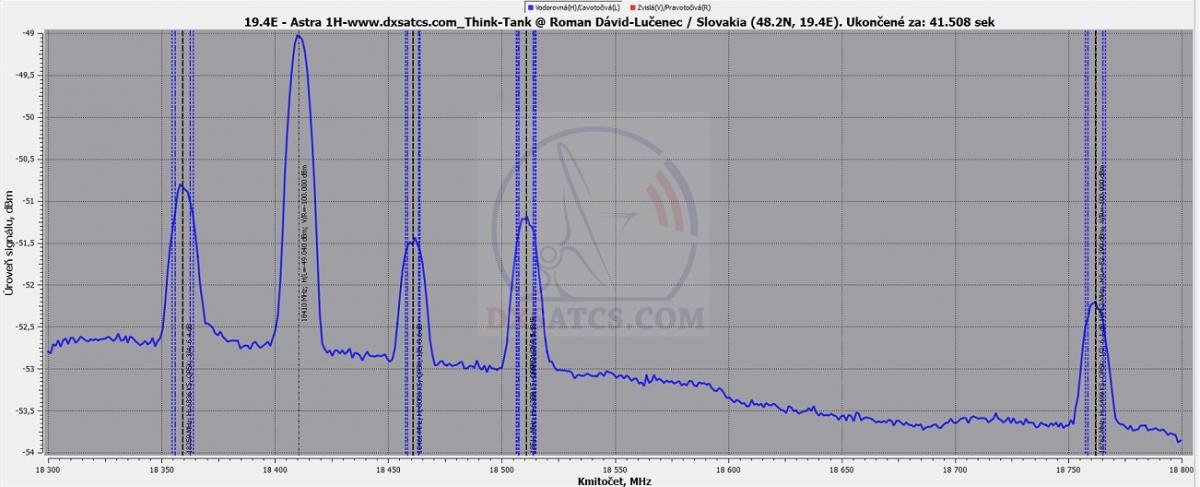

►The complete range of the -V- vector in the KA band from 18 200 to 18 800 MHz : DVB-S2 is the only format used

                                                                         18 365.2 MHz


►Quality analysis for the carrier in the -V- and -H- frequency spectrum from 18 200 to 18 800 MHz
                        (occupancy in the frequency spectrum is changing almost every day)

                                                    18 359 MHz  H : DVB-S2-QPSK Óčko tv Czech republic

                                                        18 365.2 MHz V : DVB-S2-QPSK Penthouse 3D-HD

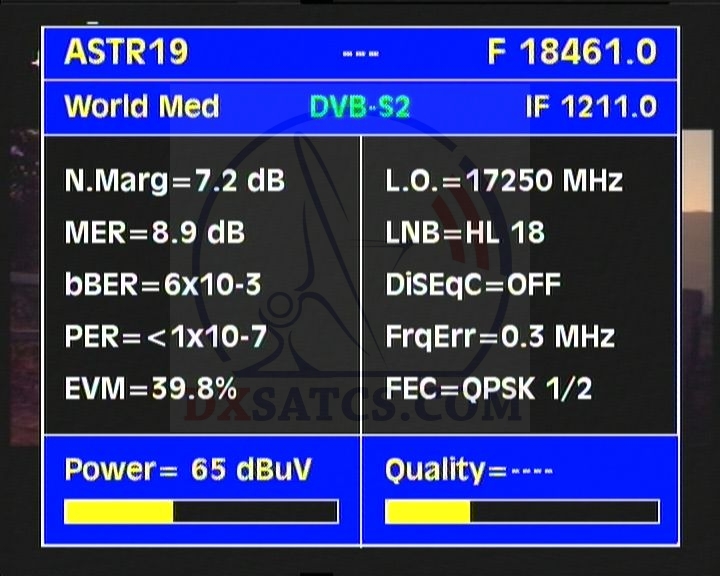

                                                        18 460 MHz  H : DVB-S2-QPSK packet Telefonica

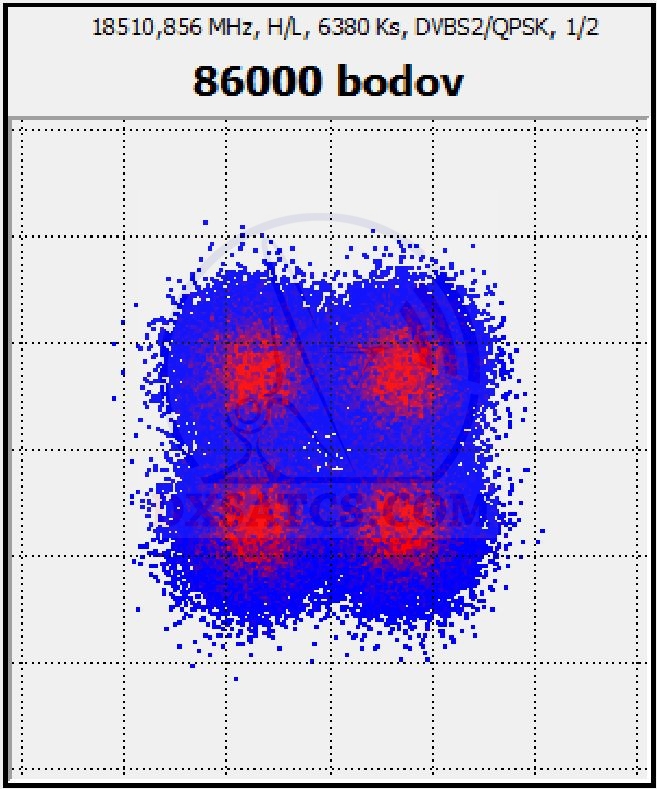

                                                       18 510 MHz  H : DVB-S2-QPSK test Ericsson Service

                                                               18 708 MHz  H : ACM-DVB-S2 Data / TS stream  (left)

                                                           18 762 MHz  H : DVB-S-QPSK feed Teleippica

►►Astra 1H at 19.4°E-reception and measurement in the KA band: list of identified carrier

.

-Frequency/Polarisation	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---DVB/Encryption---
18 359 MHz-H.pol	Óčko TV	6 889	3/4	Europe	60+ cm depending on the location	DVB-S2/QPSK/MPEG-2/FTA
18 365.2 MHz-V.pol	Penthouse 3D-HD	15 000 Pilots OFF	1/2	Europe	60+ cm depending on the location	DVB-S2/QPSK/MPEG-4/HD/3D         CA-Viaccess 4.0
18 410 MHz-H.pol	Data	6 500	2/3	Europe	60+ cm depending on the location	DVB-S2-ACM-16APSK
18 420 MHz-V.pol	Telefonica Spain_left

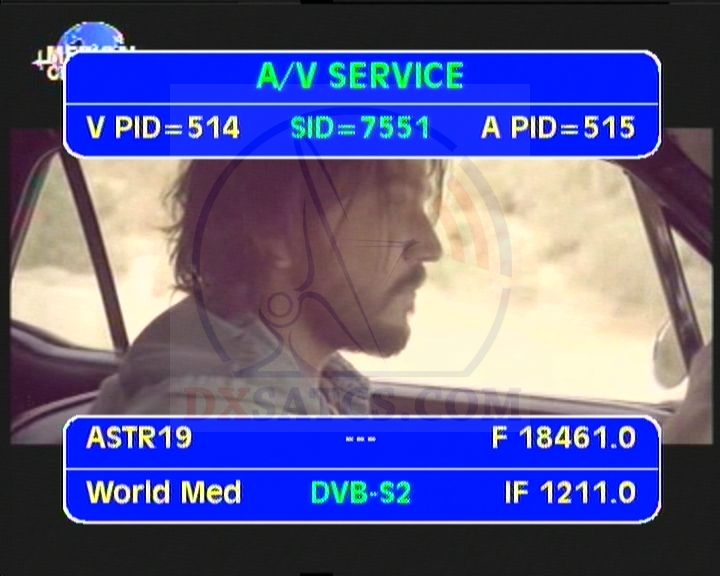

18 460 MHz-H.pol	Unn.packet	5 030	1/2	Europe	60+ cm depending on the location	DVB-S2/QPSK/MPEG-2
	The Medical channel					FTA
	World beauty channel					FTA

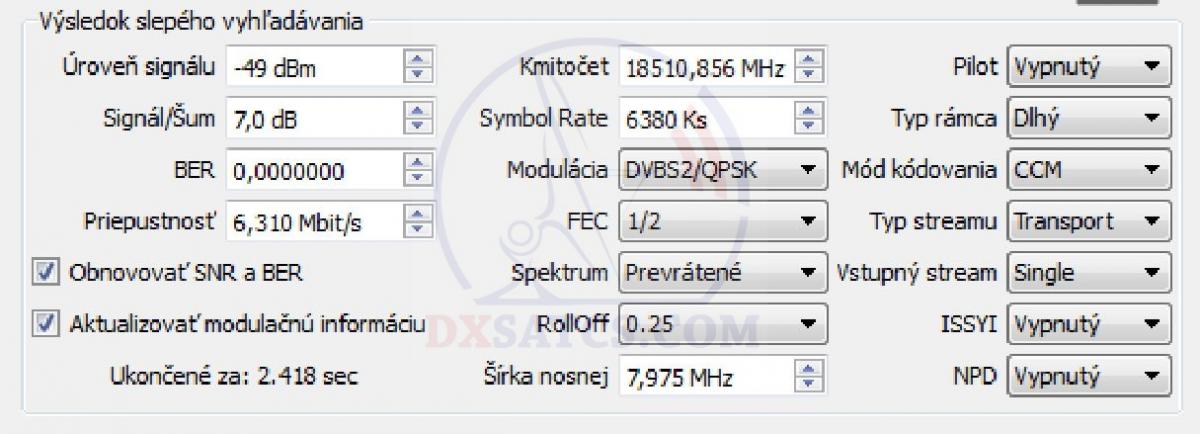

18 510 MHz-H.pol	test Ericsson Service	6 380	1/2	Europe	60+ cm depending on the location	DVB-S2/QPSK/MPEG-2
18 708-H.pol	Data	3 600	1/4	Europe	60+ cm depending on the location	DVB-S2-ACM-QPSK-multi stream
18 762 MHz-H.pol	feed Teleippica	6 500	1/2	Europe	60+ cm depending on the location	DVB-S-QPSK
18 788 MHz-H.pol	tests					?

.

►►Astra 1H at 19.4°E-KA band reception : video presentation of the results of the reception in the KA band

.

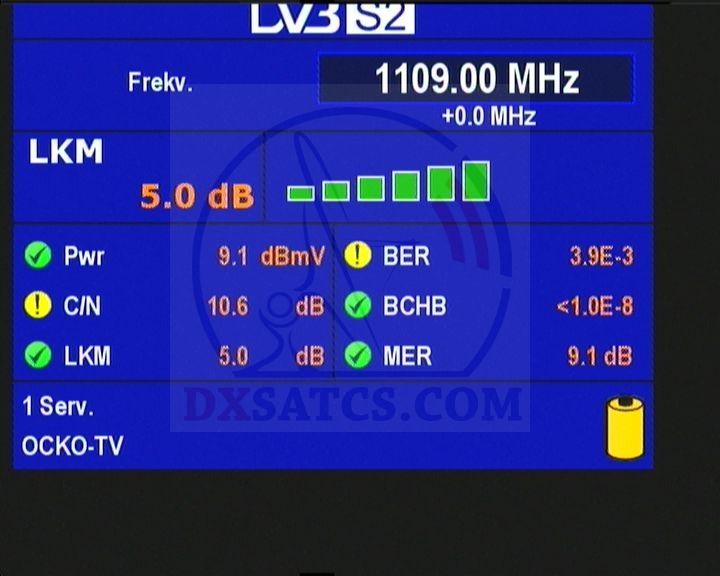

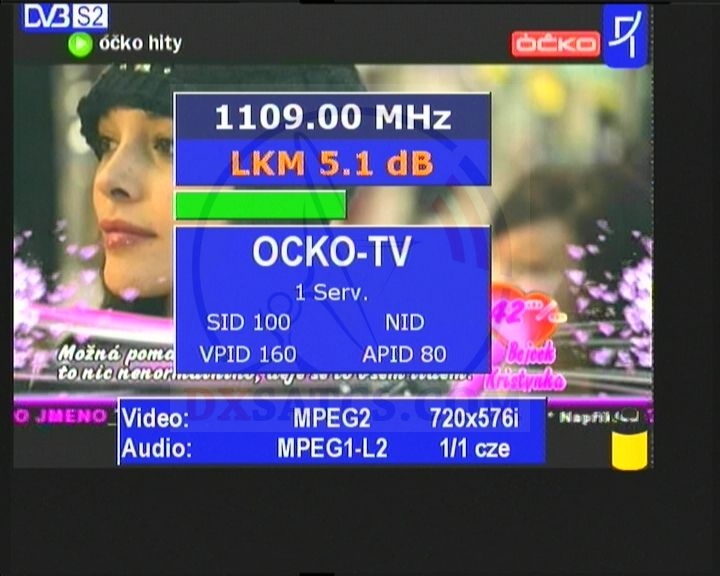

⇒ KA band satellite reception videos-Astra 1H at 19.43°E : f0=18 359 MHz-IF=1 109 MHz _ Óčko tv-analysis-Televes H60 Advanced

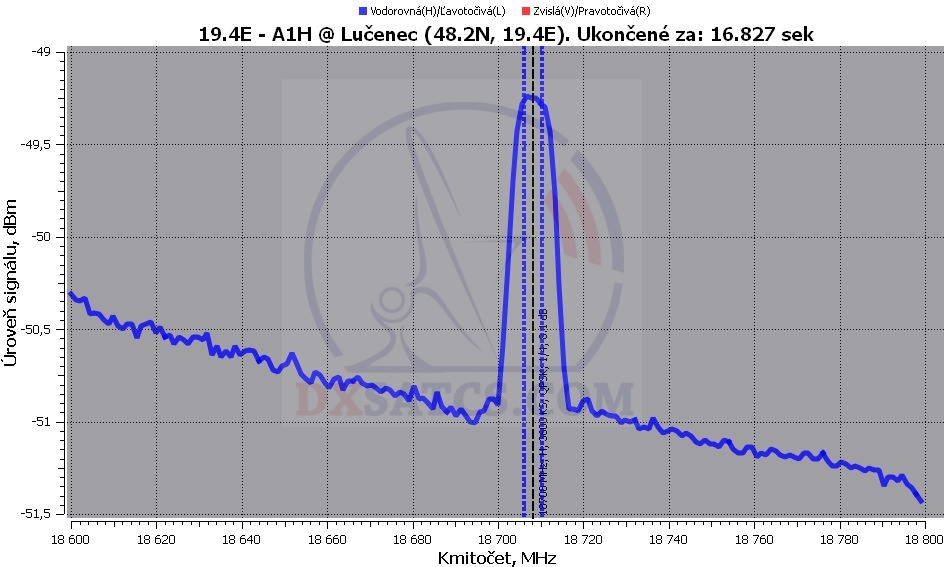

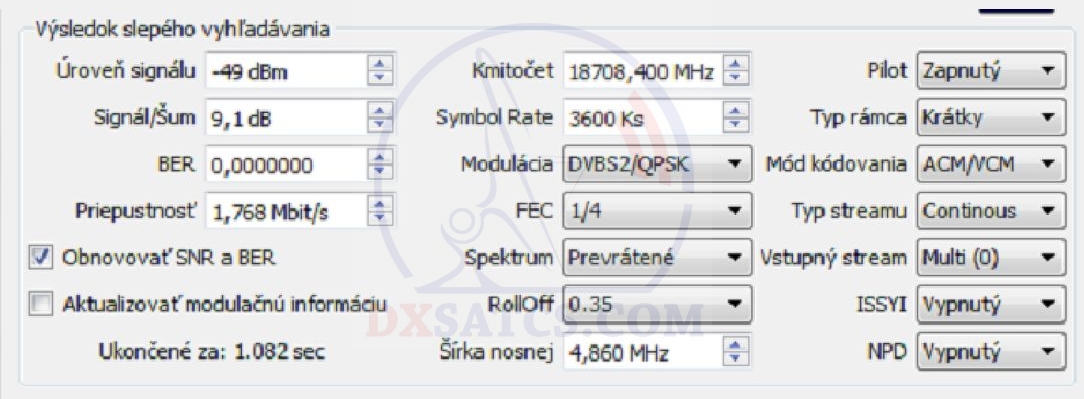

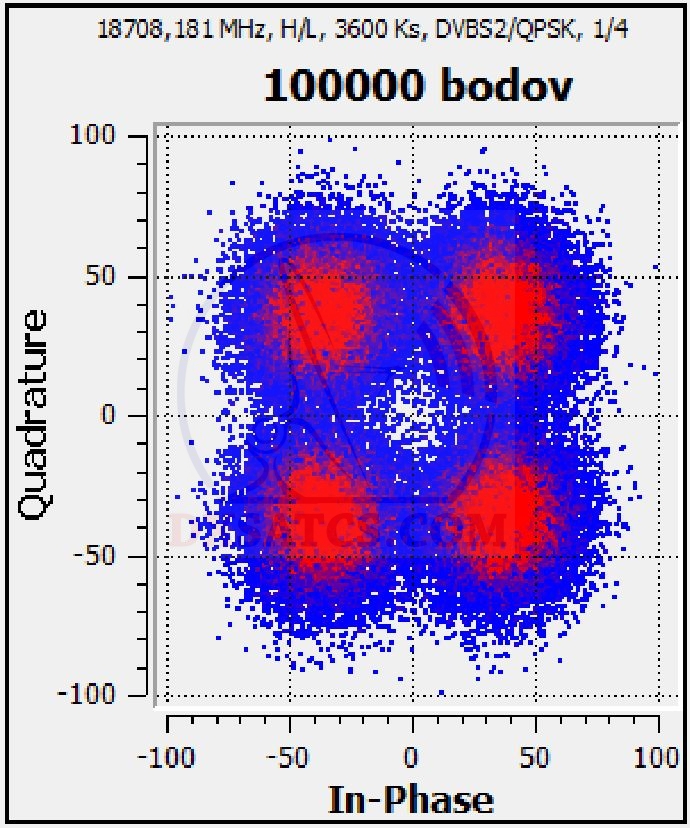

⇒ KA band satellite reception videos-Astra 1H at 19.40°E : f1-DVB-S2-QPSK-ACM Stream= 18 708 MHz-H pol., quality and spectrum analysis
                                             with the DVB-S2 TV Tuner TBS 5925 and SW CrazyScan ver. 1.0.1.50

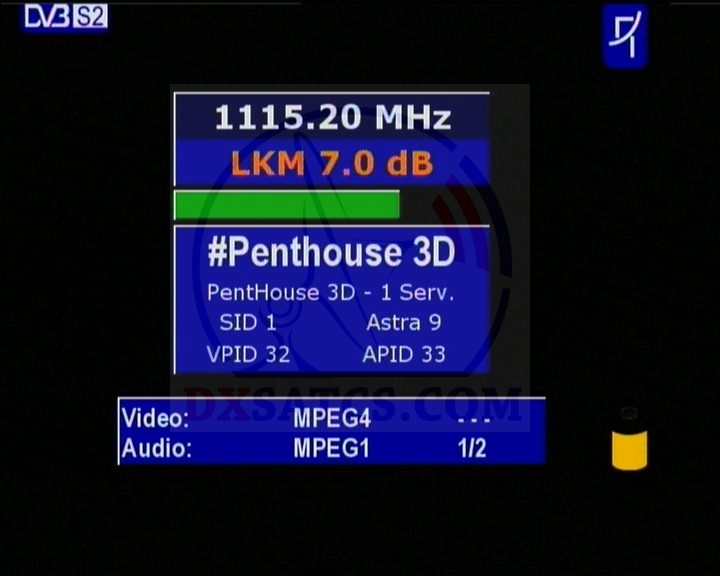

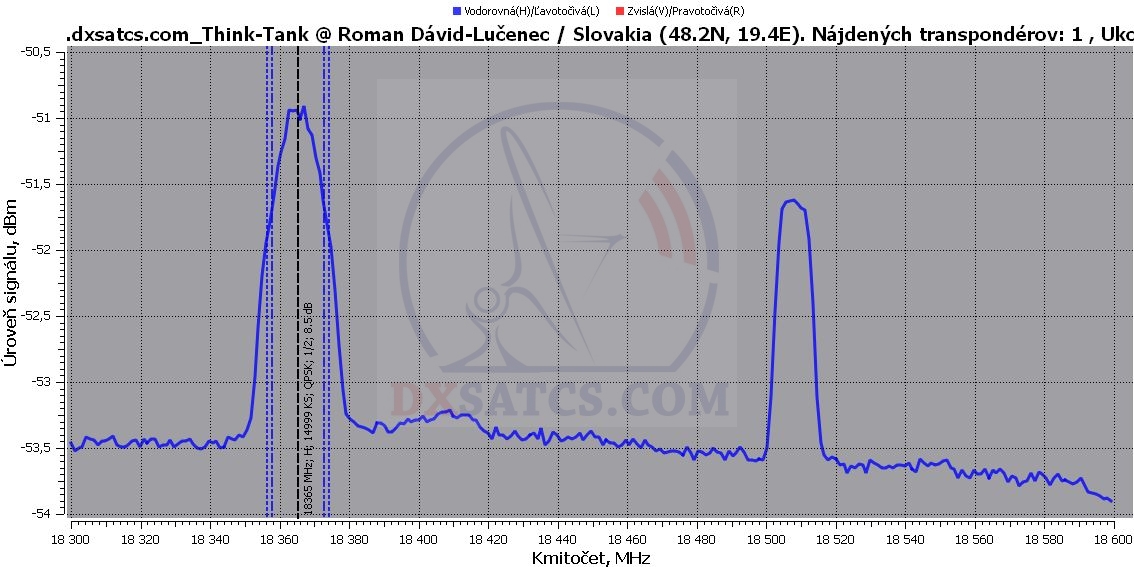

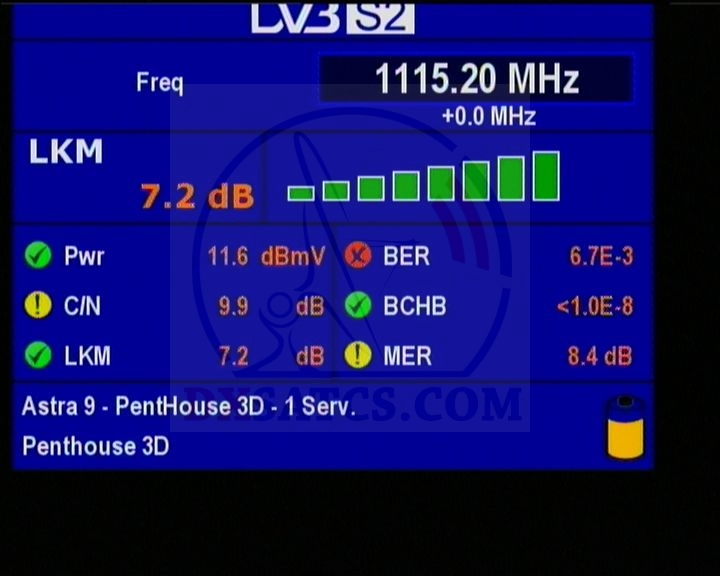

⇒ KA band satellite reception videos-Astra 1H at 19.40°E : PENTHOUSE 3D-KA band, quality and spectrum analysis with the field strenght
                                                                          meter Televes H60 Advanced

⇒ PENTHOUSE 3D-FIRST 3D BROADCAST in KA band in DVB-S2-QPSK format_Author Roman Dávid demonstrates the qualitative status
    PER-Packet Error Rate+Link Margin of DVB-S2 format with less than 1 false packets of the total 10 million received packets

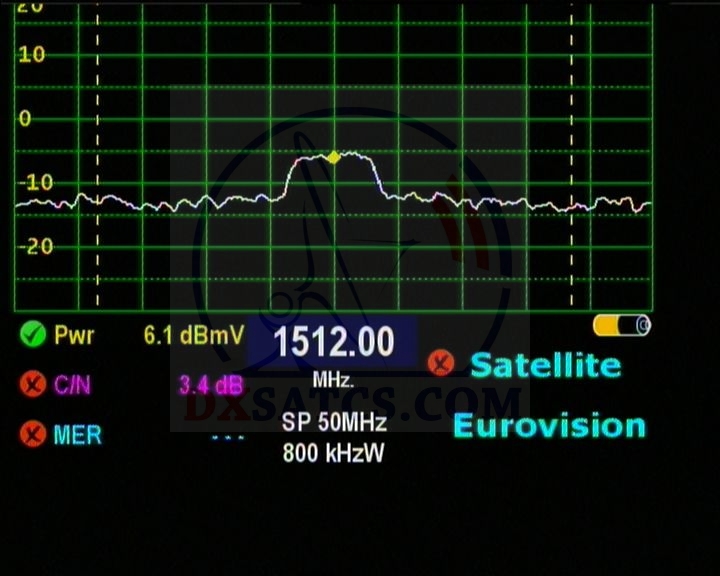

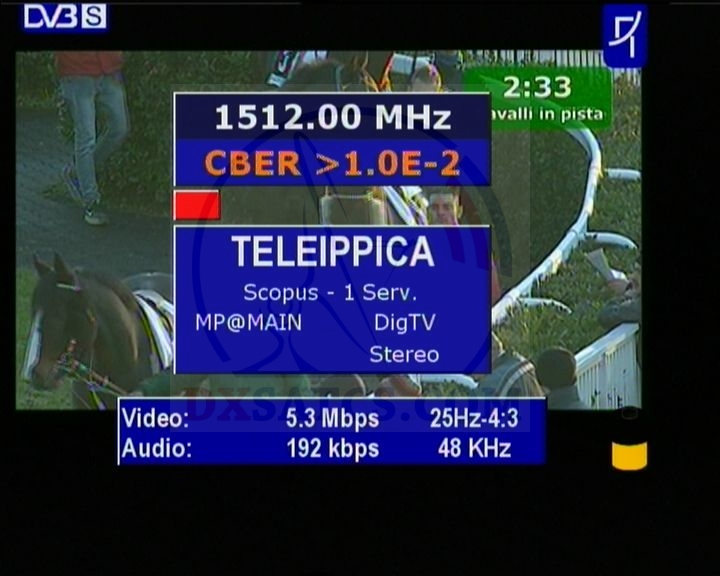

⇒ FIRST-FEED-CHANNEL-KA band-Astra-1H-19.4-18 762 MHz DVB-S FEED TELEIPPICA and DECODING THE ENCODED
MPEG transport stream service informations -SI- according to the European Standards ETS 162 and quality analysis
using Televes H60

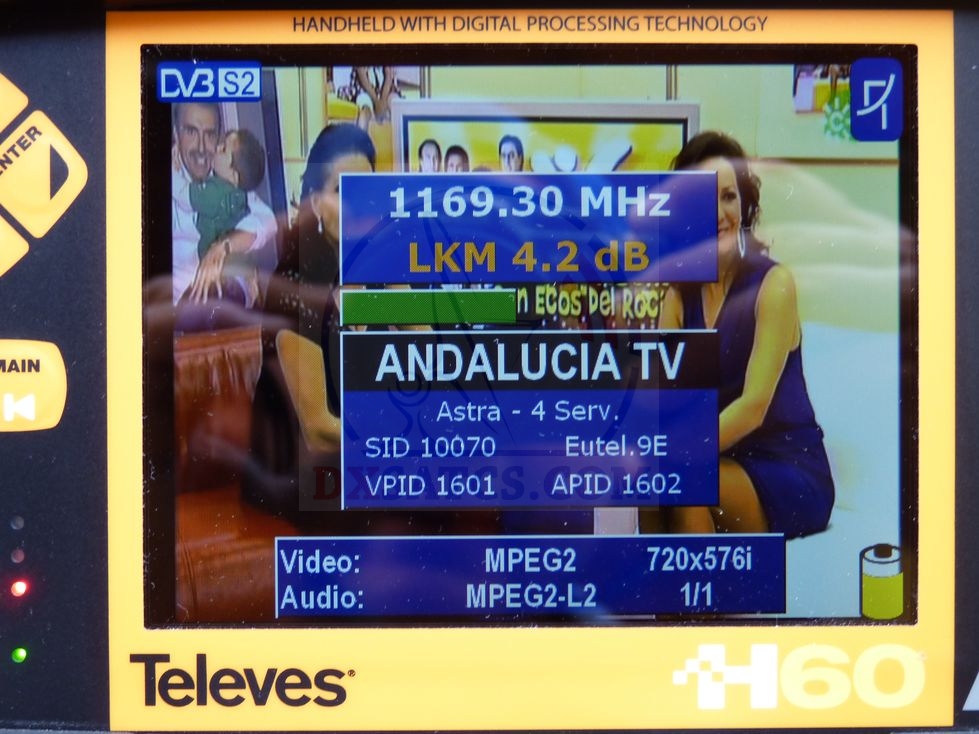

►►Astra 1H at 19.4°E-KA band reception : the first results of the reception in KA band with a digital measuring device Televes H60

                                                              Mr.Roman Dávid tests the digital analyzer in KA band
