►►Sicral 1 at 16.2°E-KA band reception : orbital location , coverage , polarisation , transponders ...

           Satellite reception in KA band-Sicral 1 at 16.2°E : LHCP vector spectrum analysis from 19 700 to 19 900 MHz

he spectrum of the horizontal vector in the range from 5 to 50 mhz
    Sicral 1-Italian system for secure communications and alerts : UHF (240-320 MHz) , SHF (7-8 GHz) , EHF band (20-44 GHz)

                                                                          Sicral 1 - datasheet

                                                                          source : Telespazio

►►Sicral 1 at 16.2°E-KA band reception : the HF string , footprint , geographical location ...

     geographical location of the measurement                      installed secondary radiant
                  N48°19719' , E19°40148'                                    PF Channel Master 300 cm


              Sicral 1 at 16.2°e                                   Sicral 1 at 16.2°e                                 Sicral 1 at 16.2°e
        EHF footprint-beam-coverage               SHF footprint-beam-coverage                UHF footprint-beam-coverage

                                                                          source : Telespazio

►►Sicral 1 at 16.2°E-reception and measurement in the KA band: analysis of the spectrum and the quality

►The complete range of the -LHCP- vector in the KA band from 19 700 to 20 000 MHz : Televes H60

                                                                C1=19 748 MHz → C2=19 822 MHz

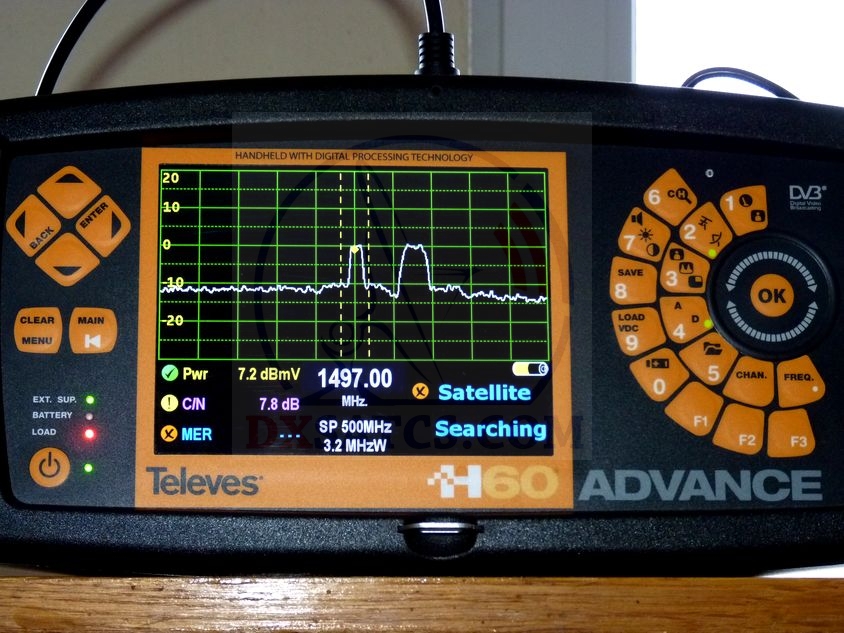

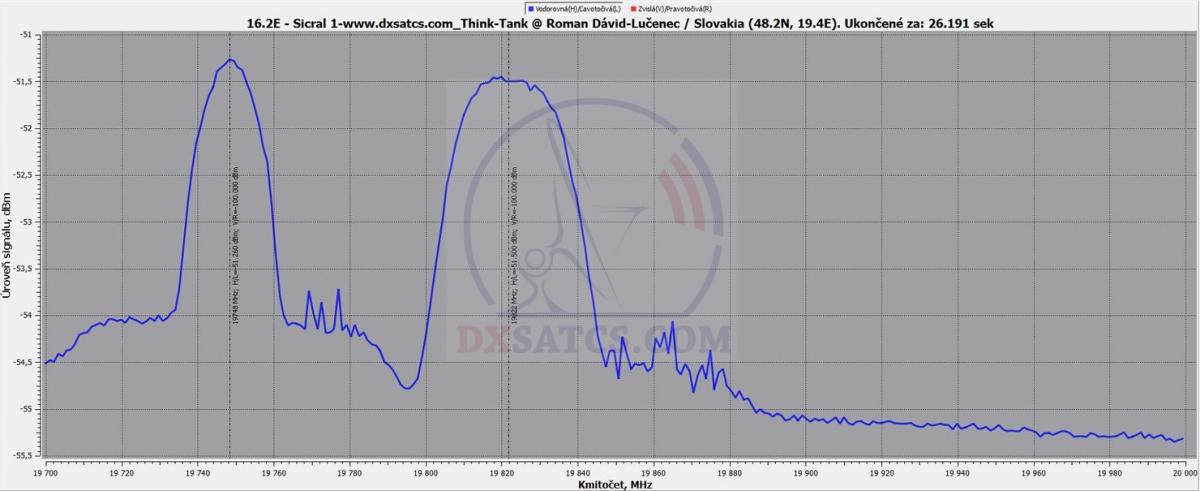

►The complete range of the -LHCP- vector in the KA band from 19 700 to 20 000 MHz : DVB-S2 TV tuner TBS 5925

                                                            C1=19 748 MHz → C2=19 822 MHz

►Without quality analysis for the 2 carrier in the -LHCP- frequency spectrum from 19 200 to 20 200 MHz

  ---

►►Sicral 1 at 16.2°E-reception and measurement in the KA band: list of locking carrier

.

.

►►Sicral 1 at 16.2°E-KA band reception : video presentation of the results of the reception in the KA band

.
⇒ Sicral 1-16.2°e-EHF-KA-band satellite reception video-LHCP vector : spectrum analysis from 19 700 to 20 000 MHz _
