►►WGS 2 at 60.0°E-KA band reception : orbital location , coverage , polarisation , transponders ...

               KA band satellite reception : the spectrum of the LHCP vector and the detail of the carrier at the f = 20 824 MHz the spectrum of the horizontal vector in the range from 5 to 50 mhz

                                                       geosynchronous object  WGS 2 : λ=60°
                                          source : Boeing Satellite and Intelligence Systems, Inc USA




►►WGS 2 at 60.0°E-KA band reception : the HF string , footprint , geographical location ...

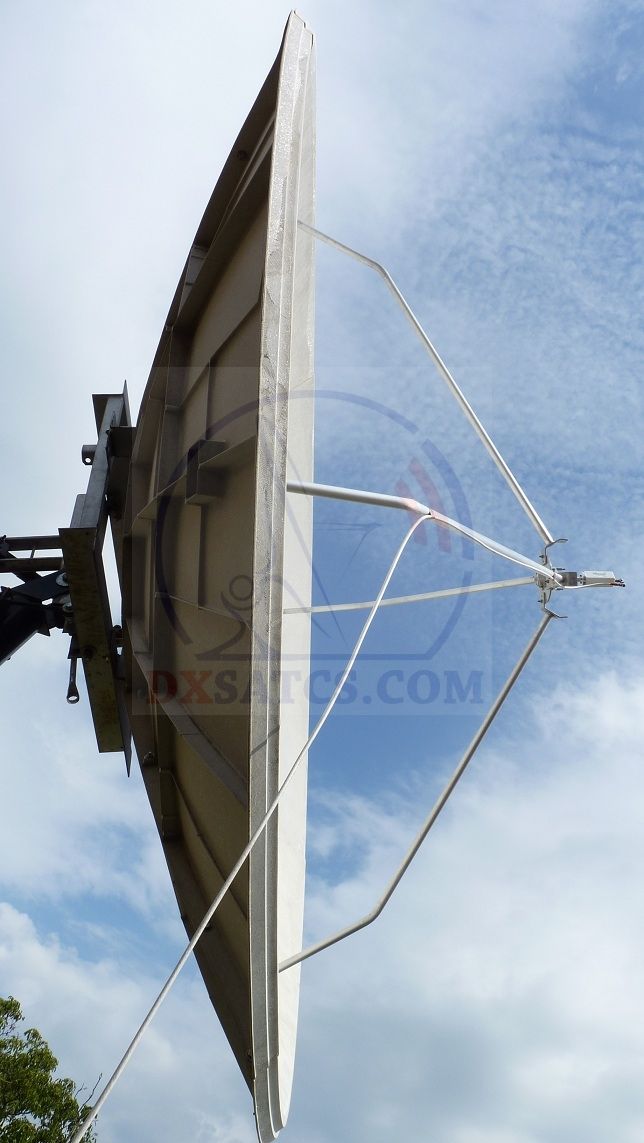

               secondary radiant                    original proposal for the circular vectors      KA band LNB DRO Norsat 880-9000 CF

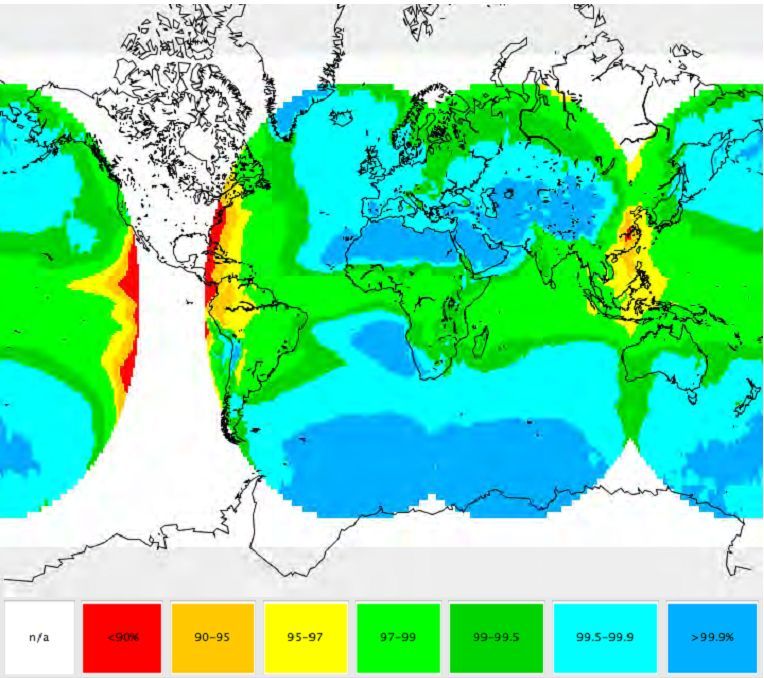

                                   WGS 2-KA band footprint                         geographical location of the measurement


►►WGS 2 at 60.0°E-reception and measurement in the KA band: analysis of the spectrum and the quality

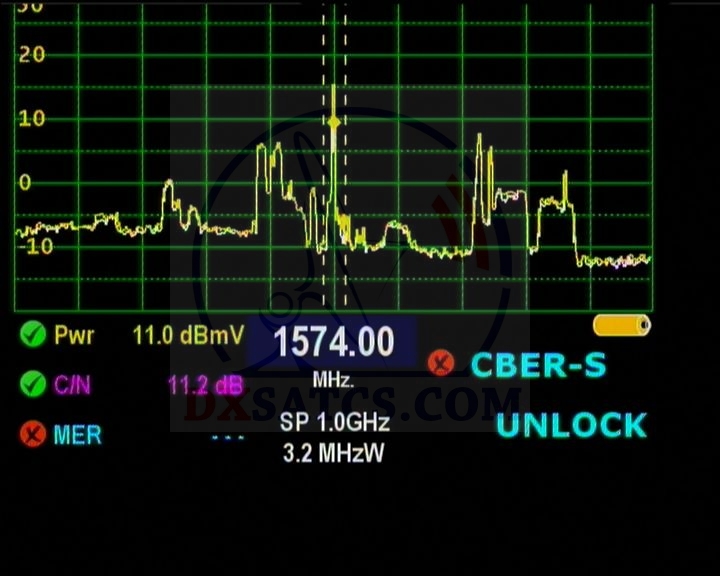

►The complete range of the -LHCP- vector in the KA band from 20 400 to 21 250 MHz

►Details of the range of the LHCP vector : C1=20 727 MHz , C2=20 824 MHz , C3=21 101 MHz

►Quality analysis for the carrier in the LHCP frequency spectrum from 20 400 to 21 250 MHz (curent status 02/2015)

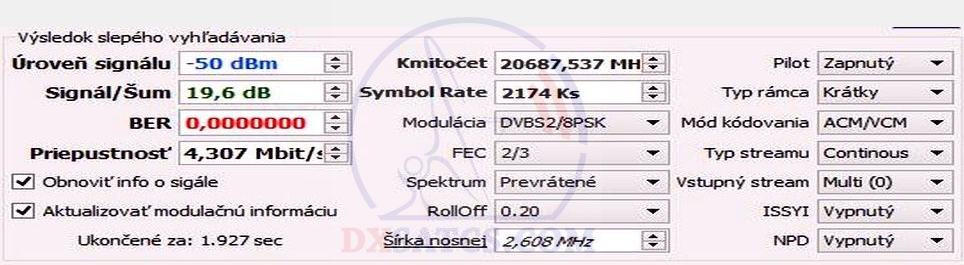

►WGS 2-60°E - KA band : 20 687 MHz_ ACM/VCM  Data

►WGS 2-60°E - KA band : 20 925 MHz_ DVB-S Data

►►WGS 2 at 60.0°E-reception and measurement in the KA band: list of identified carrier

.

-Frequency/Polarisation	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---DVB/Encryption---
20 687 MHz - LHCP	ACM Data	2 174 3 710	---	Global	60+ cm	DVB-S2/ACM/VCM
20 925 MHz - LHCP	Modem	36 615	2/3	Global	60+ cm	DVB-S/MPEG-2

.

►►WGS 2 at 60.0°E-KA band reception : video presentation of the results of the reception in the KA band

.

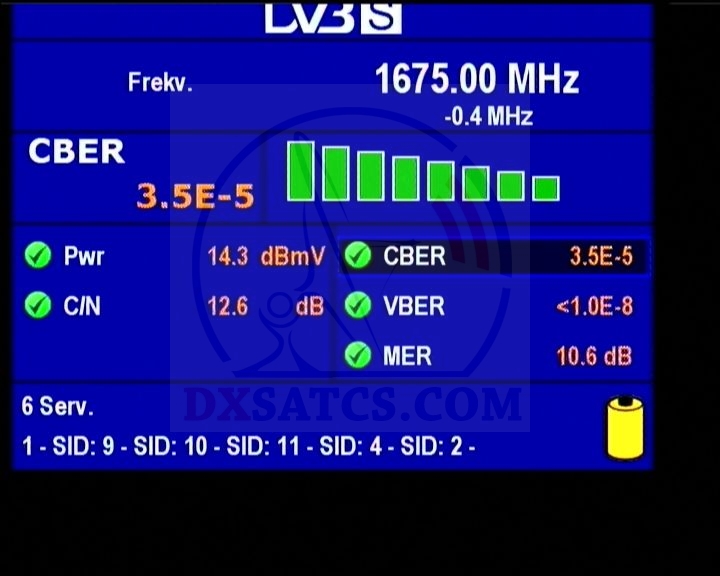

⇒ KA band satellite reception video-WGS-2 at 60°e : spectrum analysis of the DVB-S Modem at f=20 925 MHz / IF=1675 MHz

⇒ KA band satellite reception-WGS-2 at 60°e : f0=20 925 MHz / IF=1675 MHz _results of quality and spectrum analysis

.
