ABS-S Advanced Broadcasting System-Satellite / dx news 2

Satellite Chinasat 9 at 92.2°E - KU footprint : identification of two new data transfer

                                                      - dx theme news numer 2 -
                                                         download pdf document
                                                      - download pdf document -

- when analyzing the spectrum of circular vector L from Chinasat 9 satellite at 92.2° East in the KU band on
19th September 2009 I am at frequency f = 12 170 MHz to define the parameters of the new data transmission and for the
first time I managed to define the quality of income data for the next carrier at frequency f = 12 072 MHz,vector L.

  1. Prodelin center antenna with a diameter of 3.7 meters at fixed attached / AZ/EL type 1374-990 RX /

     2.  External high-frequency unit : dxsatcs experimental waveguide line

                                     --  PF Prodelin 3.7 m AZ/EL type 1374-990 RX --
  chinasat-9-at-92.2-abs-s-prodelin-3.7-m-n

                                         --- dxsatcs experimental waveguide line ---
chinasat-9-at-92.2-abs-s-waveguide-line-n

.

                          ---  12 170 L - spectral analysis of the vector L with Mark 1 for data carrier  ---
chinasat-9-at-92.2-abs-s-spectral-analysis-12170-nn
                              chinasat-9-at-92.2-abs-s-q-data-12170-ww    chinasat-9-at-92.2-abs-s-sr-data-12170-ww
                                                   data quality                                                 data SR - PWR

.

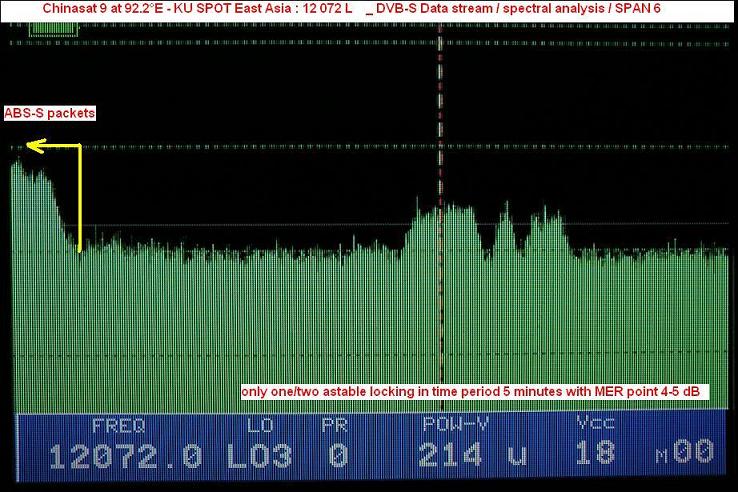

                             ---  12 072 L - spectral analysis of the vector L with Mark 1 for data carrier  ---
chinasat-9-at-92.2-abs-s-spectral-analysis-12072-nn
                                 chinasat-9-at-92.2-abs-s-q-data-12072-ww  chinasat-9-at-92.2-abs-s-sr-data-12072-ww

      data quality                                                 data SR - PWR

                                                       dxsatcs logo
                                                               CZECH & SLOVAK DX SATELLITE CLUB
                                                                    international professional portal

                                                                    Roman Dávid - author & founder
                                                                    mail :
roman.david@dxsatcs.com

ABS-S Advanced Broadcasting System-Satellite / dx news

Satellite Chinasat 9 at 92.2°E - KU footprint : first measurement
                                                      - dx theme news number 1 -
                                                         download pdf document
                                                      - download pdf document -

- on 25th April 2009 I made the first measurements of the spectrum from satellite Chinasat 9 to 92.2 ° E in the KU band
for the purpose of identifying the data carrier transmission for f = 12 000 MHz spectrum in a circular wave vector L.
Place of reception was city of Lučenec-central Slovakia with the following satellite set:

  1. Prodelin center antenna with a diameter of 3.7 meters at fixed attached / AZ/EL type 1374-990 RX /

     2.  External high-frequency unit, which was formed: SMW WDL Digital Type E, mechanical polarizer Hirschmann
          CSP 1210 C , depolarizer SMW XD-12


     3.  Depolarizer SMW XD-12

                                                --  PF Prodelin 3.7 m AZ/EL type 1374-990 RX --
chinasat-9 -at-92.2-e-01n

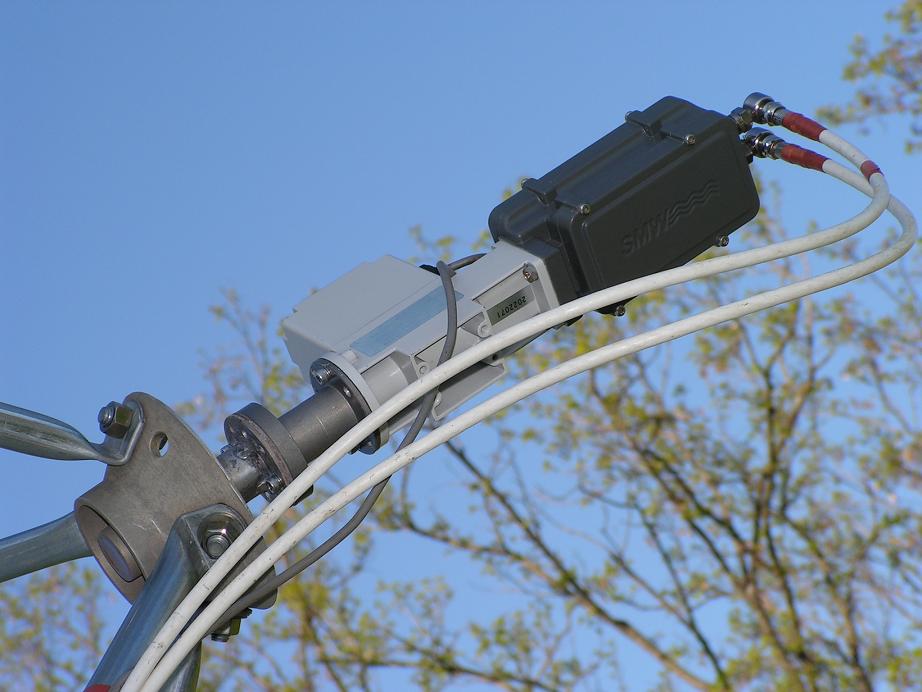

                                                          -- external high-frequency unit --
chinasat-9 -at-92.2-e-02n

                            chinasat-9 -at-92.2-e-hf-assembly-01  chinasat-9 -at-92.2-e-hf-assembly-02

- followed by a detailed analysis of the spectrum with the L wave vector expressing the quality of income data for the
carrier frequency f = 12 000 MHz, which was broadcast in compression MPEG-2 / format DVB-S

                                        ---  range of frequencies from 11 840 to 12 000 MHz ---
chinasat-9 -at-92.2-e-spectral-analysis-01-n

                                   --- Mark 1 defines the status of data carrier /  f = 12 000 L ---
chinasat-9 -at-92.2-e-spectral-analysis-02-n

                               --- two other supporting data, which are present in the spectrum ---
chinasat-9 -at-92.2-e-spectral-analysis-03-n

                                                                    --- quality analysis ---
           chinasat-9 -at-92.2-e-spectral-analysis-04-n

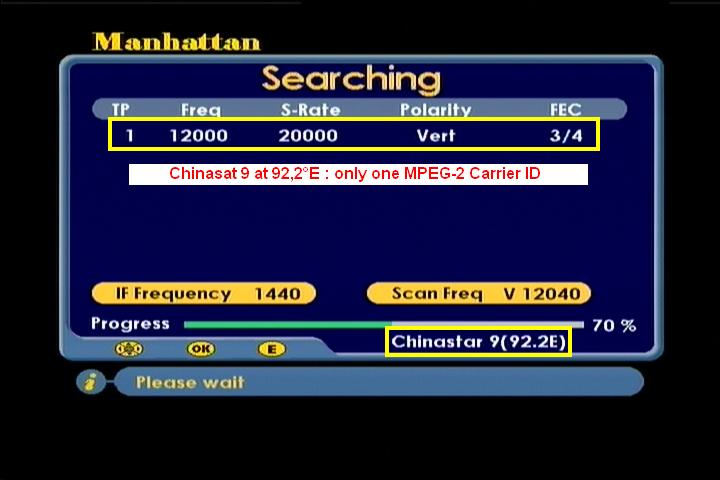

                                                         --- locked carrier data transmission ---
chinasat-9 -at-92.2-e-spectral-analysis-05-n
