Intelsat 3R/11 at 43.0°W

By Roman Dávid. ,

Intelsat 3R/11 at 43.0°W : Technical data

Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ first snap 001

          satellite : Intelsat 11  - orbit : 43.1°W - TP linear V+H / bw : 12x54_4x64 MHz - lifetime : from 5.10.2007 - 15 years


Update - Intelsat 3R/11 at 43.0°W - Americas/Europe footprint : spectral analysis & income quality


  Intelsat 11 at 43.0°W - Americas/Europe footprint : IS satellite measurements at the center Lučenec_central Slovakia
                                          geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                                                   elevation angle  : 9.0°

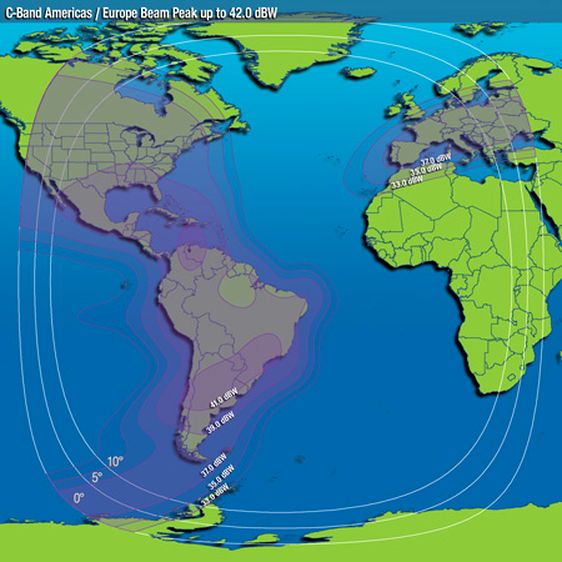

                              Intelsat 11 footprint                     >>>                Intelsat 11 spectral analysis
           combined coverage of America and Europe                     sequence spectrum of the vector H
                 north and south america and europe                                 TP AE12C >>> TP AE16C
              Intelsat 11 at 43.0 w_C band_Americas Europe footprint                     Intelsat 11 at 43.0 w_C band_Americas Europe footprint_spectral analysis

                     Intelsat 11 at 43.0°W - Americas/Europe footprint  : quality analysis of income

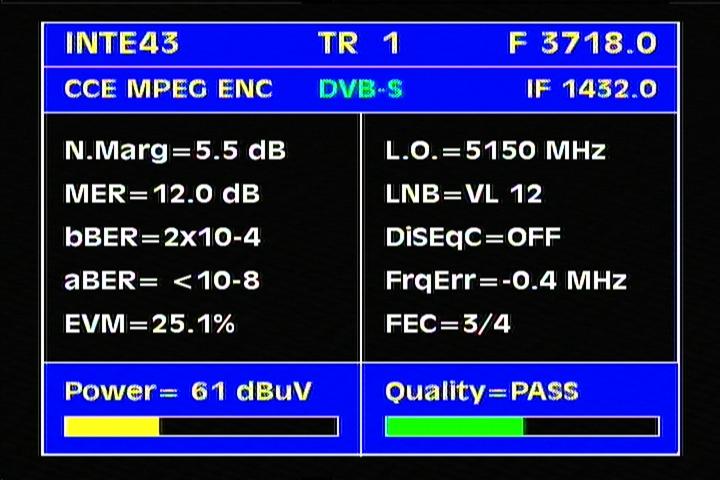

                       Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 718 V Packet HD Lap PowerVu
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 718 V HD Lap _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 718 V HD Lap _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 718 V HD Lap _ NIT data

                                Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 780 H Packet Turner
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 780 H Packet Turner _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 780 H Packet Turner _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 780 H Packet Turner _ NIT data

                          Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 808 H Unnamed network
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 808 H Unn. packet _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 808 H Unn. packet _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 808 H Unn. packet _ NIT data

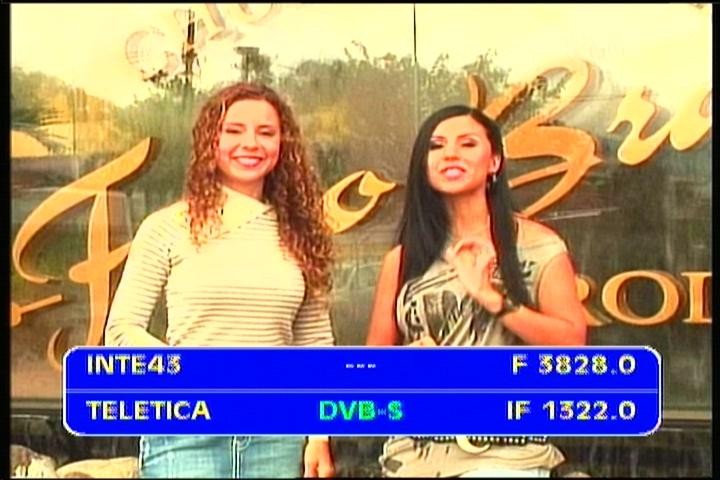

                                    Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 828 V Teletica 7
                          IF data                                                    Q data                                                    NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 828 V Teletica _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 828 V Teletica _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 828 V Teletica _ NIT data

                             Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 836 H Packet PAS 3/5
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 836 H Packet PAS 3 5 _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 836 H Packet PAS 3 5 _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 836 H Packet PAS 3 5 _ NIT data

                       Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 855 V TVsa Int feed / test card
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 855 V TVSA Int _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 855 V TVSA Int _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 855 V TVSA Int _ NIT data

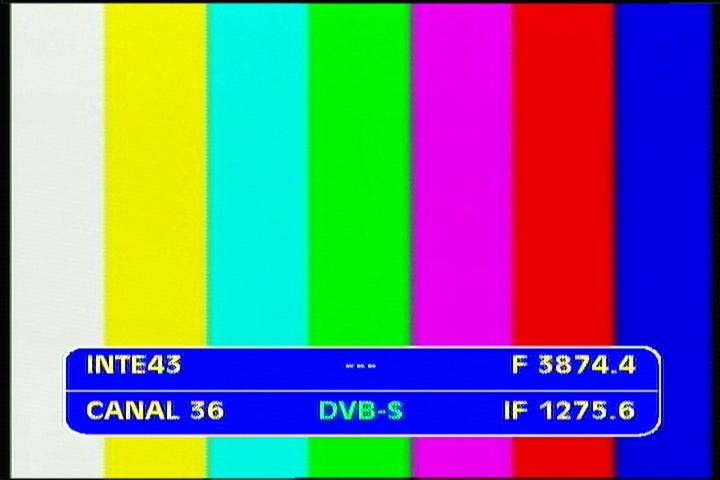

                                     Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 874 V Canal 36
                          IF data                                                    Q data                                                    NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 874 V Canal 36 test card _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 874 V Canal 36 test card _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 874 V Canal 36 test card _ NIT data

                         Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 928 H Packet Televisa Network
                          IF data                                                    Q data                                                    NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 928 H Televisa Networks _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 928 H Televisa Networks _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 928 H Televisa Networks _ NIT data

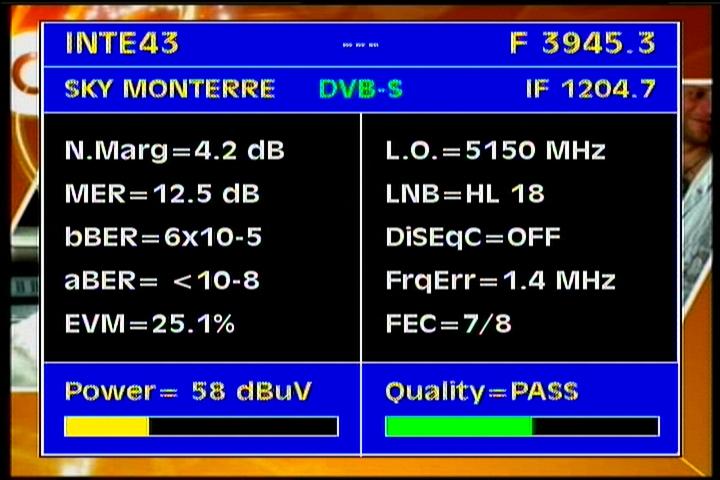

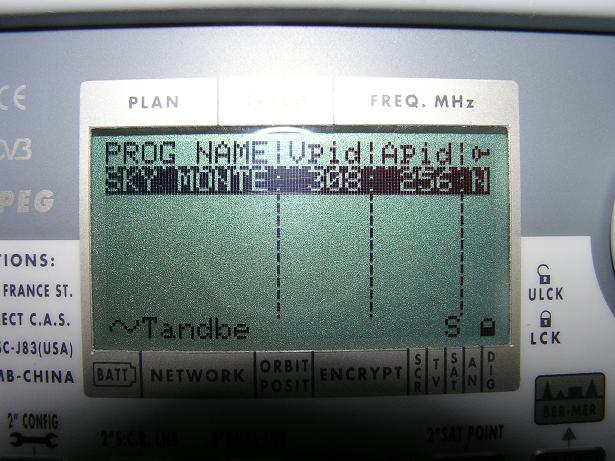

                              Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 945 H Sky Monterrey
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 945 H SKY Monterrey _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 945 H SKY Monterrey _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 945 H SKY Monterrey _ NIT data

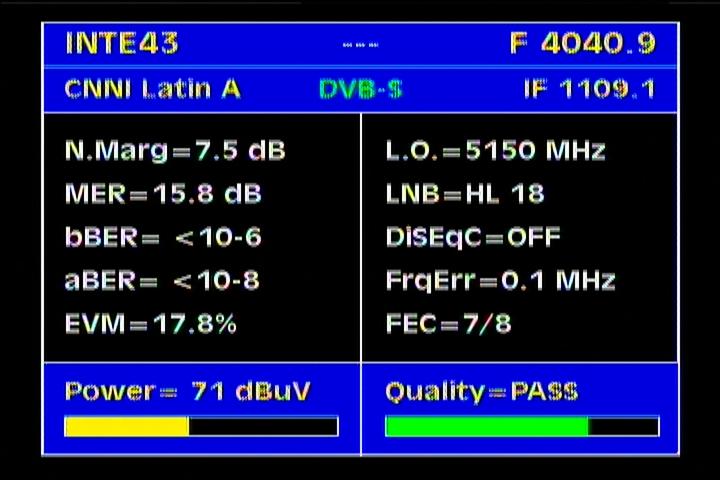

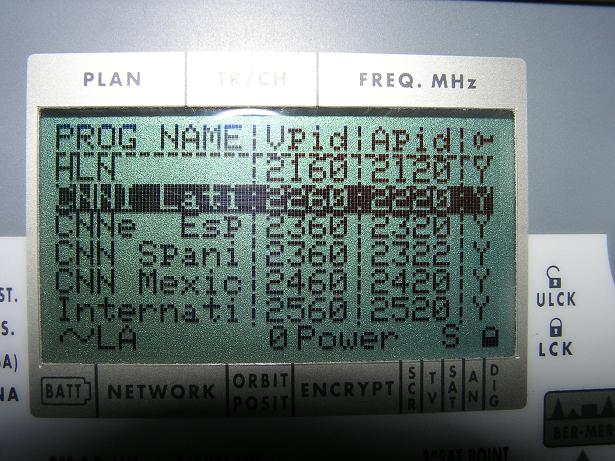

                             Intelsat 11 at 43.0°W - Americas/Europe footprint : 4 040 H CNN Latin America
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 040 H CNN Latin America _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 040 H CNN Latin America _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 040 H CNN Latin America _ NIT data

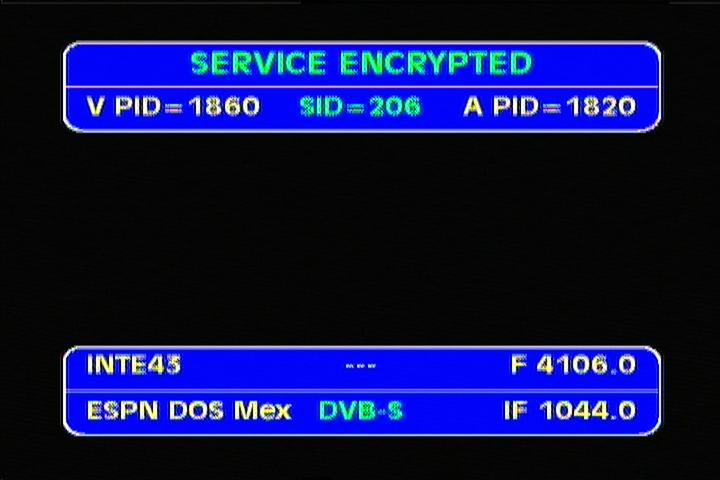

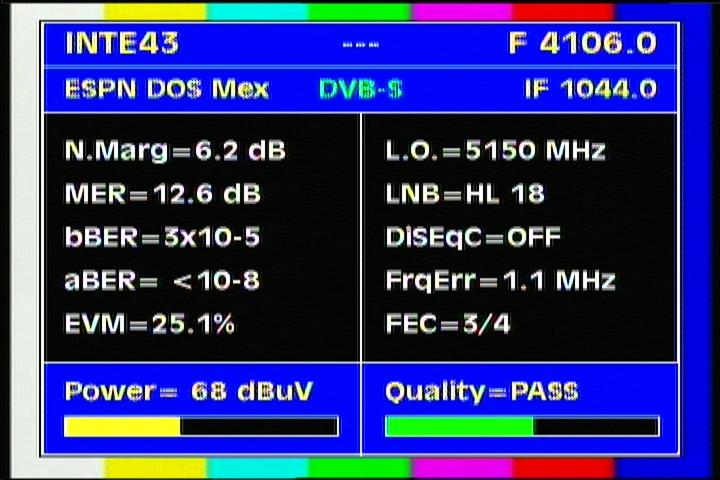

                            Intelsat 11 at 43.0°W - Americas/Europe footprint : 4 106 V ESPN Latin America
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 106 V ESPN Latin America _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 106 V ESPN Latin America _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 106 V ESPN Latin America _ NIT data

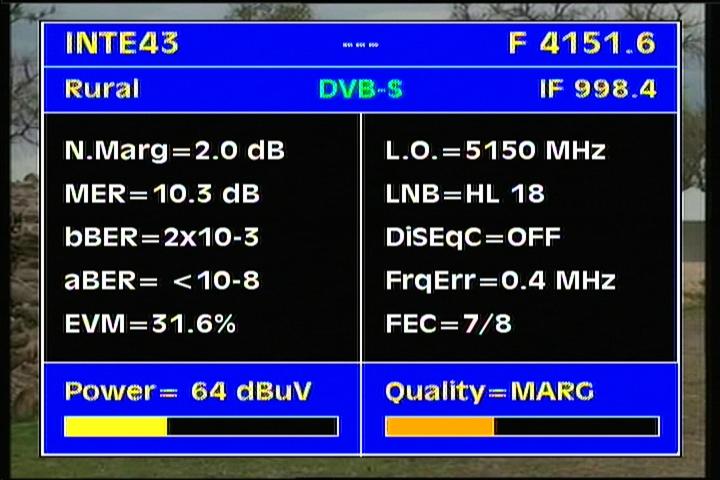

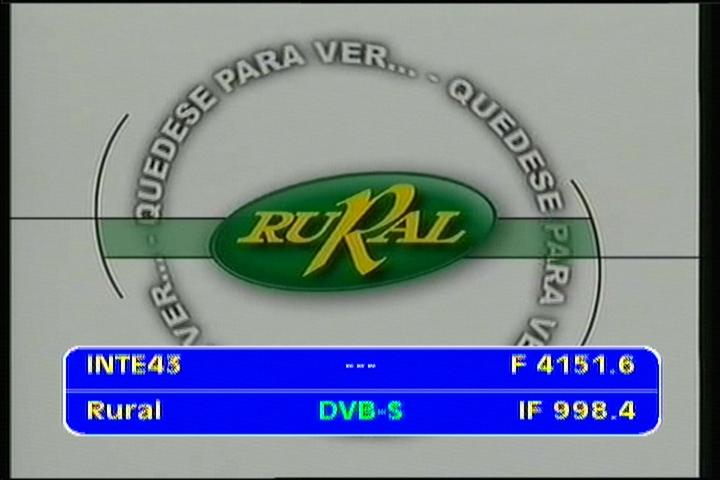

                               Intelsat 11 at 43.0°W - Americas/Europe footprint : 4 150 H Packet Artear
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 150 H Packet Artear _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 150 H Packet Artear _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 150 H Packet Artear _ NIT data

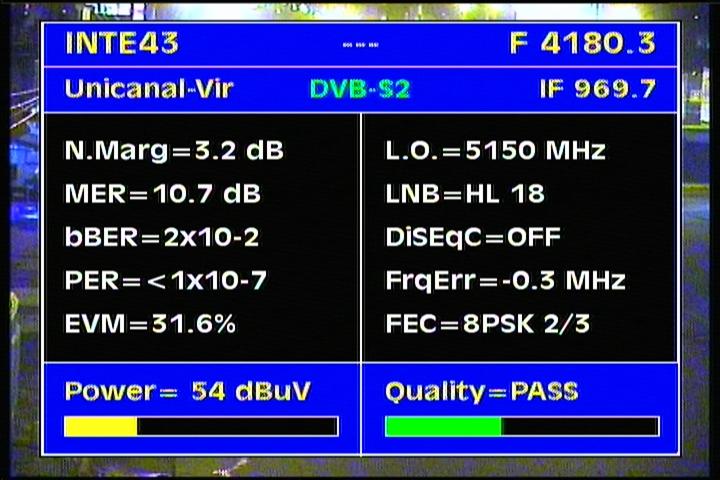

                            Intelsat 11 at 43.0°W - Americas/Europe footprint : 4 180 H DVB-S2/8psk Unical
                          IF data                                                      Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 180 H DVB S2 8PSK Unicanal _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 180 H DVB S2 8PSK Unicanal _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 180 H DVB S2 8PSK Unicanal _ NIT data

Intelsat 3R/11 at 43.0°W : TV List


Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ PF Prodelin 3.7 m


---Frequency---


----Provider/Channel----

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 718 -V- tp AE1C

 HD Lap 21 258 3/4   Americas &
     Europe		 180+ cm DVB
  CCE MPEG ENC2P2         PowerVu
  ANIV ENC2P3         PowerVu
  MCE Movie City Este HD         MPEG-2/HD/PowerVu

3 780 -H- tp AE4C

 Turner 27 690 7/8   Americas &
      Europe		 140-180+ cm DVB
  Fashion TV Brasil         PowerVu
  Boomerang Brasil         PowerVu
  Boomerang Mexico         PowerVu
  TCM Classic N         PowerVu
  TCM Classic H         PowerVu
  TNT Chile         PowerVu
  TNT Brasil         PowerVu
  TNT Mexico         PowerVu
  TNT Argentina         PowerVu
  Cartoon Network Argentina         PowerVu
  Cartoon Network Latin America         PowerVu
  Cartoon Network Mexico         PowerVu
  Cartoon Network Brasil         PowerVu
  Boomerang latin America         PowerVu

3 808 -H- tp AE4C

  Unnamed network 13 838 5/6  Americas &
     Europe		 180+ cm DVB-S2/8PSK/MPEG-4
  TNT HD         MPEG-4/PowerVu
  Space HD         MPEG-4/PowerVu
  Space PNR SD         MPEG-2/PowerVu

3 828 -V- tp AE5C

 Teletica 7    watch video 3 300 3/4   Americas &
     Europe		 180+ cm DVB FTA

3 836 -V- tp AE5C

 Unnamed network
 		 7 779  2/3   Americas &
     Europe		 180+ cm DVB-S2/8PSK/MPEG-4
  Canal 9         MPEG-4/Irdeto
  America Repetid         MPEG-4/Irdeto
  America Interna         MPEG-4/Irdeto
  America Interio         MPEG-4/Irdeto
  America 24         MPEG-4/Irdeto
  Junin TV         MPEG-4/Irdeto

3 838 -H-tp tp ---

  PAS 3/5 20 768 3/4   Americas &
     Europe		 180+ cm  DVB-S
  Adhoc 2 /NBA tv/WGN HD watch video         FTA
  Open VC#1         MPEG-2/PowerVu
  Adhoc 3         MPEG-2/PowerVu
  NBA to LA         MPEG-2/PowerVu

3 855 -V- tp AE5C

 TVSA Int latino testcard/feeds 5 944 3/4   Americas &
      Europe		 180+ cm DVB-S/FTA


3 866 -V- tp AE5C

SD Service with Layer

  10 559  5/6  Americas &
     Europe		  180+ cm DVB-S2/8PSK/MPEG-4

3 875 -V- tp AE5C

 testcard Canal 36 1 546 2/3 Americas &
   Europe		 180+ cm DVB FTA

3 929 -H- tp AE8C

 Televisa Networks 13 500 7/8  Americas &
     Europe		 180+ cm DVB
  Clasico TV         FTA
  Ritmoson         FTA
  Telehit     watch video         FTA
  De Pelicula         FTA
  Galavision         FTA
  Telenovelas         FTA

3 942 -H- tp AE8C

TDN

 4 687 5/6  Americas &
     Europe		 180+ cm Biss

3 943 -V- tp AE7C

 Radio Nederland network 1 200 1/2   Americas &
     Europe		 180+ cm DVB

3 945 -H- tp AE8C

SKY Monterrey

 2 812 7/8  Americas &
     Europe		 180+ cm DVB/4:2:2

3 971 -H- tp AE10C

 Discovery Channel 21 090 3/4  Americas &
     Europe		 180+ cm DVB
  Discovery Health Channel         PowerVu
  People + Arts America         PowerVu
  Discovery Channel America         PowerVu
  Discovery Kids America         PowerVu
  Discovery Channel Mexico         PowerVu

3 985 -V- tp AE9C

Radio Nederland network

 1 200 3/4 Americas &
     Europe		 180+ cm DVB FTA

3 995 -H- tp AE10C

 Discovery Channel 21 090 3/4  Americas &
     Europe		 180+ cm DVB
  Discovery Channel Latin America         PowerVu
  People+Arts Argentina         PowerVu
  Discovery Channel Argentina         PowerVu
  Discovery Kids         PowerVu
  Animal Planet latin America         PowerVu
  People+Arts Argentina         PowerVu
  Discovery Kids Argentina         PowerVu
  Discovery Home & Health         PowerVu

4 040 -H- tp AE12C

 CNN 30 800 7/8  Americas &
     Europe		 140-180+ cm DVB
  CNNi Latin America         unknown CA
  CNNe Espanol         unknown CA
  CNN Mexico         unknown CA
  feeds Int news feed         occasional
  feeds Live Events         occasional
  feeds Live Events 2         occasional
  feeds         occasional

4 106 -V- tp AE13C

 ESPN 26 470 3/4  Americas &
     Europe		 140-180+ cm DVB
  ESPN DOS Mexico         PowerVu
  ESPN DOS         PowerVu
  ESPN Latin North Ven         PowerVu
  ESPN Latin America N         PowerVu
  ESPN Mexico Comercial         PowerVu
  ESPN 2 Caribbean         PowerVu

4 150 -H- tp AE16C

 Artear
 		 24 570 7/8  Americas &
     Europe		 180+ cm DVB
  TyC Max         Videoguard
  TyC Sports         Videoguard
  TyC Virtul         Videoguard
  TyC Inter 1         Videoguard
  TyC Inter 2         Videoguard
  Canal 13         Videoguard
  Todo Noticias         Videoguard
  Volver         Videoguard
  Magazine         Videoguard
  Artear Virtual         Videoguard
  Metro         Videoguard
  Canal Rural    watch video         FTA
  Quiero Musica         Videoguard
  Canal 10 Roca         Videoguard
  Canal 13 Int.         Videoguard


4 180 -H- tp AE16C

 IVG Default
 		  3 100  2/3  Americas &
     Europe		  180+ cm DVB-S2/8psk
  Unicanal         MPEG-4/Irdeto
  Unicanal live street cam         DVB-S2/8psk/FTA

Intelsat 3R/11 at 43.0°W: stream data & percent Q

percent Q 001percent Q 003percent Q 004

Intelsat 3R/11 at 43.0°W: Video presentation

   Go to Video Section:
video button

Intelsat 3R/11 at 43.0°W : update drawn up

                                        dxsatcs logo
                                                   CZECH & SLOVAK DX SATELLITE CLUB
                                                       international professional portal
                                                       Roman Dávid - author & founder
                                                       mail : roman.david@dxsatcs.com

Intelsat 3R/11 at 43.0°W footprint : combined coverage of America and Europe

                                                     Intelsat 11 at 43.0 w_C band_Americas Europe footprint


Intelsat 3R/11 at 43.0°W : Snapshots

Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ Canal Telenovelas 04Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ Radio Tv 002Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ Radio Tv 007
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ Ritmoson Latino 05Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ Ritmoson Latino 06Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ Teletica 7 008
