Chinasat 9 at 92.2°E : separation of ABS-S & DVB-S2+S

                 Chinasat 9 at 92.2°E                           Chinasat 9 at 92.2°E

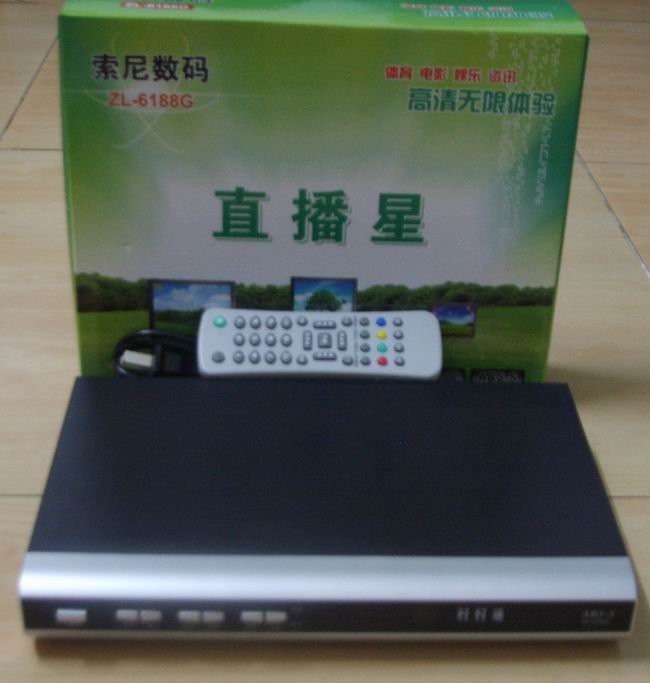

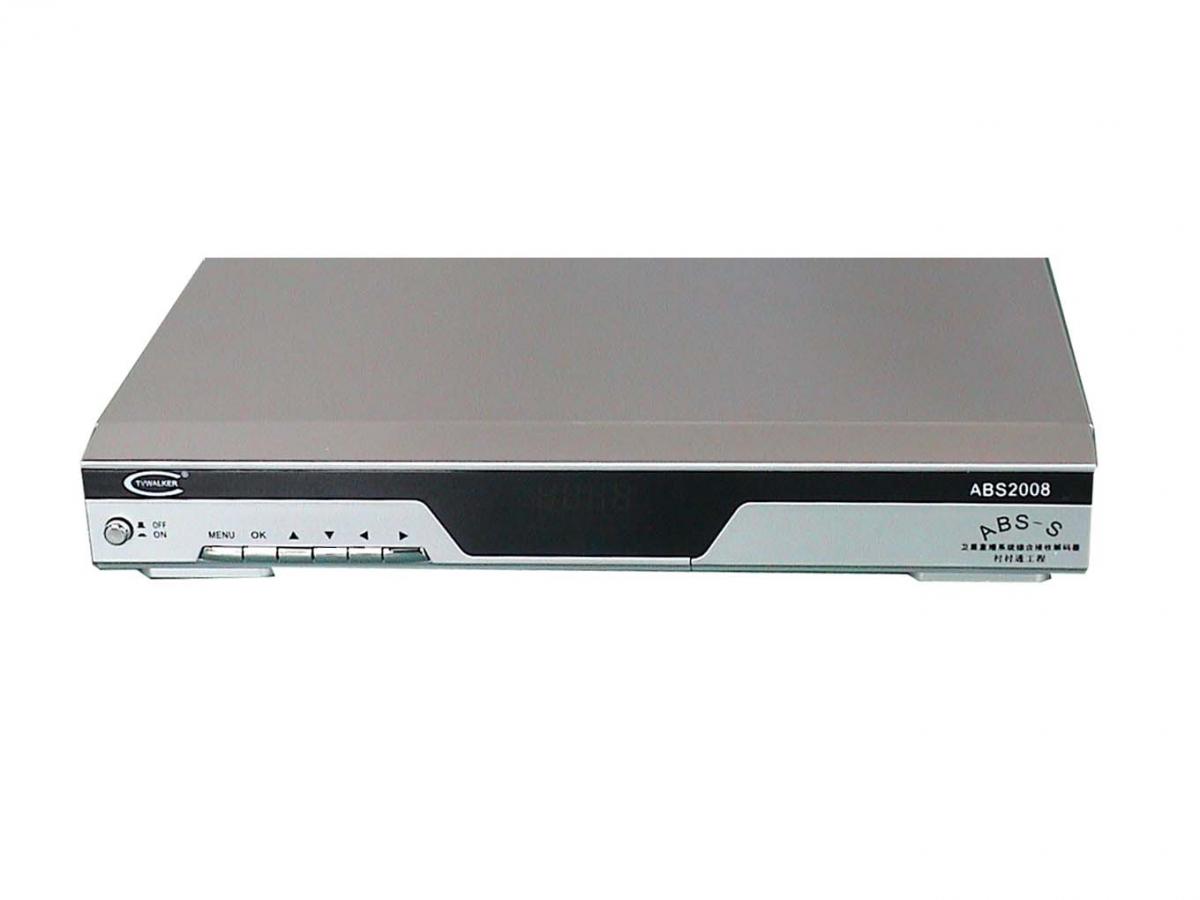

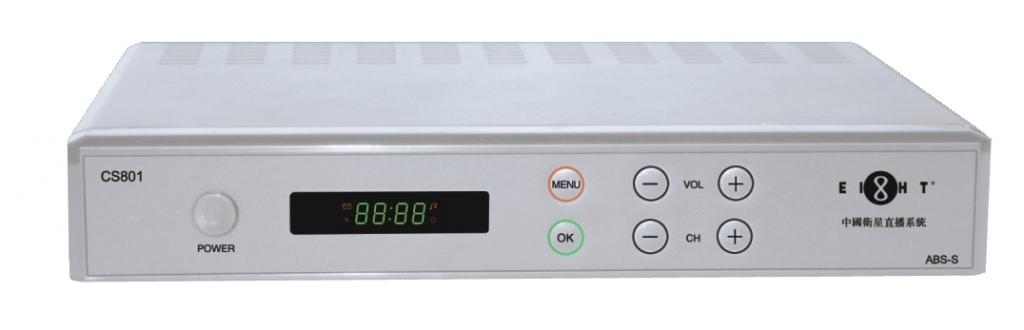

                             ABS-S                                                DVB-S2+S

Chinasat 9 at 92.2°E : Technical data

                                                                                     click for higher quality


                                                                     Chinasat 9 > detailed technical data

                 Chinasat 9 - Position : 92.2°E - TP_KU : 4x54MHz+18x36MHz - Lifetime : from 9.6.2008 - 15 years

Update : Chinasat 9 at 92.2°E - Asian footprint : spectral analysis & measurement results

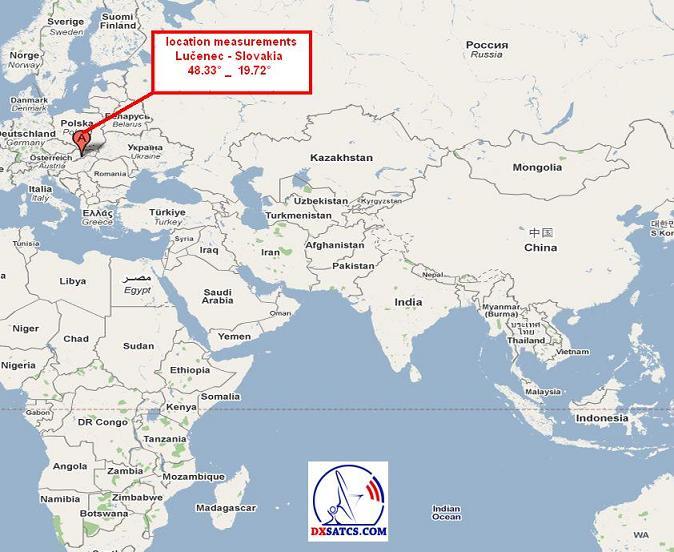

           Chinasat 9 at 92.2°E - Asian footprint : measurements taken in the town of Lučenec / central Slovakia
                                               geographical location : Latitude: 48.33°  _   Longitude: 19.72°

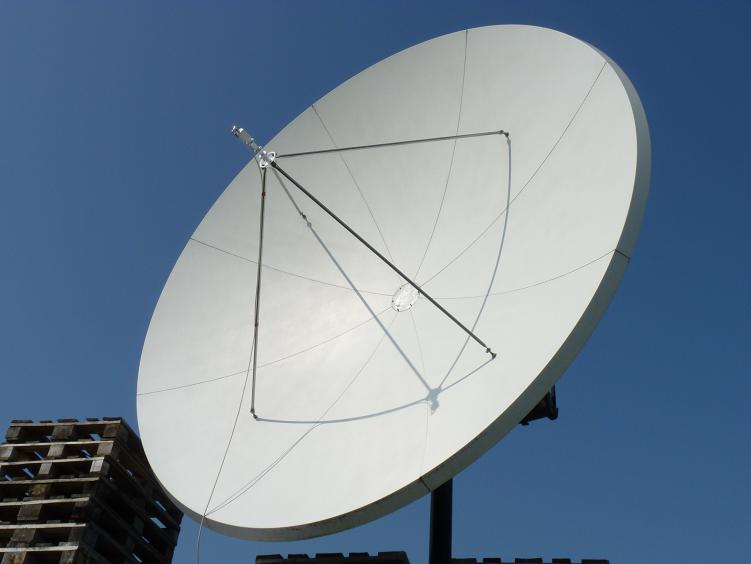

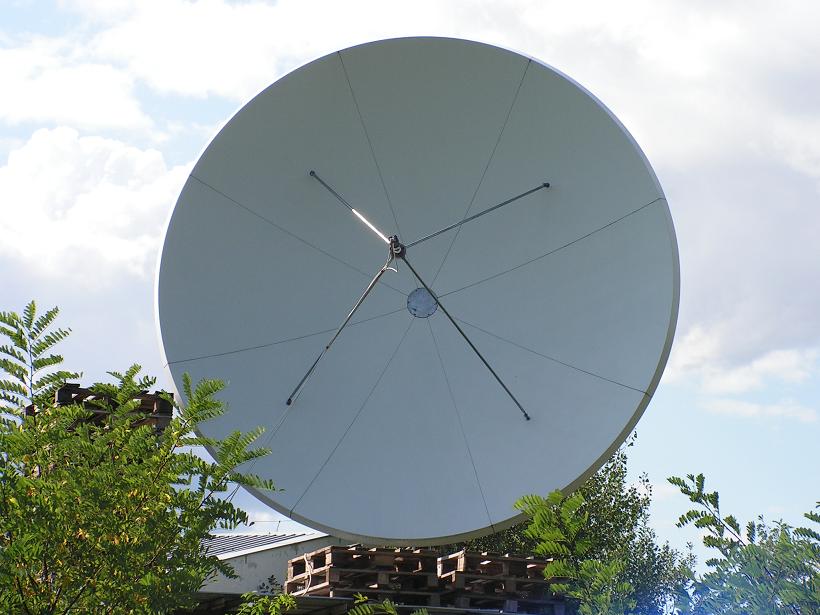

                                          measurement results are derived from the 3.7 m diameter antenna
                                                                             elevation angle  : 2.8°

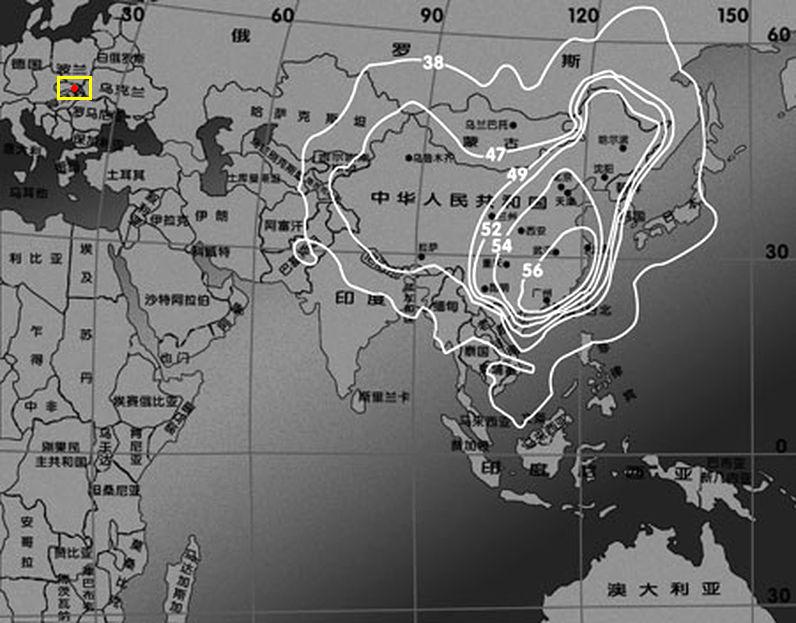

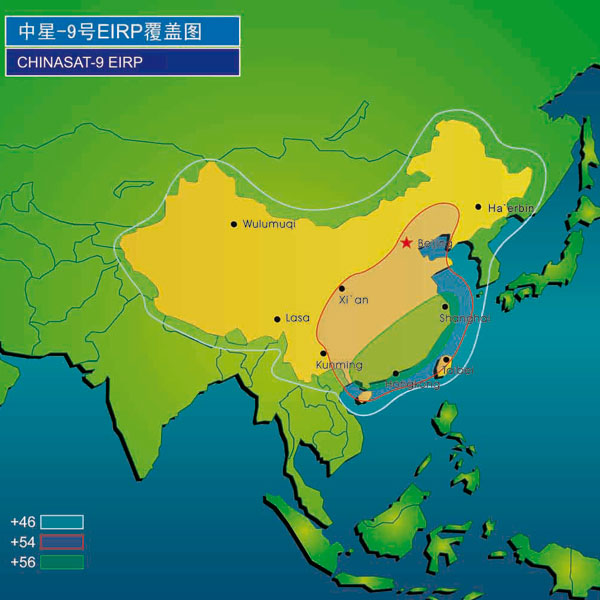

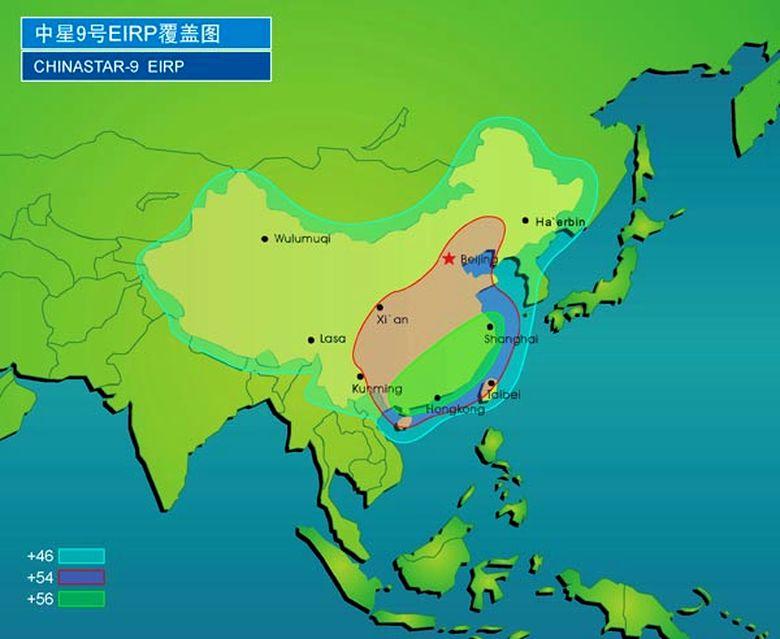

                                                                               Chinasat 9 footprint

                                   Chinasat 9 spectral analysis                           Chinasat 9 footprint

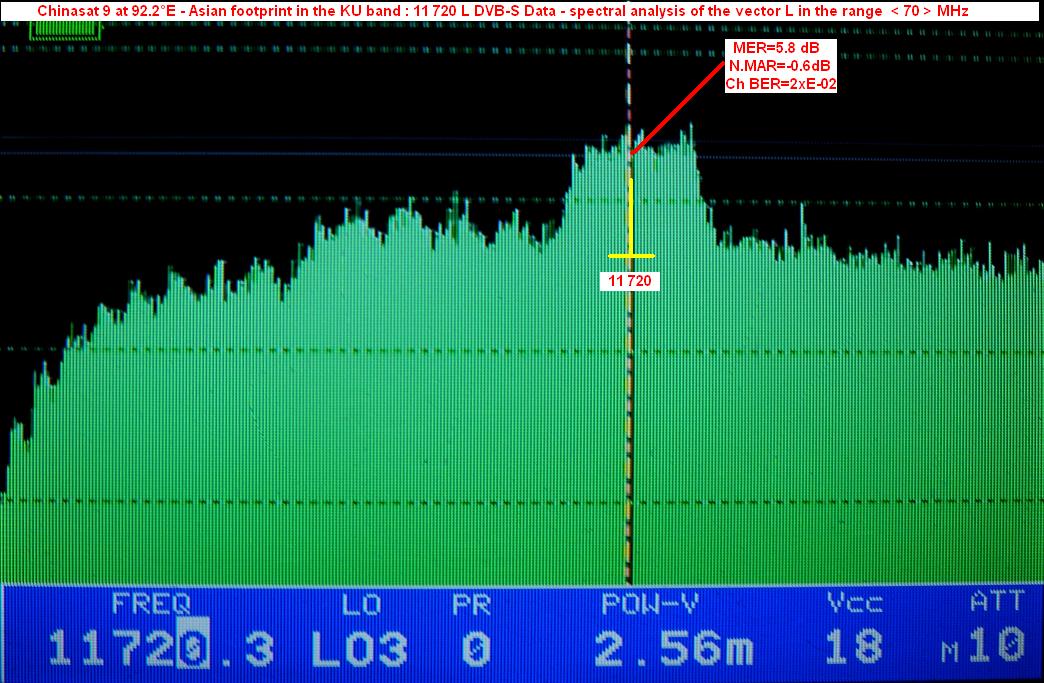

                                11 720 L : DVB-S Data stream                          Asia , Europe , Africa ...

                                    Chinasat 9 spectral analysis                           Chinasat 9 footprint

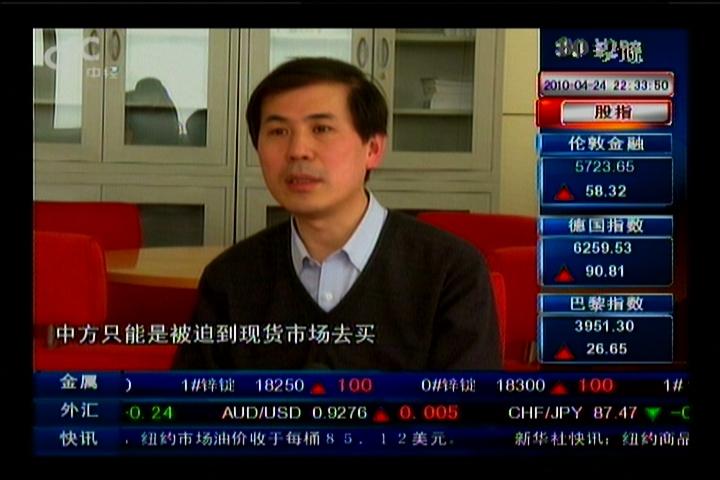

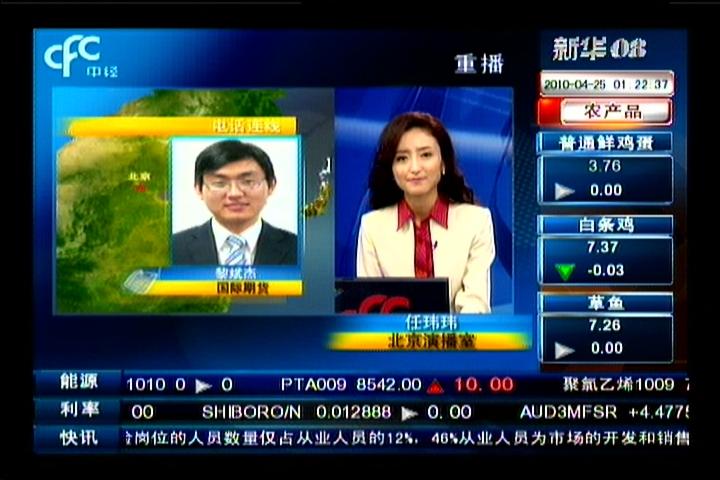

                                   12 093 L : CFC Xinhua China                          Asia , Europe , Africa ...

                                  Date of measurement : 24.4.2010 / the period of time 14.00 - 19.30 /
                                                             - Weather conditions : hazy sunshine -
                                                                 - defining the status of reception -

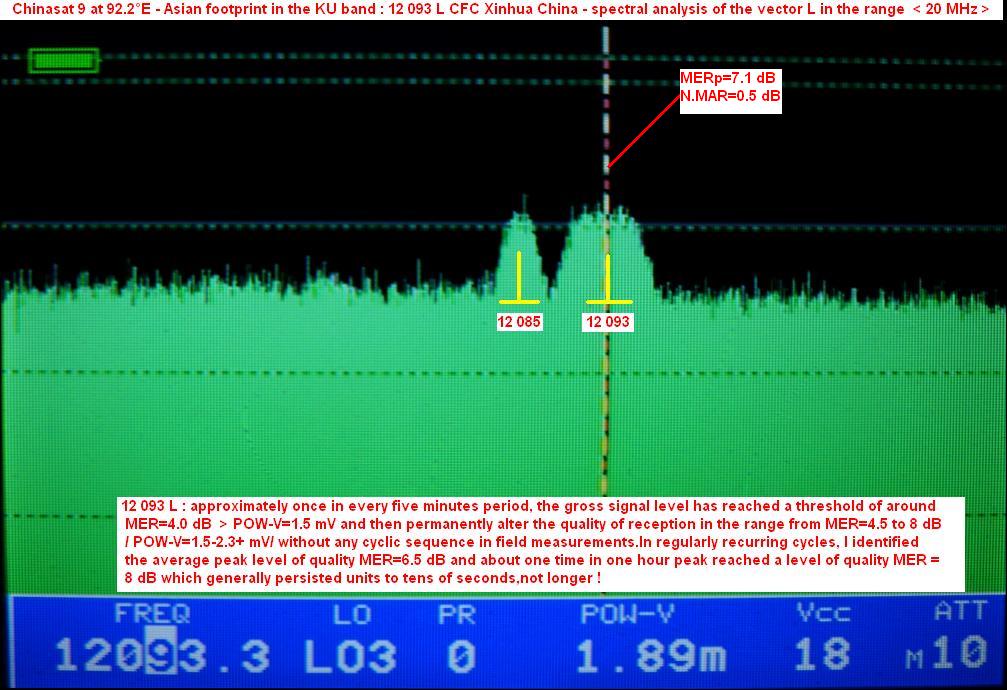

                                     --- Chinasat 9 at 92.2°E - Asian footprint : 12 093 L CFC Xinhua China ---

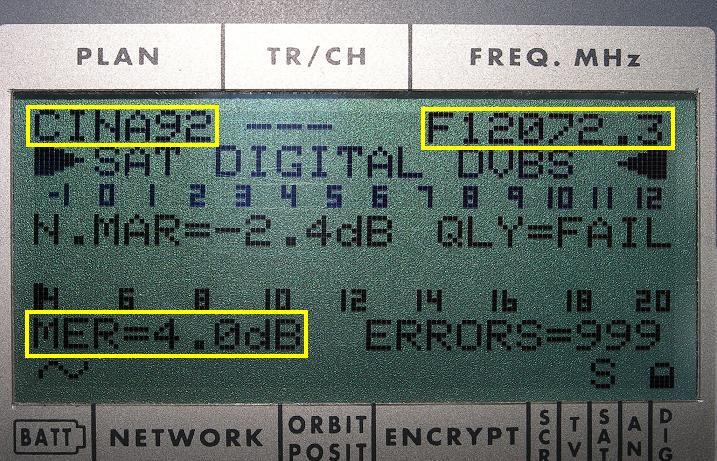

- approximately once in every five minutes period, the gross signal level has reached a threshold of around
MER=4.0 dB > POW-V=1.5 mV and then permanently alter the quality of reception in the range from
MER=4.5 to 8 dB /POW-V=1.5-2.3+ mV/ without any cyclic sequence in field measurements.In regularly recurring
cycles, I identified the average peak level of quality MER=6.5 dB and about one time in one hour peak reached
a level of quality MER = 8 dB which generally persisted units to tens of seconds,not longer !

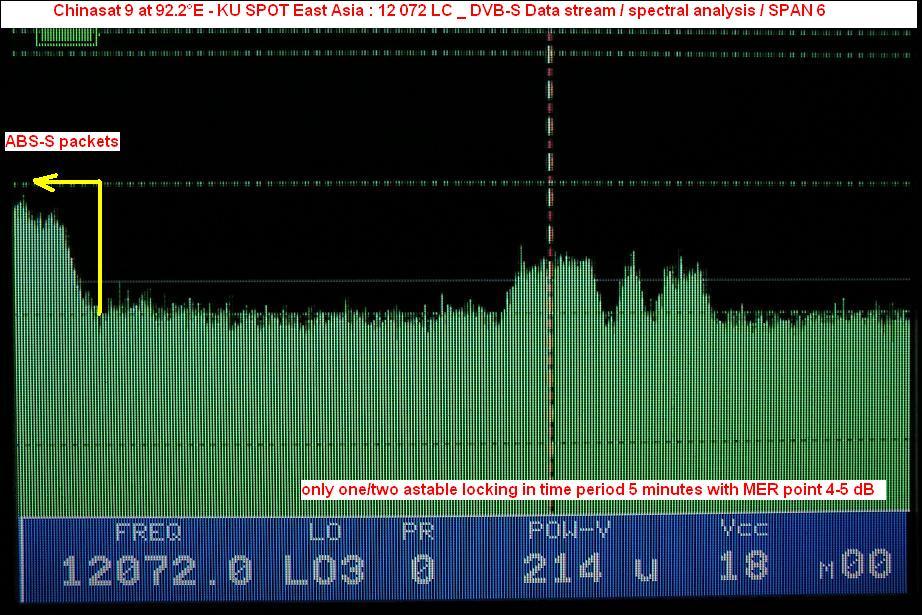

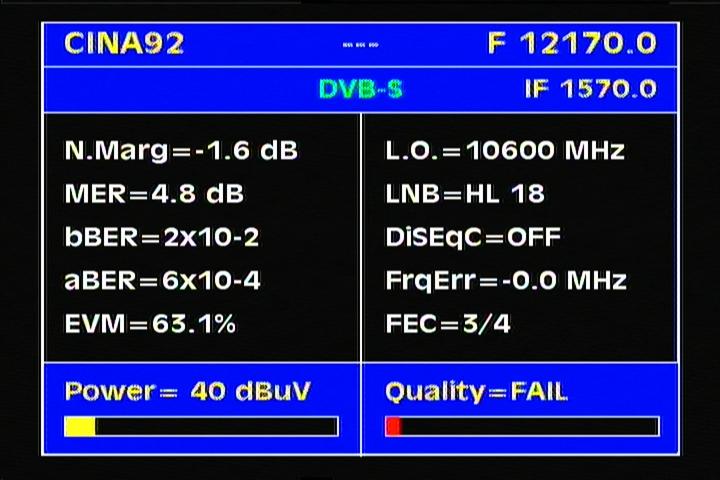

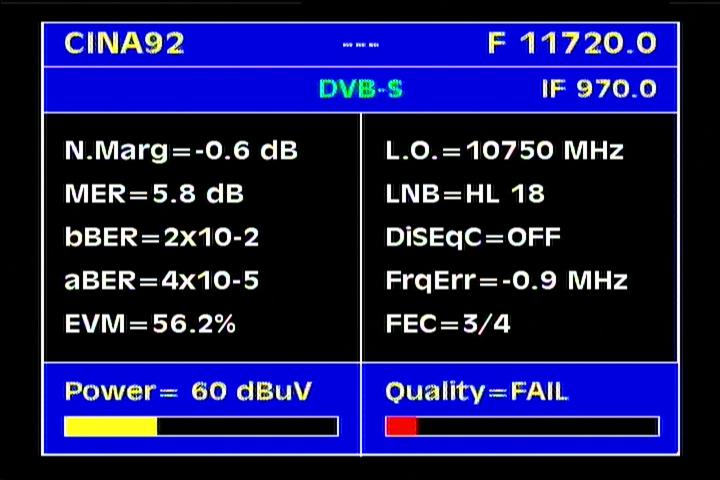

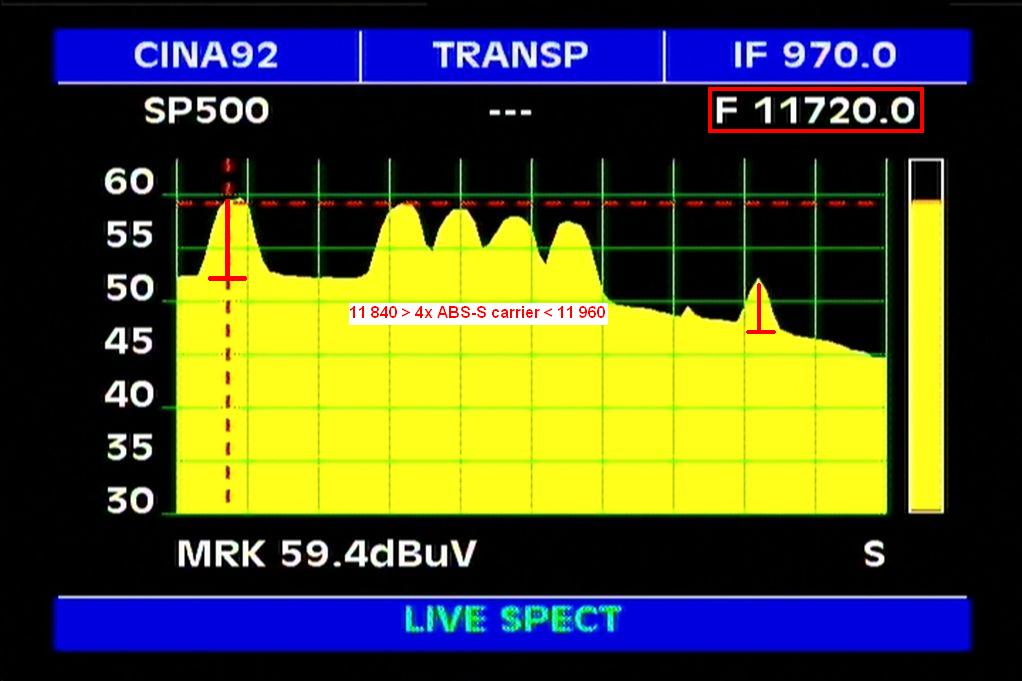

                                  Chinasat 9 at 92.2°E - Asian footprint : 11 720 L DVB-S Data stream

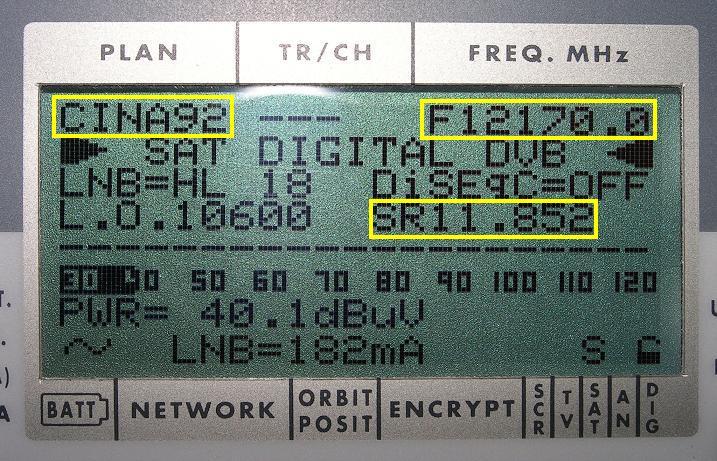

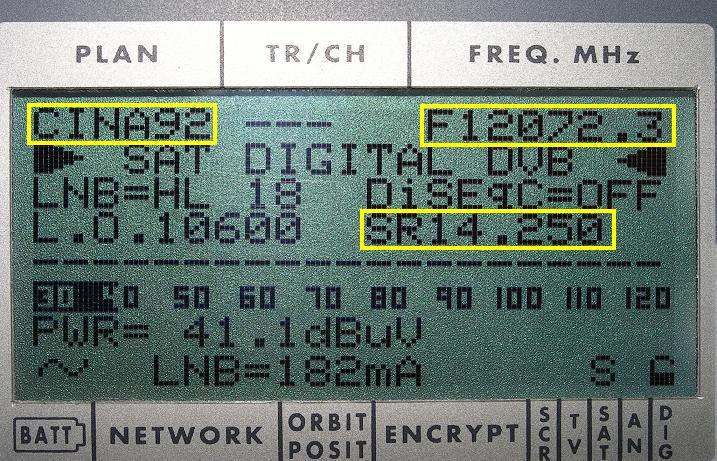

                                              spectral analysis                                      Q diagnostics

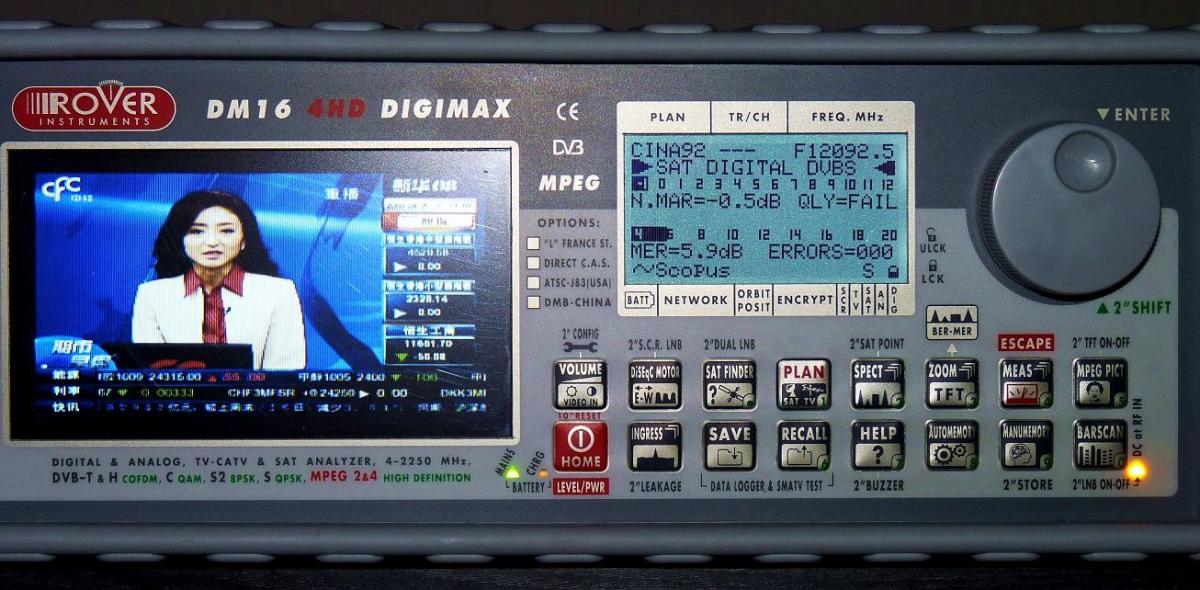

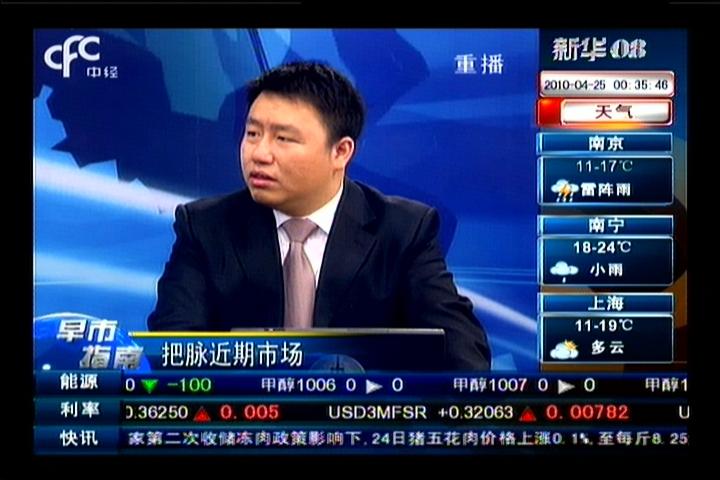

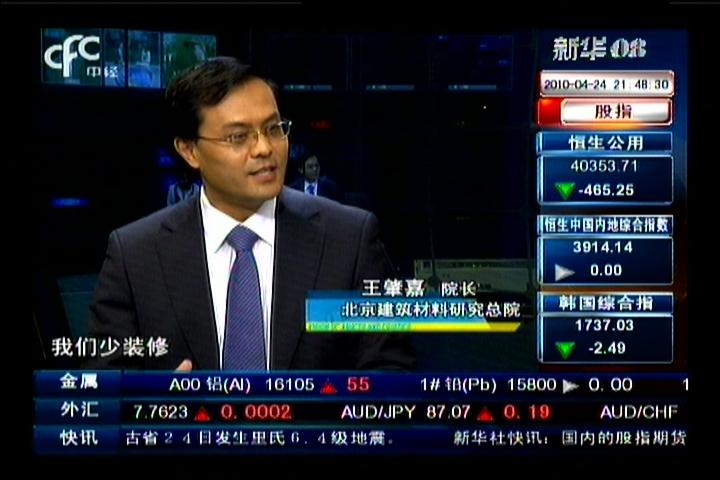

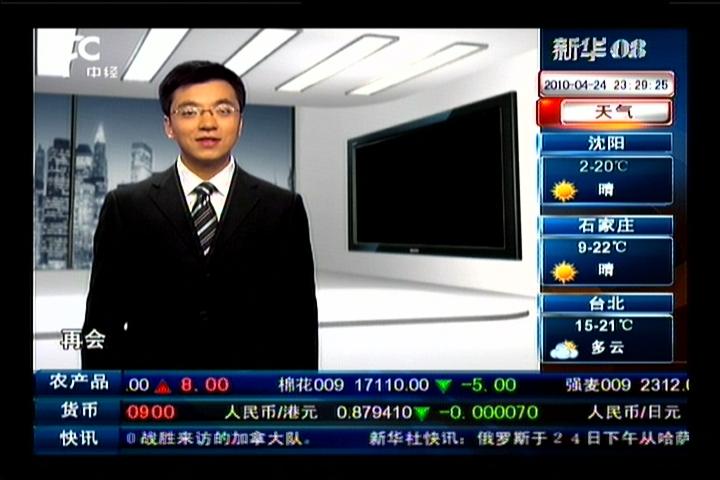

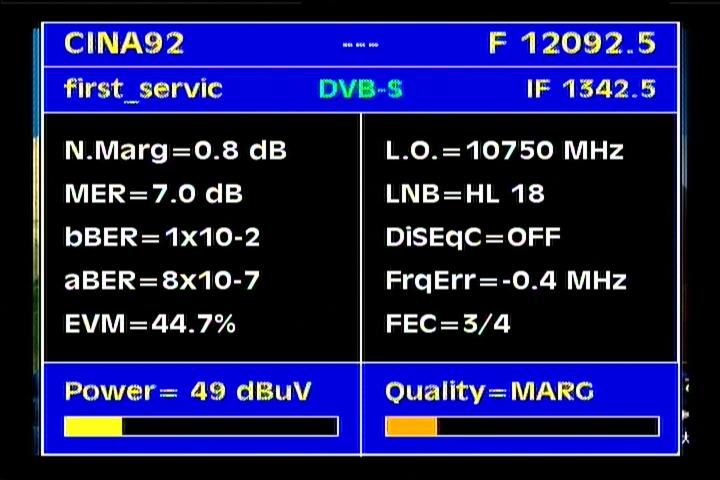

                                     Chinasat 9 at 92.2°E - Asian footprint : 12 093 L CFC Xinhua China

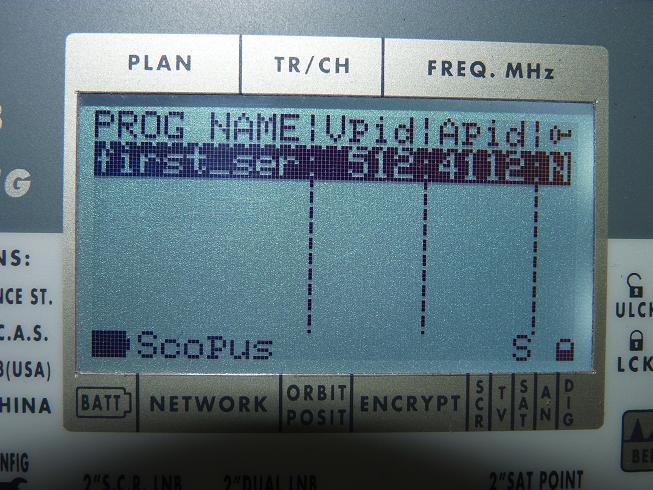

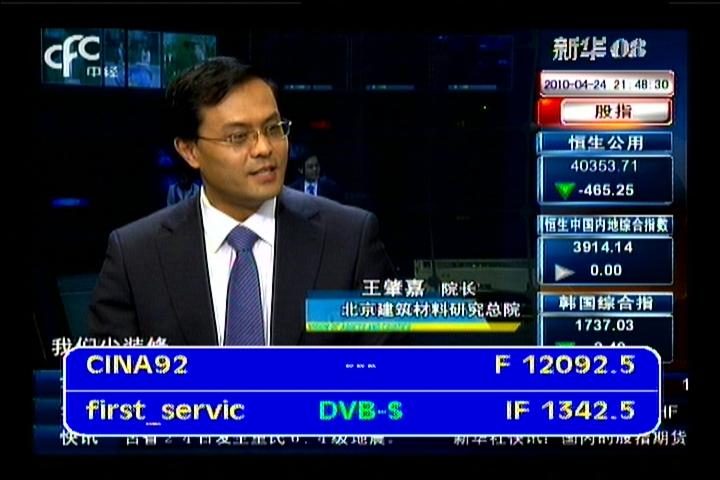

                         IF data                                                      Q data                                                    NIT data



Chinasat 9 at 92.2°E : TV List

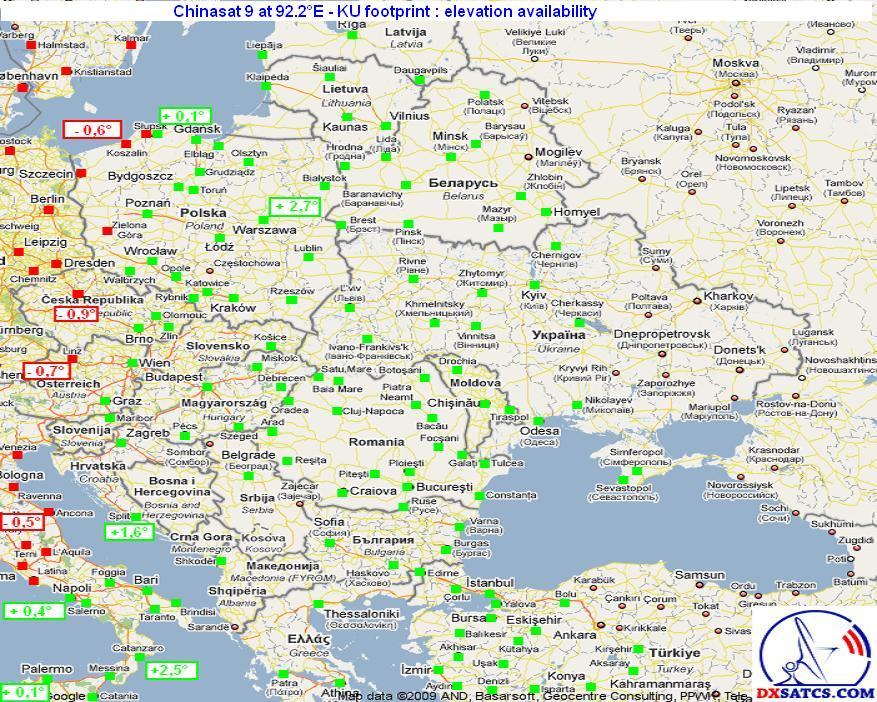

Chinasat 9 at 92.2°E : availability of reception from the orbital position 92.2° E

Chinasat 9 at 92.2°E : video presentations

Chinasat 9 at 92.2°E : data source

                       CZECH & SLOVAK DX SATELLITE CLUB
                             international professional portal
                                            think-tank
                             Roman Dávid - author & founder
                             mail : roman.david@dxsatcs.com

Chinasat 9 at 92.2°E : Last DX News

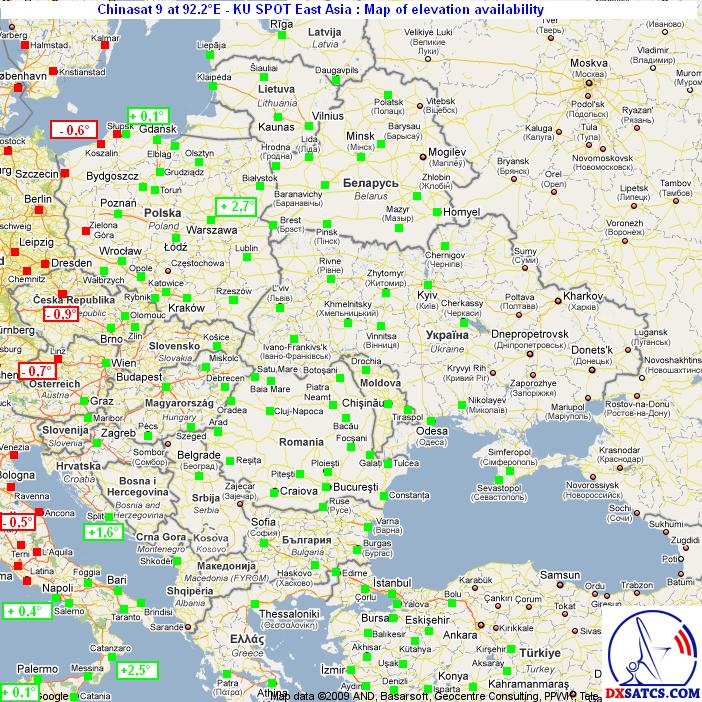

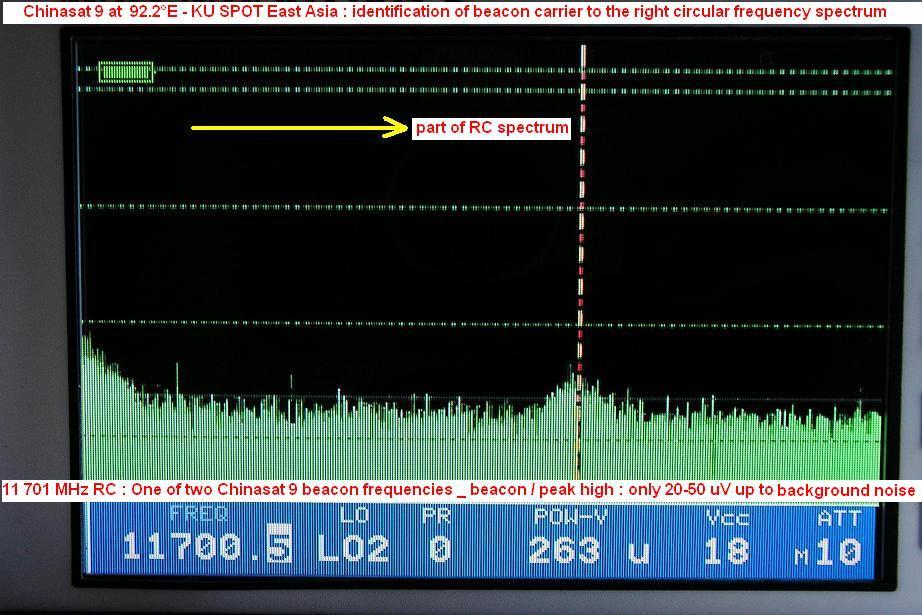

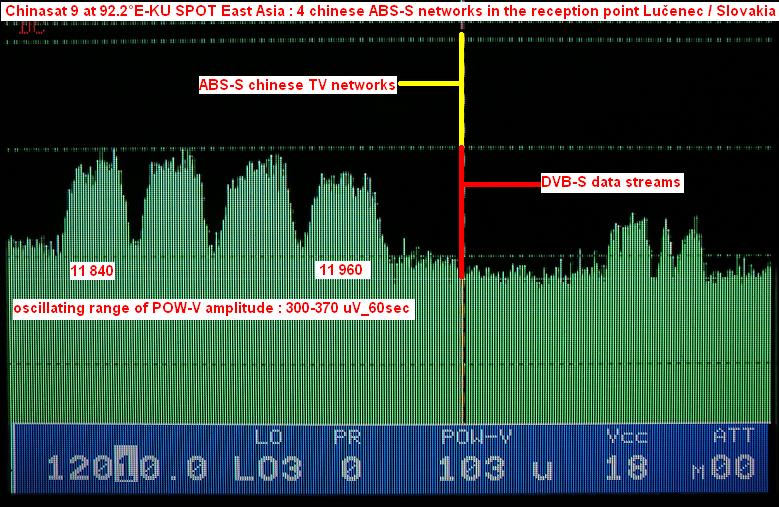

Chinasat 9 at 92.2°E - KU SPOT East Asia : two new chinese DVB-S /not ABS-S/ uplinking and quality /not only spectral/ diagnostics , chinasat 9 beacon frequency /RC/ , map of elevation not EIRP availability - only with dxsatcs experimental waveguide link

Chinasat 9 at 92.2°E _ ChinaStar 9 at 92.2°E - KU Asian SPOT : First reception report

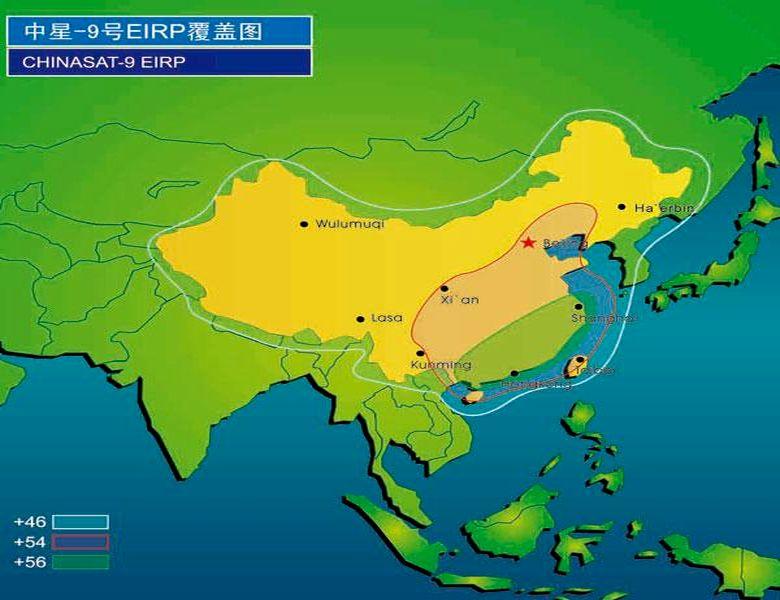

Chinasat 9 at 92.2°E footprint : KU Asia + Europe + Africa
