ABS 1 at 75.0°E : Technical data
ABS 1 at 75.0°E-southern beam : 12 580 H ABS network- qualitative peak MER=10.2 dB
ABS 1 - Orbit : 75.0°E - TP : 28 C/16 KU - KU TP bandwidth 27 MHz
EIRP inside service area : Northern Beam-edge and peak value 34>49.5 dBW
EIRP inside service area : Southern Beam-edge and peak value 41>52 dBW
ABS 1 at 75.0°E - southern & northern beam : spectral analysis & measurement results
.
ABS 1 at 75.0°E - southern & northern beam : measurements taken in the town of Lučenec / Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
date of measurement : 14.8 2010
elevation angle : 14°
High frequency unit measurement point
PF Prodelin 3.7 m all research and measurements
dxsatcs waveguide line+Norsat 4206 CF I carried out at this point

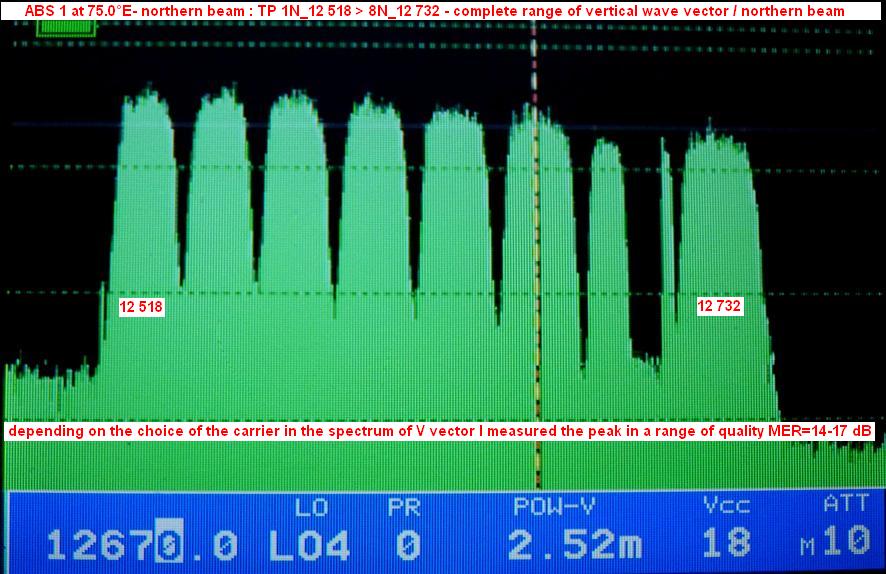

--- ABS 1 at 75.0°E : spectrum analysis of southern and northern beam ---
--- southern beam ---

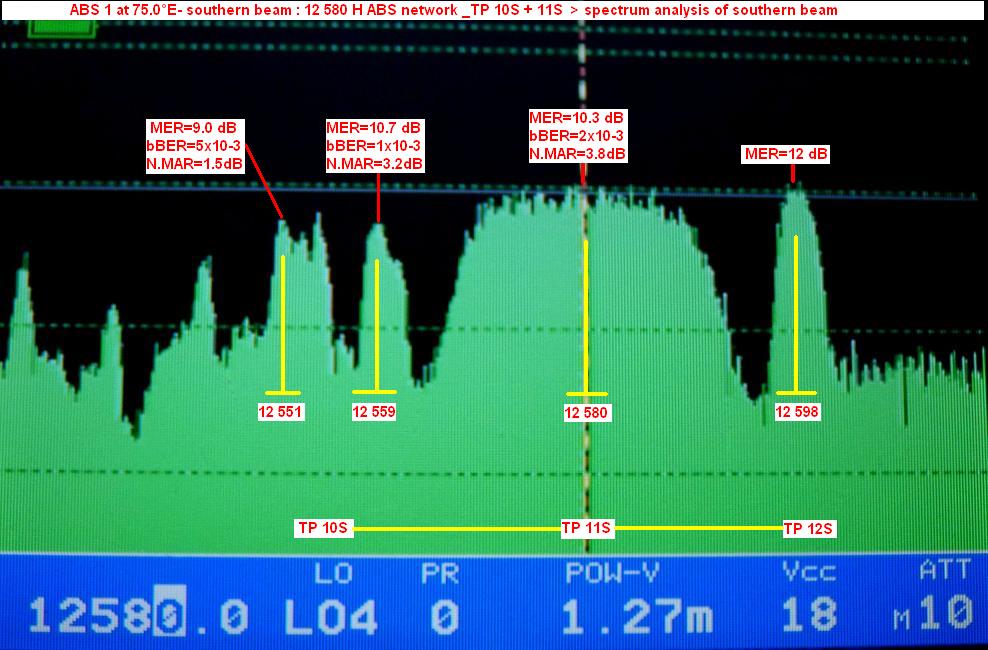

ABS 1 : spectral analysis_H vector ABS 1 : southern beam
range of spectrum : 12 551-12 598 MHz coverage area:Asia,ME,parts of Africa+Europe
--- northern beam ---
ABS 1 : spectral analysis_V vector ABS 1 : northern beam
range of spectrum : 12 551-12 598 MHz coverage area:Europe,parts of Asia+ME
- time of measurement : 14.8 2010 -
- defining the status of reception -
> southern beam : I have identified a stable form of detection for each of the four carriers in the range of the
transponder TP 10S/11S/12S but with significant differences in gain levels ranging from 3 dB at C=12 551 V to 6 dB at
C=12 598 V.
> northern beam : for each carrier in the spectrum of the vector H I measured a high gain margin in the range from 7 to
10 dB of unit MER.
--- ABS 1 : measurement results ---

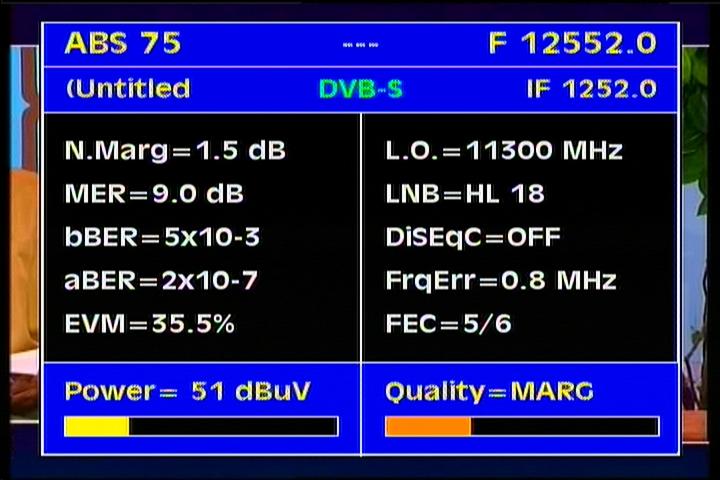

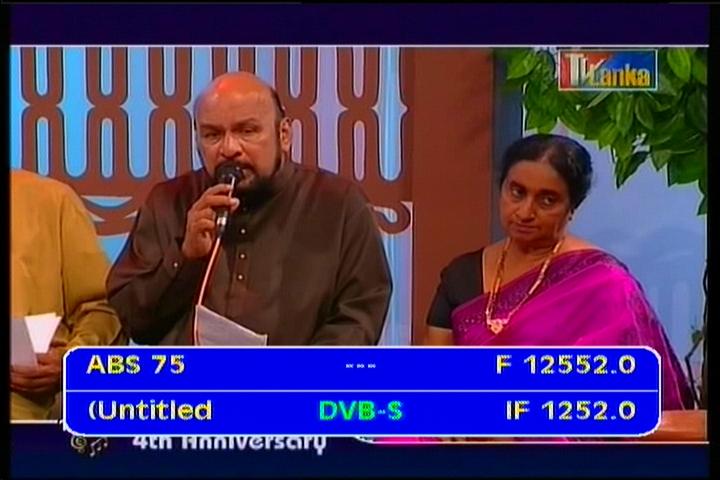

ABS 1 at 75.0°E - southern beam : 12 551 V TV Lanka
IF data Q data NIT data

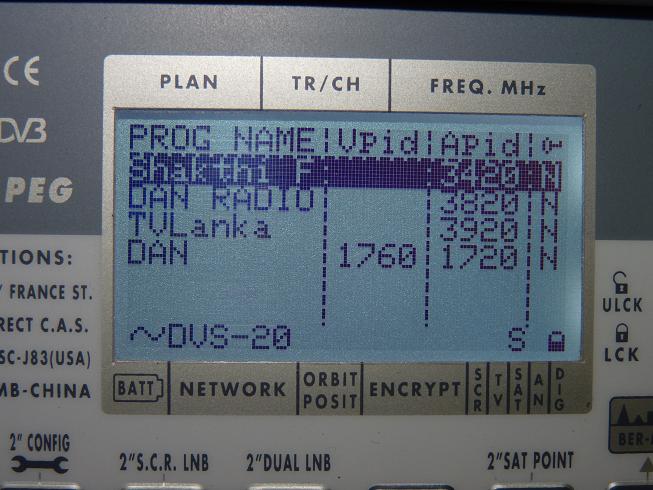

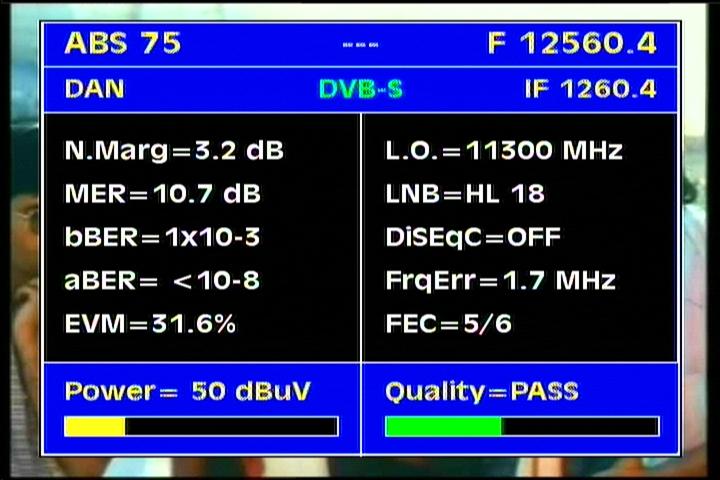

ABS 1 at 75.0°E - southern beam : 12 560 V DAN Tamil
IF data Q data NIT data

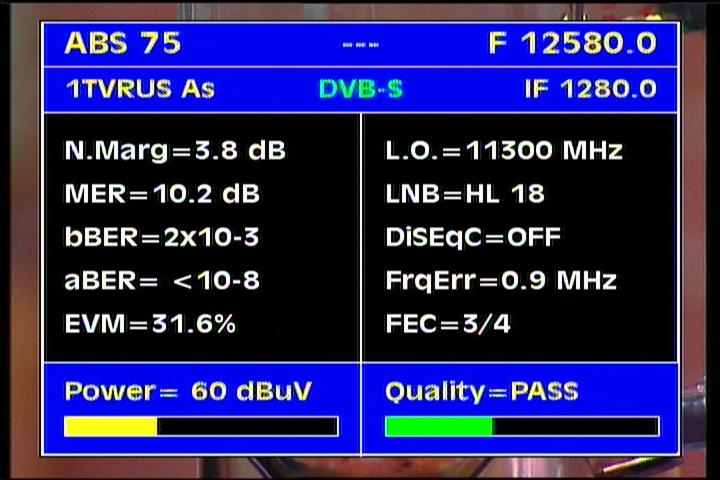

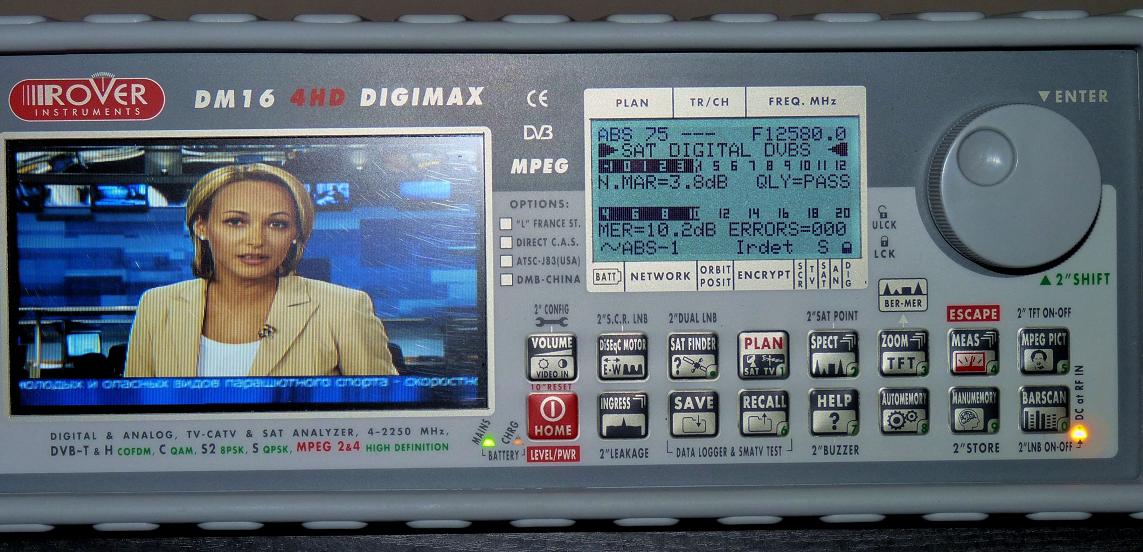

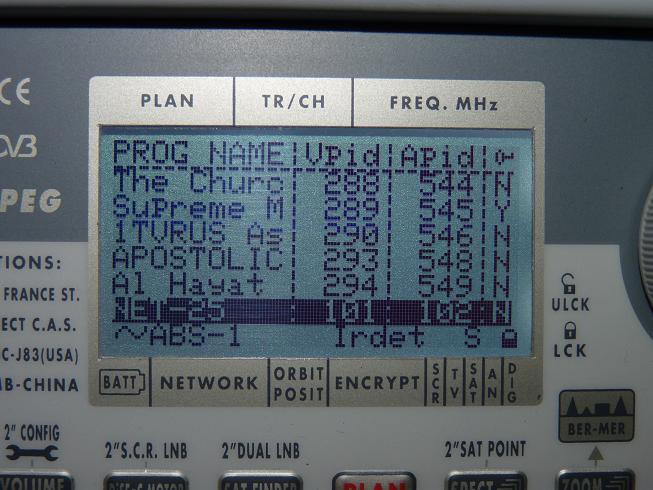

ABS 1 at 75.0°E - southern beam : 12 580 V ABS Network
IF data Q data NIT data

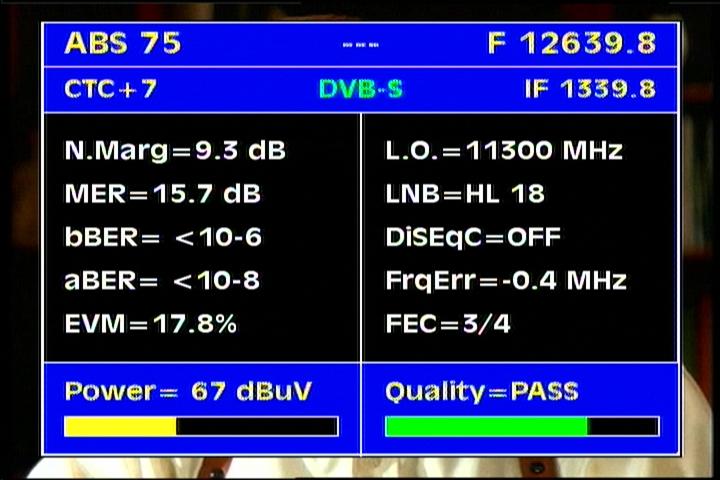

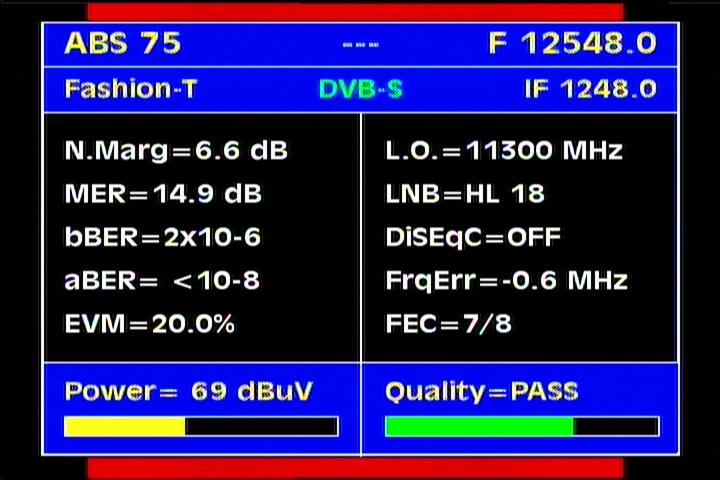

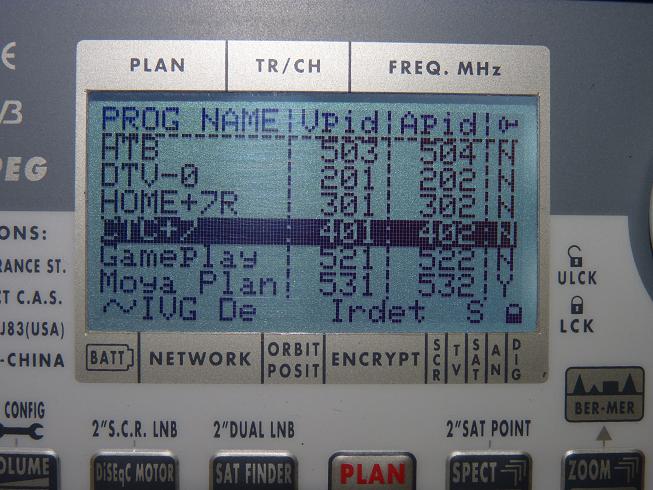

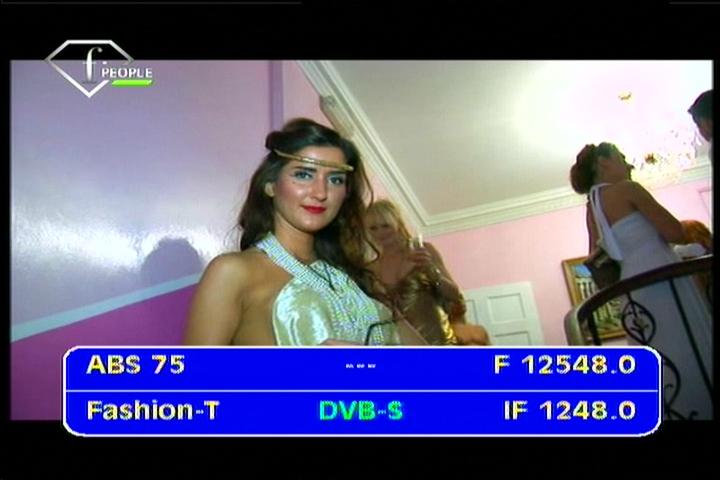

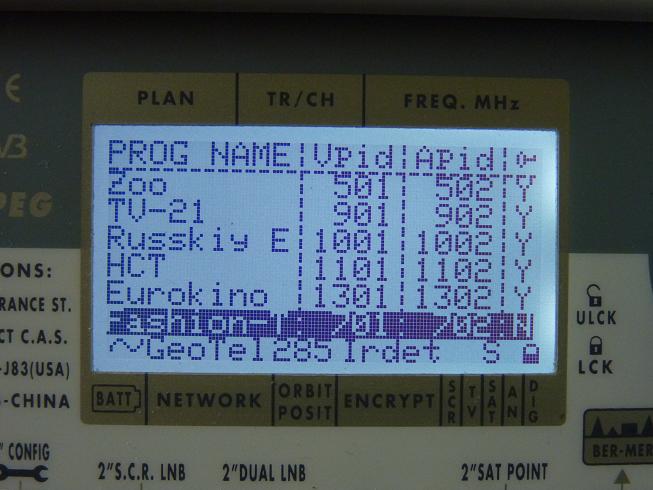

ABS 1 at 75.0°E - northern beam : 12 548 V Packet GeoTel
IF data Q data NIT data
ABS 1 at 75.0°E - northern beam : 12 639 V Packet IVG
IF data Q data NIT data

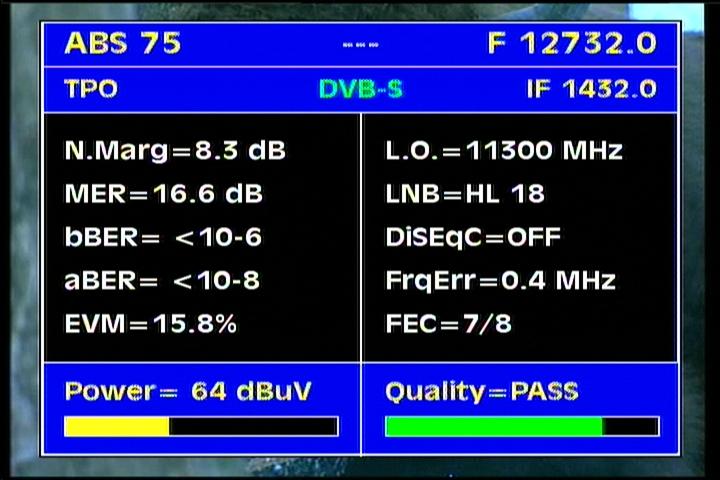

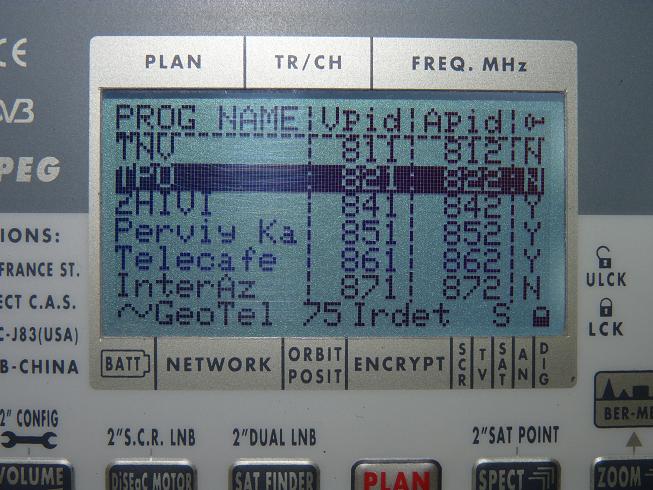

ABS 1 at 75.0°E - northern beam : 12 732 V Packet GeoTel
IF data Q data NIT data
ABS 1 at 75.0°E : TV List
-Frequency-
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---DVB/Encryption--- |
|
12 207 -H- tp -- |
GTSS network | 27 500 | 2/3 | 180-240+ cm | DVB FTA | |
| EI TV | FTA | |||||
| Israel+ | Irdeto 2 | |||||
| feeds | --- | |||||
| Pro Dengi | FTA | |||||
|
12 518 -V- tp 1N |
Raduga TV / GeoTel LMI | 22 000 | 7/8 | northern | 80+ cm | DVB |
| DTV +2 | FTA | |||||
| NSmT | Videoguard/Irdeto 2 | |||||
| Israel+ | Irdeto 2 | |||||
| TV 1000 Action East | Videoguard/Irdeto 2 | |||||
| TV 1000 Action +21 | Videoguard/Irdeto 2 | |||||
| TV 1000 East | Videoguard/Irdeto 2 | |||||
| Viasat Explorer | Videoguard/Irdeto 2 | |||||
| Viasat History | Videoguard/Irdeto 2 | |||||
| Da Vinci Learning | Videoguard | |||||
| Viasat Sport | Videoguard/Irdeto 2 | |||||
| TV 1000 Ru Kino | Videoguard/Irdeto 2 | |||||
|
12 548 -V- tp 2N |
Raduga TV / GeoTel LMI | 22 000 | 7/8 | northern | 80+ cm | DVB |
| 24 Techno | Irdeto 2 | |||||
| Detsky | Irdeto 2 | |||||
| Russkij Illuzion | Irdeto 2 | |||||
| Illusion + | Irdeto 2 | |||||
| Zoo Park | Irdeto 2 | |||||
| TV XXI/Tv 21 | Irdeto 2 | |||||
| Russkiy Extream | Irdeto 2 | |||||
| HCT | Irdeto 2 | |||||
| Eurokino | Irdeto 2 | |||||
| Telenyanya | Irdeto 2 | |||||
| Nickelodeon | Irdeto 2 | |||||
| Fashion TV | FTA | |||||
|
12 551 -H- tp 10S |
1 250 | 5/6 | southern | 240+ cm | DVB FTA | |
|

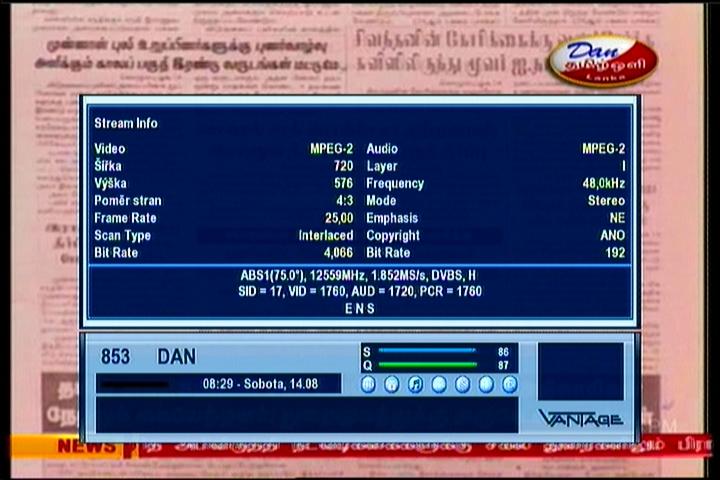

12 559 -H- tp 10S |
1 851 | 5/6 | southern | 240+ cm | DVB FTA | |
|
12 579 -V- tp 3N |
Raduga TV | 22 000 | 7/8 | northern | 80+ cm | DVB |
| Retro TV | Irdeto 2 | |||||
| Drive | Irdeto 2 | |||||
| Ohota i Rybalka | Irdeto 2 | |||||
| Zdorovoe TV | Irdeto 2 | |||||
| Usadba TV | Irdeto 2 | |||||
| CMM Domashnie | Irdeto 2 | |||||
| CMM Psychology | Irdeto 2 | |||||
| CMM Voprosy | Irdeto 2 | |||||
| A-1 Music Channel | FTA | |||||
| Domashniy magazin | FTA | |||||
| TV Sale | FTA | |||||
|

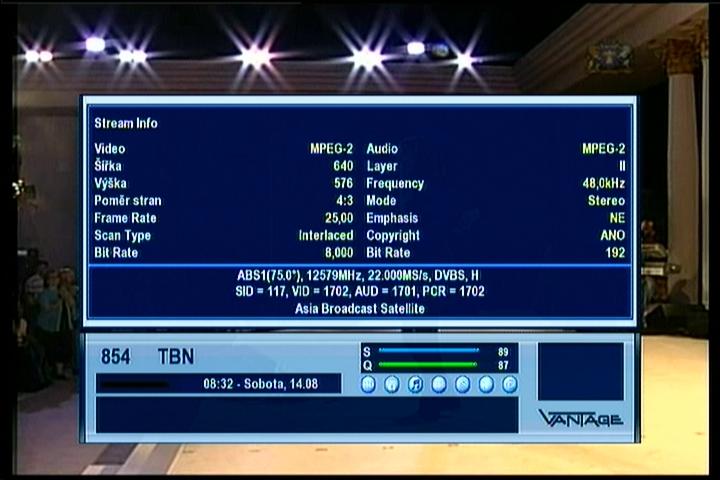

12 579 -H- tp 11S |
ABS 1 Network | 22 000 | 3/4 | southern | 180+ cm | DVB |
| Wi Digital | data | |||||
TBN  |
FTA | |||||
| Smile of a Child | FTA | |||||
| The Church Channel | FTA | |||||
| Supreme Master | FTA | |||||
| 1TV RUS Asia | FTA | |||||
| APOSTOLIC ONE | FTA | |||||
| Al Hayat | FTA | |||||
| NET-25 | FTA | |||||
|

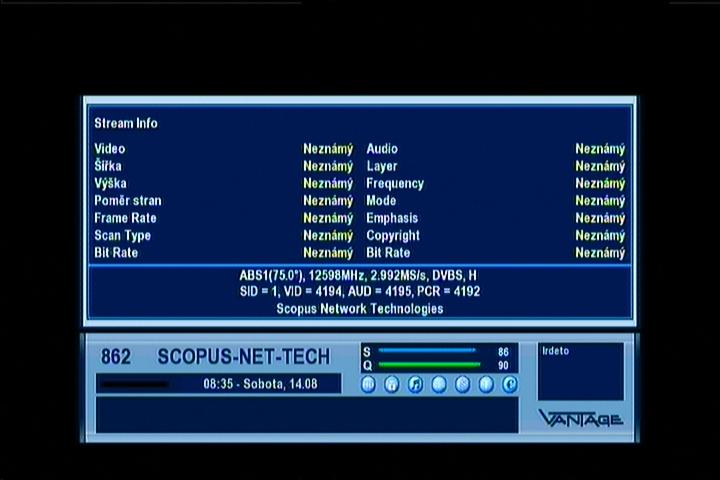

12 599 -H- tp 12S |
Scopus-Net-Tech |
2 992 | 3/4 | southern | 140-180+ cm | DVB/ Irdeto |
|
12 610 -V- tp 4N |
Raduga TV / GeoTel LMI | 22 000 | 7/8 | northern | 80+ cm | DVB |
| Russia Today | FTA | |||||
| Fox Crime | Irdeto 2 | |||||
| Fox Life | Irdeto 2 | |||||
| Pro Dengi | FTA | |||||
| Telekanal Rossiya | Irdeto 2 | |||||
| Vesti Russia | Irdeto 2 | |||||
| Telekanal Sport | Irdeto 2 | |||||
| Kultura Telekanal | Irdeto 2 | |||||
| Muzika | Irdeto 2 | |||||
| Disney Channel | Irdeto 2 | |||||
| SET Russia | Irdeto 2 | |||||
| AXN Sci-Fi Russia | Irdeto 2 | |||||
| Fenix+ Kino | Irdeto 2 | |||||
|
12 640 -V- tp 5N |
GTSS / GeoTel LMI | 22 000 | 3/4 | northern | 80+ cm | DVB |
| NTV | FTA | |||||
| DTV-0 | FTA | |||||
| Home +7R | Irdeto 2 | |||||
| STS +7 | FTA | |||||
| Game Play | FTA | |||||
| Moya Planeta | Irdeto 2 | |||||
| RadugaInfo | FTA | |||||
| RBC TV | FTA | |||||
| Multimania | Irdeto 2 | |||||
|
12 670 -V- tp 6N |
GTSS / GeoTel LMI | 22 000 | 3/4 | northern | 80+ cm | DVB |
| LUXE TV | FTA | |||||
| 2x2 | FTA | |||||
| ESP Russian | Viaccess 3+4/Ird 2 | |||||
| Eurosport Raduga | Viaccess 3+4/Ird 2 | |||||
| ESP2 Russian | Viaccess 3+4/Ird 2 | |||||
| Eurosport 2 Raduga | Viaccess 3+4/Ird 2 | |||||
| National Geographic | Irdeto 2 | |||||
| TV Club | FTA | |||||
| Mat i Ditya | Irdeto 2 | |||||
| Discovery Channel | Irdeto 2 | |||||
| Animal Planet R | Irdeto 2 | |||||
|
12 695 -V- tp 7N |
Unnamed network | 10 750 | 3/4 | northern | 80+ cm | DVB |
| Tajik TV | FTA | |||||
| TV Safina | FTA | |||||
| TV Bakhoriston | FTA | |||||
| Jahonnamo | FTA | |||||
|
12 704 -V- tp 7N |
NTS | 3 900 | 7/8 | northern | 80+ cm | Biss |
|
12 732 -V- tp 8N |
GTSS/GeoTel LMI | 22 000 | 7/8 | northern | 80+ cm | DVB |
| TNV | FTA | |||||
| TPO | FTA | |||||
| Gameplay | DFTA | |||||
| Zhivi | Irdeto 2 | |||||
| Perviy kanal | Irdeto 2 | |||||
| Telecafe | Irdeto 2 | |||||
| InterAZ | FTA | |||||
| Vremya | Irdeto 2 | |||||
| Dom Kino | Irdeto 2 | |||||
| Mir | FTA | |||||
| Mir+3 | FTA | |||||
| Moscow feeds | feeds | |||||
| RZD | MPEG-4/FTA | |||||
| Mir feed | feeds |
ABS 1 at 75.0°E : relative quality/ southern beam
ABS 1 at 75.0°E : Video presentations
Go to video section :
ABS 1 at 75.0°E : Update prepare
CZECH & SLOVAK DX SATELLITE CLUB
international professional portal
think-tank
Roman Dávid - author & founder
mail : roman.david@dxsatcs.com

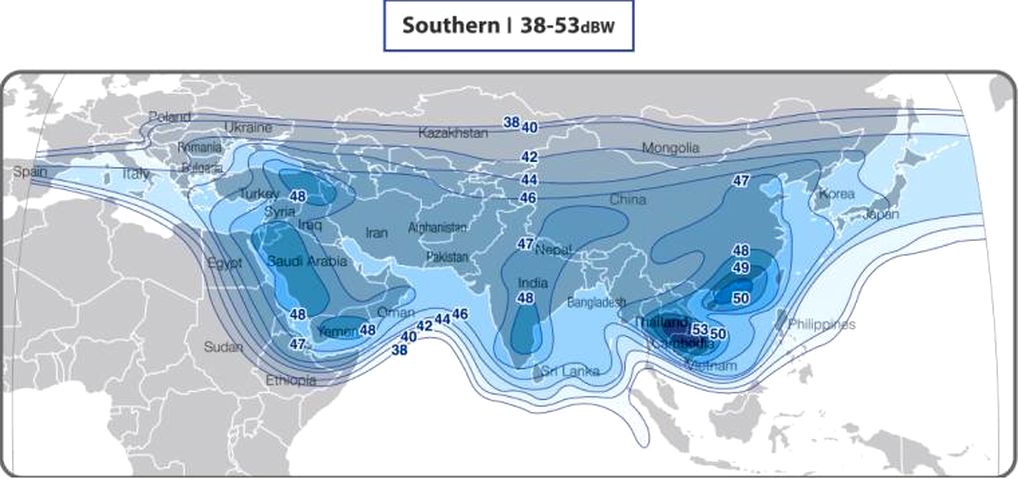

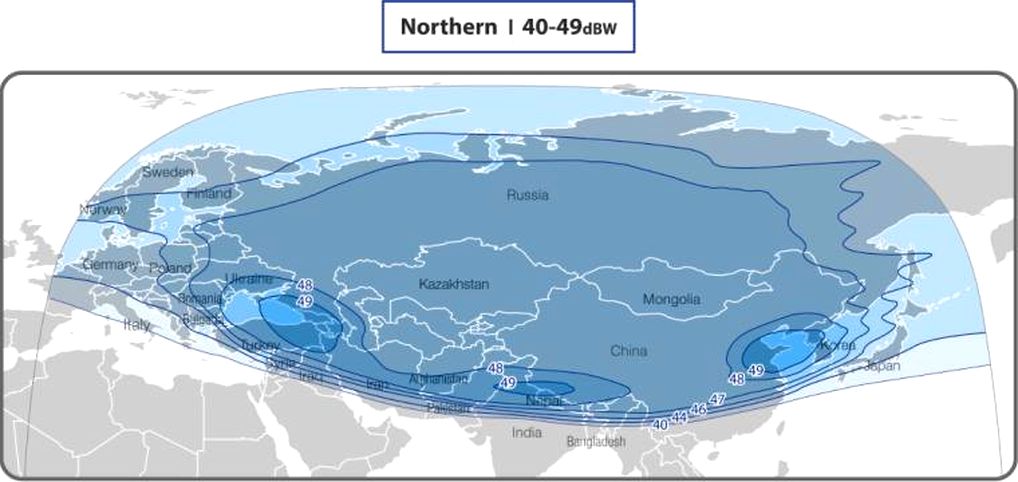

ABS 1 at 75.0°E-footprint : Southern & Northern beam
southern beam northern beam
ABS 1 at 75.0°E : snapshots
