Amos 7 at 3.9°W-The Middle East footprint in the geographical region of Central Europe:11 069 MHz_H_SBN International-The Word network : Satellite reception verified by signal monitoring in a minimum unit of t=72 hours (100+)








       Amos 7 at 3,9°W_Middle East footprint_H : 11 069 MHz - SBN int./The Word netw.

         PF 450 cm:Visualized proving verified in the minimum monitoring unit t=72 hours



Note : In this scientific and research center, the functionality of a technological process and invention called Synchronous Nanocorrections,
authored by Roman Dávid from Lučenec, is systematically proven, and it is also the only place where you can encounter the benefits of this technology.

In diesem wissenschaftlichen und Forschungszentrum wird systematisch die Funktionalität des technologischen Verfahrens und der Erfindung
mit dem Namen "Synchrone Nanokorrekturen" vom Autor Roman Dávid aus Lučenec nachgewiesen. Es ist gleichzeitig der einzige Ort,
an dem Sie dieser Technologie persönlich begegnen können.

Upozornenie : V tomto vedecko-výskumnom centre sa systematicky dokazuje funkcia technologického postupu a vynálezu s názvom
"Synchrónne nanokorekcie", od jej autora Romana Dávida z Lučenca  a je to zároveň jediné miesto kde sa s výhodami tejto technológie môžete stretnúť





                                                                ( Last update date: 22.1.2025 )

22.1.2025: f=11 069 MHz_H_SBN/Word
►SK_z hľadiska možnosti dosiahnutia dlhodobej signálnej stability na nosnej SBN/The Word network,sa jedná o vlnenie s najvyššou kanálovou chybovosťou (ChBER)
vôbec v stredoeurópskych podmienkach satelitného príjmu,inak povedané o jeden  z technicky najzložitejších sat. príjmov vôbec a aj napriek snehovým prehánkam
v mieste príjmu Lučenec som dosiahol na f=11 069 Mhz-H signálnu stabilitu vyššiu ako 99% v jednotke dokazovania t=100+ h.
►EN_From the perspective of achieving long-term signal stability on the SBN/The Word Network carrier, this represents the waveform with the highest
channel bit error rate (ChBER) under Central European satellite reception conditions. In other words, it is one of the most technically complex satellite
receptions overall. Despite snow showers at the reception site in Lučenec, I achieved signal stability exceeding 99% on f = 11,069 MHz-H within the
verification unit t = 100+ h.

►DE_Aus der Sicht der Erreichung einer langfristigen Signalstabilität auf dem Träger SBN/The Word Network handelt es sich um die Wellenform mit der höchsten
Kanalfelderrate (ChBER) unter mitteleuropäischen Satellitenempfangsbedingungen. Anders ausgedrückt, es handelt sich um einen der technisch anspruchsvollsten
Satellitenempfänge überhaupt. Trotz Schneeschauern am Empfangsort in Lučenec erreichte ich auf f = 11,069 MHz-H eine Signalstabilität von über 99 %
in der Nachweiseinheit t = 100+ h.




►►Amos 7 at 3.9°W-Midle East : Justification of Proving/Zdôvodnenie dokazovania

SK_Metodický postup meraní,ktorý verifikuje nespochybnitelné výsledky odvodené od minimálnej jednotky monitoringu t=72 hodín

EN_Methodical procedure of measurements that verifies indisputable results derived from the minimum monitoring unit at t=72 hours.

DE_Methodischer Messablauf, der unbestreitbare Ergebnisse aus der minimalen Überwachungseinheit bei t=72 Stunden ableitet
und verifiziert.



Sk_Len správne zadefinovaný metodický postup meraní a zberu dát vedie k nespochybnitelným výsledkom,ktoré demonštrujú realitu
satelitného príjmu v danej zemepisnej oblasti.Nesprávny,alebo tiež antimetodický a zavádzajúci postup odvodený len od publikovania
samotných analýz frekvenčného spektra so zamknutými nosnými prenosu vedie výlučne len ku chybným výsledkom,úsudkom a nenaplneným
očakávaniam.Antimetodické a zavádzajúce postupy sa dominantne a už desiatky rokov uplatňujú v amatérskej kategorizácii satelitného príjmu
v zónach "Mimo stopy" označovaného skratkou SAT DX.
Vedecko-výskumné centrum autora Romana Dávida z Lučenca zamerané na zóny satelitného príjmu "Mimo stopy" na adrese www.dxsatcs.com
je tým dokázateľne prvým na svete,ktoré od roku 2020 začalo uplatňovať autorom zadefinovaný metodický postup meraní a zberu údajov
z kontinuálneho signálneho monitoringu s dostatočnou dĺžkou,ktorého výsledky sa nedajú akýmkoľvek spôsobom spochybniť.
Metodický postup stanovený autorom Romanom Dávidom týmto jednoznačne vylučuje akúkoľvek spojitosť dosiahnutých výsledkov s očakávaním
na sporadicky prítomné špičky výkonu,alebo na dočasné deje v rôznych častiach atmosféry,ktoré krátkodobo umožnia uskutočniť nestabilnú formu
družicového príjmu spadajúceho do kategorizácie náhody alebo "SAT DX". Zatiaľ čo všetky diskusné centrá po celom svete už viac ako 30 rokov
postupujú podľa pseudovedeckej antimetodiky meraní,ktorej všetky výsledky sa dajú ako celok okamžite spochybniť a označiť ich ako irelevantné
až zbytočné,vedecko-výskumné centrum Romana Dávida ako prvé a jediné na svete postupuje podľa metodického postupu meraní,ktorý generuje
nespochybnitelné výsledky,ktoré môžu byť použité pre ďalšiu vedeckú a výskumnú činnosť v oblasti satelitného príjmu.Prezentácia sekundových
lock-ov z frekvenčného spektra pri vysoko dynamických až permanentných zmenách v intenzitách výkonu v týchto zónach príjmu má samozrejme
nulovú vedeckú hodnotu lebo už nasledujúcu sekundu,minútu,hodinu... po lock-u môže kvalita poklesnúť na nulu a publikovanie týchto pseudo-analýz
je vo svojej podstate zbytočné a klamlivé.

Eng_Only a correctly defined methodical procedure for measurement and data collection leads to indisputable results that demonstrate
the reality of satellite reception in a specific geographical area. Incorrect or anti-methodical approaches, derived solely from the publication
of frequency spectrum analyses with locked carrier frequencies, exclusively lead to erroneous results, judgments, and unfulfilled expectations.
Anti-methodical and misleading procedures have been predominantly applied for decades in the categorization of amateur satellite reception,
denoted by the acronym SAT DX.
The scientific and research center of author Roman Dávid from Lučenec, focused on 'Out of footprint' satellite reception zones at www.dxsatcs.com
is demonstrably the first of its kind in the world, whose results cannot be questioned in any way. This is because since the year 2020,
it has been implementing a methodically defined procedure of measurements and data collection from continuous signal monitoring with sufficient
duration,as defined by the author.The methodical procedure defined by author Roman Dávid clearly excludes any connection of achieved results with
expectations of sporadically present performance peaks or temporary atmospheric phenomena,which momentarily enable an unstable form of satellite
reception falling into the categorization of coincidence or 'SAT DX'.While all discussion centers worldwide have been following a pseudoscientific
antimethodology of measurements for over 30 years,whose results can be immediately questioned and labeled as irrelevant or even pointless,
Roman Dávid's scientific research center stands as the first and only in the world to proceed according to a methodical measurement procedure,
which generates unquestionable results applicable to further scientific research in satellite reception.The presentation of second-locks from the frequency
spectrum during highly dynamic and persistent changes in power intensity in these reception zones inherently possesses zero scientific value because
the quality may drop to zero the following second,minute,hour... after the lock,rendering the entire presentation of this pseudo-analysis essentially
pointless and deceptive.

Auf Deutsch_Nur ein korrekt definierter methodischer Ablauf für Messungen und Datensammlung führt zu unbestreitbaren Ergebnissen,
die die Realität des Satellitenempfangs in einer bestimmten geografischen Region zeigen. Falsche oder antime­thodische Ansätze,
die allein aus der Veröffentlichung von Analysen des Frequenzspektrums mit gesperrten Trägerfrequenzen abgeleitet sind,
führen ausschließlich zu fehlerhaften Ergebnissen, Bewertungen und unerfüllten Erwartungen. Antime­thodische und irreführende Verfahren
werden seit Jahrzehnten überwiegend in der Kategorisierung des Amateur-Satellitenempfangs angewendet und durch das Kürzel SAT DX gekennzeichnet.
Das wissenschaftliche und Forschungszentrum des Autors Roman Dávid aus Lučenec, das sich auf 'Out of footprint' Satellitenempfangszonen
auf www.dxsatcs.com konzentriert,ist nachweislich das erste seiner Art weltweit,dessen Ergebnisse in keiner Weise angezweifelt werden können.
Dies liegt daran, dass es seit dem Jahr 2020 ein methodisch definiertes Verfahren zur Messung und Datensammlung aus kontinuierlicher
Signalüberwachung mit ausreichender Dauer implementiert hat,wie vom Autor definiert.Das methodische Verfahren,das vom Autor Roman Dávid
definiert wurde,schließt klar jede Verbindung der erzielten Ergebnisse mit Erwartungen an sporadisch auftretende Leistungsspitzen oder temporäre
atmosphärische Phänomene aus,die vorübergehend eine instabile Form des Satellitenempfangs ermöglichen,die in die Kategorisierung von Zufall
oder 'SAT DX' fällt.Während alle Diskussionszentren weltweit bereits seit über 30 Jahren einer pseudowissenschaftlichen Antimethodik der Messungen
folgen,deren Ergebnisse sofort als Ganzes in Frage gestellt und als irrelevant oder sogar überflüssig bezeichnet werden können,
handelt das wissenschaftliche Forschungszentrum von Roman Dávid als erstes und einziges auf der Welt nach einem methodischen Messverfahren,
das unbestreitbare Ergebnisse liefert,die für weitere wissenschaftliche und Forschungstätigkeiten im Bereich des Satellitenempfangs verwendet werden
können.Die Darstellung der Trägerverriegelung im Frequenzspektrum während dynamischer und dauerhafter Änderungen in der Leistungsintensität
in diesen Empfangszonen hat selbstverständlich keinerlei wissenschaftlichen Wert,da die Qualität bereits die nächsten Sekunde,Minute,Stunde ...
nach der Trägerverriegelung auf null sinken kann,was die gesamte Präsentation dieser Pseudoanalyse im Wesentlichen nutzlos und betrügerisch macht.


                           Slovensky                                                    In English                                                    Auf Deutsch
       dxsatcs-ses-4-22-west-west-africa-footprint-canal-plus-afrique-sat-reception-europe-metodical-procedure-sk-01        dxsatcs-ses-4-22-west-west-africa-footprint-canal-plus-afrique-sat-reception-europe-metodical-procedure-eng-02        dxsatcs-ses-4-22-west-west-africa-footprint-canal-plus-afrique-sat-reception-europe-metodical-procedure-ger-03

       dxsatcs-roman-dávid-correctly-established-methodical-procedure-of-measurements-sk-w         dxsatcs-roman-dávid-correctly-established-methodical-procedure-of-measurements-eng-w           dxsatcs-roman-dávid-correctly-established-methodical-procedure-of-measurements-de-w


►►Amos 7 at 3.9°W-Middle East : The installed system applied in verification


►For the continuous signal monitoring, a symmetric Prodelin reflector with a diameter of 450 cm and the author’s technological invention
titled "Synchronous Nanocorrections" were applied.
►Beim kontinuierlichen Signalmonitoring wurde ein symmetrischer Prodelin-Reflektor mit einem Durchmesser von 450 cm und die
technologische Erfindung des Autors mit dem Titel „Synchrone Nanokorrekturen“ eingesetzt.
►Pri výkone kontinuálneho signálneho monitoringu bol aplikovaný symetrický reflektor Prodelin s priemerom 450 cm a autorov technologický
vynález s názvom "Synchrónne nanokorekcie"



              dxsatcs-badr-7-26e-nw-africa-sat-reception-prodelin-450cm-reflector-n



Signálny reťazec je tvorený / The signal chain consists of the following components :  Prodelin 450cm




PF Prodelin 450 cm > Primárny žiarič umiestnený v mechanizme manuálnej SKEW rotácie > polarizačná výhybka OMT typ ESA-1212-X/1 >
3x LNB SMW : LNB SMW_Q-PLL type R,
LOF stabilita +/- 25 kHz _ LNB SMW_Q-PLL type O,LOF stabilita +/- 10 kHz _ SMW PLL LNB 9.75 GHz,LOF stabilita +/- 10 kHz
+Svojpomocne vyrobený kartónový kryt z nealko nápoja od švajčiarskej firmy SIG-Combibloc,na ktorý som nalepil nepremokavú fóliu odolnú proti poveternostným
podmienkam

Reflector PF Prodelin 450 cm > Primary feed horn positioned in a manual SKEW rotation mechanism > OMT orthomode transducer, model ESA-1212-X/1 >
SMW_Q-PLL type R LNB with LOF stability +/- 25 kHz, SMW_Q-PLL type O LNB with LOF stability +/- 10 kHz, and SMW PLL LNB 9.75 GHz with LOF stability +/- 10 kHz
+self-made cardboard cover from a non-alcoholic beverage package by the Swiss company SIG-Combibloc, onto which I applied a waterproof, weather-resistant film.


►Reflektor PF Prodelin 450 cm > Primärstrahler (Feedhorn) in einem manuellen SKEW-Rotationsmechanismus platziert > OMT-orthomode transducer vom Typ ESA-1212-X/1
>SMW Q-PLL Typ R LNB mit LOF-Stabilität von +/- 25 kHz, SMW_Q-PLL Typ O LNB mit LOF-Stabilität von +/- 10 kHz, und SMW PLL LNB 9,75 GHz mit LOF-Stabilität von +/- 10 kHz.
+Selbstgemachte Kartonabdeckung aus einer alkoholfreien Getränkeverpackung der Schweizer Firma SIG-Combibloc,auf die ich eine wasserdichte,wetterfeste Folie aufgebracht habe.

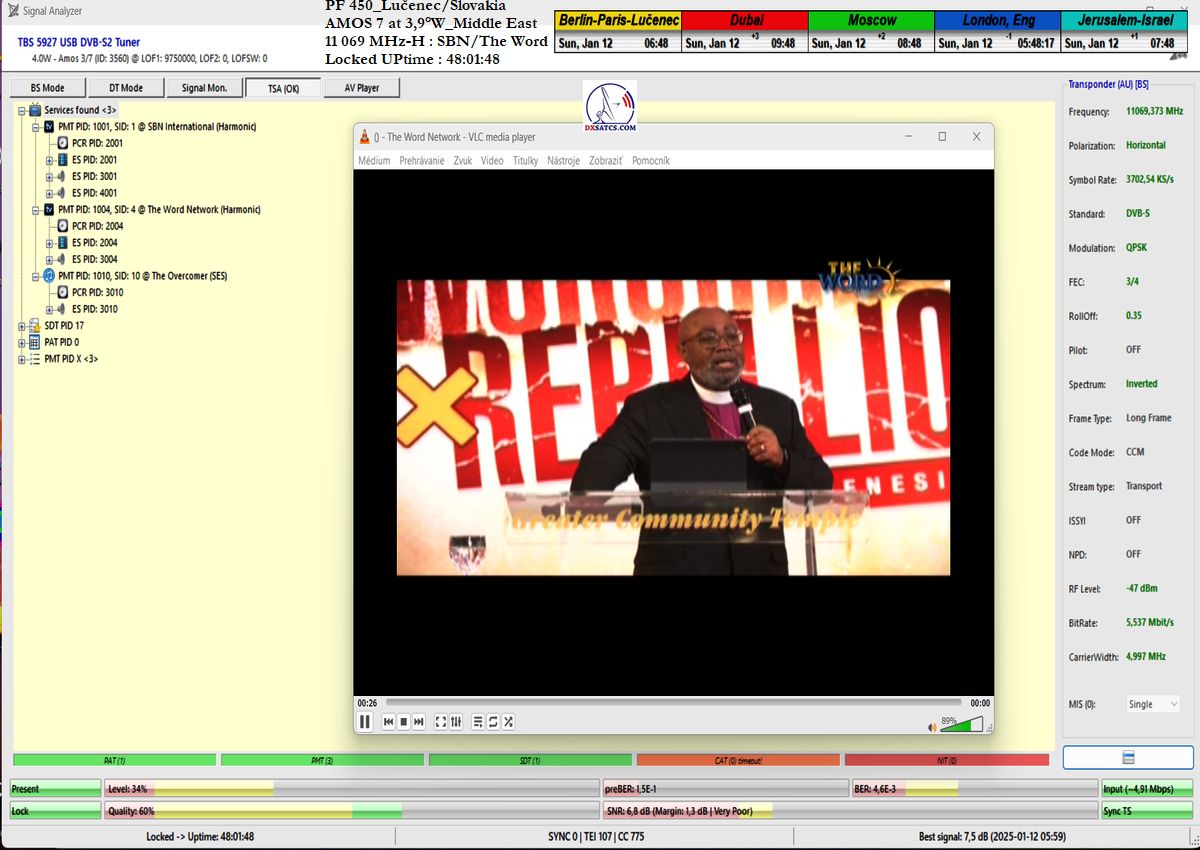

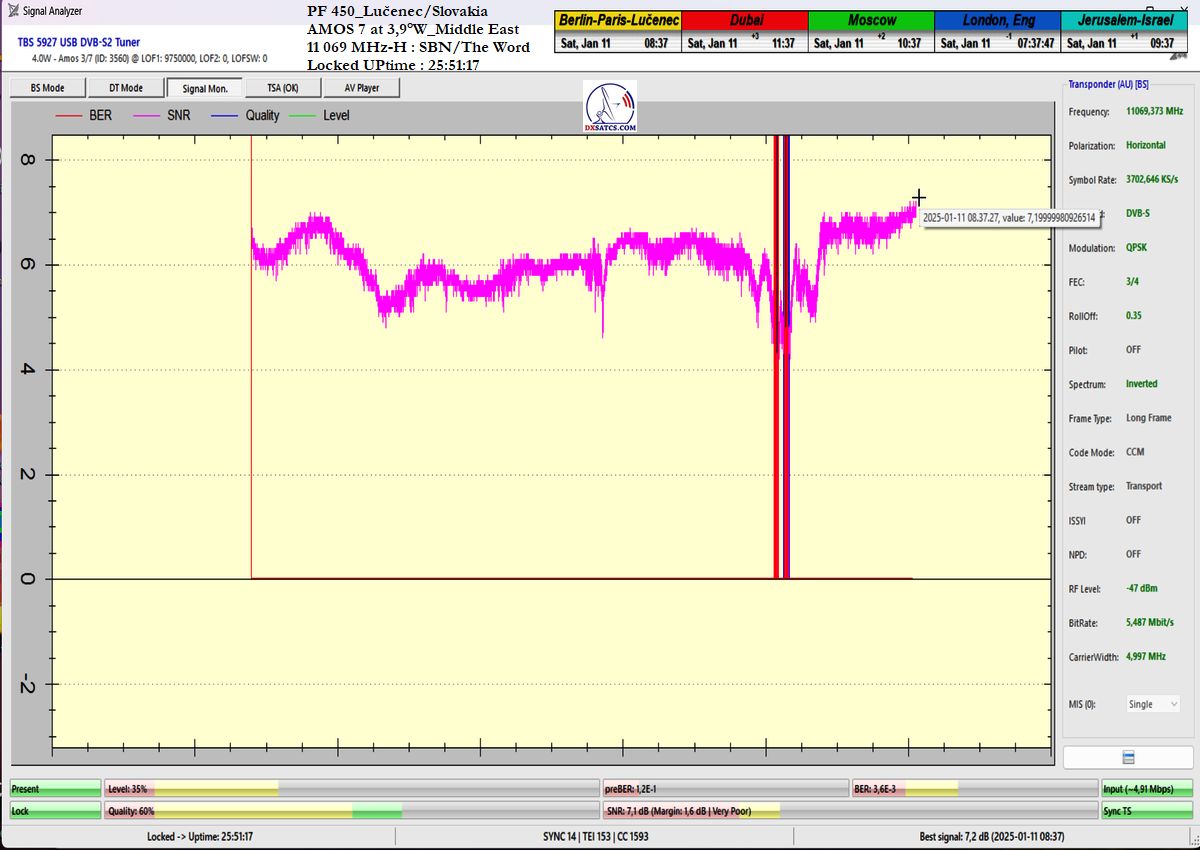

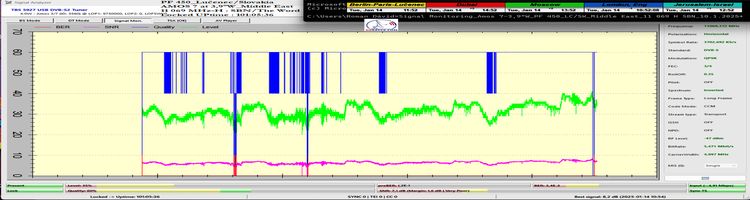

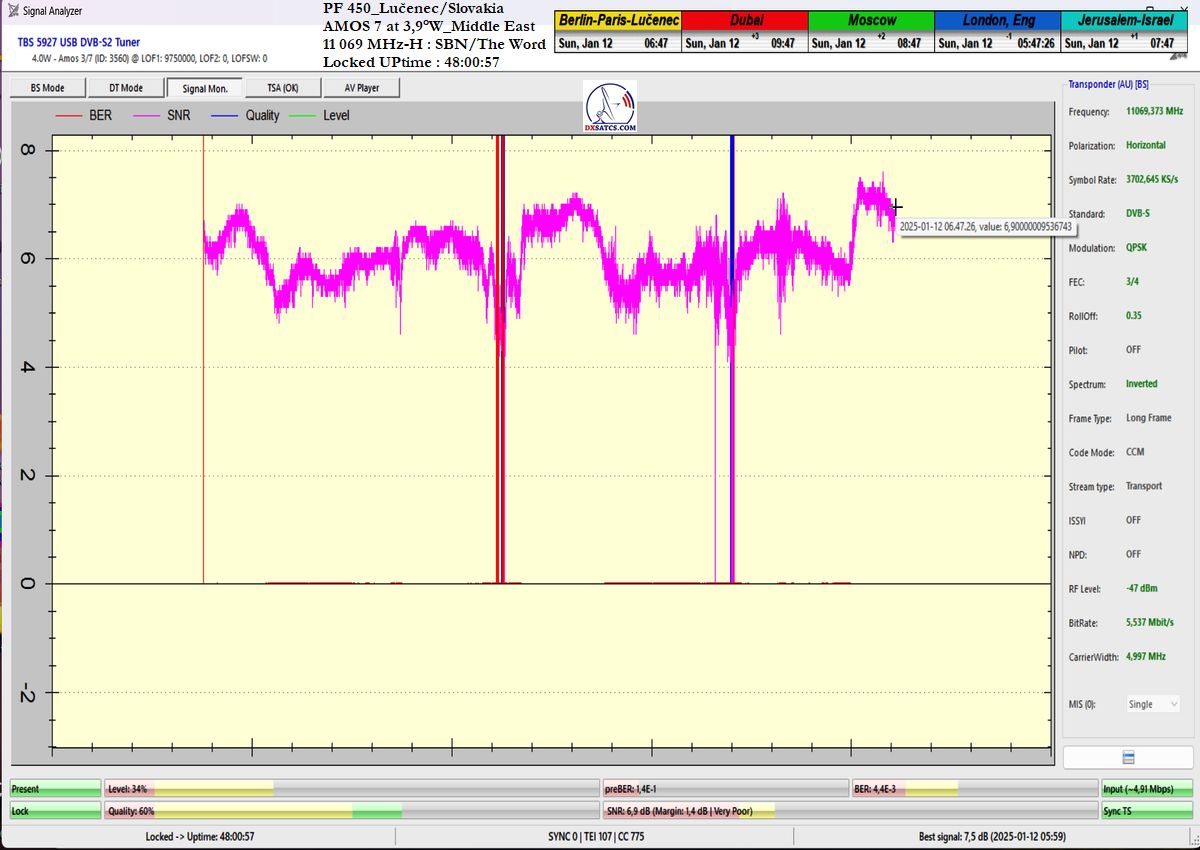

Amos 7 at 3.9°W-11 069 MHz_H_SBN int./The Word netw._ :  Analysis of signal monitoring over a duration of t=101 hours




►Jednotka signálneho monitoringu/Total signal monitoring duration/Gesamtdauer der Überwachung : t=101 h

►Dosiahnutá stabilita príjmu v % / Reception stability (%) / Empfangsstabilität (%) : 99,40594 %

►Celkové Výpadky / Total downtime (lock, pixelation, freezing)/Gesamtausfall (Lock, Pixelation, Einfrieren) : 36 min.

►Peak quality at t=101 h./Spitzenqualität bei t=101 Std. : SNR=8,2 dB_(1 x 8,3 dB)

►Weather: Clear, 1x snow showers (2 hrs) /Wetter: Klar, 1x Schneeschauer (2 Std./11.1.2025)



Duration of total stable reception with no interruptions from Lock, pixelation, or freezing:
                    --- 100 hours and 24 minutes out of a total of 101 hours. ---

Dauer des total stabilen Empfangs ohne jegliche Unterbrechungen durch Sperre, Pixelation oder Einfrieren:
                   --- 100 Stunden und 24 Minuten von insgesamt 101 Stunden. ---

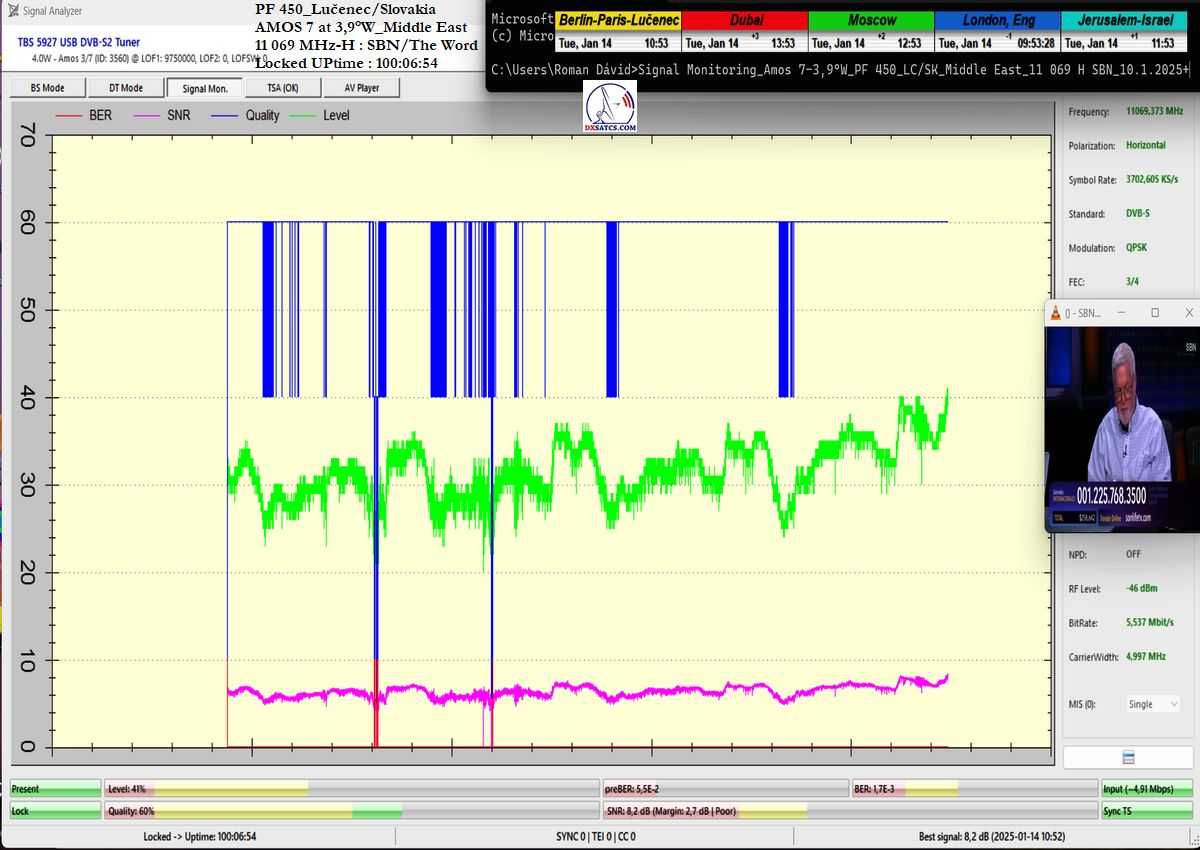

                            ► +100h : SNR=8,2 dB                                                ►+101 h : SNR=7,1 dB

  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-100h-signal-monitoring-plus100h-n   dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-plus000-n


poznámka/Note/Anmerkung :

SK_Porovnávať samozrejme môžete len porovnatelné výsledky zhotovené na základe rovnakého metodického postupu,inak povedané nemôžete porovnávať signálny
monitoring
v jednotkovej dĺžke t=100hodín s Lockom nosnej v dĺžke 1 sekunda zo skenu frekvenčného spektra,ktorých je plný internet,alebo hrušky
s hruškami nie hrušky s jablkami.
Ako som to zdôrazňoval už X-krát uverejňovanie  sekundových Lockov zo spektra má NULOVÚ vedeckú hodnotu a nikto
príčetný nemôže na základe Lockov dokazovať svoju
vedeckosť v otázka satelitného príjmu.To že sa väčšina satelitných portálov na svete riadi a postupuje podla
tejto pseudovedeckej-antimetodiky už viac ako 20 rokov,za to už ja nemôžem,
pretože ja sa držím vedeckej metodiky,ktorú som vymyslel a zadefinoval a podla ktorej
postupujem a jej výsledky sa nedajú spochybniť akýmkolvek spôsobom.



EN_Of course, you can only compare comparable results produced using the same methodological approach. In other words, you cannot compare signal monitoring over
a unit length of t=100 hours with a carrier lock lasting 1 second from a frequency spectrum scan, which the internet is full of, or, as the saying goes, pears with pears—not pears
with apples. As I have emphasized countless times, publishing second-long locks from spectrum scans has ZERO scientific value, and no rational individual can claim
scientific credibility in the field of satellite reception based on such locks.
The fact that most satellite portals have been following and applying this pseudo-scientific,
anti-methodology for over 20 years is beyond my control because I adhere to the scientific methodology that I designed and defined. I follow this methodology rigorously,
and its results cannot be challenged in any way.


DE_Natürlich können Sie nur vergleichbare Ergebnisse miteinander vergleichen, die nach derselben methodischen Vorgehensweise erstellt wurden. Anders ausgedrückt:
Sie können kein Signalmonitoring über eine Einheitslänge von t=100 Stunden mit einem Carrier-Lock von 1 Sekunde aus einem Frequenzspektrums-Scan
vergleichen, wie sie im Internet zuhauf zu finden sind – oder, wie man sagt, Äpfel nicht mit Birnen vergleichen
. Wie ich schon unzählige Male betont habe,
at das Veröffentlichen von sekundenschnellen Locks aus Spektrums-Scans NULL wissenschaftlichen Wert, und niemand bei klarem Verstand kann auf Grundlage
solcher Locks seine wissenschaftliche Glaubwürdigkeit im Bereich des Satellitenempfangs unter Beweis stellen.
Dass die meisten Satellitenportale seit mehr als 20 Jahren
dieser pseudowissenschaftlichen Anti-Methodik folgen und sie anwenden, liegt nicht in meiner Macht. Ich halte mich an die wissenschaftliche Methodik, die ich entworfen und
definiert habe. Ich wende diese Methodik strikt an, und ihre Ergebnisse können in keiner Weise angezweifelt werden


SK_Analýza stability príjmu : z dôvodu navýšenia dôkaznej váhy,alebo tiež relevancie,právoplatnosti a dôležitosti mojich tvrdení som opäť vysoko prekročil
minimálnu jednotku dokazovania z pôvodne stanovenej minimálnej jednotky t=72 hodín až na t=101 hodín , tak aby bola dôkazná váha plne porovnatelná
s jednotkou dokazovania pri nosnej METV Cyprus na f=11 091 MHz,ktorá je ovšem z hľadiska intenzity výkonu výrazne výkonnejšia v oblasti strednej Európy
a navyše na dnes analyzovanej nosnej na f=11 069 MHz_H sa nevyskytujú žiadne anomálie vo význame vysokého a  skokového rastu v intenzite výkonu napríklad
o 30-40-50 jednotiek,tak ako sa tomu deje na nosnej METV na f=11 091 MHz_H.Intenzita výkonu nosnej SBN na f=11 069 MHz_H je trvalo nízka bez akýchkoľvek
anomálii vo výkone,čo zároveň vylučuje že s priemerom anténneho reflektora od d=180 do 370 cm sa dočkáte prípadných náhodných Lockov,čiže čakanie
z kategórie Sat DX by predstavovalo len stratu času v zemepisnej obasti strednej Európy a radšej sa venujte zmysluplnejšej činnosti ako len bezcielnemu čakaniu
na náhodný Lock.

Z hľadiska percentuálnej kvantifikácie stability príjmu som dosiahol plne porovnatelný výsledok pri METV=99,34452 % ako na SBN TV=99,40594 % aj napriek
výraznej disparite v intenzitách výkonu a výskytu snehových prehánok v sobotu 11.1.2025 vo večerných hodinách od cca 16 do 18 hodine v Lučenci.

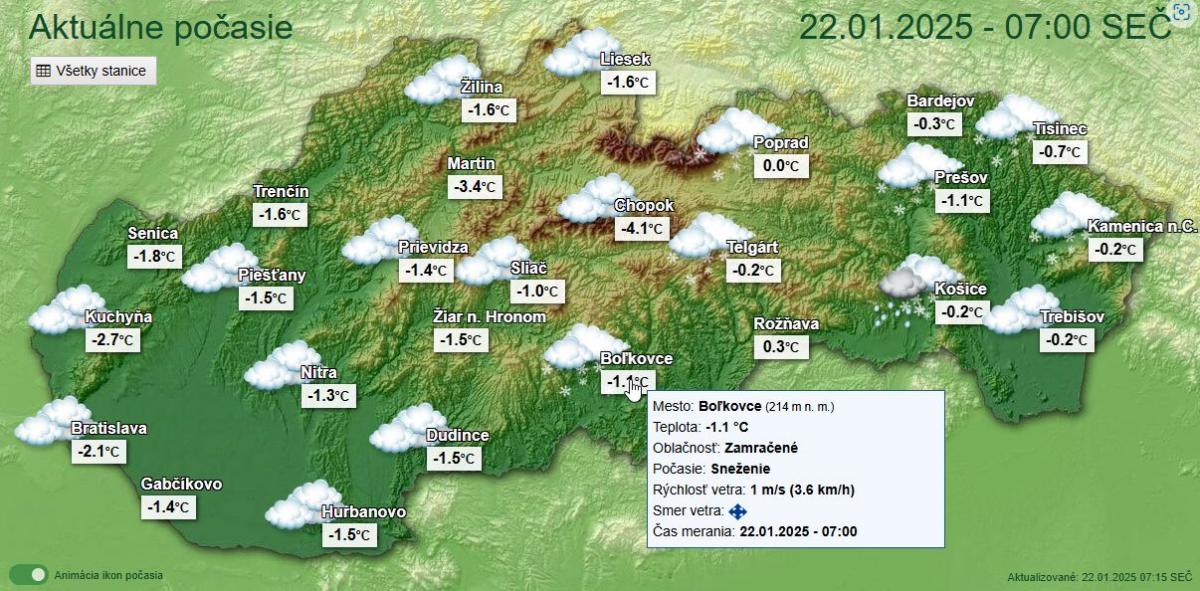

Tentoraz na toto svoje tvrdenie nemám dôkazy z shmu.sk ,pretože sneženie sa vyskytlo len konkrétne nad mestom Lučenec a nie v oblasti obce Boľkovce kde je
umiestnená Meteorologická stanica patriaca SHMU,ale lučenčania ak máte dobrú pamäť dáte mi iste za pravdu že v tej hodine naozaj v Lučenci snežilo a ja som pri
tom práve vykonával monitoring na jednom z najzložitejších sat.príjmov v strednej Európe .Z celkovej jednotky monitoringu a dokazovania t=101 hodím som dosiahol
plnú stabilitu príjmu bez jediného výpadku v Locku,pixelácie alebo zamrznutiu až na 100 hodínách a 24 minútach,čo ma upokojilo a nemal som potrebu začínať v poradí
druhý monitoring.97% z času výkonu signálneho monitoringu prebiehalo pri priam ideálnych poveternostných podmienkach jasnej oblohy bez zrážok,čo je v priamom
vzťahu s dosiahnutou stabilitou príjmu 99,4%.


Analýza a sumarizácia výpadkov v Locku_t=36 minút z celkovo 101 hodín : Pri sumarizácii výpadkov som vždy zaokrúhľoval smerom hore na celé minúty,
tak aby som bol čo najobjektívnejší a aby ma nikto nemohol nachytať z klamstva,pretože som vedec a nemôžem si skrátka dovoliť kohokoľvek zavádzať svojimi tvrdeniami.
Znamená to že ak stream zamrzol napríklad 2x na 1 sekundu počas jednej minúty, rátal som celú jednu minútu do výpadku,nie len 2 sekundy počas ktorých
stream reálne zamrzol,čo je verím objektívny prístup k analýze.
Tentoraz svoje tvrdenia viem aj dokázať a uverejňujem video ukážku ako dôkaz pre moje tvrdenia,
ktorý sa nedá spochybniť.

11.1.2025  od 3:07 do 3:17.......... 10 minút
11.1.2025 od 3:30 do 3:39 .......... 9 minút
11.1.2025  od 19:24 do 19:39...... 15 minút.
14.1.2025  od 10:50 do 11:00 .....  2 minúty


EN :Analysis of Reception Stability: Due to the need to increase the evidential weight, or relevance, validity, and importance of my claims, I have once again
significantly exceeded the minimum evidence unit, originally set at t=72 hours, up to t=101 hours, so that the evidential weight is fully comparable to the evidence unit
for the METV carrier on f=11 091 MHz, which, in terms of power intensity, is significantly stronger in the Central European region. Moreover,
there are no anomalies in power intensity on the currently analyzed carrier at f=11 069 MHz_H, such as high and abrupt jumps in intensity, e.g., by 30-40-50 units,
as observed on the METV carrier at f=11 091 MHz_H. The power intensity of the SBN carrier at f=11 069 MHz_H is consistently low without any anomalies,
which also excludes the possibility of random Lock occurrences with an antenna reflector diameter ranging from d=180 to 370 cm. Thus, waiting for a random Lock
in the Central European region would be a waste of time, and it would be more productive to engage in more meaningful activities rather than aimlessly waiting for a Lock.


In terms of the percentage quantification of reception stability, I achieved a fully comparable result with METV=99.34452% as with SBN TV=99.40594%,
despite the significant disparity in power intensities and snow showers occurring on Saturday, January 11, 2025, from approximately 4 PM to 6 PM in Lučenec.
This claim, however, cannot be substantiated with evidence from shmu.sk, as the snowfall occurred specifically over the city of Lučenec and not in the area
of the Boľkovce village, where the SHMU meteorological station is located. However, if you, residents of Lučenec, have a good memory,
you will agree that it indeed snowed at that time, and I was performing monitoring on one of the most complex satellite receptions in Central Europe.
Out of the total monitoring and evidence unit of t=101 hours, I achieved full reception stability with no interruptions from Lock, pixelation, or freezing
for 100 hours and 24 minutes, which reassured me, and I had no need to initiate a second monitoring. 97% of the signal monitoring time took place under ideal
weather conditions of clear skies without precipitation, which is directly correlated with the achieved reception stability of 99.4%.

Analysis and Summary of Lock Downtime_t=36 minutes: When summarizing the downtimes, I always rounded up to the nearest whole minute
to be as objective as possible and to ensure that no one could accuse me of dishonesty. As a scientist, I simply cannot afford to mislead anyone with my
statements. This means that if the stream froze, for example, twice for one second during a single minute, I counted the entire minute as downtime,
not just the two seconds during which the stream actually froze.
I believe this is an objective approach to the analysis. At this point, I can prove my claims
and will publish a video demonstration as evidence that cannot be disputed.

11.1.2025  od 3:07 do 3:17........ 10 min.
11.1.2025 od 3:30 do 3:39 ........ 9 min.
11.1.2025  od 19:24 do 19:39...... 15 min.
14.1.2025  od 10:50 do 11:00 .....  2 minúty


DE_Analyse der Empfangsstabilität: Aufgrund der Notwendigkeit, das Beweisgewicht oder die Relevanz, Gültigkeit und Bedeutung meiner Aussagen zu erhöhen,
habe ich erneut die Mindestbeweiszeit, die ursprünglich auf t=72 Stunden festgelegt wurde, auf t=101 Stunden deutlich überschritten, sodass das Beweisgewicht
vollständig mit der Beweiszeit des METV-Trägers auf f=11 091 MHz vergleichbar ist, der in Bezug auf die Leistung deutlich stärker in der Region Mitteleuropa ist.
Zudem treten auf dem derzeit analysierten Träger bei f=11 069 MHz_H keine Anomalien in der Leistung auf, wie hohe und abrupt ansteigende Leistungsspitzen
von z.B. 30-40-50 Einheiten, wie sie auf dem METV-Träger bei f=11 091 MHz_H beobachtet werden. Die Leistung des SBN-Trägers bei f=11 069 MHz_H
ist konstant niedrig, ohne Anomalien, was ebenfalls die Möglichkeit von zufälligen Lock-Vorkommen mit einem Antennenreflektor-Durchmesser von d=180 bis
370 cm ausschließt. Das Warten auf einen zufälligen Lock in der Region Mitteleuropa wäre also Zeitverschwendung, und es wäre produktiver, sinnvollere Aktivitäten
zu unternehmen, anstatt ziellos auf einen Lock zu warten.


In Bezug auf die prozentuale Quantifizierung der Empfangsstabilität habe ich ein vollständig vergleichbares Ergebnis mit
METV=99,34452% wie bei SBN TV=99,40594% erzielt, trotz der erheblichen Unterschiede in der Leistung und Schneeschauern, die am Samstag,
dem 11. Januar 2025, von ca. 16 bis 18 Uhr in Lučenec auftraten. Diese Behauptung kann jedoch nicht mit Beweisen von shmu.sk untermauert werden,
da der Schneefall spezifisch über der Stadt Lučenec und nicht im Gebiet des Dorfes Boľkovce auftrat, wo die meteorologische Station des SHMU liegt.
Wenn jedoch die Einwohner von Lučenec ein gutes Gedächtnis haben, werden sie mir zustimmen, dass es zu dieser Zeit tatsächlich geschneit hat,
während ich ein Monitoring bei einem der komplexesten Satellitenempfänger in Mitteleuropa durchgeführt habe. Von der gesamten Monitoring- und
Beweiszeit t=101 Stunden habe ich eine vollständige Empfangsstabilität ohne Unterbrechungen durch Lock, Pixelation oder Einfrieren für 100 Stunden
und 24 Minuten erreicht, was mich beruhigte, und ich hatte keine Notwendigkeit, ein zweites Monitoring zu beginnen. 97% der Signalüberwachungszeit
fanden unter idealen Wetterbedingungen mit klarem Himmel und ohne Niederschläge statt, was direkt mit der erreichten Empfangsstabilität von 99,4%
korreliert.

Analyse und Zusammenfassung der Lock-Ausfälle_t=36 Minuten: Bei der Zusammenfassung der Ausfälle habe ich immer auf die nächste volle Minute
aufgerundet, um so objektiv wie möglich zu sein und sicherzustellen, dass mich niemand des Betrugs beschuldigen kann. Als Wissenschaftler kann ich
es mir einfach nicht leisten, jemanden mit meinen Aussagen in die Irre zu führen. Das bedeutet, dass, wenn der Stream zum Beispiel zweimal für eine
Sekunde während einer Minute eingefroren ist, ich die gesamte Minute als Ausfall gezählt habe, nicht nur die zwei Sekunden, in denen der Stream
tatsächlich eingefroren ist.
Ich glaube, dass dies ein objektiver Ansatz zur Analyse ist. An diesem Punkt kann ich meine Aussagen auch beweisen und
werde ein Video als Beweis veröffentlichen, das nicht in Zweifel gezogen werden kann.

11.1.2025  od 3:07 do 3:17.......... 10 Min.
11.1.2025 od 3:30 do 3:39 .......... 9 Min.
11.1.2025  od 19:24 do 19:39...... 15 Min.
14.1.2025  od 10:50 do 11:00 .....  2 Min.






►►Amos 3 at 4.0°W-Middle East : Beacon frequency / TT&C


amos-3-7-at-4-west-beacon-frequencies-ku-band





  Amos 7 : TT&C FREQUENCY > f=11 450.115 MHz_V

   SPAN= 100 kHz,použil som oscilátor na báz DRO nie PLL,preto tá odchýlka v presnosti frekvencie

    dxsatcs-amos-7-middle-east-sat-reception-11450-mhz-v-beacon-ttc-02-w




Amos 7 : Beacon frequency > 11 450,115 MHz_H

SPAN=100 kHz
  dxsatcs-amos-7-middle-east-sat-reception-11450-mhz-H-beacon-01


►►Amos 7 at 3.9°W-Middle EastContinuous signal monitoring / Nepretržitý signálny monitoring




                 >  4, Monitoring of the frequency f=11 069 MHz_H_SBN int./The Word netw. <

                                                     > Transmision parameters : DVB-S _ QPSK _ SR=3 702 _ FEC=3/4 <

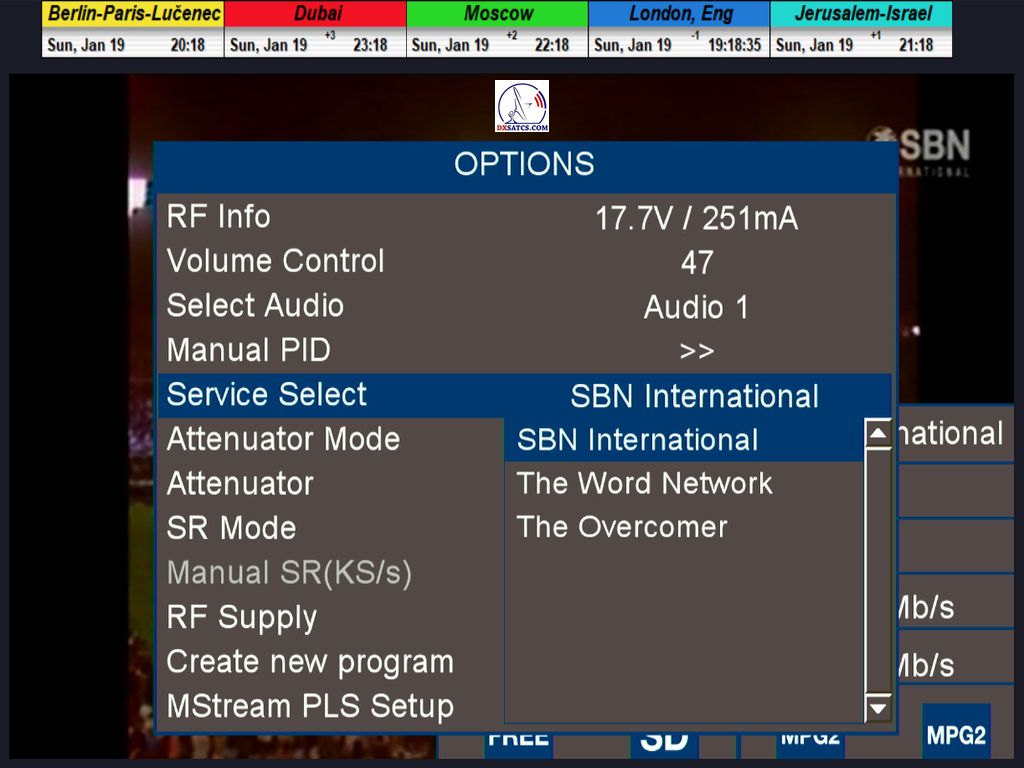

                                                     <SBN Int. - online scan : 19.1.2025 o 20:00+ večer CET_Lučenec/Slovakia >

  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-Metek HD-online scan-01-n       dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-Metek HD-online scan-02-n





Klasifikácia dosiahnutých výsledkov na f=11 069 MHz_H :
V jednotke dokazovania a signálneho monitoringu t=101 hodín som dosiahol celkovú stabilitu príjmu vyjadrenú v percentách 99,40594 %,
,inak povedané dosiahol som  plnú stabilu príjmu SBN/The Word bez jedinej pixelácia a výpadku v Locku v dĺžke 100 hodín a 24 minút z celkovo
101 hodín signálneho monitoringu .
EN_Classification of achieved results at f=11 069 MHz_H:
In the verification and signal monitoring period of t=101 hours, I achieved an overall reception stability of 99.40594%, expressed in percentage terms. In other words,
I achieved full reception stability of SBN/The Word without a single pixelation or lock drop for a duration of 100 hours and 24 minutes out of the total 101-hour monitoring
period.


DE_Klassifizierung der erzielten Überwachungsergebnisse_f=11 069_H:
Während der Nachweis- und Signalüberwachungsperiode von t=101 Stunden erreichte ich eine Gesamtempfangsstabilität von 99,40594 %, ausgedrückt in Prozent.
Anders gesagt, ich erreichte eine volle Empfangsstabilität von SBN/The Word ohne eine einzige Pixelierung oder einen Lock-Ausfall für eine Dauer von 100 Stunden
und 24 Minuten aus der gesamten Überwachungsdauer von 101 Stunden.



Typická a každodenne meratelná špička kvality dosiahnutá v monitorovanom období od 10.1.2025 do 19.1.2025 :


       > Typical and daily peak of quality under significantly non-degrading weather conditions on the signal path <
>Typische und tägliche Spitzenqualität unter signifikant nicht degradierenden Wetterbedingungen auf dem Signalweg.<



       TBS 5925+EBSpro/CrazyScan : SNR=7,2-8,2 dB  (Margin: 1,7-2,7 dB)

Analýza spektra,kvality a meranie C/N,Pwr... s Televes H60 a Metek HD : 11 069 MHz_H - SBN _The Word dňa 19.1.2025



SK : nasledovné analýzy spektra a kvality s analyzátormi Televes H60 a Metek Hd som vykonával pri neporovnatelne horších poveternostných podmienkach,
čo je príčinou prečo špička kvality ani zďaleka nedosahuje špičku kvality,ktorú som dosiahol počas signálneho monitoringu v jednotke t=101 hodín , tj. okolo SNR=8,2 dB.
Tieto kvalitu príjmu vysoko-degradujúce poveternostné podmienky trvalo zotrvávajú v mieste príjmu Lučenec od skončenia monitoringu dňa 14.1.2025 a až do dnes som
nemohol vykonať analýzu spektra a kvality pri porovnatelných poveternostných podmienkach aké prevládali pri výkone signálneho monitoringu od 10 do 14.1.2025.
(+Aktuálny stav počasia v čase uverejnenia novinky ako dôkaz zo zdroja shmu.sk)

►EN : The following spectrum and quality analyses with Televes H60 and Metek HD analyzers were conducted under significantly worse weather conditions, which is why
the peak quality is far from the level achieved during the signal monitoring period of t=101 hours, i.e., around SNR=8.2 dB. These reception-quality-degrading weather
conditions have persisted at the reception site in Lučenec since the conclusion of monitoring on January 14, 2025. To this day, I have been unable to perform spectrum
and quality analyses under comparable weather conditions to those during the signal monitoring conducted from January 10 to 14, 2025.
(Current weather conditions at the time of publishing the update as evidence from the source shmu.sk)

DE : Die folgenden Spektrums- und Qualitätsanalysen mit den Analysatoren Televes H60 und Metek HD wurden unter deutlich schlechteren Wetterbedingungen
durchgeführt. Aus diesem Grund erreicht die Spitzenqualität bei weitem nicht das Niveau, das während des Signalmonitorings in der Einheit t=101 Stunden erzielt wurde,
d.h. etwa SNR=8,2 dB. Diese die Empfangsqualität stark beeinträchtigenden Wetterbedingungen bestehen am Empfangsstandort Lučenec seit dem Abschluss
des Monitorings am 14. Januar 2025. Bis heute war es mir nicht möglich, Spektrums- und Qualitätsanalysen unter vergleichbaren Wetterbedingungen durchzuführen,
wie sie während des Signalmonitorings vom 10. bis 14. Januar 2025 vorherrschten. (
Aktueller Wetterzustand zum Zeitpunkt der Veröffentlichung der Neuigkeit als Beweis
aus der Quelle shmu.sk
)

      dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-Televes H60-online scan-01-n        dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-Metek HD-spectrum-analysis-02-n




                          DOKAZOVANIE v celkovej kvantite monitoringu t=101 hodín

           PROVING > Amos 7 at 3,9°W _f=11 069 MHz_H : SBN int./The Word netw.

 Nepretržitý monitoring signálnych parametrov v jednotke t=101 hodín
      Continuous monitoring of signal parameters in unit t=101 hours




Deň záznamu monitoringu :  od 10.1.2025 do 14.1.2025

                                                       Amos 7 at 3.9°W-footprint  : Middle East

Place of sat.reception in Central Europe _ Geografischer Punkt des Satellitenempfangs in Mitteleuropa
                                                  Lučenec/Slovakia : 48°19′53″ s. š., 19°40′15″ v. d.

                        the geographical point of satellite reception is not located on the footprint map

der geografische Punkt des Satellitenempfangs ist nicht auf der Karte verzeichnet
                                      source : Spacecom – Global Communication Service Provider

  Amos-7-4-west-middle-east-beam-footprint-reception-central-europe-spacom-israel-01-sk-n     Amos-7-4-west-middle-east-beam-footprint-reception-central-europe-spacom-israel-02-sk-n




►Stav atmosféry : na základe meteogramov zo zdrojov shmu.sk môžem potvrdiť že počas výkonu signálneho monitoringu prevládalo
v Lučenci jasno/polojasno,pričom len v sobotu 11.1.2025 sa vyskytli vo večerných hodinách snehové prehánky približne od 16 do 18:00 CET.

 dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-shmu-weather-data-01            dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-shmu-weather-data-02







                         TBS 5927+EBSpro >>> SNR peak=8,2 dB

                                              celkový čas signálneho monitoringu : 101 hodín
                                                            od 10.1.2025 do 14.1.2025

KOMPLEXNÝ POHĽAD zahrňujúci kvalitu Q v jednotke-% , úroveň výkonu v jednotke dBm , kvalitu SNR v bezrozmernej jednotke dB , chybovosť BER ...



  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-FULL-n


DETAILNÝ POHĽAD zameraný na kvalitu príjmu a okamžité zmeny odvodené od jednotky merania SNR v trvaní 101 hodín

  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-SNRonly-n



Detailná analýza vývoja zmien kvality SNR s časovým kódom počas celého monitorovaného úseku 104 hodín v online video ukážke,
ktorá vylučuje pochybnosti všetkého druhu o reálnosti dosiahnutých úrovní kvality,poprípade akékoľvek dodatočné manipulácie






+25 hodín _ Priebežný stav v signálnom monitoringu dňa 11.1.2025 a online video ukážky z vysielania v ktorých nie je možné pozorovať ani jeden
výpadok alebo pixeláciu obrazu


-okamžitá kvalita osciluje okolo: SNR=7,0 dB -

 dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-A011  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-A022  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-A033



+48 hodín_ Priebežný stav v signálnom monitoringu dňa 12.1.2025 a online video ukážky
                                                                                                                                                                                                                                                                                                                                                                                                                                      -okamžitá kvalita osciluje okolo: SNR=6,8 dB -


 dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-B01  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-B02  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-B03



+ 100 hodín_Priebežný stav v signálnom monitoringu dňa 14.1.2025 a online video ukážky

                                                      -okamžitá kvalita osciluje okolo: SNR=8,0 dB -

 dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-C01  dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-C02   dxsatcs-amos-7-middle-east-sat-reception-prodelin-450cm-11 069-mhz-h-SBN-the Word tv-101h-signal-monitoring-C03



►►Amos 7 at 3.9°W-Middle East :  copyright : Research project



 All the information, images, measurements and analyses in Ku band frequency spectrum in high frequency engeneering and wave physics are results
that come  exclusively from scientific research conducted by Roman Dávid - the author and the owner of www.dxsatcs.com. All the information found on
www.dxsatcs.com are protected by copyright as a part of intangible property and are protected by EU law and Slovak national legislation. Usage, copying
and distribution of any information  or its parts without author's permission is strictly prohibited.



 Všetky informácie,grafické zobrazenia,výsledky meraní a analýz príjmu vo frekvenčnom spektre pásme Ku pochádzajú výlučne z vedecko-výskumnej
činnosti autora dxsatcs.com Roman Dávida z oblasti vlnovej fyziky a VF techniky a spadajú do jeho duševného vlastníctva,ktoré je chránené zákonmi
Európskej únie a Slovenskej republiky .Ich celkové alebo čiastočné kopírovanie, imitovanie alebo distribúcia bez súhlasu autora je výslovne zakázaná
z dôvodu výhradného vlastníctva autorom .

author : Roman Dávid_the founder of the Czech & Slovak DX Satellite Club_Think-Tank © Lučenec 2025 / Slovak republic

                                         Roman Dávid-Lucenec-www.dxsatcs.com/
