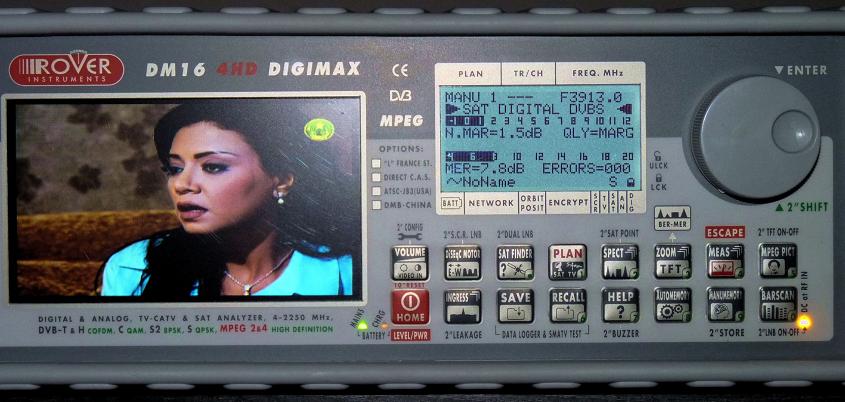

 Arabsat 2B at 20.0 e- medium power beam-3 913 R-n

                satellite : Arabsat 2B - orbit : 20.0°E - TP : 22 C/12 KU - lifetime : from 13.11.2006 - 16 years
.

Arabsat 2B at 20.0°E - Medium power footprint : spectrum analysis and the results of measurements

.
      Arabsat 2B at 20.0°E - medium power footprint : measurements at the center Lučenec/central Slovakia
                                         geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                     measurement results are derived from the 3.7 m diameter antenna
                                                                date of measurement : 30.10.2010
                                                                             elevation angle : 34.5°

.
  Arabsat 2B footprint : medium power            Arabsat 2B : installed system               Arabsat 2B : research point

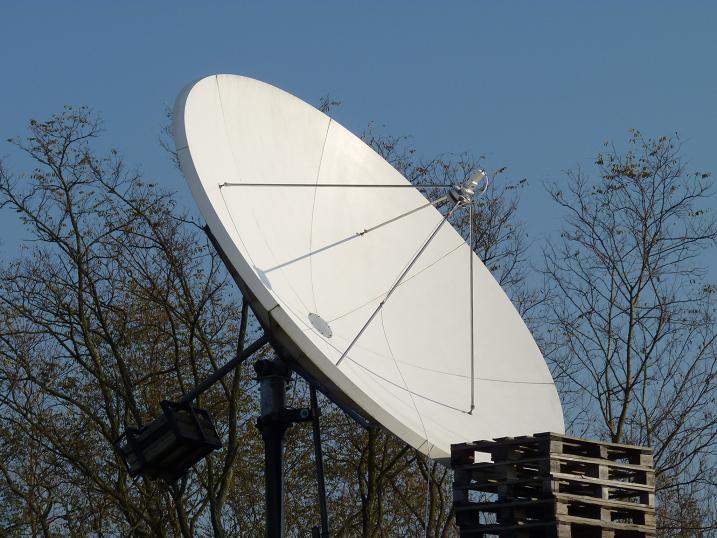

       Africa , Middle East , Europe ...              Prodelin 3.7 m,LNB Norsat 8215                   48.33° _ 19.72°
Arabsat 2B at 20.0 e _ medium power footprintArabsat 2B at 20e-Hemi Mea beam-PF Prodelin 3.7 m-01Arabsat 2B at 20.0e-medium power beam-measurement point

                     --- Arabsat 2B at 20.0°E - medium power beam : spectral analysis of transponders TP9+TP11 ---
                                                                                       click for enlarge
          Arabsat 2B at 20.0 e- medium power beam-spectral analysis-n
                                                                  - time of measurement : 30.10.2010 -
                                                                      - defining the status of reception -

                                                                    - 3 913 R TVM_Mauritanie network -
in field measurements and data collection in the length of 120 minutes I have identified the following quality status :
- range of amplitude changes in quality were determined by two peaks >>> from Peak-min 7.0 dB to Peak-high 8.7 dB ,
which means significantly unstable levels of gain growth from 2 to almost 4 dB.

                                                             - 3 893 > 3 902 : Tayba TV , SSTV , SSTV feeds -
- 3 894>3 902:average quality level oscillates in the range from MER=7.5 to 9 dB depending on the number and power of
feeds carriers

                                             Arabsat 2B at 20.0°E : results of measurements of quality of reception

                                               Arabsat 2B at 20.0°E - Medium power : 3 713 R ETV Ethiopia
                      IF data                                                    Q data                                                    NIT data

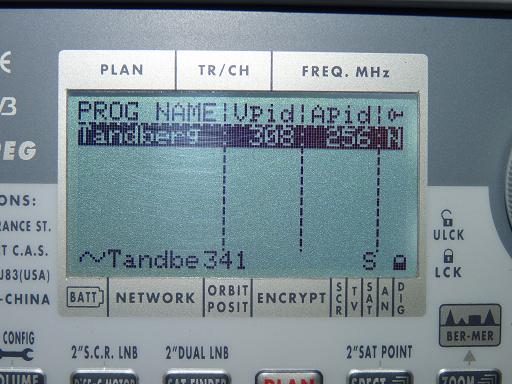

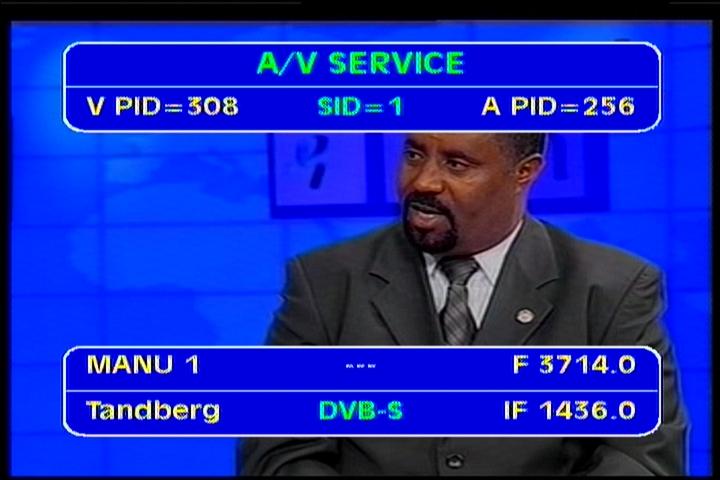

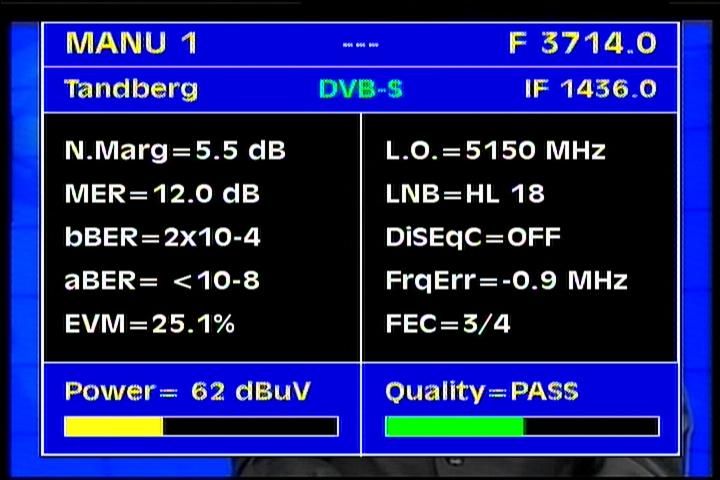

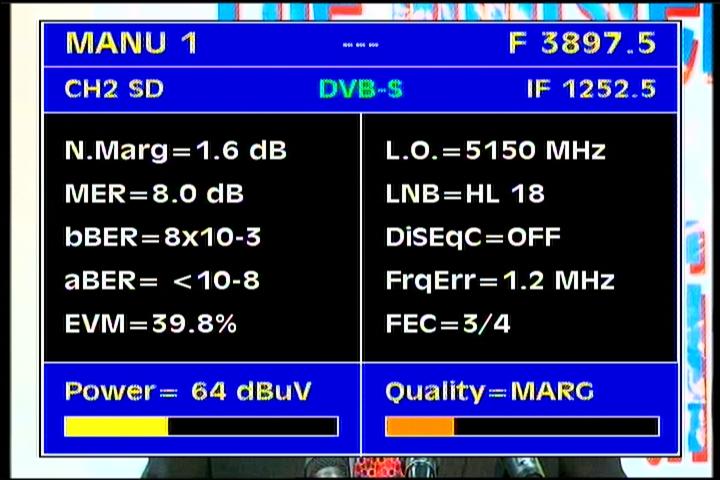

Arabsat 2B at 20.0 e- medium power beam-3 714 R ETV Ethioipia-IF dataArabsat 2B at 20.0 e- medium power beam-3 714 R ETV Ethioipia-Q dataArabsat 2B at 20.0 e- medium power beam-3 714 R ETV Ethioipia-NIT data

                                                  Arabsat 2B at 20.0°E - Medium power : 3 716 R Oromia TV

IF data                                                    Q data                                                    NIT data

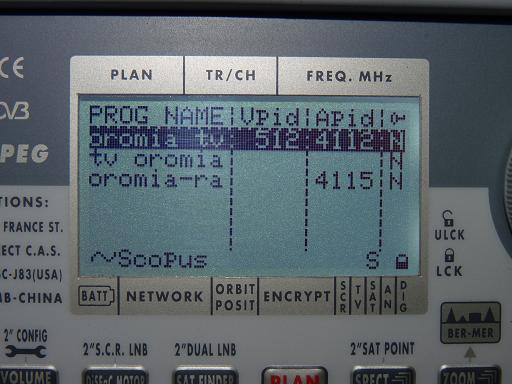

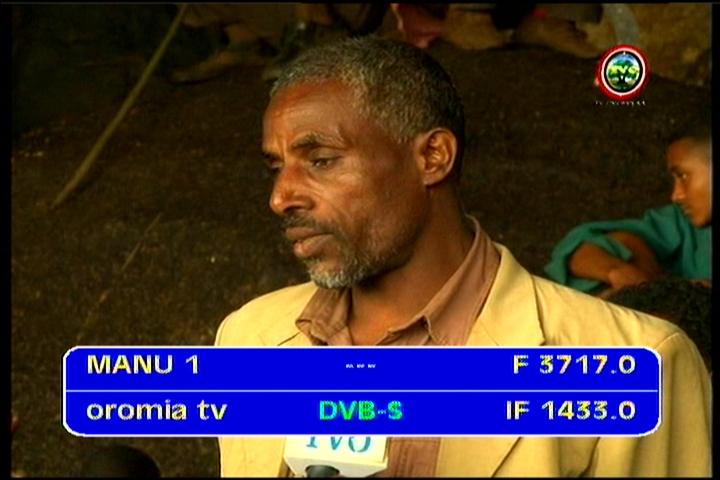

Arabsat 2B at 20.0 e- medium power beam-3 717 R Oromia TV-IF dataArabsat 2B at 20.0 e- medium power beam-3 717 R Oromia TV-Q dataArabsat 2B at 20.0 e- medium power beam-3 717 R Oromia TV-NIT data

                                                   Arabsat 2B at 20.0°E - Medium power : 3 893 R Tayba TV

IF data                                                    Q data                                                    NIT data

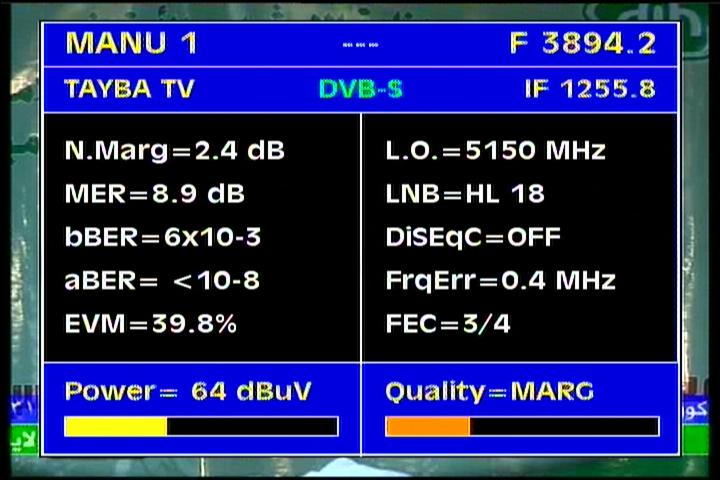

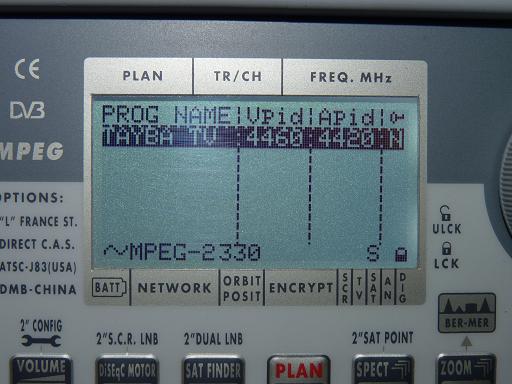

Arabsat 2B at 20.0 e- medium power beam-3 894 R Tayba TV-IF dataArabsat 2B at 20.0 e- medium power beam-3 894 R Tayba TV-Q dataArabsat 2B at 20.0 e- medium power beam-3 894 R Tayba TV-NIT data

                                 Arabsat 2B at 20.0°E - Medium power : 3 898 R SSTV_Southern Sudan TV

IF data                                                   Q data                                                    NIT data

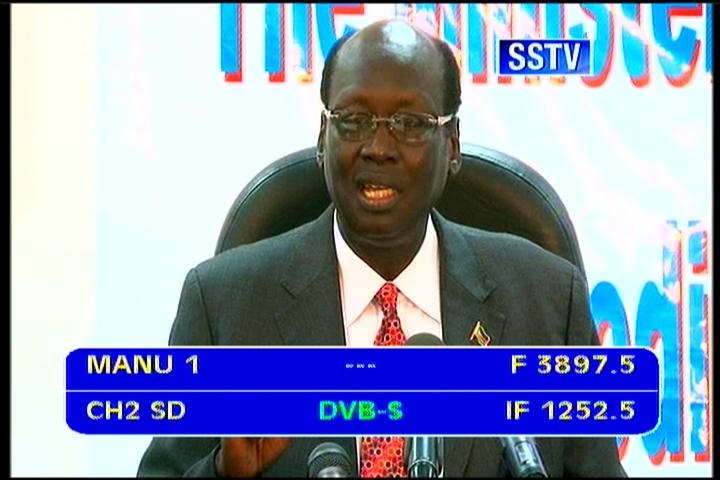

Arabsat 2B at 20.0 e- medium power beam-3 897 R SSTV-IF dataArabsat 2B at 20.0 e- medium power beam-3 897 R SSTV-Q dataArabsat 2B at 20.0 e- medium power beam-3 897 R SSTV-NIT data

                                 Arabsat 2B at 20.0°E - Medium power : 3 914 R TV de Mauritanie Network

IF data                                                   Q data                                                    NIT data

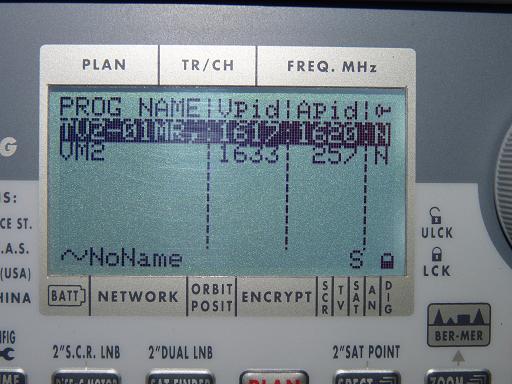

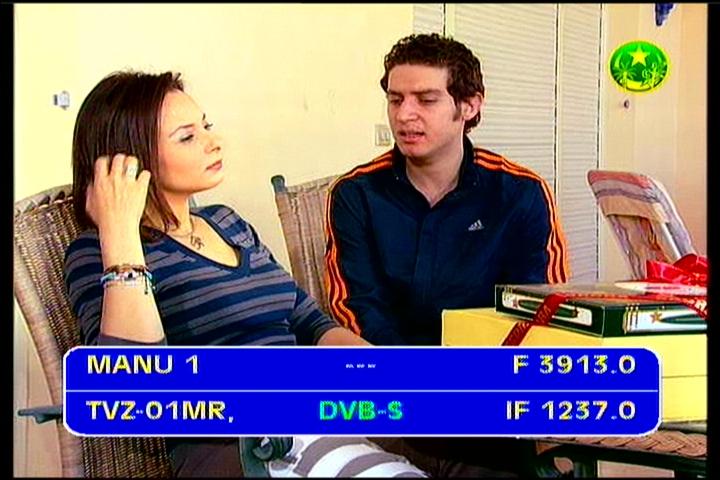

Arabsat 2B at 20.0 e- medium power beam-3 913 R TVM-IF dataArabsat 2B at 20.0 e- medium power beam-3 913 R TVM-Q dataArabsat 2B at 20.0 e- medium power beam-3 913 R TVM-NIT data
.

Arabsat 2B at 20.0°E : TV List


Arabsat 2B at 20e-Hemi Mea beam-PF Prodelin 3.7 m



---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 713 -R- tp 1

ETV Ethiopia_first service  watch video

2 200 3/4 Medium 180+ cm DVB-S FTA

3 716 -R- tp 1

Oromia TV

2 200 3/4 Medium 180+ cm DVB-S FTA

3 893 -R- tp 9

Tayba TV      watch video 2 600 3/4 Medium 200+ cm DVB-S FTA

3 898 -R- tp 9

Southern Sudan TV_No name

2 600 3/4 Medium 200+ cm DVB-S FTA

3 902 -R- tp 9

feeds SSTV

2 600 3/4

Medium

180+ cm feeds

3 913 -R- tp 11

TV de Mauritanie_ 8 150 3/4 Medium 240+ cm DVB-S
  TVZ-01MR. TVM 1    watch video         FTA
  TVM 2         FTA

4 058 -L- tp 16

Al Jazeera Sport network

 27 500 3/4  High  140+ cm  DVB-S
  JSC Sport HD 1         MPEG-4/HD/Irdeto2...
  JSC Sport 3D         MPEG-4/HD/Irdeto2...
  JSC Sport HD 2         Ird 2/KeyFly/Vcs 3.0
  NBA

Ird 2/KeyFly/Vcs 3.0

  ESPN         Ird 2/KeyFly/Vcs 3.0
  ESPN Classic         Ird 2/KeyFly/Vcs 3.0
  ESPN America         Ird 2/KeyFly/Vcs 3.0
  ART Sport 7

Ird 2/KeyFly/Vcs 3.0



Arabsat 2B at 20.0°E : relative quality

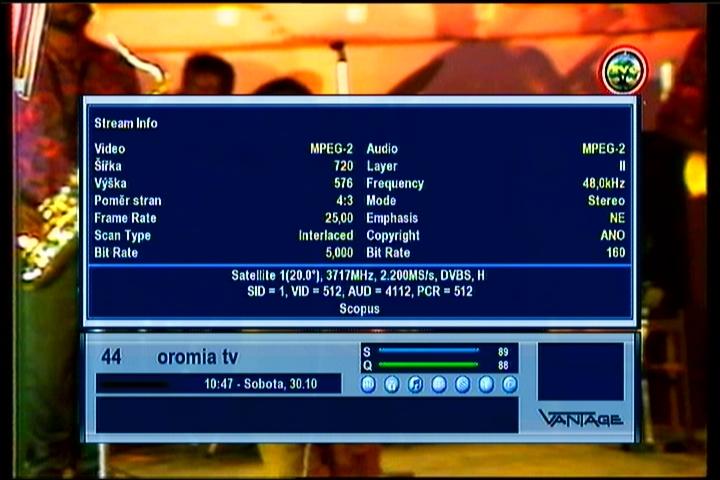

relative q 01relative q 02relative q 03
