Astra 1E/1G/3A at 23.5°E

Astra 1E/1G/3A at 23.5°E : Technical data


 Astra 1E 1G 3A at 23.5 E _ 3A footprint _ 12 525 V Packet CS Link_first snap 001
                         satellite : Astra 3A - orbit : 23.5°E - TP : 50 KU - lifetime : from 29.3.2002 - 10 years

Update - Astra 1E/1G/3A at 23.5°E : analysis of frequency spectrum & footprint


             Astra 1E/1G/3A at 23.5° : results of measurements at the intake center Lučenec in Central Slovakia
                                         geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                                                       elevation angle  : 34.5°

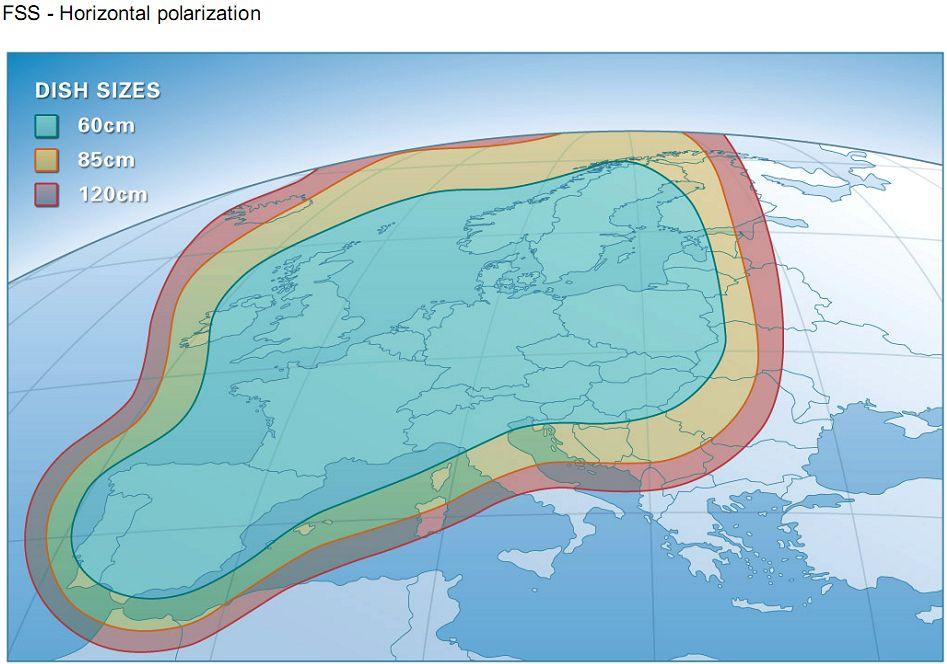

             Astra 1E footprint FSS H                               Astra 1G footprint                                    Astra 3A footprint                                                                                                     <<<                guaranteed income option with the antenna up to D = 120 cm          >>>
            European region , UK                                  European region , UK
                         part of the European region
  Astra 1E at 23.5 E _ FSS H footprint Astra 1G at 23.5 E _ 1G footprint  Astra 3A at 23.5 E _ 3A footprint
                               +                                                                 +                                                                +
            Astra 1E spectral analysis                       Astra 1G spectral analysis                        Astra 3A spectral analysis
                10 803 H : Óčko TV                             11 992 H : Packet CS Link                        12 525 V : Packet CS Link
  Astra 1E at 23.5 E _ FSS H footprint _spectral analysis Astra 1G at 23.5 E _ 1G footprint _spectral analysis  Astra 3A at 23.5 E _ 3A footprint _spectral analysis

                                    Astra 1E/1G/3A at 23.5°E : results of measurements of quality of income

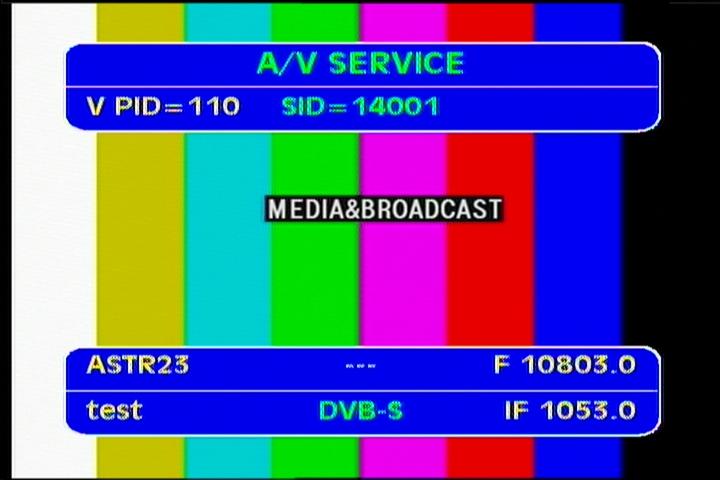

                             Astra 1E/1G/3A at 23.5°E-1E H FSS footprint : 10 803 H Packet Media Broadcast
                         VA pids                                                      Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 1E footprint _ 10 803 H Packet Media Broadcast_VA pids dataAstra 1E 1G 3A at 23.5 E _ 1E footprint _ 10 803 H Packet Media Broadcast_Q dataAstra 1E 1G 3A at 23.5 E _ 1E footprint _ 10 803 H Packet Media Broadcast_ NIT data

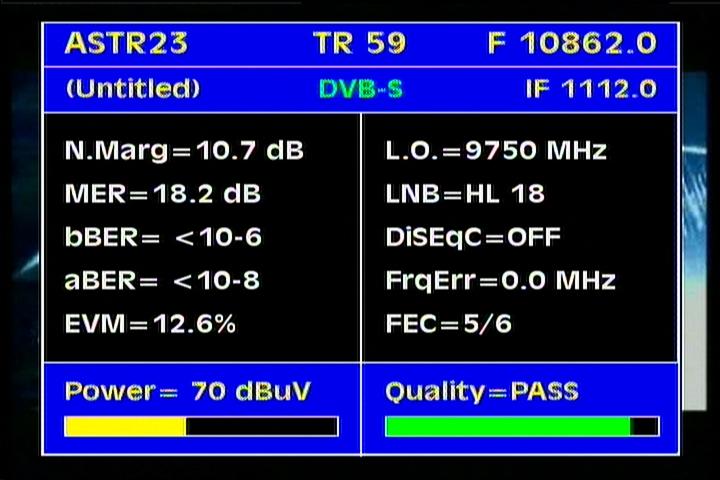

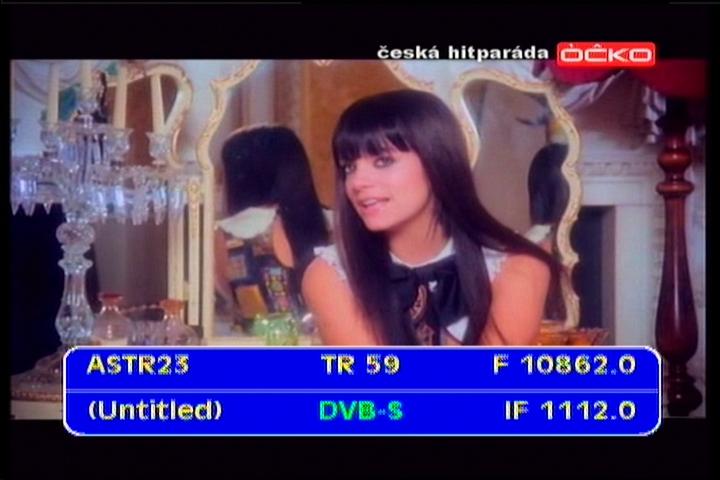

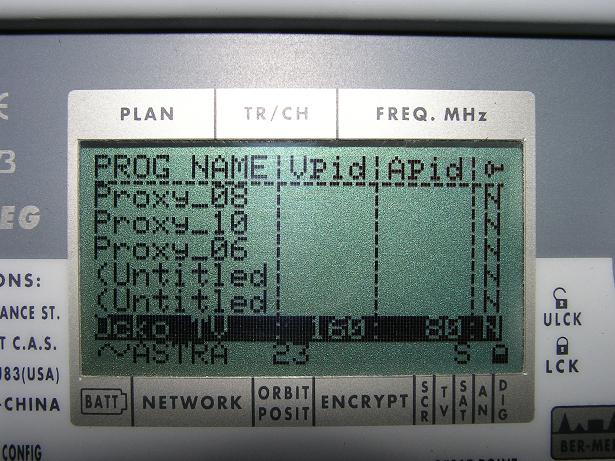

                                       Astra 1E/1G/3A at 23.5°E-1E H FSS footprint : 10 862 H Óčko TV
                         ID data                                                      Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 1E footprint _ 10 862 H Ocko tv_IF dataAstra 1E 1G 3A at 23.5 E _ 1E footprint _ 10 862 H Ocko tv_Q dataAstra 1E 1G 3A at 23.5 E _ 1E footprint _ 10 862 H Ocko tv_NIT data

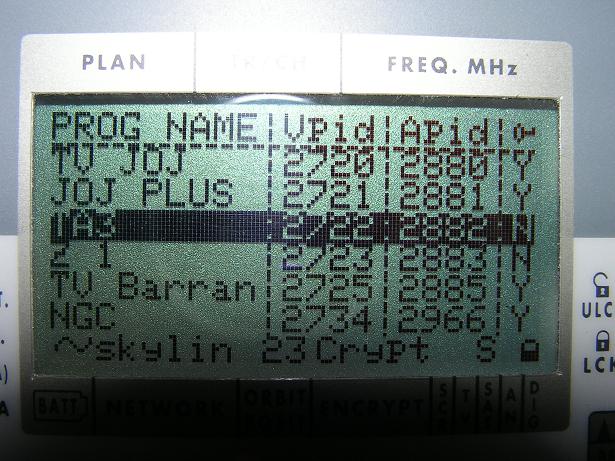

                                     Astra 1E/1G/3A at 23.5°E-1G footprint : 11 798 H Packet SkyLink
                         IF data                                                      Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 798 H Packet SkyLink_IF dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 798 H Packet SkyLink_Q dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 798 H Packet SkyLink_NIT data

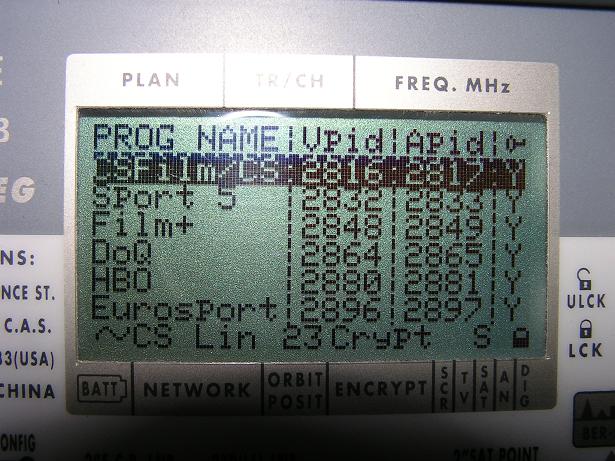

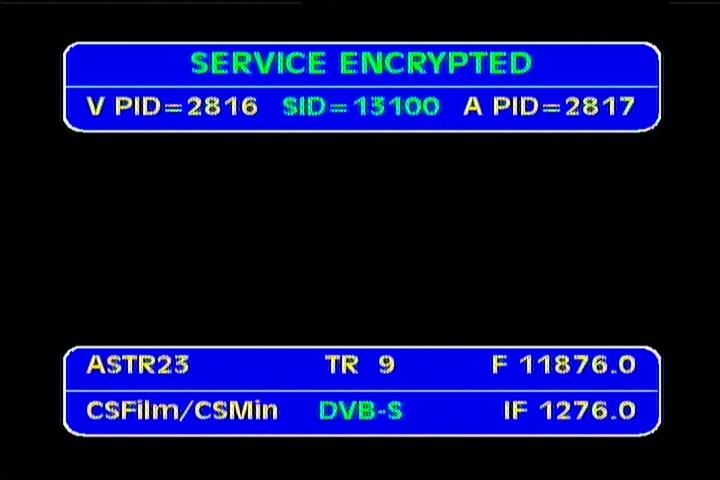

                                      Astra 1E/1G/3A at 23.5°E-1G footprint : 11 876 H Packet CS Link
                         pids data                                                 Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 876 H Packet CS Link_VA pids dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 876 H Packet CS Link_Q dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 876 H Packet CS Link_NIT data

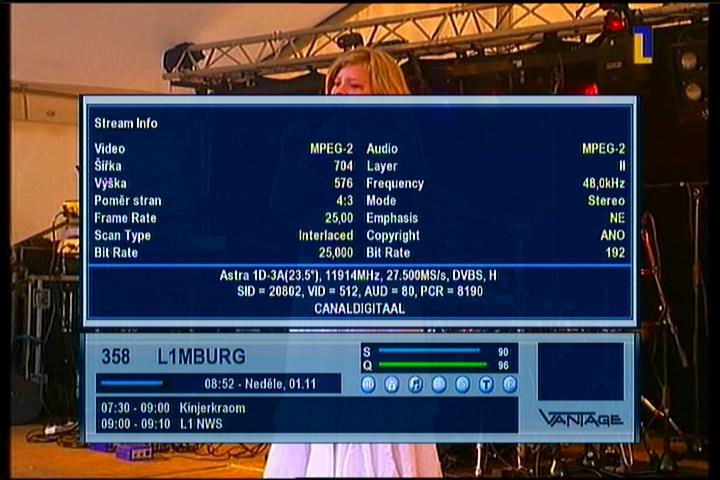

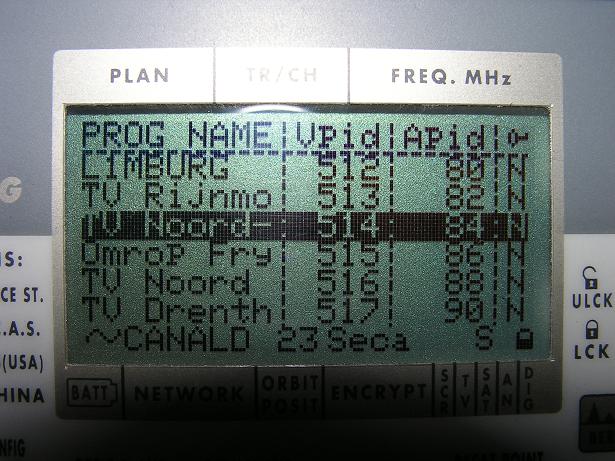

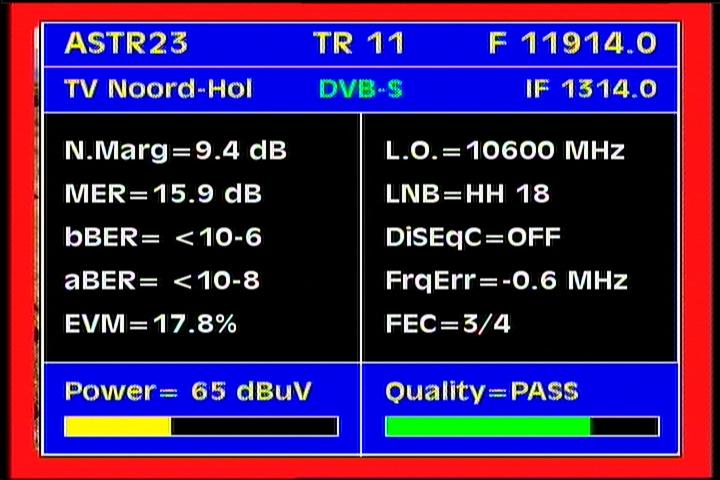

                                 Astra 1E/1G/3A at 23.5°E-1G footprint : 11 914 H Packet Canal Digitaal
                         IF data                                                      Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 914 H Packet Canal Digitaal_IF dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 914 H Packet Canal Digitaal_Q dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 914 H Packet Canal Digitaal_NIT data

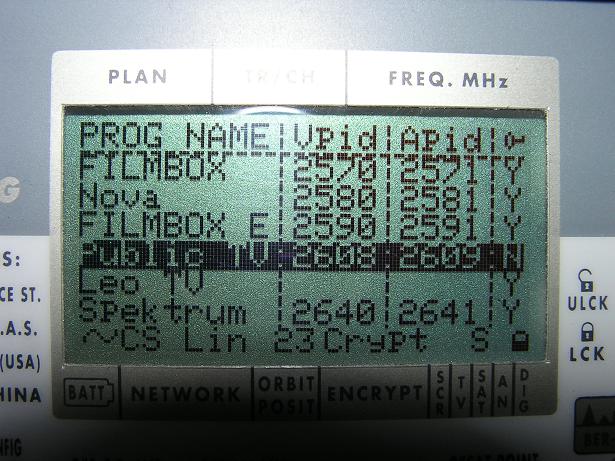

                                      Astra 1E/1G/3A at 23.5°E-1G footprint : 11 992 H Packet CS Link
                         IF data                                                      Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 992 H Packet CS Link_IF dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 992 H Packet CS Link_Q dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 11 992 H Packet CS Link_NIT data

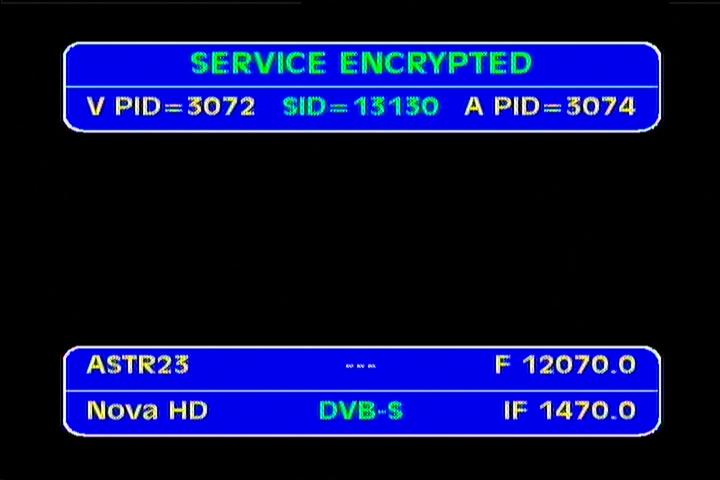

                                      Astra 1E/1G/3A at 23.5°E-1G footprint : 12 070 H Packet CS Link
                         IF data                                                      Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 1G footprint _ 12 070 H Packet CS Link_VA pids dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 12 070 H Packet CS Link_Q dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 12 070 H Packet CS Link_NIT data

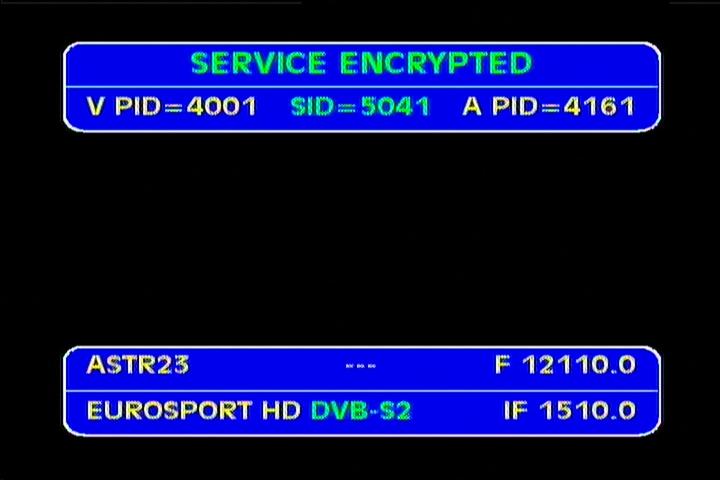

                                   Astra 1E/1G/3A at 23.5°E-1G footprint : 12 110 H Packet SkyLink HDTV
                         IF data                                                      Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 1G footprint _ 12 110 H Packet SkyLink HDTV_VA pids dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 12 110 H Packet SkyLink HDTV_Q dataAstra 1E 1G 3A at 23.5 E _ 1G footprint _ 12 110 H Packet SkyLink HDTV_NIT data

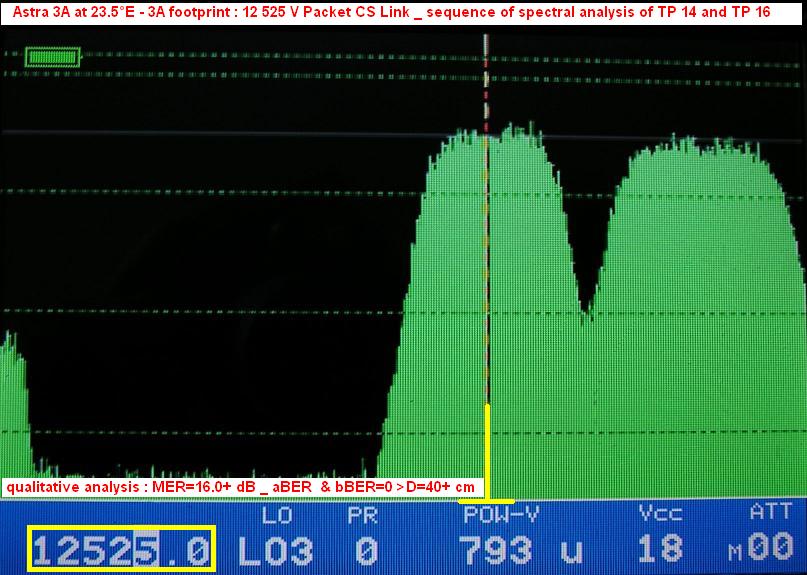

                                       Astra 1E/1G/3A at 23.5°E-3A footprint : 12 525 V Packet CS Link
                         IF data                                                      Q data                                                 NIT data
Astra 1E 1G 3A at 23.5 E _ 3A footprint _ 12 525 V Packet CS Link_IF dataAstra 1E 1G 3A at 23.5 E _ 3A footprint _ 12 525 V Packet CS Link_Q dataAstra 1E 1G 3A at 23.5 E _ 3A footprint _ 12 525 V Packet CS Link_NIT data

Astra 1E/1G/3A at 23.5°E : TV List

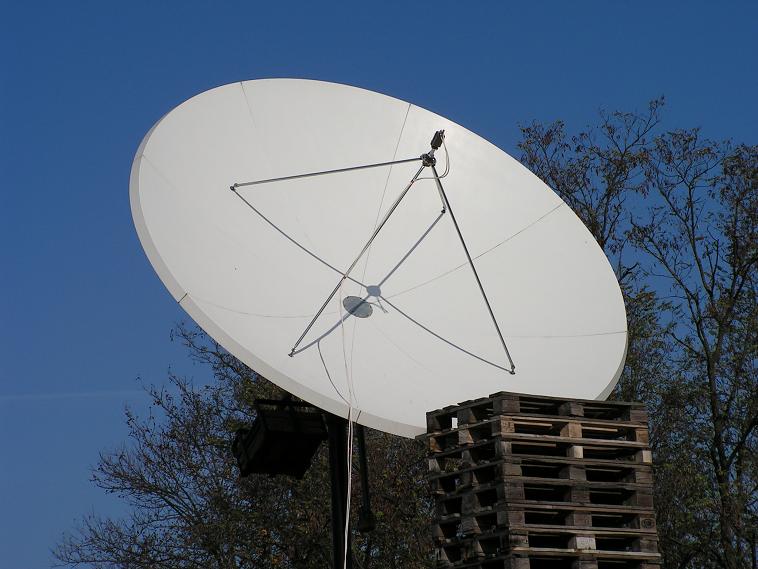

Astra 1E 1G 3A at 23.5 E _ PF Prodelin 3.7 m


---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- -----Video/Encryption-----

10 803 -H-tp 55

Media Broadcast 22 000 5/6 1E H FSS 60-120+ cm DVB
  test card Media Broadcast         FTA
  Kosmica TV         FTA
  CT 1 HD         MPEG-4/HD/FTA

10 862 -H- tp 59

Astra 23 22 000 5/6 1E H FSS 60-120+ cm DVB
  Óčko      watch video         FTA

11 475 -V-tp 2

Kabel Deutschland 27 500 3/4 3A V 60-120+ cm DVB
  Inter+ ukr         BetaCrypt/Nagravision 2+3
  Pro TV Int.         BetaCrypt/Nagravision 2+3
  The Poker Channel         BetaCrypt/Nagravision 2+3
  TVR Int.         BetaCrypt/Nagravision 2+3
  France 24 news         BetaCrypt/Nagravision 2+3
  God tv Europe         BetaCrypt/Nagravision 2+3
  Phoenix CNE         BetaCrypt/Nagravision 2+3
  Luxe TV         BetaCrypt/Nagravision 2+3
  Samanyolu TV / Bebe TV         BetaCrypt/Nagravision 2+3

11 515 -H-tp 3

Media Broadcast 27 500 3/4 3A H 60-120+ cm DVB
  Ch1 BT + KT         CodiCrypt
  Ch2 BPK         CodiCrypt
  Ch3 BR         CodiCrypt
  Ch4 MAZ         CodiCrypt
  SAT 1 Nat/Nrw/Bremen/HH ...         FTA

11 515 -V-tp 4

Kabel Deutschland 28 500 9/10 3A V 60-120+ cm DVB-S2 / QPSK
  RTL Deutschland         BetaCrypt/Nagra 2+3/Videoguard
  Super RTL Deutschland         BetaCrypt/Nagra 2+3/Videoguard
  RTL 2         BetaCrypt/Nagra 2+3/Videoguard
  VOX         BetaCrypt/Nagra 2+3/Videoguard
  n-TV         BetaCrypt/Nagravision 2+3
  Eurosport Deutschland         BetaCrypt/Nagravision 2+3
  Das Vierte         BetaCrypt/Nagravision 2+3
  Viva Deutschland         BetaCrypt/Nagravision 2+3
  Deluxe Music TV         BetaCrypt/Nagravision 2+3
  TIMM         BetaCrypt/Nagravision 2+3
  Daystar         BetaCrypt/Nagravision 2+3

11 555 -H-tp 5

Kabel Deutschland 28 500 9/10 3A H 60-120+ cm DVB-S2 / QPSK
  Tele 5         BetaCrypt/Nagravision 2+3
  Pro 7 Deutschland         BetaCrypt/Nagravision 2+3
  Kabel Eins         BetaCrypt/Nagra 2+3/Videoguard
  9 Live         BetaCrypt/Nagravision 2+3
  DSF         BetaCrypt/Nagra 2+3/Videoguard
  Sat 1 Deutschland         BetaCrypt/Nagra 2+3/Videoguard
  N 24         BetaCrypt/Nagravision 2+3
  HSE 24         BetaCrypt/Nagravision 2+3
  Russia Today         BetaCrypt/Nagravision 2+3

11 555 -V-tp 6

Kabel Deutschland

28 500 9/10 3A V 60-120+ cm DVB-S2/QPSK/HDTV
  Disney Cinemagic Deutschland         MPEG-4/HD/Nagravision 3
  National Geographic Channel         MPEG-4/HD/Nagravision 3
  History Deutschland         MPEG-4/HD/Nagravision 3

11 595 -H-tp 7

Kabel Deutschland 28 500 9/10 3A H 60-120+ cm DVB-S2 / QPSK
  RTV International         BetaCrypt/Nagravision 2+3
  Nashe Kino         BetaCrypt/Nagravision 2+3
  ATV Avrupa         BetaCrypt/Nagravision 2+3
  TVP Polonia         BetaCrypt/Nagravision 2+3
  Euro D         BetaCrypt/Nagravision 2+3
  RTP International         BetaCrypt/Nagravision 2+3
  ERT World         BetaCrypt/Nagravision 2+3
  Euro Star         BetaCrypt/Nagravision 2+3
  RTR Planeta         BetaCrypt/Nagravision 2+3
  TRT Turk         BetaCrypt/Nagravision 2+3
  TVE Internacional         BetaCrypt/Nagravision 2+3
  Canal 24         BetaCrypt/Nagravision 2+3
  test card         BetaCrypt/Nagravision 2+3
  KD infokanal         BetaCrypt/Nagravision 2+3

11 595 -V-tp 8

Kabel Deutschland 28 500 9/10 3A V 60-120+ cm DVB-S2 / QPSK
  Sci-Fi Deutschland         BetaCrypt/Nagravision 2+3
  TNT Film         BetaCrypt/Nagravision 2+3
  MTV Dance         BetaCrypt/Nagravision 2+3
  MTV Hits UK         BetaCrypt/Nagravision 2+3
  Lust Pur /20-06/         BetaCrypt/Nagravision 2+3
  National Geographic Deutschland         BetaCrypt/Nagravision 2+3
  Disney Playhouse /06-20/         BetaCrypt/Nagravision 2+3
  Disney Toon+1 Deutschland         BetaCrypt/Nagravision 2+3
  Spiegel tv Deutschland         BetaCrypt/Nagravision 2+3
  Cartoon Network Deutschland         BetaCrypt/Nagravision 2+3
  The Biography Channel Deutschland         BetaCrypt/Nagravision 2+3
  Sport Digital         BetaCrypt/Nagravision 2+3

11 635 -H-tp 9

Kabel Deutschland 28 500 9/10 3A H 60-120+ cm DVB-S2 / QPSK
  Press TV         BetaCrypt/Nagravision 2+3
  Motors TV         BetaCrypt/Nagravision 2+3
  Trace TV         BetaCrypt/Nagravision 2+3
  Planet         BetaCrypt/Nagravision 2+3
  Kinowelt TV /15-03/         BetaCrypt/Nagravision 2+3
  Wetter TV         BetaCrypt/Nagravision 2+3
  Gute Laune TV         BetaCrypt/Nagravision 2+3
  The History Ch. Deutschland         BetaCrypt/Nagravision 2+3
  TV Gusto Premium         BetaCrypt/Nagravision 2+3
  Astro TV         BetaCrypt/Nagravision 2+3
  Sonnenklar TV         BetaCrypt/Nagravision 2+3
  SR Fernsehen         FTA

11 635 -V-tp 10

Kabel Deutschland 28 500 9/10 3A V 60-120+ cm DVB-S2
  Select Kino info         BetaCrypt/Nagravision 2+3
  Select Kino 1         BetaCrypt/Nagravision 2+3
  Select Kino 2         BetaCrypt/Nagravision 2+3
  Select Kino 3         BetaCrypt/Nagravision 2+3
  Select Kino 4         BetaCrypt/Nagravision 2+3
  Select Kino 5         BetaCrypt/Nagravision 2+3
  Select Kino 6         BetaCrypt/Nagravision 2+3
  Select Kino 7         BetaCrypt/Nagravision 2+3
  Red X Club info         BetaCrypt/Nagravision 2+3
  Red X Club 1         BetaCrypt/Nagravision 2+3
  Red X Club 2         BetaCrypt/Nagravision 2+3

11 675 -V-tp 12

Kabel Deutschland 28 500 9/10 3A V 60-120+ cm DVB-S2 / QPSK
  iTVN Europe         BetaCrypt/Nagravision 2+3
  EuroNews it/sp/port/rus/turk         BetaCrypt/Nagravision 2+3
  Show Turk         BetaCrypt/Nagravision 2+3
  NTV Avrupa         BetaCrypt/Nagravision 2+3
  Kanal 7 Int         BetaCrypt/Nagravision 2+3
  Rai 1         BetaCrypt/Nagravision 2+3
  Rai 2         BetaCrypt/Nagravision 2+3
  Rai 3         BetaCrypt/Nagravision 2+3
  LiG TV         BetaCrypt/Nagravision 2+3
  Turkmax         BetaCrypt/Nagravision 2+3
  CH 1 Europa         BetaCrypt/Nagravision 2+3
  France 2         BetaCrypt/Nagravision 2+3
  France 3         BetaCrypt/Nagravision 2+3
  France 5         BetaCrypt/Nagravision 2+3
  Al Jazeera English         BetaCrypt/Nagravision 2+3

11 719 -H-tp 1

TOPP KDL 27 500 9/10 1E H FSS 60-120+ cm DVB-S2/QPSK
  Yavido Clips         Nagravision 3
  EWTN Europe         Nagravision 3
  Channel 21 Shop         Nagravision 3
  ANIXE SD         Nagravision 3
  XXHOME         Nagravision 3
  TIMM TV         Nagravision 3
  Die Neue Zeit         Nagravision 3
  Luxe Tv         Nagravision 3
  Equi8TV         Nagravision 3
  Kuren & Wellness         Nagravision 3
  TW 1         Nagravision 3

11 739 -V-tp 2

Canal Digitaal 27 500 3/4 1G 60-120+ cm DVB
  Geschiedenis TV         Mediaguard 2
  Holland Doc 24         Mediaguard 2
  Consument TV         Mediaguard 2
  Humor TV/Nostalgie Net         Mediaguard 2
  Nederland 24         Mediaguard 2
  NGC Wild         Mediaguard 2
  Discovery Science         Mediaguard 2
  Discovery Travel & Living         Mediaguard 2
  Film 1.3         Mediaguard 2
  Vitaliteit /12-06/         Mediaguard 2
  Body in Balance /6-12/         Mediaguard 2
  Sport 1.2/Eredivisielive 2         Mediaguard 2

11 778 -V-tp 4

Astra HD Demo & Rai Italia

 27 500  9/10  1E V BSS  60-120+ cm  DVB-S2/QPSK/HD/FTA

11 798-H-tp 5

SkyLink 27 500 3/4 1G 60-120+ cm DVB
  TV JOJ         Cryptoworks
  JOJ Plus         Cryptoworks
  TA3 / Ring TV         FTA
  Z1         FTA
  TV Barrandov         Cryptoworks
  NGC         Cryptoworks
  Discovery Channel Central Europe         Cryptoworks
  NG Wild         Cryptoworks/Mediaguard 2
  M1 test         Cryptoworks
  M2 test         Cryptoworks
  Duna TV test         Cryptoworks

11 836 -H- tp 7

SES Astra 29 900 3/4 1E H BSS 60-120+ cm DVB
  Promo trailer SES /SMD 01/BLC         FTA

11 855 -V- tp 8

Canal Digitaal HDTV 27 500 5/6 1G 60-120+ cm DVB-S2/MPEG-4/HD
  Discovery HD         MPEG-4/HD/Mdg2
  National Geographic HD         MPEG-4/HD/Mdg2
  RTL 4 HD         MPEG-4/HD/Mdg2/Crw
  Brava HDTV         MPEG-4/HD/Mdg2/Crw
  een HD         MPEG-4/HD/Mdg2
  NED3 HD         MPEG-4/HD/Mdg2

11 876 -H-tp 9

CS Link 27 500 3/4 1G 60-120+ cm DVB
  CS Film/CSMini         Cryptoworks
  Sport 5         Cryptoworks
  Film +         Cryptoworks
  DoQ         Cryptoworks
  HBO Czechia         Cryptoworks
  Eurosport CZ         Cryptoworks
  Nova Sport         Cryptoworks
  AXN         Cryptoworks
  Fishing & Hunting         Cryptoworks
  TV JOJ test         Cryptoworks
  AXN Sci-Fi         Cryptoworks
  Prima Cool TV         Cryptoworks
  Disney Channel         Cryptoworks
  AXN Crime         Cryptoworks
  XXX Xtreme /00-06/         Cryptoworks

11 913 -H- tp 11

Canal Digitaal 27 500 3/4 1G 60-120+ cm DVB
  L1MBURG      watch video         FTA
  TV Rijmond         FTA
  TV Noord-Holland         FTA
  Omrop Fryslan TV         FTA
  TV Noord         FTA
  TV Drenthe         FTA
  TV Oost         FTA
  TV Gelderland         FTA
  Omroep Zeeland         FTA
  Omroep Brabant         FTA
  The History Channel UK         Mediaguard 2/Cryptoworks
  E! Emea         Mediaguard 2

11 992 -H-tp 15

CS Link 27 500 3/4 1G 60-120+ cm DVB
  FilmBox         Cryptoworks
  Nova         Cryptoworks
  FilmBox Extra         Cryptoworks
  Public TV     watch video         FTA
  Leo TV XXX /22-06/         Cryptoworks
  Spektrum         Cryptoworks
  Viasat Explorer/Spice /23-04/         Cryptoworks
  Viasat History         Cryptoworks
  Jim Jam         Cryptoworks
  info card         Cryptoworks
  MGM         Cryptoworks
  Nostalgia         Cryptoworks
  Minimax  /06-20/         Cryptoworks
  Cinemax od 23.11.09         Cryptoworks

12 032 -H-tp 17

SES Astra

27 500 9/10 1E H FSS 60-120+ cm DVB-S2/QPSK
  Deluxe Lounge HD         MPEG-4/HD/Nagravision 3
  Unitel Classica HD         MPEG-4/HD/Nagravision 3

12 070 -H- tp 19

CS Link

27 500 3/4 1G 60-120+ cm DVB
  NOVA HD         MPEG-4/HD/Cryptoworks
  Disney Channel         Cryptoworks
  AXN Crime         Cryptoworks
  Sport 1         Cryptoworks
  Sport 2         Cryptoworks
  HBO 2 Central Europe         Cryptoworks
  Cinemax         Cryptoworks
  Nova Sport         Cryptoworks
  Nova Cinema         Cryptoworks
  MTV Czech         ---

12 109 -H- tp 21

Skylink HD

27 500 9/10 1G 60-120+ cm DVB-S2/QPSK/MPEG-4
  EUROSPORT HD         Cryptoworks
  The History Channel HD         Cryptoworks/Mediaguard 2
  FILMBOX HD         Cryptoworks/Mediaguard 2
  NOVA  HD         Cryptoworks
  Nova Sport HD         Cryptoworks
  Bebe tv HD         Cryptoworks/Mediaguard 2
  Test 2         -
  Europsort HD Dutch         Cryptoworks/Mediaguard

12 168 -V- tp 24

SES Astra 27 500 3/4 1G 60-120+ cm DVB
  RTL Tele Letzebuerg 23.5         FTA
  Chamber TV         FTA
  Nova TV Croatia         Viaccess 4.0

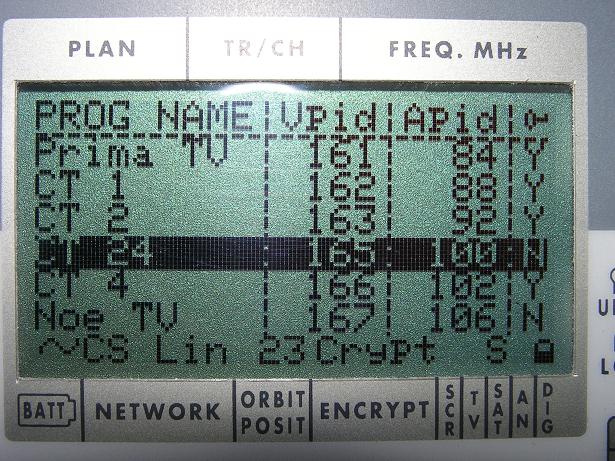

12 525 -V-tp 14

CS Link 27 500 3/4 3A V 60-120+ cm DVB
  Prima TV         Cryptoworks
  CT 1         Cryptoworks
  CT 2         Cryptoworks
  CT 24     watch video         FTA
  CT 4 SPORT         Cryptoworks
  Noe TV         FTA

12 565 -H-tp 15

SkyLink 27 500 2/3 3A H 60-120+ cm DVB
  Markiza         Cryptoworks
  STV 1         Cryptoworks
  STV 2         Cryptoworks
  STV 3 Šport         Cryptoworks
  TV Doma         Cryptoworks

12 565 -V-tp 16

Kabel Deutschland 27 500 3/4 3A V 60-120+ cm DVB
  1-2-3.tv         BetaCrypt/Nagravision 2+3
  BBC World News         BetaCrypt/Nagravision 2+3
  Bloomberg TV Europe         BetaCrypt/Nagravision 2+3
  MTV Deutschland         BetaCrypt/Nagravision 2+3
  NICK Deutschland         BetaCrypt/Nagravision 2+3
  TV 5 Monde         BetaCrypt/Nagravision 2+3
  Eurosport 2         BetaCrypt/Nagravision 2+3
  Bibel TV         BetaCrypt/Nagravision 2+3
  Euronews         BetaCrypt/Nagravision 2+3

12 604 -H-tp 17

Kabel Deutschland 28 500 9/10 3A H 60-120+ cm DVB-S2 / QPSK
  E! Entertainment         BetaCrypt/Nagravision 2+3
  13th street         BetaCrypt/Nagravision 2+3
  ESPN Classic         BetaCrypt/Nagravision 2+3
  VH 1 Classic         BetaCrypt/Nagravision 2+3
  TNT Serie / KD/         BetaCrypt/Nagravision 2+3
  AXN         BetaCrypt/Nagravision 2+3
  Silverline         BetaCrypt/Nagravision 2+3
  ESPN America         BetaCrypt/Nagravision 2+3
  Disney Toon         BetaCrypt/Nagravision 2+3
  MTV Entertainment         BetaCrypt/Nagravision 2+3
  Nick Junior         BetaCrypt/Nagravision 2+3
  Jukebox         BetaCrypt/Nagravision 2+3
  CNN         BetaCrypt/Nagravision 2+3
  QVC         BetaCrypt/Nagravision 2+3
  ERF Eins         BetaCrypt/Nagravision 2+3

12 604 -V-tp 18

Kabel Deutschland 28 500 9/10 3A V 60-120+ cm DVB-S2 / QPSK
  BBC Entertainment         BetaCrypt/Nagravision 2+3
  Playhouse Disney         BetaCrypt/Nagravision 2+3
  Sky News         BetaCrypt/Nagravision 2+3
  Boomerang         BetaCrypt/Nagravision 2+3
  Extreme Sports         BetaCrypt/Nagravision 2+3
  CNBC Europe         BetaCrypt/Nagravision 2+3
  Detski Mir / Teleclub /20-06/         BetaCrypt/Nagravision 2+3
  Sat 1 Comedy         BetaCrypt/Nagravision 2+3
  kabel eins classic         BetaCrypt/Nagravision 2+3
  Disney XD         BetaCrypt/Nagravision 2+3
  DMax         BetaCrypt/Nagravision 2+3
  iMusic 1         BetaCrypt/Nagravision 2+3
  juwelo tv         BetaCrypt/Nagravision 2+3
  Rck TV         BetaCrypt/Nagravision 2+3
  Romance TV         BetaCrypt/Nagravision 2+3

12 636 -V- tp 20

K-TV Fernsehen 2 277  5/6  3A V  80-120+ cm  DVB FTA

12 725 -V-tp 24

Kabel Deutschland 27 500 3/4 3A V 60-120+ cm DVB
  EuroNews /frz-eng/         BetaCrypt/Nagravision 2
  RTVI info         BetaCrypt/Nagravision 2
  LTV World         BetaCrypt/Nagravision 2
  CaspioNet         BetaCrypt/Nagravision 2
  BVN         BetaCrypt/Nagravision 2
  Iran Music/Pdf channel         BetaCrypt/Nagravision 2
  Tunis 7         BetaCrypt/Nagravision 2
  TV Record         BetaCrypt/Nagravision 2
  TV Canaria         BetaCrypt/Nagravision 2
  First Musical Channel         BetaCrypt/Nagravision 2
  Fashion tv UK         BetaCrypt/Nagravision 2
  Anixe SD         BetaCrypt/Nagravision 2

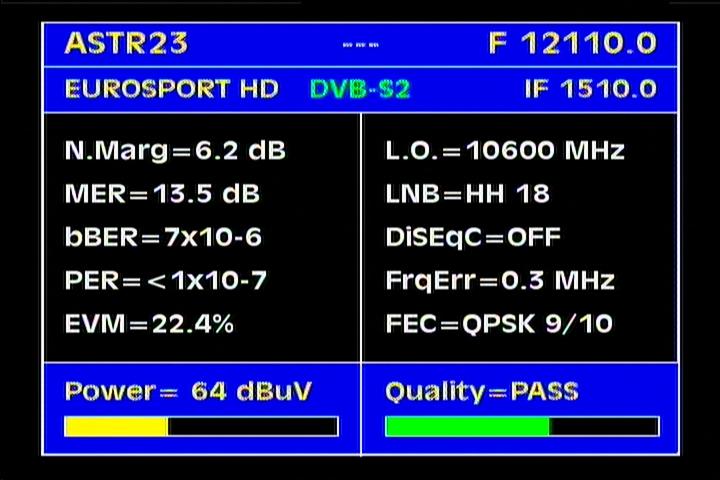

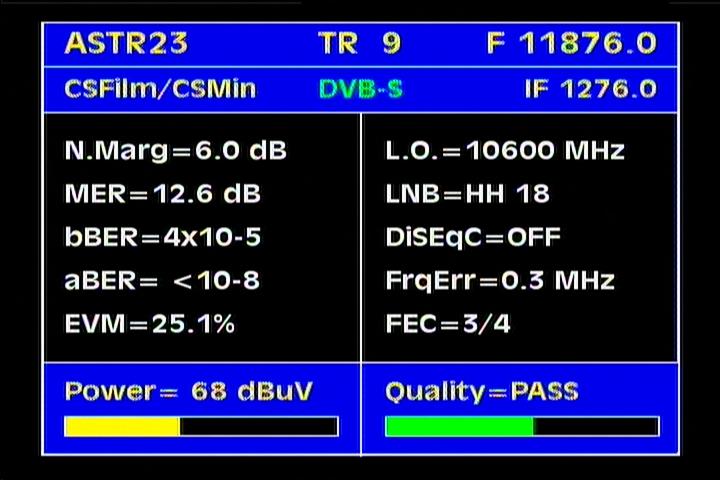

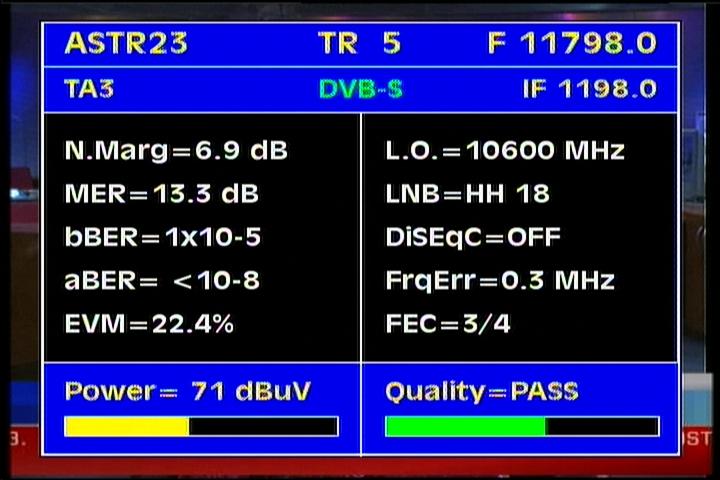

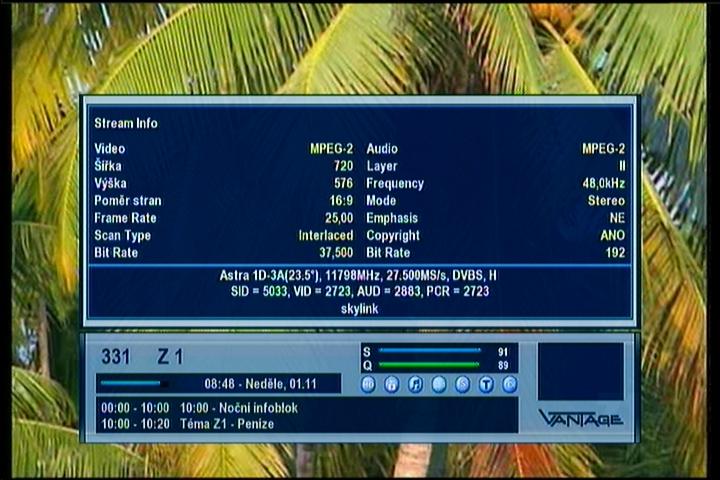

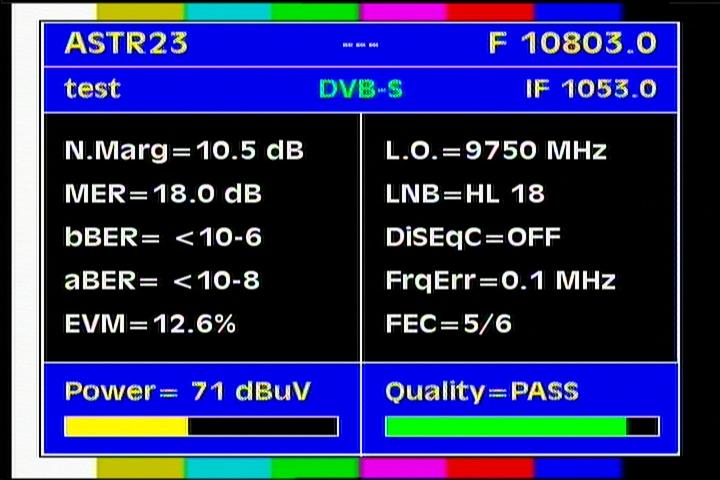

Astra 1E/1G/3A at 23.5°E : stream data & percent Q

percent Q  001percent Q  002percent Q  003

Astra 1E/1G/3A at 23.5°E : Video presentation

       Go to video section :
watch video

Astra 1E/1G/3A at 23.5°E footprint

                                            Astra 1G footprint                                           Astra 3A footprint
                            Astra 1G at 23.5 E _ 1G footprint         Astra 3A at 23.5 E _ 3A footprint
                                        Astra 1E footprint FSS H                                  Astra 1E footprint FSS V
                            Astra 1E at 23.5 E _ FSS H footprint          Astra 1E at 23.5 E _ FSS V footprint

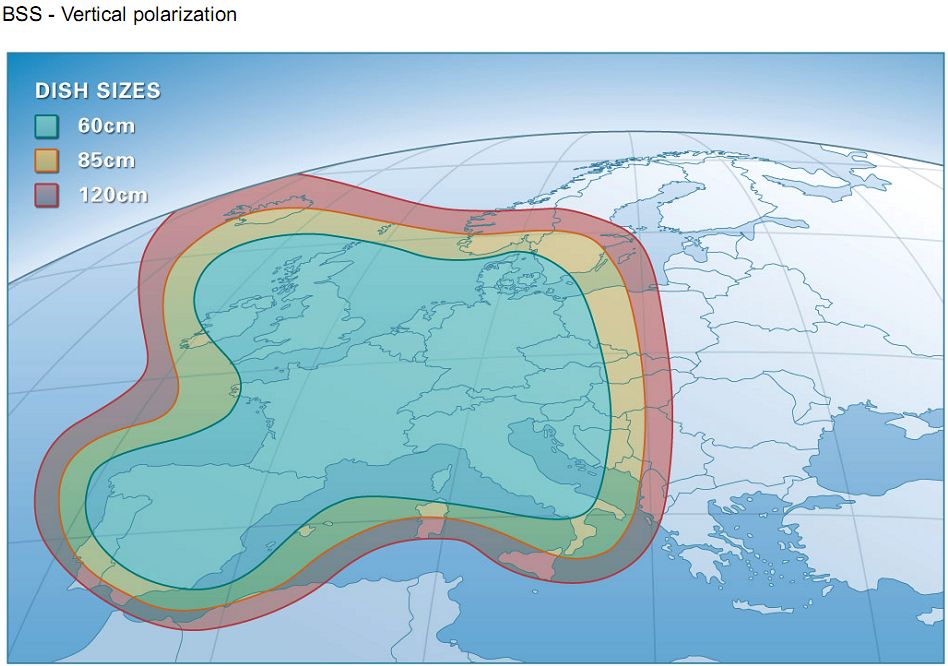

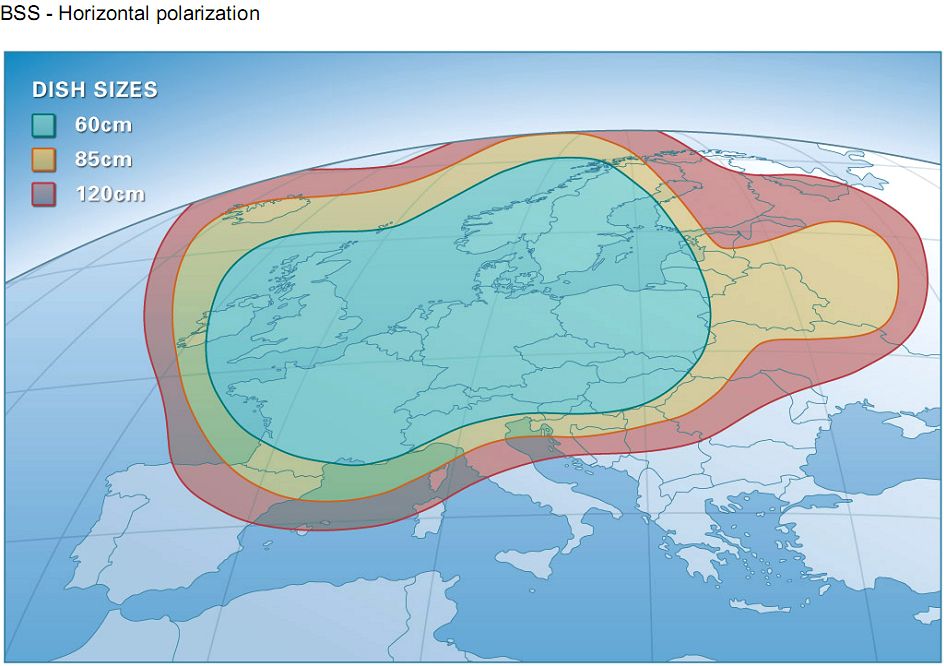

                                        Astra 1E footprint BSS H                                   Astra 1E footprint BSS V
                            Astra 1E at 23.5 E _ BSS H footprint           Astra 1E at 23.5 E _ BSS V footprint

Astra 1E/1G/3A at 23.5°E : TV Snapshots

Astra 1E 1G 3A at 23.5 E _ Public Tv  004Astra 1E 1G 3A at 23.5 E _ Public Tv  005Astra 1E 1G 3A at 23.5 E _ Public Tv  006
Astra 1E 1G 3A at 23.5 E _ Public Tv  007Astra 1E 1G 3A at 23.5 E _ Public Tv  008Astra 1E 1G 3A at 23.5 E _ MCM 003
