Astra 2C at 31.5°E

Astra 2C at 31.5°E : Technical data

satellite : Astra 2C _ orbit : 31.5°E _ date of launch : 16.6.2001 _ TP 32/38 MHz_51 MHz

Update - Astra 2C at 31.5°E - West footprint : spectral analysis & footprint & reception quality

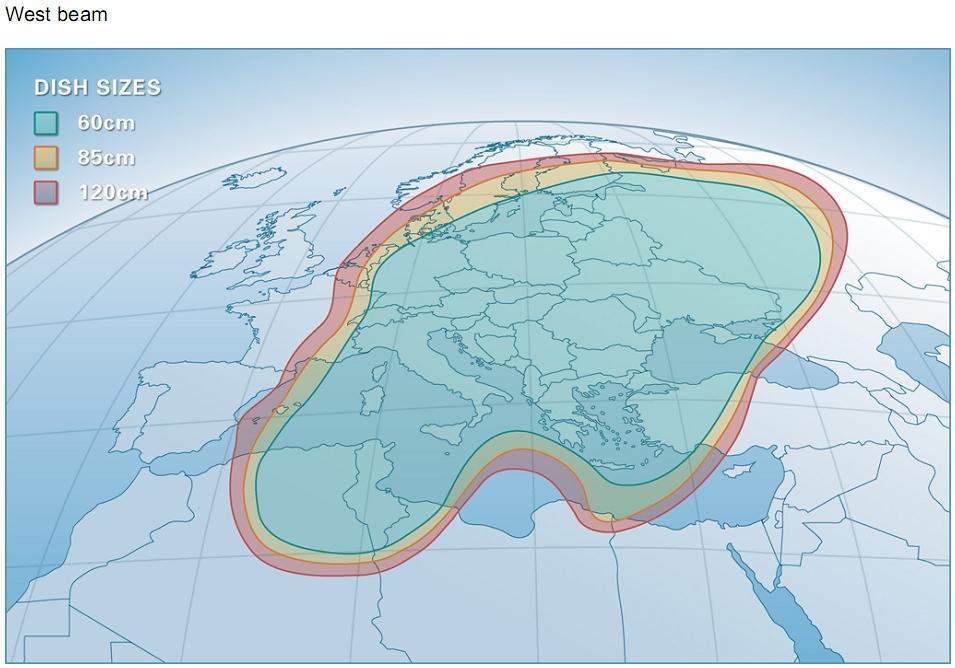

Astra 2C at 31.5°E - footprint/ west zone : measurement point Lučenec _ central Slovakia

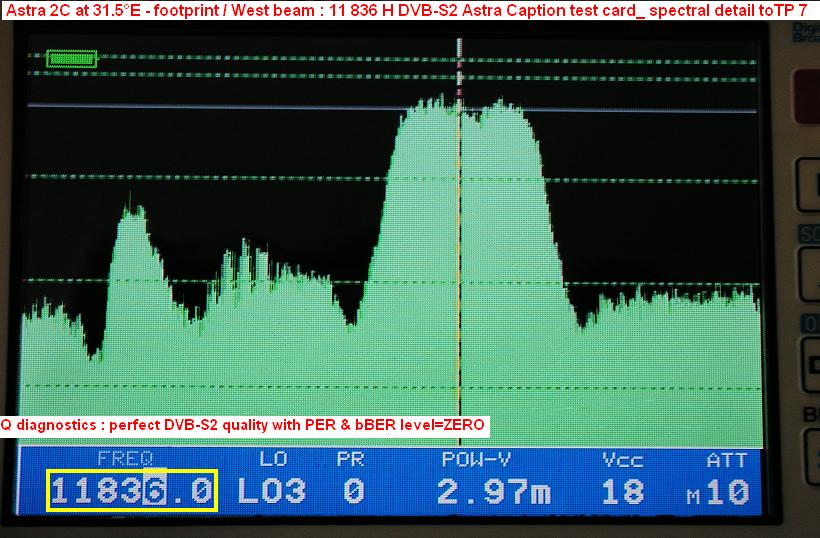

Astra 2C footprint /west zone Astra 2C : TP 7 in spectral sequence

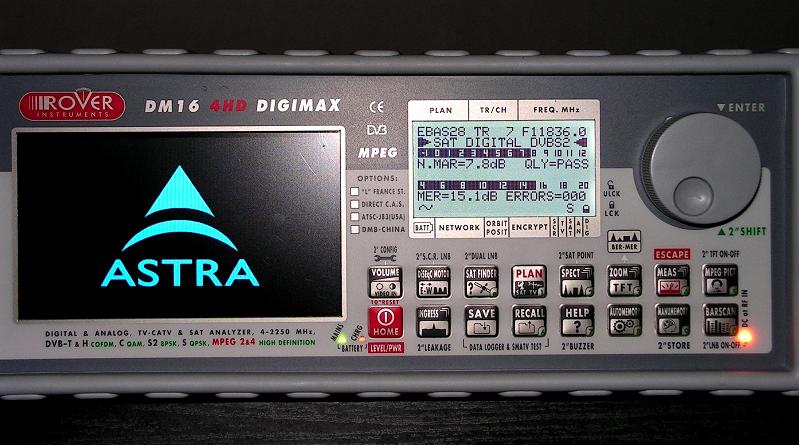

                        Astra 2C at 31.5°E - West footprint : 11 836 H DVB-S2 ASTRA Caption

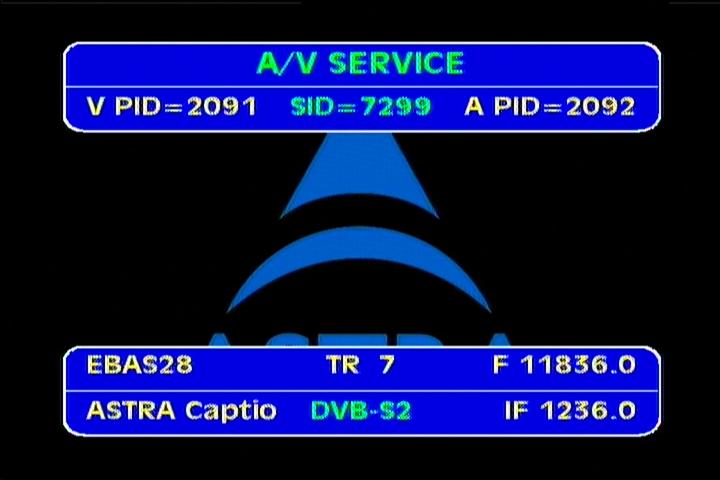

                        VA pids                                                      Q data                                                   NIT data

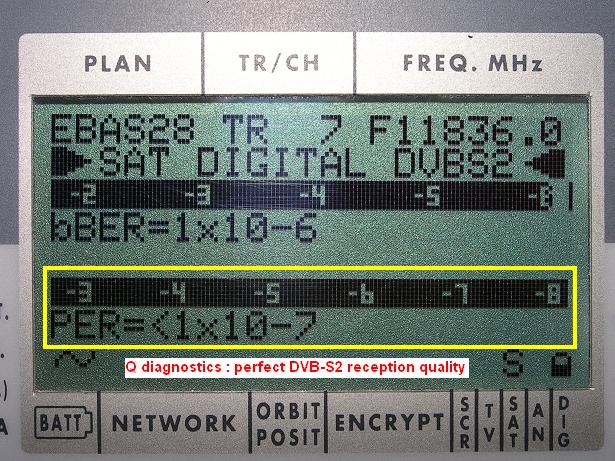

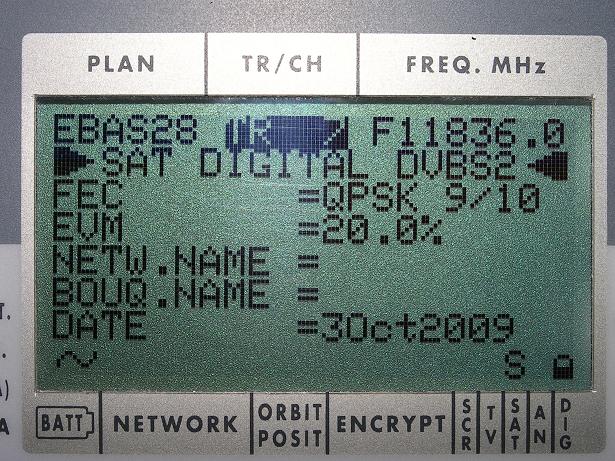

             DVB-S2 PER diagnostics                            FEC data                                                    SR data

Astra 2C at 31.5°E : TV list

-Frequency-	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---DVB/Encryption---
11 836 -H- tp 7	Astra	27 500	9/10	West	60-80+ cm	DVB-S2/MPEG-2

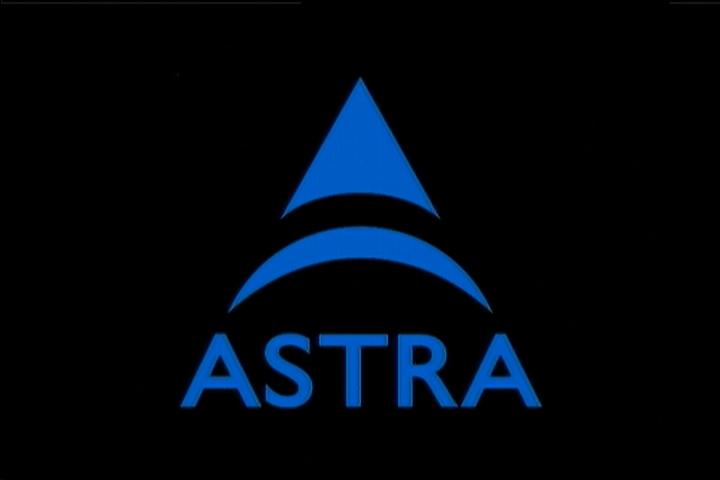

	test card Astra Caption					DVB-S2/FTA

Astra 2C at 31.5°E : percent Q & stream infos

percent Q 01

Astra 2C at 31.5°E : Video presentation

Astra 2C at 31.5°E : update is from

     CZECH & SLOVAK DX SATELLITE CLUB / http://dxsatcs.com/
     SATELLITE ENGINEERING C & KU band
     Roman Dávid - author http://dxsatcs.com/
     town : Lučenec , Slovak Republic,East Europe
     mail : roman.david@dxsatcs.com
