Badr 4/6 at 26.0°E

Badr 4/6 at 26.0°E : Technical data

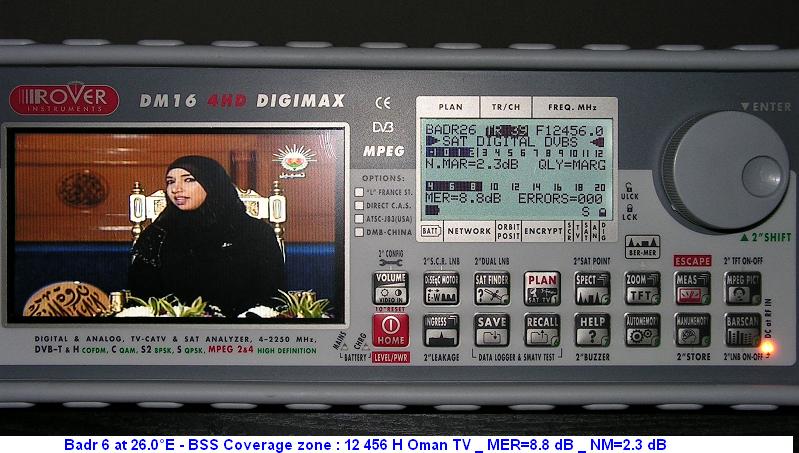

Badr 6 at 26.0 e _ BSS footprint _ 12 456 H first snapshot 0001
                                 satellite : Badr 6 - orbit : 26.0°E - TP : 30 C/20 KU - lifetime : 15 years

Update : Badr 4/6 at 26.0°E - BSS footprint :  spectral analysis of vertical wave vectors & footprint

             Badr 4/6 at 26.0°E - BSS footprint : Badr satellite measurements at the center Lučenec_central Slovakia
                                             geographical location : Latitude: 48.33°  _   Longitude: 19.72°

                                       Badr 6 footprint : BSS                                              Badr 4 footprint : BSS
                           Africa , Middle East , Southern Europe                     Africa , Middle East , Whole Europe

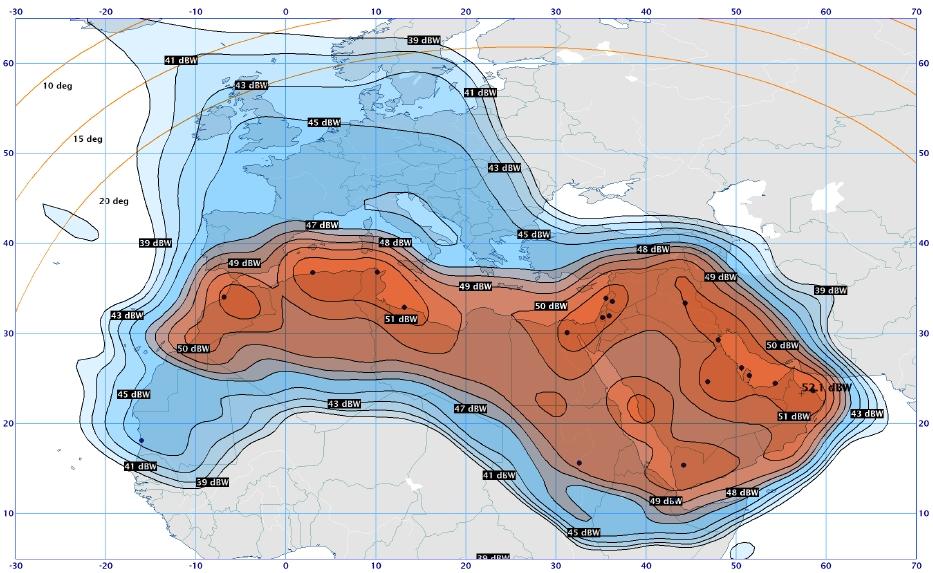

                          Badr 6 at 26.0 e _ BSS footprint _                 Badr 4 at 26.0 e _ BSS footprint _
                                                     +                                                                                  +
                                      Badr 6 : spectral analysis                                     Badr 4 : spectral analysis
                                         TP 2       >>>    TP 10                                           TP 12       >>>    TP 26
                                   11 747        >>>   11 900                                       11 937       >>>   12 207

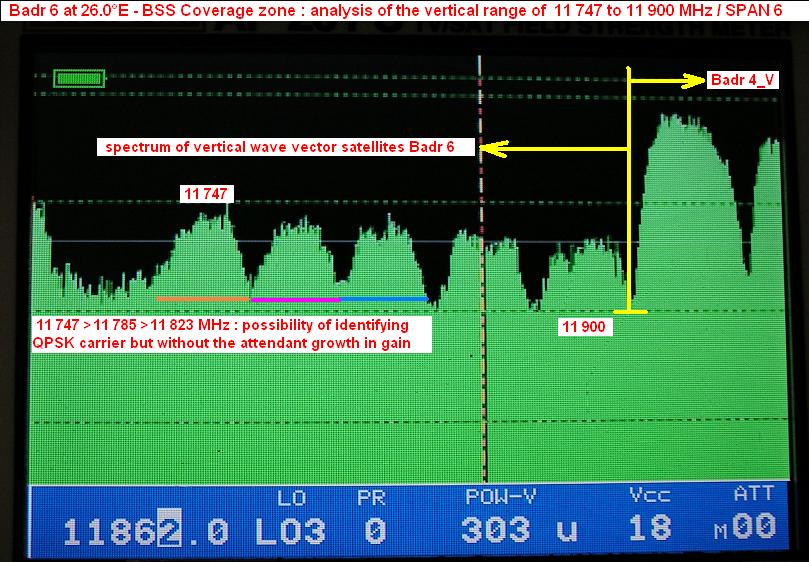

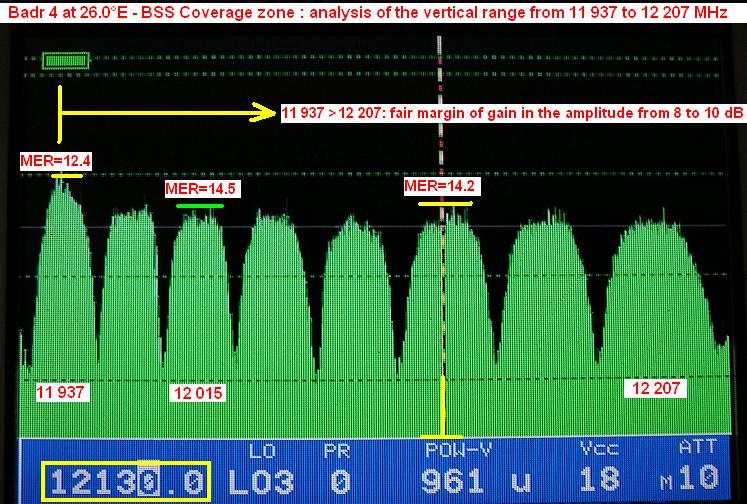

                          Badr 6 at 26.0 e _ BSS footprint _ V spectrum analysis                  Badr 4 at 26.0 e _ BSS footprint _ V spectrum analysis

                                                     Badr 4 at 26.0°E - BSS footprint : Qualitative analysis
    qualitative analysis, I performed the following frequencies : 11 919 , 11 938 , 11 996 , 12 130 , 12 523

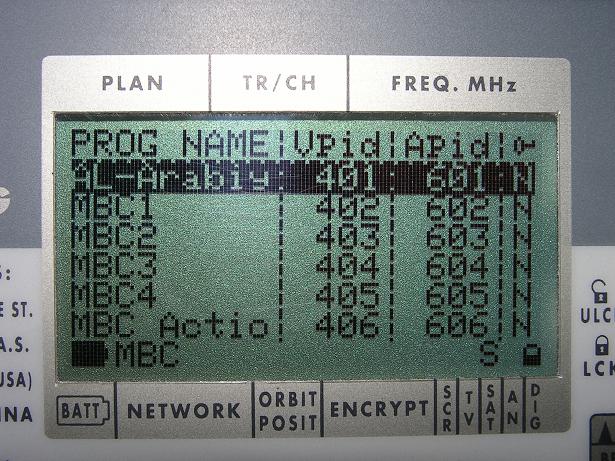

                                                   Badr 4 at 26.0°E - BSS footprint :11 919 H MBC Network
                         IF data                                                         Q data                                                        NIT data
Badr 4 at 26.0 e _ BSS footprint _ 11 919 H MBC Network _ IF data   Badr 4 at 26.0 e _ BSS footprint _ 11 919 H MBC Network _ Q data   Badr 4 at 26.0 e _ BSS footprint _ 11 919 H MBC Network _ NIT data

                                                 Badr 4 at 26.0°E - BSS footprint :11 938 V Arabsat Network
                         IF data                                                         Q data                                                        NIT data
Badr 4 at 26.0 e _ BSS footprint _ 11 938 V JMC Netw _ IF data   Badr 4 at 26.0 e _ BSS footprint _ 11 938 V JMC Netw _ Q data   Badr 4 at 26.0 e _ BSS footprint _ 11 938 V JMC Netw _ NIT data

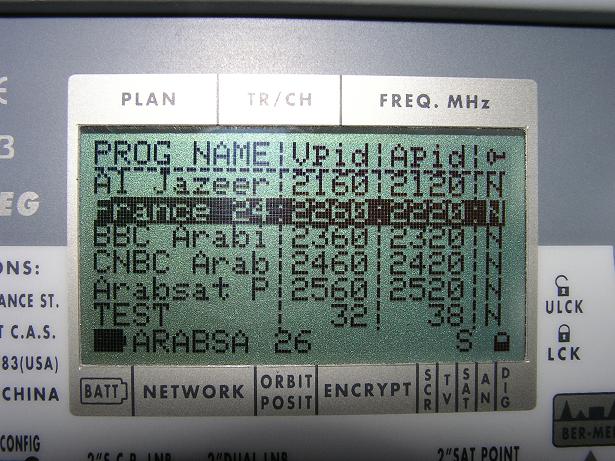

                                                   Badr 4 at 26.0°E - BSS footprint :11 996 H Arabsat Network
                         IF data                                                         Q data                                                        NIT data
Badr 4 at 26.0 e _ BSS footprint _ 11 996 H Arabsat Netw _ IF data   Badr 4 at 26.0 e _ BSS footprint _ 11 996 H Arabsat Netw _ Q data   Badr 4 at 26.0 e _ BSS footprint _ 11 996 H Arabsat Netw _ NIT data

                                               Badr 4 at 26.0°E - BSS footprint :12 130 V Site-26 Network
                         IF data                                                         Q data                                                        NIT data

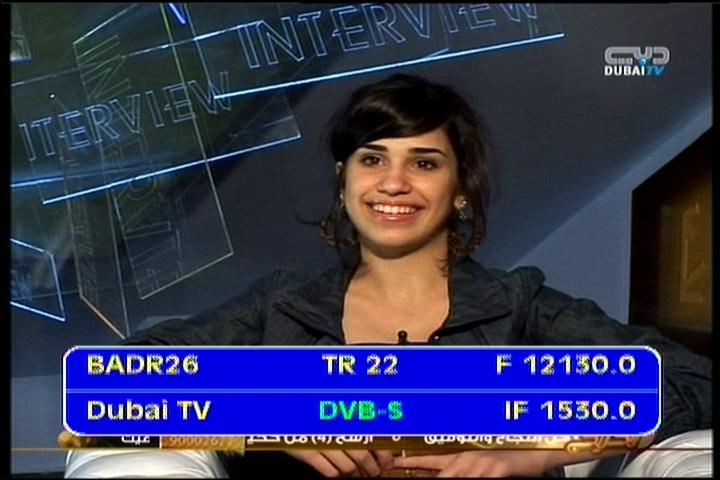

Badr 4 at 26.0 e _ BSS footprint _ 12 130 V Dubai Netw _ IF data   Badr 4 at 26.0 e _ BSS footprint _ 12 130 V Dubai Netw _ Q data   Badr 4 at 26.0 e _ BSS footprint _ 12 130 V Dubai Netw _ NIT data

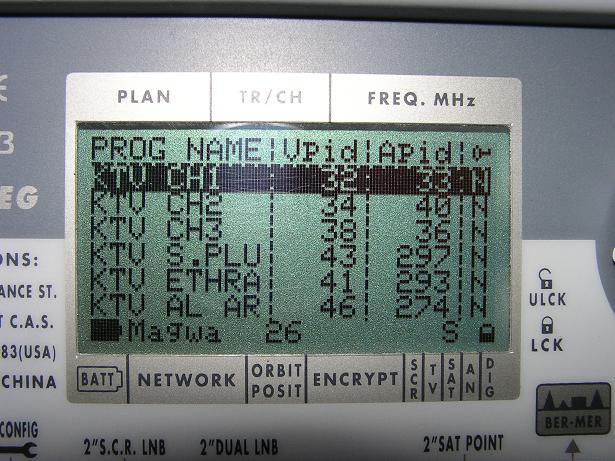

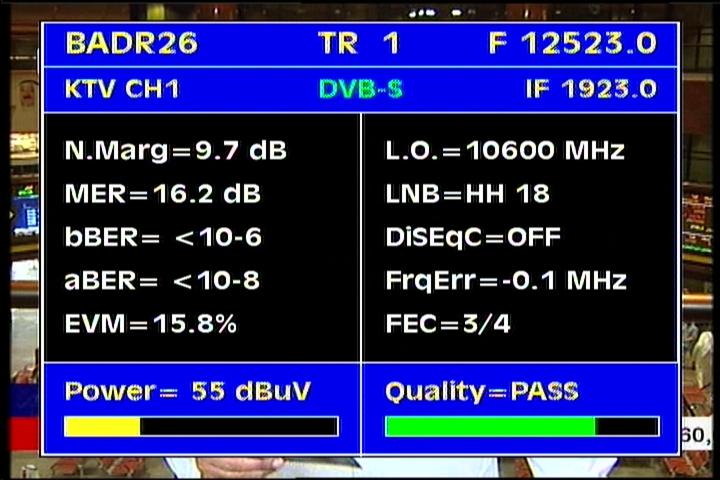

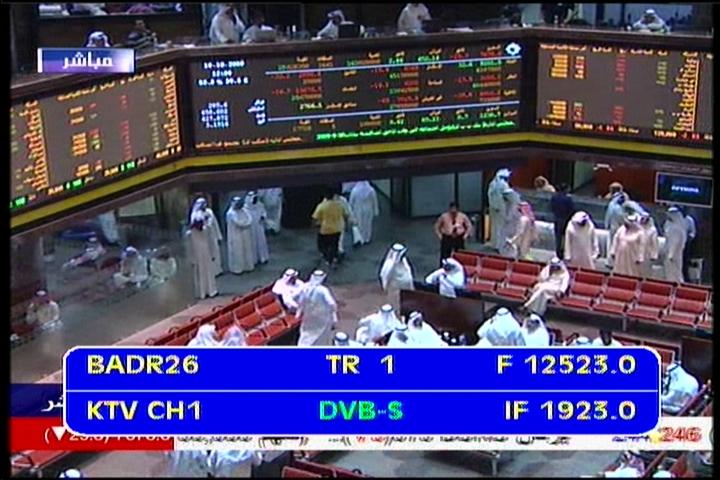

                                               Badr 4 at 26.0°E - BSS footprint :12 523 H Kuwait TV Network

                         IF data                                                         Q data                                                        NIT data
Badr 4 at 26.0 e _ BSS footprint _ 12 523 H KTV Netw _ IF data   Badr 4 at 26.0 e _ BSS footprint _ 12 523 H KTV Netw _ Q data   Badr 4 at 26.0 e _ BSS footprint _ 12 523 H KTV Netw _ NIT data

                                                       Badr 6 at 26.0°E - BSS footprint : Qualitative analysis

qualitative analysis, I performed the following frequencies : 12 303 , 12 341 , 12 356 , 12 437 , 12 456 , 12 476
possibility of locking the carrier but not gain growth : 11 747 , 11 785 , 11 823 ...

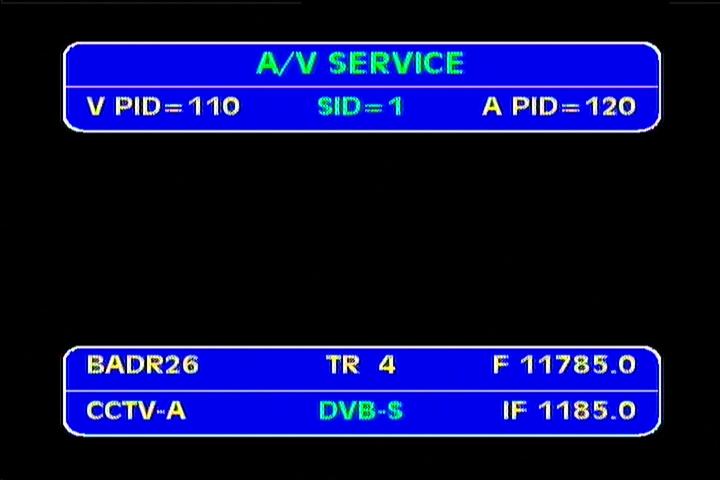

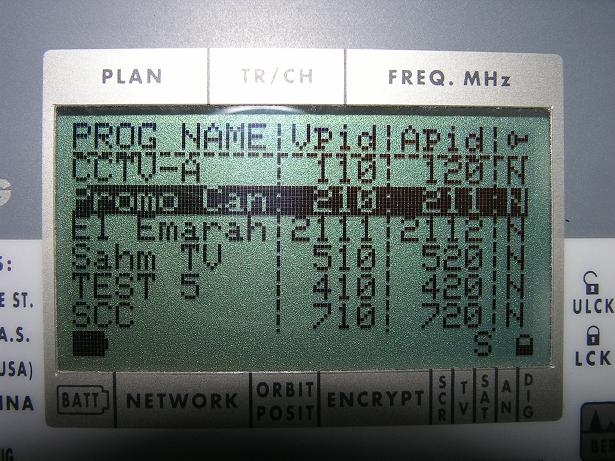

                                                 Badr 6 at 26.0°E - BSS footprint :11 785 V Arabsat Network
                         VA data                                                    Q data                                                        NIT data
Badr 6 at 26.0 e _ BSS footprint _ 11 785 V Arabsat Netw _ VA pids dataBadr 6 at 26.0 e _ BSS footprint _ 11 785 V Arabsat Netw _ Q data Badr 6 at 26.0 e _ BSS footprint _ 11 785 V Arabsat Netw _ NIT data

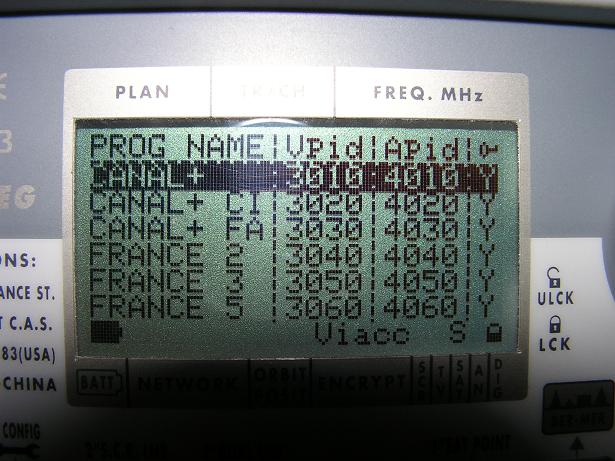

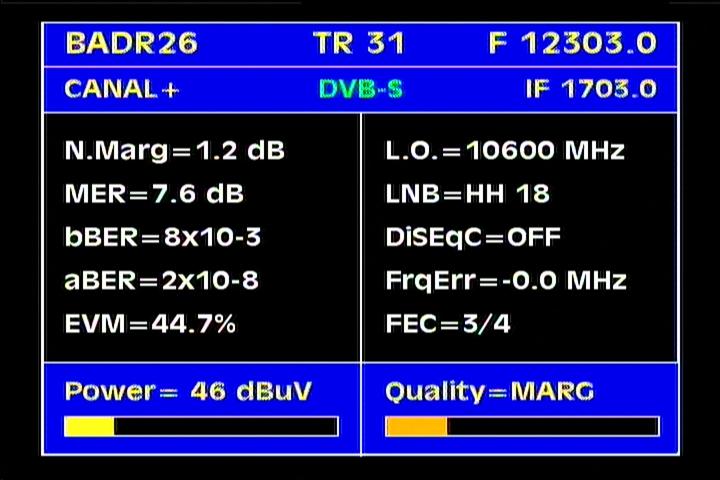

                                                Badr 6 at 26.0°E - BSS footprint :12 303 H Canal+ Network
                         VA data                                                    Q data                                                        NIT data
Badr 6 at 26.0 e _ BSS footprint _ 12 303 H C+ Netw _ VA pids dataBadr 6 at 26.0 e _ BSS footprint _ 12 303 H C+ Netw _ Q dataBadr 6 at 26.0 e _ BSS footprint _ 12 303 H C+ Netw _ NIT data

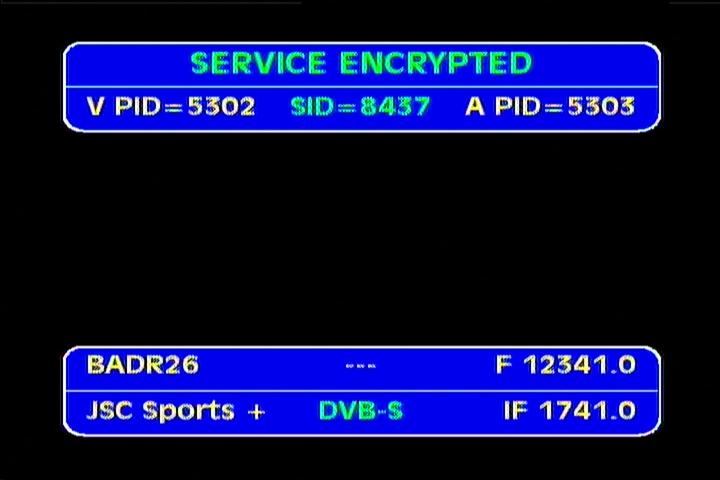

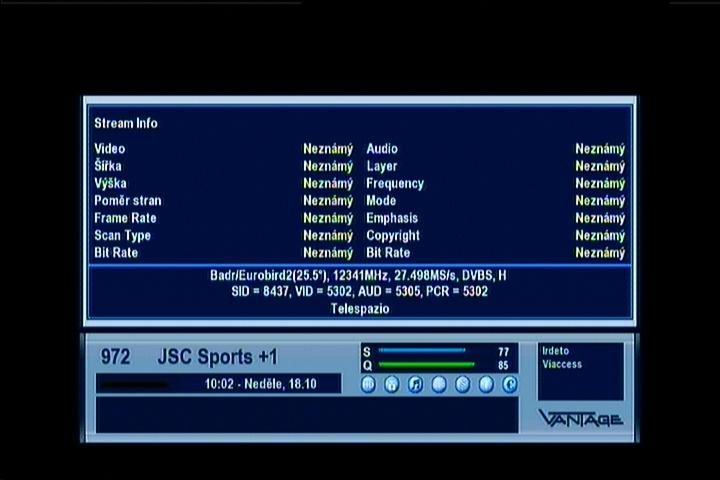

                                             Badr 6 at 26.0°E - BSS footprint :12 341 H JSC Sport Network
                         VA data                                                    Q data                                                        NIT data
Badr 6 at 26.0 e _ BSS footprint _ 12 341 H JSC Netw _ VA pids dataBadr 6 at 26.0 e _ BSS footprint _ 12 341 H JSC Netw _ Q dataBadr 6 at 26.0 e _ BSS footprint _ 12 341 H JSC Netw _ NIT data

                                          Badr 6 at 26.0°E - BSS footprint :12 356 V Saudi Arabian Network
                         VA data                                                    Q data                                                        NIT data

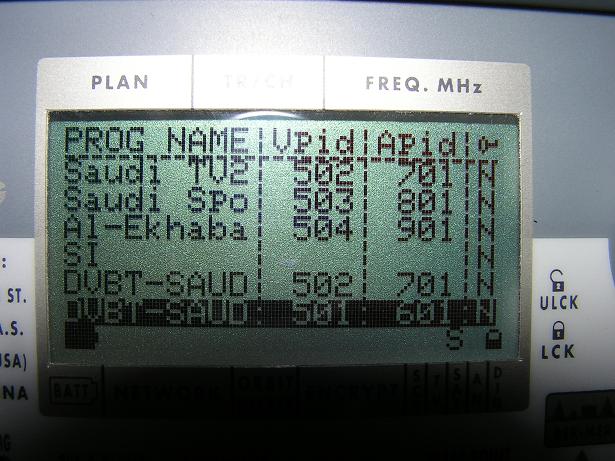

Badr 6 at 26.0 e _ BSS footprint _ 12 356 V Saudi A Netw _ IF dataBadr 6 at 26.0 e _ BSS footprint _ 12 356 V Saudi A Netw _ Q dataBadr 6 at 26.0 e _ BSS footprint _ 12 356 V Saudi A Netw _ NIT data

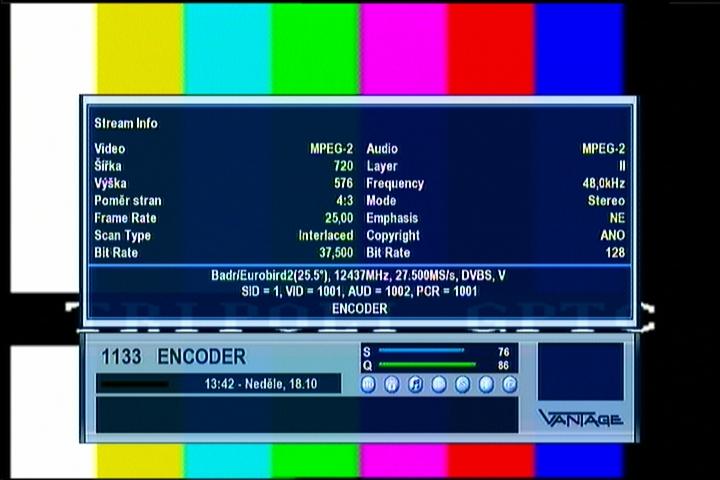

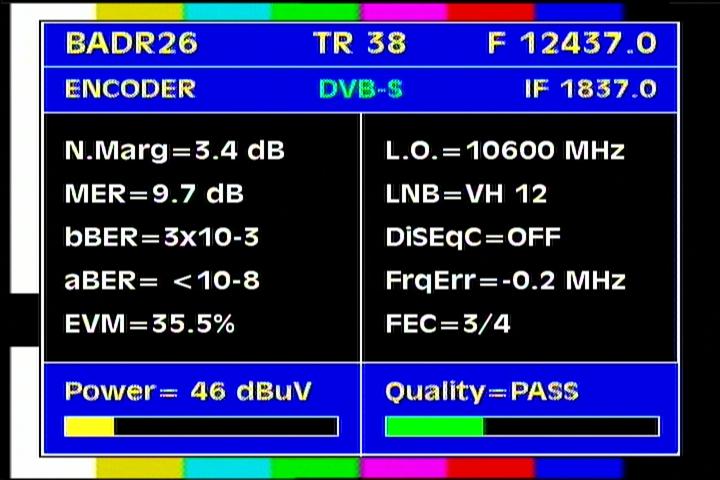

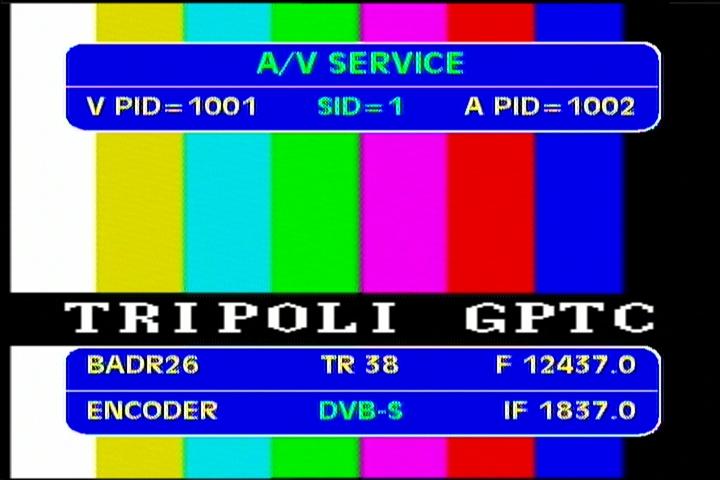

                                              Badr 6 at 26.0°E - BSS footprint :12 437 V Arabsat Network
                         VA data                                                    Q data                                                        NIT data
Badr 6 at 26.0 e _ BSS footprint _ 12 437 V Tripoli GPTC Netw _ VA pids dataBadr 6 at 26.0 e _ BSS footprint _ 12 437 V Tripoli GPTC Netw _ Q dataBadr 6 at 26.0 e _ BSS footprint _ 12 356 V Saudi A Netw _ NIT data

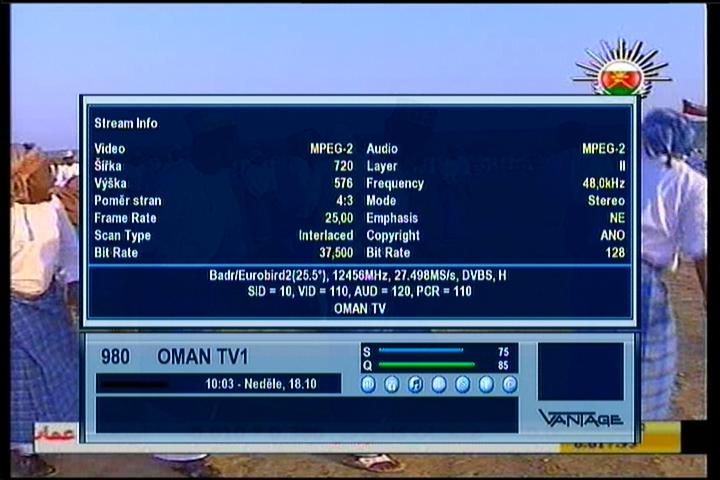

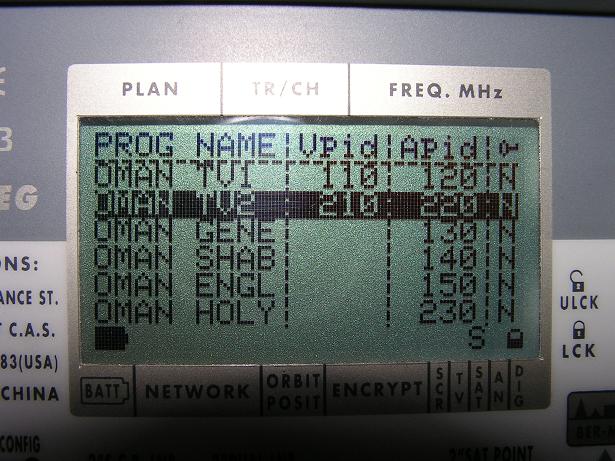

                                              Badr 6 at 26.0°E - BSS footprint :12 456 H OMAN Network
                         VA data                                                    Q data                                                        NIT data

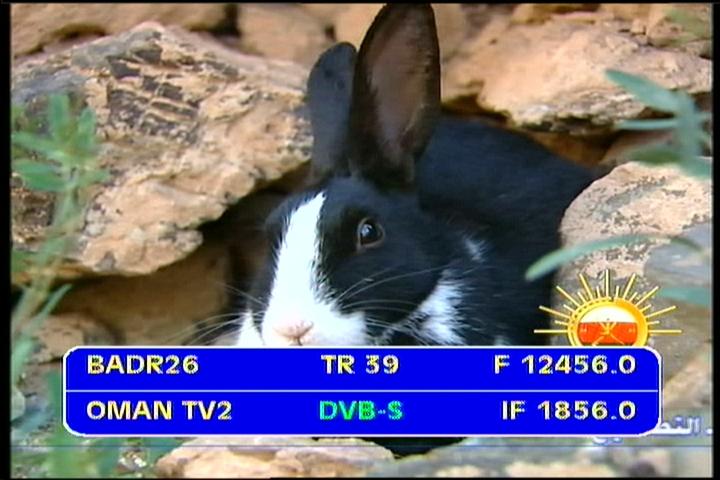

Badr 6 at 26.0 e _ BSS footprint _ 12 456 H Oman Netw _ IF dataBadr 6 at 26.0 e _ BSS footprint _ 12 456 H Oman Netw _ Q dataBadr 6 at 26.0 e _ BSS footprint _ 12 456 H Oman Netw _ NIT data

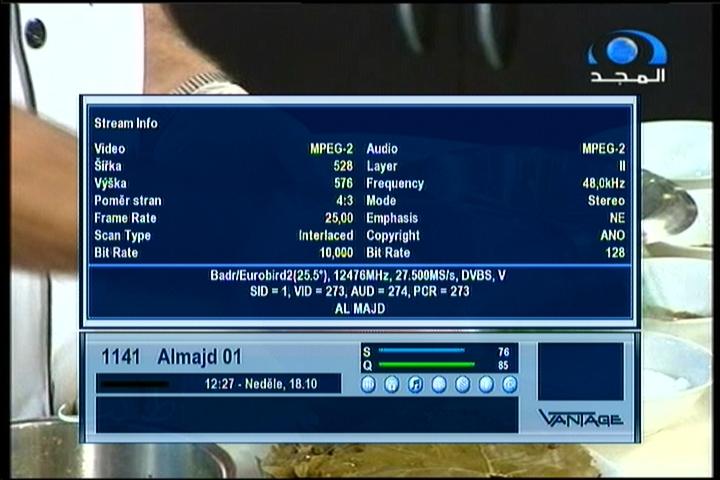

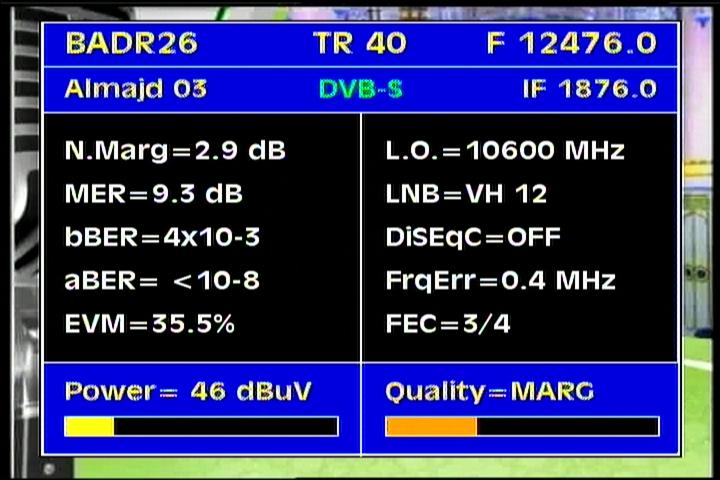

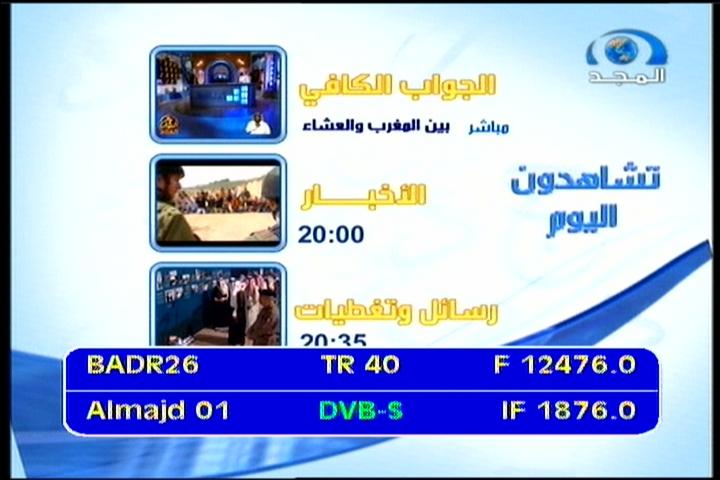

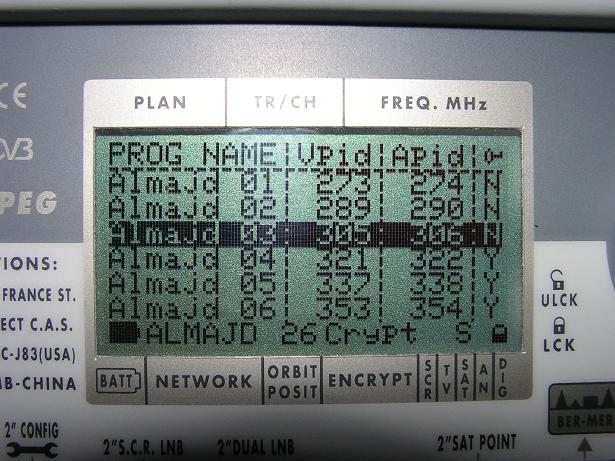

                                                Badr 6 at 26.0°E - BSS footprint :12 476 V Al Majd Network
                         VA data                                                    Q data                                                        NIT data
Badr 6 at 26.0 e _ BSS footprint _ 12 476 V Al Majd Netw _ IF dataBadr 6 at 26.0 e _ BSS footprint _ 12 476 V Al Majd Netw _ Q dataBadr 6 at 26.0 e _ BSS footprint _ 12 476 V Al Majd Netw _ NIT data

Badr 4/6 at 26.0°E : TV List

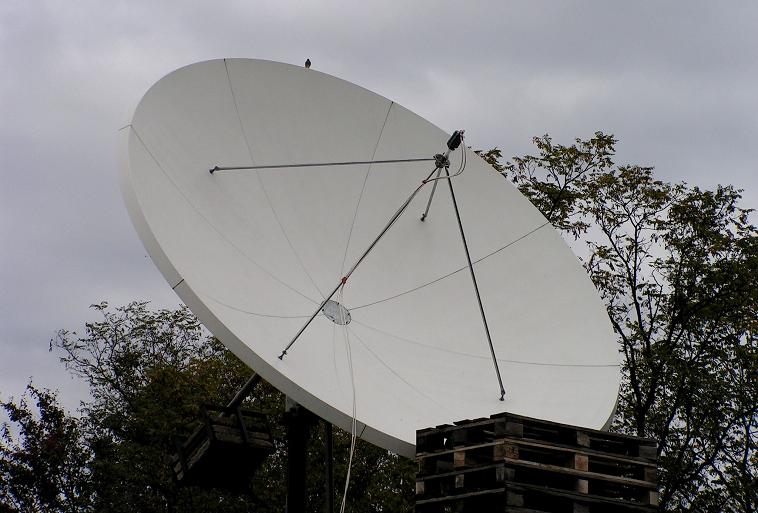

Badr 6 at 26.0 e _ BSS footprint _ PF Prodelin 3.7 m


----Frequency----


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

11 727 -H-tp 1

 Arabsat 27 500 3/4 Badr 6 BSS 270-600+ cm DVB
  Booyout Motmaeena         FTA
  Sports 1 Libya         FTA
  Thalitha TV         FTA
  Al Aoula ME         FTA
  Tunis 7         FTA
  Canalsat Maghreb promo         FTA
  test         FTA
  JSC Libya         FTA
  Hannibal Tv         FTA
  Nessma TV         FTA
  Tunisie 21         FTA

11 747 -V-tp 2

 Arabsat 27 500 3/4 Badr 6 BSS 270-600+ cm DVB
  Saudi TV 1         FTA
  Alkawthar TV         FTA
  Arabsat promo         FTA
  Oromiyaa TV         FTA
  KSA 2         FTA
  Al Thuraya 2         FTA
  Waseet TV         FTA
  Islam Today         FTA
  ASN         FTA

11 766 -H-tp 3

 Arabsat
 		 27 500 3/4 Badr 6 BSS 270-600+ cm DVB
  Arabsat promo         FTA
  Canal+ promo         FTA
  test         FTA
  Medi 1 sat         FTA
  Al Maghribya         FTA
  Arrabia         FTA
  Arryadia         FTA
  test         FTA
  Assadisa         FTA
  test         FTA

11 785 -V-tp 4

 Arabsat 27 500 3/4 Badr 6 BSS 270-600+ cm DVB
  CCTV-Arabic         FTA
  Canal+ promo         FTA
  Al Emarah         FTA
  Sahm tv         FTA
  Test 5         FTA
  SCC-Saudi Comedy         FTA
  test         FTA
  Strike         FTA
  test card         FTA
  test card         FTA
  test card         FTA
  test card         FTA
  Home Shopping A1         FTA

11 804 -H-tp 5

 Arabsat 27 500 3/4 Badr 6 BSS 270-360+ cm DVB
  Abu Dhabi Al Emerat         FTA
  Abu Dhabi al Oula         FTA
  Abu Dhabi al Oula +1         FTA
  Shaer al Milyon         FTA
  Abu Dhabi Al Riyadiya         FTA
  Abu Dhabi Al Riyadiya 2         FTA
  Abu Dhabi National Geographic         FTA
  Abu Dhabi Sport 3         Biss

11 823 -V-tp 6

 Arabsat 27 500 3/4 Badr 6 BSS 270-600+ cm DVB
  Al Manar TV         FTA
  Future Int         FTA
  LBC Sat         FTA
  Nagham / Star Academy         FTA
  MTV Lebanon         FTA
  Télé Libanon         FTA
  Thane Express         FTA
  Future TV USA         FTA
  OTV Lebanon         FTA
  Future News         FTA
  Al Waseet tv         FTA

11 843 -H-tp 7

 Arabsat 27 500 3/4 Badr 6 BSS 270-600+ cm DVB
  Fox Movies ME         FTA
  test card         FTA
  Rotana Music         FTA
  Rotana Clip         FTA
  Rotana Khaleejiah         FTA
  Rotana Tarab         FTA
  Rotaan Cinema         FTA
  Rotana Zaman         FTA
  Al Resalah         FTA
  Fox Serie         FTA

11 862 -V-tp 8

 Arabsat 27 500 3/4 Badr 6 BSS 270-600+ cm DVB
  Sharjah TV         FTA
  Maraseel         FTA
  KBS World         FTA
  Alpha         FTA
  test         FTA
  test         FTA
  Rawae         FTA
  Al Jazeera Children         FTA
  test         FTA
  Baraem         FTA
  test         FTA

11 881 -H- tp 9

 LUXE TV HDTV 27 500 3/4 Badr 6 BSS 270-600+ cm MPEG-4/HD/FTA

11 900 -V-tp 10

 Arabsat 27 500 3/4 Badr 6 BSS 270-600+ cm DVB
  Oyoon Jeddah         FTA
  test         FTA
  Al Quds TV         FTA
  SCC     watch video         FTA
  Booyut Motmaeena         FTA
  Islam Today         FTA
  Thane TV         FTA
  Sehraya         FTA
  Thuraya         FTA
  Aakar         FTA

11 919 -H-tp 11

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Al Arabiya         FTA
  MBC 1         FTA
  MBC 2         FTA
  MBC 3         FTA
  MBC 4         FTA
  MBC Action         FTA
  MBC Persia         FTA
  MBC MAX         FTA
  Wanasah         FTA
  MBC Int.         Biss
  TXT         FTA

11 938 -V-tp 12

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Alhurra Iraq         FTA
  Al Fanoos TV         FTA
  test 1         FTA
  Al Hurra         FTA
  test 2         FTA
  ShooFee TV         FTA
  Bab El Mawada         FTA
  Al Manar         FTA
  OTV      watch video         FTA
  Maha TV         FTA
  Al Hakim TV         FTA
  Romanceya TV         FTA
  Hamsa         FTA
  1st Forex TV         FTA
  Rayhana TV         FTA
  Dreams Academy         FTA
  test 3         FTA
  test 5         FTA
  test 6         FTA
  test         FTA

11 977 -V-tp 14

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Alwatan TV         FTA
  Alwatan Plus         FTA
  Rawasy TV         FTA

11 996 -H-tp 15

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Al Jazeera News         FTA
  France 24 Arabic    watch video         FTA
  BBC Arabic         FTA
  CNBC Arabiya         FTA
  Arabsat promo         FTA
  test         FTA
  Al Alam News         FTA
  Al Mustakillah         FTA
  Rusiya Al-Yaum         FTA

12 015 -V-tp 16

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Saudi 1         FTA
  Saudi 2         FTA
  Saudi Sport         FTA
  Al Ekhbaria         FTA
  Saudi TV         FTA

12 034 -H-tp 17

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  JSC         FTA
  JSC Mobasher         FTA
  JSC English         FTA
  JSC Sport 1         FTA
  Al Jazeera Children         FTA
  JSC Documentary         FTA
  Qatar TV         FTA
  Al Kass Sport         FTA
  JSC test         FTA

12 054 -V-tp 18

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Awtan         FTA
  Jordan TV         FTA
  Al Ordoniya TV         FTA
  Syria TV     watch video         FTA
  Addounia         FTA
  Alrai TV         FTA
  Live TV         FTA
  Alaqsa         FTA
  test 1         FTA
  KBS World         FTA
  Press TV         FTA
  Khabar TV         FTA
  Syrian Drama TV         FTA

12 074 -H-tp 19

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Euronews arabic         FTA
  ANB TV         FTA
  test         FTA
  ETN TV         FTA
  Al Libiyah TV         FTA
  BBC World Middle East         FTA
  MTV Lebanon         FTA
  Fonoon      watch video         FTA
  Luxe TV Arabia         FTA
  Aalam Hawaa         FTA
  TV 5 Orient         FTA
  Al Hiwar TV         FTA
  NHK World         FTA
  test         FTA

12 092 -V-tp 20

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Dunia TV         FTA
  Sahar TV         FTA
  Zoal TV         FTA
  Al Wasat tv         FTA
  Shaer al Rasoul         FTA
  Orient         FTA
  Al Dafrah Music         FTA
  Creative City         FTA
  Al Mojtama         FTA
  Zayed Quran         FTA
  Fujairah Media         FTA
  Fujairah Media         FTA

12 111 -H-tp 21

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Arirang TV         FTA
  Sharaqiya         FTA
  Al Aan      watch video         FTA
  Al Eqtisadia         FTA
  Ashorooq         FTA
  Decision Maker         FTA
  Jawna         FTA
  Dubai Racing         FTA
  Dubai Sports 2         FTA

12 130 -V-tp 22

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Dubai TV         FTA
  Dubai Sports         FTA
  Dubai 1         FTA
  Sama Dubai         FTA
  AL Jadeed TV         FTA
  Iqra         FTA
  Alhaqiqa         FTA
  Marasil         FTA
  Nilat         FTA
  4 Fun         FTA
  Sehaa TV         FTA

12 149 -H-tp 23

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Al Adalah 2         FTA
  Wtanya         FTA
  Hayatouna TV         FTA
  Al Rahma TV         FTA
  test         FTA
  test         FTA
  test         FTA
  Al Baghdadia         FTA
  Bedayah Nesaaya         FTA
  Alhayat         FTA
  Fonoon Plus         FTA
  Safa TV         FTA

12 169 -V-tp 24

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  MTV Arabia         FTA
  Nickelodeon Arabia         FTA
  Peace TV ME         FTA
  test card         FTA
  Noor Dubai         FTA
  test 2         FTA
  test 3         FTA
  test 4         FTA
  test 5         FTA

12 182 -H-tp 25

 Arabsat 16 200 3/4 Badr 4 BSS 100-270+ cm DVB
  Yemen TV         FTA
  Yamania         FTA
  Sheba TV         FTA
  Al Eyman         FTA

12 207 -V-tp 26

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  RTD Djibouti         FTA
  Sudan TV         FTA
  PSC         FTA
  Qatar TV         FTA
  Al Iraqiya         FTA
  Shada TV         FTA
  South Sudan TV         FTA
  Daleem TV         FTA
  Aalam TV         FTA
  Sehraya         FTA
  Peace TV         FTA
  Tayba TV         FTA

12 227 -H-tp 27

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Bahrain TV         FTA
  Bahrain 55         FTA
  Bahrain Sport         FTA
  Bahrain Sport 2         FTA
  Test 1         FTA
  Test 2         FTA
  Test 3         FTA
  Test 4         FTA
  Test 5         FTA
  Test 6         FTA
  Test 7         FTA

12 284 -V-tp 30

 Arabsat 27 500 3/4 Badr 4 BSS 100-270+ cm DVB
  Al Soriyah TV         FTA
  Shada TV         FTA
  The Academy Channel         FTA
  Scope TV         FTA
  Rawae         FTA
  Mauritanie TV         FTA
  ERI TV Eretria         FTA
  ETV Ethiopia         FTA
  Future TV USA         FTA
  Future TV         FTA
  Home Shopping TV         FTA
  Al Omma         FTA
  Almaha TV         FTA
  Perf TV         FTA
  Atlas Morroco TV         FTA
  Abwab TV         FTA

12 303 -H- tp 31

 Canal Sat France 27 500 3/4 Badr 6 BSS 240-500+ cm DVB
  Canal+ Cinema         Viaccess 3.0
  Canal+ Family         Viaccess 3.0
  France 2         Viaccess 3.0
  France 3         Viaccess 3.0
  France 5         Viaccess 3.0
  Cinema Star         Viaccess 3.0
  Cine Cinema         Viaccess 3.0
  Histoire         Viaccess 3.0
  I Tele         Viaccess 3.0
  LCI         Viaccess 3.0
  Infosport         Viaccess 3.0
  Ma Chaine Sport         Viaccess 3.0
  OLTV         Viaccess 3.0

12 322 -V- tp 32

 Canal Sat France 27 500 3/4 Badr 6 BSS 140-500+ cm DVB
  Cuisine TV         Viaccess 3.0
  OMTV         Viaccess 3.0
  Game One         Viaccess 3.0
  Girondins TV         Viaccess 3.0
  Infosport         Viaccess 3.0
  LCI         Viaccess 3.0
  M6 Music Hits         Viaccess 3.0
  NJR Hits         Viaccess 3.0
  Trace TV         Viaccess 3.0
  Piwi         Viaccess 3.0
  TiJi         Viaccess 3.0
  Teletoon         Viaccess 3.0
  Planete France         Viaccess 3.0
  Planete Thalassa         Viaccess 3.0
  Ushuaia TV         Viaccess 3.0
  Histoire TV         Viaccess 3.0
  TV Breizh         Viaccess 3.0

12 341 -H- tp33

 Al Jazeera Sport Channel
 		 27 500 3/4 Badr 6 BSS 140-500+ cm DVB
  Al Jazeera Sport Channel +1         Viaccess 3.0/Ird 2/KeyFly
  Al Jazeera Sport Channel +2         Viaccess 3.0/Ird 2/KeyFly
  Al Jazeera Sport Channel +3         Viaccess 3.0/Ird 2/KeyFly
  Al Jazeera Sport Channel +4         Viaccess 3.0/Ird 2/KeyFly
  Al Jazeera Sport Channel +5         Viaccess 3.0/Ird 2/KeyFly
  Al Jazeera Sport Channel +6         Viaccess 3.0/Ird 2/KeyFly
  Al Jazeera Sport Channel +7         Viaccess 3.0/Ird 2/KeyFly
  Al Jazeera Sport Channel +8         Viaccess 3.0/Ird 2/KeyFly

12 356 -V- tp 34

 Saudi Arabian network
 		 17 000 3/4 Badr 6 BSS 240-500+ cm DVB
  Saudi TV 1         FTA
  Saudi TV 2         FTA
  Saudi Sport         FTA
  Al Ekhabariah         FTA
  DVB-T Saudi TV2         FTA
  DVB-T Saudi TV1         FTA
  MHP Video mosaic         FTA
  Saudi TV 5         FTA

12 407 -H-tp 37

 Ajyal TV
 		 3 000 3/4 Badr 6 BSS 240-500+ cm DVB FTA

12 437 -V-tp 38

 Arabsat 27 500 3/4 Badr 6 BSS 240-500+ cm DVB
  Encoder / test Tripoli GPTC         FTA
  Encoder / test         FTA
  Encoder / test         FTA
  Encoder / test         FTA
  Encoder / test         FTA
  Encoder / test         FTA

12 456 -H-tp 39

 Arabsat 27 500 3/4 Badr 6 BSS 240-500+ cm DVB
  Oman TV1         FTA
  Oman TV2         FTA
  Oman TV2         FTA
  Oman HD         MPEG-2/HDTV
  OMAN FEED         occasional

12 476 -V-tp 40

 Al Majd 27 500 3/4 Badr 6 BSS 240-500+ cm DVB
  Almajd 01         FTA
  Almajd 02         FTA
  Almajd 03         FTA
  Almajd 04         FTA
  Almajd 05         Cryptoworks
  Almajd 06         Cryptoworks
  Almajd 07         Cryptoworks
  Almajd 08         Cryptoworks
  Almajd 09         Cryptoworks
  Almajd 10         Cryptoworks
  Almajd 11         Cryptoworks
  Almajd 12         Cryptoworks
  Almajd 13         Cryptoworks
  Almajd FEED         occasional

12 523 -H-tp 1

 Arabsat 27 500 3/4 Badr 4 FSS 100-270+ cm DVB
  KTV CH1         FTA
  KTV CH2         FTA
  KTV CH3+         FTA
  KTV Space/Ethraa         FTA
  Al Arabi Cultural         FTA
  KTV Quran         FTA
  KUWAITH FEED         occasional

Badr 6 at 26.0°E : percent Q & stream data

                Badr 6 - 12 303                                          Badr 6 - 12 341                                          Badr 6 - 12 456
percent Q 02percent Q 03percent Q 04
                  Badr 6  : 12 322 V                                    Badr 6 : 12 437 V                              Badr 6 : 12 476 V
percent Q 06percent Q 07percent Q 08

Badr 4/6 at 26.0°E : Video presentations

   Go to Video Section:                      Go to video section:
button

Badr 4/6 at 26.0°E footprint : BSS footprint

                   Badr 4 footprint                                                Badr 6 footprint
Badr 4 at 26.0E KU BSS coverage zone          Badr 6 at 26.0E KU BSS coverage zone

 Badr 4/6 at 26.0°E : TV Snapshot

Al Arabia 01France 24 02Bahrain TV 04
Funoon TV 04MBC 06Syria tv 05
