Eutelsat W2 & Eurobird 16 at 16.0°E

Eutelsat W2 & Eurobird 16 at 16.0°E: Technical data

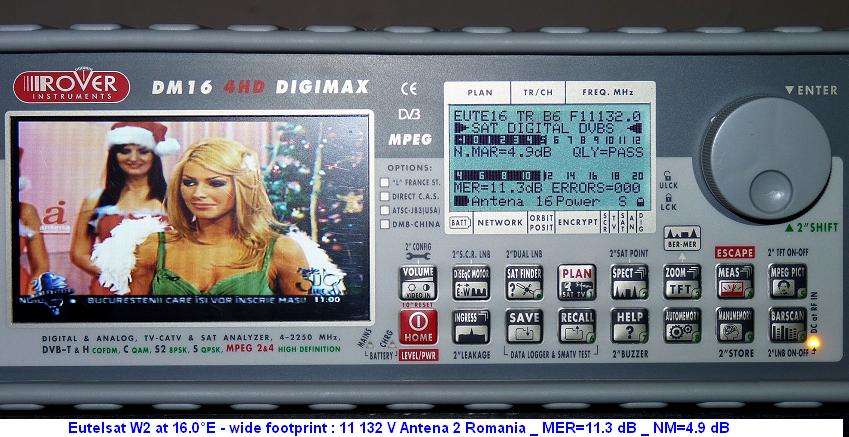

Eutelsat W2 at 16.0 e _ wide footprint_first snap 001

                satellite : Eutelsat W2 - orbit : 16.0°E - TP : 24 KU - lifetime : from 5.10.1998 - 15 years

Eutelsat W2 & Eurobird 16 at 16.0°E - Wide footprint : the spectrum analysis of the vector V

    Eutelsat W2 & Eurobird 16 at 16.0°E - wide footprint : measurements at the center Lučenec_central Slovakia
                                          geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                       measurement results are derived from the 3.7 m diameter antenna
                                                                            elevation angle  : 34.5°

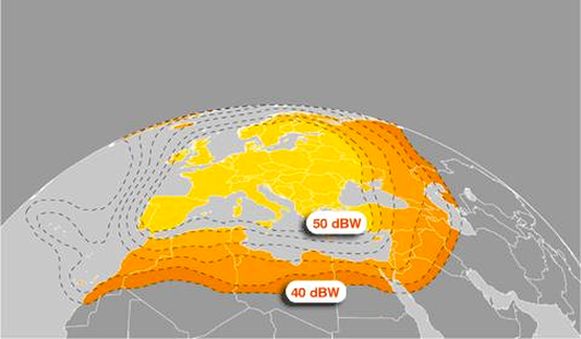

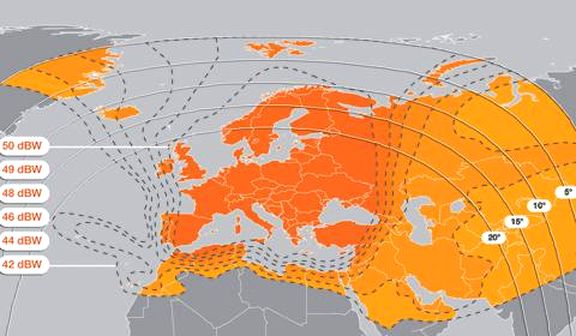

                                   Eurobird 16 footprint _wide                            Eutelsat W2 footprint_wide
                Europe,West Asia,ME,N Africa and E Greenland    Europe,West Asia,ME,N Africa and E Greenland
                                        Beam Peak=50 dBW                                        Beam Peak=50 dBW
                          Eurobird 16 at 16.0 e _ wide footprint_           Eutelsat W2 at 16.0 e _ wide footprint_
                                                        +                                                                         +

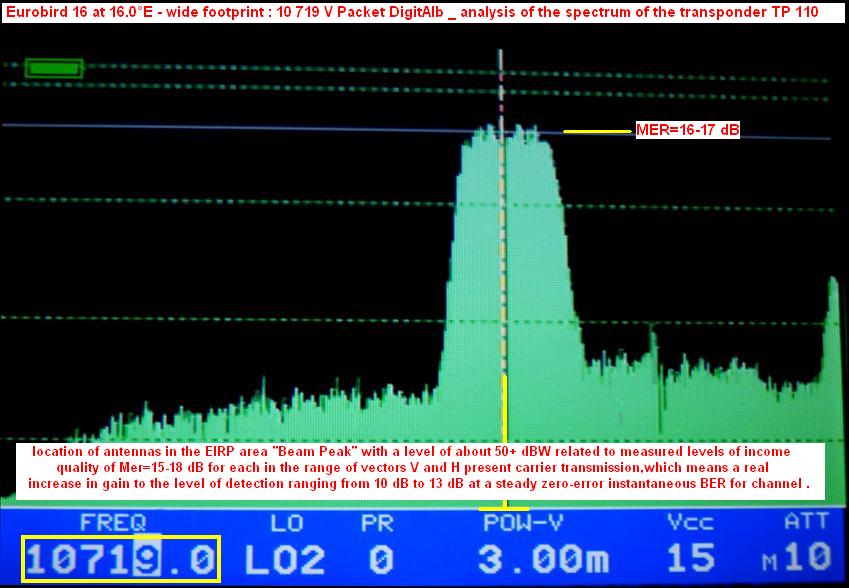

                                  Eurobird 16 spectral analysis                            Eutelsat W2 spectral analysis

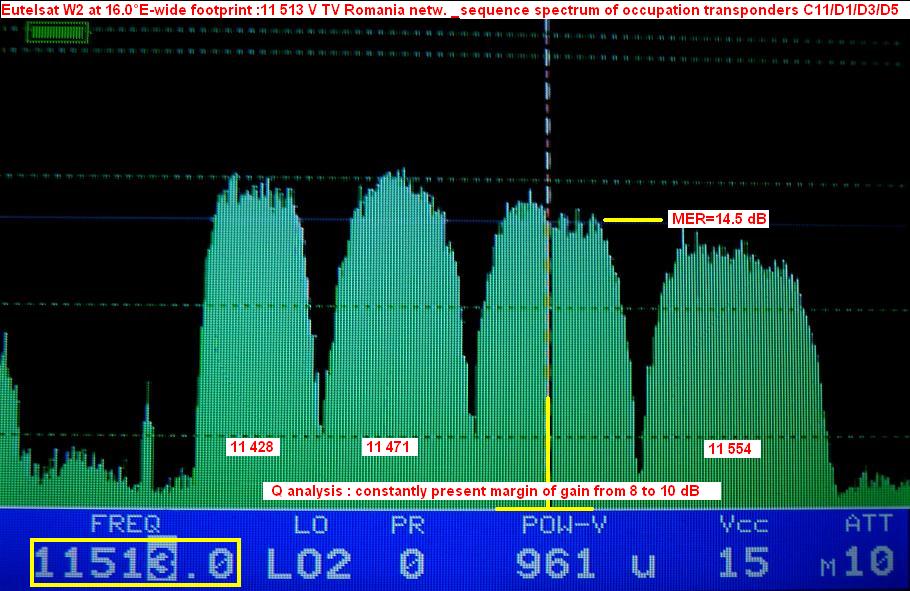

                            10 719 V / TP 110 : Packet DigitAlb              11 513 V / TP D3 : Packet TV Romania
                          Eurobird 16 at 16.0 e _ wide footprint_10 719 V DigitAlb spectrum analysis            Eutelsat W2 at 16.0 e _wide footprint_11 513 V packet Romania TV_ spectrum analysis
                                                                      - time of measurement : 2.1.2010 -
                                                                         - defining the status of income -

Eurobird 16 :  location of antennas in the EIRP area "Beam Peak" with a level of about 50+ dBW related to measured levels of income
quality of Mer=15-18 dB for each in the range of vectors V and H present carrier transmission,which means a real increase in gain to the
level of detection ranging from 10 dB to 13 dB at a steady zero-error instantaneous BER for channel .

Eutelsat W2 : constantly present margin of gain from 5 to 11 dB / depending on the choice of the carrier in the spectrum

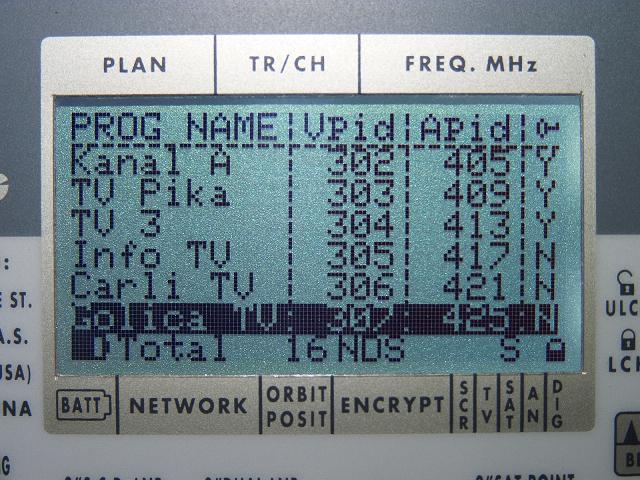

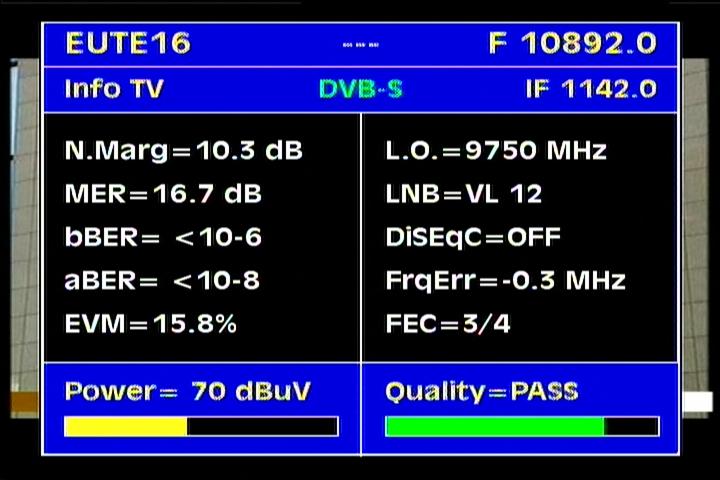

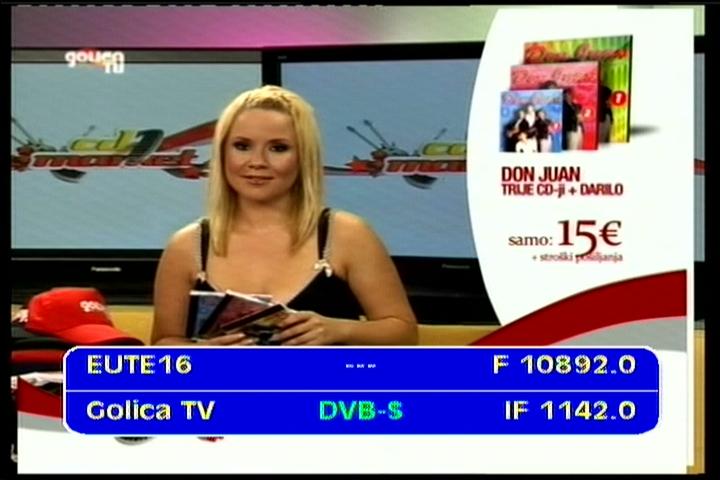

                                        Eurobird 16 at 16.0°E _ wide footprint : 10 892 H Packet Total TV
                          IF data                                                     Q data                                                   NIT data
Eurobird 16 at 16.0 e _ wide footprint_10 892 H Packet Total TV_IF dataEurobird 16 at 16.0 e _ wide footprint_10 892 H Packet Total TV_Q dataEurobird 16 at 16.0 e _ wide footprint_10 892 H Packet Total TV_NIT data

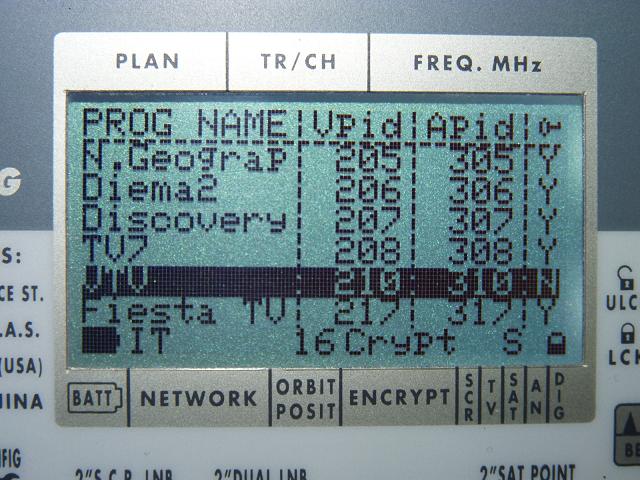

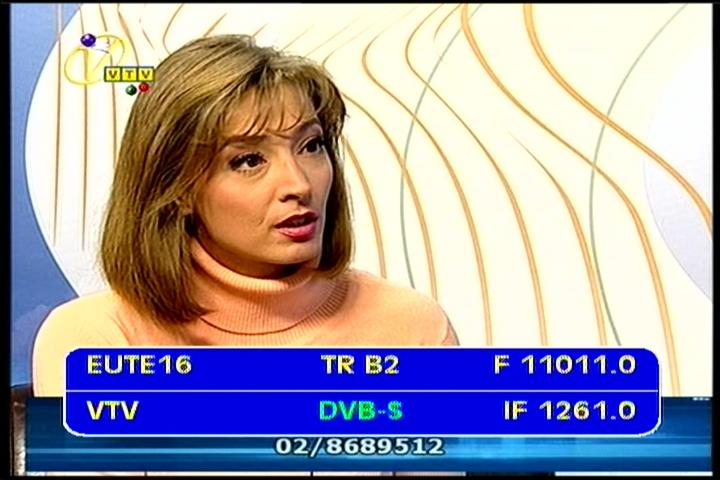

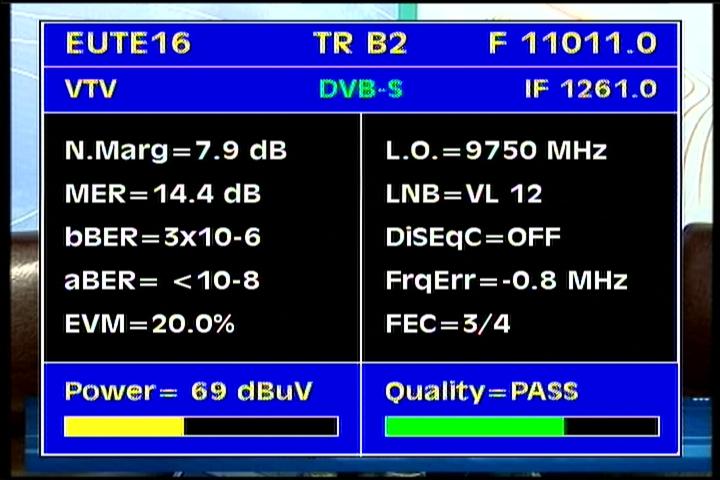

                                     Eutelsat W2 at 16.0°E _ wide footprint : 11 011 V Packet ITV Partner
                          IF data                                                     Q data                                                   NIT data
Eutelsat W2 at 16.0 e _ wide footprint_11 011 V  Packet  ITV Partner_IF dataEutelsat W2 at 16.0 e _ wide footprint_11 011 V  Packet  ITV Partner_Q dataEutelsat W2 at 16.0 e _ wide footprint_11 011 V  Packet  ITV Partner_NIT data

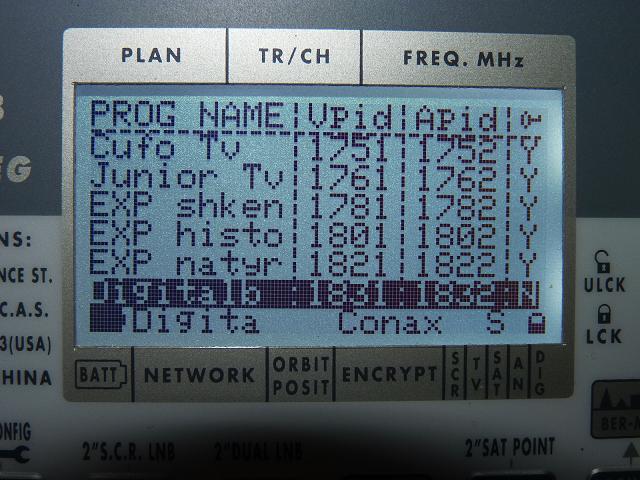

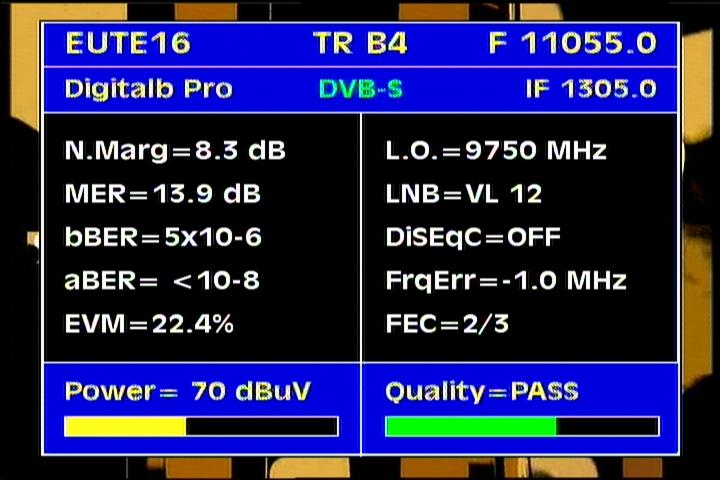

                                        Eutelsat W2 at 16.0°E _ wide footprint : 11 055 V Packet DigitAlb
                          IF data                                                     Q data                                                   NIT data
Eutelsat W2 at 16.0 e _ wide footprint_11 055 V  Packet DigitAlb_IF dataEutelsat W2 at 16.0 e _ wide footprint_11 055 V  Packet DigitAlb_Q dataEutelsat W2 at 16.0 e _ wide footprint_11 055 V  Packet DigitAlb_NIT data

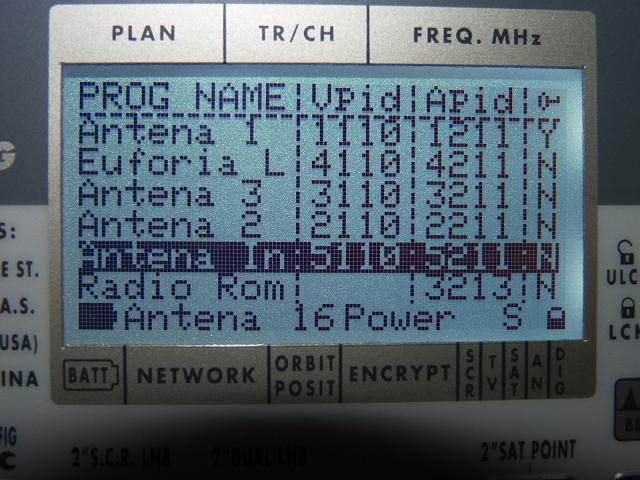

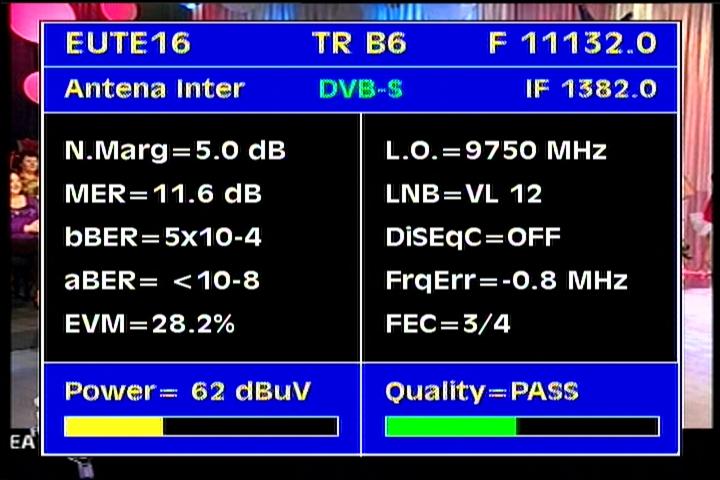

                                          Eutelsat W2 at 16.0°E _ wide footprint : 11 132 V Packet Antena
                          IF data                                                     Q data                                                   NIT data
Eutelsat W2 at 16.0 e _ wide footprint_11 132 V Antena Int_IF dataEutelsat W2 at 16.0 e _ wide footprint_11 132 V Antena Int_Q dataEutelsat W2 at 16.0 e _ wide footprint_11 132 V Antena Int_NIT data

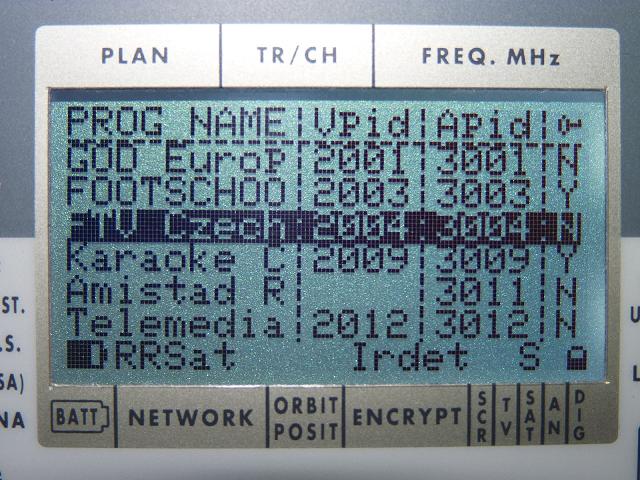

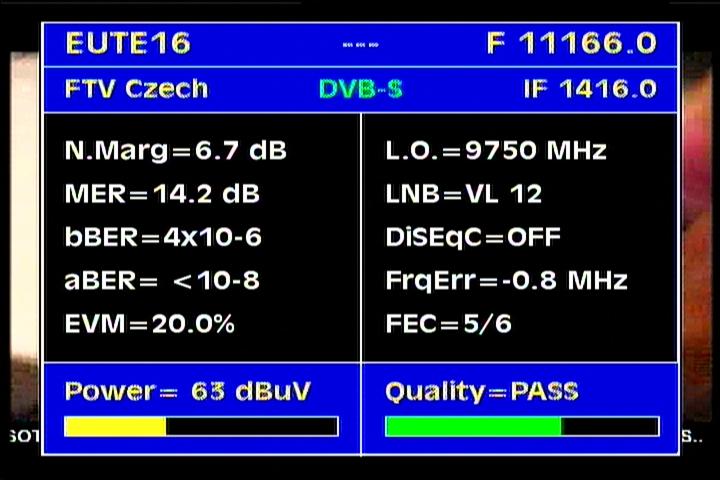

                                    Eutelsat W2 at 16.0°E _ wide footprint : 11 166 V Packet RRSat Global
                          IF data                                                     Q data                                                   NIT data
Eutelsat W2 at 16.0 e _ wide footprint_11 166 H Packet RRSat Global_IF dataEutelsat W2 at 16.0 e _ wide footprint_11 166 H Packet RRSat Global_Q dataEutelsat W2 at 16.0 e _ wide footprint_11 166 H Packet RRSat Global_NIT data

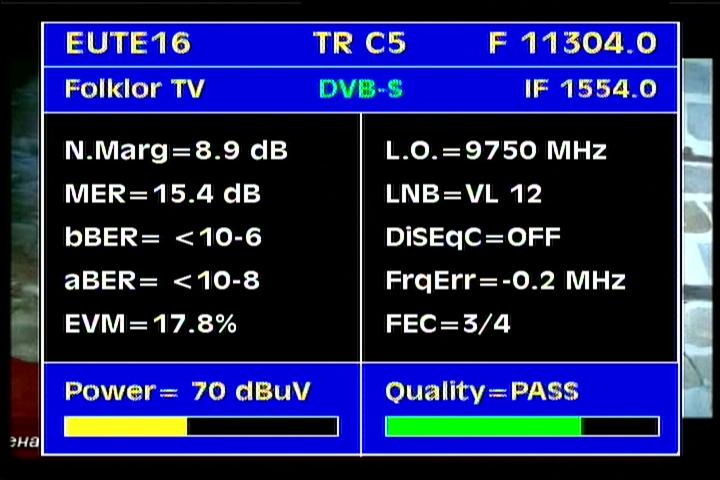

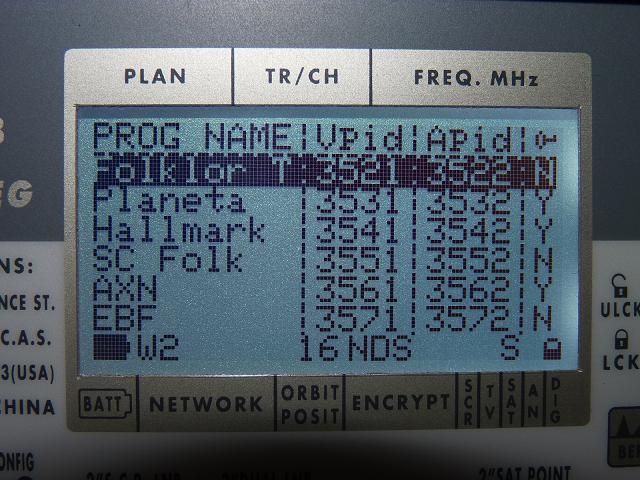

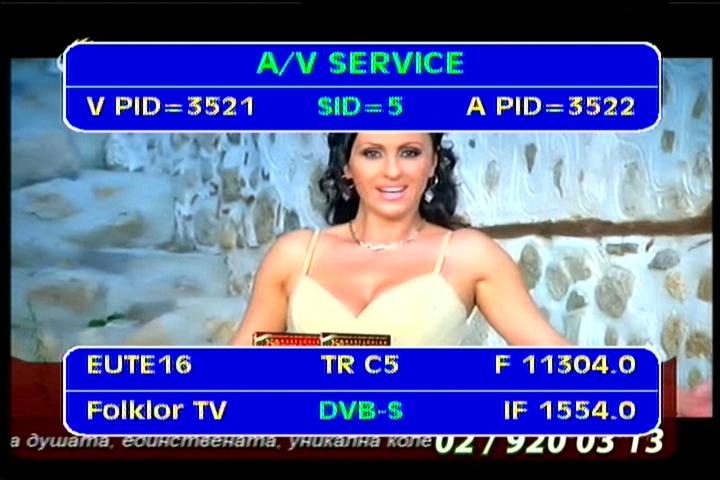

                                          Eutelsat W2 at 16.0°E _ wide footprint : 11 304 V Packet Arqiva
                          IF data                                                     Q data                                                   NIT data
Eutelsat W2 at 16.0 e _ wide footprint_11 304 V Packet Arqiva_IF dataEutelsat W2 at 16.0 e _ wide footprint_11 304 V Packet Arqiva_Q dataEutelsat W2 at 16.0 e _ wide footprint_11 304 V Packet Arqiva_NIT data

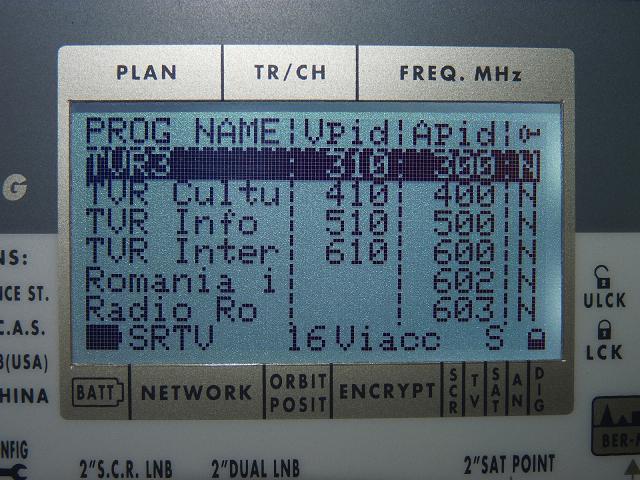

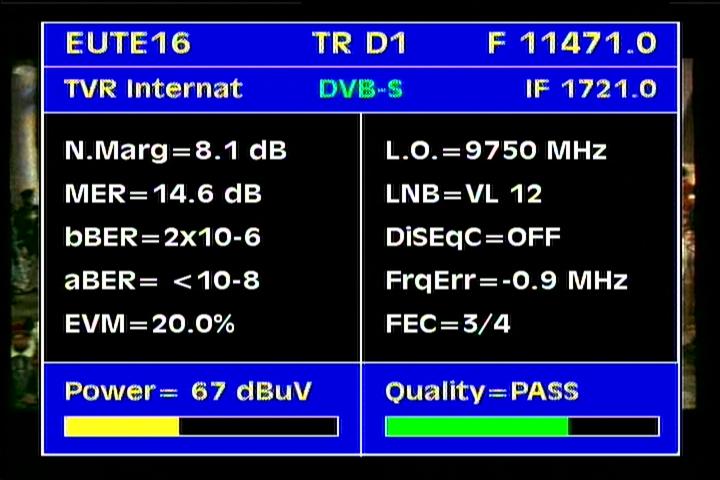

                                       Eutelsat W2 at 16.0°E _ wide footprint : 11 471 V SRTV TV Romania
                          IF data                                                     Q data                                                   NIT data
Eutelsat W2 at 16.0 e _ wide footprint_11 471 V Packet Romania TV _IF dataEutelsat W2 at 16.0 e _ wide footprint_11 471 V Packet Romania TV _Q dataEutelsat W2 at 16.0 e _ wide footprint_11 471 V Packet Romania TV _NIT data

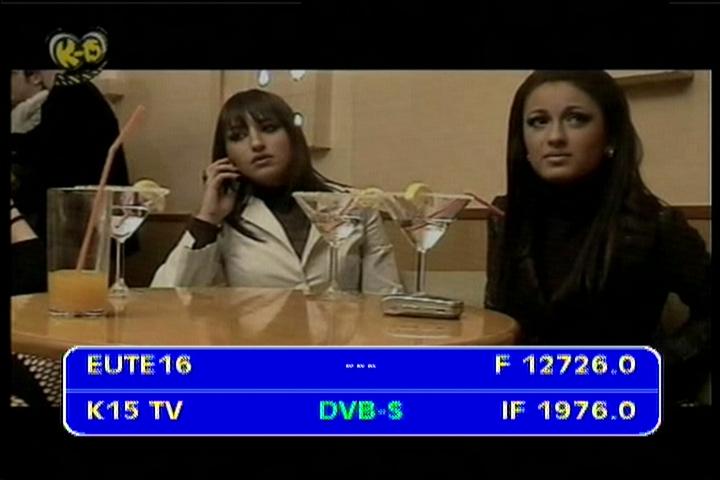

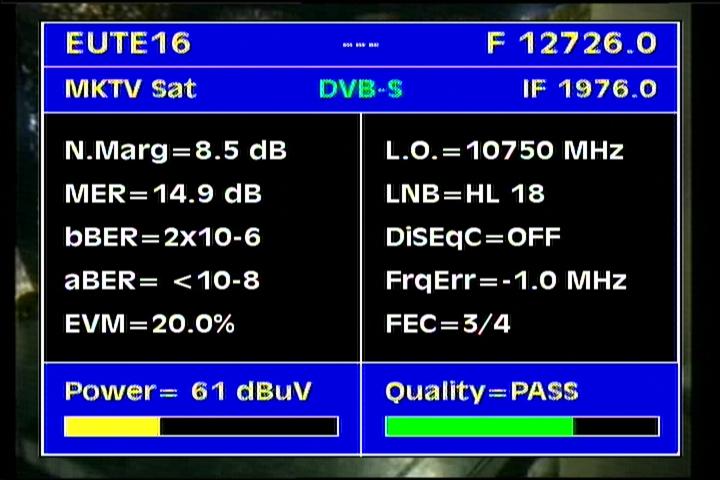

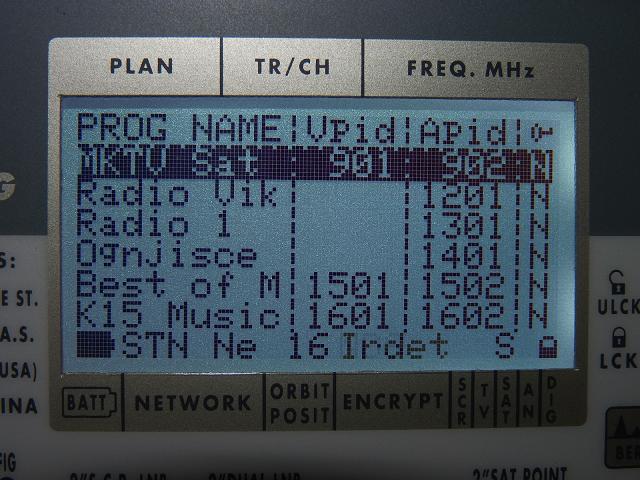

                                           Eutelsat W2 at 16.0°E _ wide footprint : 12 726 V Packet STN
                          IF data                                                     Q data                                                   NIT data
Eutelsat W2 at 16.0 e _ wide footprint_12 726 V Packet STN_IF dataEutelsat W2 at 16.0 e _ wide footprint_12 726 V Packet STN_Q dataEutelsat W2 at 16.0 e _ wide footprint_12 726 V Packet STN_NIT data

Eutelsat W2 & Eurobird 16 at 16.0°E : TV List

Eutelsat W2 at 16.0 e _ wide footprint_PF Prodelin 3.7 m


---Frequency---


---------Provider/Channel---------

---SR--- ---FEC--- --Footprint-- ---Antenna--- ---Video/Encryption---

10 719 -V- tp 110

DigitAlb

27 500 3/4 EB16 Wide 60-140+ cm DVB/MPEG-4
  Super Sport 1 / HD-5         MPEG-4/HD/Conax
  Super Sport 2 / HD-6         MPEG-4/HD/Conax
  National Geographic Ch. Romania         MPEG-4/Conax
  National Geographic Wild Romania         MPEG-4/Conax
  Travel Channel         MPEG-4/Conax
  MGM Channel         MPEG-4/Conax
  Fox Life regional         MPEG-4/Conax
  Fox Crime regional         MPEG-4/Conax
  Cartoon Network/TCM         MPEG-4/Conax
  A1         MPEG-4/Conax
  BBF         MPEG-4/Conax
  Tirana TV         MPEG-4/Conax
  Super Sonic TV         MPEG-4/Conax
  X3         MPEG-4/Conax
  X4         MPEG-4/Conax
  Telenorba         MPEG-4/Conax

10 892 -H- tp 119

Total TV Serbia

 27 500  3/4  EB16 Wide  60-140+ cm  DVB
  Pop Tv         Videoguard
  Kanal A         Videoguard
  TV Pika         Videoguard
  TV 3 Slovenia         Videoguard
  Info TV         FTA
  Carli TV         FTA
  Golica TV         FTA
  Sport Klub Slovenija         Videoguard
  BBC Prime         Videoguard
  TV Slovenija 1         Videoguard
  TV Slovenija 2         Videoguard

10 911 -V- tp 120

Sony Pictures TV

27 500 3/4 EB16 Wide 60-140+ cm DVB
  AXN Crime         PowerVu
  AXN Sci-Fi         PowerVu
  AXN Deutschland         Viaccess 2.6
  AXN Central Europe         PowerVu
  AXN Polska         PowerVu
  AXN Romania         PowerVu
  Animax Deutschland         PowerVu
  AXN Adria         Videoguard
  SET Africa         Viaccess 2.6
  AXN Bulgaria         PowerVu
  AXN Sci-Fi Polska         PowerVu
  AXN Crime Polska         PowerVu
  Animax South Africa         PowerVu

10 930 -H- tp 121

Total TV Serbia

27 500 3/4 EB16 Wide 60-140+ cm
  ESPN America         Videoguard
  Disney Channel Middle east         Videoguard
  Bundesliga 2 Eurosport         Videoguard
  MGM Channel         Videoguard
  Palma TV plus         Videoguard
  Arena Sport 1         Videoguard
  Arena Sport 2         Videoguard
  Arena Sport 3         Videoguard
  TV Spectrum         FTA

10 957 -H- tp B1

Alsat RTV

2 821 2/3 W2 Wide 60-140+ cm FTA

10 972 -V-tp B2

Total TV Serbia 27 500 3/4 W2 Wide 60-140+ cm DVB
  Viasat History         Videoguard
  Viasat Explorer         Videoguard/Cryptoworks
  TV 1000         Videoguard/Cryptoworks
  Free-X TV 2         Videoguard/Cryptoworks
  X-Dream TV         Videoguard/Cryptoworks
  Free-X TV         Videoguard/Cryptoworks
  MTV Adria         Videoguard
  Cinemax Adria         Videoguard
  Eurosport / Test Service         Videoguard
  Motors TV         Videoguard
  Hallmark         Videoguard
  Televizija S         Videoguard
  Sci-Fi Channel         Videoguard

10 975 -H- tp B1

DigitAlb HDTV

22 500 4/5 W2 Wide 60-140+ cm DVB-S2/MPEG-4/HD
  DigitAlb HD-1         MPEG-4/HD/Conax
  DigitAlb HD-2         MPEG-4/HD/Conax
  DigitAlb HD-3         MPEG-4/HD/Conax
  DigitAlb HD-3 / Nationa Geo HD         MPEG-4/HD/Conax


10 995 -H- tp B1


feeds W2 B1 S6-01

4 444
5 000
 3/4 W2 Wide 80-180+ cm DVB-S / DVB-S2 /FTA/Biss

11 001 -H- tp B1


feeds mediaset / ITA 547-Ex 39-

5 000 3/4 W2 Wide 80-180+ cm DVB-S / DVB-S2 /FTA/Biss


11 007 -H- tp B1


feeds mediaset / ITA 547-Ex 39-

5 000 3/4 W2 Wide 80-180+ cm DVB-S / DVB-S2 /FTA/Biss

11 014 -V-tp B2

ITV Partner Bulgaria 27 500 3/4 W2 Wide 60-140+ cm DVB
  Eurosport         Videoguard/Cryptoworks
  Hustler TV XXX         Videoguard/Cryptoworks
  Fishing & Hunting         Videoguard/Cryptoworks
  Animal Planet Europe         Videoguard/Cryptoworks
  BNT Sat         FTA
  Ring TV         Videoguard/Cryptoworks
  National Geographic Ch. Bulgaria         Videoguard/Cryptoworks
  Diema 2         Videoguard/Cryptoworks
  Discovery Channel Europe         Videoguard/Cryptoworks
  TV 7         Videoguard/Cryptoworks
  Fiesta TV         Videoguard/Cryptoworks
  VTV         FTA
  Evrofutbol         FTA
  Diema Family         Videoguard/Cryptoworks
  Diema         Videoguard/Cryptoworks
  Pro         Videoguard/Cryptoworks
  HBO Bulgaria         Videoguard/Cryptoworks
  Cinemax Central Europe         Videoguard/Cryptoworks

11 046 -H- tp B3

NTV Romania

10 555 3/4 W2 Wide 60-140+ cm DVB
  National TV         CodiCrypt
  National 24         FTA
  Favorit TV         FTA

11 055 -V-tp B4

DigitAlb

27 900 2/3 W2 Wide 60-140+ cm DVB
  Top Channel         Conax
  Top News         Conax
  My Music         Conax
  Bang Bang         Conax
  Cufo TV         Conax
  Junior TV         Conax
  Explorer 1         Conax
  Explorer 2         Conax
  Explorer 3         Conax
  Digi+         Conax
  Digi Film Autor         Conax

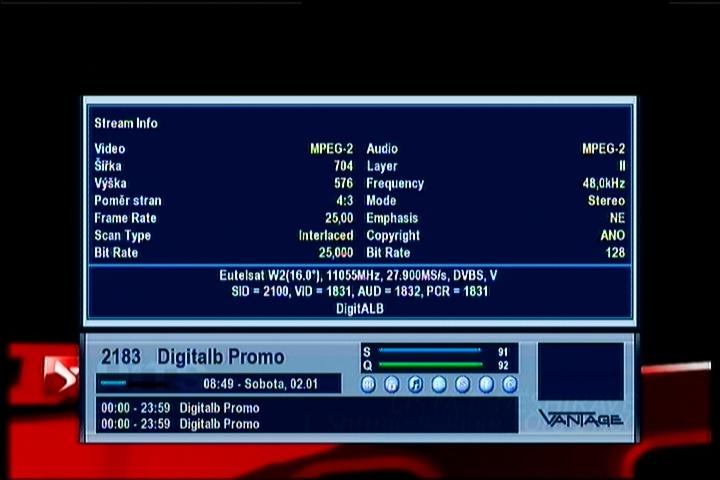

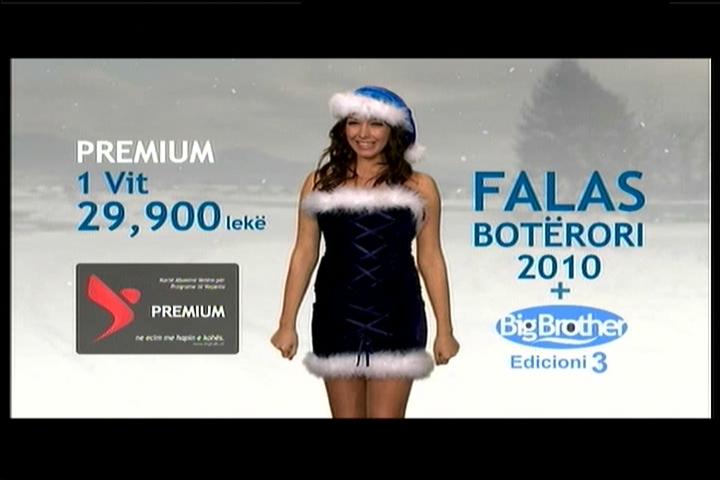

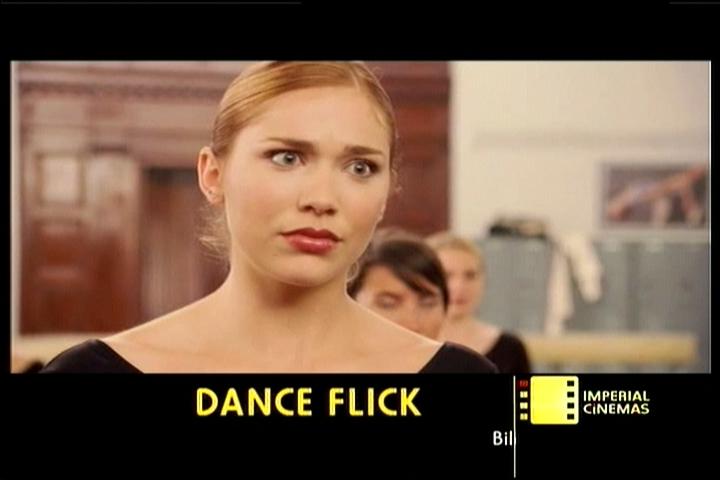

  Digi promo     watch video         FTA

11 061 -H- tp B3

Elpitel

5 721 5/6 W2 Wide 60-140+ cm DVB
  Nat Geo Music         FTA
  Europa 7 / Test Voxon         FTA

11 094 -V-tp B4

DigitAlb 27 900 2/3 W2 Wide 60-140+ cm DVB
  Digi Film Hits         Conax
  Digi Film Thriller         Conax
  Digi Film Drame         Conax
  Digi Film Aksion         Conax
  Digi Film Komedi         Conax
  X1         Conax
  X2         Conax
  service 1         Conax
  T         Conax

11 095 -H-tp B3

Total TV Serbia 27 300 3/4 W2 Wide 60-140+ cm DVB
  Kopernikus TV         FTA
  Metropolis TV         Videoguard
  E! Emea         Videoguard
  Minimax/Film+         Videoguard
  B92 Info         Videoguard
  History Channel         Videoguard
  Zone Romantica         Videoguard
  Zone Reality         Videoguard
  Discovery Investigation Europe         Videoguard
  Sport Klub HR         Videoguard
  Alfa TV         Videoguard
  Fishing & Hunting         Videoguard

11 132 -V- tp B6

Antena network 14 815 3/4 W2 Wide 60-140+ cm DVB
  Antena 1         PowerVu
  Antena 2         FTA

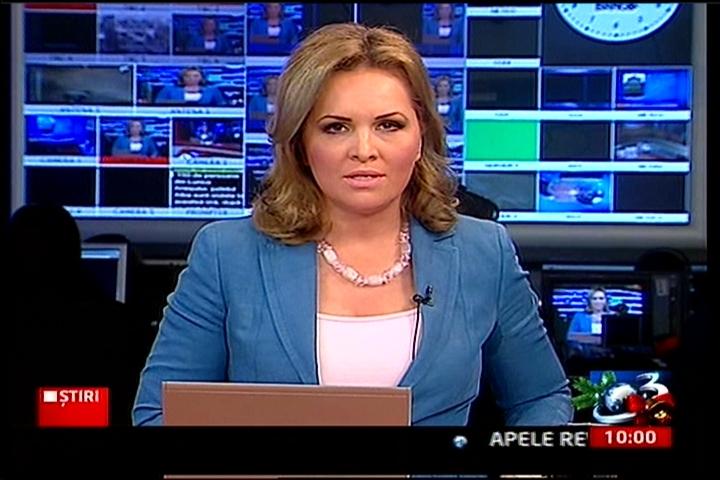

  Antena 3     watch video         FTA
  Euforia Lifestile         FTA
  Antena Int.         FTA

11 138 -H-tp B5

ITV Partner Bulgaria 27 700 3/4 W2 Wide 60-140+ cm DVB
  BNT 1         Conax/Cryptoworks
  Balkanika music ch.         FTA
  NBT         Conax/Cryptoworks/Videoguard
  BBT         Conax/Cryptoworks/Videoguard
  Nova TV         Conax/Cryptoworks/Videoguard
  Evrokom NCTV         Conax/Cryptoworks
  BTV Cinema
  Fox Crime BG         Conax/Cryptoworks
  Fox Crime         Conax/Cryptoworks
  FAN TV         FTA
  bTV         Conax/Cryptoworks
  Evropa TV         FTA
  TV Europa         Conax/Cryptoworks
  Fox Life         Conax/Cryptoworks
  Fox Life Regional         Conax/Cryptoworks
  Subtitles         Conax/Cryptoworks

11 148 -V- tp B6

ITV Partner 8 900 3/4 W2 Wide 60-140+ cm DVB
  SC Folk         FTA
  TV Guide Bulgaria         FTA
  MMTV         ?

11 166 -H- tp B6

RRSat Global Network 11 850 5/6 W2 Wide 60-140+ cm DVB
  God Europe         FTA
  Foot School W2         Irdeto 2/Viaccess 2.6

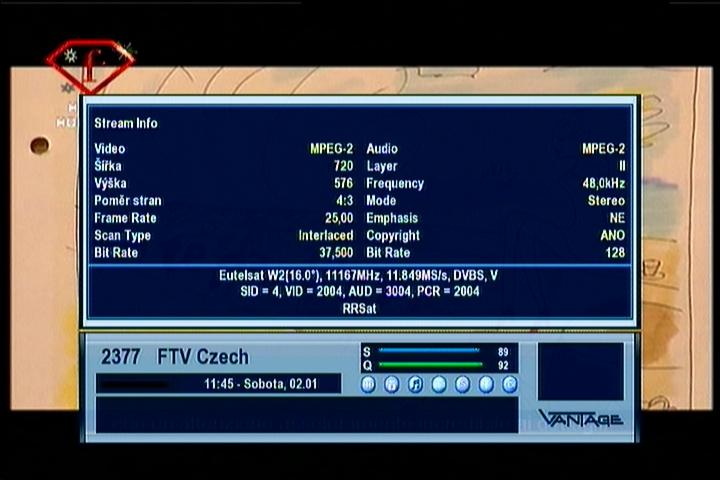

  FTV Fashion TV Czech   watch video         FTA
  Karaoke Channel         Irdeto 2
  Telemedia 11         DVB FTA
  God TV UK         MPEG-4/FTA
  Apostolic Oneness         FTA

11 178 -V-tp B6

Total TV Serbia 27 500 3/4 W2 Wide 60-140+ cm DVB
  Pink Plus         Irdeto 2/Videoguard/Crw
  Pink Extra         Irdeto 2/Videoguard
  Pink BH         Irdeto 2/Videoguard
  Pink M         Irdeto 2/Videoguard
  Pink         Irdeto 2/Videoguard
  Pink Acion         Irdeto 2/Videoguard
  Pink Movies         Irdeto 2/Videoguard
  Pink Film         Irdeto 2/Videoguard
  Pink Music         Irdeto 2/Videoguard/Crw
  Pink Kids         Irdeto 2/Videoguard
  Pink Family         Irdeto 2/Videoguard
  Fashion TV Europe         FTA

11 192 -H- tp B5

Kurdistan TV/T0028-C008

2 667 3/4 W2 Wide 60-140+ cm DVB FTA

11 283 -H-tp C4

Tring TV  Albania 27 500 5/6 W2 Wide 60-140+ cm DVB
  Vizion plus         DVB FTA
  tring super         Conax
  tring max         Conax
  tring life         Conax
  tring comedy         Conax
  tring sport News         Conax
  tring serial         Conax
  tring world         Conax
  tring shqip         Conax
  tring planet         Conax
  tring tring         Conax
  Disney Channnel         Conax
  NTV         Conax
  Scan TV         Conax
  RTV 21         Conax
  KTV         Conax
  Folk+         FTA
  Club TV         Conax
  VH-1         Conax
  E!         Conax
  X-Rated         Conax

11 304 -V-tp C5

Arquiva 30 000 3/4 W2 Wide 60-140+ cm DVB
  Premium Digital         Cryptoworks/Videoguard
  Folklor TV         FTA
  Planeta TV         Cryptoworks
  Hallmark Channel Bulgaria         Cryptoworks/Videoguard
  AXN Bulgaria         Cryptoworks/Videoguard
  Kanal Sofija TV         FTA
  Ikonomika TV / EBF         FTA
  Viasat History         Cryptoworks/Videoguard
  BTV Comedy         Cryptoworks
  BTV1         PowerVu
  RBS         PowerVu
  NW         PowerVu
  BTV2         PowerVu

11 324 -H-tp C6

Sony Pictures TV 27 500 3/4 W2 Wide 60-140+ cm DVB
  AXN Crime         PowerVu
  AXN Sci-Fi         PowerVu
  AXN DE         Viaccess 2.6
  AXN CE         PowerVu
  AXN Polska         PowerVu
  AXN Romania         PowerVu
  Animax Deutschland         PowerVu
  SET Africa         Viaccess 2.6
  AXN Bulgaria         PowerVu
  AXN Sci-Fi Polska         PowerVu
  AXN Crime Polska         PowerVu
  Animax Africa         PowerVu

11 428 -V-tp C11

Total TV Serbia 30 000 5/6 W2 Wide 60-140+ cm DVB
  Golf Klub         Videoguard
  Cinemax 2 CE         Cryptoworks/Videoguard
  Pink Folk         Cryptoworks/Videoguard
  Spectrum         FTA
  Avala TV         Videoguard
  Fox TV Serbija         Videoguard
  HBO Comedy         Cryptoworks/Videoguard
  MTS         Videoguard
  Sport Klub+         Videoguard
  Discovery Travel         Cryptoworks/Videoguard
  OBN         Videoguard
  RTRS         Videoguard
  ATV         Videoguard
  FTV         Videoguard
  Discovery Channel T & L         Videoguard

11 449 -H-tp C12

DigitAlb 27 500 7/8 W2 Wide 60-140+ cm DVB
  SuperSport 1         Conax
  SuperSport 2         Conax
  SuperSport 3         Conax
  SuperSport 4         Conax
  SuperSport 5         Conax
  Klan TV         Conax
  News 24         Conax
  Digi Gold         Conax
  musicAL         Conax
  Koha TV         Conax
  TVSH Tokesor         Conax
  Ora News         Conax
  KTV         Conax
  RTV 21         Conax

11 471 -V- tp D1

TV Romania 29 950 3/4 W2 Wide 60-140+ cm DVB
  TVR 1         Viaccess 2.5/2.6
  TVR 2         Viaccess 2.5/2.6
  TVR 3         FTA
  TVR Cultural         FTA
  TVR Info         FTA
  TVR 2 Internacional         FTA
  SRTV feed / test card         FTA

11 513 -V- tp D3

TV Romania

29 950 3/4 W2 Wide 60-140+ cm DVB
  TVR Cluj         FTA
  TVR Crainova    watch video         FTA
  TVR Iasi         FTA
  TVR Timisoara         FTA
  TVR TG Mures         FTA
  TVR HD         MPEG-4/HD/Viaccess 2.6

 11 554 -V-tp D9

Total TV Serbia 30 000 7/8 W2 Wide 60-140+ cm DVB
  Ultra TV         Videoguard
  B92 TV         Videoguard
  Studio B         Videoguard
  SOS         Videoguard
  Cinemania         Videoguard
  DoQ         Videoguard
  Enter         Videoguard
  Sport Klub         Videoguard
  Film+         Videoguard
  Happy / Kosava         Videoguard/Irdeto 2
  RTS 1         Videoguard
  RTS 2         Videoguard
  Disney XD Turkiye         Videoguard
  Kanal D Serbia         Videoguard

11 682 -V-tp D9

Five 14 468 3/4 W2 Wide 60-140+ cm DVB
  Region 4B Ch5         PowerVu
  Region 5B Ch5         PowerVu
  Region 2B Ch5         PowerVu
  Region 3B Ch5         PowerVu

12 507 -V- tp F2

West TV

2 532 3/4 W2 Wide 60-140+ cm DVB FTA

12 509 -H- tp F1

feeds ENEX-352 ...

5 632 3/4 W2 Wide 80-180+ cm FTA/Biss/4:2:2

12 513 -V- tp F2


Melos TV
2 156 2/3 W2 Wide 60-140+ cm DVB FTA

12 517 -H- tp F1

feeds ENEX-352 ...

5 632 3/4 W2 Wide 80-180+ cm FTA/Biss/4:2:2

12 520 -V- tp F2

Top Music Channel    watch video

2 156 2/3 W2 Wide 60-140+ cm DVB FTA

12 524 -H- tp F1

feeds ENEX-352 ...

5 632 3/4 W2 Wide 80-180+ cm FTA/Biss/4:2:2

12 532 -H- tp F1

feeds ENEX-352 ...

5 632 3/4 W2 Wide 80-180+ cm FTA/Biss/4:2:2

12 539 -H- tp F1

feeds ENEX-352 ...

5 632 3/4 W2 Wide 80-180+ cm FTA/Biss/4:2:2

12 547 -H- tp F1

feeds ENEX-352 ...

5 632 3/4 W2 Wide 80-180+ cm FTA/Biss/4:2:2

12 555 -H- tp F1

feeds ENEX-352 ...

5 632 3/4 W2 Wide 80-180+ cm FTA/Biss/4:2:2

12 557 -V- tp F2

DM Sat

2 156 2/3 W2 Wide 60-140+ cm DVB FTA

12 565 -V- tp F2

MTI Tina Ivanovic

2 157 7/8 W2 Wide 60-140+ cm DVB FTA

12 568 -H-tp F1

SIC International    watch video 3 703 7/8 W2 Wide 60-120+ cm DVB FTA

12 600 -V- tp F4

unknown 6 771 1/2 W2 Wide 60-140+ cm DVB
  RTV Monte Negro / RTCG/         FTA
  Atlas TV         FTA

12 626 -V- tp F4

unknown 4 520 3/4 W2 Wide 60-140+ cm DVB
  Rete Capri         FTA
  Radio Capri TV         FTA
  Capri Store         FTA

12 633 -V- tp F4

RTK-SAT

4 883 1/2 W2 Wide 60-140+ cm DVB FTA


12 640 -V- tp F4

Hayat TV

6 510  2/3 W2 Wide 60-140+ cm DVB
  Hayat TV Sat         Viaccess 2.5
  Hayat TV BIH         Viaccess 2.5

12 648 -V-tp F4

BHT 1 5 200 1/2 W2 Wide 60-120+ cm Viaccess 2.5

12 650 -H-tp F3

Unire 15 000 2/3 W2 Wide 60-140+ cm DVB
  UNIRE 1-Grigio         PowerVu
  UNIRE 2-Verde         PowerVu
  CH3 - Canale Test         PowerVu
  CH4 - SNAI TV         PowerVu
  CH5 - U Grigio         PowerVu
  CH7 - Sportive         PowerVu
  CH20 - U Verde         PowerVu
  44 SNAI TV promo         PowerVu
  CH10 - Unire B         PowerVu

12 656 -V- tp F4

TVSH-SAT 4 883 1/2 W2 Wide 60-140+ cm DVB FTA

12 683 -H- tp F5

Tunisie 7 2 894 3/4 W2 Wide 60-140+ cm DVB FTA

12 703 -H- tp F5

TVM-1 2 748 3/4 W2 Wide 60-140+ cm DVB FTA

12 720 -H- tp F5

TDB Service 9 000 3/4 W2 Wide 60-140+ cm DVB
  CTC Moldova         FTA
  Test TV         FTA
  Bravo TV         Codicrypt

12 726 -V- tp F6

STN 30 000 3/4 W2 Wide 60-140+ cm DVB
  Ekids
  Duga TV         FTA
  Svet Plus         FTA
  TV 1         FTA
  Astro TV         FTA
  ART Channel         FTA
  MKTV Sat         FTA
  Best of Macedonia         FTA
  K15 Music         FTA
  Alfa         Irdeto 2/Videoguard
  Sitel         Irdeto 2/Videoguard
  Sitel 3         Irdeto 2/Videoguard
  AB kanal         Irdeto 2/Videoguard
  K15 TV         FTA
  OTV Valantino         FTA
  JRT Plus         FTA
  YU Planet BEC         FTA
  Canal Motor         FTA

12 727 -H- tp F5

PROVSE.NET.UA 3 333 3/4 W2 Wide 60-140+ cm DVB FTA

12 733 -H- tp F5

BN 5 697 2/3 W2 Wide 60-140+ cm DVB
  BN Sat Evropa         FTA
  BN Music         FTA

Eutelsat W2 & Eurobird 16 at 16.0°E: relative quality

relative Q  01relative Q  03relative Q  04

Eutelsat W2 & Eurobird 16 at 16.0°E: Video presentation

          go to video section
   watch video

Eutelsat W2 & Eurobird 16 at 16.0°E footprint : Wide / Steerable

                                        eurobird 16 footprint                                        eurobird 16 footprint
                                                    wide                                                               steerable
                          Eurobird 16 at 16.0 e _ wide footprint_        Eurobird 16 at 16.0 e _ steerable footprint_

                                         eutelsat w2 footprint                                         eutelsat w2 footprint
                                                     wide                                                                steerable
                          Eutelsat W2 at 16.0 e _ wide footprint_         Eutelsat W2 at 16.0 e _ steerable footprint_

Eutelsat W2 & Eurobird 16 at 16.0°E : snapshots

DigitAlb promo  01Antena 3  04Antena 3  06
DigitAlb promo  02Tunis 7  08Antena 2  05
