Express AM1 at 40,0°E

Express AM1 at 40,0°E : Technical data

Express AM1 at 40.0°E _ first snapshot

               satellite : Express AM1 - orbit : 40.0°E - TP : 9 C/18 KU - lifetime : from 1.2.2005 - 12 years



Update-Express AM1 at 40,0°E-Wide & European bem: reception quality on spectral segment 10 950-11 750 MHz



                              Express AM1 at 40,0°E - Wide Europe : 10 967 V MPEG-4 Packet RSCC Russia
                       V/A pids                                                    Q data                                                    NIT data

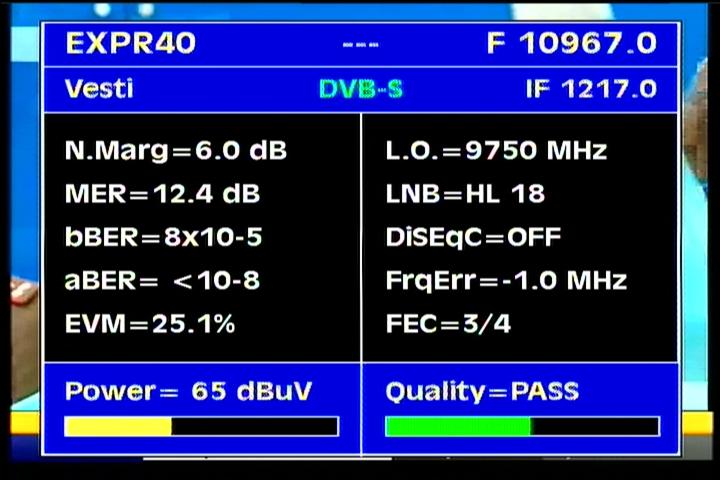

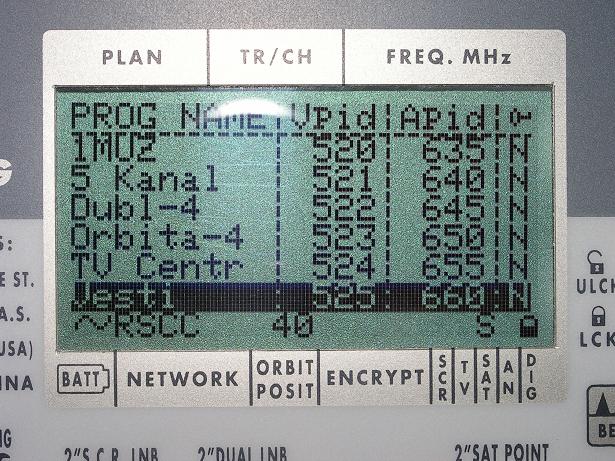

Express AM1 at 40.0°E _ 10 967 V RSCC Network _ VA pids dataExpress AM1 at 40.0°E _ 10 967 V RSCC Network _ Q dataExpress AM1 at 40.0°E _ 10 967 V RSCC Network _ NIT data

                             Express AM1 at 40,0°E - Wide Europe : 10 995 V MPEG-4 Packet RSCC Russia
                       V/A pids                                                    Q data                                                    NIT data
Express AM1 at 40.0°E _ 10 995 V MPEG 4 RSCC Network _ VA pids dataExpress AM1 at 40.0°E _ 10 995 V MPEG 4 RSCC Network _ Q dataExpress AM1 at 40.0°E _ 10 995 V MPEG 4 RSCC Network _ NIT data

                        Express AM1 at 40,0°E - Wide Europe : 11 097 H Unnamed russian MPEG-2 network
                       V/A pids                                                    Q data                                                    NIT data

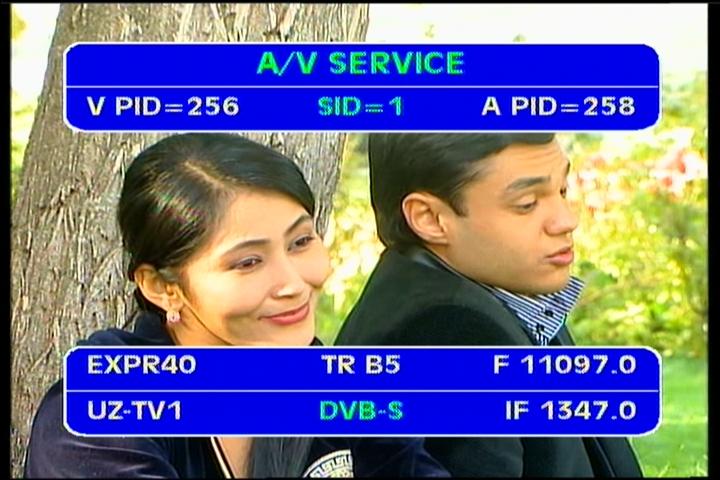

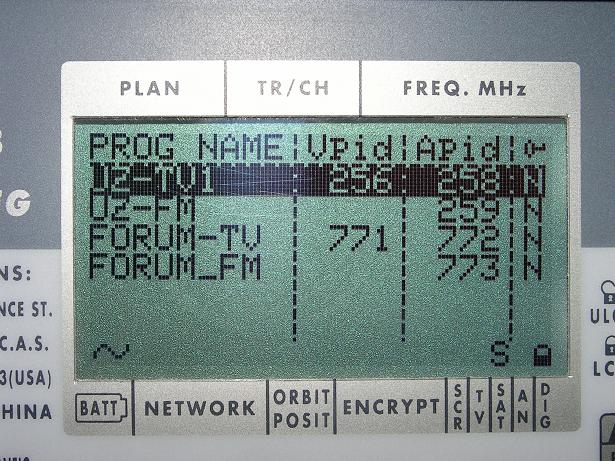

Express AM1 at 40.0°E _ 11 097 H UZ TV _ VA pids dataExpress AM1 at 40.0°E _ 11 097 H UZ TV _ Q dataExpress AM1 at 40.0°E _ 11 097 H UZ TV _ NIT data

                                   Express AM1 at 40,0°E - Wide Europe : 11 159 V Space TV Azerbaijan
                       V/A pids                                                    Q data                                                    NIT data
Express AM1 at 40.0°E _ 11 159 V Space TV _ VA pids dataExpress AM1 at 40.0°E _ 11 159 V Space TV _ Q dataExpress AM1 at 40.0°E _ 11 159 V Space TV _ NIT data

                                                 Express AM1 at 40,0°E - Europe : 11 600 V MTV Russia
                       V/A pids                                                    Q data                                                    NIT data
Express AM1 at 40.0°E _ 11 600 V MTV Russia _ VA pids dataExpress AM1 at 40.0°E _ 11 600 V MTV Russia _ Q dataExpress AM1 at 40.0°E _ 11 600 V MTV Russia _ NIT data

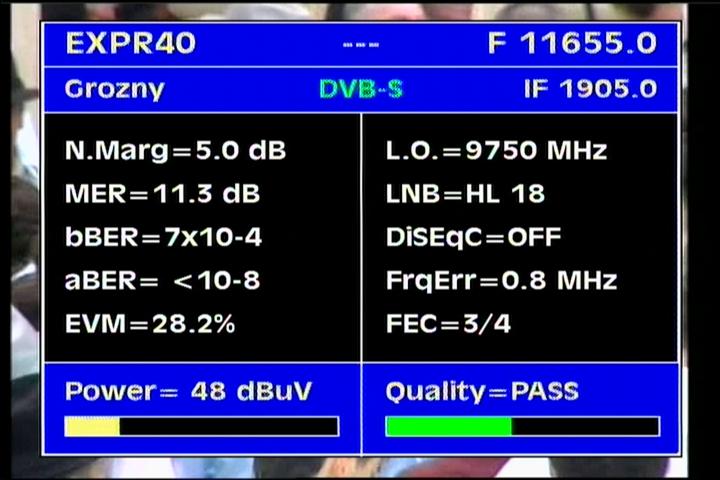

                                           Express AM1 at 40,0°E - Wide Europe : 11 655 H GTRK Grozny
                       V/A pids                                                    Q data                                                    NIT data
Express AM1 at 40.0°E _ 11 655 H GTRK Grozny _ VA pids dataExpress AM1 at 40.0°E _ 11 655 H GTRK Grozny _ Q dataExpress AM1 at 40.0°E _ 11 655 H GTRK Grozny _ NIT data

                                     Express AM1 at 40,0°E - Europe : 11 675 H IVG Default network
                       V/A pids                                                    Q data                                                    NIT data

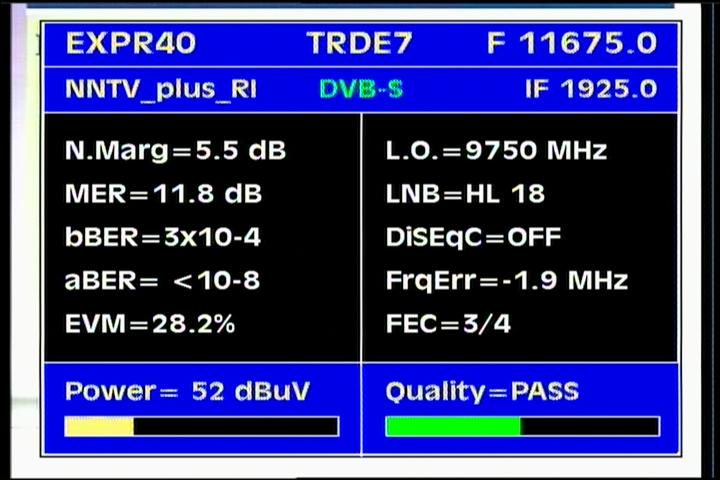

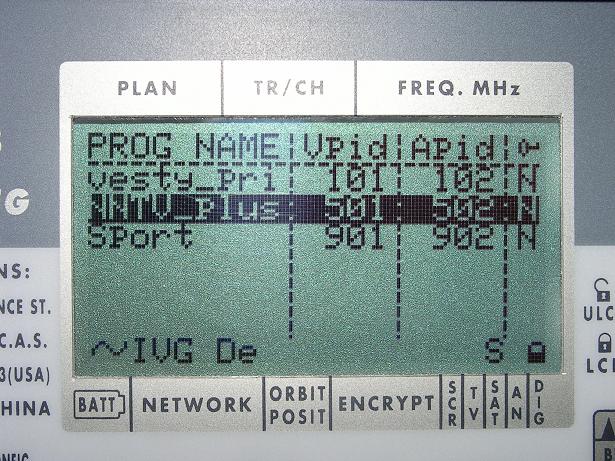

Express AM1 at 40.0°E _ 11 675 H NNTV _ VA pids dataExpress AM1 at 40.0°E _ 11 675 H NNTV _ Q dataExpress AM1 at 40.0°E _ 11 675 H NNTV _ NIT data


Express AM1 at 40,0°E : TV List

 Express AM1 at 40.0°E _ PF Prodelin 3.7m


-Frequency-


----------Provider/Channel----------

---SR--- ---FEC--- ---Beam--- ---Antenna--- ---DVB/Encryption---

10 967 -V- tp B2

RSCC

 20 000 3/4 Wide Europe 120-180+ cm DVB/MPEG-4
  Dom Kino         MPEG-4/FTA
  Vremya         MPEG-4/FTA
  Telenyanya         MPEG-4/FTA
  1Muz         MPEG-4/FTA
  5 Kanal         MPEG-4/FTA
  Dubl-4         MPEG-4/FTA
  Orbita 4         MPEG-4/FTA
  TV Centr Ural         MPEG-4/FTA
  Vesti         MPEG-4/FTA
  Telecafe         MPEG-4/FTA
  Mir         MPEG-4/FTA

10 996 -V- tp B2

RSCC

 20 000 3/4 Wide Europe 120-180+ cm DVB/MPEG-4
  1 Kanal         MPEG-4/FTA
  Telekanal Rossia         MPEG-4/FTA
  Kultura         MPEG-4/FTA
  STS         MPEG-4/FTA
  TNT         MPEG-4/FTA
  Muz TV         MPEG-4/FTA
  TNV         MPEG-4/FTA
  Home         MPEG-4/FTA
  TV Centr         MPEG-4/FTA
  RTR Sport         MPEG-4/FTA
  5 Kanal         MPEG-4/FTA

11 097 -H- tp B5

 unn. network 4 800 5/6 wide europe 80-140+ cm DVB
  UZ-TV1         FTA
  Forum-TV         FTA

11 104 -H- tp B5

Media Office

 2 893 3/4 wide europe 80-140+ cm unknown CA

11 159 -V- tp B8

 Space TV Azerbaijan 3 333 3/4 wide europe 80-140+ cm DVB

11 599 -V- tp DE6

MTV Russia+0

 4 340 3/4 wide europe 80-140+ cm DVB

11 653 -H- tp DE7

 GTRK Groznyj_Grozny 3 110 3/4 europe 80-140+ cm DVB

11 675 -H- tp DE7

 IVG Default 11 936 3/4 europe 80-140+ cm DVB
  Vesty_Privolghe/TLK Rossiya         Biss
  NNTV_plus         FTA
  TLK Sport         Biss

Express AM 1 at 40,0°E : percent Q

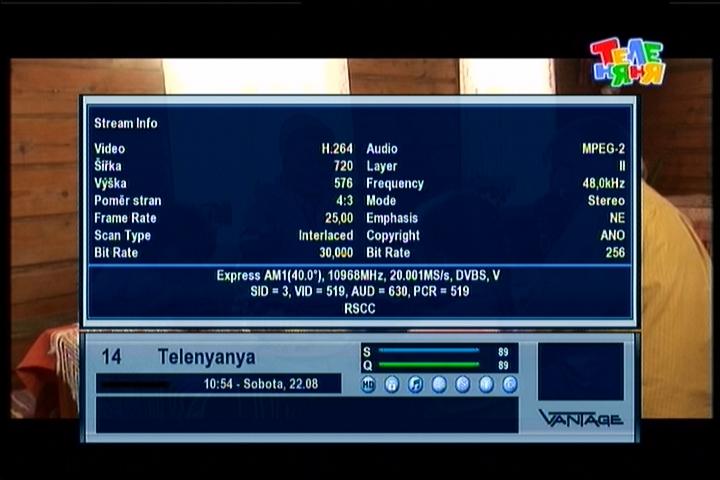

percent Q 01percent Q 02percent Q 03


Express AM 1 at 40,0°E : Video presentations

        Go to Video section :
   watch videos

Express AM 1 at 40,0°E : Update is from


                                logo

     CZECH & SLOVAK DX SATELLITE CLUB / http://dxsatcs.com/
     SATELLITE ENGINEERING C & KU band
     Roman Dávid - author http://dxsatcs.com/
     town : Lučenec , Slovak Republic,East Europe
     mail : roman.david@dxsatcs.com

Express AM 1 at 40,0°E : Europe/Wide Europe/India beam

Europe/Wide Europe/India beamExpress AM 1 at 40E Indian BeamExpress AM 1 at 40E Wide Europe Beam

Express AM1 at 40,0°E : TV Snapshots

Space Tv 03MTV Russia 07Vesti 05
MTV Russia 03Vesti 04Forum TV 08
