Express AM2/MD1 at 80.0°E : Technical data



                           Express AM2 - Orbit : 80°E - TP : 16C/12KU - Lifetime : from 16.6.2005 - 12 years



Update : Express MD1 at 80.0°E - C footprint : analysis of the spectrum & C band footprint


      Express MD1 at 80.0°E - C footprint : Express MD1 satellite measurements at the center Lučenec_central Slovakia
                                                 geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                            measurement results are derived from the 3.7 m diameter antenna
                                                                                 elevation angle  : 11°

                                        Express MD1 spectral analysis                          Express MD1 footprint
                                         TP5 / TP6 : 3 625 > 3 675 R                  Asia , part of the European continent


                                                                         - time of measurement : 27.12.2009 -
                                                                             - defining the status of income -

- consistently high levels of gain I measured in both packets RSCC, which allows them locked in the spectrum of the vector R
  from the antenna with a diameter D=140+ cm

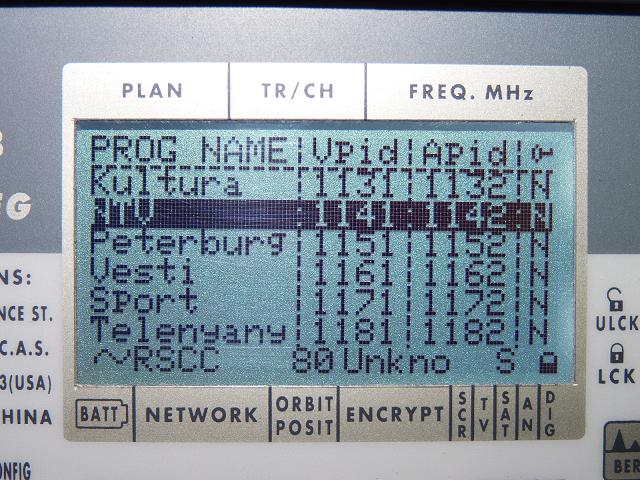

                                    Express MD1 at 80.0°E - MD1 C band footprint : 3 625 R RSCC Network
                          IF data                                                  Q data                                                     NIT data


                                    Express MD1 at 80.0°E - MD1 C band footprint : 3 675 R RSCC Network
                          IF data                                                  Q data                                                     NIT data

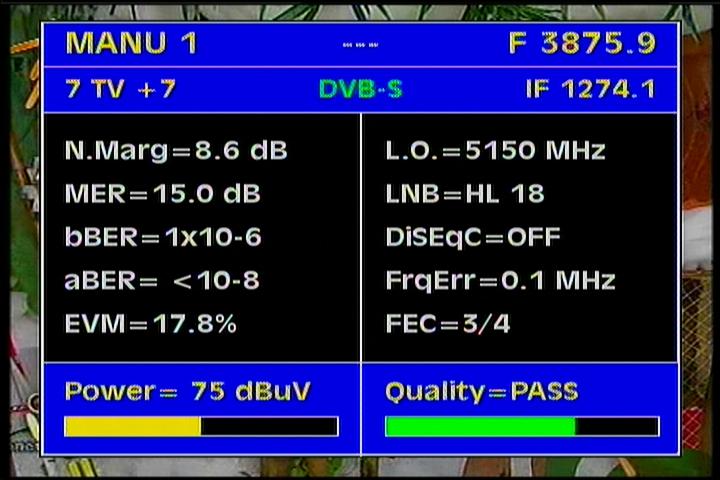

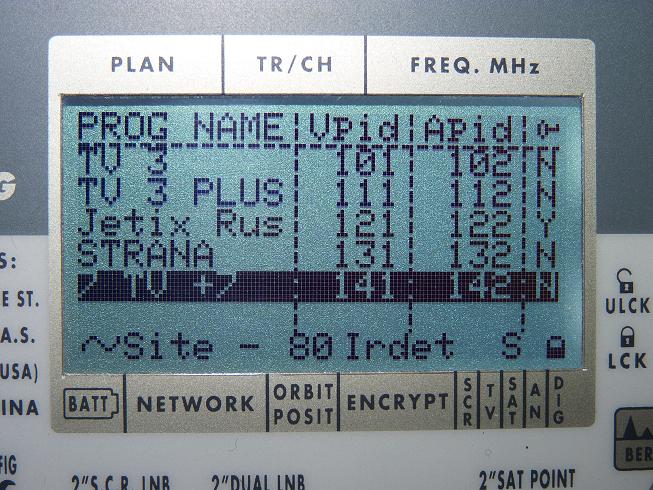

                                   Express MD1 at 80.0°E - MD1 C band footprint : 3 875 R Site-1 Network
                          IF data                                                  Q data                                                     NIT data

Express AM2/MD1 at 80.0°E : TV List

---Frequency---	----------Provider/Channel----------	--SR--	-FEC-	-Footprint-	-Antenna-	--Video/Encryption--
3 625 -R- tp 5	RSCC	33 483	7/8	MD1	150+ cm	DVB/MPEG-2+MPEG-4
	MTV Russia +0					FTA
	MTV Russia +2					FTA
	MTV Russia +7					MPEG-4/FTA
	1 Kanal    at the time of measurements > FTA					MPEG-4/Rosscrypt
	Rossia   at the time of measurements > FTA					MPEG-4/Biss
	Kultura					MPEG-4/FTA
	NTV					MPEG-4/FTA
	Peterburg 5 kanal					MPEG-4/FTA
	Vesti					MPEG-4/FTA
	Sport  at the time of measurements > FTA					MPEG-4/Biss
	Telenyanya  at the time of measurements > FTA					MPEG-4/Rosscrypt
3 675 -R- tp 6	RSCC	33 483	7/8	MD1	140+ cm	DVB
	Orbita-2R+Yunos_+6h					Rosscrypt
	Dubl-2+RRD2_+6h					Biss
	Orbita-1R+Mayak_+8h					Rosscrypt
	Dubl-1+RRD1_+8h					Biss
	Telekanal Kultura_+7h					FTA
	Data SMRG 103					data
3 876 -R- tp 10	Site-80 network	32 000	3/4	MD1	140+ cm	DVB
	TV 3  (+0h)					FTA
	TV 3 PLUS  (+2h)					FTA
	Strana					FTA
	7 TV  +7					FTA
	Jetix Russia					Irdeto 2

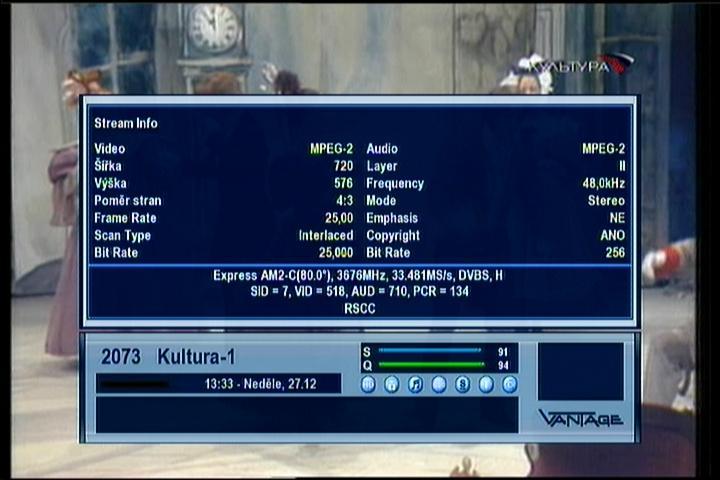

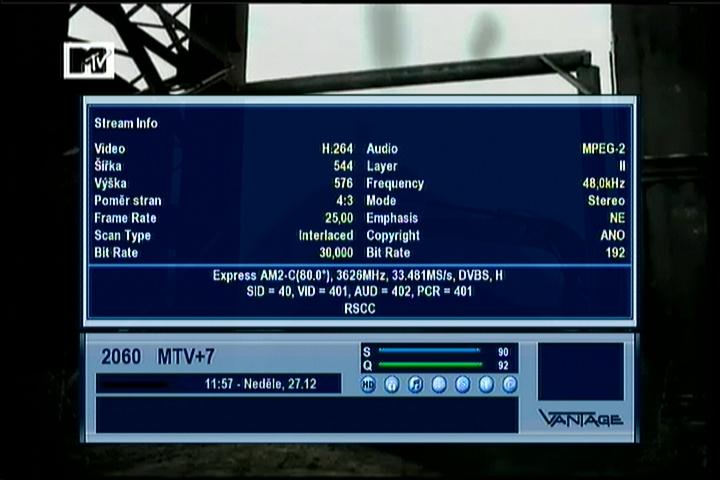

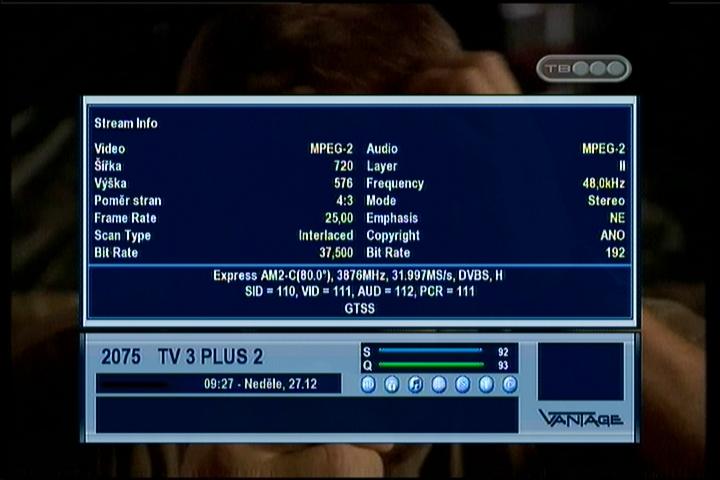

Express AM2/MD1 at 80.0°E : percent quality & stream infos

Express AM2/MD1 at 80.0°E : Video presentations

       Go to video section :         Go to video section :          Go to video section :

       Go to video section :


Express AM2/MD1 at 80.0°E : Update drawn up


               CZECH & SLOVAK DX SATELLITE CLUB
                    international professional portal
                    Roman Dávid - author & founder
                    mail : roman.david@dxsatcs.com

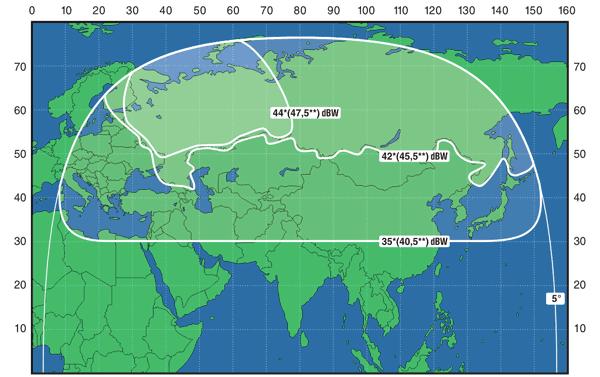

Express AM2/MD1 at 80.0°E footprint :  C

            Express MD1 footprint                                        Express MD1 footprint


          Express AM2 footprint                                          Express AM2 footprint


Express AM2/MD1 at 80.0°E : TV Snapshots
