Express AM22 at 53.0°E
Express AM22 at 53.0°E : Technical data

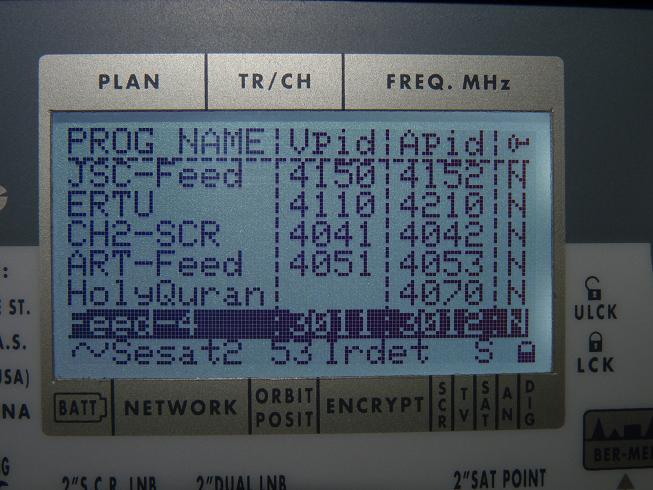

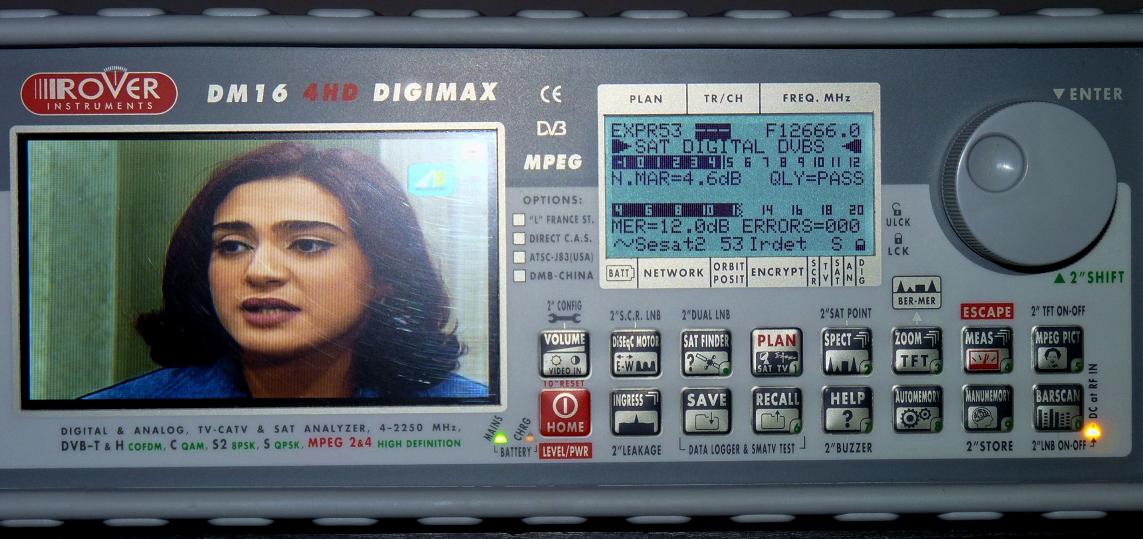

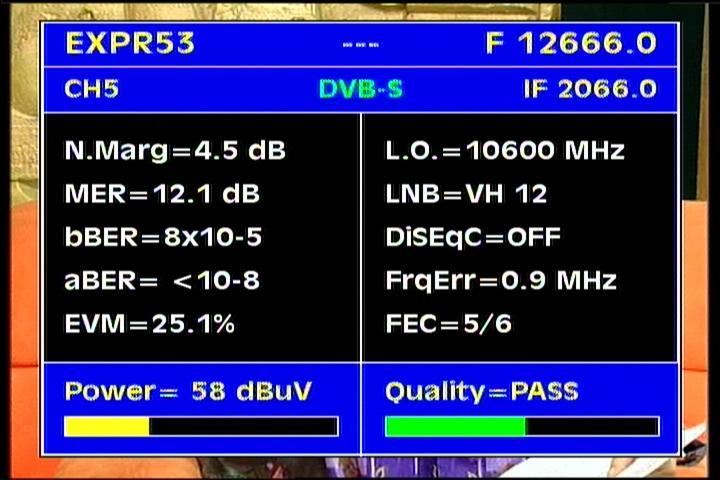

--- express am22 at 53.0°e-S1 beam : 12 666 V Nilesat netw. Egypt-quality peak MER=12.2 dB ---
click for enlarge
satellite : Express AM22 - orbit : 53.0°E - TP : 24/ KU - lifetime : from 9.3.2004 - 12 years
.

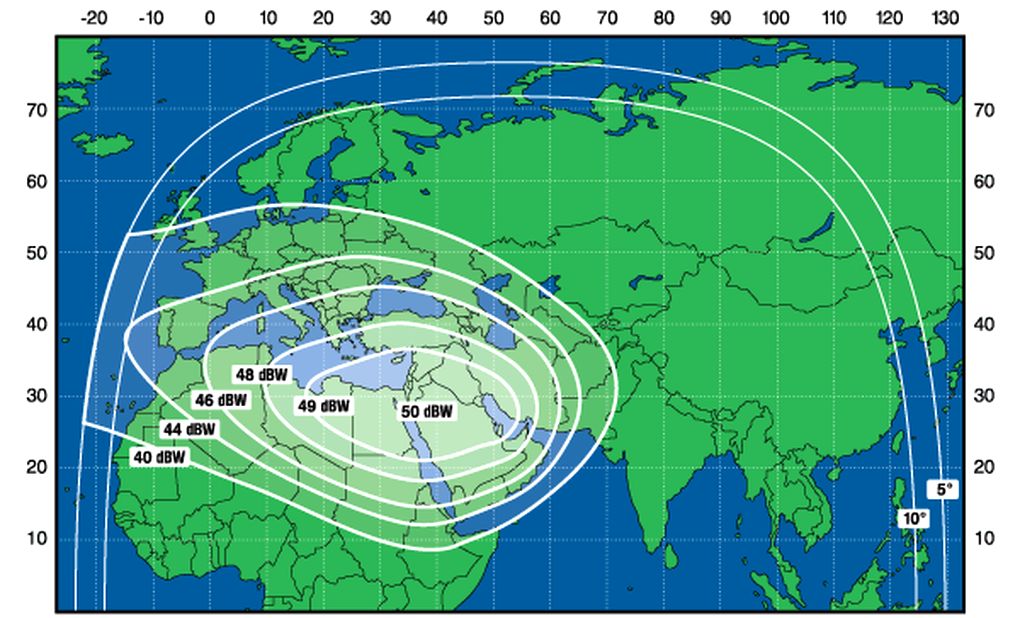

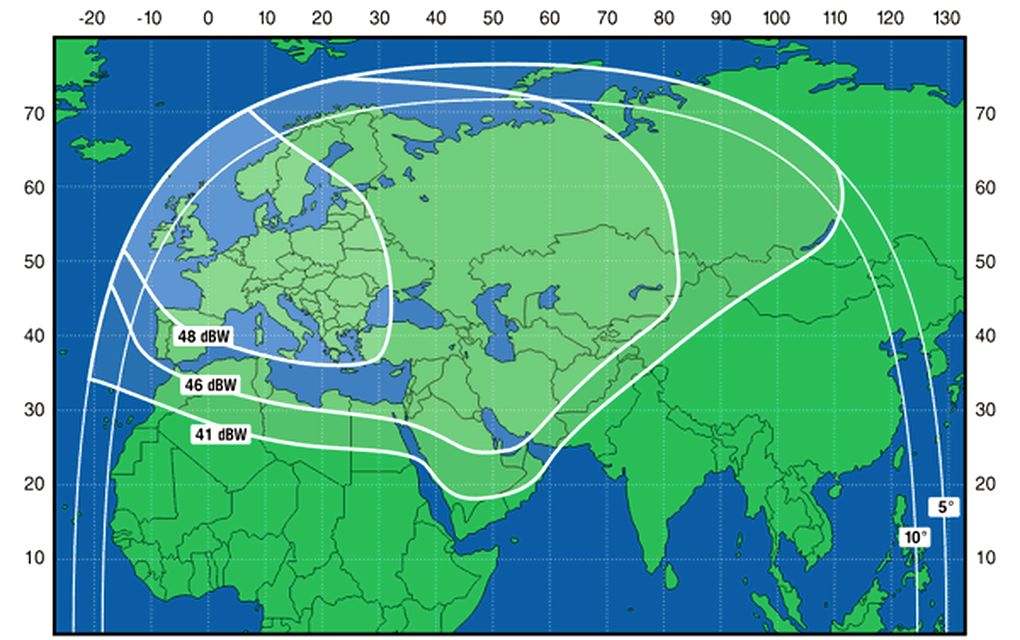

Express AM22 at 53.0°E - Wide Europe & S2 footprint : spectral analysis & measuring the quality
.
Express AM22 at 53.0°E - Wide Europe & S2 beam : measurements at the center Lučenec/central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
date of measurement : 7.11 2010
Elevation angle : 26°
High frequency unit research point

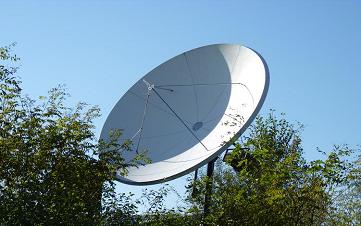

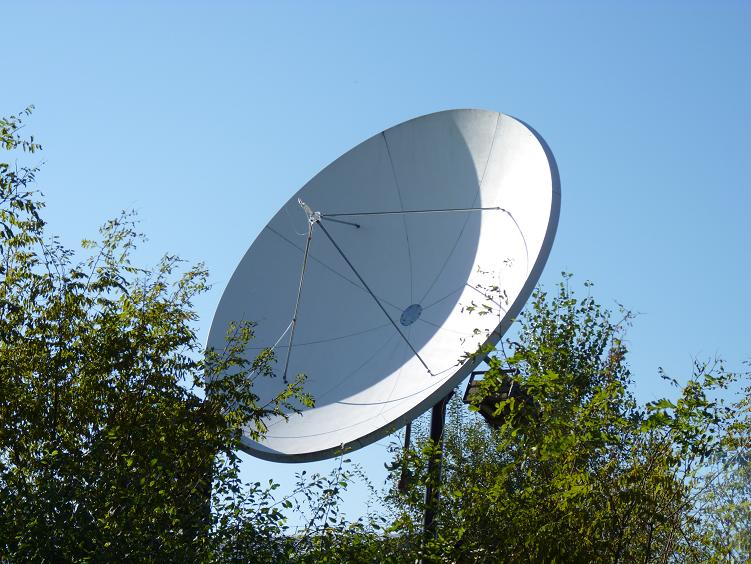

PF Prodelin 3.7 m all research and measurements
dxsatcs waveguide line+Norsat 4206 CF I carried out at this point
click for enlarge click for enlarge
--- express am22 : spectrum analysis and footprint Middle East-S2 and Wide Europe ---
Express AM22 beam : wide europe Express AM22 : spectral analysis
coverage area spectrum of vertical vector
Europe , Middle East , Asia,North Africa 11 044 V _ TP B4
Express AM22 beam : S2 Middle East Express AM22 : spectral analysis
coverage area spectrum of vertical vector
Europe , Middle East ,W. Asia , Africa 12 666 V _ TP A6
- time of measurement : 7.11. 2010 -
- defining the status of reception -
Wide Europe beam / 11 044 V : I reached a high level of gain margin in the range of 10 to 12 dB at negligibly small
channel BER on the order of E-06 / E-07 .

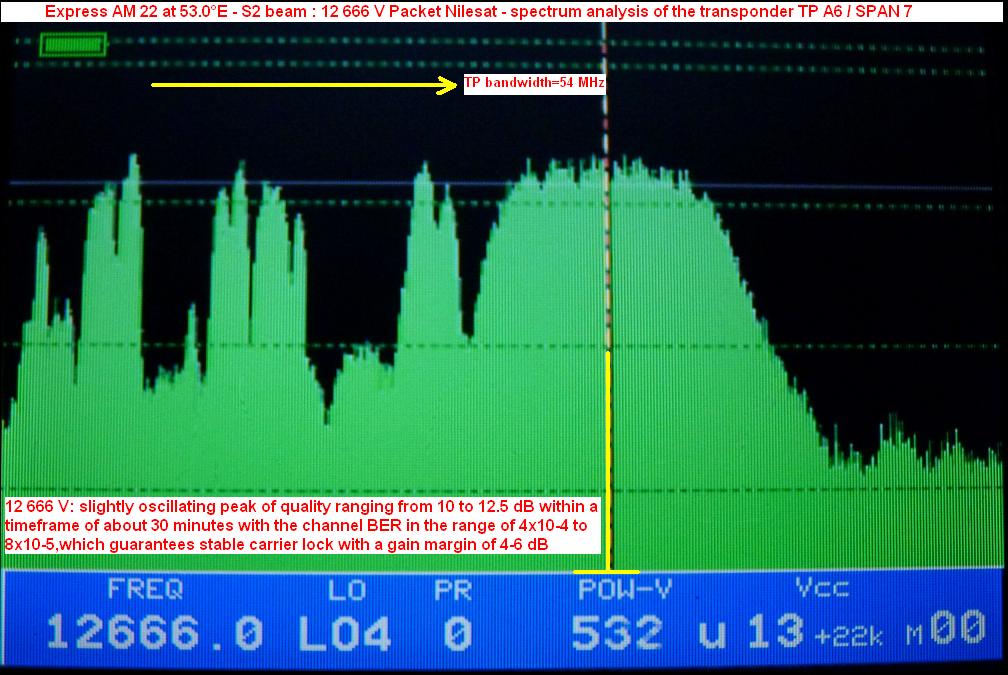

S2 Middle East beam / 12 666 V : slightly oscillating peak of quality ranging from 10 to 12.5 dB within a timeframe of
about 30 minutes with the channel BER in the range of 4x10-4 to 8x10-5,which guarantees stable carrier lock with a
gain margin of 4-6 dB .
--- express am22 : measurement results ---

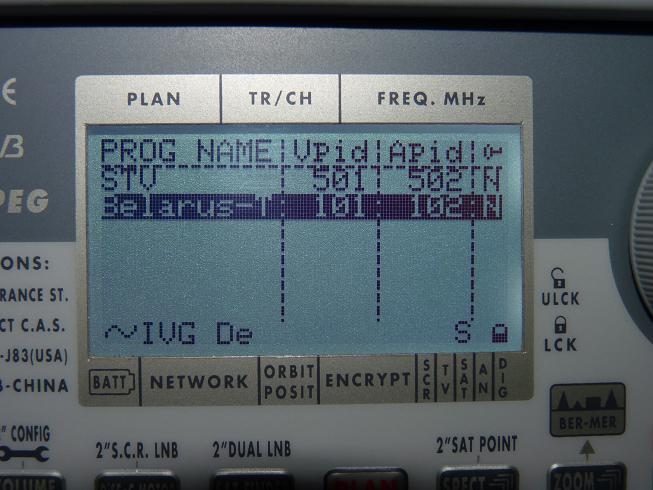

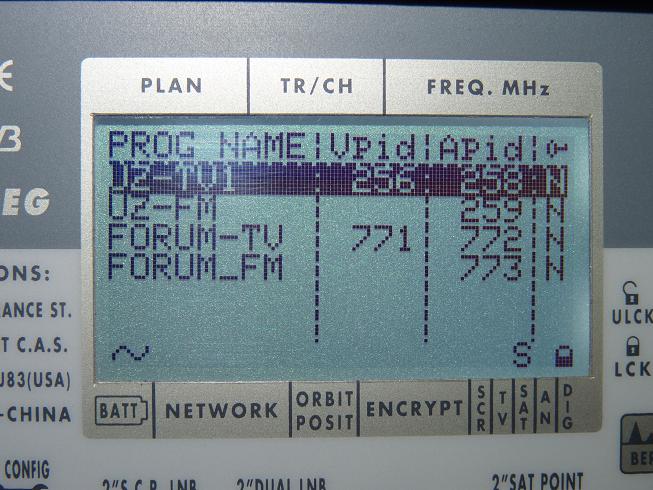

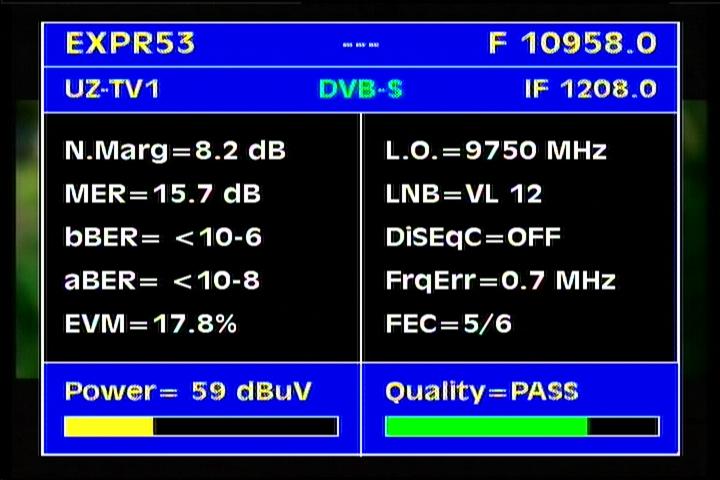

Express AM22 at 53.0°e - wide europe beam : 10 958 V Unn network
IF data Q data NIT data

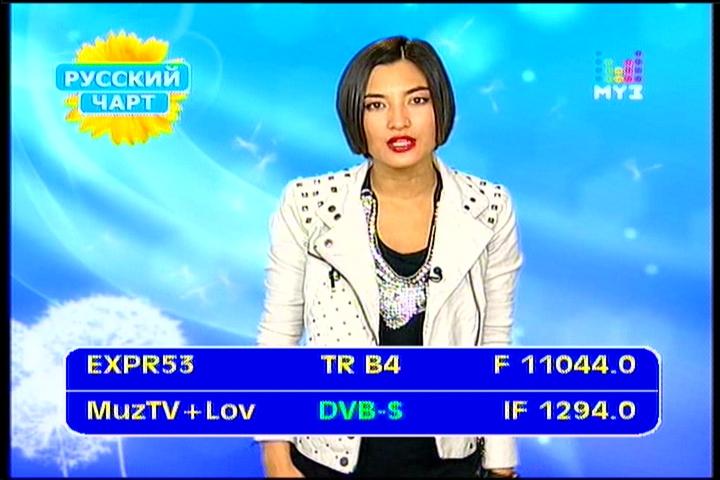

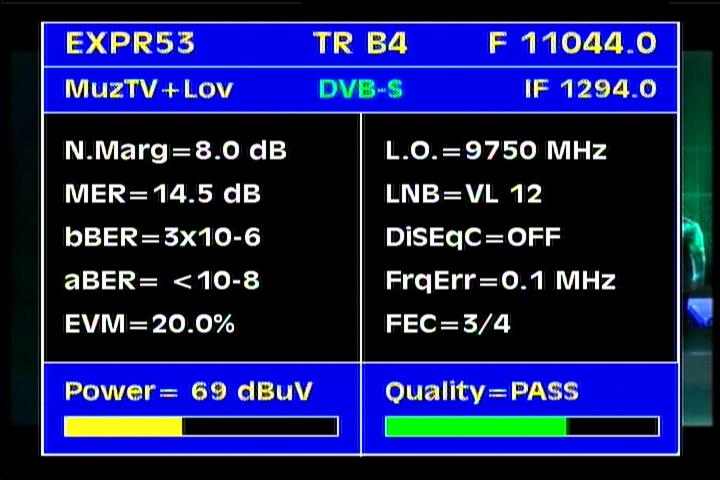

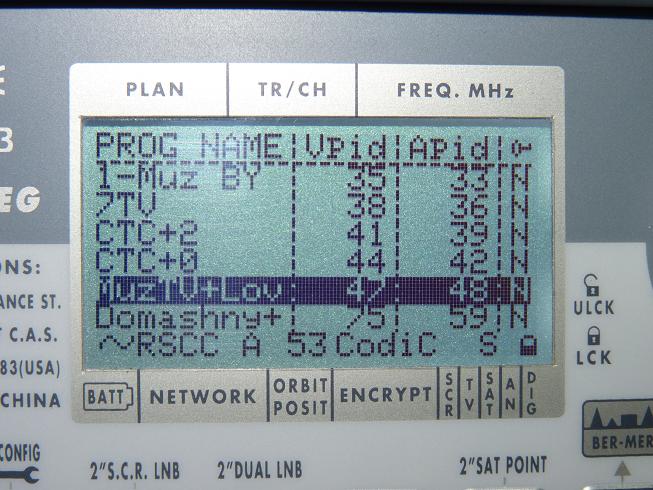

Express AM22 at 53.0°e - wide europe beam : 11 044 V RSCC network
IF data Q data NIT data

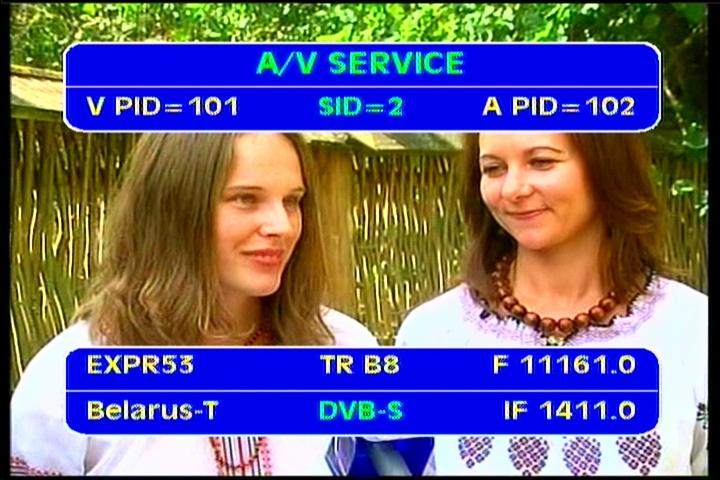

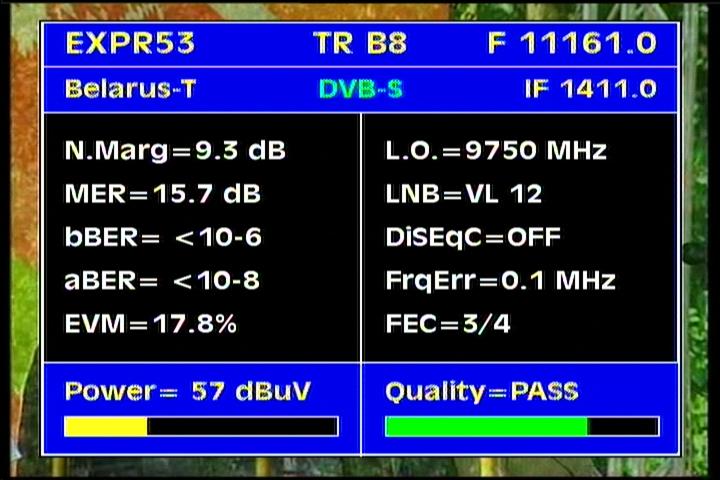

Express AM22 at 53.0°e - wide europe beam : 11 161 V IVG network
IF data Q data NIT data

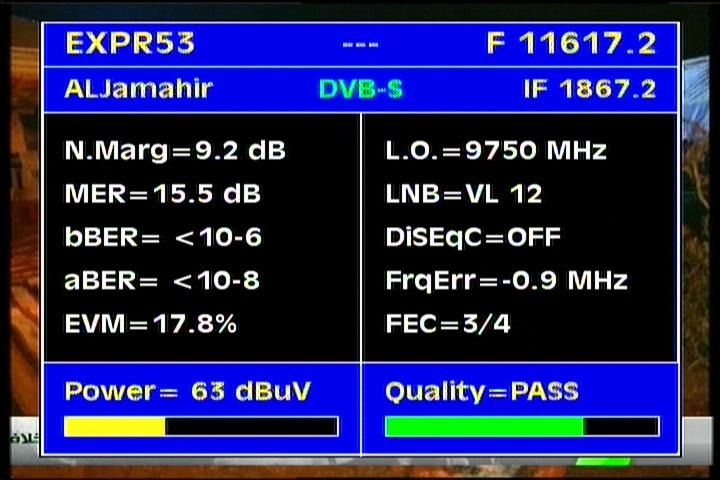

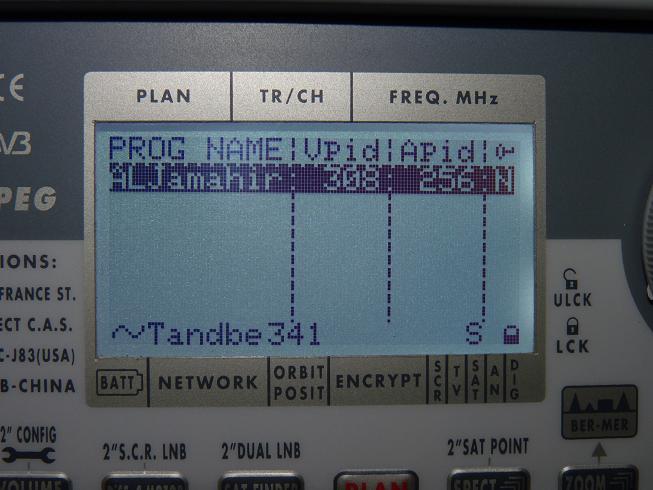

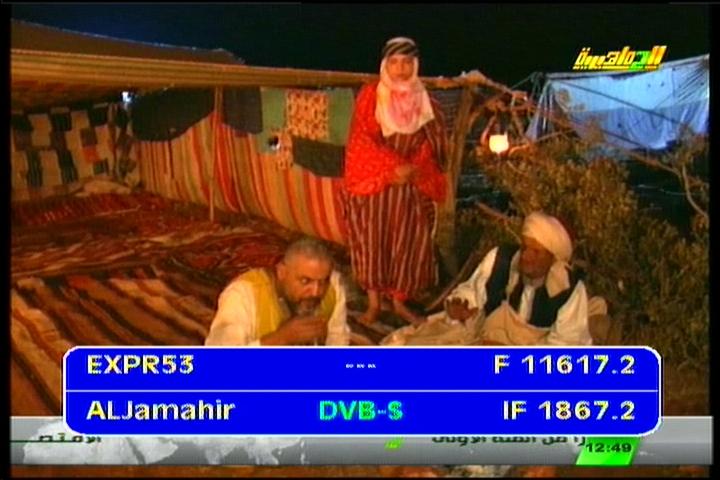

Express AM22 at 53.0°e - europe beam : 11 617 V Al Jamahiria 2
IF data Q data NIT data

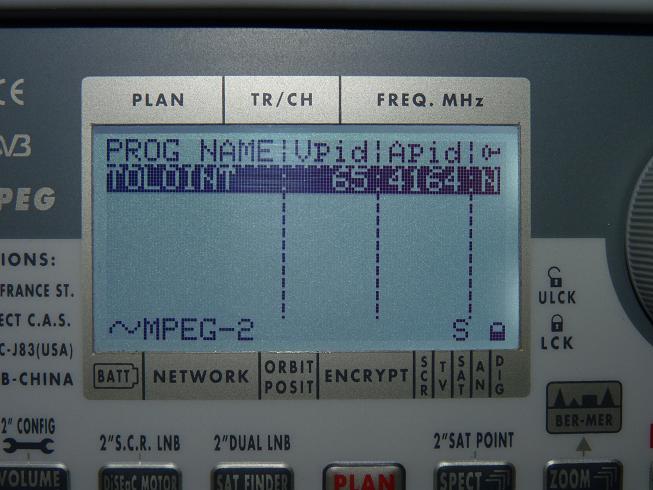

Express AM22 at 53.0°e - europe beam : 11 660 V TOLO News
IF data Q data NIT data

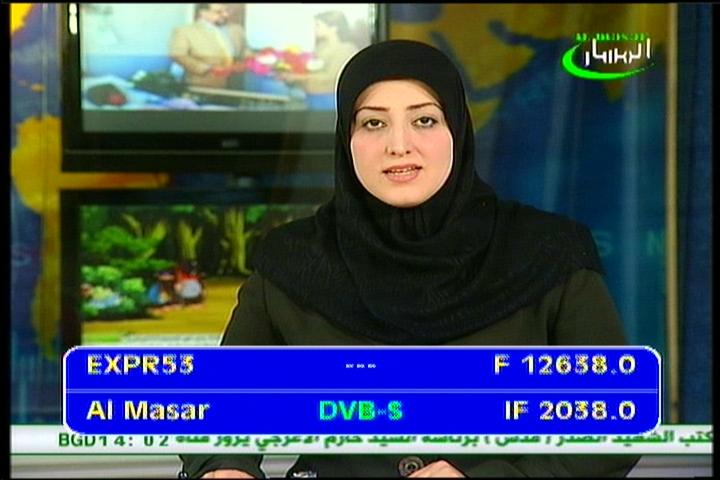

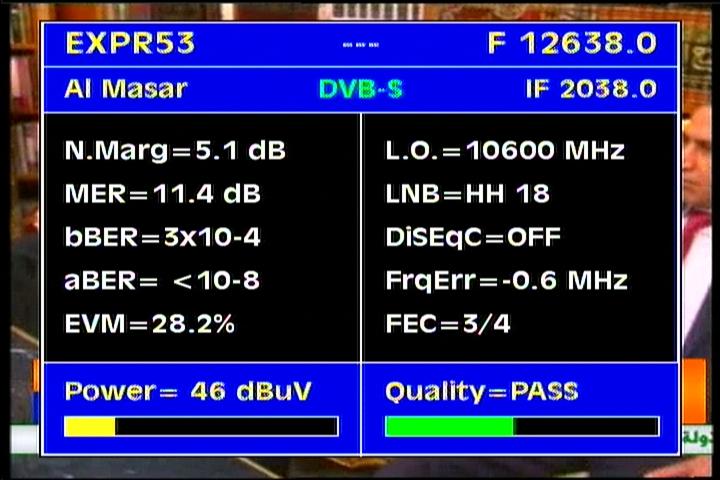

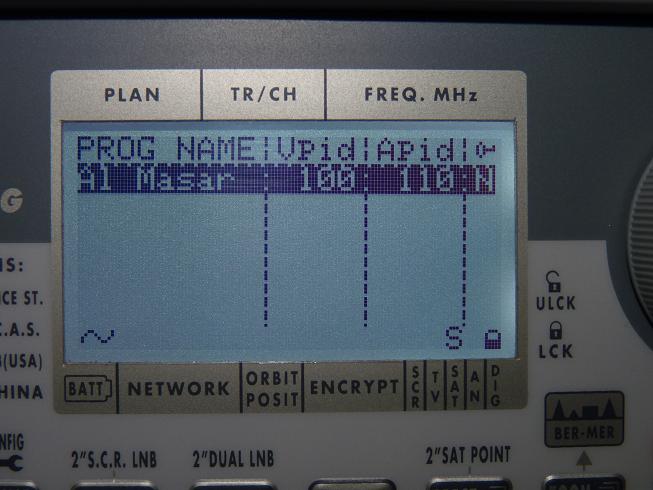

Express AM22 at 53.0°e - S2 beam : 12 638 H Al Masar TV
IF data Q data NIT data

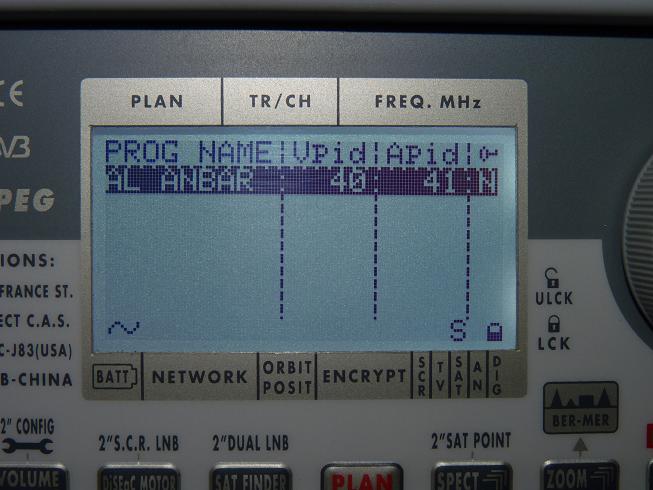

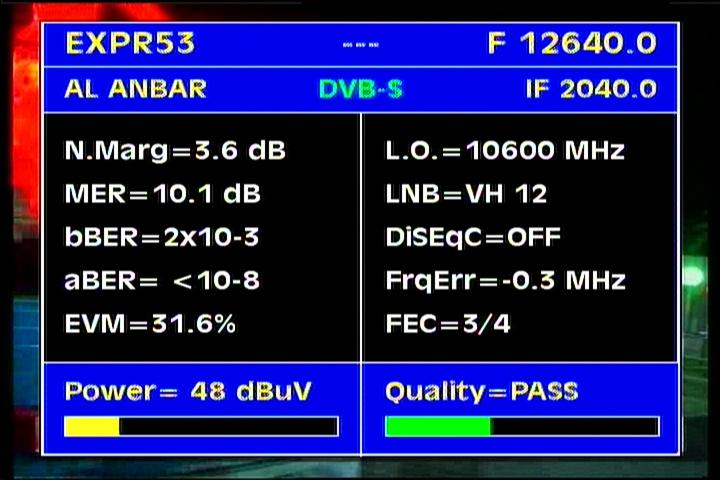

Express AM22 at 53.0°e - S2 beam : 12 640 H Al Anbar TV
IF data Q data NIT data

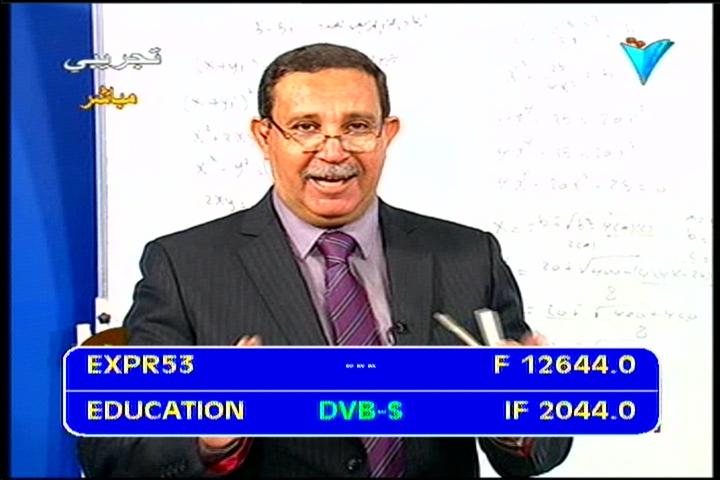

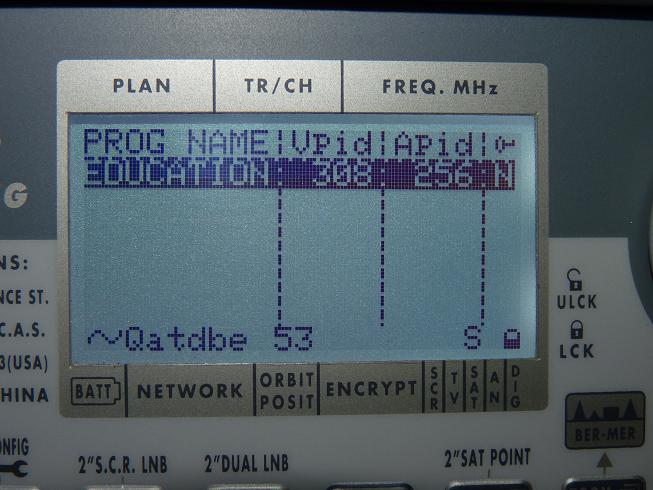

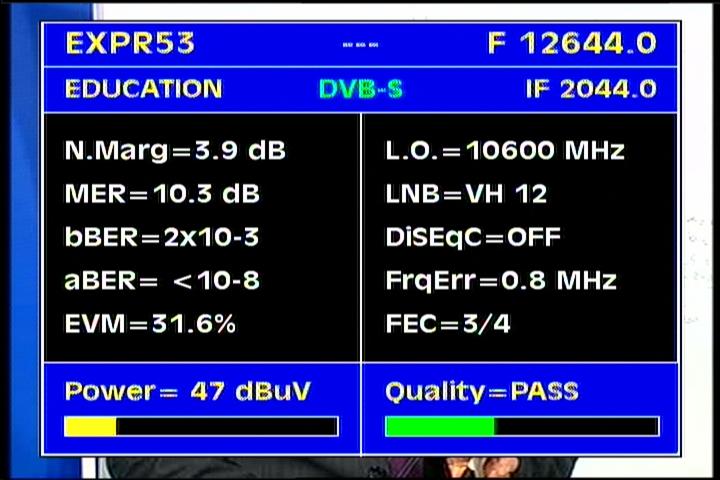

Express AM22 at 53.0°e - S2 beam : 12 644 H Education tv
IF data Q data NIT data

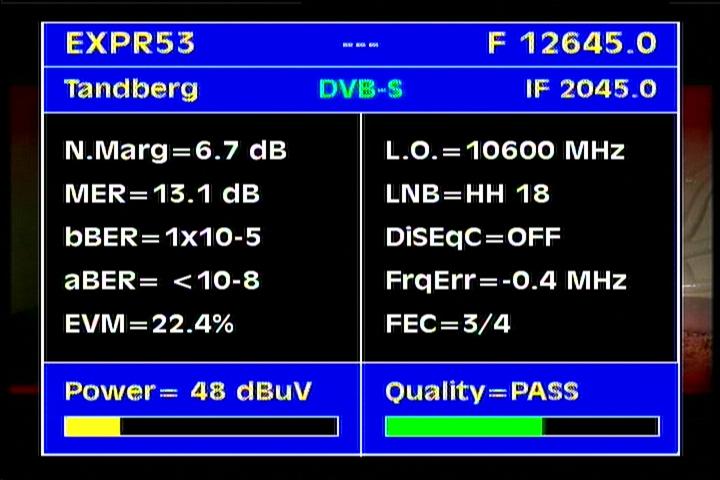

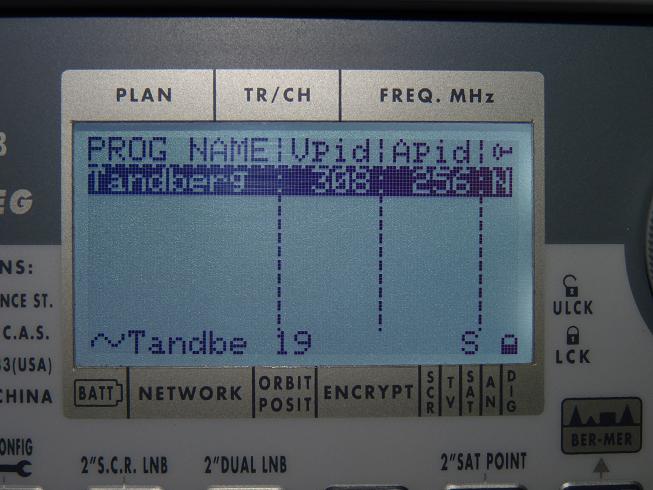

Express AM22 at 53.0°e - S2 beam : 12 645 H MCP tv
IF data Q data NIT data

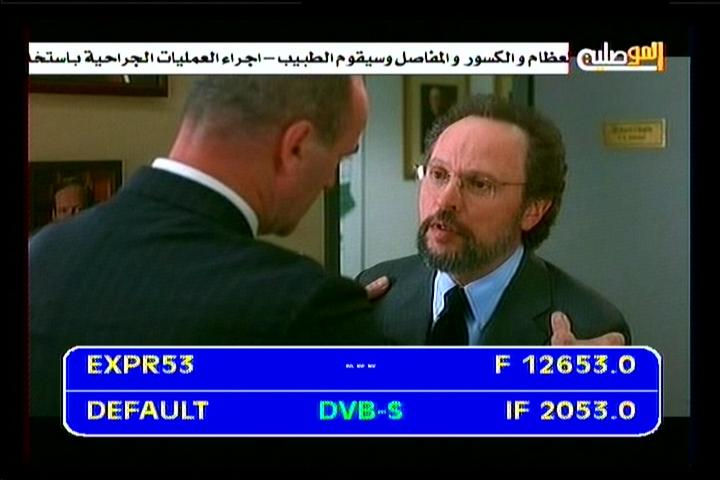

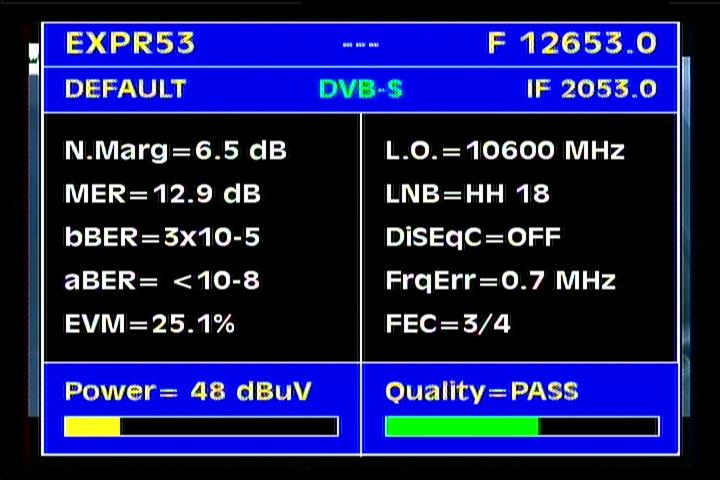

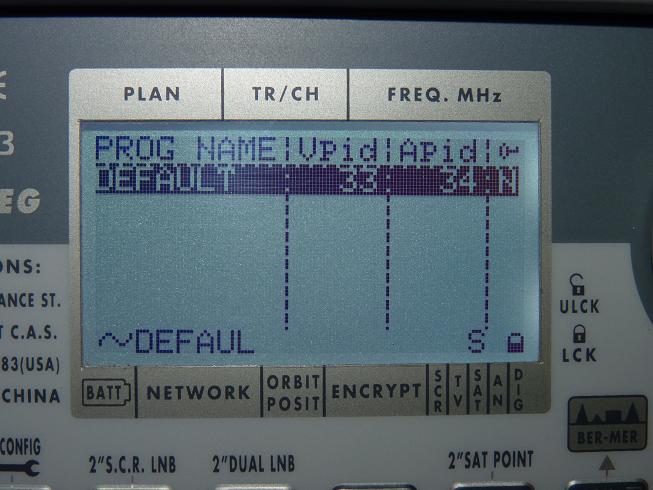

Express AM22 at 53.0°e - S2 beam : 12 653 H Al Mosulia
IF data Q data NIT data

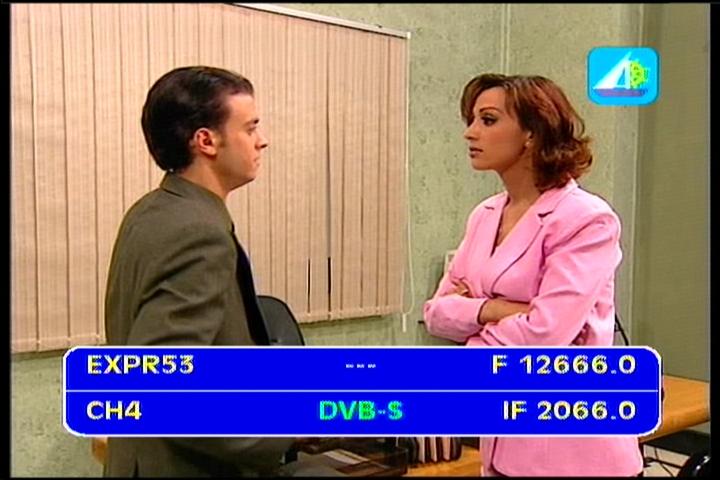

Express AM22 at 53.0°e - S2 beam : 12 665 V Nilesat Egypt network
IF data Q data NIT data
Express AM22 at 53.0°E : TV List
-Frequency-
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Beam--- | ---Antenna--- | ---DVB/Encryption--- |
|
10 957 -V- tp B2 |
Unn. network |
4 800 | 5/6 | wide europe | 80+ cm | DVB |
| UZ-TV1 | FTA | |||||
| Forum tv | FTA | |||||
|
10 995 -H- tp B1 |
TRK Nadym/Fly-away Nadym |
3 255 | 3/4 | wide europe | 80+ cm | DVB FTA |
|
11 006 -H- tp B1 |
3 111 | 3/4 | wide europe | 80+ cm | DVB FTA | |
|
11 020 -H- tp B1 |
data |
5 000 | 3/4 | wide europe | 80+ cm | DVB-S2/8PSK data |
|
11 044 -V- tp B4 |
RSCC AM22 | 44 950 | 3/4 | wide europe | 80+ cm | DVB |
| 1-Muz By | FTA | |||||
| 7TV | FTA | |||||
| STS +2 | Biss | |||||
| STS+0 | Biss | |||||
| Muz TV Love | FTA | |||||
| TLK Domashny +0 | Biss | |||||
| FNS | FTA | |||||
| TLK Domashny +2 | Biss | |||||
| Expert TV | FTA | |||||
| GTRK Groznyj | FTA | |||||
| 1 TVRus CIS | FTA | |||||
| Nash Dom | Biss | |||||
|
11 111 -V- tp B6 |
Norsat / NNL 702703 feed channel from Afghanistan |
2 893 | 3/4 | wide europe | 80+ cm | MPEG-2 /FTA |
|
11 161 -V- tp B8 |
Unnamed belarus network | 5 785 | 3/4 | wide europe | 80+ cm | DVB |
| STV / Stolicnoe TV | Biss | |||||
| Belarus TV | FTA | |||||
|
11 495 -H- tp D1 |
MMG Afghanistan | 5 000 | 3/4 | S1 Asia | 500-800+ cm | DVB |
| Tolo TV | FTA | |||||
| Lemar TV | FTA | |||||
|
11 616 -V- tp D6 |
Tandberg Service / Al Libiya TV | 2 894 | 3/4 | europe | 80-120+ cm | DVB FTA |
|
11 630 -V- tp D6 |
Al Hurrya | 2 893 | 3/4 | europe | 80-120+ cm | DVB FTA |
|
11 660 -H- tp D7 |
Tolo News | 2 143 | 3/4 | europe | 80-120+ cm | DVB FTA |
|
12 632 -H- tp A5 |
Salam TV | 2 170 | 3/4 | S2 Middle East | 120-140+ cm | DVB FTA |
|
12 637 -H- tp A5 |
Al Masar TV | 2 532 | 3/4 | S2 Middle East | 120-150+ cm | DVB FTA |
|
12 639 -V- tp A6 |
Al Anbar | 2 894 | 3/4 | S2 Middle East | 120-150+ cm | DVB FTA |
|
12 643 -V- tp A6 |
Al Iraq / Education | 2 170 | 3/4 | S2 Middle East | 120-150+ cm | DVB FTA |
|
12 644 -H- tp A5 |
MCP | 2 170 | 3/4 | S2 Middle East | 120-150+ cm | DVB FTA |
|
12 647 -H- tp A5 |
Scope KTV | 2 894 | 3/4 | S2 Middle East | 120-150+ cm | DVB FTA |
|
12 652 -H- tp A5 |
Al Mosullia / Al Moselih | 2 532 | 3/4 | S2 Middle East | 120-150+ cm | DVB FTA |
|
12 664 -V- tp A6 |
SESAT 2 | 27 500 | 5/6 | S2 Middle East | 180+ cm | DVB |
| Feed-2 | FTA/Biss/4:2:2 | |||||
| Al-Majd feed | FTA/Biss/4:2:2 | |||||
| JSC feed | Biss | |||||
| ERTU | Biss | |||||
| CH1-SCR | Biss | |||||
| CH2-SCR | Biss | |||||
| CH5 | FTA | |||||
| CH8 | FTA | |||||
| ART feed | FTA/Biss/4:2:2 | |||||
| Orbit Line 1 feed | FTA/Biss/4:2:2 | |||||
| Orbit Line 2 feed | FTA/Biss/4:2:2 | |||||
| Orbit Line 3 feed | FTA/Biss/4:2:2 | |||||
| feed 4 | FTA/Biss/4:2:2 | |||||
| CH4 | FTA | |||||
|
12 667 -H- tp A5 |
2 892 | 3/4 | S2 Middle East | 120-150+ cm | ||
|
12 721 -H- tp A7 |
1 865 | 3/4 | S2 Middle East | 120-150+ cm | DVB FTA |
.

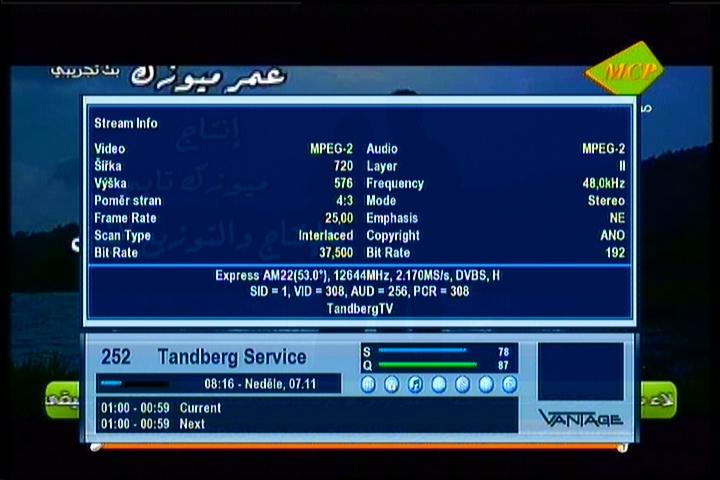

Express AM22 at 53.0°E : relative quality
Express AM22 at 53.0°E : Video presentation
Go to video section :
Express AM22 at 53.0°E : Update prepare
CZECH & SLOVAK DX SATELLITE CLUB
international professional portal
think-tank
Roman Dávid - author & founder
mail : roman.david@dxsatcs.com

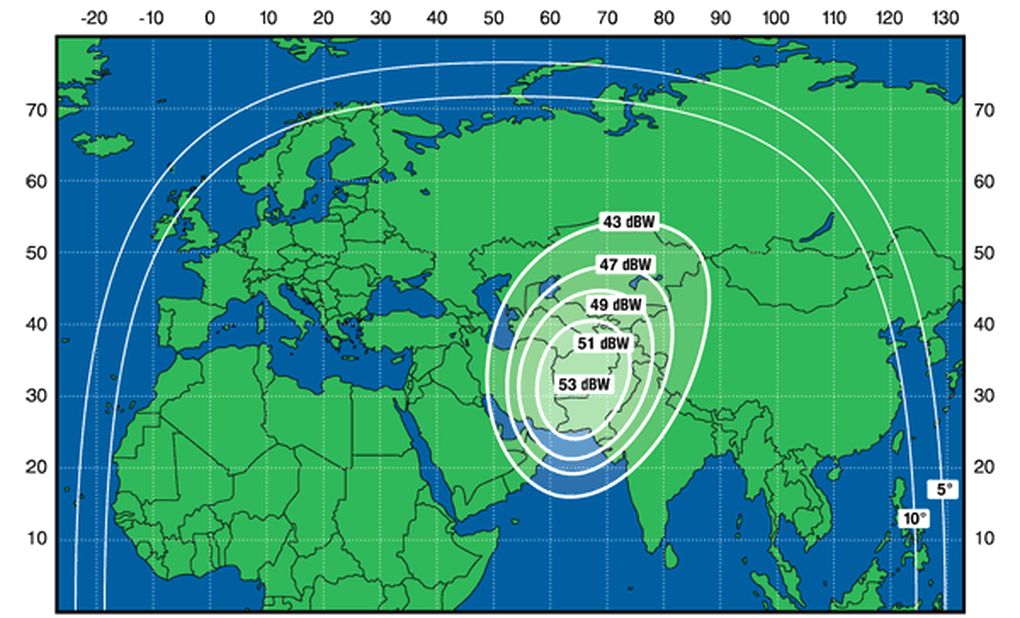

Express AM22 at 53.0°E : footprint
