Express MD1 at 80.0°E
Express MD1 at 80.0°E : Technical data

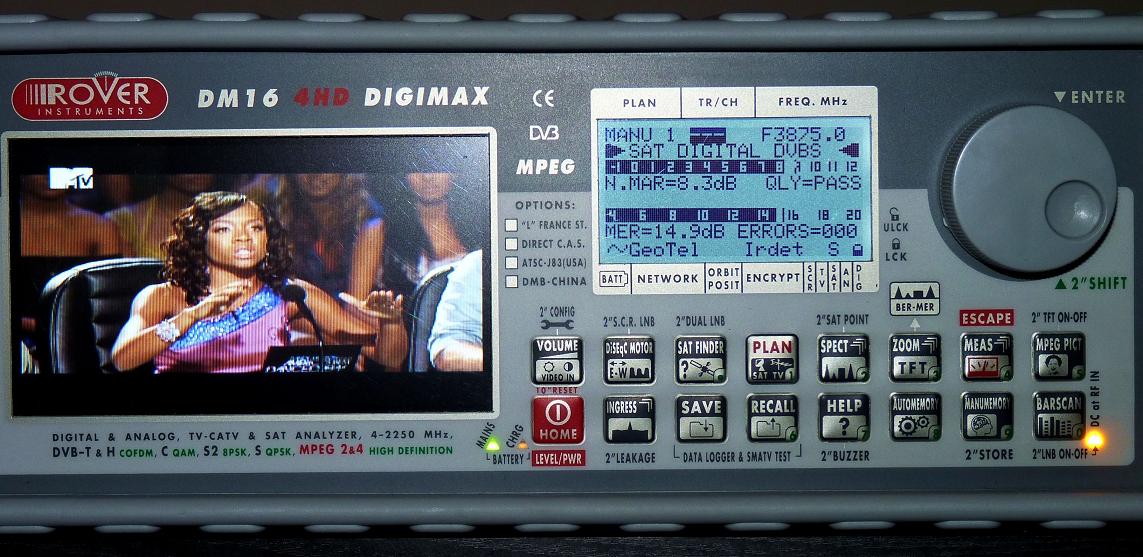

Express MD1 at 80.0°E : 3 875 R MPEG-4 MTV Russia_qualitative peak MER=15.1 dB
Express MD1 - Orbit : 80°E - TP : 8xC/1xL - Life-time : from 11.2.2009 - 10 years

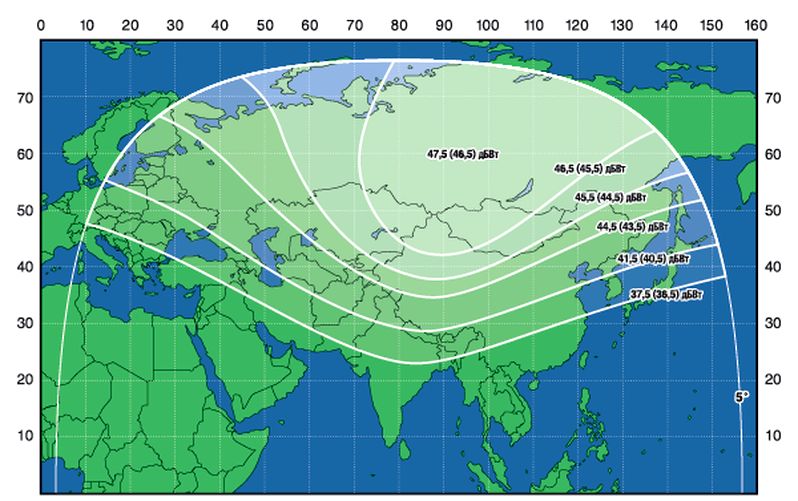

Express MD1 at 80.0°E - C band footprint : analysis of the spectrum & measurement results
Express MD1 at 80.0°E - C band footprint : measurements taken in the town of Lučenec / Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
date of measurement : 7.8 2010
elevation angle : 11°
.
Express MD1 : installed system Express MD1 : measurement point Express MD1 C band footprint

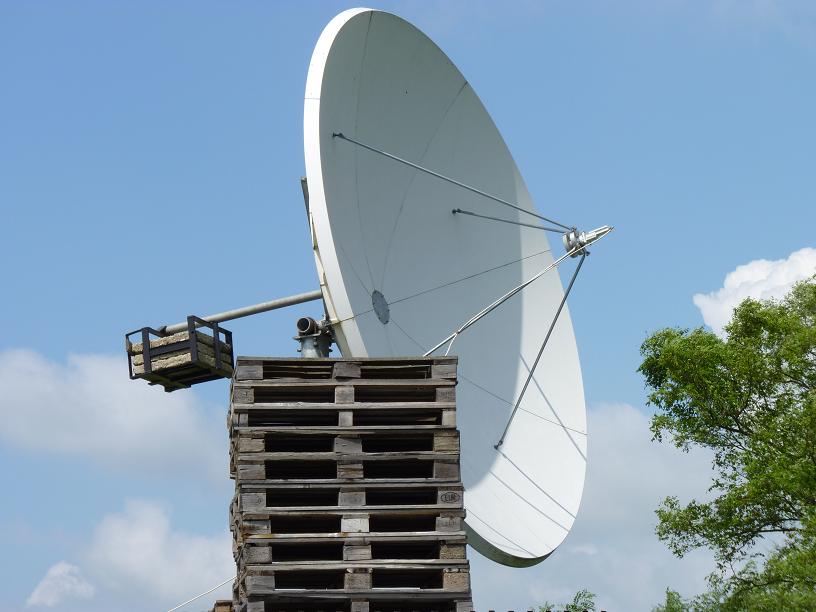

PF Prodelin 3.7 m+Norsat 8215 town Lučenec / Slovak republic coverage area: Asia , Europe ...

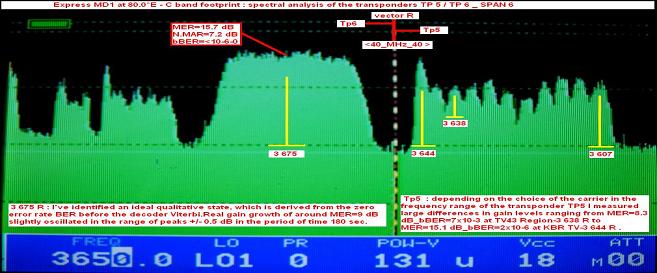

--- express MD1 spectral analysis : transponders TP 5 & TP 6_SPAN 6 ---
click for enlarge
- time of measurement : 7.8 2010 -
- defining the status of reception -
3 675 R : I've identified an ideal qualitative state, which is derived from the zero error rate BER before the decoder Viterbi.
Real gain growth of around MER=9 dB slightly oscillated in the range of peaks +/- 0.5 dB in the period of time 180 sec.
Tp5 : depending on the choice of the carrier in the frequency range of the transponder TP5 I measured large differences in
gain levels ranging from MER=8.3 dB_bBER=7x10-3 at TV43 Region-3 638 R to MER=15.1 dB_bBER=2x10-6 at KBR TV-3 644 R.
--- Express MD1 : measurement results ---

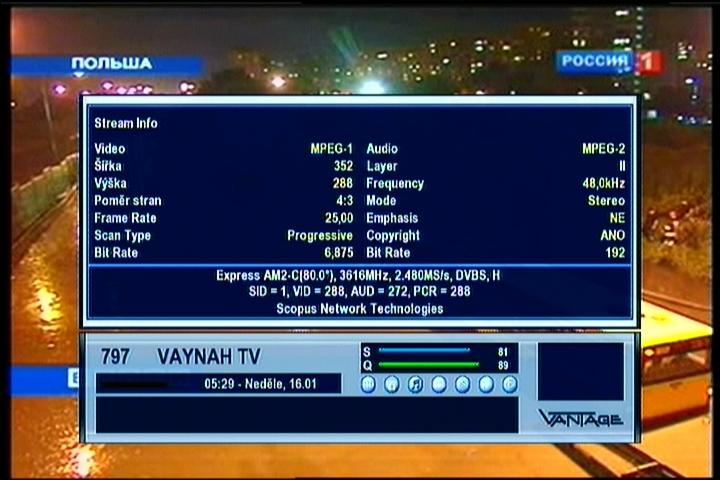

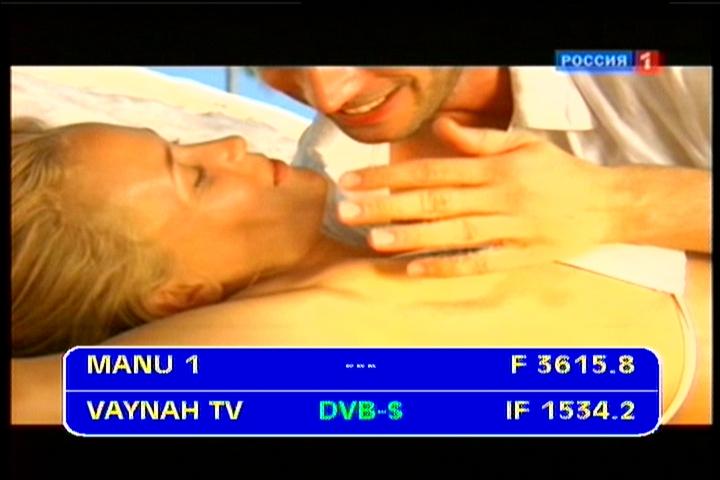

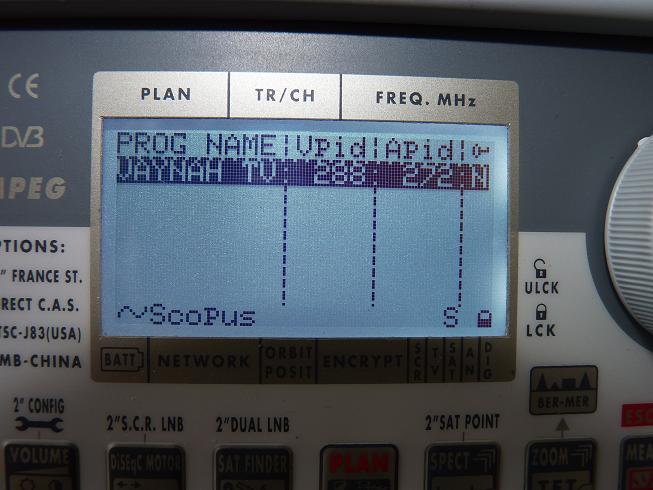

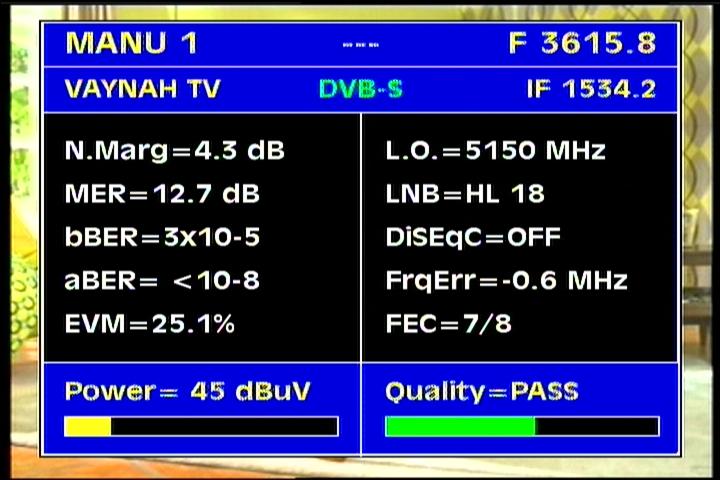

Express MD1 at 80.0°E - MD1 C band footprint : 3 615 R Vaynah TV
IF data Q data NIT data

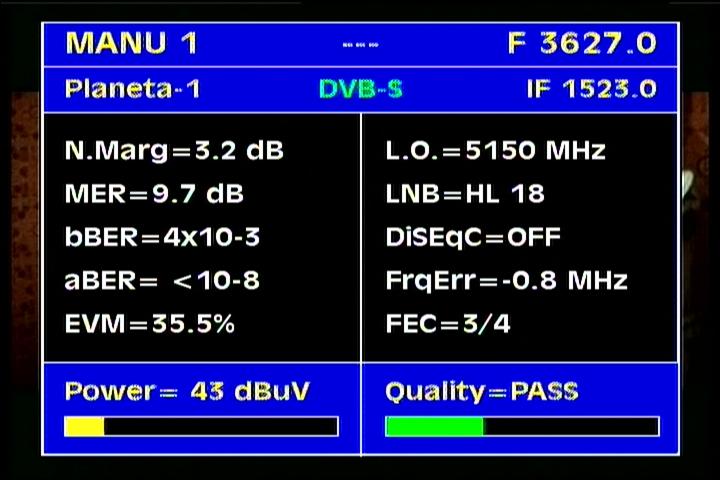

Express MD1 at 80.0°E - MD1 C band footprint : 3 627 R Planeta 1
IF data Q data NIT data

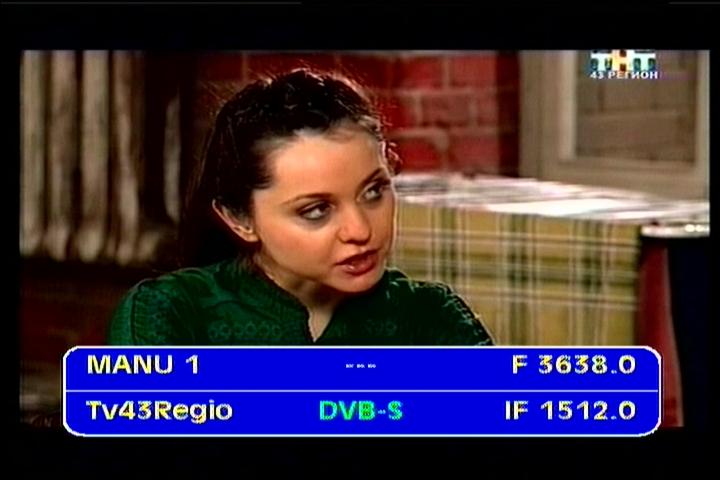

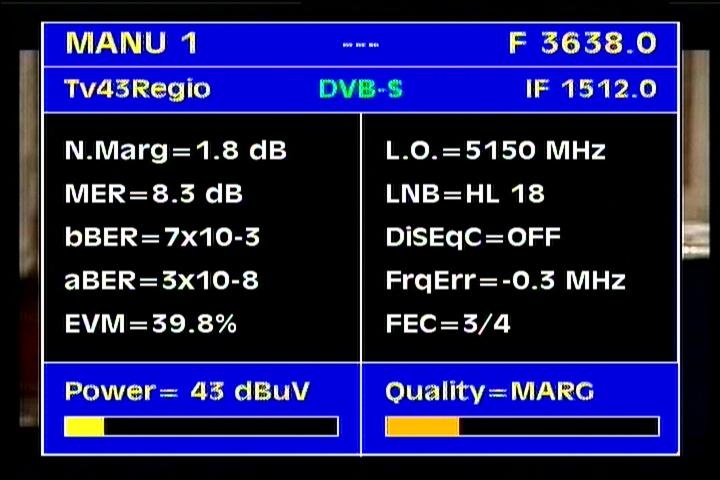

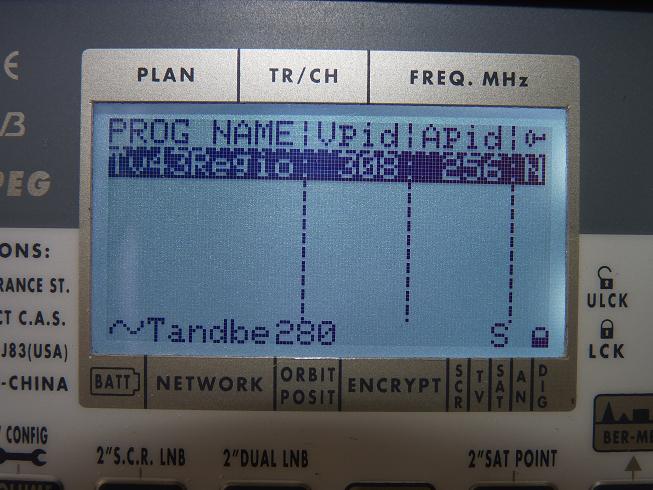

Express MD1 at 80.0°E - MD1 C band footprint : 3 638 R TV43 Region
IF data Q data NIT data

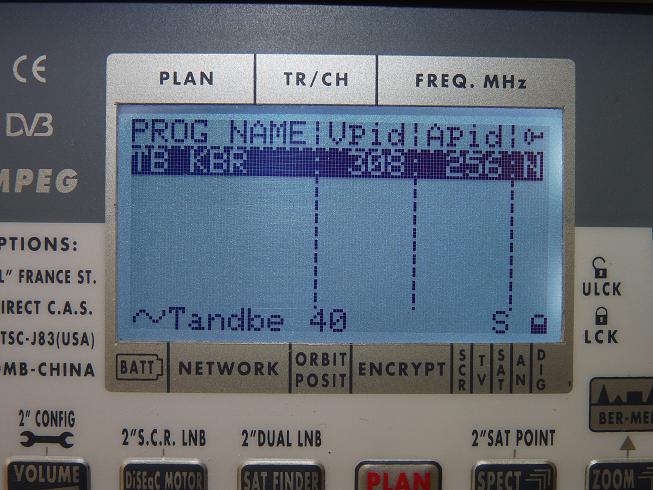

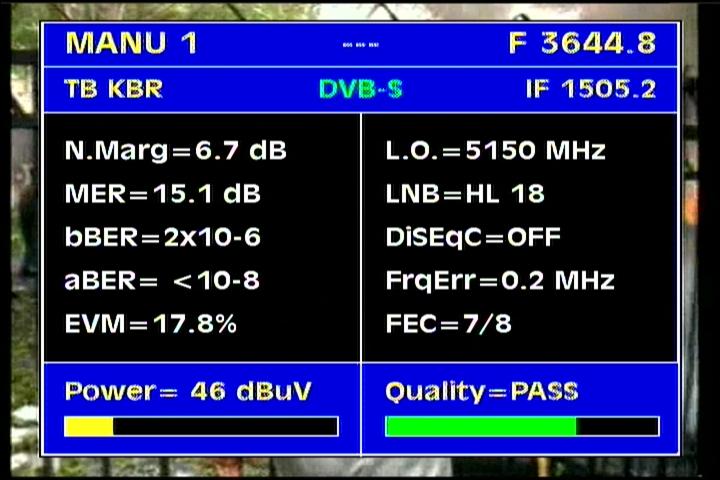

Express MD1 at 80.0°E - MD1 C band footprint : 3 644 R KBR TV
IF data Q data NIT data
Express MD1 at 80.0°E - MD1 C band footprint : 3 676 R RSCC Network
IF data Q data NIT data

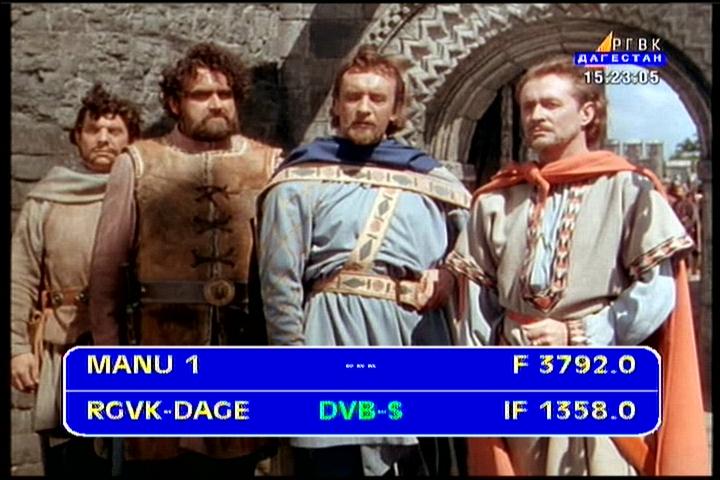

Express MD1 at 80.0°E - MD1 C band footprint : 3 792 R RGVK Dagestan
IF data Q data NIT data
Express MD1 at 80.0°E - MD1 C band footprint : 3 876 R GeoTel network
IF data Q data NIT data
Express MD1 at 80.0°E : TV List
---Frequency---
|
----------Provider/Channel----------
|
--SR-- | -FEC- | -Footprint- | -Antenna- | --Video/Encryption-- |
|
3 608-R- tp 5 |
GTRK Alania / Severnaya Osetia |
2 894 | 3/4 | MD1 | 180-240+ cm | DVB / Biss |
|
3 611-R- tp 5 |
GTRK Dagestan |
2 894 | 7/8 | MD1 | 180-270+ cm | DVB / Biss |
|
3 615-R- tp 5 |
Vaynah TV |
2 480 | 7/8 | MD1 | 180-270+ cm | DVB / FTA |
|
3 619-R- tp 5 |
GTRK Volgograd / RTRS |
2 480 | 7/8 | MD1 | 180-270+ cm | DVB / Biss |
|
3 623-R- tp 5 |
GTRK Orenburg |
2 893 | 3/4 | MD1 | 180-240+ cm | DVB / Biss |
|
3 626-R- tp 5 |
Planeta |
2 893 | 3/4 | MD1 | 180-240+ cm | DVB / FTA |
|
3 629-R- tp 5 |
GTRK Udmurtia |
2 480 | 7/8 | MD1 | 180-270+ cm | DVB / Biss |
|
3 633-R- tp 5 |
Kirov |
2 893 | 3/4 | MD1 | 180-240+ cm | DVB / Biss |
|
3 637-R- tp 5 |
TV 43 Region |
2 893 | 3/4 | MD1 | 180-240+ cm | DVB / FTA |
|
3 641-R- tp 5 |
RTPC Komi |
2 894 | 3/4 | MD1 | 180-240+ cm | DVB / Biss |
|
3 644-R- tp 5 |
KBR TV |
1 922 | 7/8 | MD1 | 180-270+ cm | DVB / FTA |
|
3 675 -R- tp 6 |
RSCC | 33 483 | 7/8 | MD1 | 140+ cm | DVB |
| TRK 5+0 | FTA | |||||
| Rossiya +RR | Biss | |||||
| Kultura+Vesti-F | FTA | |||||
| 1Kanal R+Mayak | Biss | |||||
| Dubl4+RRD4 | Biss | |||||
| Kultura-3 | FTA | |||||
| Podmoskovye | Biss | |||||
| Orbita-4R+Yunost | Rosscrypt | |||||
| Data SMRG 103 | data | |||||
|
3 784-R- tp 8 |
GTRK Elista |
2 894 | 3/4 | MD1 | 180+ cm | DVB |
|
3 792-R- tp 8 |
2 894 | 3/4 | MD1 | 180+ cm | DVB | |
|
3 876 -R- tp 10 |
Site-80 network | 32 000 | 3/4 | MD1 | 140+ cm | DVB |
TV 3 (+0h)  |
FTA | |||||
| TV 3 PLUS (+2h) |
FTA | |||||
| Jetix Russia | Irdeto 2 | |||||
| Strana |
FTA | |||||
| 7 TV +7 |
FTA | |||||
| MUZ - Tv (+7) | FTA | |||||
| Topshop TV |
FTA | |||||
| Domashniy magazin | FTA | |||||
| MTV Russia +7h | MPEG-4 / FTA | |||||
| MTV Russia +0h | FTA |

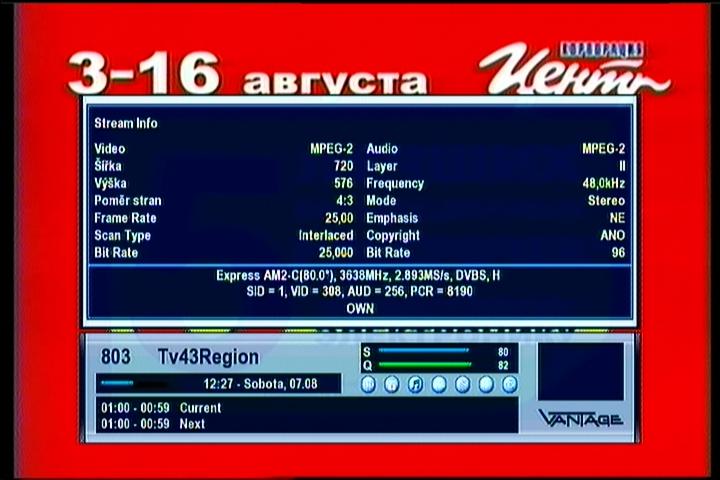

Express MD1 at 80.0°E : relative quality & NIT data
Express MD1 at 80.0°E : video presentations
Go to video section :
Express MD1 at 80.0°E : update drawn up
CZECH & SLOVAK DX SATELLITE CLUB
international professional portal
think-tank
Roman Dávid - author & founder
mail : roman.david@dxsatcs.com

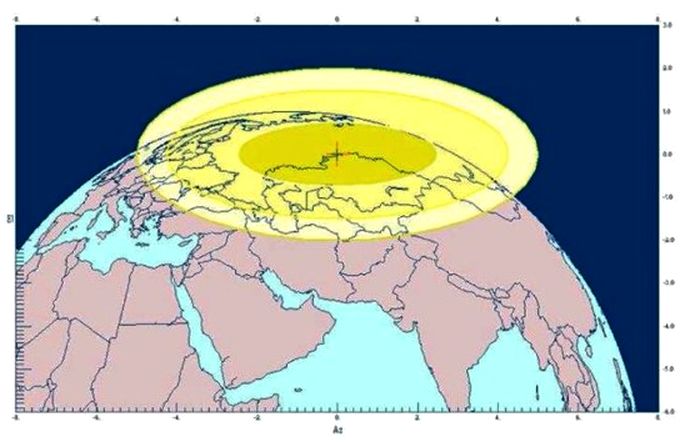

Express MD1 at 80.0°E footprint : C band
