Hot Bird 6/8/9 at 13.0°E

Hot Bird 6/8/9 at 13.0°E : Technical data

                         satellite : Hot Bird 6 - orbit : 13.0°E - TP : 58 KU - lifetime : from 11.3.2006 - 15 years

Update-Hot bird 6/8/9 at 13.00°E-wide footprint: spectrum analysis and measurement of quality of income

                 Hot bird 6/8/9 at 13.0°E - wide footprint : measurements at the center Lučenec_central Slovakia
                                          geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                       measurement results are derived from the 3.7 m diameter antenna
                                                                            elevation angle  : 34.0°

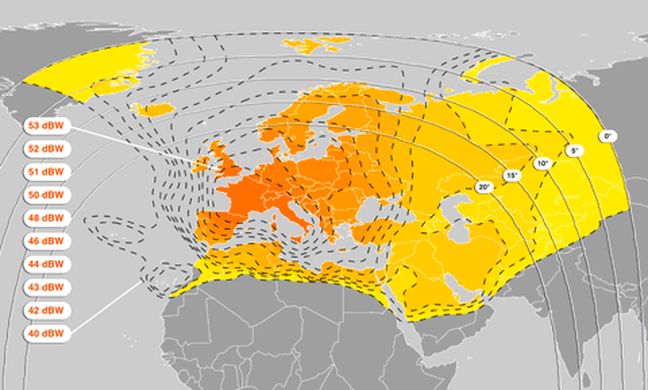

              Hot bird 6 footprint_wide                        Hot bird 8 footprint_wide                      Hot bird 9 footprint_wide
                                 guaranteed availability of a signal to the antenna with a diameter up to 180 cm
                                    Europe , west Asia , Middle East , northern Africa , part of east Greenland  ...

                                 +                                                              +                                                                +

           Hot bird 6 : spectral analysis                 Hot bird 8 : spectral analysis                   Hot bird 9 : spectral analysis
      11 137 H/TP 131 : Packet Arqiva       11 604 H/TP 155 : Media Broadcast      12 654 H/TP 97 : Packet Arabsat

                                                                        - time of measurement : 3.1.2010 -
                                                                           - defining the status of income -

Hot bird 6/8/9 : depending on the detailed settings SKEW angle of waveguide line I measured the gain margin from 8 to 13 dB
                                                                   for each carrier from Hotbird satellites 6/8/19

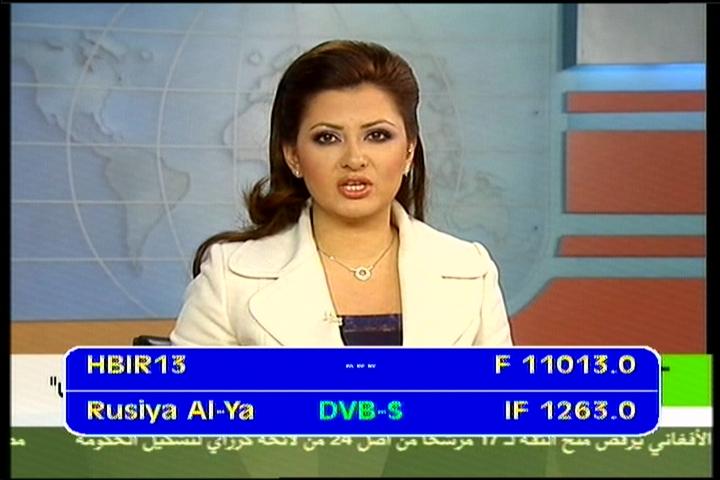

                           Hot bird 6/8/9 at 13.0°E _ wide footprint : 11 013 H Packet RRSAt Global / Eutelsat
                          IF data                                                     Q data                                                   NIT data

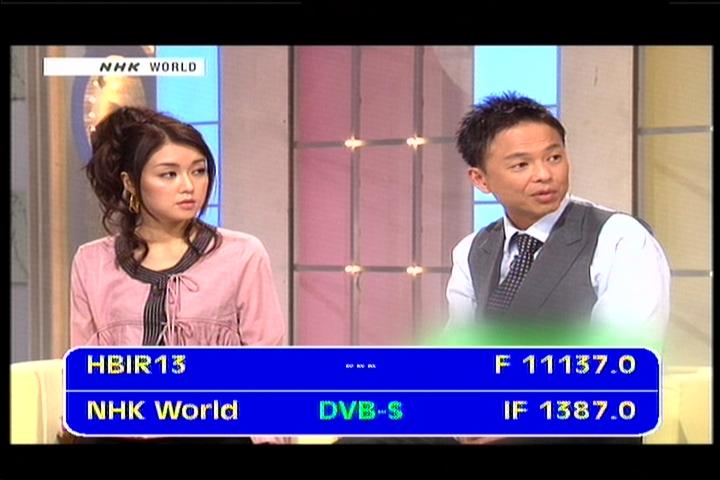

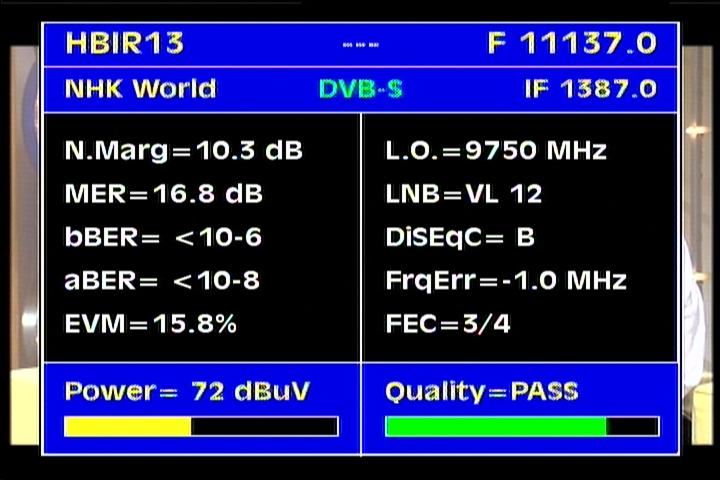

                                       Hot bird 6/8/9 at 13.0°E _ wide footprint : 11 137 H Packet Arqiva
                          IF data                                                     Q data                                                   NIT data

                       Hot bird 6/8/9 at 13.0°E _ wide footprint : 11 604 H Packet Media Broadcast / T system
                          IF data                                                     Q data                                                   NIT data

                                        Hot bird 6/8/9 at 13.0°E _ wide footprint : 11 747 H Packet Samacom
                          IF data                                                     Q data                                                   NIT data

                                    Hot bird 6/8/9 at 13.0°E _ wide footprint : 11 207 H Packet RRSat Global
                          IF data                                                     Q data                                                   NIT data

                                        Hot bird 6/8/9 at 13.0°E _ wide footprint : 12 654 H Packet Arabsat
                          IF data                                                     Q data                                                   NIT data

Hot Bird 6/8/9 at 13.0°E : TV List
