Insat 2E/3B/4A at 83.0°E | CZECH AND SLOVAK DX SATELLITE CLUB

By Roman Dávid. , 08 Feb 2009

Insat 2E/3B/4A at 83.0°E : Technical data

                         Insat 2E at 83.0°E-wide beam : 3 845 Packet TATA Communications-qualitative peak MER=12.5 dB


                          Insat 4A - Orbit : 83.0°E - TP : 12 C/12 KU - Lifetime : from 21.12.2005 - 12 years

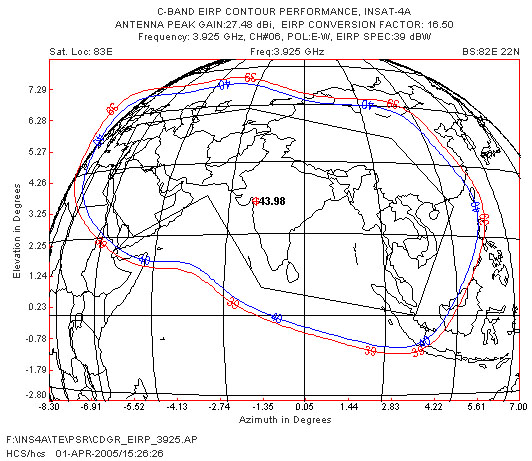

Insat 4A & 2E at 83.0°E - 4A+2E footprint : spectral analysis & measurement results

       Insat 4A+2E at 83.0°E - 4A & 2E footprint : measurements at the center Lučenec_central Slovakia
                                      geographical location : Latitude: 48.33° _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                                             date of measurement : 21.8.2010
                                                                       elevation angle : 9.0°

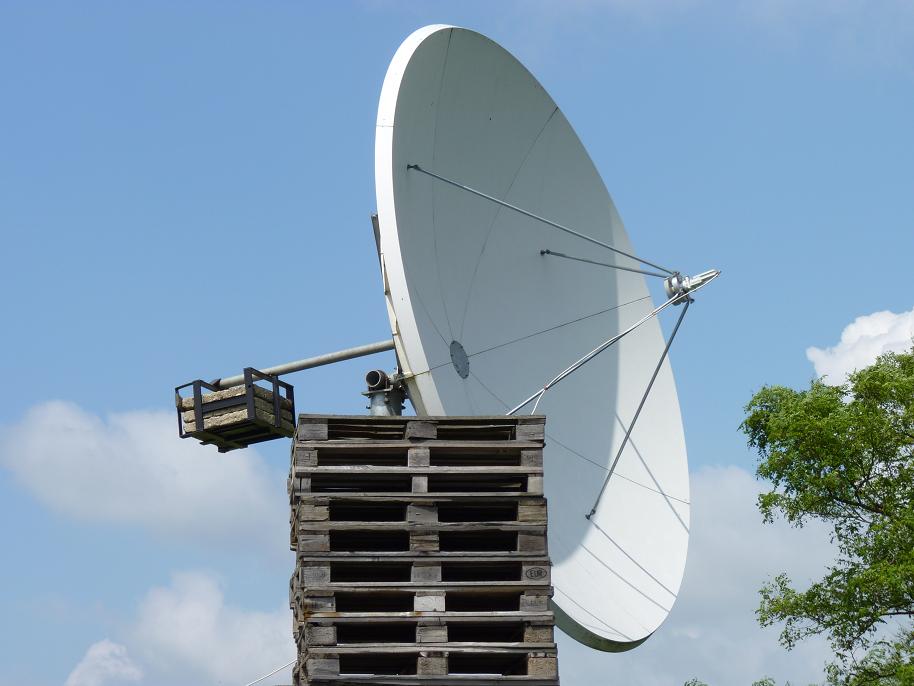

                 Insat 2E/3B/4A : installed system                     Insat 2E/3B/4A : research point
                    Prodelin 3.7 m,LNB Norsat 8215                        Slovak republic : 48.33° _ 19.72°

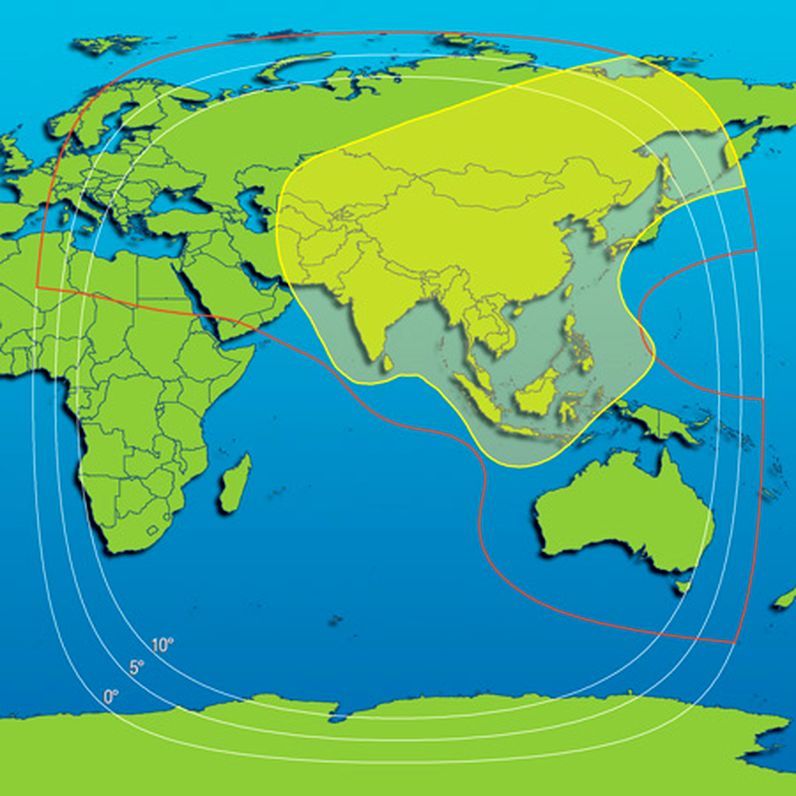

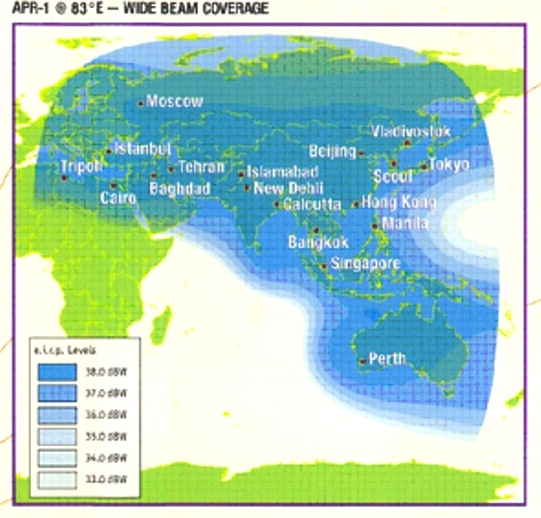

                                  --- Insat 2E Wide_4A Wide_2E Asian footprint & spectral analysis ---

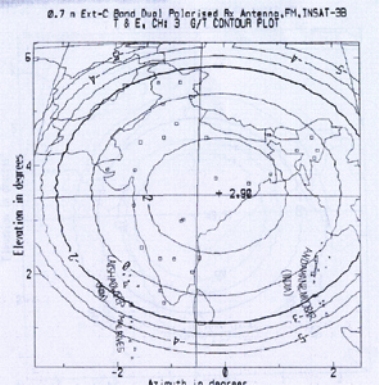

            Insat 2E footprint : Wide                      Insat 4A footprint : ECC wide             Insat 2E footprint : Asian zone
   Asia , Middle East , Africa , Europe             Asia , Middle East , Europe ...        Asia , Middle East , Africa , Europe

                          +                                                                +                                                             +
     Insat 2E-wide:spectral analysis           Insat 4A wide:spectral analysis            Insat 2E zone:spectral analysis
TP 10:3 845 V Packet TATA Communic.    TP 3/3 805 H : Packet Essel Shyam               TP 4/3 559 V : Sadhna TV

                                                                 - time of measurement : 21.8.2010 -
                                                                    - defining the status of reception -

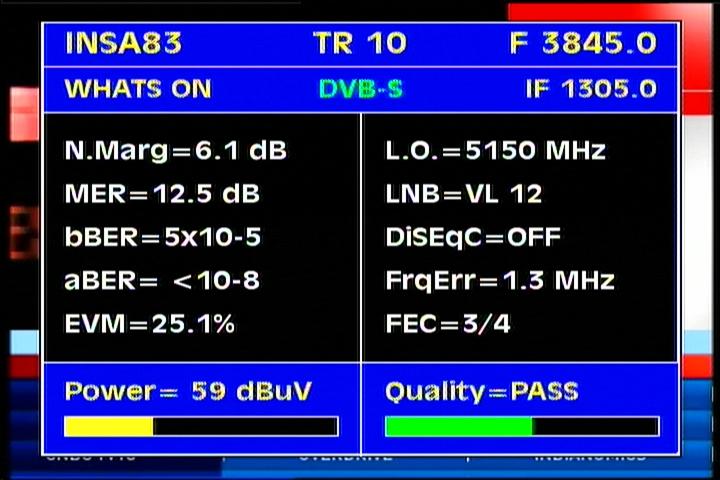

--- 3 845 V : Packet TATA Communications ---

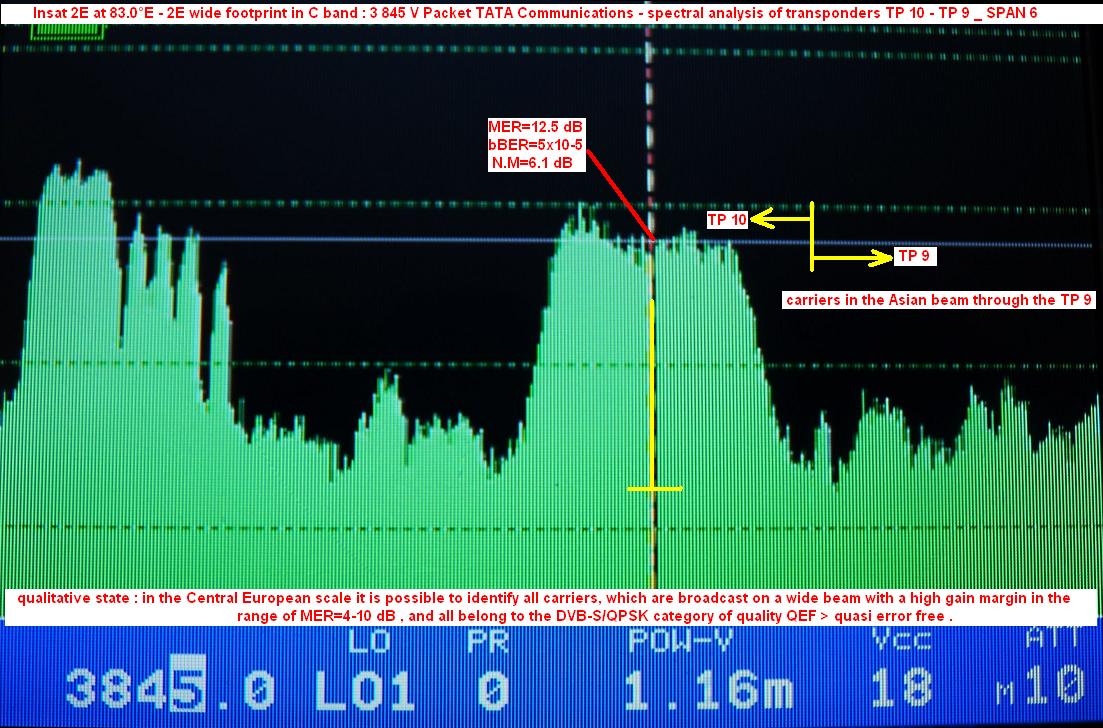

Insat 2E - Wide footprint >>> qualitative state : in the Central European scale it is possible to identify all carriers, which are
broadcast on a wide beam with a high gain margin in the range of MER=4-10 dB , and all belong to the DVB-S/QPSK category of
quality QEF > quasi error free .

--- 3 805 H : Packet Essel Shyam ---
Insat 4A - global footprint >>> exceptional quality of reception derived from almost zero error rate BER before the
Viterbi decoder,with a slightlyoscillating amplitude MER ranged from 14.8 to 15.5 dB,surely as the elevation angles less
than 15° is nothing exceptional .

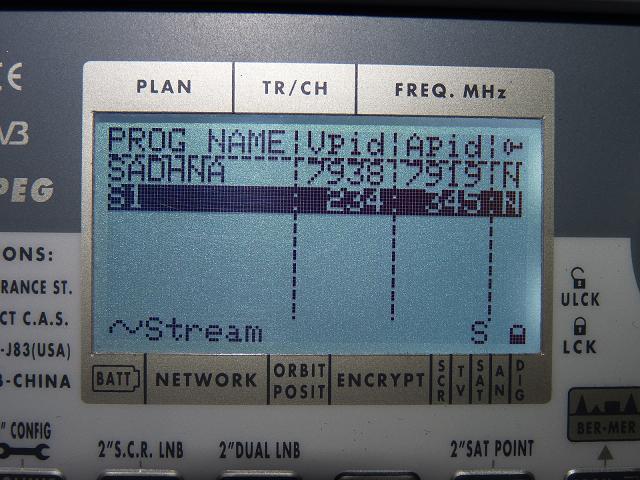

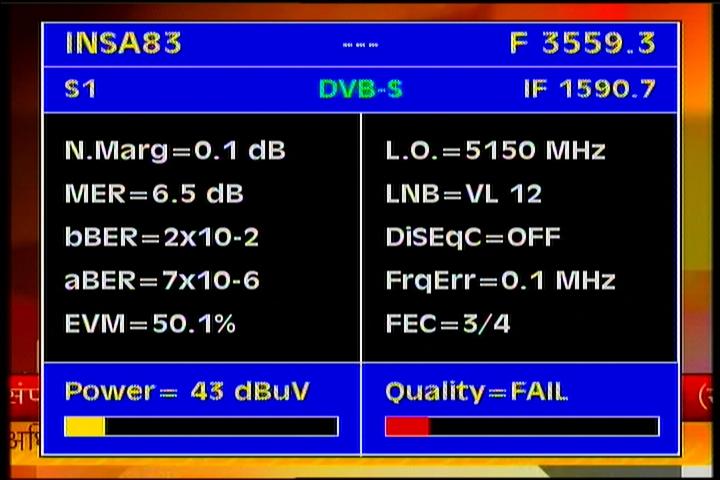

                                                       --- 3 559 V : MPEG-4 Sandha TV ---

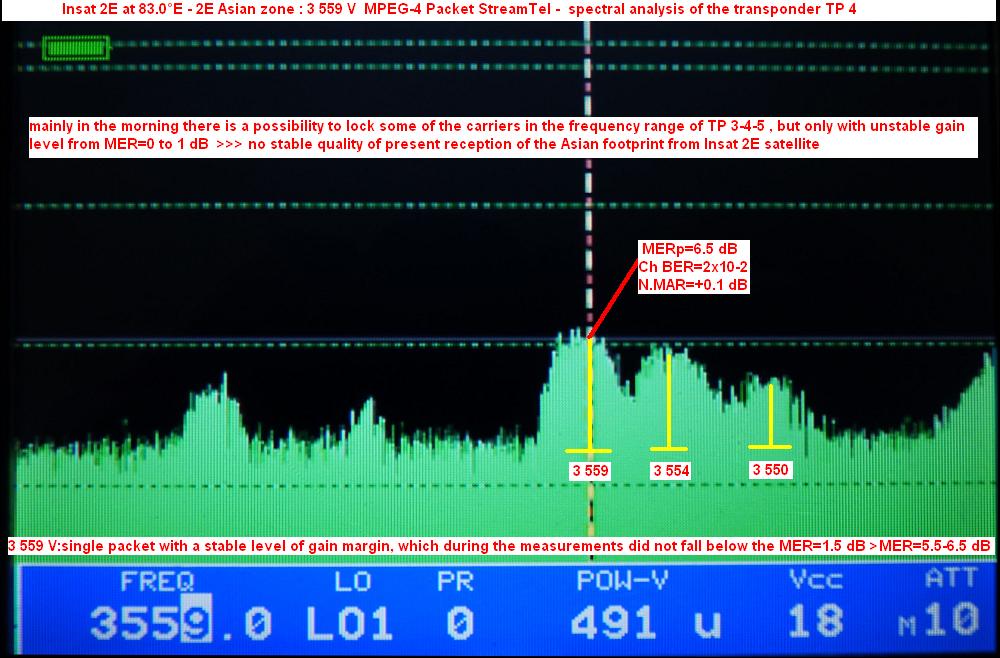

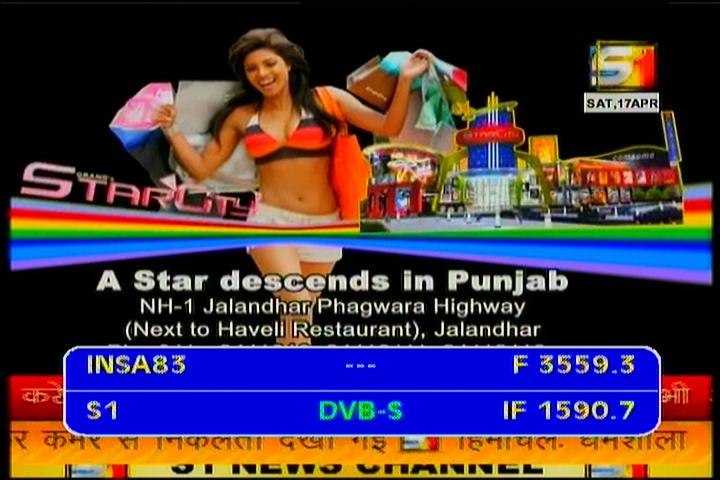

Insat 2E - Asian footprint >>> single packet with a stable level of gain margin, which during the measurements
did not fall below the MER=1.5 dB >MER=5.5-6.5 dB

--- Insat 2E Wide_4A Wide_2E Asian footprint & measurement results ---

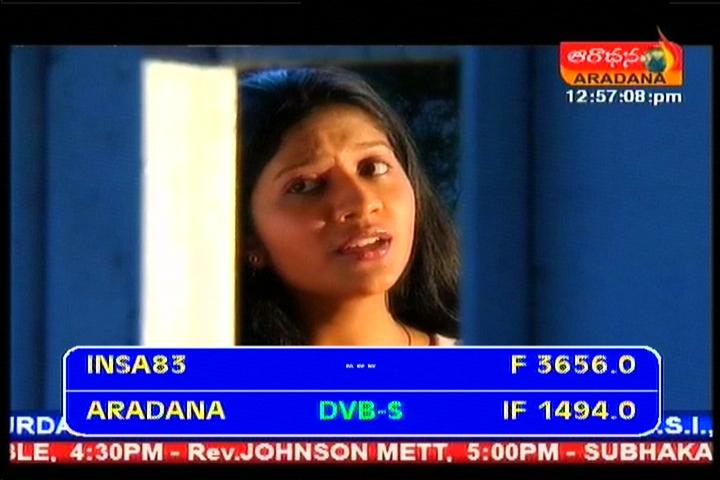

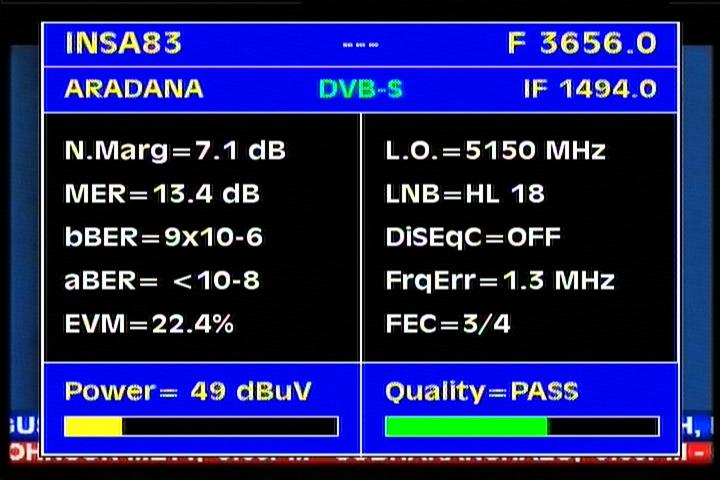

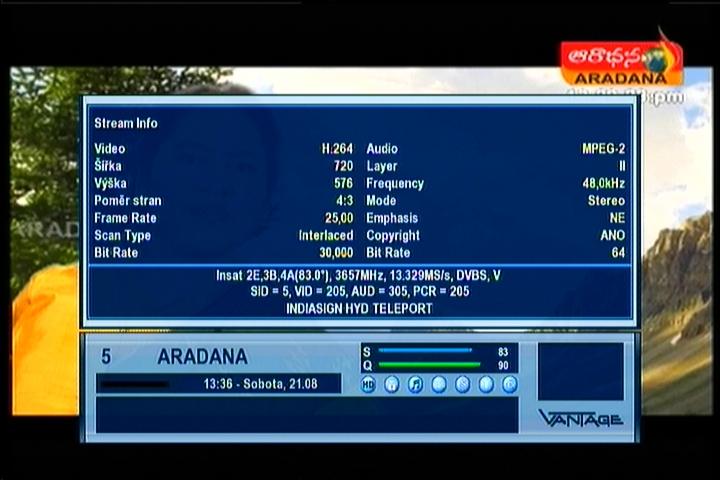

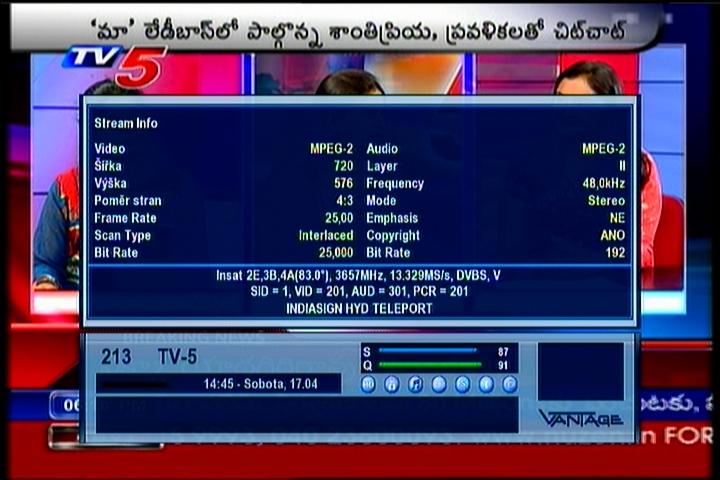

Insat 2E at 83.0°E - wide footprint : 3 656 V Packet Indiasigh
IF data Q data NIT data

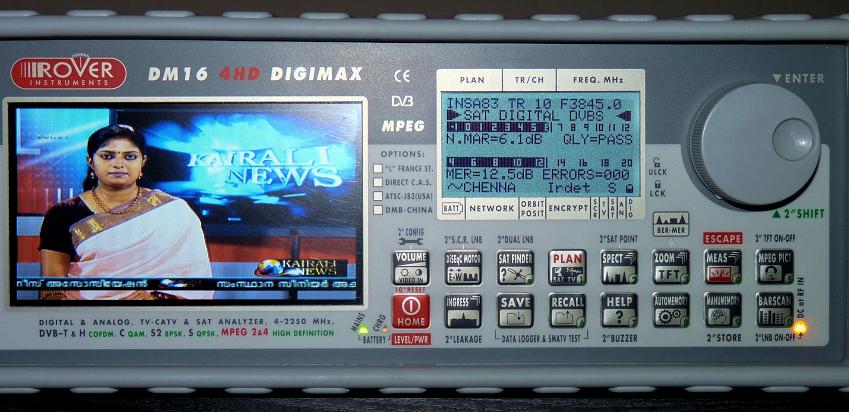

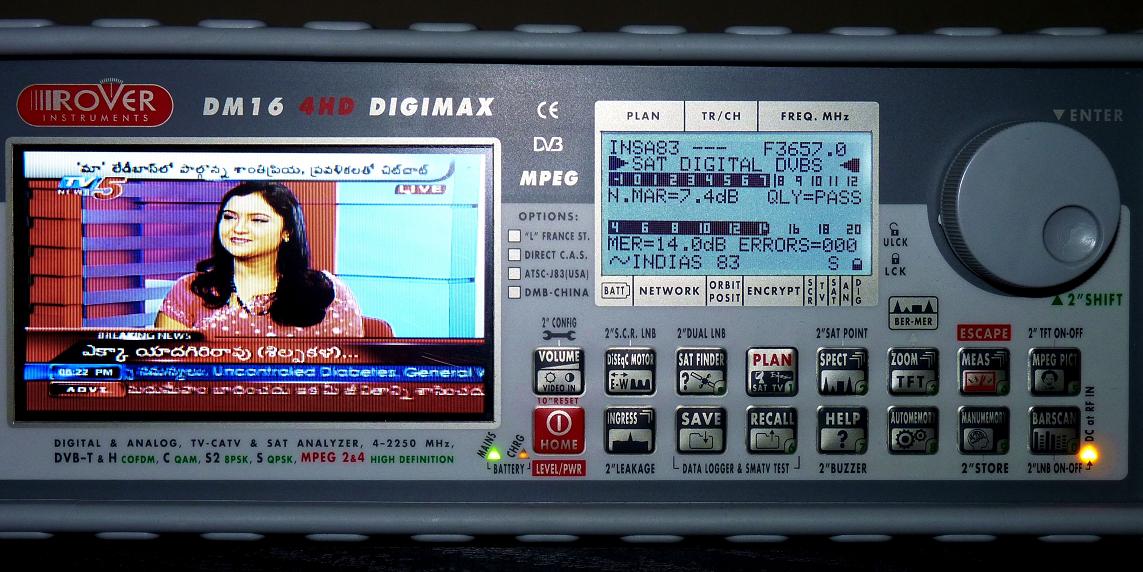

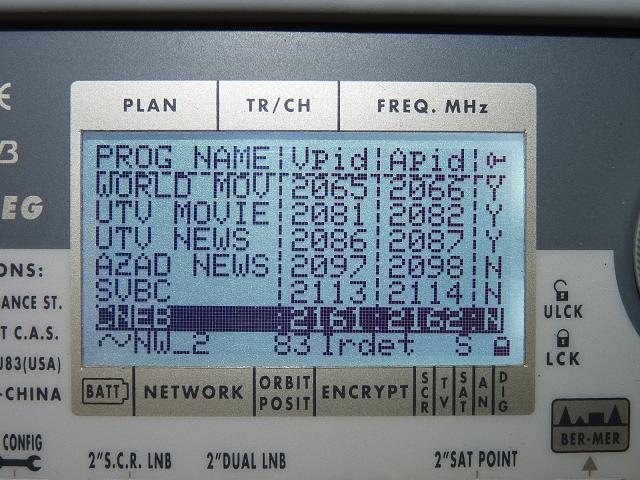

Insat 2E-3B-4A at 83.0e-2e wide beam-3 656 V packet Indiasigh-NIT data

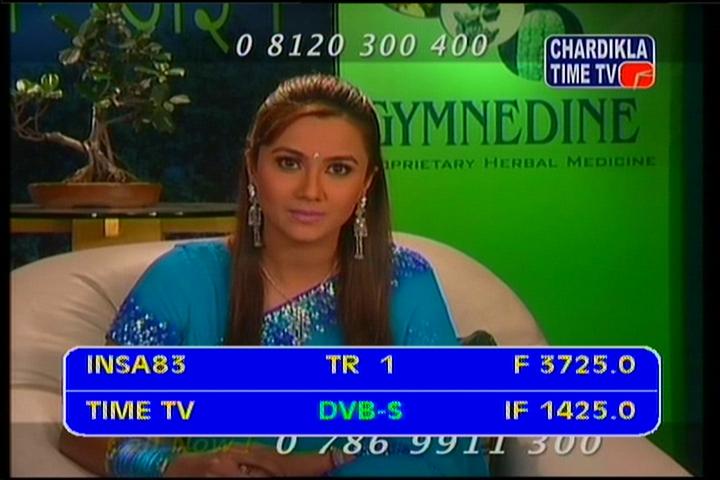

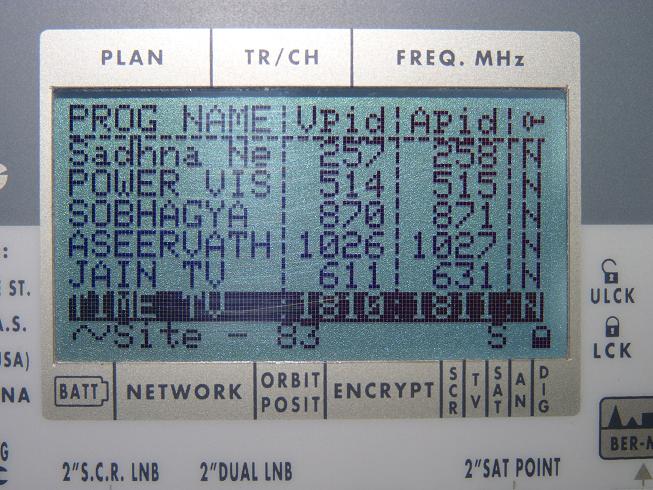

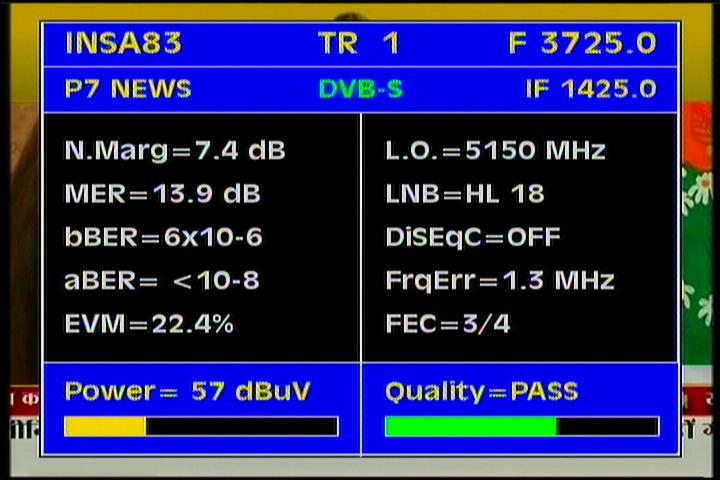

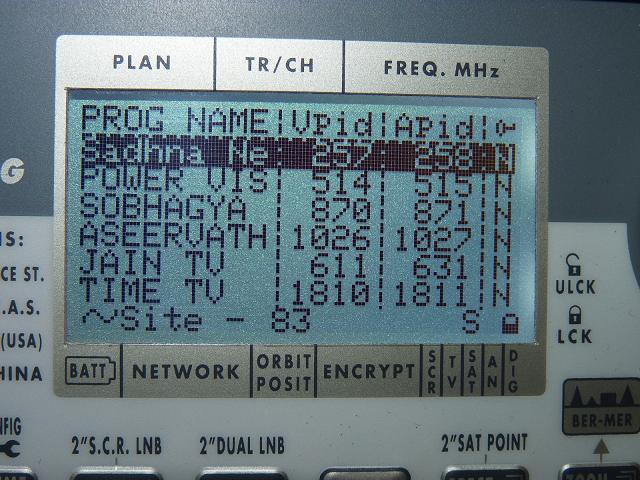

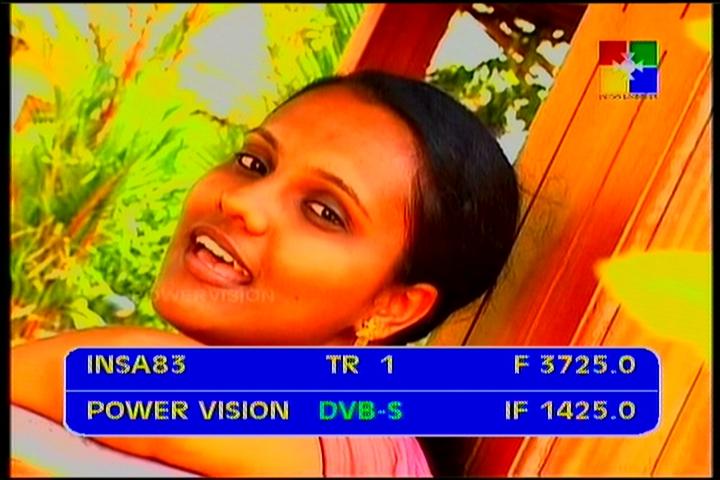

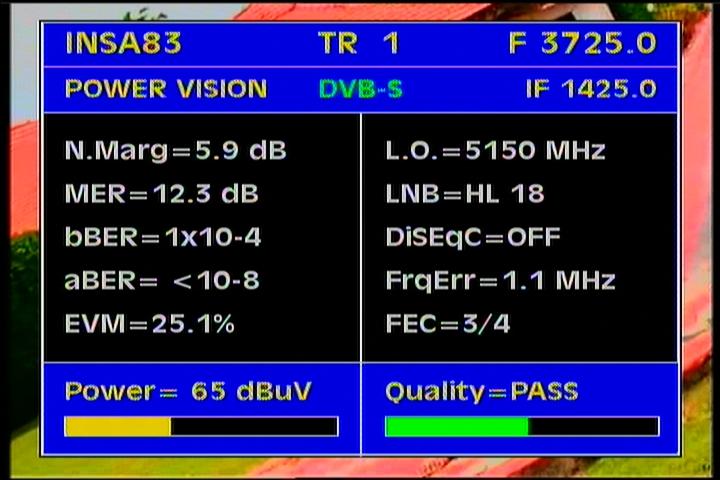

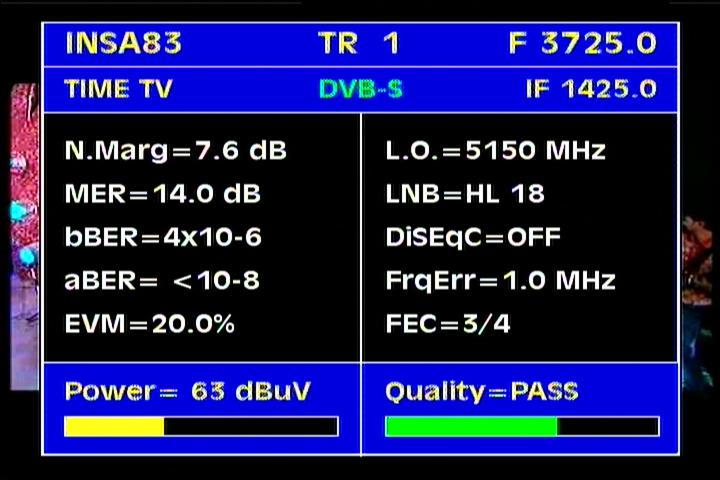

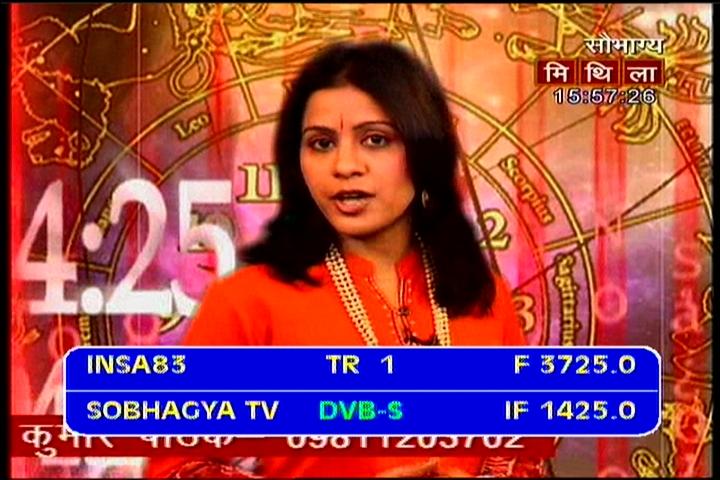

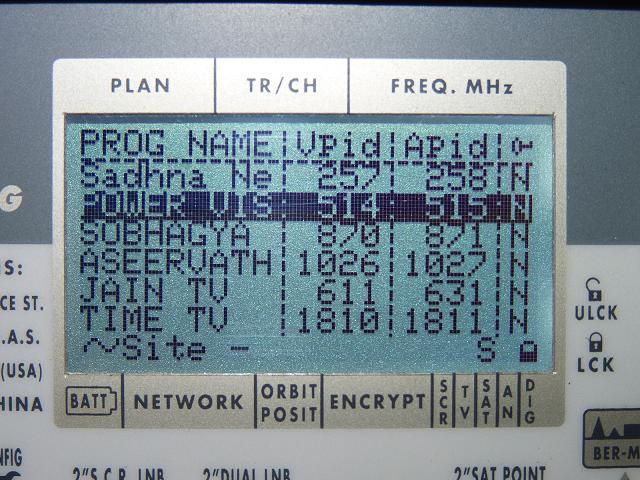

Insat 4A at 83.0°E - 4A footprint : 3 725 H Packet NSTPL_Site - 83
VA pids Q data NIT data

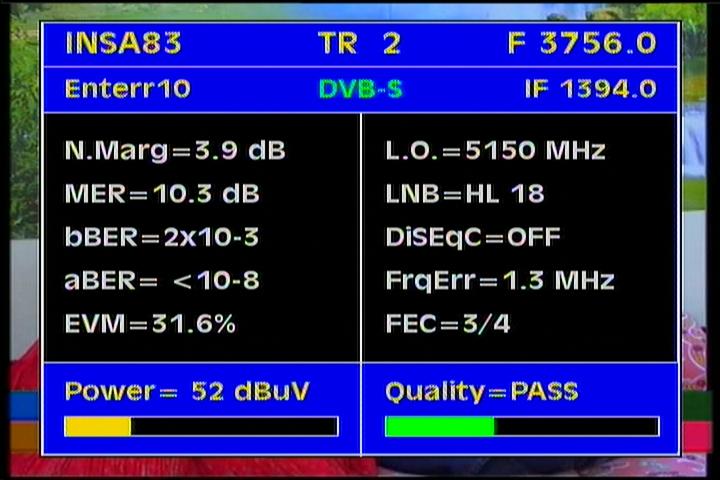

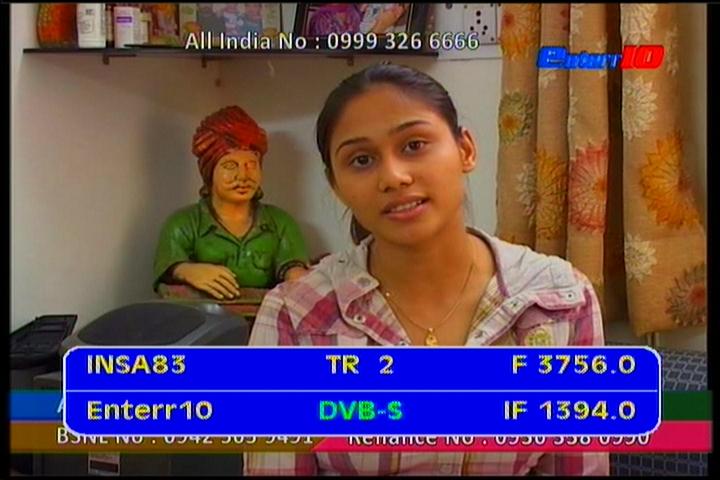

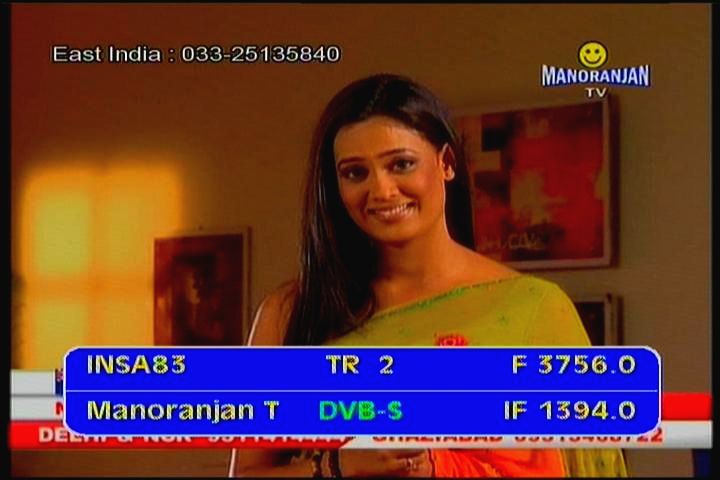

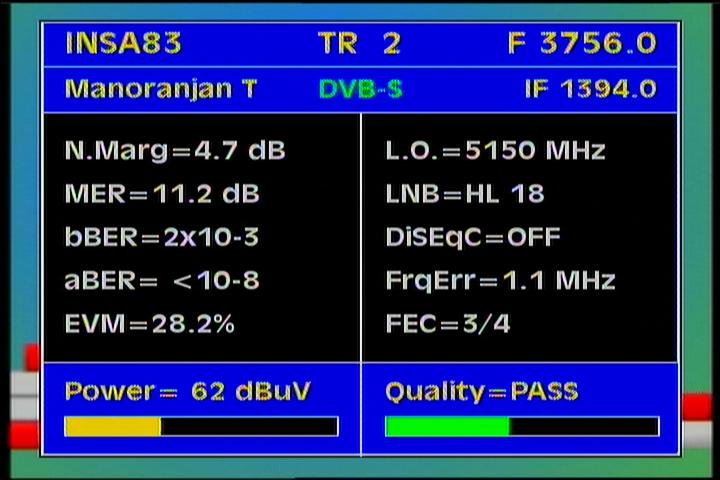

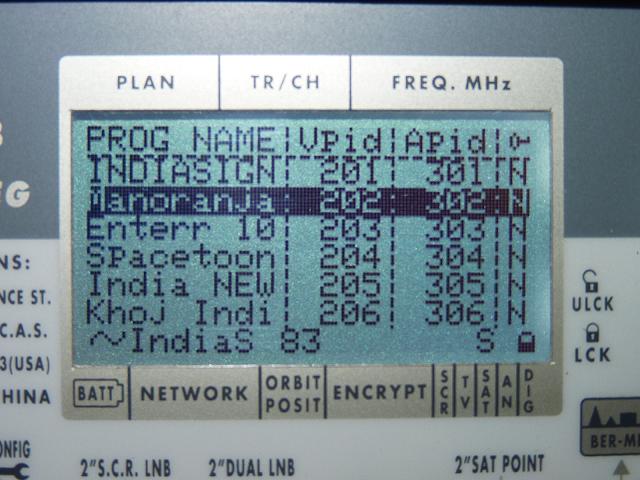

Insat 4A at 83.0°E - 4A footprint : 3 756 H Packet IndiaSign
IF data Q data NIT data

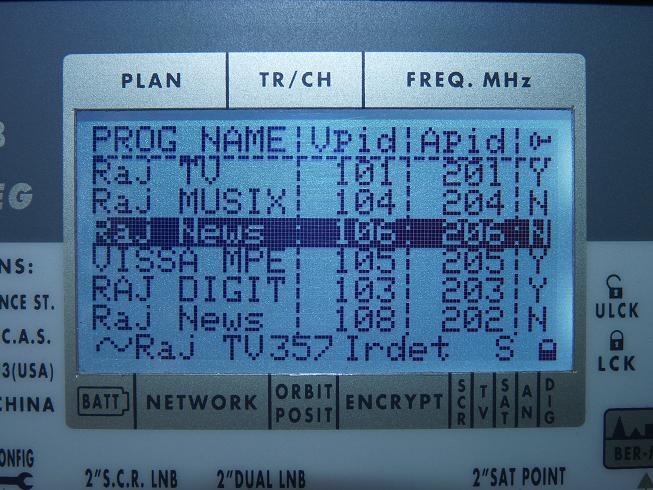

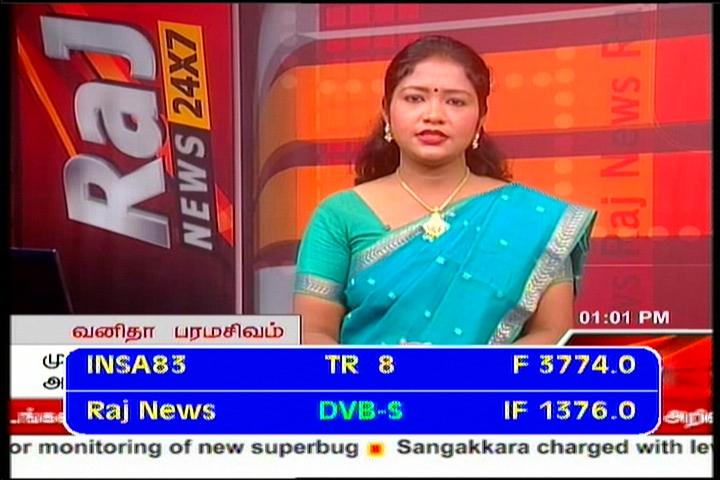

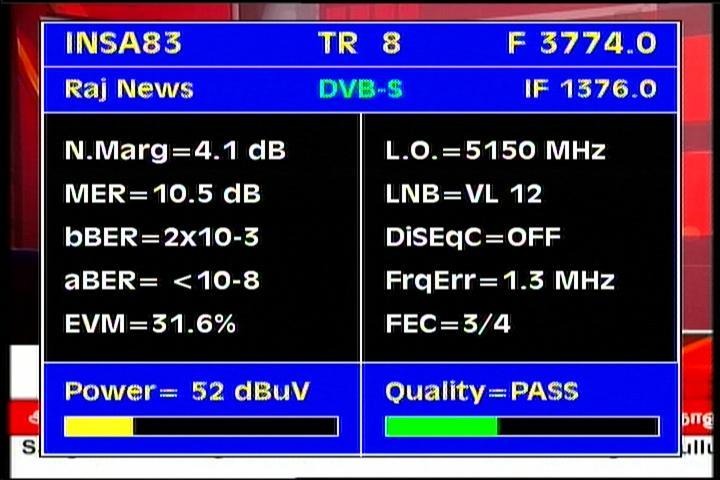

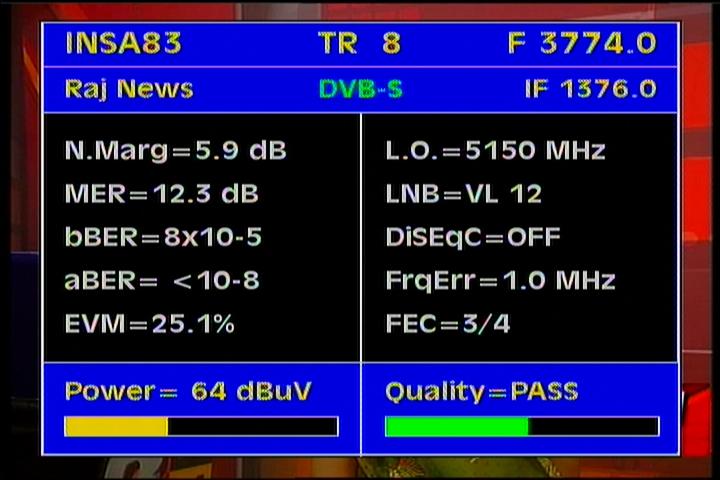

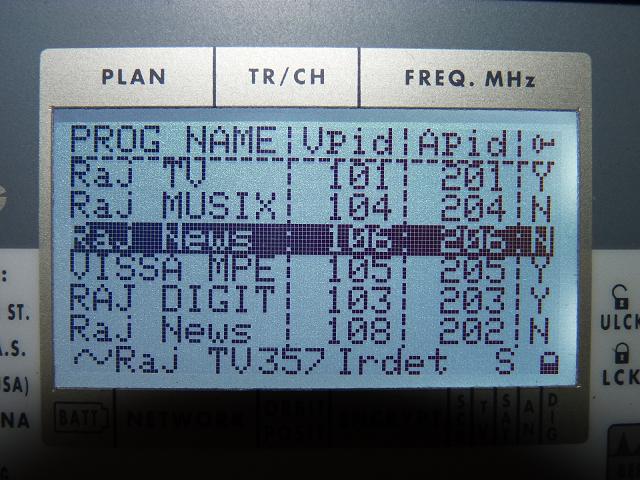

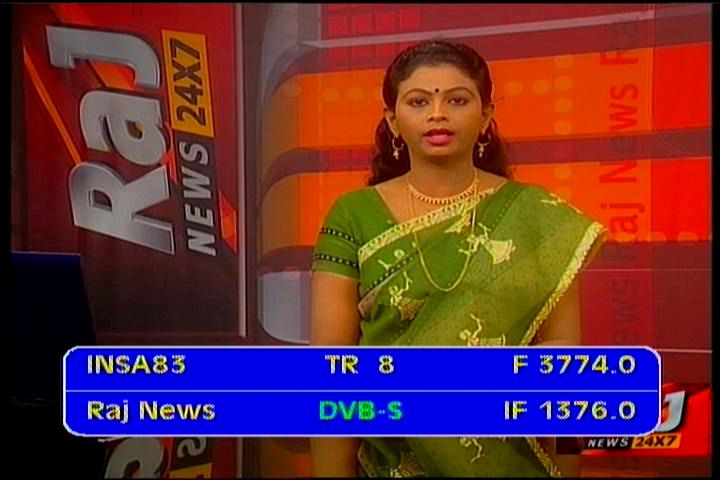

Insat 2E at 83.0°E - wide footprint : 3 774 V Packet Raj TV 357
IF data Q data NIT data

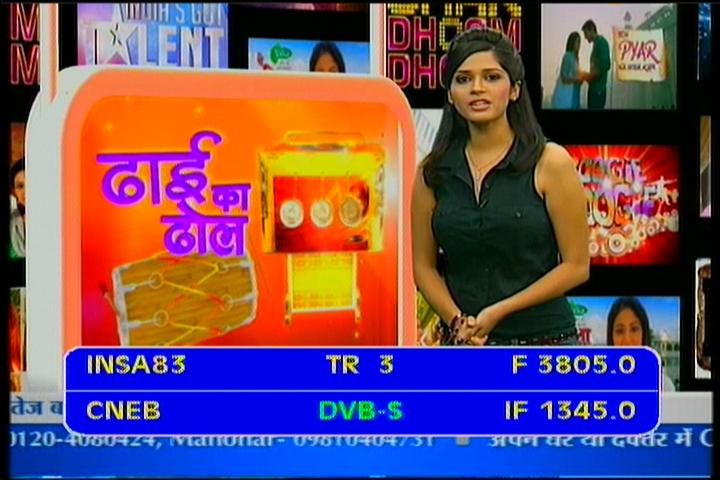

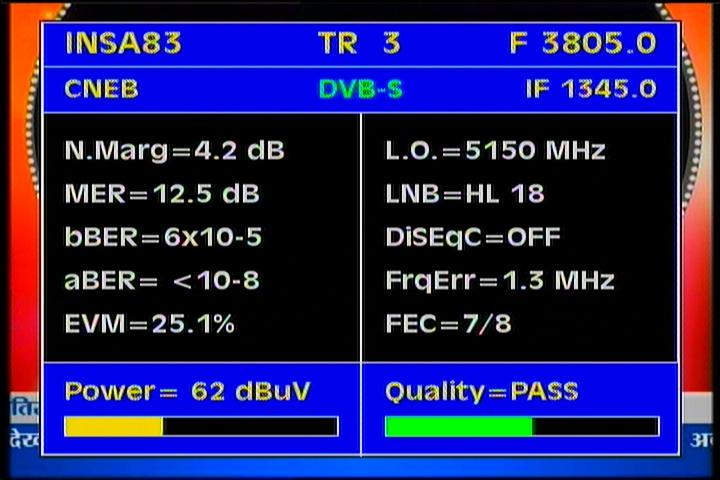

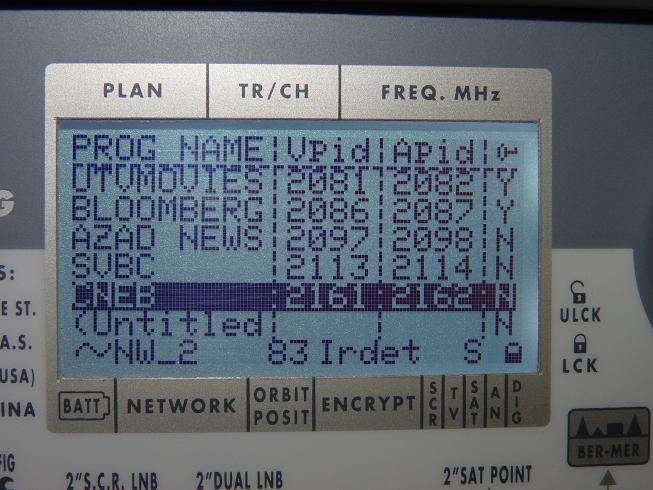

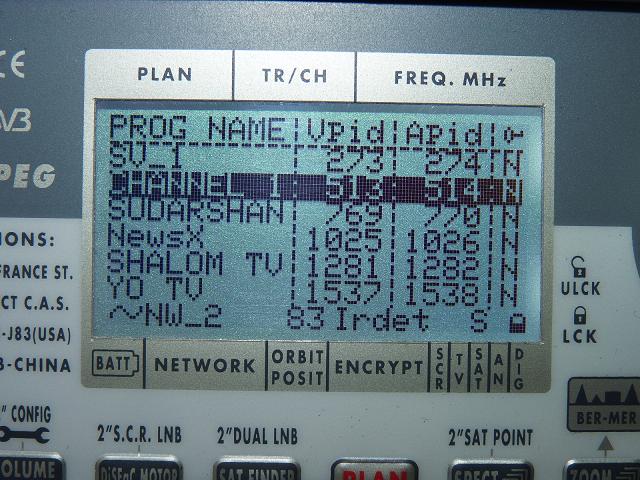

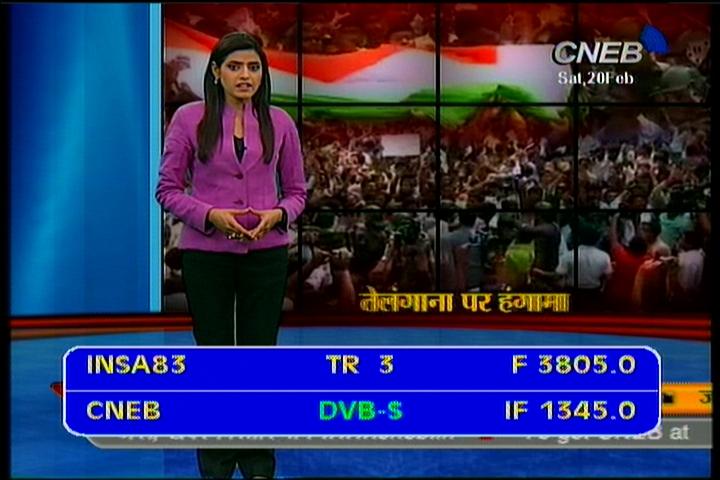

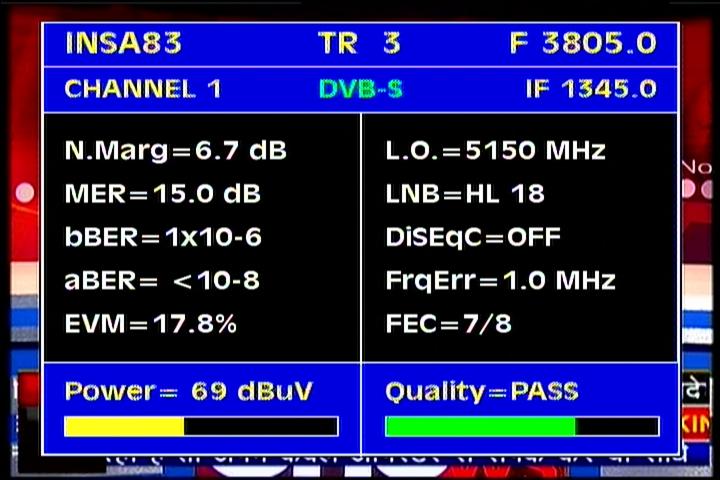

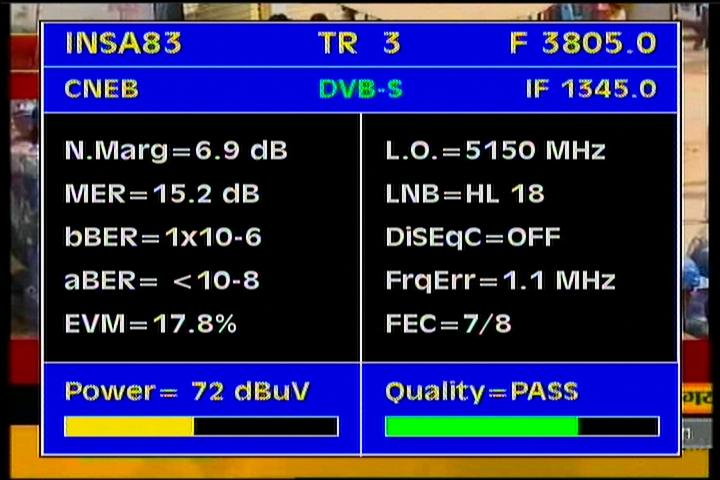

Insat 4A at 83.0°E - 4A footprint : 3 805 H Packet Essel Shyam_NW_2
VA pids Q data NIT data

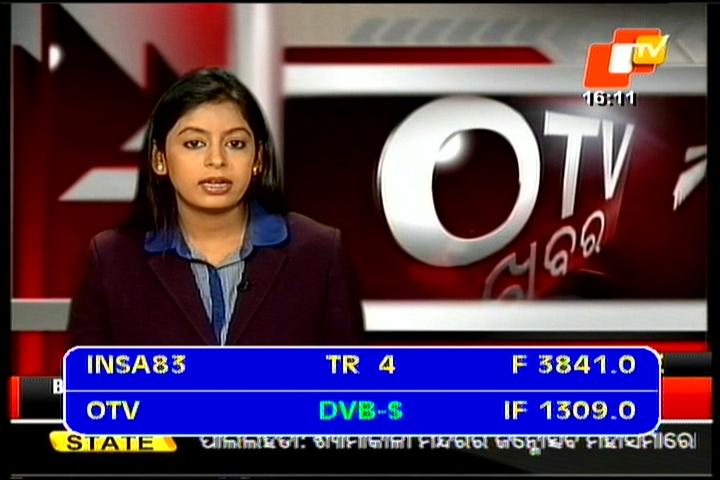

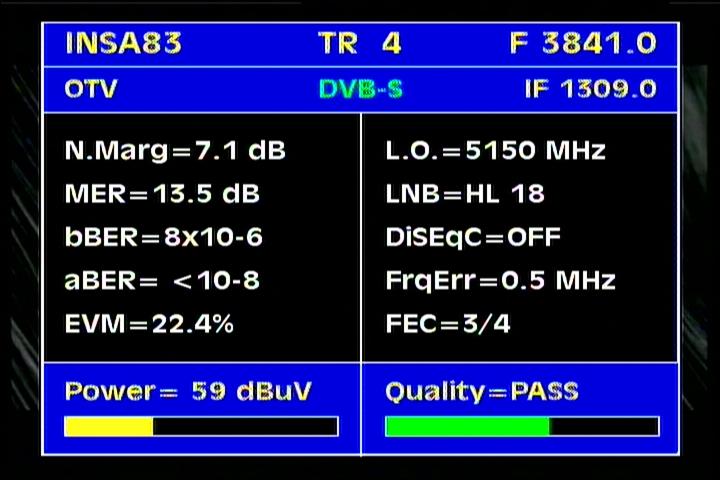

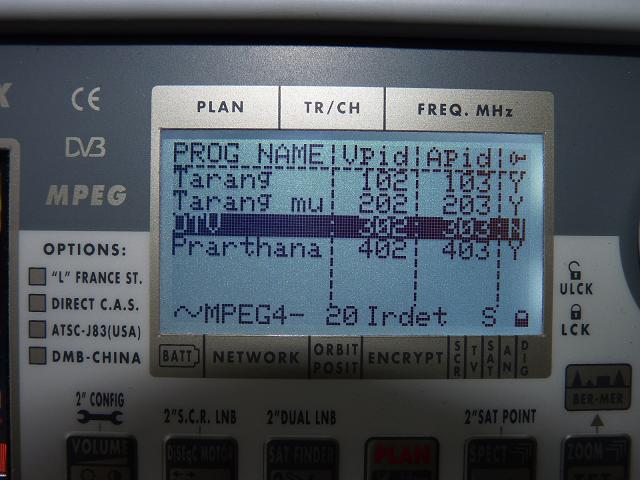

Insat 4A at 83.0°E - 4A footprint : 3 841 H Packet Tarang
IF data Q data NIT data

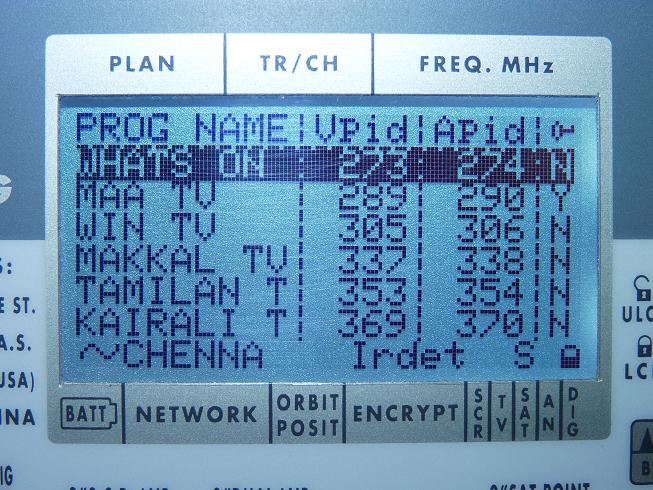

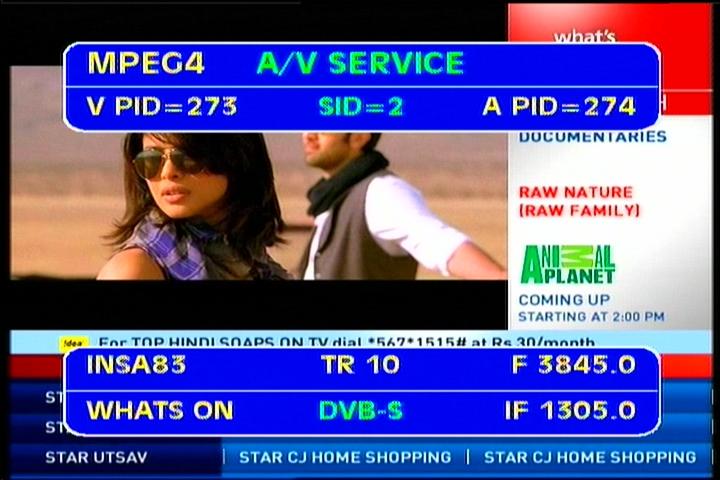

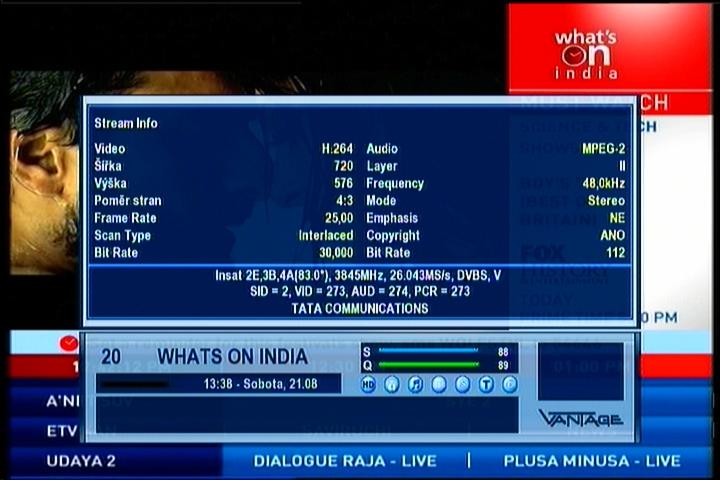

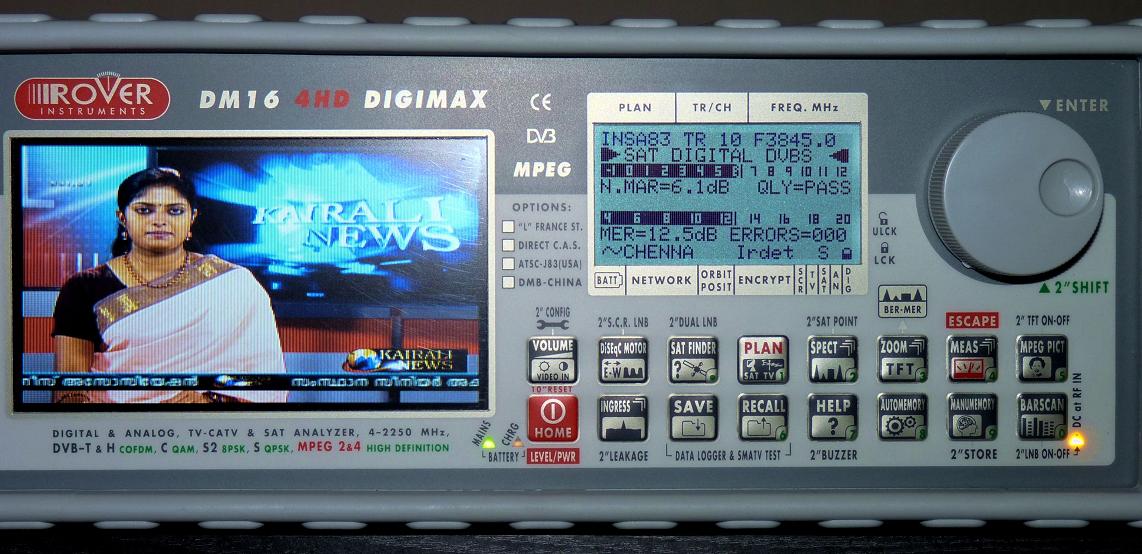

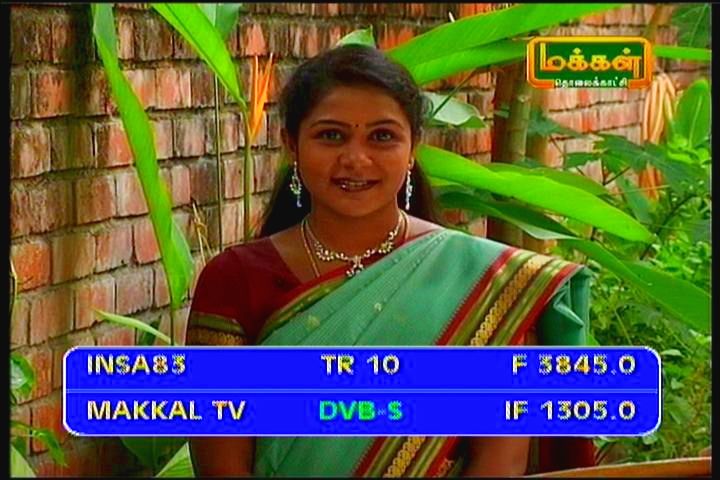

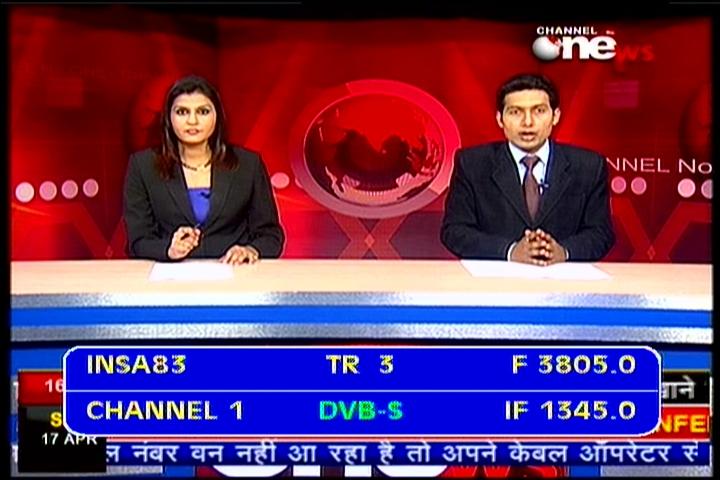

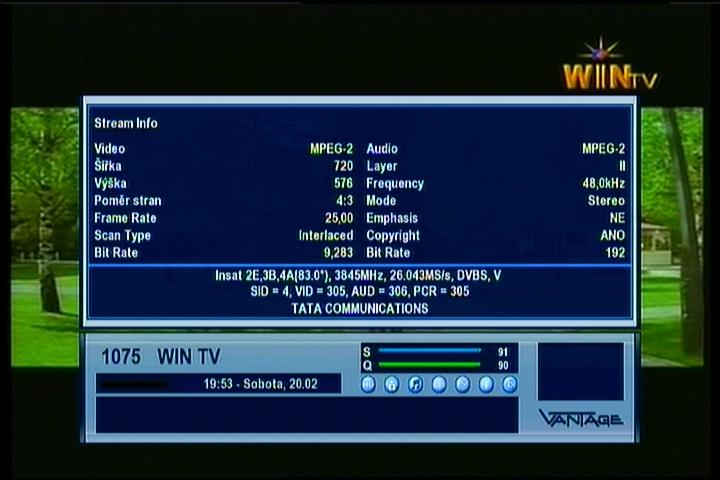

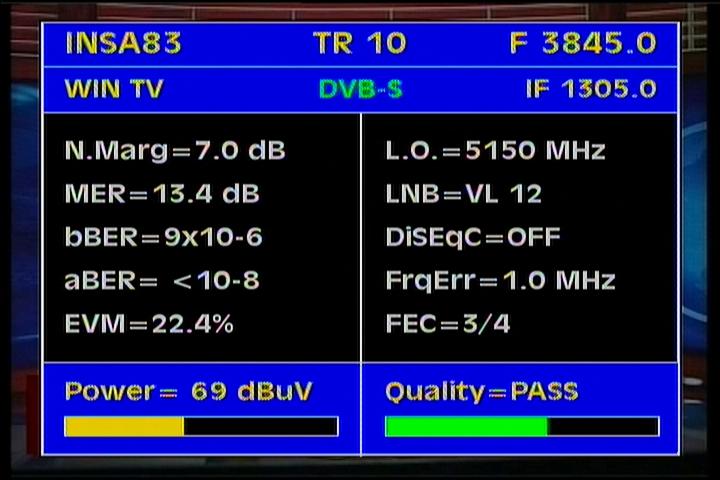

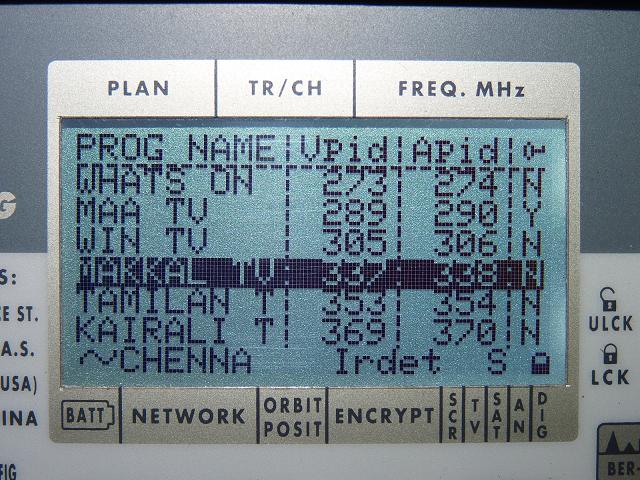

Insat 2E at 83.0°E - wide footprint : 3 845 V Packet TATA Communications_Chenna
IF data Q data NIT data

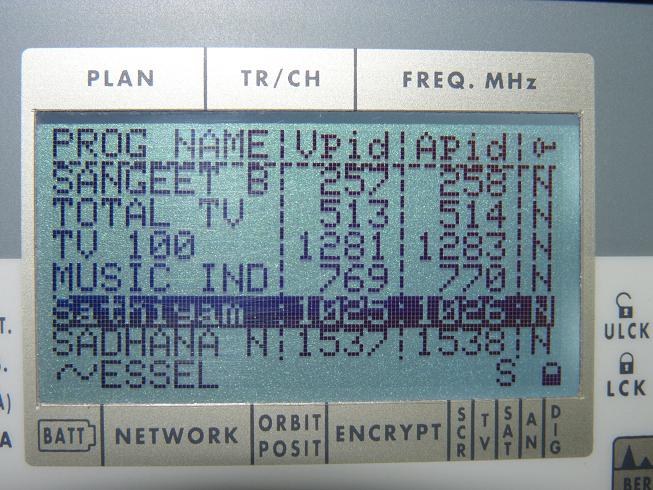

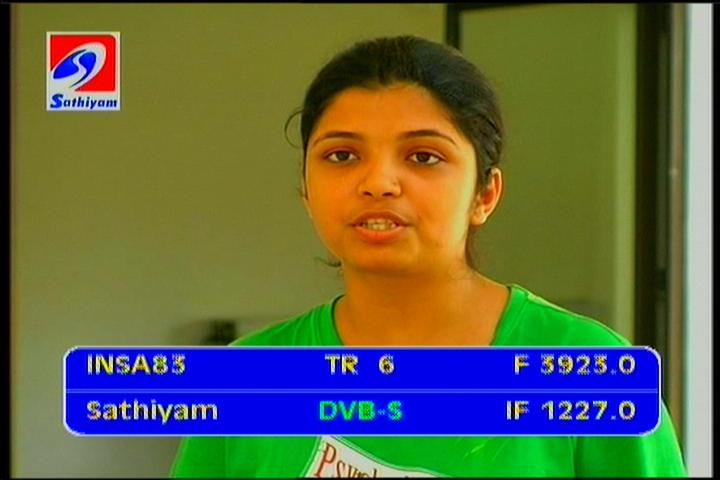

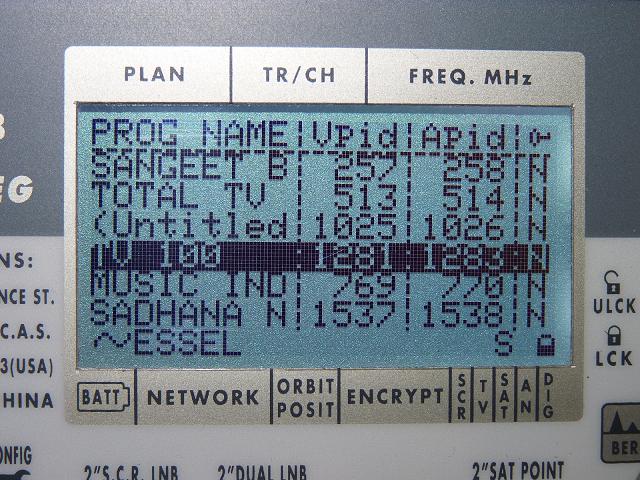

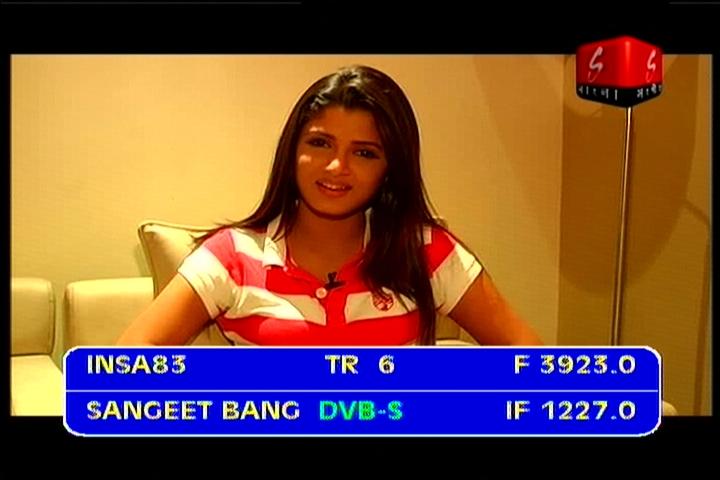

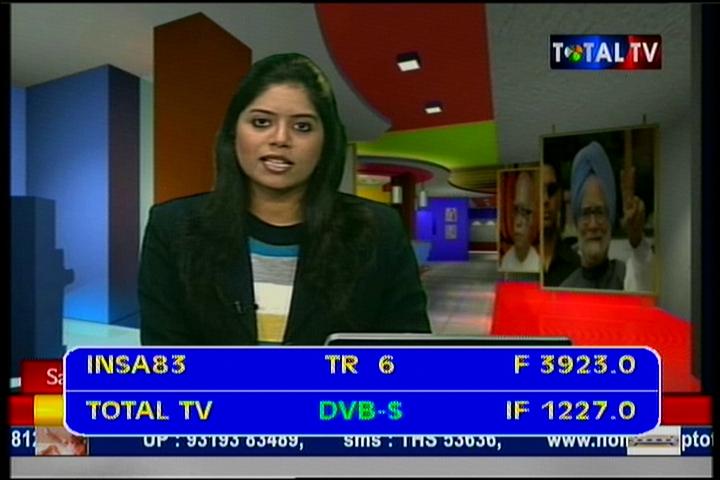

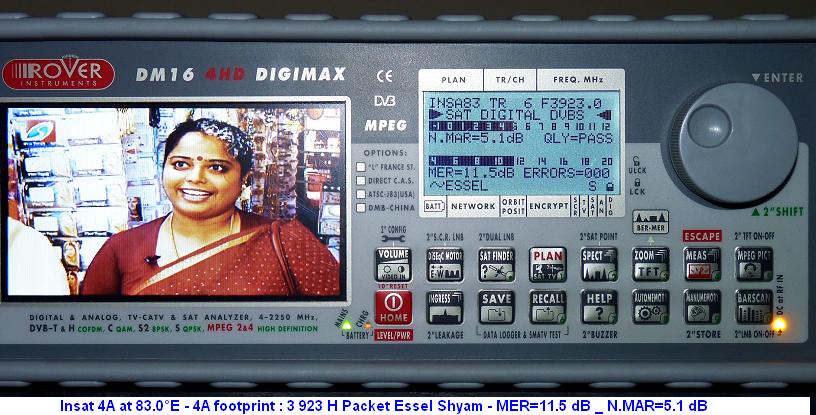

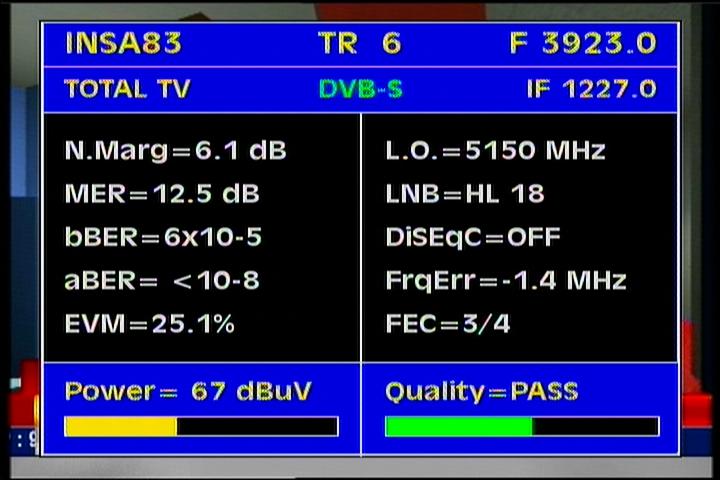

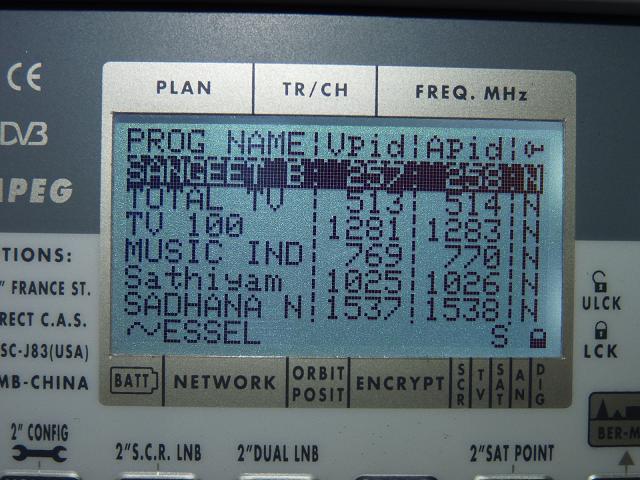

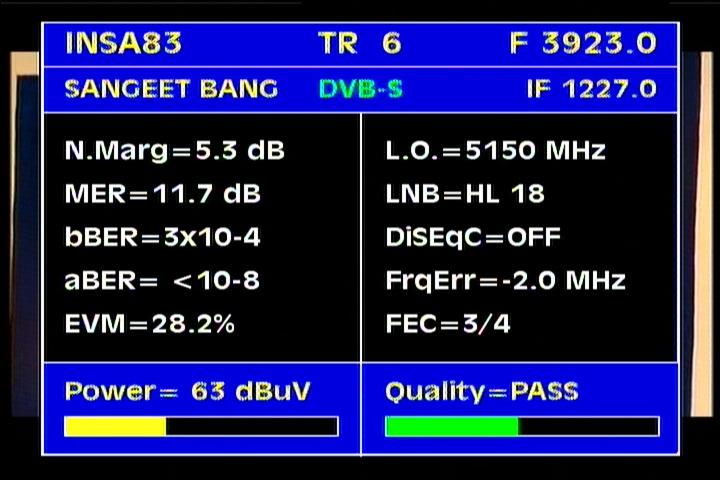

Insat 4A at 83.0°E - 4A footprint : 3 923 H Packet Essel Shyam
VA pids Q data NIT data

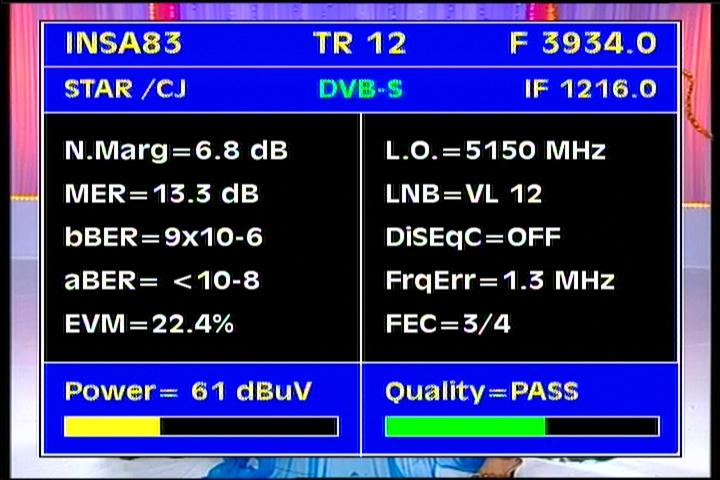

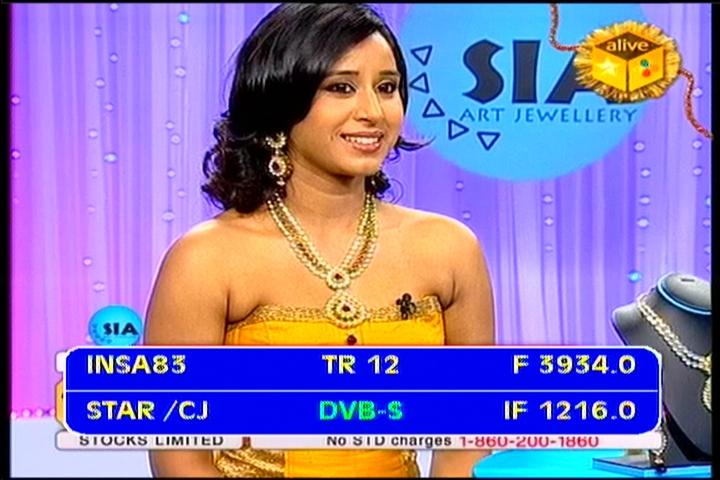

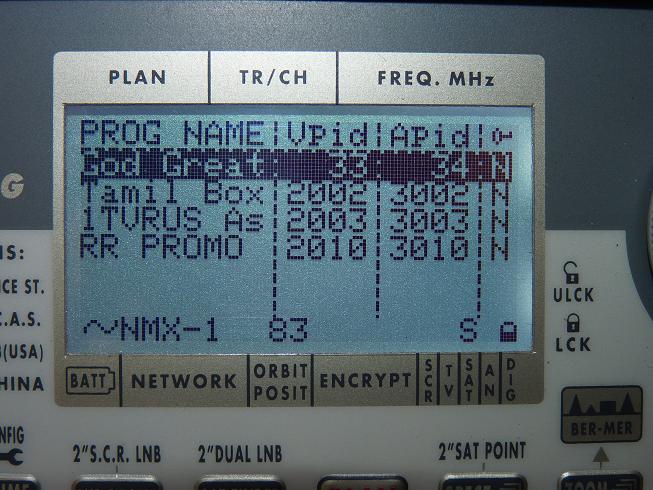

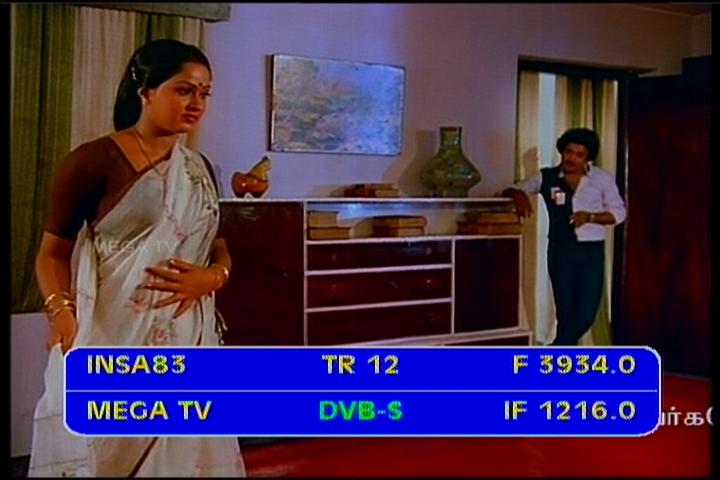

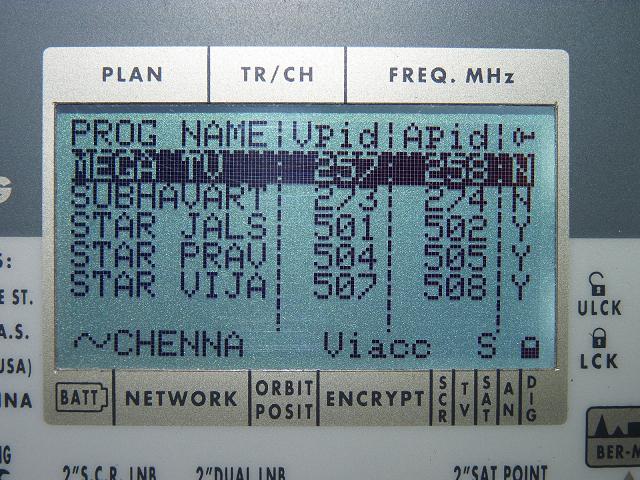

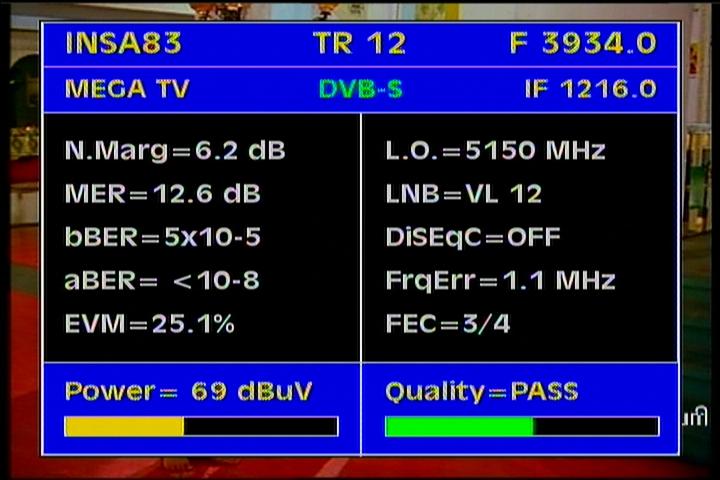

Insat 2E at 83.0°E - wide footprint : 3 934 V Packet TATA Communications_Chenna
VA pids Q data NIT data

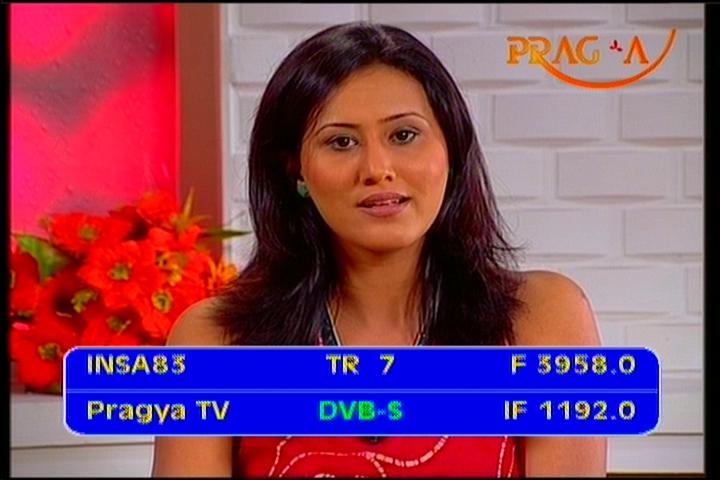

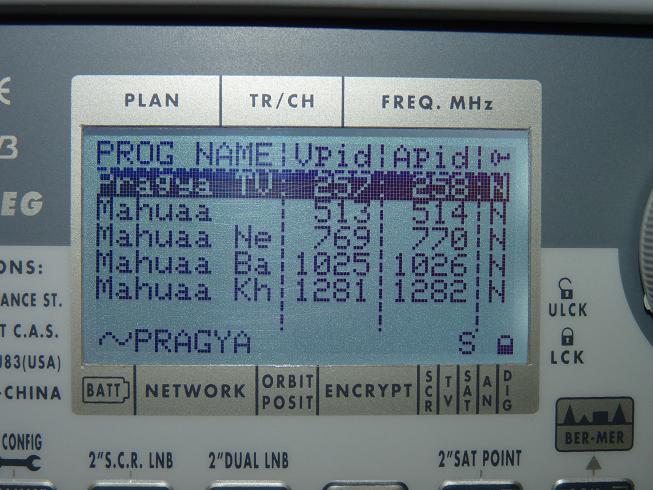

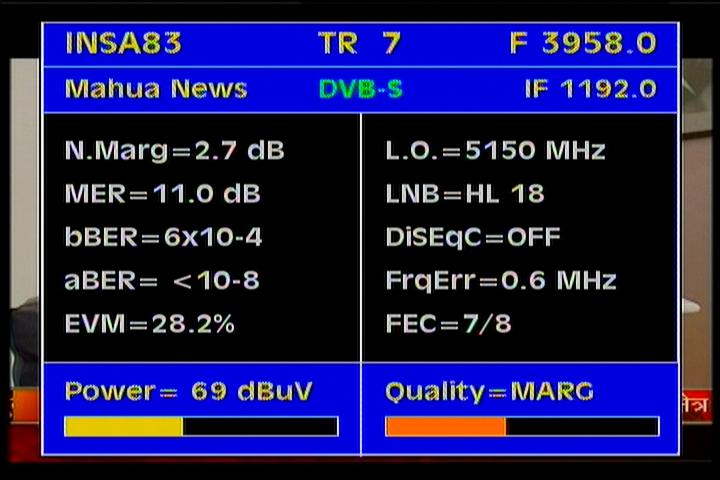

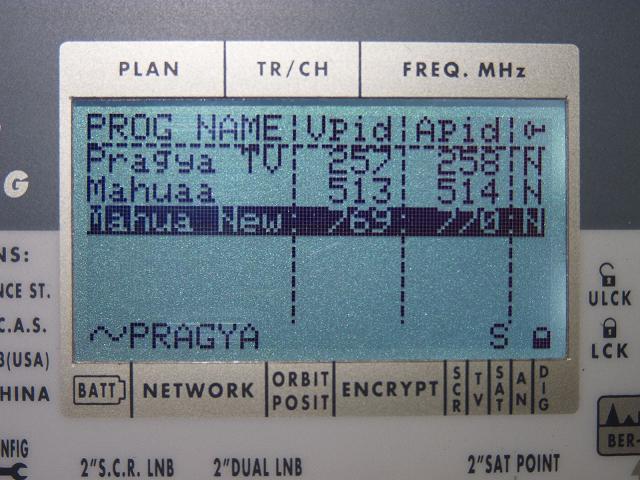

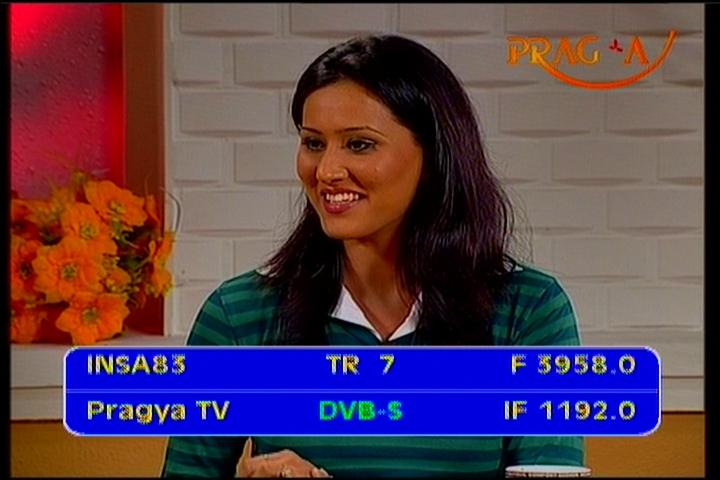

Insat 4A at 83.0°E - 4A footprint : 3 958 H MPEG-4 Pragya network India
IF data Q data NIT data

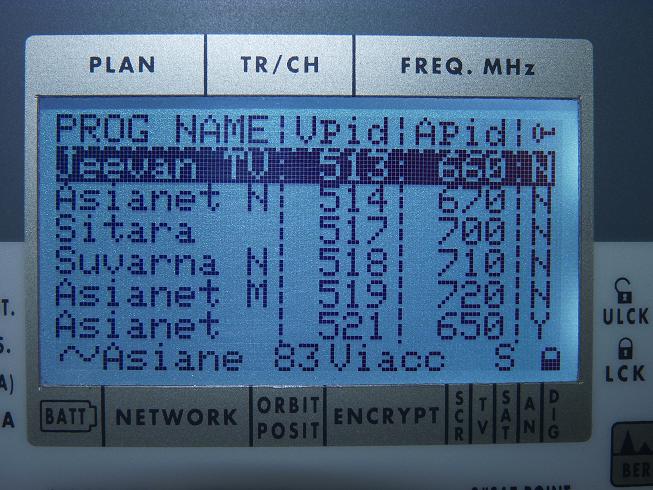

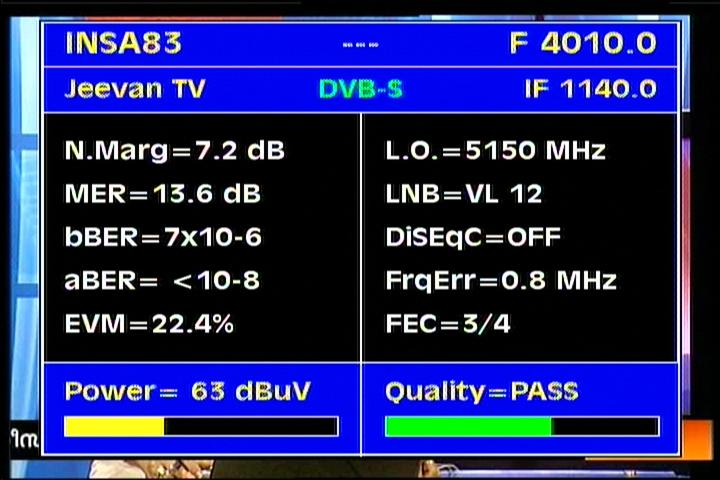

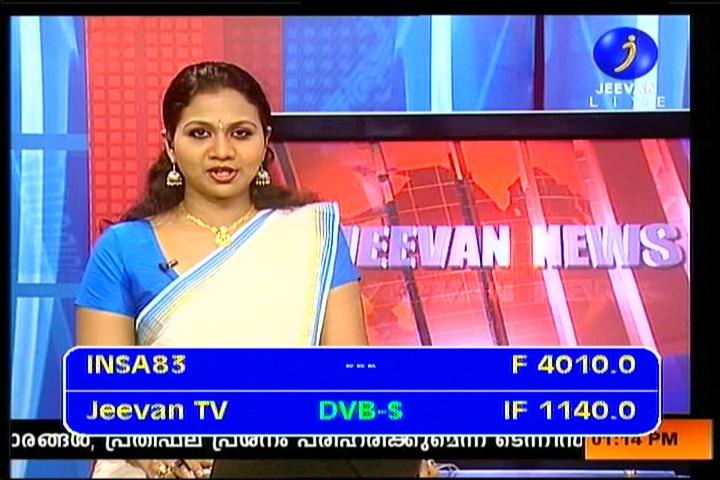

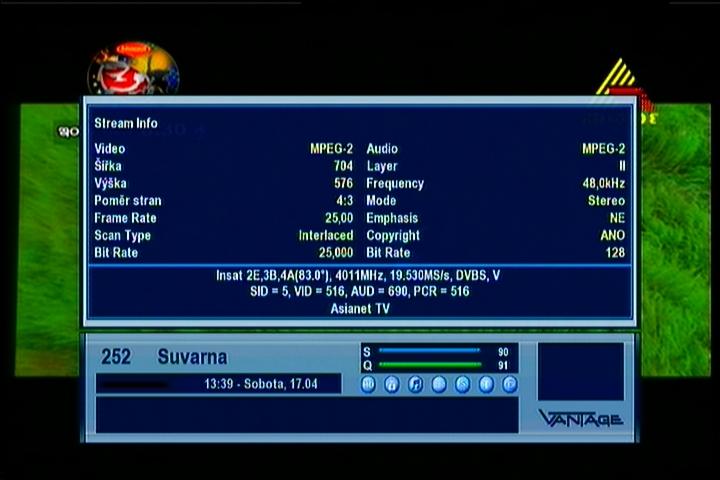

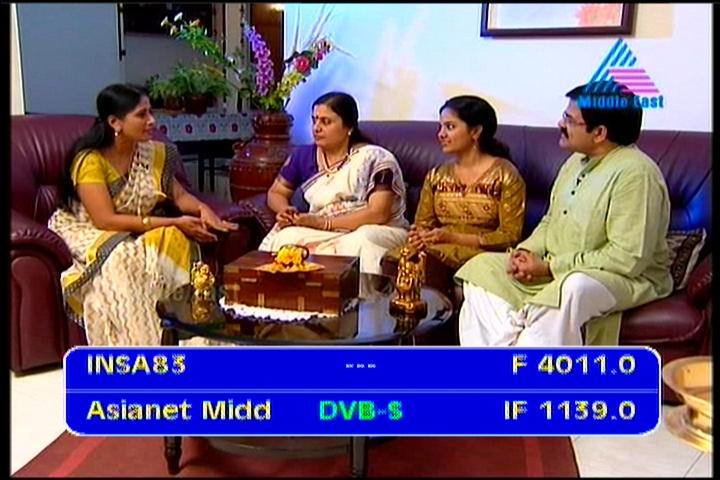

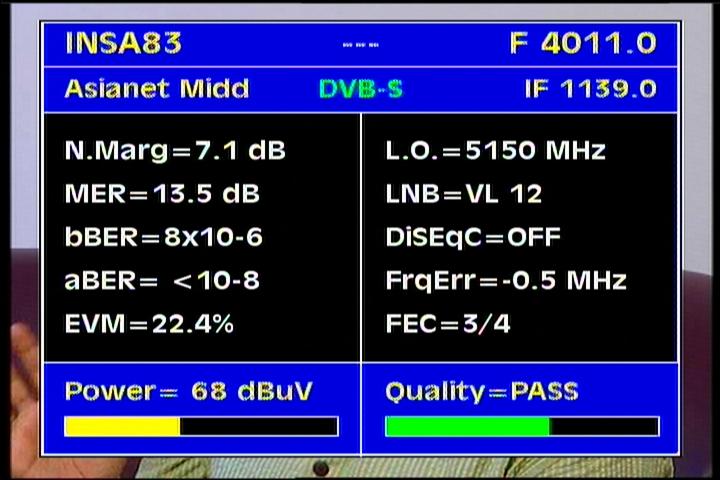

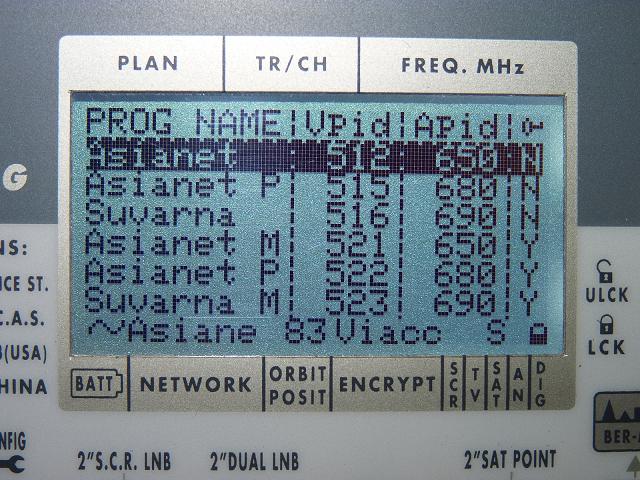

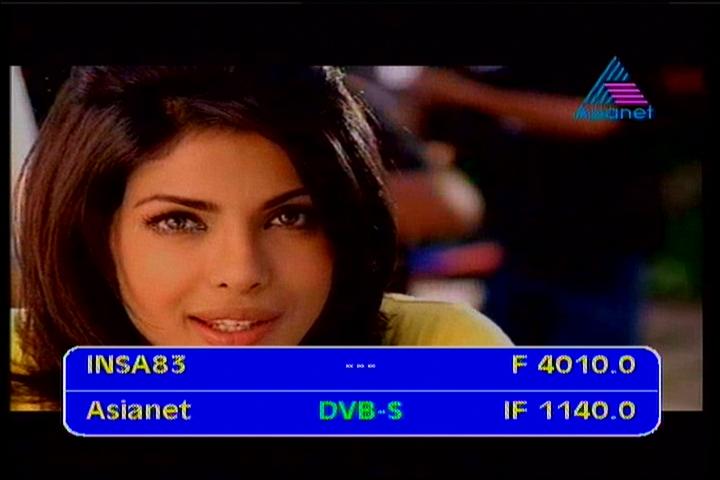

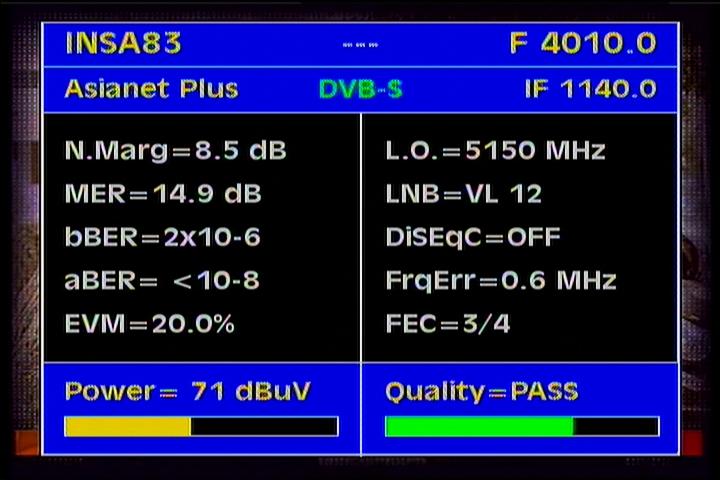

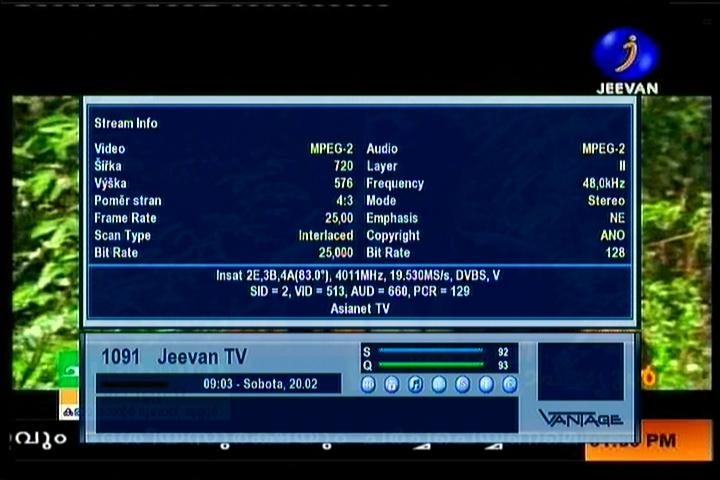

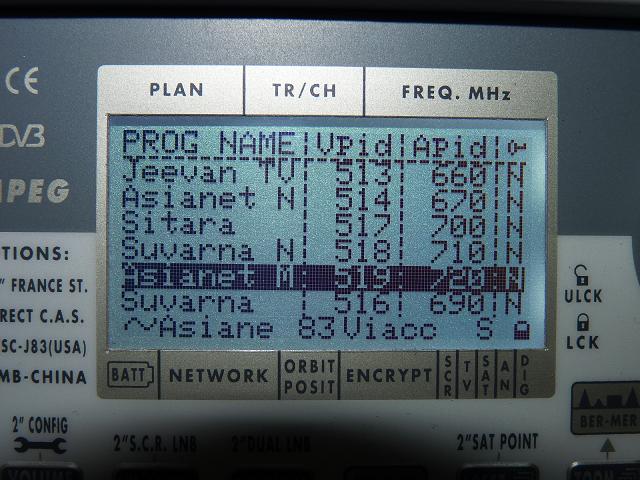

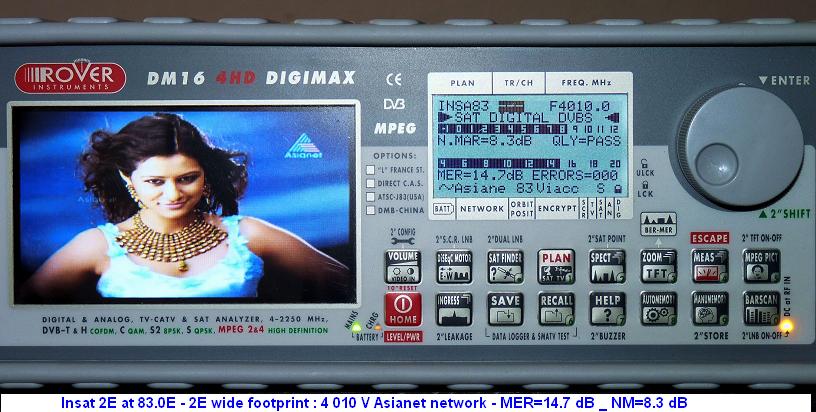

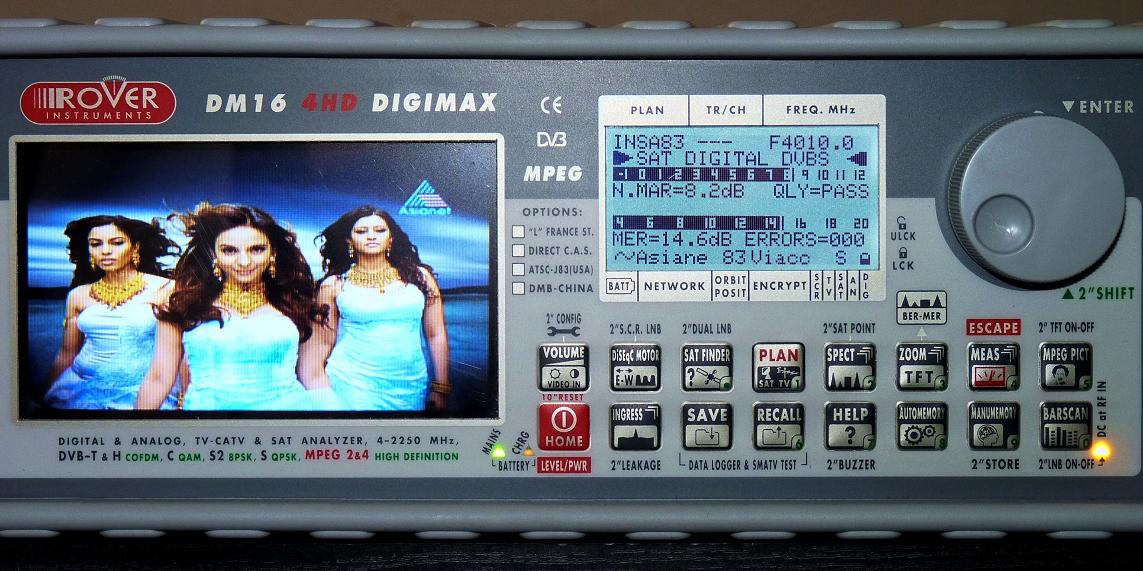

Insat 2E at 83.0°E - wide footprint : 4 010 V Packet Asianet
IF data Q data NIT data

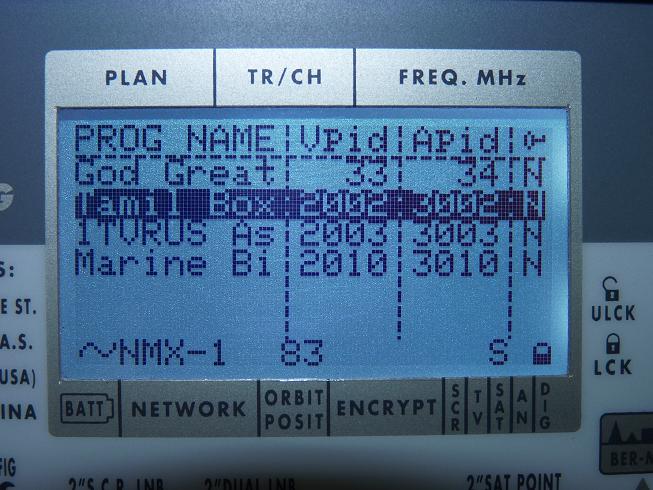

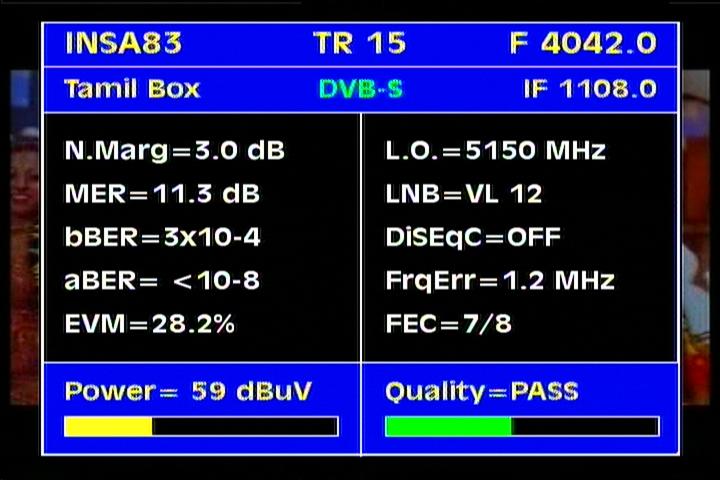

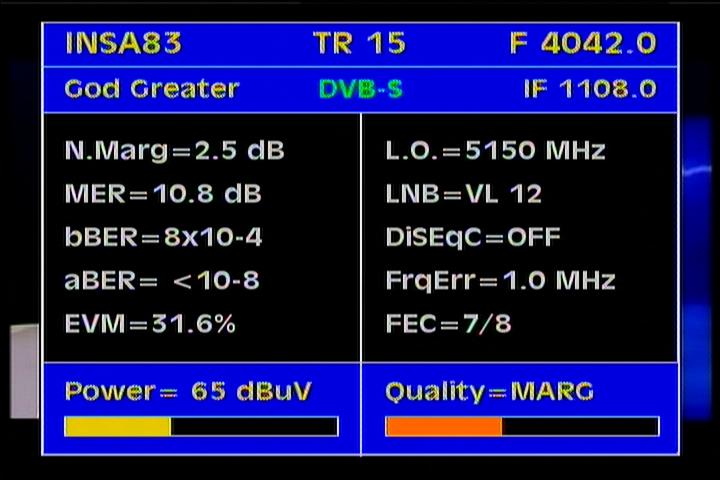

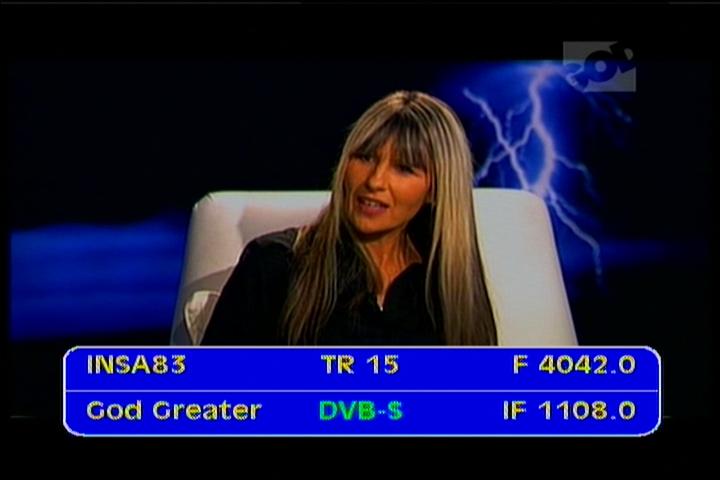

Insat 2E at 83.0°E - wide footprint : 4 042 H Packet RRSat Global
IF data Q data NIT data

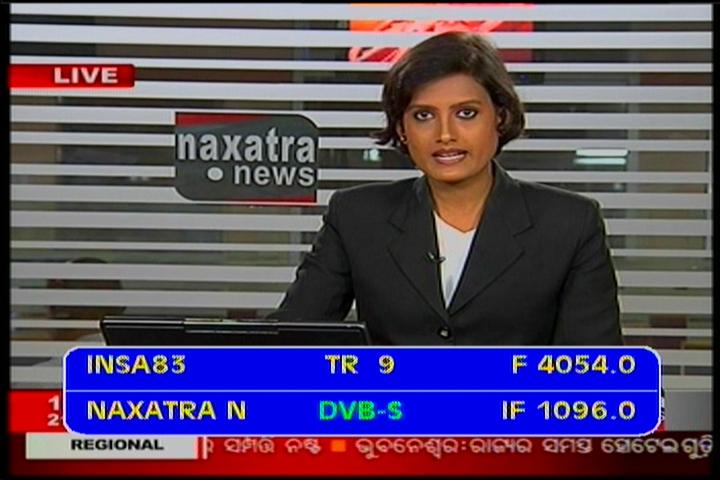

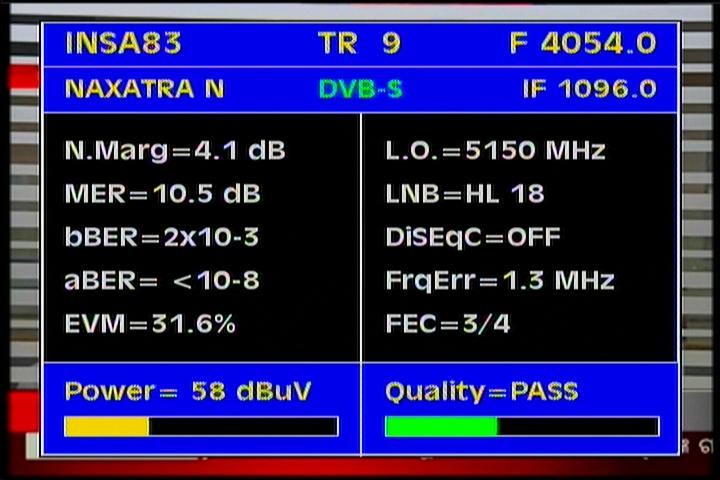

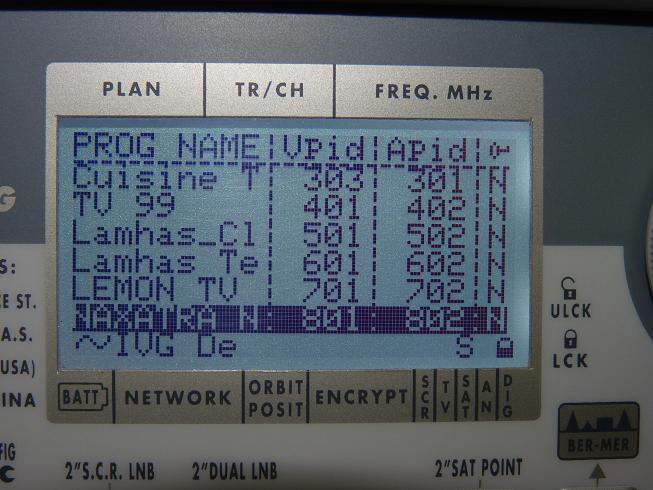

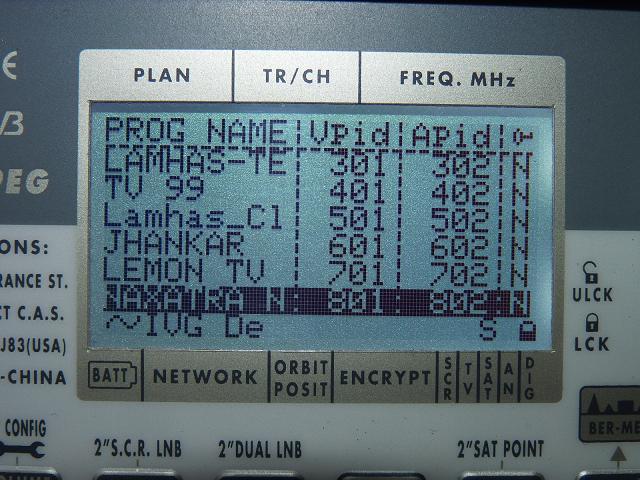

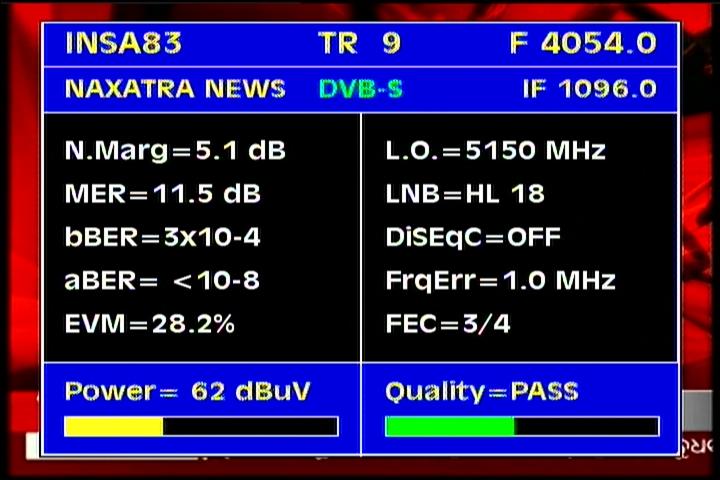

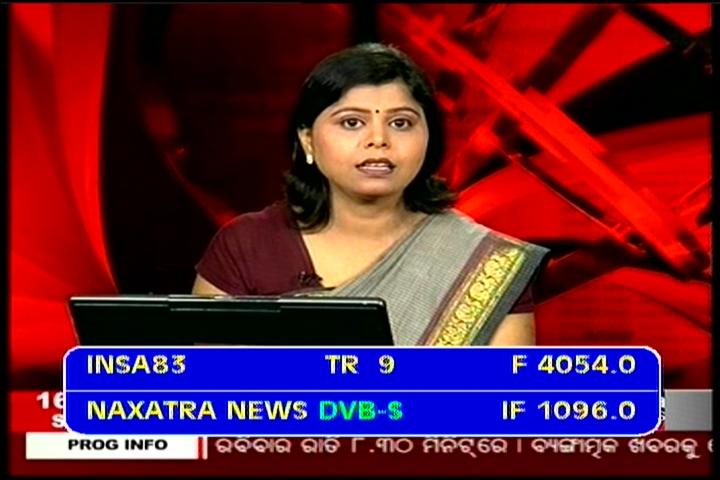

Insat 4A at 83.0°E - 4A footprint : 4 054 H Packet Lamhas
IF data Q data NIT data

Insat 2E/3B/4A at 83.0°E : TV List

---Frequency---	--------Provider/Channel--------	---SR---	--FEC--	--Footprint--	---Antenna---	---Video/Encryption---
3 512 -V- tp 3	Indiasign	6 923	7/8	2E Zone	450-600+ cm	DVB
	test Ollywood					FTA
	Enterr 10					FTA
	test					MPEG-4/FTA
	test					FTA
3 521 -V- tp 3	North East	8 640	3/4	2E Zone	340-600+ cm	DVB
	North East TV					FTA
	North East Hi Fi					FTA
	North East Bangla					FTA
3 537 -V- tp 3	North East	10 800	3/4	2E Zone	340-600+ cm	DVB
	Focus TV					FTA
	Hamar TV					FTA
	HY TV India					FTA
3 550 -V- tp 4	TV 9 Telegu	3 255	3/4	2E Zone	340-600+ cm	DVB FTA
3 554 -V- tp 4	Indiasign	3 704	7/8	2E Zone	450-600+ cm	DVB FTA
	News Time					MPEG-4/FTA
	test Ekhon					MPEG-4/FTA
	test card Indiasign					MPEG-4/FTA

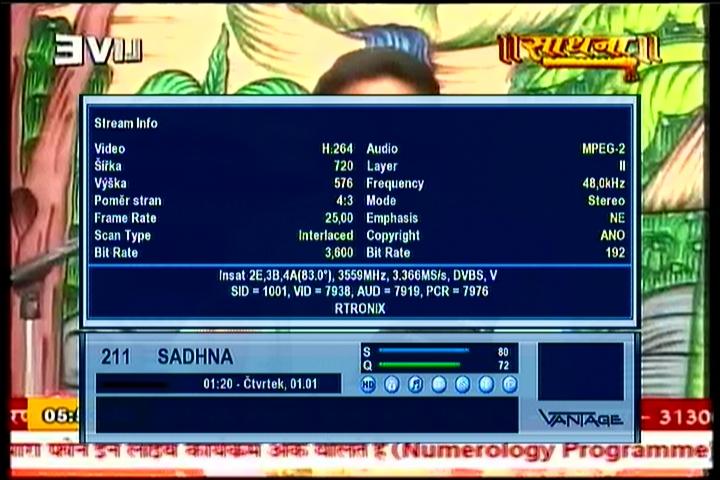

3 559 -V- tp 4	StreamTel	3 366	3/4	2E Zone	300-600+ cm	DVB FTA
	Sadhna	Vp.7938				MPEG-4/FTA
3 574 -V- tp4	Kalaignar TV	5 185	3/4	2E Zone	300-600+ cm	DVB
	Sirippooli					FTA
	Chithiram					FTA
	Seithigal					FTA
3 582 -V- tp 4	TV 9 Kannada	3 255	3/4	2E Zone	340-600+ cm	DVB FTA
3 594 -V- tp 5	Kalaignar TV	5 185	3/4	2E Zone	340-600+ cm	DVB
	Kalaignar TV					FTA
	Isai Aruvi					FTA
3 600 -V- tp 5	unnamed network	2 963	3/4	2E Zone	340-600+ cm	DVB
	SS Music					FTA
	SS Entertainment					FTA
3 612 -V- tp 5	TATA Communications	9 629	3/4	2E Zone	340-600+ cm	DVB
	Aakaash Bangla					FTA
	R Plus					FTA
	Rupasi Bangla TV					MPEG-4/FTA
	Aath					PowerVu
3 621 -V- tp 5	Tara TV	3 703	7/8	2E Zone	450-600+ cm	DVB
	Southasia TV					FTA
	Tara Muzik					FTA
3 656 -V- tp 6	Indiasign network	13 330	3/4	2E Wide	200+ cm	DVB FTA
	TV 5 India					MPEG-2/FTA
	Andra Jyoti					MPEG-2/FTA
	Mahaa TV					MPEG-2/FTA
	Rakshana TV					MPEG-2/FTA
	Indiasign TEST 5					MPEG-4/FTA
3 679 -V- tp 6	Amrita TV ME	5 926	3/4	2E WIDE	200+ cm	DVB FTA
3 685 -V- tp 6	feeds Amrita TV DSNG	1 953	3/4	2E Wide	220+ cm	DVB FTA
3 688 -V- tp 6	Angel TV	4 340	3/4	2E WIDE	200+ cm	DVB FTA
3 696 -V- tp 6	TATA Comminications	6 111	3/4	2E WIDE	200+ cm	DVB
	Sri Sankara					FTA
	Studio N					FTA
3 725 -H- tp 1	NSTPL India	26 665	3/4	4A	240+ cm	DVB
	Sadhna news UK					MPEG-4/FTA
	Power Vision TV					FTA
	Sobhagya TV					FTA
	Aseervatham TV					FTA
	Jain TV					MPEG-4/FTA
	Time TV					FTA
	Day Night news					MPEG-4/FTA
	Disha TV					FTA
	Josh TV					MPEG-4/FTA
	Magik tv					MPEG-4/FTA
	P7 News					MPEG-4/FTA
	Raftaar TV					MPEG-4/FTA
	Sanathan TV					MPEG-4/FTA
	Time Today TV					MPEG-4/FTA
	Sadhana News					MPEG-4/FTA
	Bizz news					MPEG-4/FTA
3 750 -V- tp 8	Jaihind TV	3 333	3/4	2E WIDE	200+ cm	DVB FTA
3 753 -V- tp 8	ETV Telegu	3 282	5/6	2E WIDE	200+ cm	Irdeto 2
3 757 -H- tp 2	Indiasign	13 333	3/4	4A	240+ cm	DVB
	Indiasign test 1					MPEG-4/FTA
	Manoranjan TV					FTA
	Enterr 10					FTA
	Spacetoon Kids					FTA
	India News					FTA
	Khoj India					FTA
	24 TV					FTA
	India News Hary					MPEG-4/FTA
3 760 -V- tp 8	CNBC India	6 500	3/4	2E WIDE	200+ cm	DVB
	CNBC Awaaz					Conax
	CNBC TV 18					Conax
3 775 -V- tp 8	Raj TV Network	13 021	3/4	2E WIDE	200+ cm	DVB
	Raj TV					MPEG-2/Irdeto
	Raj Musix					FTA
	Raj News					FTA
	Vissa					MPEG-4/Irdeto
	Raj Digital Plus					MPEG-4/Irdeto
	Raj News Telegu					MPEG-4/FTA
3 778 -H- tp 2	Star TV	10 900	3/4	4A	240+ cm	DVB
	STAR News India					Irdeto
	STAR News International					Irdeto
	STAR Ananda					Irdeto
	STAR Majha					FTA
3 789 -V- tp 9	Kanak TV	3 223	3/4	2E Zone	360-600+ cm	DVB FTA
3 794 -V- tp 9	Bloomberg UTV	3 500	2/3	2E Zone	360-600+ cm	Irdeto 2
3 800 -V- tp 9	Polimer TV	3 333	3/4	2E Zone	360-600+ cm	DVB FTA
3 803 -V- tp 9	Captain TV	3 333	3/4	2E Zone	360-600+ cm	DVB FTA
3 804 -H- tp 3	ESCL India	28 500	7/8	4A	240+ cm	DVB
	SV_1 test					MPEG-4/FTA
	Channel 1					FTA
	Sudarshan TV					FTA
	News X					MPEG-4/FTA
	Shalom TV					FTA
	Yo Music					FTA
	UTV Action					Irdeto 2
	Bindass					Irdeto 2
	World Movies					Irdeto 2
	UTV Movies					Irdeto 2
	Bloomberg UTV					Irdeto 2
	Azad News					FTA
	SVBC					FTA
	CNEB					FTA
3 816 -V- tp 9	PTC Network	6 000	3/4	2E Zone	360-600+ cm	DVB FTA
	PTC News					MPEG-4/FTA
	PTC Punjabi					MPEG-4/FTA
	PTC Chakde					MPEG-4/FTA
3 841 -H- tp 4	Tarang	6 920	3/4	4A	240+ cm	DVB/MPEG-4
	Tarang TV					MPEG-4/Irdeto
	Tarang Music					MPEG-4/Irdeto
	Orissa TV					FTA
	Prarthana					MPEG-4/Irdeto
3 845 -V- tp 10	TATA Communications	26 043	3/4	2E WIDE	200+ cm	DVB
	Whats on India					MPEG-4/FTA
	MAA-TV					Irdeto 2
	WIN-TV					FTA
	MAKKAL-TV					FTA
	TAMILAN TV					FTA
	Kairali TV					FTA
	Kairali People					FTA
	Kairali WE					FTA
	Imayam TV					FTA
	Channel UFX					MPEG-4/FTA
3 847 -H- tp 4	Samaya TV	3 333	3/4	4A	240+ cm	DVB FTA
3 853 -H- tp 4	CTVN AKD PLUS	3 265	3/4	4A	240+ cm	DVB FTA
3 857 -H- tp 4	Kasthuri TV	3 462	3/4	4A	240+ cm	DVB FTA
3 874 -H- tp 5	unn. network	3 403	3/4	4A	240+ cm	DVB
	Nexatra news					MPEG-4/Irdeto
	Kamyab TV / now fta/					MPEG-4/Irdeto
3 886 -H- tp 5	Sakshi TV	4 440	3/4	4A	240+ cm	MPEG-4/FTA
3 892 -H- tp 5	Vanitha TV	3 300	3/4	4A	240+ cm	DVB
3 898 -H- tp 5	Essel Shyam	6 800	3/4	4A	240+ cm	DVB
	NTV India					FTA
	Bhakti TV					FTA
3 909 -H- tp 6	Essel Shyam	3 600	7/8	4A	240+ cm	FTA
	Bangla Media					FTA
	News 11					FTA
3 914 -V- tp 12	Indiavision news	3 000	3/4	2E WIDE	200+ cm	DVB FTA
3 919 -V- tp 12	Yes Indiavision	3 000	3/4	2E WIDE	200+ cm	---
3 922 -V- tp 12	Manorama News	3 000	3/4	2E WIDE	200+ cm	---
3 922 -H- tp 6	Essel Shyam	13 000	3/4	4A	240+ cm	DVB
	Sangeet Bangla					FTA
	Total TV					FTA
	TV 100					FTA
	Music India					FTA
	Sathiyam TV					FTA
	Sadhana News					FTA
	Mauria TV MPEG-4					MPEG-4/FTA
3 934 -V- tp 12	TATA Communications	13 021	3/4	2E WIDE	200+ cm	DVB
	MEGA TV					FTA
	Subhavaartha TV					FTA
	Star Jalsha					MPEG-4 / Viaccess
	Star Pravah					MPEG-4 / Viaccess
	Star Vijay India					MPEG-4 / Viaccess
	Star CJ Alive					MPEG-4 / FTA
3 936 -H- tp 6	INX Network	10 100	3/4	4A	240+ cm	DVB
	9xM					MPEG-4/Irdeto
	9x					MPEG-4/Irdeto
	A2Z Documentary					MPEG-4 / FTA
	Mastii					MPEG-4 / FTA
	Paras Siti Plus					MPEG-4 / FTA
	Vee News					MPEG-4 / FTA
	Channel 2					MPEG-4 / FTA
3 949 -H- tp 7	DY 365	3 225	3/4	4A	240+ cm	DVB FTA
3 953 -V- tp 13	Indiasign	3 460	7/8	2E Zone	360-600+ cm	DVB
	Channel Divya					FTA
	testcard					FTA
3 958 -H- tp 7	unn. network	9 500	7/8	4A	240+ cm	DVB/MPEG-4
	Pragya TV					MPEG-4/FTA
	Mahuaa TV					MPEG-4/FTA
	Mahuaa News					MPEG-4/FTA
	Mahuaa Bangla					MPEG-4/FTA
	Mahuaa Khabar					MPEG-4/FTA
3 961 -V- tp 13	Raj TV	6 656	3/4	2E Zone	360-600+ cm	DVB/MPEG-4
	Raj Musix Kannada					MPEG-4/FTA
	Raj test					MPEG-4/FTA
	Raj Pariwar					MPEG-4/FTA
	Raj test					MPEG-4/FTA
	Raj Malayalam					MPEG-4/FTA
3 974 -V- tp 13	TV 9	13 333	3/4	2E Zone	360-600+ cm	DVB
	TV 1					FTA
	TV 9 Gujarati					FTA
	TV 9 Mumbai					FTA
	News 9					FTA
3 976 -H-tp 7	Zee News Uttar Pradesh	3 200	3/4	4A	240+ cm	MPEG-4/FTA
3 990 -H- tp 8	feeds ETV ...	2 140	3/4	4A	300+ cm	FTA/Biss/4:2:2
3 995 -V- tp 8	feeds Suvarna DSNG ...	1 700	3/4	4A	300+ cm	FTA/Biss/4:2:2
4 004 -H- tp 8	ETV	22 220	5/6	4A	240+ cm	DVB
	ETV Telegu					MPEG-4/Irdeto2
	ETV Bangali					MPEG-4/Irdeto2
	ETV Marathi					MPEG-4/Irdeto2
	ETV Kannada					MPEG-4/Irdeto2
	ETV Urdu					MPEG-4/Irdeto 2
	ETV Gujrati					MPEG-4/Irdeto2
	ETV Oriya					MPEG-4/Irdeto2
	ETV 2					MPEG-4/Irdeto2
	ETV Uttar Pradesh					MPEG-4/Irdeto 2
	ETV Madhya Pradesh					MPEG-4/Irdeto 2
	ETV Rajasthan					MPEG-4/Irdeto 2
	ETV Bihar					MPEG-4/Irdeto 2
4 010 -V- tp 14	Asianet	19 531	3/4	2E WIDE	180+ cm	DVB
	Jeevan TV					FTA
	Asianet News					FTA
	Sitara TV					FTA
	Suvarna News					FTA
	Asianet Middle East					FTA
	Suvarna					FTA
	Test Card 2					MPEG-4/test
	Asianet Mpeg-4					MPEG-4 /Viaccess
	Asianet Plus Mpeg-4					MPEG-4 /Viaccess
	Suvarna Mpeg-4					MPEG-4 /Viaccess
4 030 -H- tp 8	Mh1 network	4 440	3/4	4A	200+ cm	DVB
	Mh1 News					MPEG-4 /FTA
	Mh1 Music					MPEG-4 /FTA
	Shraddha					MPEG-4 /FTA
4 031 -V- tp 15	TATA Communications	7 440	7/8	2E WIDE	200+ cm	DVB
	Maa Music					Irdeto
	Maa Junior
	Maa Movies
	Moon tv					FTA
4 040 -H- tp 9	Essel Shyam	7 500	7/8	4A	240+ cm	DVB
	Katyayani					FTA
	A2Z News					FTA
	Saam TV					FTA
	Sang Bhoj					FTA
4 042 -V- tp 15	RRSat Global	7 420	7/8	2E WIDE	200+ cm	DVB
	God Greater China					FTA
	Tamil Box Office					FTA
	1TV Rus Asia					Biss
	Marine Biz TV					FTA
4 051 -V- tp 15	TATA Communications	5 084	7/8	2E WIDE	200+ cm	DVB
	Vasanth TV					FTA
	Samachar 365					FTA
4 054 -H- tp 9	Lamhas	13 230	3/4	4A	240+ cm	DVB
	Lamhas test 2
	Lamhas test 3
	Cuisine TV
	TV99					FTA
	Lamhas_Classic test card					MPEG-4/FTA
	Lamhas test 1					MPEG-4/FTA
	Lemon TV					FTA
	Naxatra News					FTA
	Jhankar TV					MPEG-4/FTA
	Vision music					MPEG-4/FTA
	Arihant tv					MPEG-4/FTA
4 071 -V- tp 16	DD1 2E NATIONAL	5 000	3/4	2E Zone	340+ cm	DVB FTA
4 072 -H- tp 10	TV 18 Network	6 500	3/4	4A	240+ cm	DVB
	HSN 18 Teleshop					FTA
	IBN Lokmat					MPEG-4/Conax
	Toper TV					MPEG-4/Conax
4 076 -V- tp 16	Care world	3 500	7/8	2E Zone	400-600+ cm	DVB FTA
4 087 -H- tp 10	Live India	3 300	3/4	4A	240+ cm	DVB FTA
4 091 -V- tp 16	Indiasign	9 230	7/8	2E Zone	360-600+ cm	DVB
	ATV					FTA
	Ekamra					MPEG-4/FTA
	HM tv					FTA
	Inews					FTA
	test					FTA
	test					FTA
4 091 -H- tp 10	Mi Marathi	3 000	3/4	4A	240+ cm	DVB FTA
4 100 -V- tp 16	unn. network	4 700	3/4	2E Zone	340-600+ cm	DVB/MPEG-4
	News Live					MPEG-4/FTA
	Rang TV					MPEG-4/FTA
4 100 -H- tp 10	BBS TV	4 750	3/4	4A	240+ cm	DVB FTA
4 115 -H- tp 11	Manorama News	5 555	3/4	4A	240+ cm	DVB
	MM COCHIN - Manorama News					MPEG-4/FTA
	MMCAL - Manorama News					MPEG-4/FTA
	MMTVM - Manorama News					MPEG-4/FTA
4 134 -H- tp 11	BAG	10 600	3/4	4A	240+ cm	DVB
	News 24					FTA
	E 24					FTA
	Shakti Tv test					FTA
	Biz 24					FTA
4 151 -H- tp 12	Zee Network	6 500	3/4	4A	240+ cm	DVB
	Zee 24 Ghanta					FTA
	Zee Kannada					Conax
	Zee Telegu					Conax
4 161 -H- tp 12	Zee Network	6 500	3/4	4A	240+ cm	DVB
	Zee 24 Taas					FTA
	Z 24 Ghantalu N					MPEG-4/Conax
	Zee Talkies					Conax
4 170 -H- tp 12	LS-Lok Sabha TV	4 650	3/4	4A	240+ cm	DVB FTA
4 180 -H- tp 12	Kolkata TV	3 233	3/4	4A	240+ cm	DVB FTA

Insat 2E/3B/4A at 83.0°E : relative Q

Insat 2E/3B/4A at 83.0°E : video presentation

        Go to video section :

Insat 2E/3B/4A at 83.0°E : Update drawn up

                           dxsatcs logo
             CZECH & SLOVAK DX SATELLITE CLUB
           international professional portal
                                think-tank
      Roman Dávid - author & founder
          mail : roman.david@dxsatcs.com
