Insat 4CR & Edusat at 74.0°E

Insat 4CR & Edusat at 74.0°E : Technical data

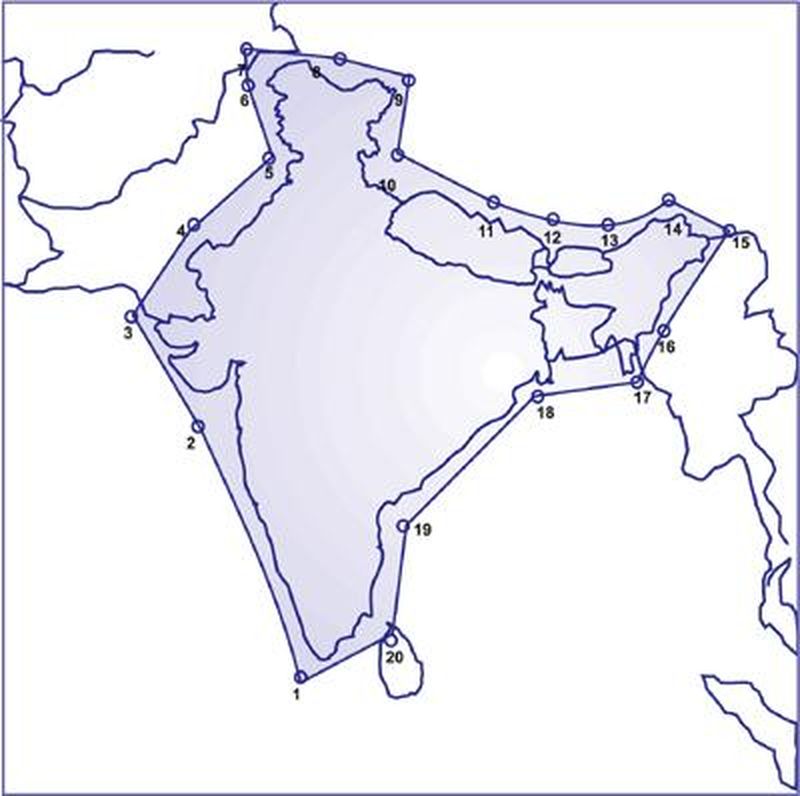

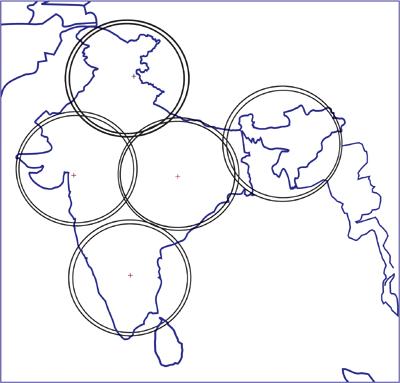

Edusat at 74.0°E - KU National & Regional beam coverage _ satellite data

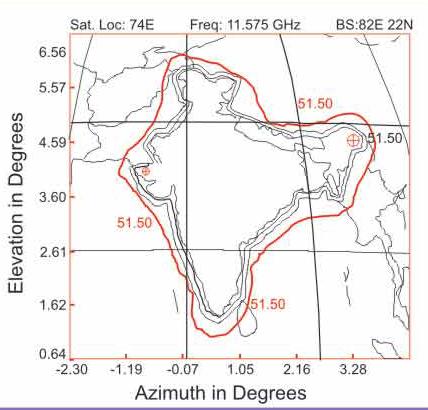

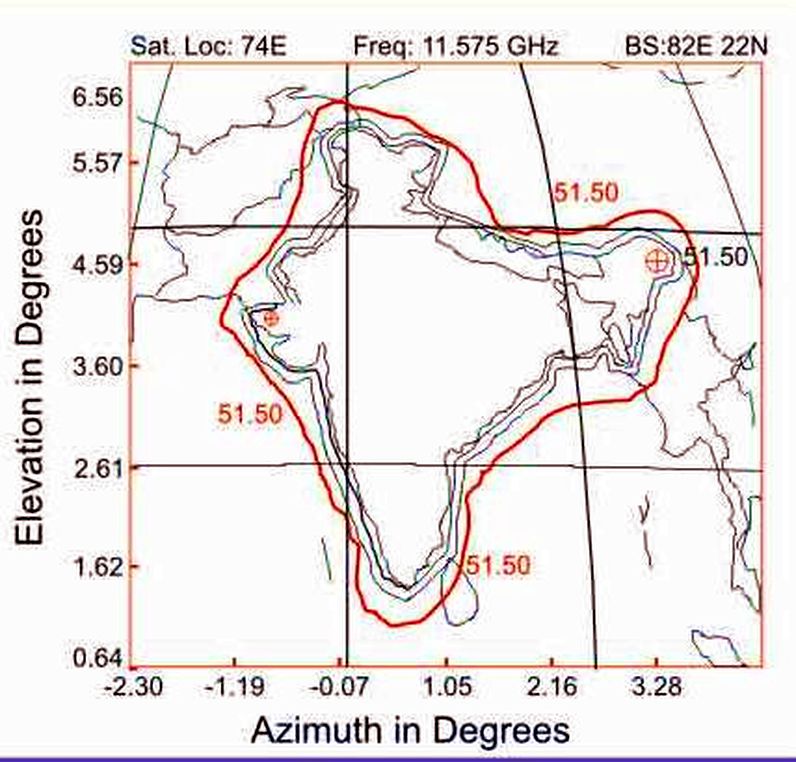

Insat 4CR at 74.0°E - KU Indian beam coverage _ satellite data

Insat 4CR at 74.0°E - indian footprint in KU band : PACKET Airtel-spectral analysis

.
   Insat 4CR at 74.0°E - indian beam : measurements taken in the town of Lučenec / Slovakia
                           geographical location : Latitude: 48.33° _   Longitude: 19.72°
                      measurement results are derived from the 3.7 m diameter antenna
                                                date of measurement : 15.8 2010
                                                      elevation angle : 14.5°

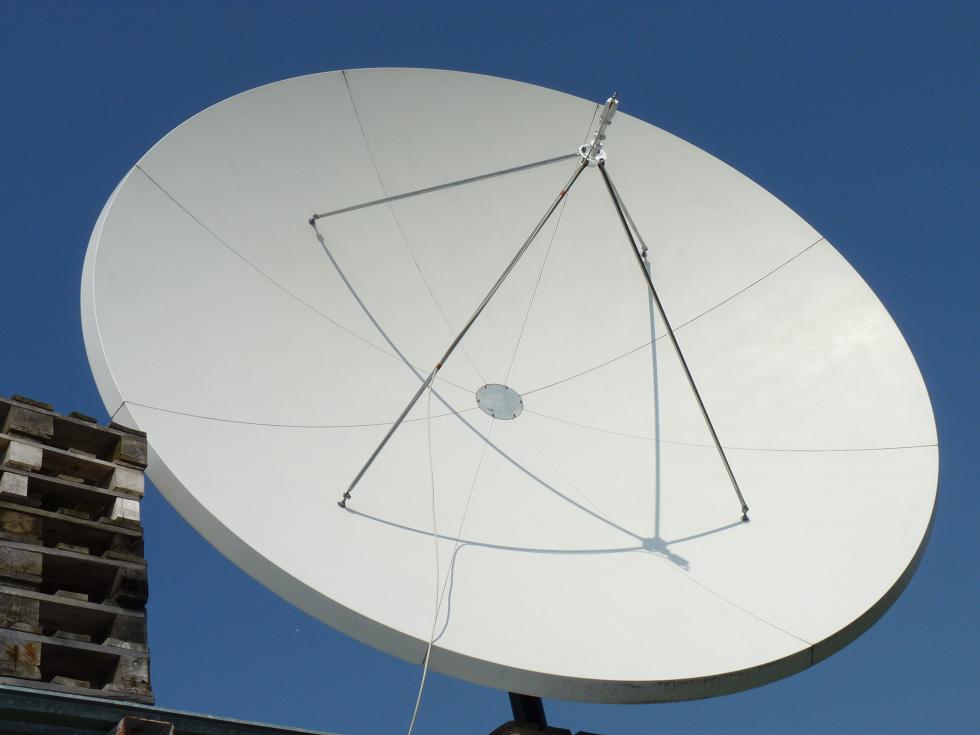

    Insat 4CR: High frequency unit                    Insat 4CR footprint-beam         Insat 4CR : measurement point

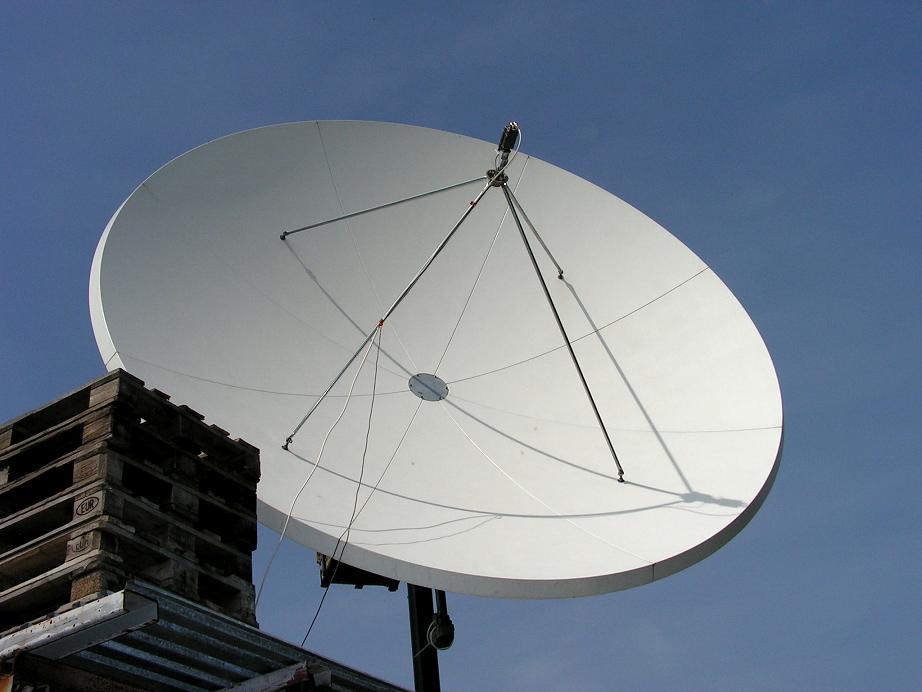

PF Prodelin 3.7 m                                   coverage area                          all research and measurements
dxsatcs waveguide line+Norsat 4206 CF     Asia , Middle East , Europe                     I carried out at this point

--- Insat 4CR-indian beam in KU band : Packet AIRTEL India-spectral analysis ---

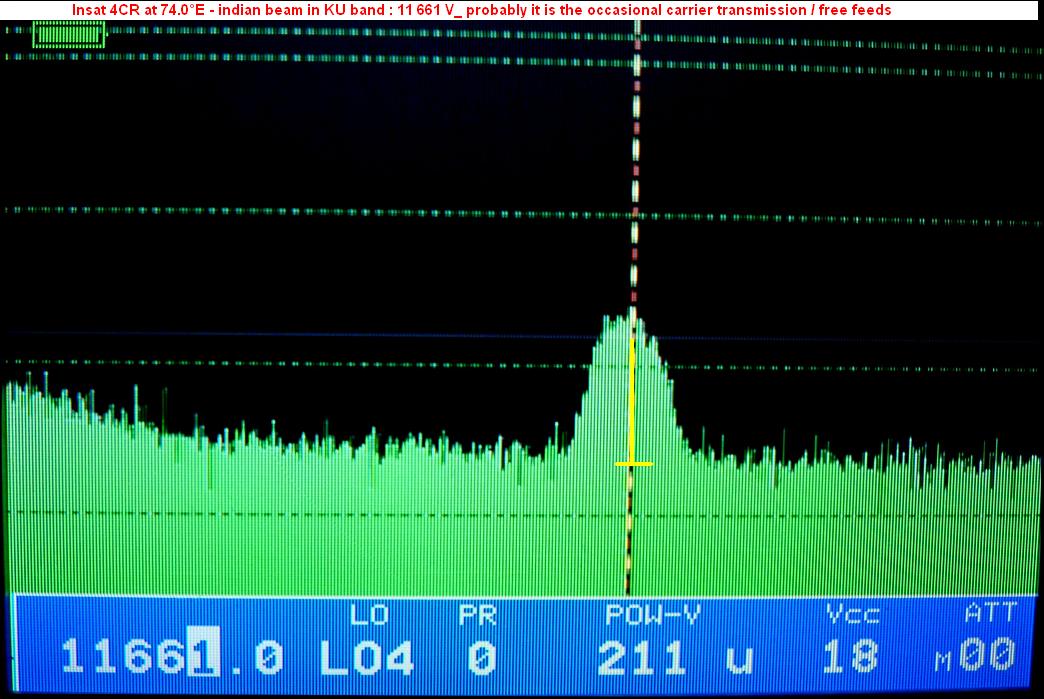

      Insat 4CR : Packet Airtel India             Insat 4CR : Packet Airtel India          Insat 4CR : 11 661 V free feeds c

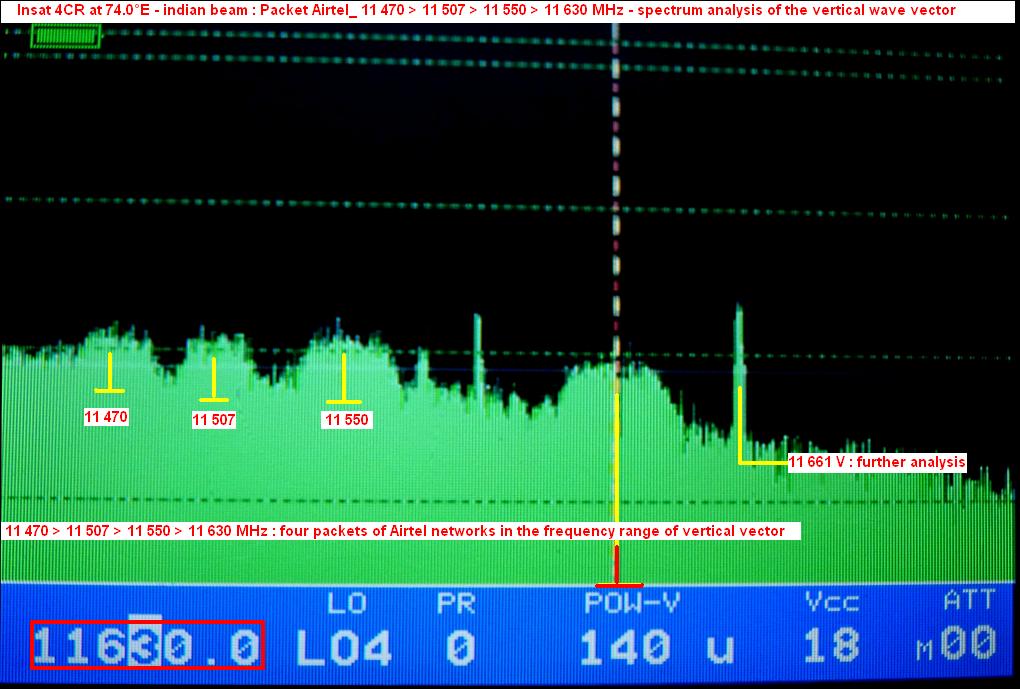

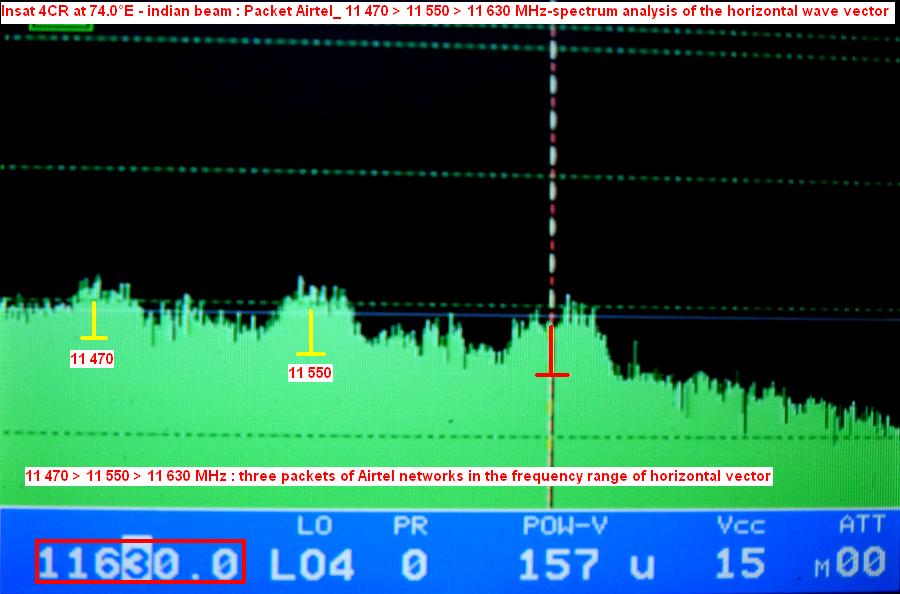

     H vector:11 470,11 550,11 630 V vector:11 470,11 507,11 550,11 630

                                                                  - time of measurement : 15.8 2010 -
                                                         - defining the status of reception -

Airtel India - spectrum H+V : in the Central European zone I have identified an unstable signal levels without the possibility
of locking the carrier

feeds- spectrum H+V : in the spectrum of vertical wave vector in the range from 11 580 to 11 700 MHz is occasionally possible
to identify the broadcast channel feeds

Edusat at 74.0°E-national beam in KU band: archived results from the first reception of satellite 6.4.2009

   Edusat at 74.0°E - national beam : measurements taken in the town of Lučenec / Slovakia
                           geographical location : Latitude: 48.33° _   Longitude: 19.72°
                      measurement results are derived from the 3.7 m diameter antenna
                                                date of measurement : 6.4 2009
                                                   elevation angle : 14.5°

      HF UNIT                               Edusat national footprint_theoretical          Edusat : measurement point
Prodelin 3.7m,Hirschmann CSP 1210 C                 coverage area                           all research and measurements
     LNB SMW WDL Digital type E              Asia , Middle East , Europe                         I carried out at this point

--- Edusat at 74.0°E-national beam coverage in KU band : archived results from the first reception / 6.4.2009 ---

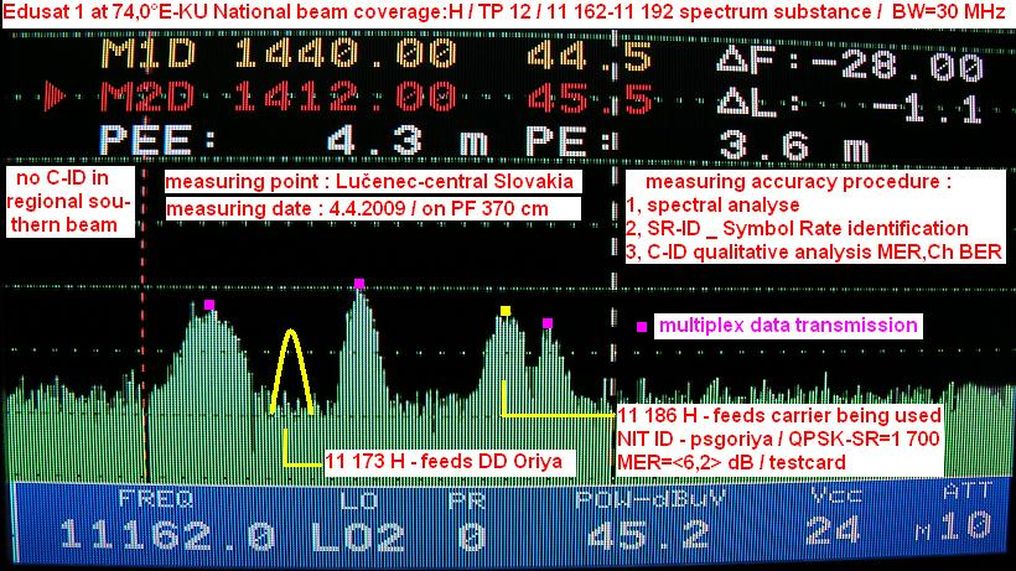

                                                          Edusat at 74.0°E : TP 12 - 11 162 >11 192 H

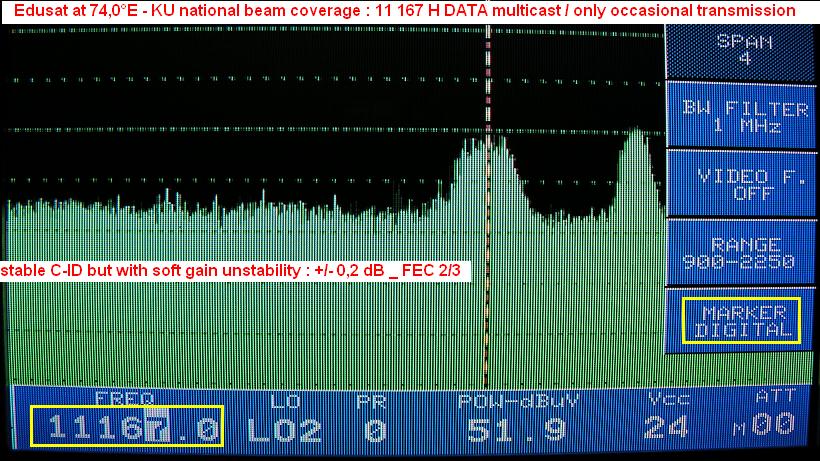

                     Edusat at 74.0°E-national beam coverage in KU band : 11 167 H DVB-S Data stream

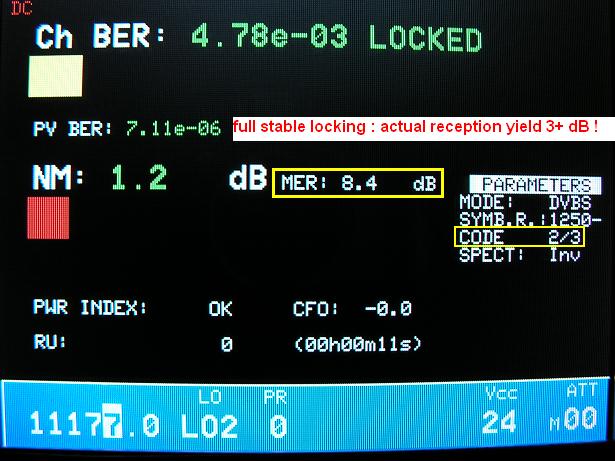

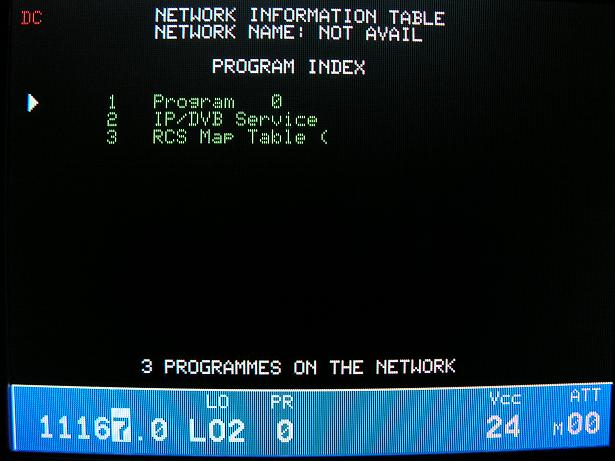

              spectral analysis                                    Q analysis                                           NIT data

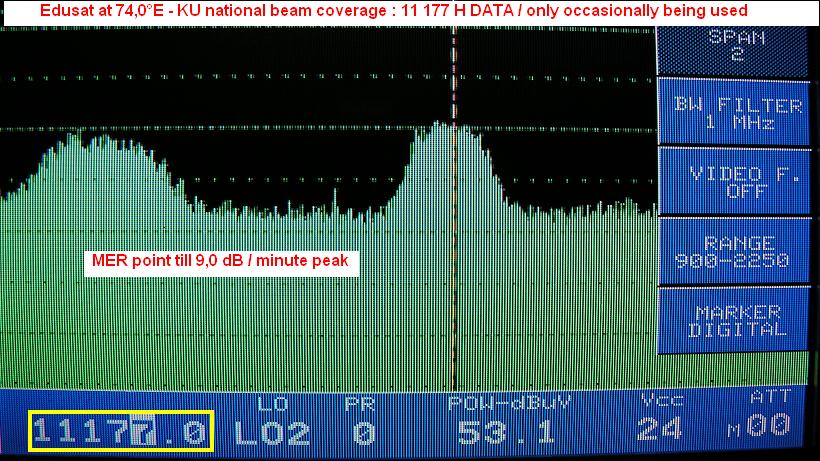

Edusat at 74.0°E-national beam coverage in KU band : 11 177 H DVB-S Data stream

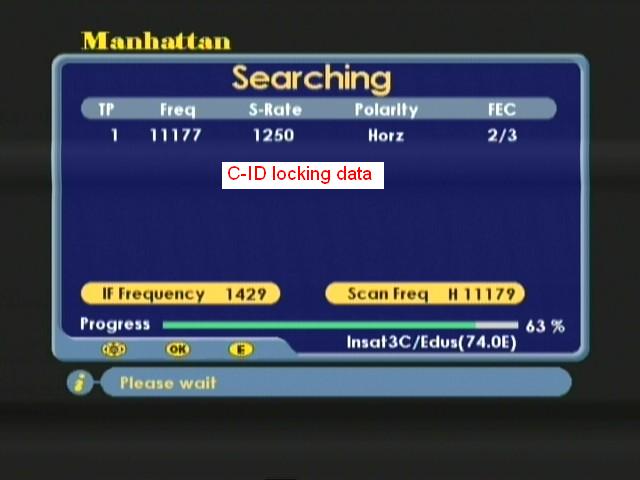

spectral analysis Q analysis C-ID

Insat 4CR & Edusat at 74.0°E : TV List

Insat 4CR at 74.0 e-indian beam in ku band-PF Prodelin 3.7 m-02

--Frequency--	-----Provider/Channel-----	---SR---	---FEC---	---Footprint---	---Antenna---	---DVB/Encryption---
11 155 -H- tp 12	no service	4 000	2/3	KU National Edusat	240+ cm	-
11 165 -H- tp 12	no service	4 000	2/3	KU National Edusat	240+ cm	-
11 173 -H- tp 12	no service	3 000	2/3	KU National Edusat	300+ cm	-
11 177 -H- tp 12	no service	1 250	2/3	KU National Edusat	240+ cm	-
11 181 -H- tp 12	no service	1 500	2/3	KU National Edusat	240+ cm	-
11 186 -H- tp 12	no service	1 700	2/3	KU National Edusat	300+ cm	-
11 188 -H- tp 12	no service	-	-	KU National Edusat	300+ cm	-
11 470 -H-	Airtel India	28 800	8/9	KU Asia Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 470 -V-	Airtel India	28 800	2/3	KU Asia Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 507 -V-	Airtel India	28 800	2/3	KU Asia Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 550 -V-	Airtel India	28 800	2/3	KU Asia Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 550 -H-	Airtel India	28 800	2/3	KU Asia Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 630 -H-	Airtel India	28 800	2/3	KU Asia Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard
11 630 -V-	Airtel India	28 800	2/3	KU Asia Insat 4CR	400-600+ cm	DVB-S2/MPEG-4 Videoguard

Insat 4CR & Edusat at 74.0°E : relative quality

Insat 4CR & Edusat at 74.0°E : Video presentation

Insat 4CR & Edusat at 74.0°E : update drawn up
