Intelsat 3R/11 at 43.0°W-C-band

By Roman Dávid. ,

Intelsat 3R/11 at 43.0°W : Technical data

                                                                             click on image for high quality
Intelsat 11 at 43.0 w_combined footprint_first snap 004

          satellite : Intelsat 11  - orbit : 43.1°W - TP linear V+H / bw : 12x54_4x64 MHz - lifetime : from 5.10.2007 - 15 years


Intelsat 11 at 43.0°W -Americas & Europe footprint : spectral analysis & measurement results


  Intelsat 11 at 43.0°W - Americas/Europe footprint : measurements at the center Lučenec_central Slovakia
                                        geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                     measurement results are derived from the 3.7 m diameter antenna
                                                                       elevation angle  : 9.0°


                              Intelsat 11 spectral analysis                        Intelsat 11 footprint
                               3 717/3 745 V : TP AE1C                   North & South America , Europe ...
                      Intelsat 11 at 43.0 w_combined footprint_spectral analysis Intelsat 11 at 43.0 w_combined footprint
                                                        - time of measurement : 27.3.2010 -
                                                             - defining the status of income -

                         ---  Intelsat 11 at 43.0° W : 3 745 V DVB-S2/8PSK Packet Discovery   ---

MERp=9.5 dB_N.MAR=+1.0 dB : in the field of measurement and aggregation of data in the length of 30 minutes
I measured consistently present gain margin more than 3 dB with a slightly oscillating peak amplitude MER in the
range +/- 0.2 dB

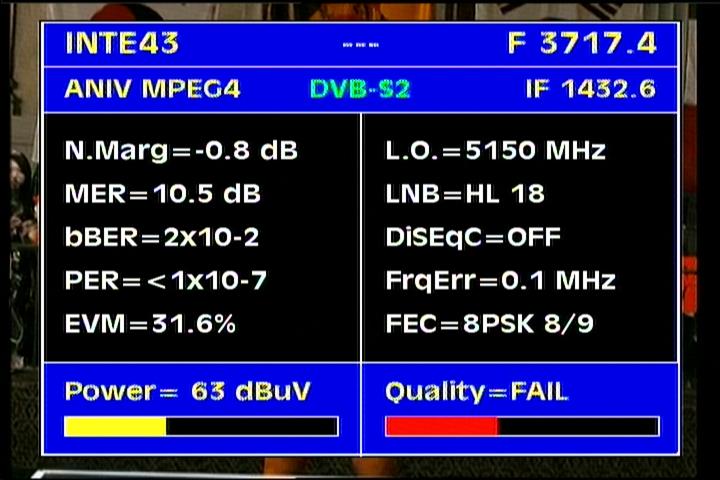

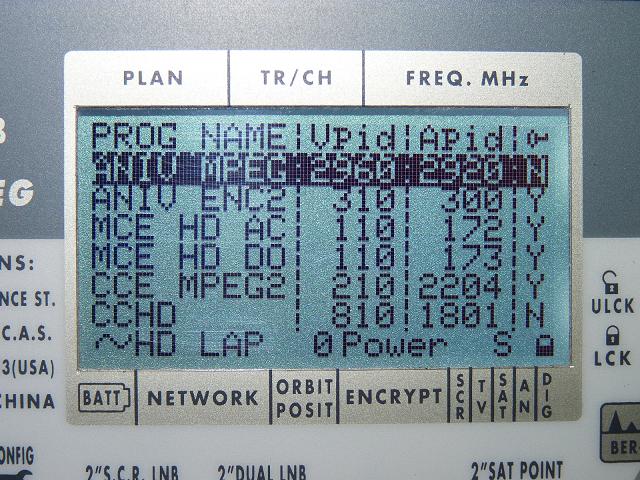

                                   Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 717 V Movie City
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_combined footprint_3 717 V dvb s2 Packet Movie City USA_IF dataIntelsat 11 at 43.0 w_combined footprint_3 717 V dvb s2 Packet Movie City USA_IF dataIntelsat 11 at 43.0 w_combined footprint_3 717 V dvb s2 Packet Movie City USA_NIT data

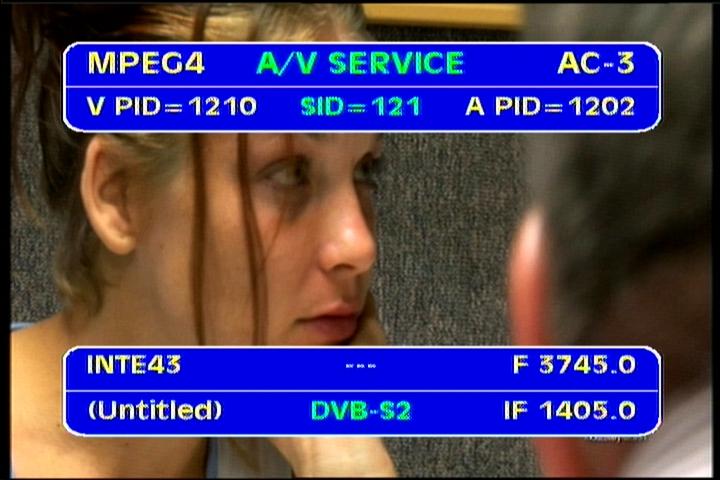

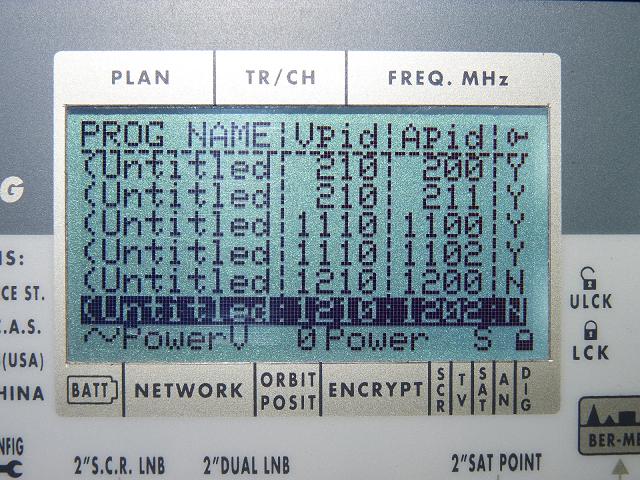

                       Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 745 V Discovery HD+SD netw.
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_combined footprint_3 745 V dvb s2 Packet Discovery_IF dataIntelsat 11 at 43.0 w_combined footprint_3 745 V dvb s2 Packet Discovery_Q dataIntelsat 11 at 43.0 w_combined footprint_3 745 V dvb s2 Packet Discovery_NIT data

                                Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 780 H Packet Turner
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 780 H Packet Turner _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 780 H Packet Turner _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 780 H Packet Turner _ NIT data

                          Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 808 H Unnamed network
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 808 H Unn. packet _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 808 H Unn. packet _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 808 H Unn. packet _ NIT data

                                    Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 828 V Teletica 7
                          IF data                                                    Q data                                                    NIT data
Intelsat 11 at 43.0 w_combined footprint_3 828 V Teletica _IF dataIntelsat 11 at 43.0 w_combined footprint_3 828 V Teletica _Q dataIntelsat 11 at 43.0 w_combined footprint_3 828 V Teletica _NIT data

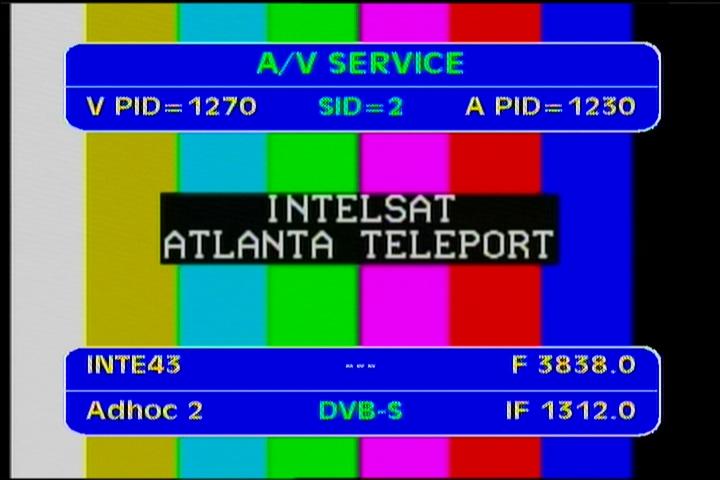

                             Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 838 H Packet PAS 3/5
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_combined footprint_3 838 H Packet PAS_IF dataIntelsat 11 at 43.0 w_combined footprint_3 838 H Packet PAS_Q dataIntelsat 11 at 43.0 w_combined footprint_3 838 H Packet PAS_NIT data

                       Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 855 V TVsa Int feed / test card
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 855 V TVSA Int _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 855 V TVSA Int _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 855 V TVSA Int _ NIT data

                                     Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 874 V Canal 36
                          IF data                                                    Q data                                                    NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 874 V Canal 36 test card _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 874 V Canal 36 test card _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 3 874 V Canal 36 test card _ NIT data

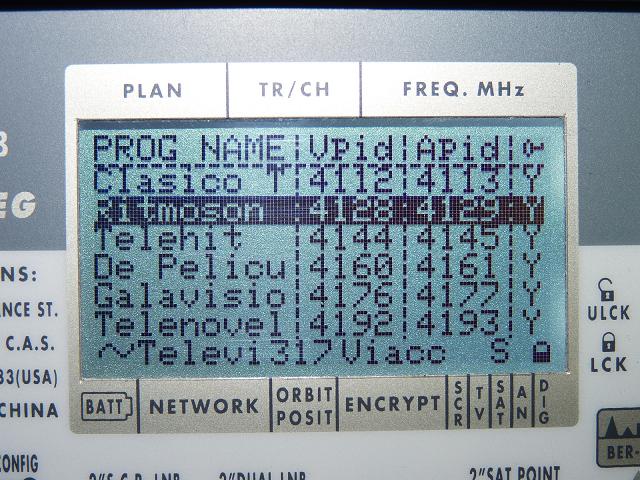

                         Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 928 H Packet Televisa Network
                          IF data                                                    Q data                                                    NIT data
Intelsat 11 at 43.0 w_combined footprint_3 928 H Packet Televisa _IF dataIntelsat 11 at 43.0 w_combined footprint_3 928 H Packet Televisa _Q dataIntelsat 11 at 43.0 w_combined footprint_3 928 H Packet Televisa _NIT data

                             Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 943 H DVB-S2 Packet Local
                          IF data                                                    Q data                                                    NIT data
Intelsat 11 at 43.0 w_combined footprint_3 943 H TDN HD Mexico _IF dataIntelsat 11 at 43.0 w_combined footprint_3 943 H TDN HD Mexico _Q dataIntelsat 11 at 43.0 w_combined footprint_3 943 H TDN HD Mexico _NIT data

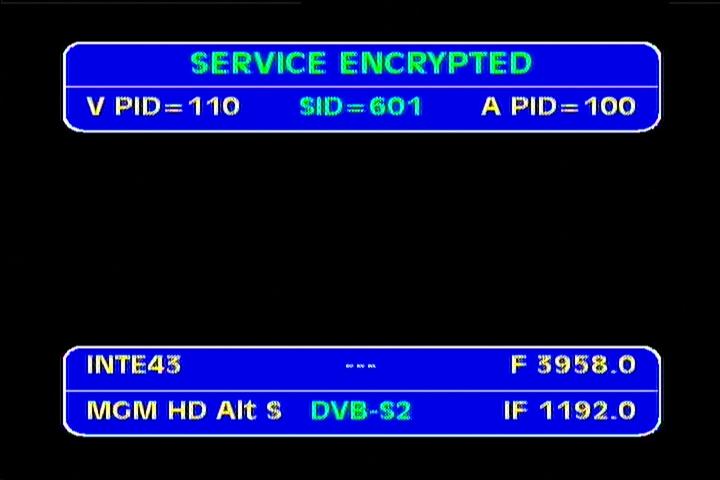

                                   Intelsat 11 at 43.0°W - Americas/Europe footprint : 3 958 V MGM HDTV
                          IF data                                                    Q data                                                    NIT data
Intelsat 11 at 43.0 w_combined footprint_3 958 V dvb s2 Packet MGM HD_IF dataIntelsat 11 at 43.0 w_combined footprint_3 958 V dvb s2 Packet MGM HD_Q dataIntelsat 11 at 43.0 w_combined footprint_3 958 V dvb s2 Packet MGM HD_NIT data

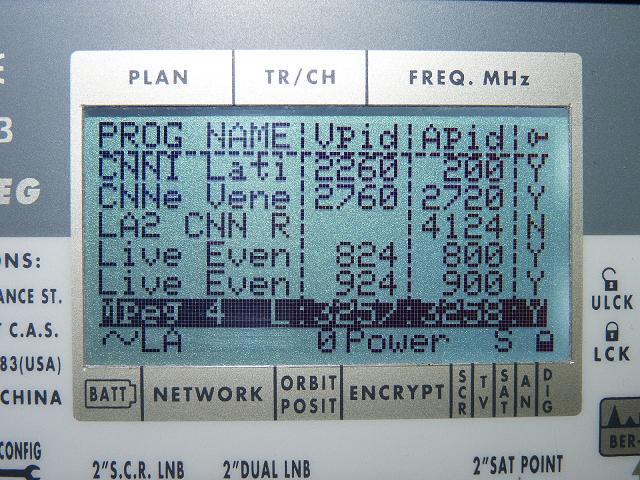

                             Intelsat 11 at 43.0°W - Americas/Europe footprint : 4 040 H CNN Latin America
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_combined footprint_4 040 H Packet CNN _IF dataIntelsat 11 at 43.0 w_combined footprint_4 040 H Packet CNN _Q dataIntelsat 11 at 43.0 w_combined footprint_4 040 H Packet CNN _NIT data

                            Intelsat 11 at 43.0°W - Americas/Europe footprint : 4 106 V ESPN Latin America
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 106 V ESPN Latin America _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 106 V ESPN Latin America _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 106 V ESPN Latin America _ NIT data

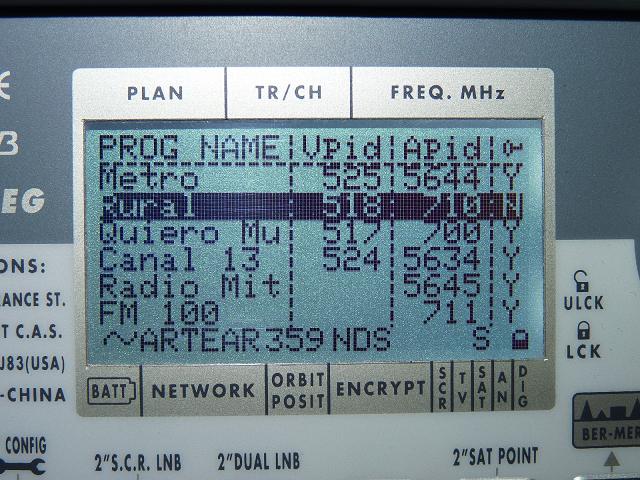

                               Intelsat 11 at 43.0°W - Americas/Europe footprint : 4 150 H Packet Artear
                      VA pids data                                                 Q data                                                 NIT data
Intelsat 11 at 43.0 w_combined footprint_4 150 H Packet Artear _IF dataIntelsat 11 at 43.0 w_combined footprint_4 150 H Packet Artear _Q dataIntelsat 11 at 43.0 w_combined footprint_4 150 H Packet Artear _NIT data

                            Intelsat 11 at 43.0°W - Americas/Europe footprint : 4 180 H DVB-S2/8psk Unical
                          IF data                                                      Q data                                                 NIT data
Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 180 H DVB S2 8PSK Unicanal _ IF dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 180 H DVB S2 8PSK Unicanal _ Q dataIntelsat 11 at 43.0 w_C band_Americas Europe footprint _ 4 180 H DVB S2 8PSK Unicanal _ NIT data

Intelsat 3R/11 at 43.0°W : TV List


Intelsat 11 at 43.0 w_C band_Americas Europe footprint _ PF Prodelin 3.7 m


---Frequency---


----Provider/Channel----

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 718 -V- tp AE1C

 Movie City 21 598 8/9   Americas &
     Europe		 300+ cm DVB-S2/8PSK
 now FTA/27.3.10 Movie City Pack/ANIV MPEG-4
watch video         watch video		 V.p-2960       MPEG-4/FTA/SD
  ANIV ENCODER 2 V.p-310       MPEG-2/PowerVu
  MCE HD V.p-110       MPEG-2/HD/PowerVu
  CCE MPEG-2 V.p-210       MPEG-2/PowerVu
  CCE HD_black screen V.p-810       MPEG-4/FTA/SD
  Movie City HD/MPEG-2 V.p-710       MPEG-2/PowerVu

3 745 -V- tp AE1C

Discovery network

 21 608 3/4   Americas &
     Europe		 180+ cm DVB-S2/8PSK
  SD 1 Encoder V.p-210       MPEG-4/PowerVu
  HD Theater span & port V.p-1110       MPEG-4/HD/PowerVu
  TLC HD span & port
watch video       watch video		 V.p-1210       MPEG-4/HD/PowerVu

3 780 -H- tp AE4C

 Turner 27 690 7/8   Americas &
      Europe		 140-180+ cm DVB
  Fashion TV Brasil         PowerVu
  Boomerang Brasil         PowerVu
  Boomerang Mexico         PowerVu
  TCM Classic N         PowerVu
  TCM Classic H         PowerVu
  TNT Chile         PowerVu
  TNT Brasil         PowerVu
  TNT Mexico         PowerVu
  TNT Argentina         PowerVu
  Cartoon Network Argentina         PowerVu
  Cartoon Network Latin America         PowerVu
  Cartoon Network Mexico         PowerVu
  Cartoon Network Brasil         PowerVu
  Boomerang latin America         PowerVu

3 808 -H- tp AE4C

  Unnamed network/no signal 13 838 5/6  Americas &
     Europe		 180+ cm DVB-S2/8PSK/MPEG-4
  TNT HD         MPEG-4/PowerVu
  Space HD         MPEG-4/PowerVu
  Space PNR SD         MPEG-2/PowerVu

3 828 -V- tp AE5C

 Teletica 7    watch video 3 300 3/4   Americas &
     Europe		 180+ cm DVB FTA

3 836 -V- tp AE5C

 Unnamed network
 		 7 779  2/3   Americas &
     Europe		 180+ cm DVB-S2/8PSK/MPEG-4
  Canal 9         MPEG-4/Irdeto
  America Repetid         MPEG-4/Irdeto
  America Interna         MPEG-4/Irdeto
  America Interio         MPEG-4/Irdeto
  America 24         MPEG-4/Irdeto
  Junin TV         MPEG-4/Irdeto

3 838 -H-tp tp ---

  PAS 3/5 20 768 3/4   Americas &
     Europe		 180+ cm  DVB-S
  Open VC 1         feeds
  Adhoc 2       watch video         feeds
  Adhoc 3         feeds
  DCP         feeds
  NBA to Latin         MPEG-2/PowerVu

3 855 -V- tp AE5C

 TVSA Int latino testcard/feeds 5 944 3/4   Americas &
      Europe		 180+ cm DVB-S/FTA


3 866 -V- tp AE5C

SD Service with Layer

  10 559  5/6  Americas &
     Europe		  180+ cm DVB-S2/8PSK/MPEG-4
           PowerVu

3 875 -V- tp AE5C

 testcard Canal 36 1 546 2/3 Americas &
   Europe		 180+ cm DVB FTA

3 929 -H- tp AE8C

 Televisa Networks 13 500 7/8  Americas &
     Europe		 180+ cm DVB
  Clasico TV         Viaccess
  Ritmoson         Viaccess
  Telehit          Viaccess
  De Pelicula         Viaccess
  Galavision         Viaccess
  Telenovelas         Viaccess

3 943 -H- tp AE8C

Local

 7 812 5/6  Americas &
     Europe		 180+ cm DVB-S2/QPSK
now FTA/27.3.10 TDN FULL HD Mexico    watch video         MPEG-4/HD/FTA
  TLN Telenovelas    watch video         MPEG-4/SD/FTA

3 943 -V- tp AE7C

 Radio Nederland network 1 200 1/2   Americas &
     Europe		 180+ cm DVB

3 958 -V- tp AE9C

MGM HD

 6 400 3/4  Americas &
     Europe		 180+ cm DVB-S2/8PSK/MPEG-4
        PowerVu

3 971 -H- tp AE10C

 Discovery Channel 21 090 3/4  Americas &
     Europe		 180+ cm DVB
  Discovery Health Channel         PowerVu
  People + Arts America         PowerVu
  Discovery Channel America         PowerVu
  Discovery Kids America         PowerVu
  Discovery Channel Mexico         PowerVu

3 985 -V- tp AE9C

Radio Nederland network

 1 200 3/4 Americas &
     Europe		 180+ cm DVB FTA

3 995 -H- tp AE10C

 Discovery Channel 21 090 3/4  Americas &
     Europe		 180+ cm DVB
  Discovery Channel Latin America         PowerVu
  People+Arts Argentina         PowerVu
  Discovery Channel Argentina         PowerVu
  Discovery Kids         PowerVu
  Animal Planet latin America         PowerVu
  People+Arts Argentina         PowerVu
  Discovery Kids Argentina         PowerVu
  Discovery Home & Health         PowerVu

4 040 -H- tp AE12C

 CNN 30 800 7/8  Americas &
     Europe		 140-180+ cm DVB
  CNNi Latin America         unknown CA
  CNNe Espanol         unknown CA
  CNN Mexico         unknown CA
  CNNe Venezuela         unknown CA
  feeds Int news feed         MPEG-2/feeds
  feeds Live Events         MPEG-2/feeds
  feeds Live Events 2         MPEG-2/feeds
  MPEG-4 Live Events         MPEG-4/feeds

4 106 -V- tp AE13C

 ESPN 26 470 3/4  Americas &
     Europe		 140-180+ cm DVB
  ESPN DOS Mexico         PowerVu
  ESPN DOS         PowerVu
  ESPN Latin North Ven         PowerVu
  ESPN Latin America N         PowerVu
  ESPN Mexico Comercial         PowerVu
  ESPN 2 Caribbean         PowerVu

4 150 -H- tp AE16C

 Artear
 		 24 570 7/8  Americas &
     Europe		 180+ cm DVB
  TyC Max         Videoguard
  TyC Sports         Videoguard
  TyC Virtul         Videoguard
  TyC Inter 1         Videoguard
  TyC Inter 2         Videoguard
  Canal 13         Videoguard
  Todo Noticias         Videoguard
  Volver         Videoguard
  Magazine         Videoguard
  Artear Virtual         Videoguard
  Metro         Videoguard
  Canal Rural    watch video         FTA
  Quiero Musica         Videoguard
  Canal 10 Roca         Videoguard
  Canal 13 Int.         Videoguard

4 173 -H-tp AE16C

feeds/test card_Artear SDTG 1

 7 037 7/8  Americas &
     Europe		 180+ cm feeds


4 180 -H- tp AE16C

 IVG Default
 		  3 100  2/3  Americas &
     Europe		  180+ cm DVB-S2/8PSK
  Unicanal         MPEG-4/Irdeto
  Unicanal live street cam         MPEG-4/FTA

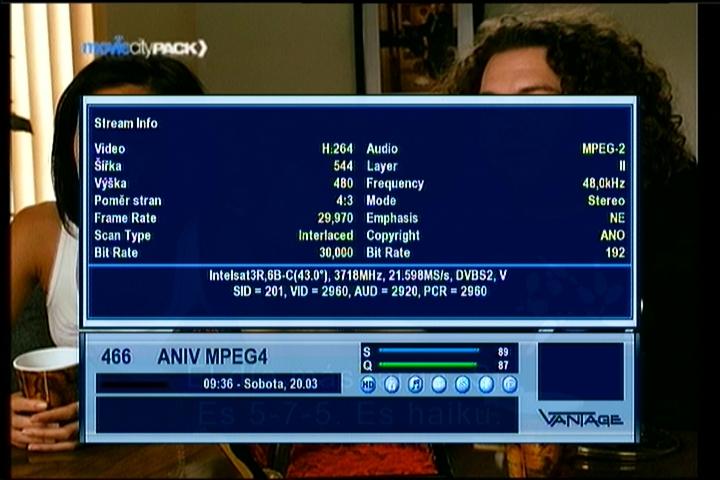

Intelsat 3R/11 at 43.0°W: relative Q

relative Q 001relative Q 002relative Q 003

Intelsat 3R/11 at 43.0°W: Video presentations

   Go to Video Section:
video button

Intelsat 3R/11 at 43.0°W : update drawn up

                                        dxsatcs logo
                                                   CZECH & SLOVAK DX SATELLITE CLUB
                                                       international professional portal
                                                       Roman Dávid - author & founder
                                                       mail : roman.david@dxsatcs.com

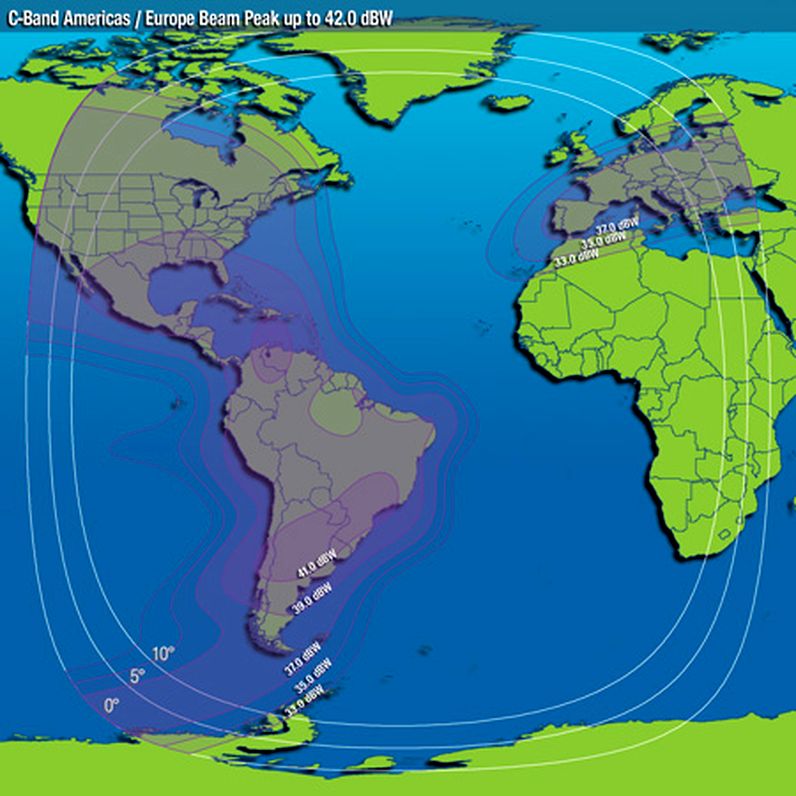

Intelsat 3R/11 at 43.0°W footprint : combined coverage of America and Europe

                                                     Intelsat 11 at 43.0 w_C band_Americas Europe footprint


Intelsat 3R/11 at 43.0°W : snapshots

Movie City Pack USA 04Movie City Pack USA 05Movie City Pack USA 06
TDN HD Mexico 07TLN Portugal 01TLN Portugal 02
