Intelsat 702 at 66.0°E

Intelsat 702 at 66.0°E : Technical data

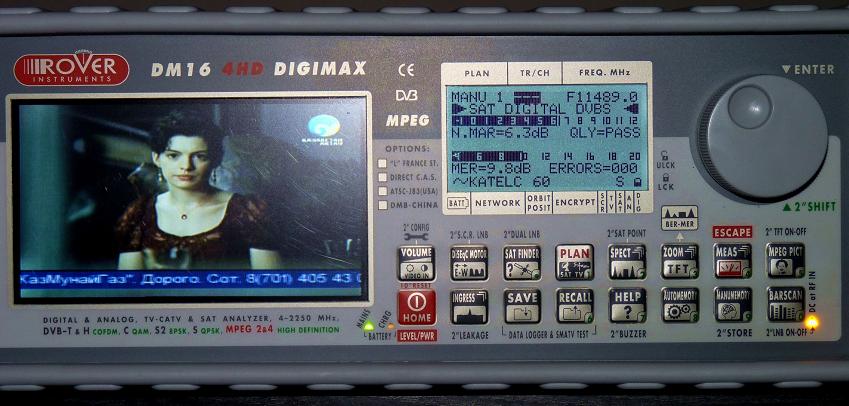

                Intelsat 702 at 66.0°E - Russian beam /SPOT 1 : 11 489 Kazakstan TV Aktau-qualitative peak MER=10 dB
Intelsat 702 at 66.0e-spot 1 russian beam-11 489 V Kazakstan Aktau-01 n
                           satellite : Intelsat 702 - Orbit : 66.0°E - TP : 26 C/10 KU - Lifetime: from 10.1.1995 - 16,5 years



Intelsat 702 at 66.0°E - Russian beam/SPOT 1 : spectral analysis and measuremet results

  Intelsat 702 at 66.0°E - SPOT 1 Russian beam : measurements at the center Lučenec_central Slovakia
                                            geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                       measurement results are derived from the 3.7 m diameter antenna
                                                                     date of measurement : 12.9.2010
                                                                              elevation angle  : 19.0°

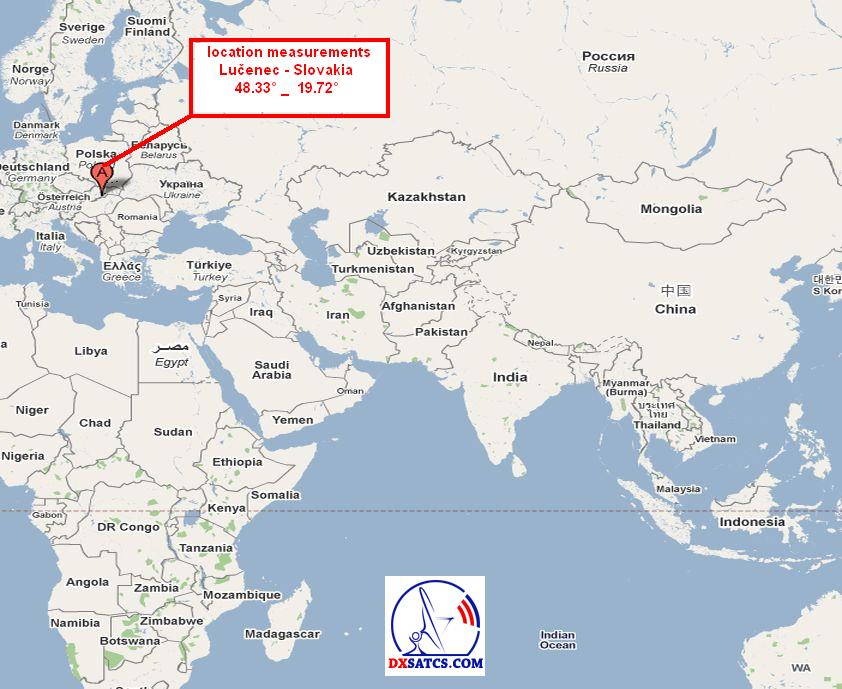

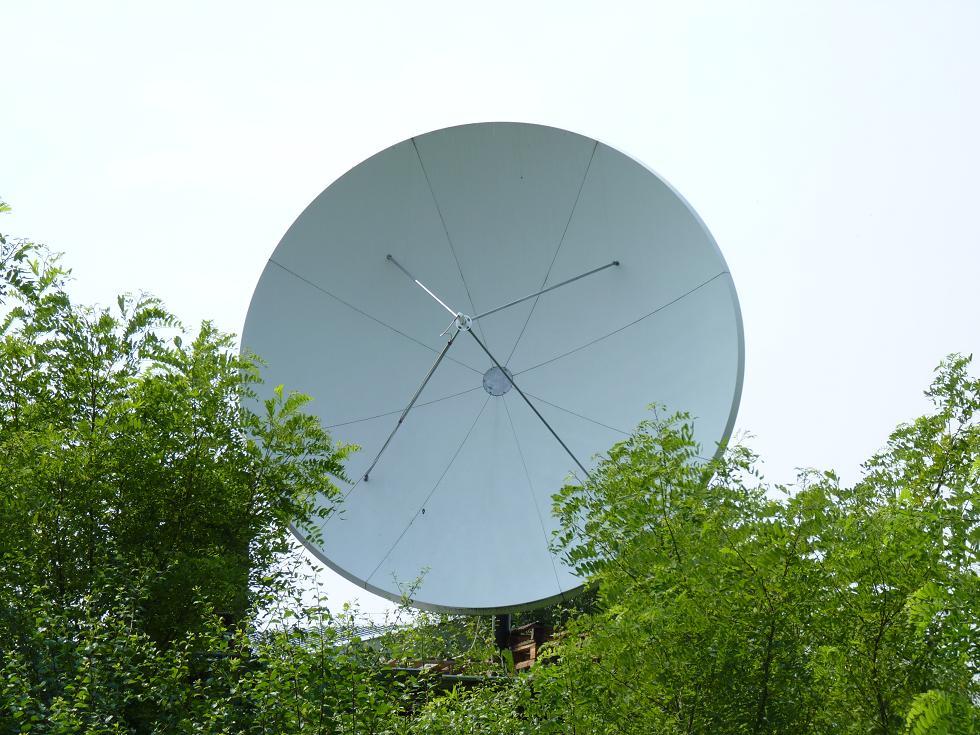

       Intelsat 702 footprint : russian              Intelsat 702 : installed system              Intelsat 702 : research point
 reception option is guaranteed in areas                    Prodelin 3.7 m                          town Lučenec / Slovak republic
                Europe , West Asia ...              dxsatcs waveguide line+Norsat 4206 BF                48.33° _ 19.72°
Intelsat 702 at 66.0e-spot 1 russian beamIntelsat 702 at 66.0e-spot 1 russian beam-PF Prodelin 3.7 mIntelsat 702 at 66.0e-spot 1 russian beam--measurement point

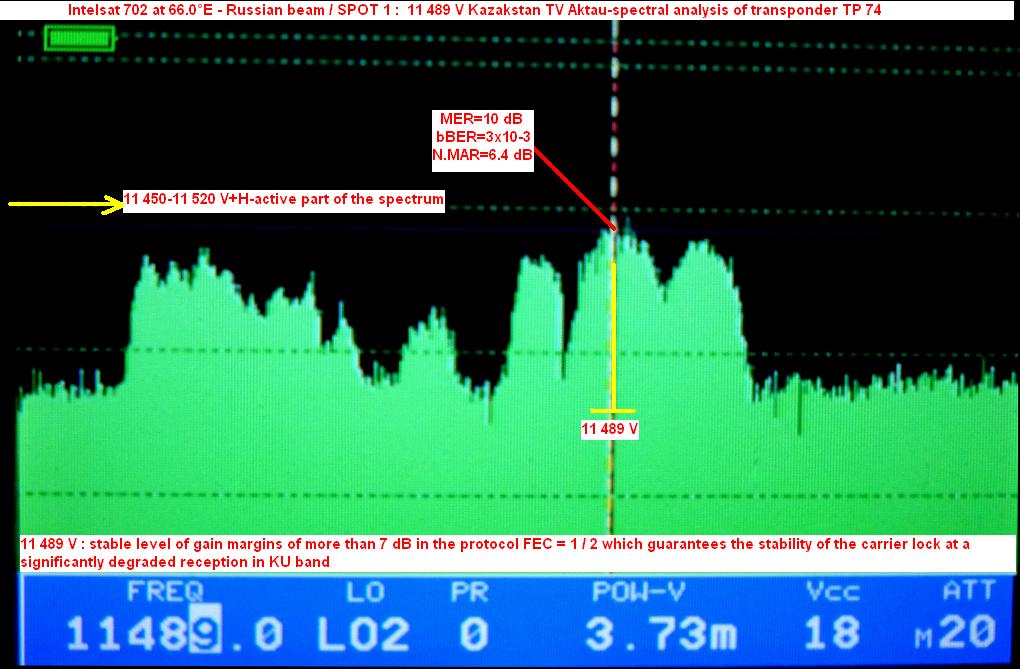

                                     --- IS 702 at 66.0°E : 11 489 V TV Kazakstan Aktau_spectral analysis ---

                                                                             click for enlarge
             Intelsat 702 at 66.0e-spot 1 russian beam-spectral analysis n
                                                                     - time of measurement : 12.9.2010 -
                                                                        - defining the status of reception -

11 489 V : stable level of gain margins of more than 7 dB in the protocol FEC = 1 / 2 which guarantees the stability of
the carrier lock at a significantly degraded reception in KU band

                                                                              --- measurement results ---


                             Intelsat 702 at 66.0°E - SPOT 1 Russia footprint : 11 489 V Kazakhstan Aktau

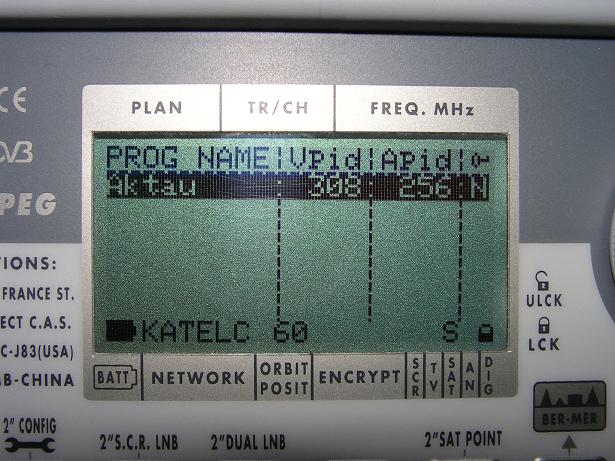

                          VA pids                                                      Q data                                                  NIT data
 Intelsat 702 at 66.0e-spot 1 russian beam-11 489 V Kazakstan Aktau-IF dataIntelsat 702 at 66.0e-spot 1 russian beam-11 489 V Kazakstan Aktau-Q dataIntelsat 702 at 66.0 e _ SPOT 1 Russia footprint_11 489 V  Kazakhstan Aktau _  NIT data


Intelsat 702 at 66.0°E : TV List

  Intelsat 702 at 66.0e-spot 1 russian beam-PF Prodelin 3.7 m 02


-Frequency-


----------Provider/Channel----------

---SR--- ---FEC--- ---Beam--- ---Antenna--- ---DVB/Encryption---

11 077 -V- tp 72

EMS DVB-RCS data

2 290 3/4 SPOT 1 80-120+ cm MPEG-2 / DATA

11 489 -V- tp 74

Kazakhstan Aktau / Aktau TV   watch video 4 123 1/2 SPOT 1 100-140+ cm DVB FTA

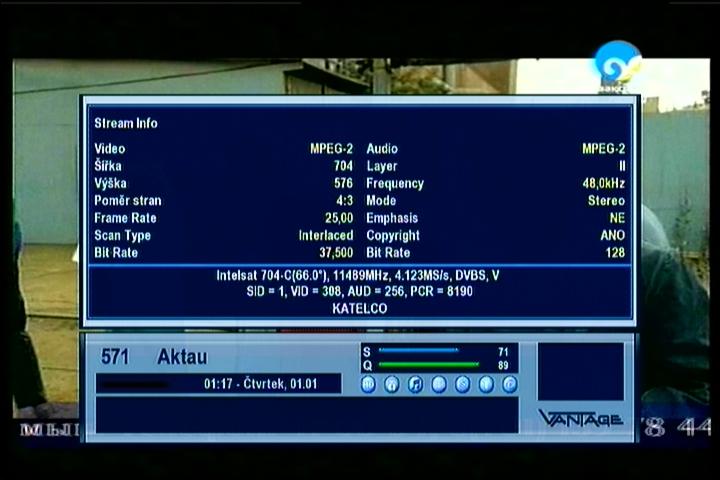

Intelsat 702 at 66.0°E : relative q

percent Q  01

Intelsat 702 at 66.0°E : Video presentations

      Go to video section :             Go to video section :               Go to video section :
watch videos     watch video     watch video

Intelsat 702 at 66.0°E : Update prepare


             CZECH & SLOVAK DX SATELLITE CLUB

international professional portal
                                  think-tank
                   Roman Dávid - author & founder
                   mail :
roman.david@dxsatcs.com

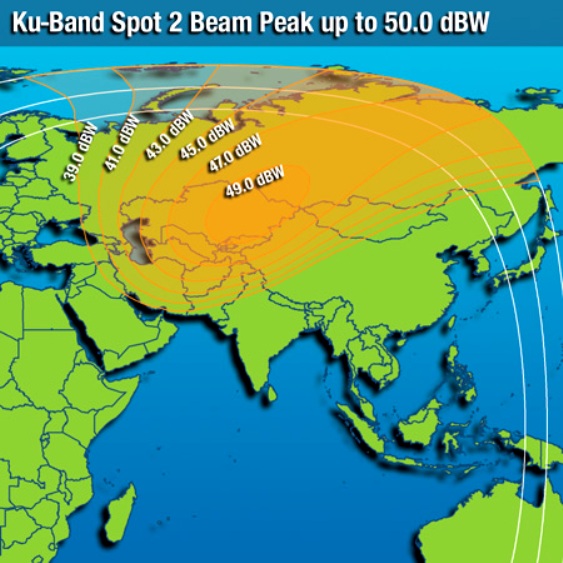

Intelsat 702 at 66.0°E footprint : SPOT 1 Russia _  SPOT 2 East Russia

Intelsat 702 at 66.0 e _ SPOT 1 Russia footprintIntelsat 702 at 66.0 e _ SPOT 2 East Russia footprint


Intelsat 702 at 66.0°E : snapshots

SGU tv  01Aktau TV  05SGU tv  03
SGU tv  04SGU tv  02SGU tv  06
