Intelsat 707 at 53.0°W
Intelsat 707 at 53.0°W : Technical data
satellite : Intelsat 707 - orbit : 53.0°W - TP : 42 C/28 KU - lifetime : unknown
Intelsat 707 at 53.0°W-East Hemi footprint : spectrum analysis with the definition of quality status
Intelsat 707 at 53.0°W - East Hemi footprint : measurements at the center Lučenec_central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
elevation angle : 2.5°
Intelsat 707 spectral analysis Intelsat 707 footprint_East Hemi
3 857 R : Africable Mali Europe , Africa ...
- time of measurement : 21.3.2010 -
- defining the status of income -
--- Intelsat 707 at 53.0°W - East Hemi footprint : 3 857 R Africable ---
- measurements confirmed the permanent oscillation of the peak-MER in amplitude from 4.0 to 7.0 dB at FEC 1/2
within a period of 20 min, but the carrier lock was stable because the carrier detection threshold level is about MER = 2.0 dB
Intelsat 707 at 53.0°W : results of measurements of quality of income
Intelsat 707 at 53.0°W - East Hemi footprint : 3 857 R Africable Mali
IF data Q data NIT data
Intelsat 707 at 53.0°W : TV List
---Frequency---
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---Video/Encryption--- |
|
3 857 -R- tp 22 |
Africable Mali  |
3 906 | 1/2 | East hemi | 180+ cm | DVB FTA |
Intelsat 707 at 53.0°W : percent Q & stream data
Intelsat 707 at 53.0°W : Video presentation
Intelsat 707 at 53.0°W footprint : East Hemi

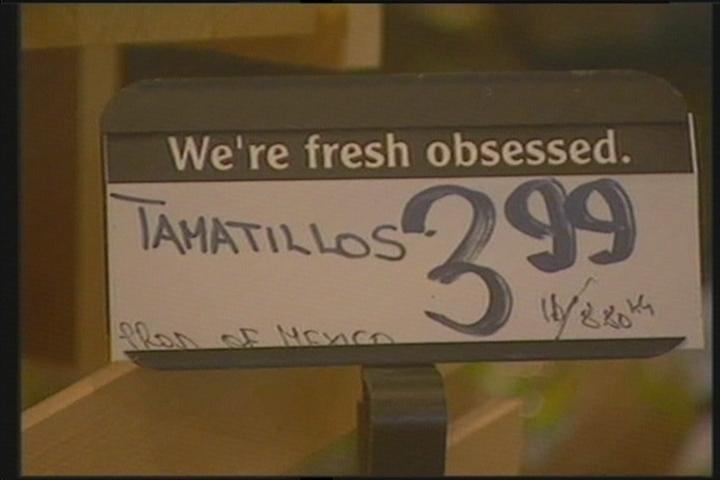

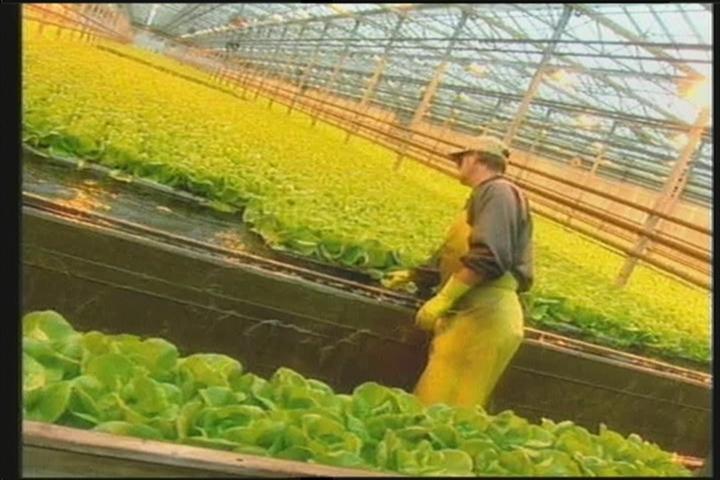

Intelsat 707 at 53.0°W : snapshots
